60 x 30 Inch Tool Cabinet (Red)

Item #ORG75201
Ships today
Only 6 left in stock
$3,450.00
Without casters, the cabinet housing can support a vertical load of 12,000 lb. and remain completely functional.

Specs Summary

Drawer Count:12
Max Drawer Load:400 lb. each
Total Storage Capacity:32,022 in.3
Caster Count:2 locking swivel, 2 fixed
Max Caster Load:900 lb. each / 3,600 lb. total
Cabinet Weight:820 lb.
Max Content Load:2,780 lb.
Without casters, the cabinet housing can support a vertical load of 12,000 lb. and remain completely functional.

For tool users who seek the highest level of storage, Tekton offers the most durable and best engineered line of rolling tool cabinets made in North America.

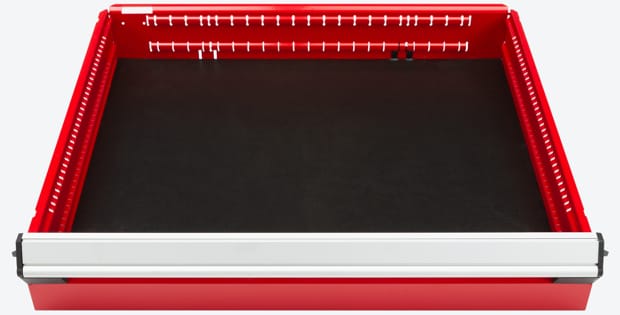

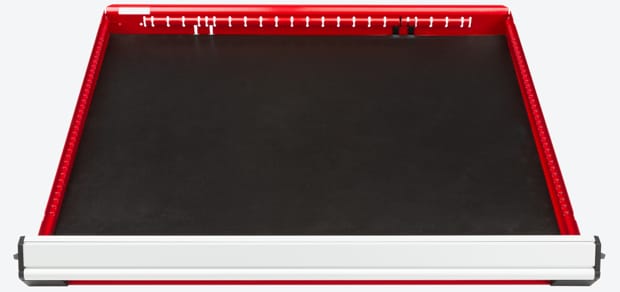

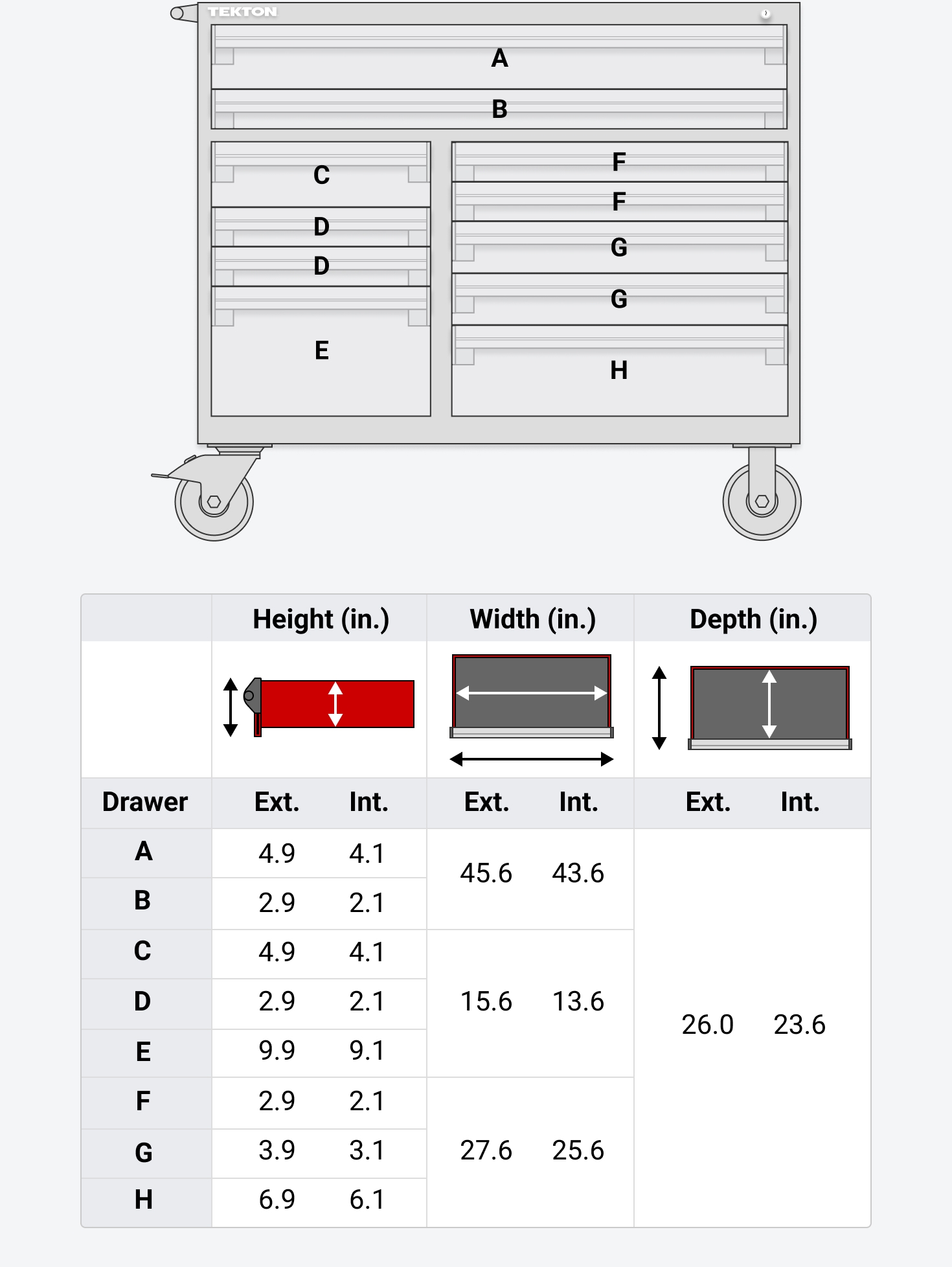

Drawer Sizes + Configuration

Dimensions

Internal:
W 56 in.
D 27 in.
H 4 in.
External:
W 57.75 in.
D 29 in.
H 5 in.

Configuration

Dimensions

Internal:
W 26 in.
D 27 in.
H 2 in.
External:
W 27.75 in.
D 29 in.
H 3 in.

Configuration

Dimensions

Internal:
W 26 in.
D 27 in.
H 3 in.
External:
W 27.75 in.
D 29 in.
H 4 in.

Configuration

Dimensions

Internal:
W 26 in.
D 27 in.
H 7 in.
External:
W 27.75 in.
D 29 in.
H 8 in.

Configuration

Dimensions

Internal:
W 26 in.
D 27 in.
H 9 in.
External:
W 27.75 in.
D 29 in.
H 10 in.

Configuration

Drawer Features

Lift-Anywhere Handle

Open drawers easily and smoothly by lifting anywhere along the aluminum handle.

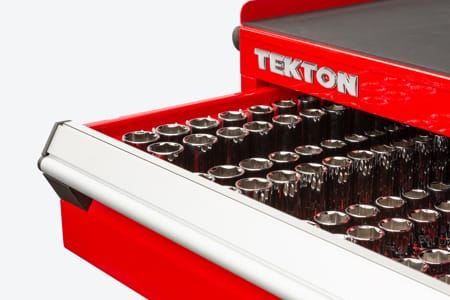

100% Clearance

Fill the drawers all the way to the brim with nothing getting in your way.

100% Extension

Each drawer extends all the way, allowing access to the very back with no wasted space.

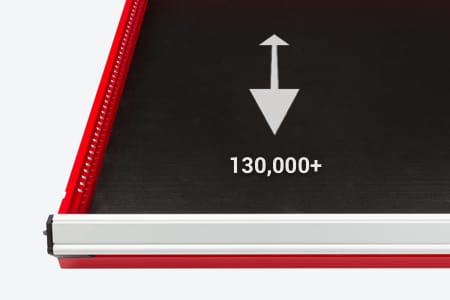

Tested to 130,000 Cycles

Drawers are tested with 200 lb. to over 130,000 open-and-close cycles, which equates to opening the drawer 10 times a day for 35 years.

400 lb. Weight Capacity

Each drawer can support up to 400 lb. at full extension.

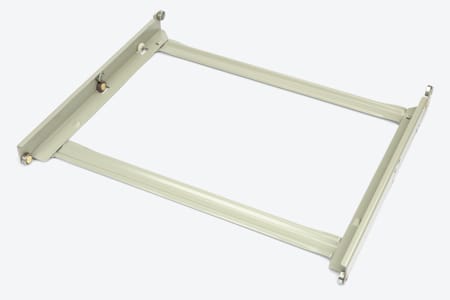

Independent Carriage System

Each drawer is supported by a steel carriage system with 10 bearings: 6 ball, 2 floating, and 2 nylon.

One-at-a-Time Drawer System

Only one drawer per bank can be opened at a time, which prevents the cabinet from tipping.

Drawer Liners

Each drawer includes a 1/16-inch thick PVC liner.

Central Locking System

Secure all drawers at once with the keyed locking system. Each cabinet has a unique lock and includes 2 keys.

Some sample comparisons between Tekton® and Snap-on® rolling tool cabinet models

ModelCabinet WidthCabinet DepthCabinet HeightCabinet WeightTotal Storage CapacityDrawer Weight CapacityPrice
Snap-on Heritage Series (KRA5311FPBO)53 in.20 in.38.5 in.349 lb.20,000 in.3120 lb. (10 drawers), 250 lb. (1 drawer)$3,745
Snap-on Classic Series (KRA2422PBO)55 in.24 in.39.1875 in.412 lb.23,055 in.3120 lb. (8 drawers), 240 lb. (2 drawers)*$5,705
Snap-on Master Series (KRL722BPBO)54.25 in.24 in.39.875 in.489 lb.23,251 in.3261 lb. (9 drawers), 522 lb. (2 drawers)*$6,945
Snap-on EPIQ Series (KETN602C0PBO)60 in.30 in.46.875 in.774 lb.39,119 in.3227 lb. (6 drawers), 454 lb. (4 drawers)*$11,995
Tekton 60 x 24 Inch (ORG75200)60 in.24 in.42.5 in.645 lb.27,048 in.3400 lb. each drawer (7 drawers)$2,950
Tekton 60 x 30 Inch (ORG75201)60 in.30 in.42.5 in.820 lb.32,022 in.3400 lb. each drawer (12 drawers)$3,450

Specifications for Snap-on tool cabinets were sourced from shop.snapon.com on May 28, 2020.

Tekton drawers are tested at 200 lb. (half of capacity) for 130,000 open-and-close cycles. Snap-on drawer slide testing is unknown.

* The higher number is a theoretical capacity based on Snap-on's use of double slides for certain drawers.

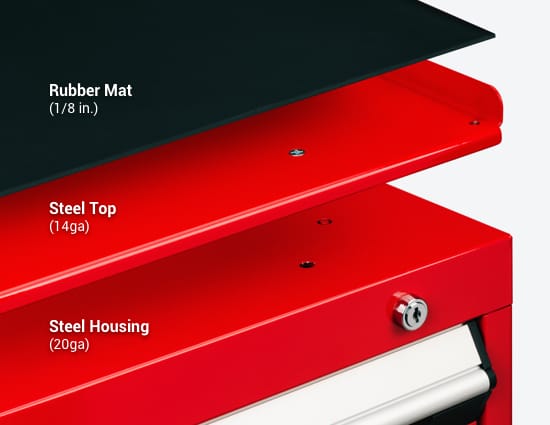

Steel Top with Rubber Mat

  • The sturdy steel top comes mounted on the cabinet housing
  • A 1-inch retaining lip wraps around three sides of the top
  • A thick 1/8-inch neoprene mat covers the steel top

6-Inch Casters

  • Each caster supports a max load of 900 lb., giving the cabinet a total weight capacity of 3,600 lb.
  • Non-marking casters resist shocks, vibrations, and a variety of chemicals

See It in Action

Get Free Shipping

Get free shipping, including liftgate services, within the contiguous USA with your Tekton.com account.
($275 fee for Alaska and Hawaii)

View Shipping Instructions

Get 10% Back in Rewards

Automatically get 10% back in Rewards to spend like cash on a future Tekton.com order.

Learn More

Compare Tool Cabinets

Width30 in.36 in.48 in.60 in.60 in.
Height34.25 in.42.5 in.42.5 in.42.5 in.42.5 in.
Depth24 in.24 in.24 in.24 in.30 in.
Drawer Count677712
Max Load Per Drawer400 lb.400 lb.400 lb.400 lb.400 lb.
Total Storage Capacity9,828 in.315,456 in.320,999 in.327,048 in.332,022 in.3
Caster Height4 in.6 in.6 in.6 in.6 in.
Max Load Per Caster420 lb.900 lb.900 lb.900 lb.900 lb.
Max Cabinet Load1,680 lb.3,600 lb.3,600 lb.3,600 lb.3,600 lb.
Cabinet Weight330 lb.462 lb.508 lb.645 lb.820 lb.
Max Content Load1,350 lb.3,138 lb.3,092 lb.2,955 lb.2,780 lb.
Price$1,750$2,250$2,500$2,950$3,450
ViewViewViewViewViewing

60 x 30 Inch Tool Cabinet (Red)

Weight 820 lb.
Maximum Content Load 2,780 lb
Country of Origin Canada
