TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
TEKTON OCL43202-T 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
Click image to zoom in

11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)

#OCL43202
 •
$3,475.00

Details

Drawer Features

Drawer Interior and Exterior Dimensions

Lift Anywhere Handle

Easily open the drawers by lifting anywhere along the anodized aluminum handles.
Secure all drawers at once with the keyed central locking system. Includes two keys.

100% Drawer Extension

Each drawer extends all the way, allowing access to the very back with no inaccessible space.

100% Drawer Height Clearance

Fill the drawers all the way to the brim with nothing getting in your way.

Anti-Tip Drawer System

Only one drawer per bank can be opened at a time, which prevents the cabinet from tipping.

Robust Construction

400 lb. Capacity for Every Drawer

Each drawer is supported by an independent steel carriage system that holds up to 400 lb. at full extension.

Drawers are tested with 200 lb. to over 130,000 open-and-close cycles, which equates to opening the drawer 10 times a day for 35 years.

Heavy-Duty Drawer Carriages

The drawer carriages are constructed of 12 gauge side rails and 14 gauge welded crossmembers to withstand heavy weights and rugged use. Each drawer carriage has 10 bearings: 6 ball, 2 floating, and 2 nylon.

Cabinet Housing Max Load

The cabinet housing is made of commercial grade steel components ranging from 20 gauge to 12 gauge in thickness. The cabinet housing can support a vertical load of 12,000 lb. and remain completely functional. It can support a vertical load of 24,000 lb. before breaking.

Total Caster Max Load

The cabinet comes with 4 industrial casters: 2 locking swivel and 2 fixed. Each caster supports a max load of 1,100 lb., for a total cabinet weight capacity of 4,400 lb. The caster wheels are made of a non-marking polyurethane that resists shocks, vibrations, and a variety of chemicals.

Long-Lasting Electrostatic Powder Coat Finish

Tekton tool cabinets are finished with a glossy electrostatic powder coat, which results in a uniformly thick, durable paint layer that's resistant to corrosion and chemicals.

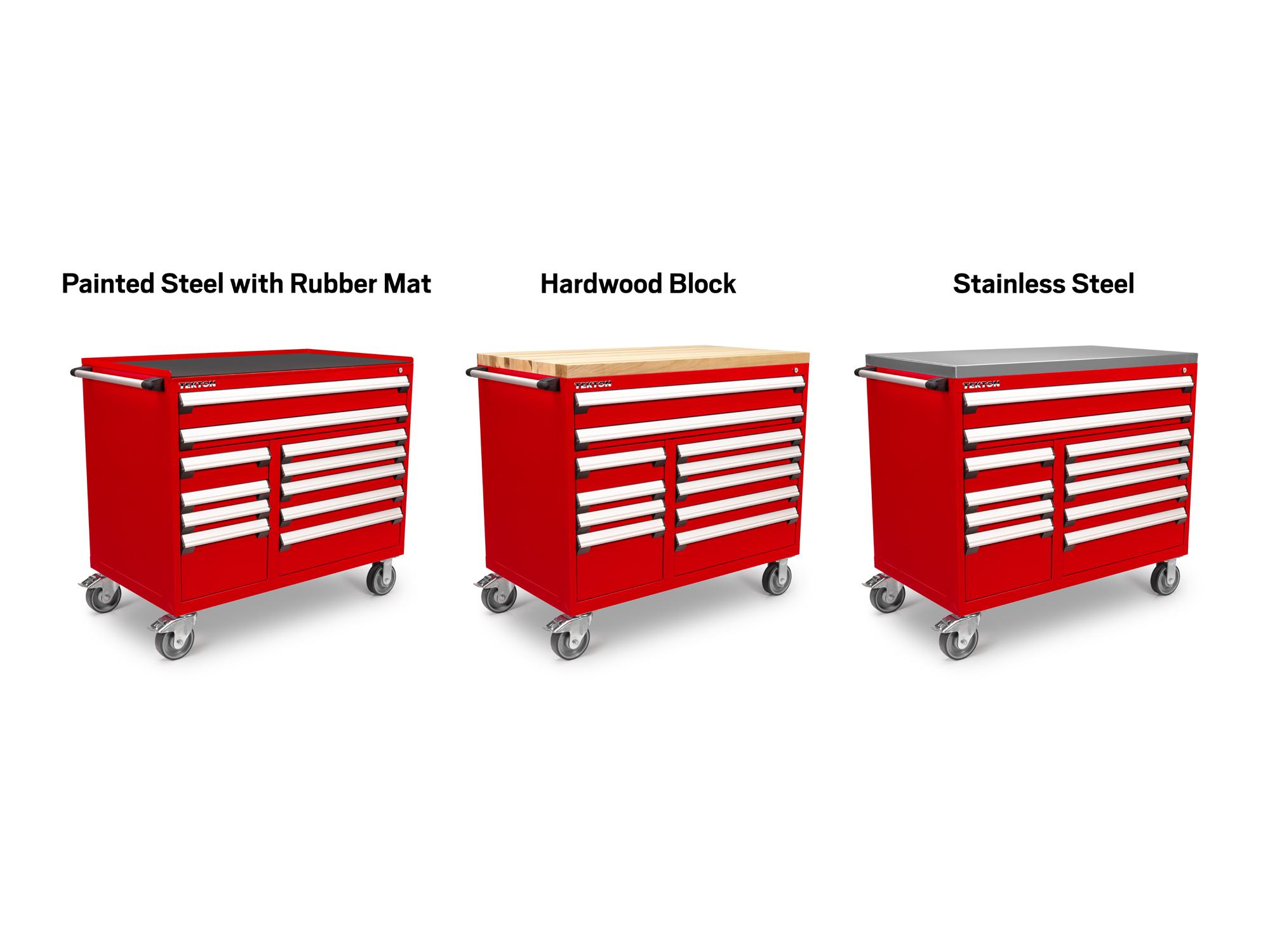

Top Options

Stainless Steel

1.75 inch thick, 16 gauge steel surface and sides with MDF core

Wood Block

1.75 inch thick laminated solid maple block top

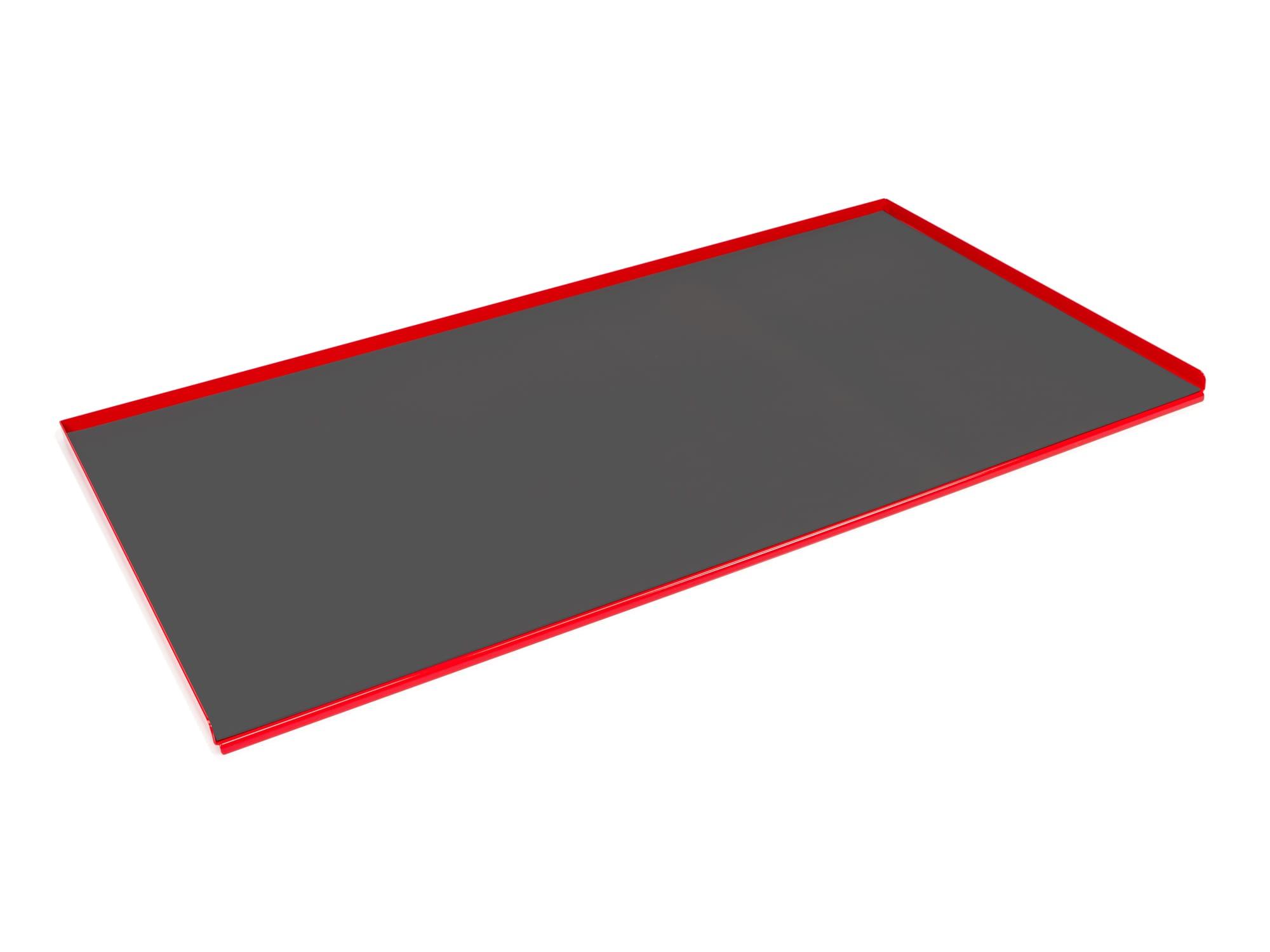

Painted Steel with Rubber Mat

14 gauge steel with a 1 inch retaining lip on three sides and 1/8 inch neoprene mat

No Top (Default)

20 gauge painted steel housing

Some assembly is required to install the top onto your cabinet.

Included Liners

Each drawer includes a 1/16-inch thick PVC liner.

Partitions and Subdividers Available

Set up compartments of various sizes to organize your tools and restrict their movement.

Specs

11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)

Specs for 11-Drawer 40/60 Split Bank Tool Cabinet, Red (48 W x 27 D x 41.5 H in.)
Country of Origin
Cabinet made in Canada. Casters made in Germany. Drawer liners made in China.
Item Weight
581 lb.
