7-Drawer Tool Cabinet, Black (48 W x 27 D x 41.5 H in.)

Item #OCL43100
 • Available in 1-2 weeks
$2,750.00

Details



Drawer Configurations for Everyday Professional Use

Drawer Configurations for Everyday Professional Use

48 Inch Wide 7-Drawer

#OCL43100 and #OCL43200

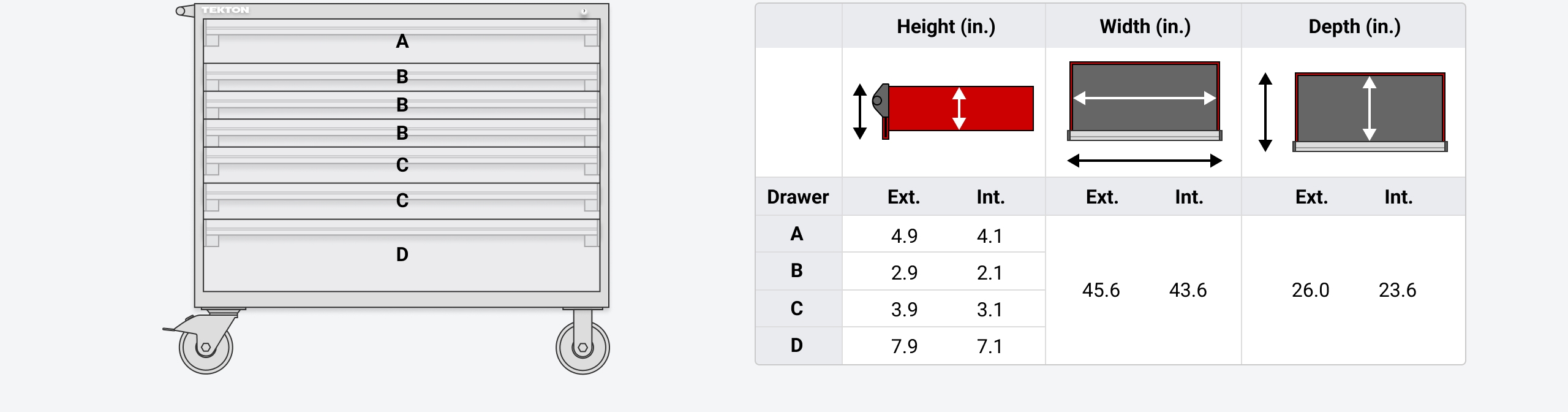

Click a drawer to see its dimensions 8” 5” 3” 3” 3” 4” 4”

Select a drawer to view its dimensions:

Height

xx.x” xx.x”

Width and Depth

xx.x” xx.x” xx.x” xx.x”


The Most Robust Rolling Tool Cabinets Made in North America

The Most Robust Rolling Tool Cabinets Made in North America

400 lb. Capacity for Every Drawer

Each drawer is supported by an independent steel carriage system that holds up to 400 lb. at full extension.

Drawer Carriage

Carriage Construction:

  • 12 ga side rails
  • 14 ga welded crossmembers
  • 10 bearings (6 ball, 2 floating, 2 nylon)
TEKTON Tool Cabinets Drawer Capacity
TEKTON Tool Cabinets Housing Load

Cabinet Housing Max Load: 12,000 lb.

The cabinet housing is made of commercial grade steel components ranging from 20 ga to 12 ga in thickness.

Without the casters the cabinet housing can support a vertical load of 12,000 lb. and remain completely functional. It can support a vertical load of 24,000 lb. before breaking.

TEKTON Tool Cabinets Caster Load

Total Caster Max Load: 4,400 lb.

The cabinet comes with 4 industrial casters, 2 locking swivel and 2 fixed. Each caster supports a max load of 1,100 lb., for a total cabinet weight capacity of 4,400 lb.

The caster wheels are made of a non-marking polyurethane that resists shocks, vibrations, and a variety of chemicals.

TEKTON Tool Cabinets Powder Coat

Long-Lasting Electrostatic Powder Coat Finish

Tekton Tool Cabinets are finished with an electrostatic powder coat, which results in a uniformly thick, durable paint layer that's resistant to corrosion and chemicals.

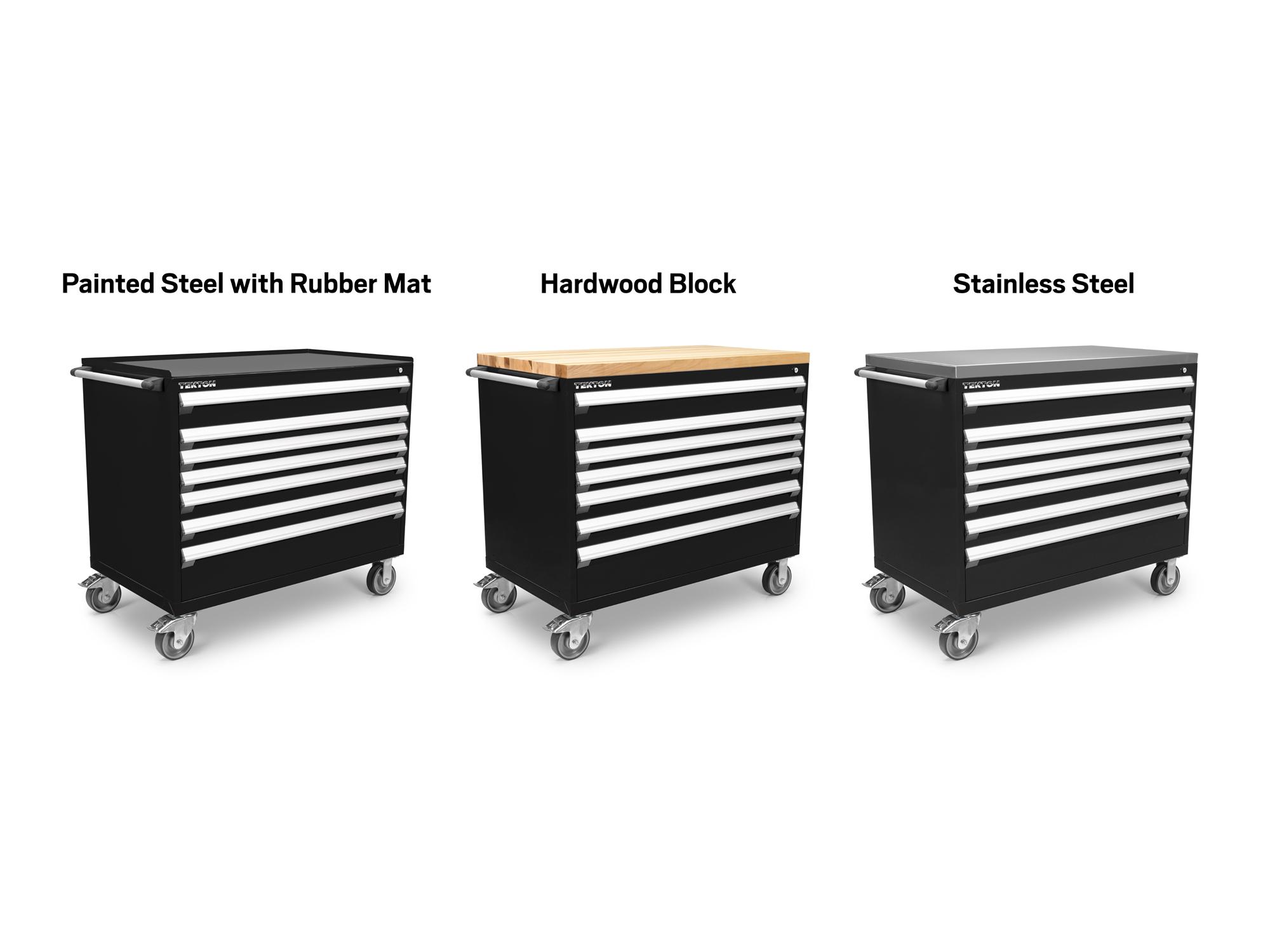

Top Options

Top Options

Some assembly is required to install the top onto your cabinet.



Drawer Features

Drawer Features

TEKTON Tool Cabinets Lift Anywhere Handle

Lift Anywhere Handle

Open drawers easily and smoothly by lifting anywhere along the wide-grip handle made of sturdy rust-proof anodized aluminum.

Central Locking System

Lock

Central Locking System

Secure all drawers at once with the keyed locking system. Includes 2 keys.

TEKTON Tool Cabinets 100% Drawer Extension

100% Drawer Extension

Each drawer extends all the way, allowing access to the very back with no wasted space.

TEKTON Tool Cabinets 100% Drawer Height Clearance

100% Drawer Height Clearance

Fill the drawers all the way to the brim with nothing getting in your way.

TEKTON Tool Cabinets Anti-Tip Drawer System

Anti-Tip Drawer System

Only one drawer per bank can be opened at a time, which prevents the cabinet from tipping.

TEKTON Tool Cabinets Anti-Tip Drawer System

Included Liners

Each drawer includes a 1/16-inch thick PVC liner.

TEKTON Tool Cabinets Anti-Tip Drawer System

Partitions and Subdividers Available

Form solid compartments of various sizes to organize your tools and restrict their movement.



The Highest Value Offered Anywhere

The Highest Value Offered Anywhere

Side-scroll Swipe chart to compare more brands.

Specs

7-Drawer Tool Cabinet, Black (48 W x 27 D x 41.5 H in.)

Specs for 7-Drawer Tool Cabinet, Black (48 W x 27 D x 41.5 H in.)
Country of Origin
Cabinet made in Canada. Casters made in Germany. Drawer liners made in China.
Item Weight
519 lb.
