±4% Accuracy

Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%—with three test measurements at each set point.

Example at 100 in.-lb.

Maximum Expected Error

Example at 100 in.-lb.

Micrometer Torque Wrench Dial set to 80 ft.-lb.

Torque Setting

Maximum Expected Error

Accuracy: the maximum expected error between the torque value on the wrench’s dial and the actual force the wrench exerts on a fastener

Micrometer Design and Operation

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's 24320 should be stored at 20 in.-lb.

Clockwise Measurement

Drives in both directions and measures torque in the clockwise direction

TEKTON Micrometer Torque Wrench Drive Direction

Dual-Range Scale

High-contrast, easy-to-read scale is marked with in.-lb. and Nm units

Locking Nut

Locks the torque setting in place while you are using the wrench

TEKTON Micrometer Torque Wrench Setting Lock

±4% Accuracy

Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%—with three test measurements at each set point.

Example at 50 ft.-lb.

Maximum Expected Error

Example at 50 ft.-lb.

Torque Setting

Maximum Expected Error

Accuracy: the maximum expected error between the torque value on the wrench’s dial and the actual force the wrench exerts on a fastener

Micrometer Design and Operation

TEKTON Micrometer Torque Wrench Video Thumbnail

See How it Works

0:40

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's 24330 should be stored at 10 ft.-lb.

Clockwise Measurement

Drives in both directions and measures torque in the clockwise direction

Dual-Range Scale

High-contrast, easy-to-read scale is marked with ft.-lb. and Nm units

Locking Nut

Locks the torque setting in place while you are using the wrench

±4% Accuracy

Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%—with three test measurements at each set point.

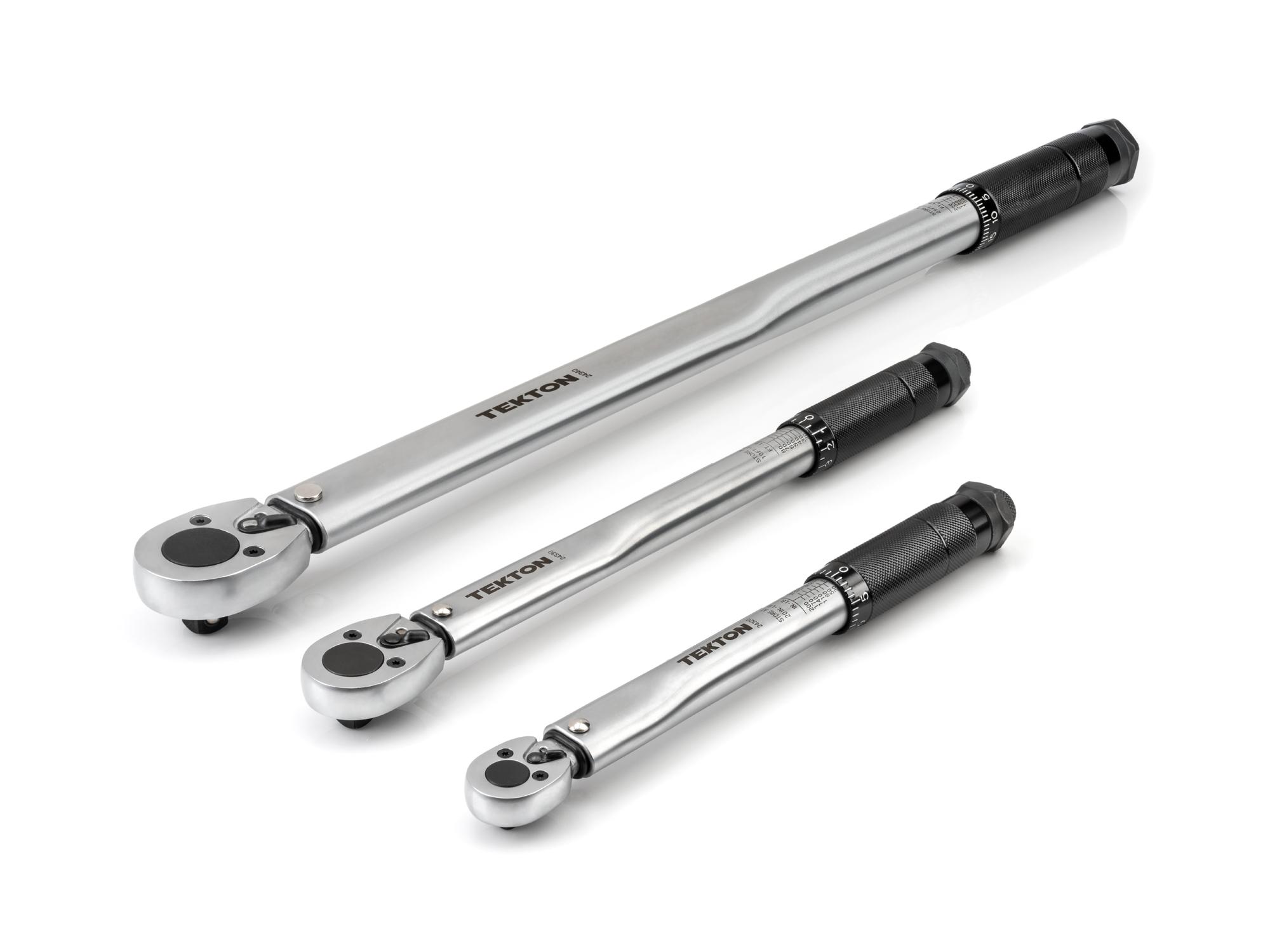

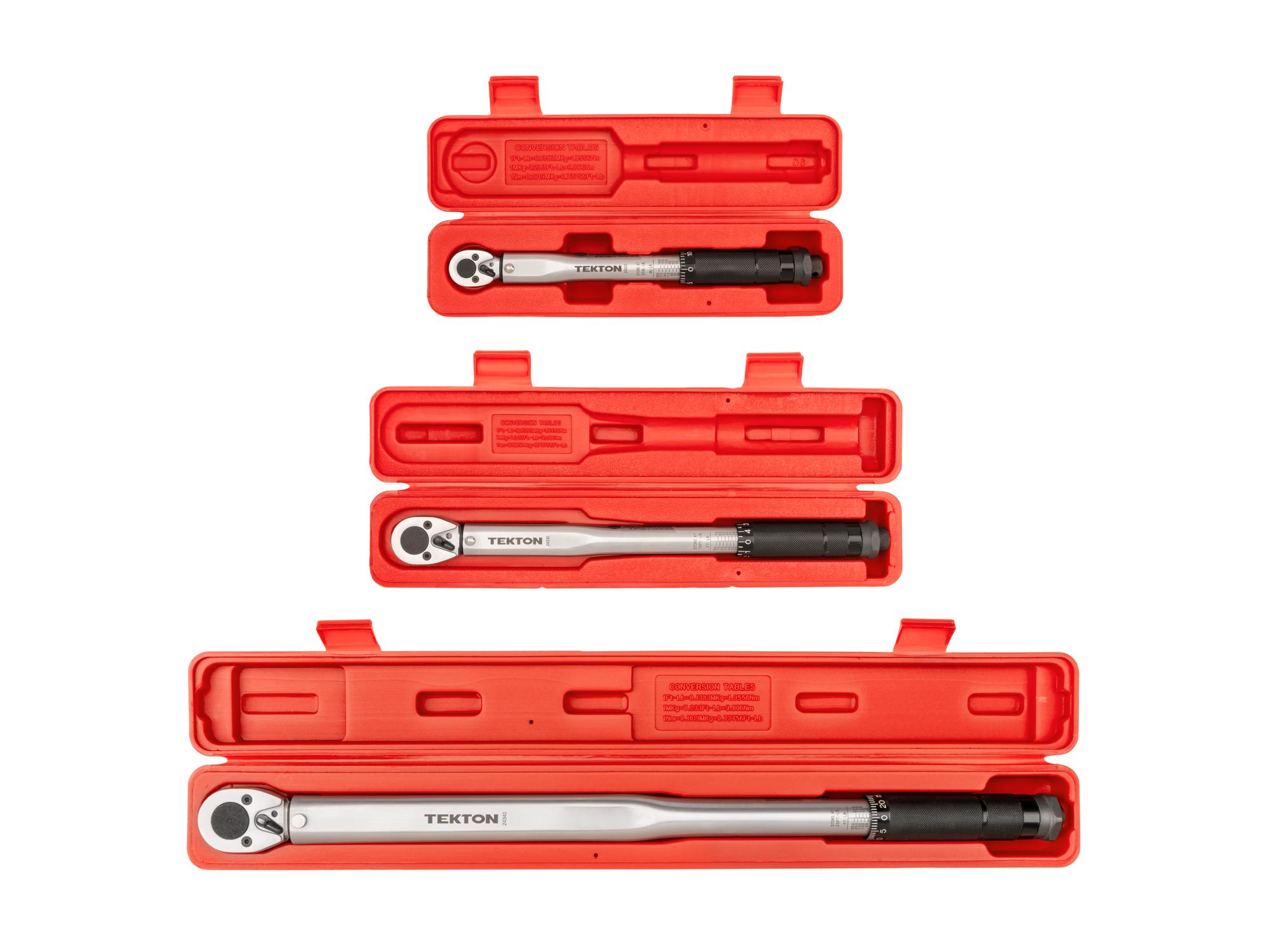

1/4, 3/8, 1/2 Inch Drive Micrometer Torque Wrench Set with Cases (3-Piece)

1/4, 3/8, 1/2 Inch Drive Micrometer Torque Wrench Set with Cases (3-Piece)

Set Includes:
