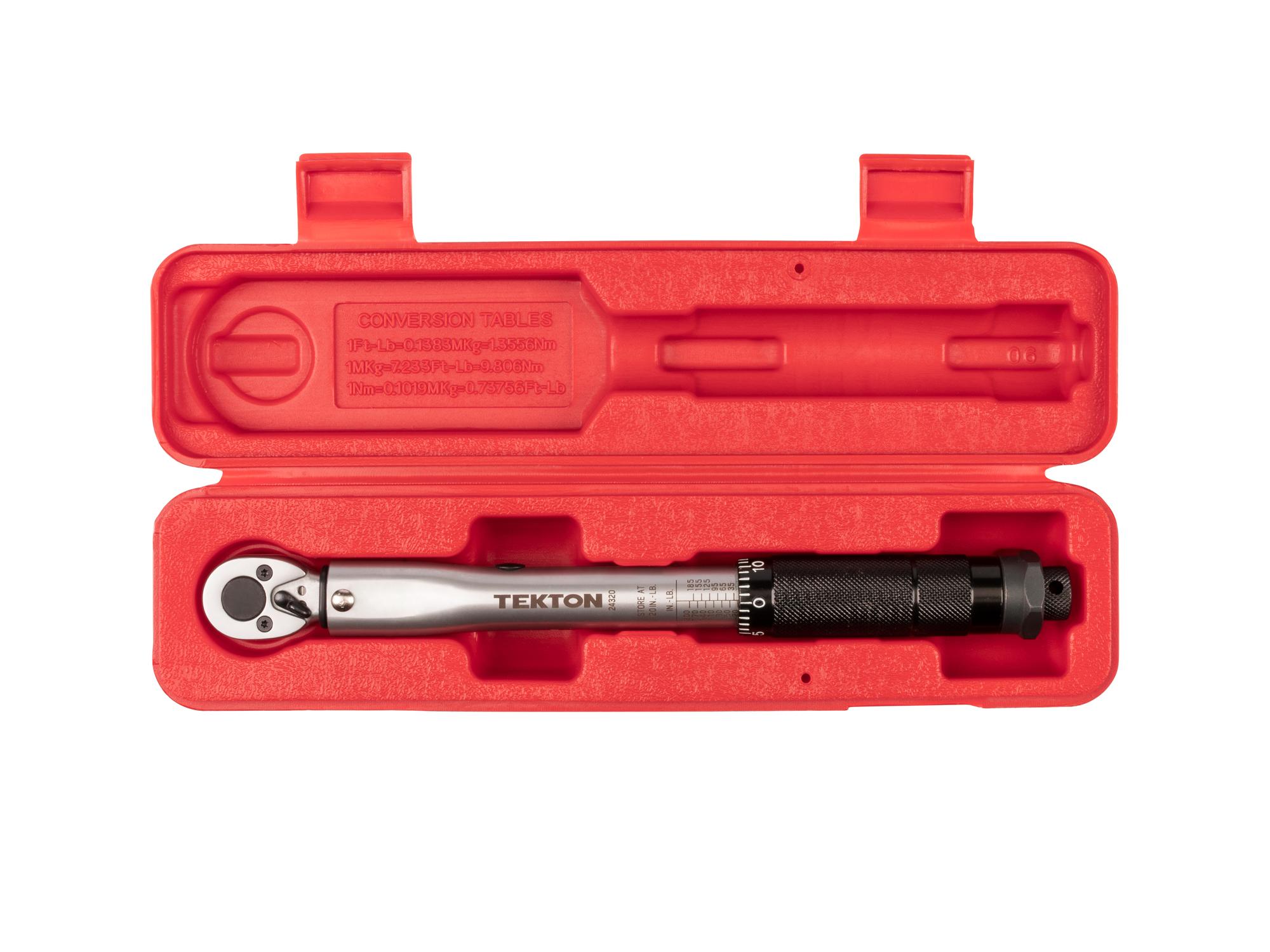

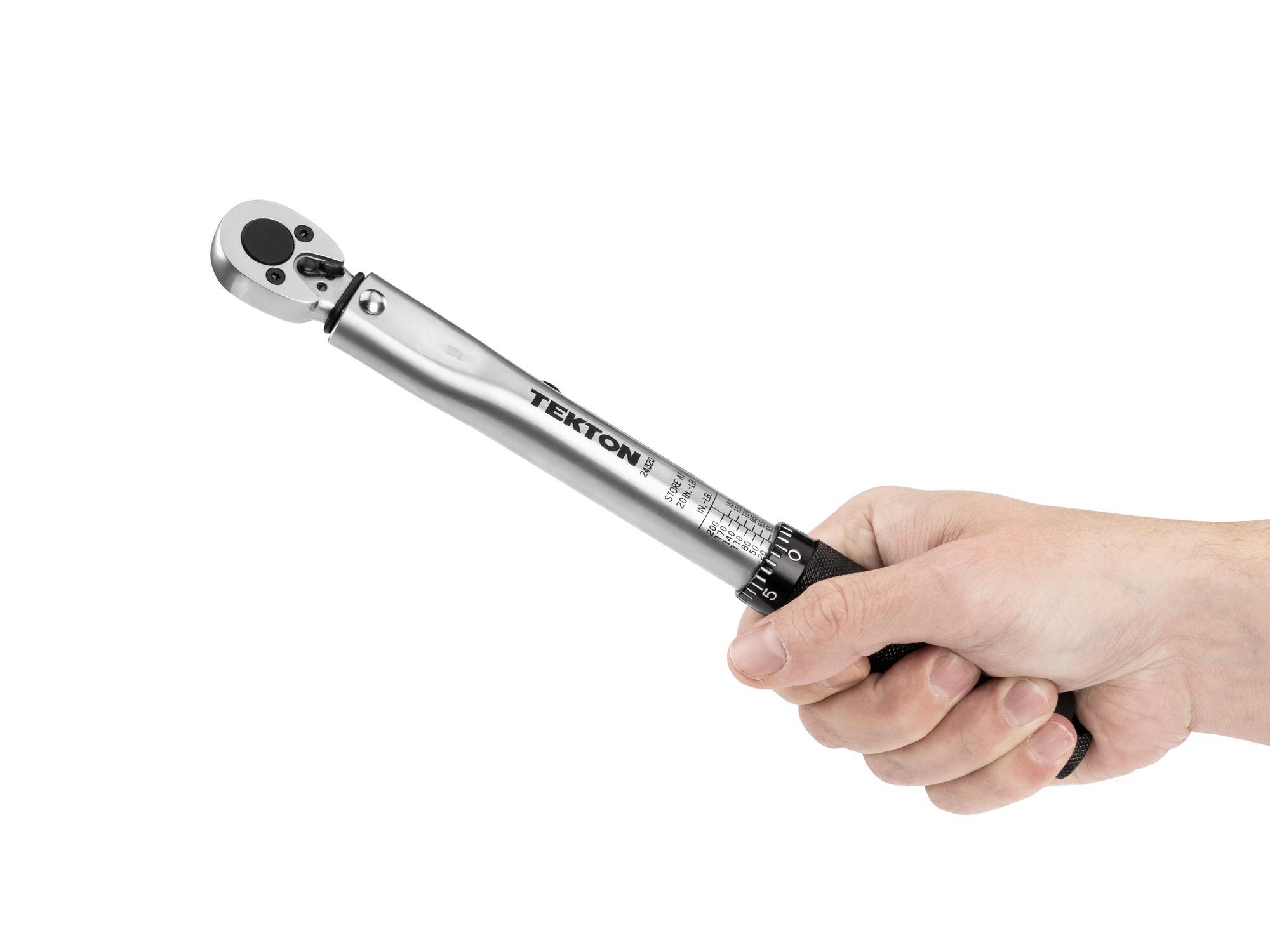

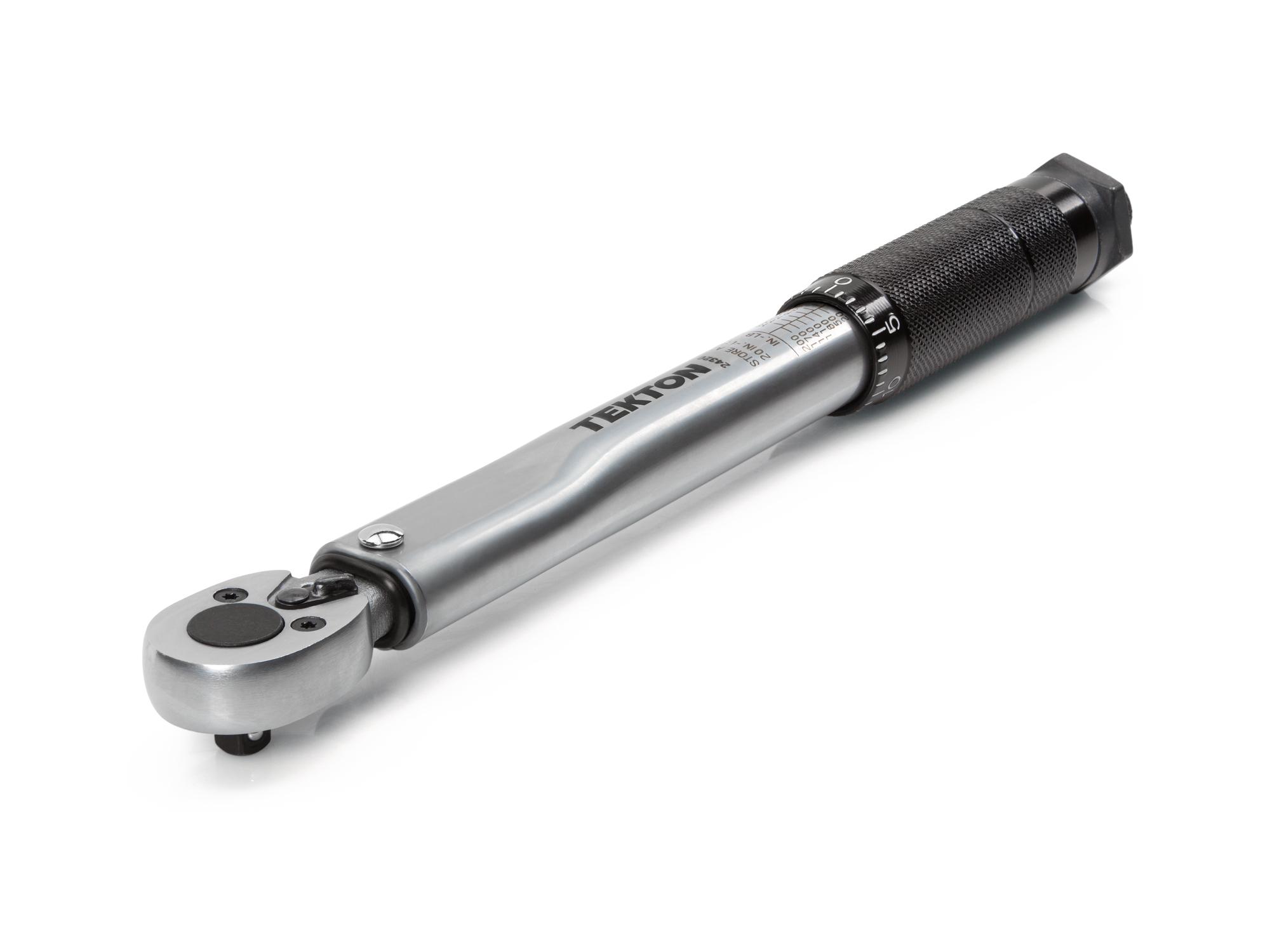

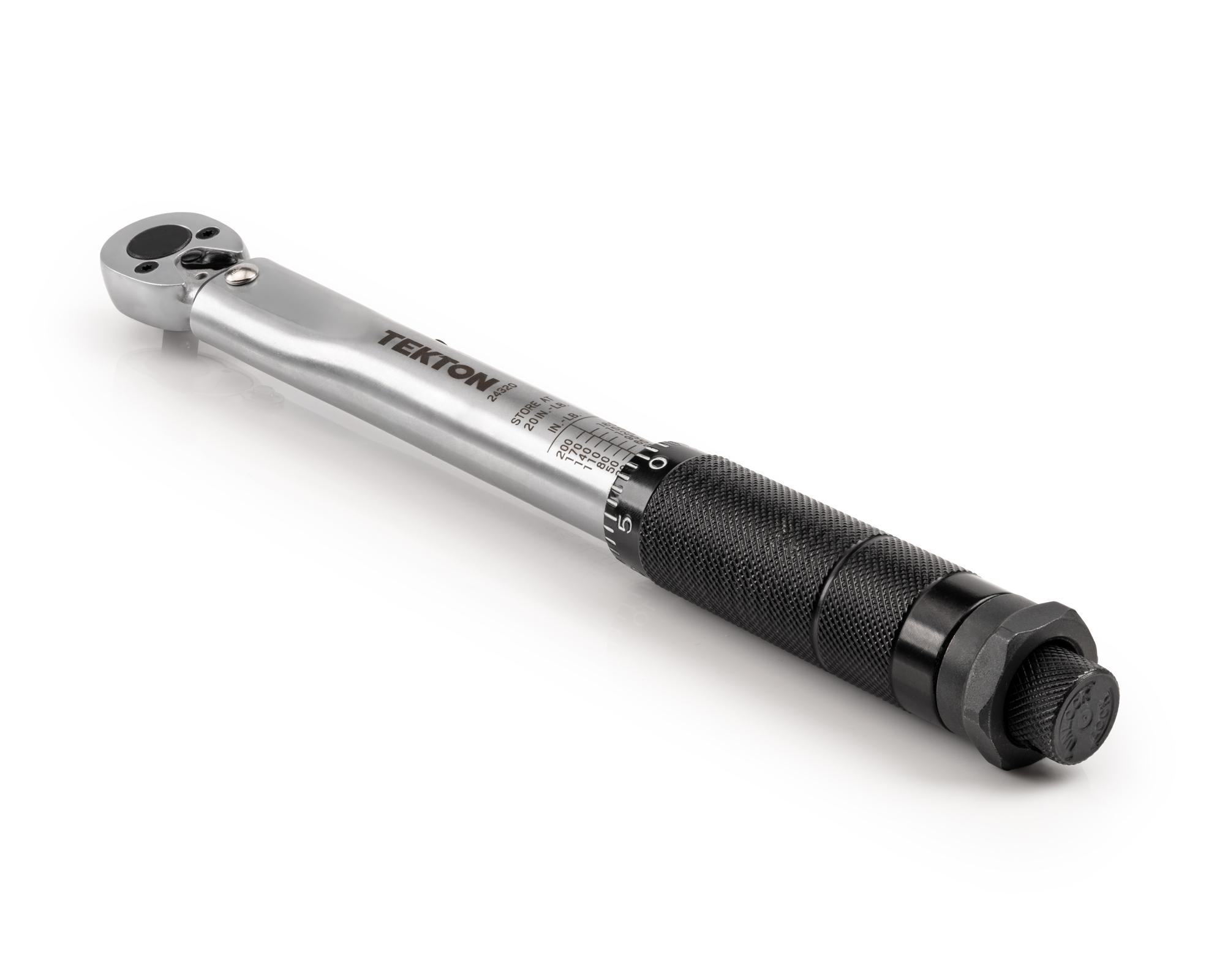

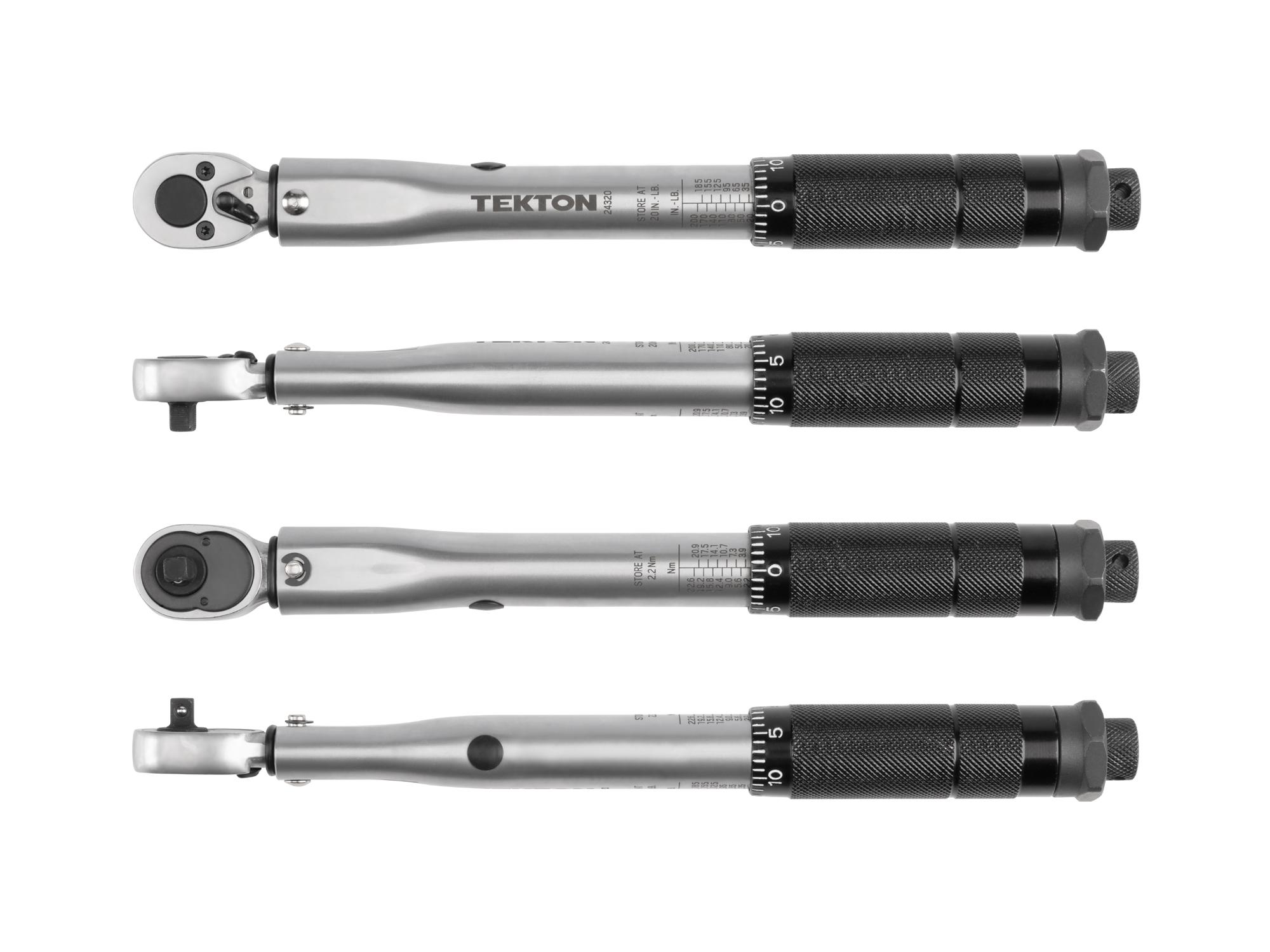

1/4 Inch Drive Micrometer Torque Wrench (20-200 in.-lb.)

Item #24320
 • Ships today
$44.00
  • Wrench emits a click that can be heard and felt when the preset value is reached
  • High-contrast dual-range scale is easy to read, even in low light
  • Reversible ratchet head drives in both directions and measures torque in clockwise direction
  • Durable all-steel construction has no plastic parts to break or wear out
  • Ships pre-calibrated to +/- 4% accuracy and ready to use

Download Product Manual


Details

±4% Accuracy

Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%.

Example at 100 in.-lb.


Chart Showing Tekton Micrometer Torque Wrench Maximum Expected Error

Maximum Expected Error


Accuracy: the maximum expected error between the torque value on the wrench’s dial and the actual force the wrench exerts on a fastener

Micrometer Design and Operation

TEKTON Micrometer Torque Wrench Cutaway
TEKTON Micrometer Torque Wrench Video Thumbnail

See How it Works

0:40

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's 24320 should be stored at 20 in.-lb.

Clockwise Measurement

Drives in both directions and measures torque in the clockwise direction

TEKTON Micrometer Torque Wrench Drive Direction
TEKTON Micrometer Torque Wrench Scale

Dual-Range Scale

High-contrast, easy-to-read scale is marked with in.-lb. and Nm units

Locking Nut

Locks the torque setting in place while you are using the wrench

TEKTON Micrometer Torque Wrench Setting Lock

Specs

1/4 Inch Drive Micrometer Torque Wrench (20-200 in.-lb.)

Specs for 1/4 Inch Drive Micrometer Torque Wrench (20-200 in.-lb.)
Torque Range
20 - 200 in.-lb.
Torque Range N-m
2.2-22.6 Nm
Scale Increment
1.0 in.-lb. ; 0.11 Nm
Accuracy
±4%
Tooth Count
24
Country of Origin
Taiwan
Item Weight
1.3 lb.
