Impact Universal Joints

Item #SIA12102
•
Ships Monday
$10.00-12.00
•
Description

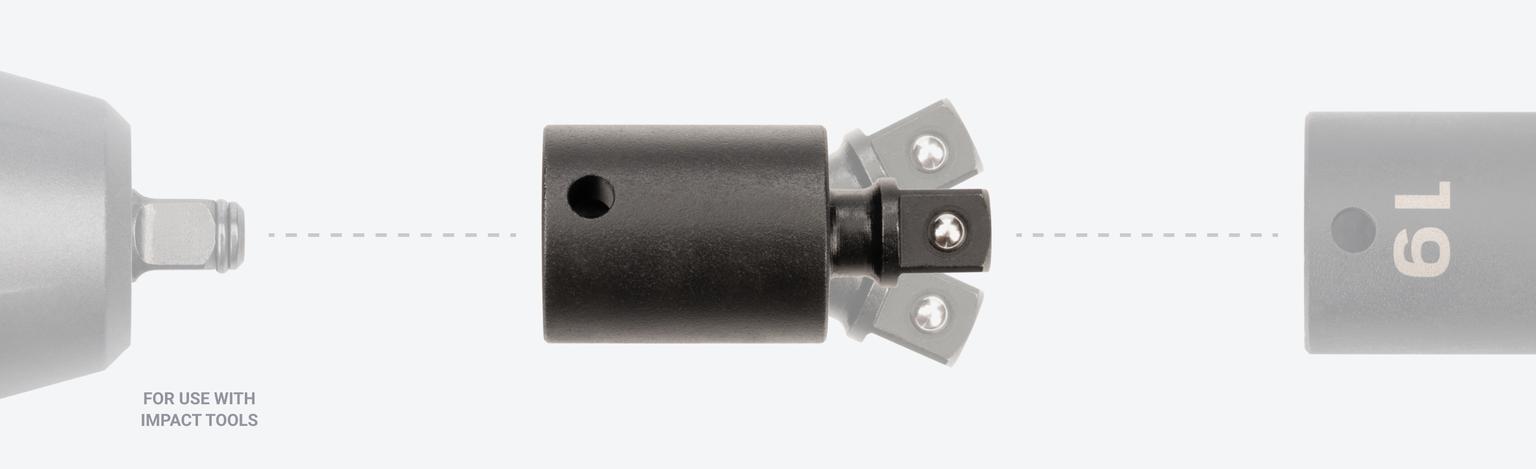

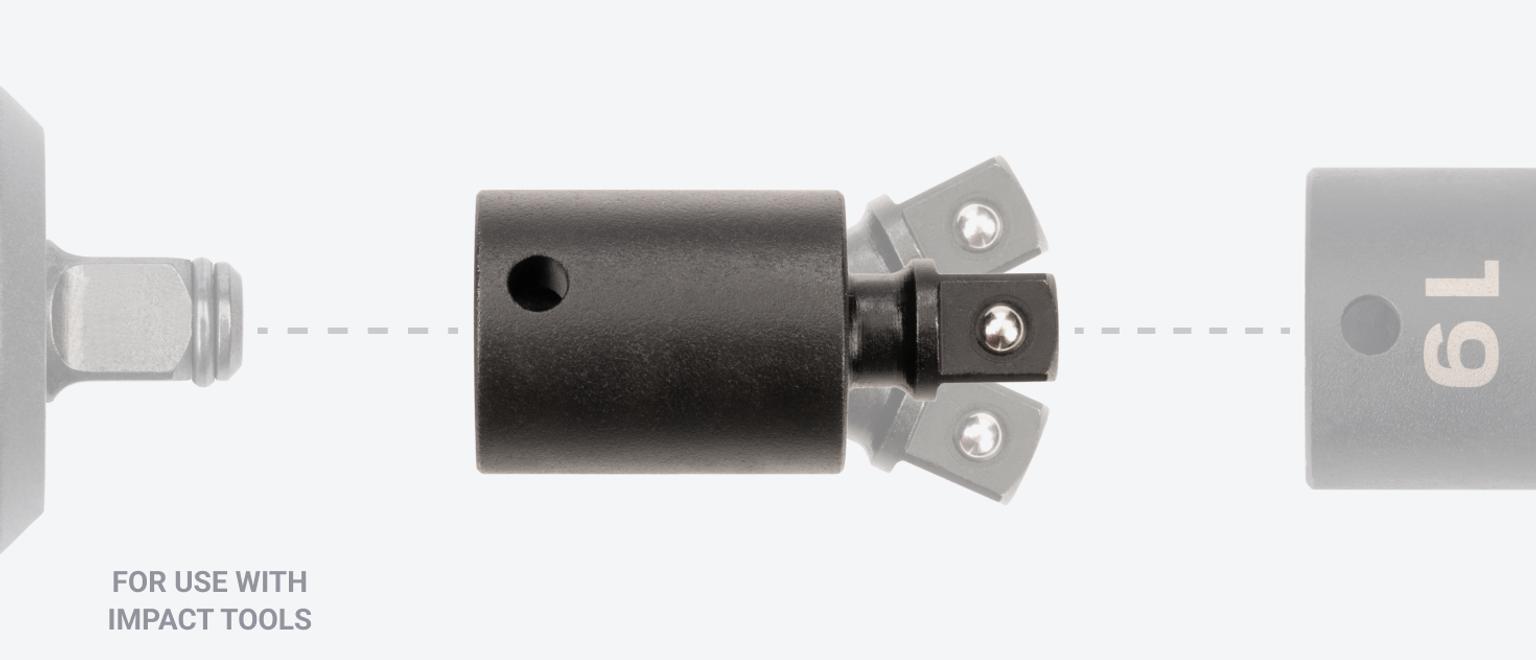

Access at an Angle

Attach a universal joint to your impact tool to reach around obstructions and access fasteners at an angle.

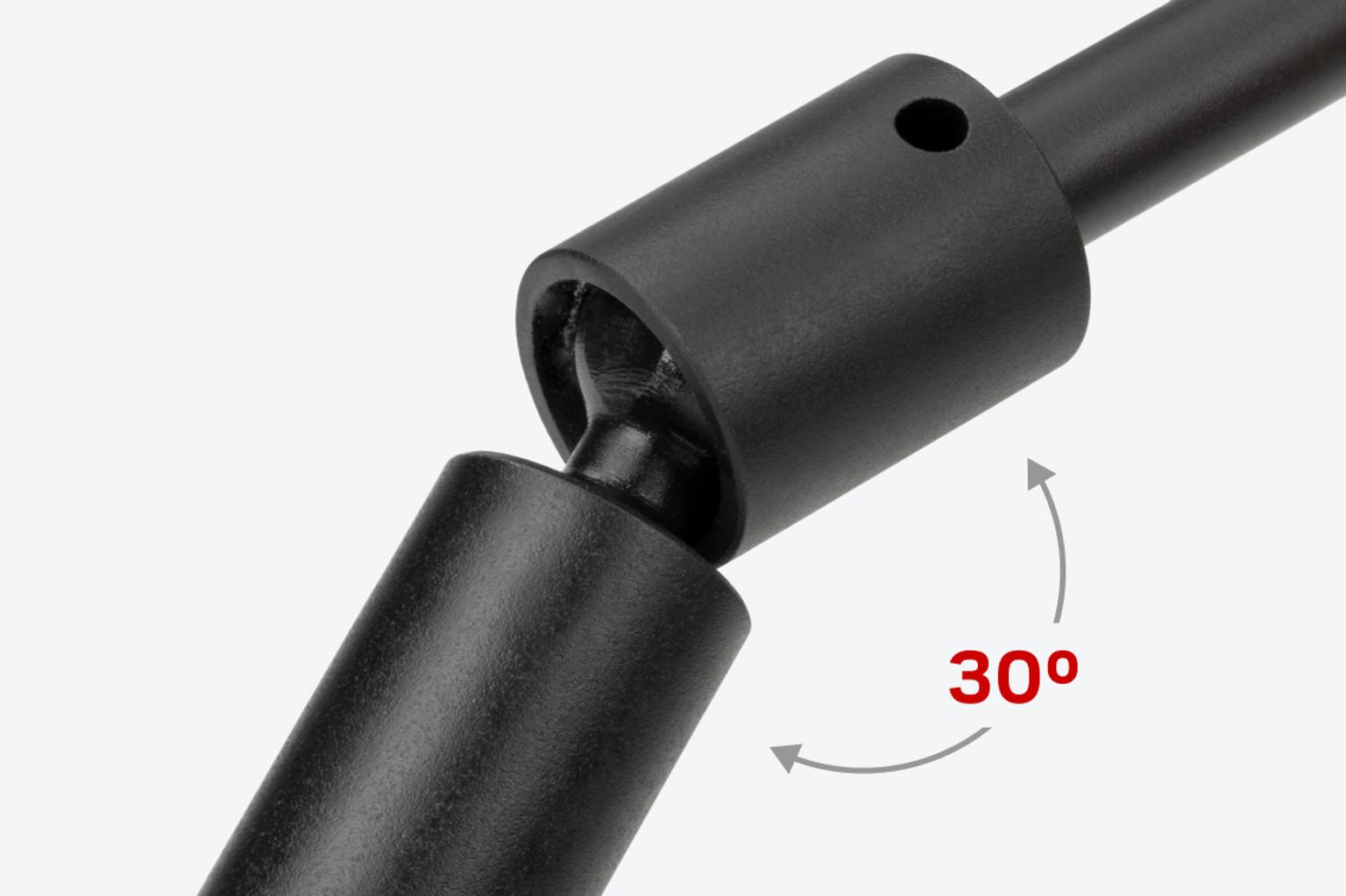

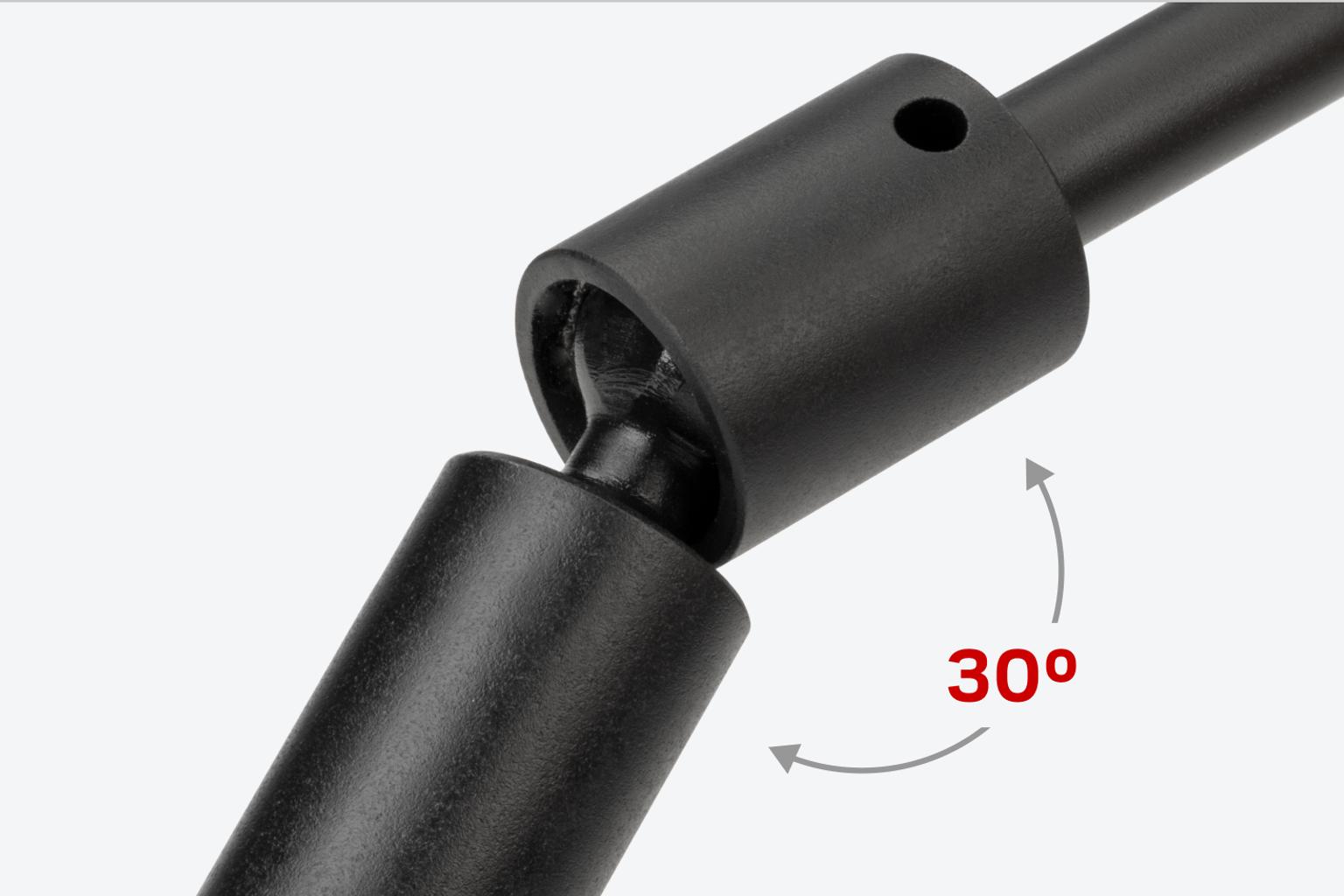

30-Degree Working Angle

The joint rotates smoothly and continuously at a maximum 30-degree angle.

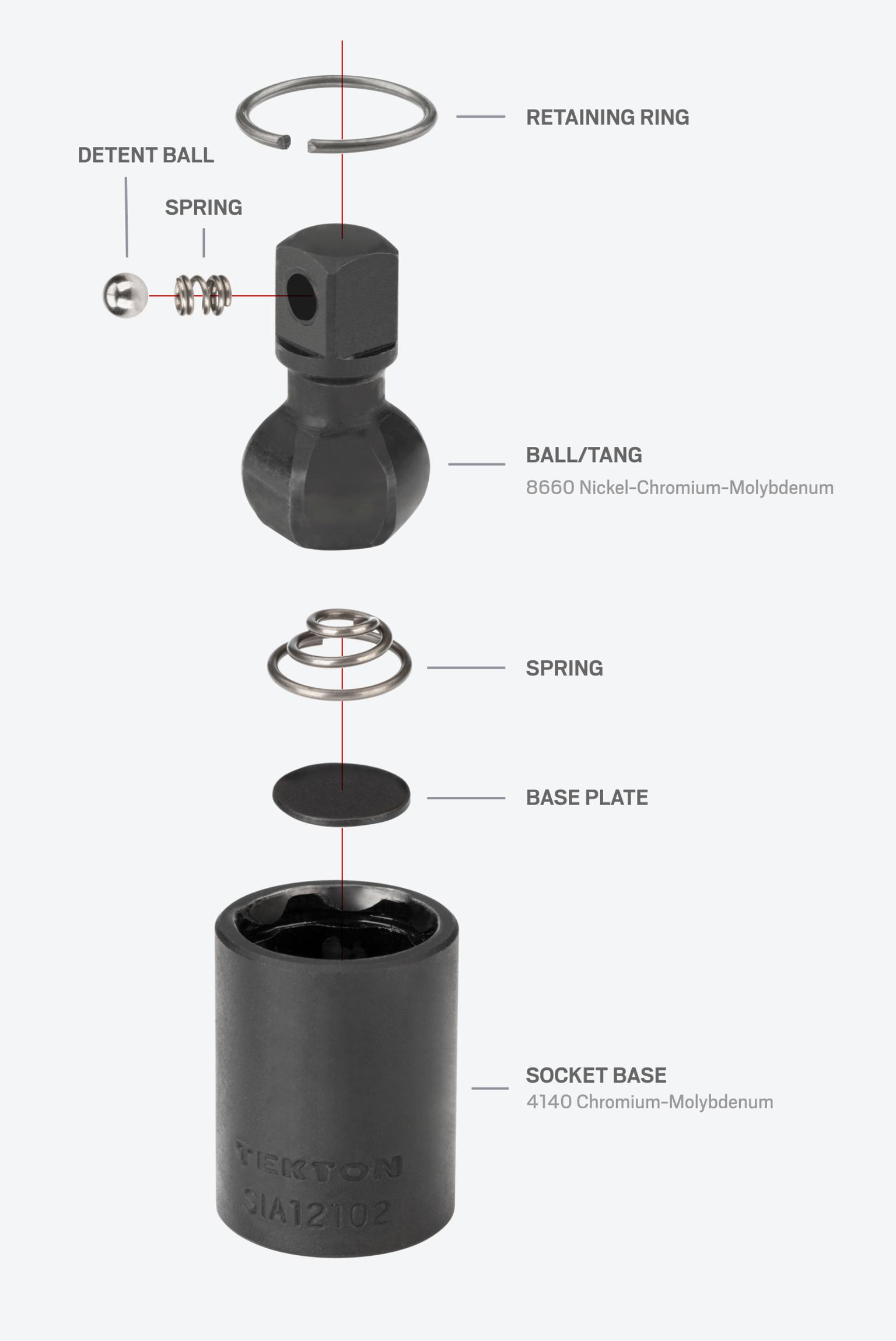

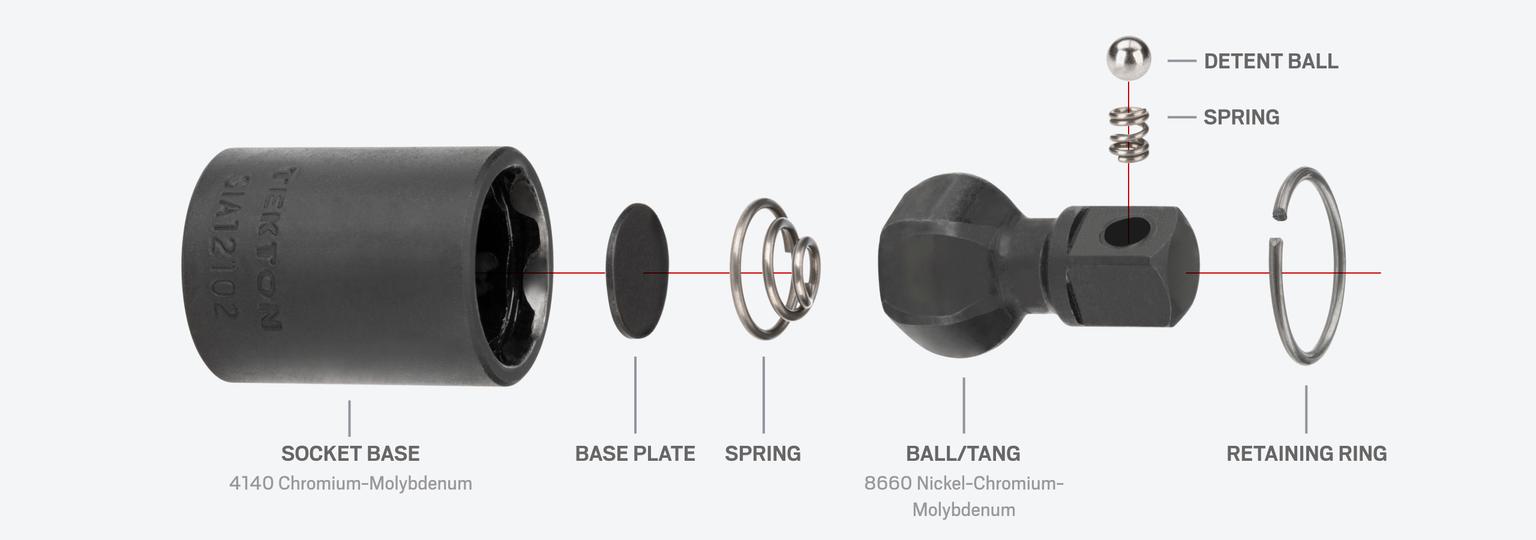

Parts + Assembly

The universal joint comes pre-lubricated with SuperLube Multi-Purpose Synthetic Grease (NLGI 2) with Syncolon® (PTFE). Maintain the lubrication as needed to avoid wear over time. We offer 1 cc lubricant packets for this purpose.

6-Sided Pinless Joint

  • Our ball-and-socket-style joint is stronger than joints that use pins.
  • The 6-sided ball operates more smoothly than 4-lug designs.

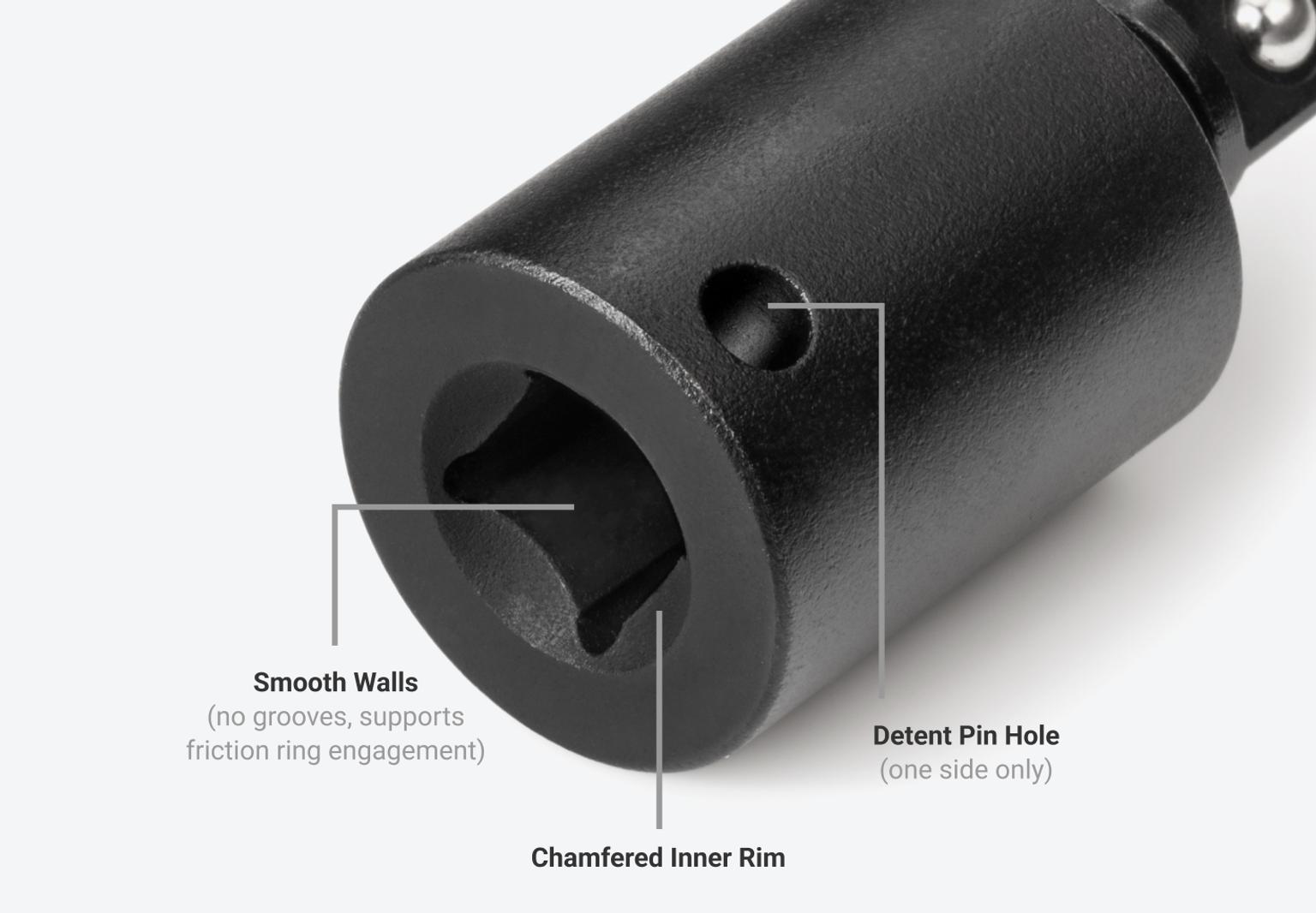

Drive Tool Retention

The universal joint works with both types of anvils found on 3/8 inch drive impact wrenches:

Friction Ring Anvil

Detent Pin Anvil

Specs

3/8 Inch Drive Impact Universal Joint

A. Length 2.00 in.
B. Diameter 1.00 in.
C. Tang Size 3/8 in.
D. Drive Size 3/8 in.
E. Max. Operating Angle 30º
F. Pin Hole Diameter 5 mm
Weight 0.24 lb.
Country of Origin Taiwan
