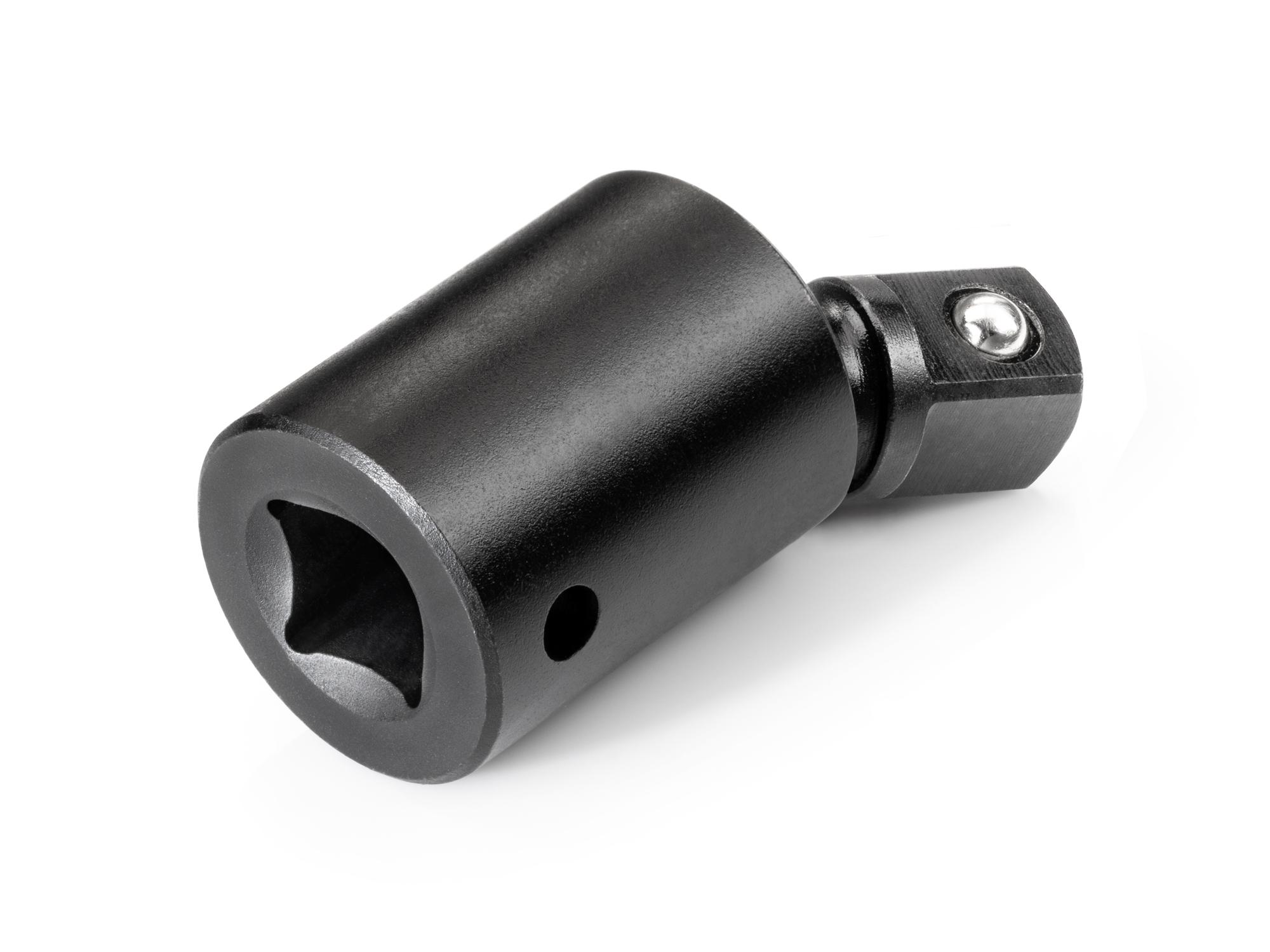

TEKTON 1/2 Inch Drive Impact Universal Joint
1/2 Inch Drive Impact Universal Joint. Has 30-degree working angle with a 6 sided pinless design. SIA22102.
1/2 Inch Drive Impact Universal Joint. Has 30-degree working angle with a 6 sided pinless design. SIA22102.
Click image to zoom in
Item #SIA22102

1/2 Inch Drive Impact Universal Joint

 •

Drive Size

1/4 in.
$9
3/8 in.
$11
1/2 in.
$13
$13.00
DetailsSpecs

Details

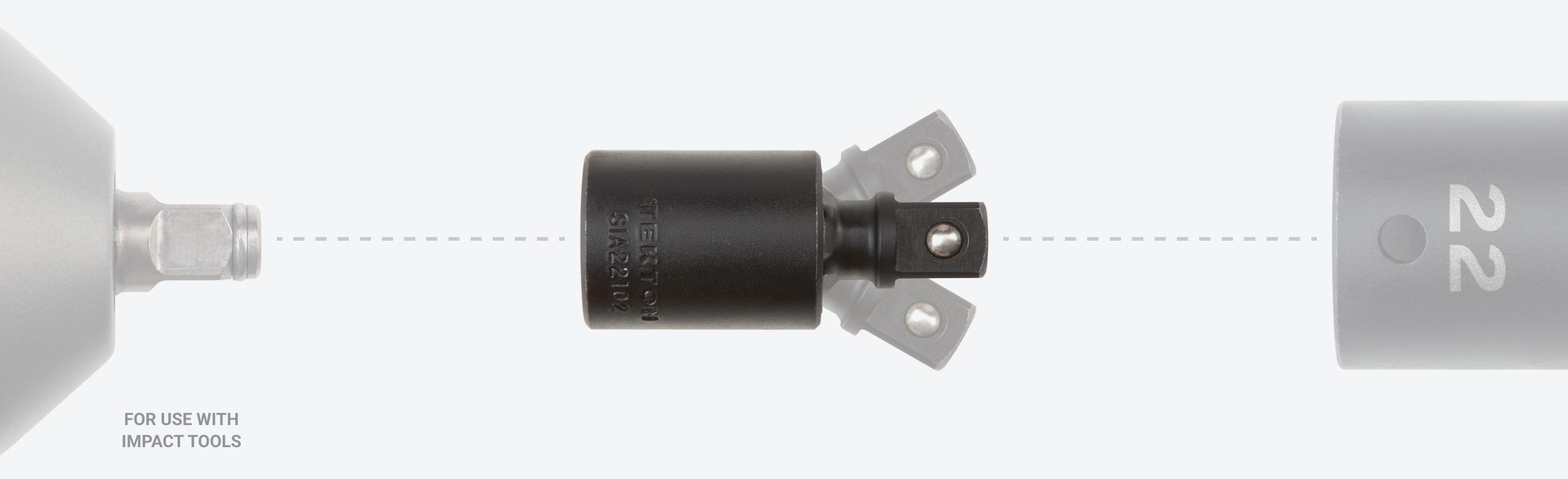

Tekton impact universal joints are for use with impact tools

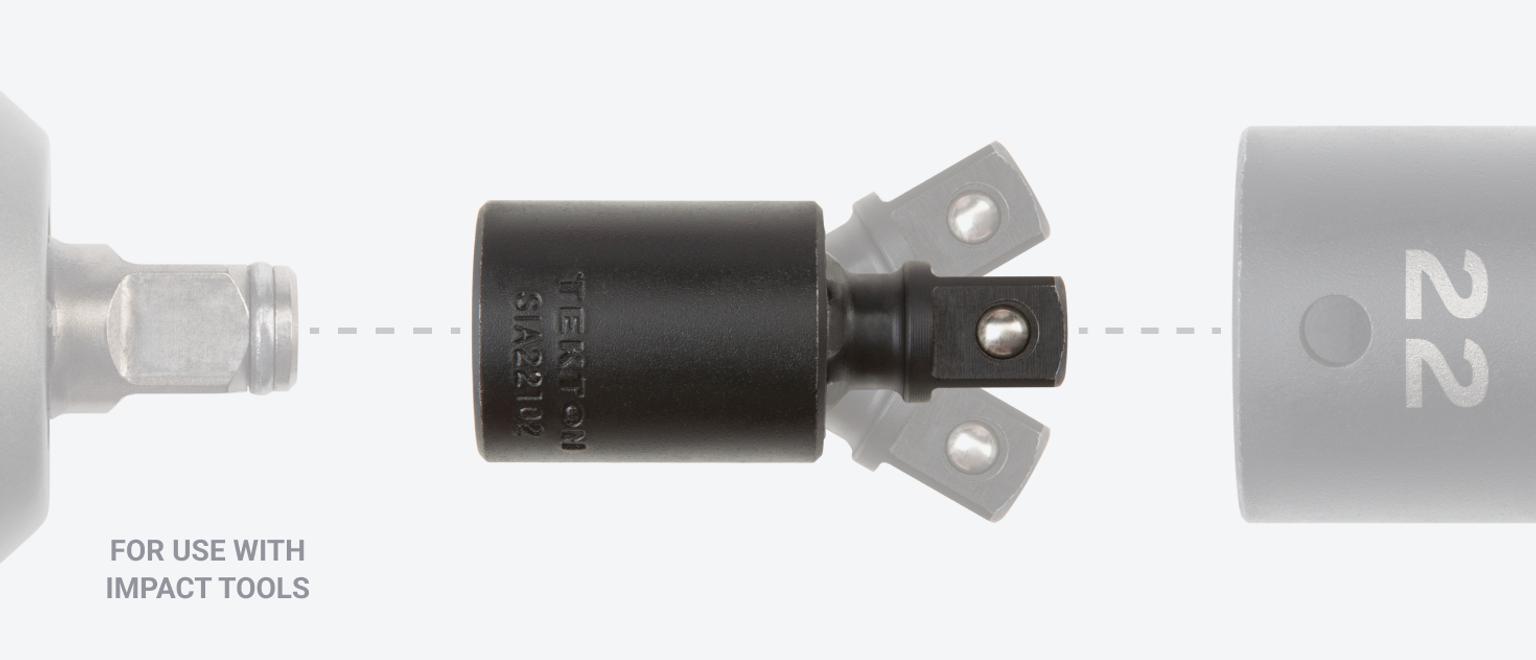

Access at an Angle

Attach a universal joint to your impact tool to reach around obstructions and access fasteners at an angle.
The universal joint has a 30 degree working angle

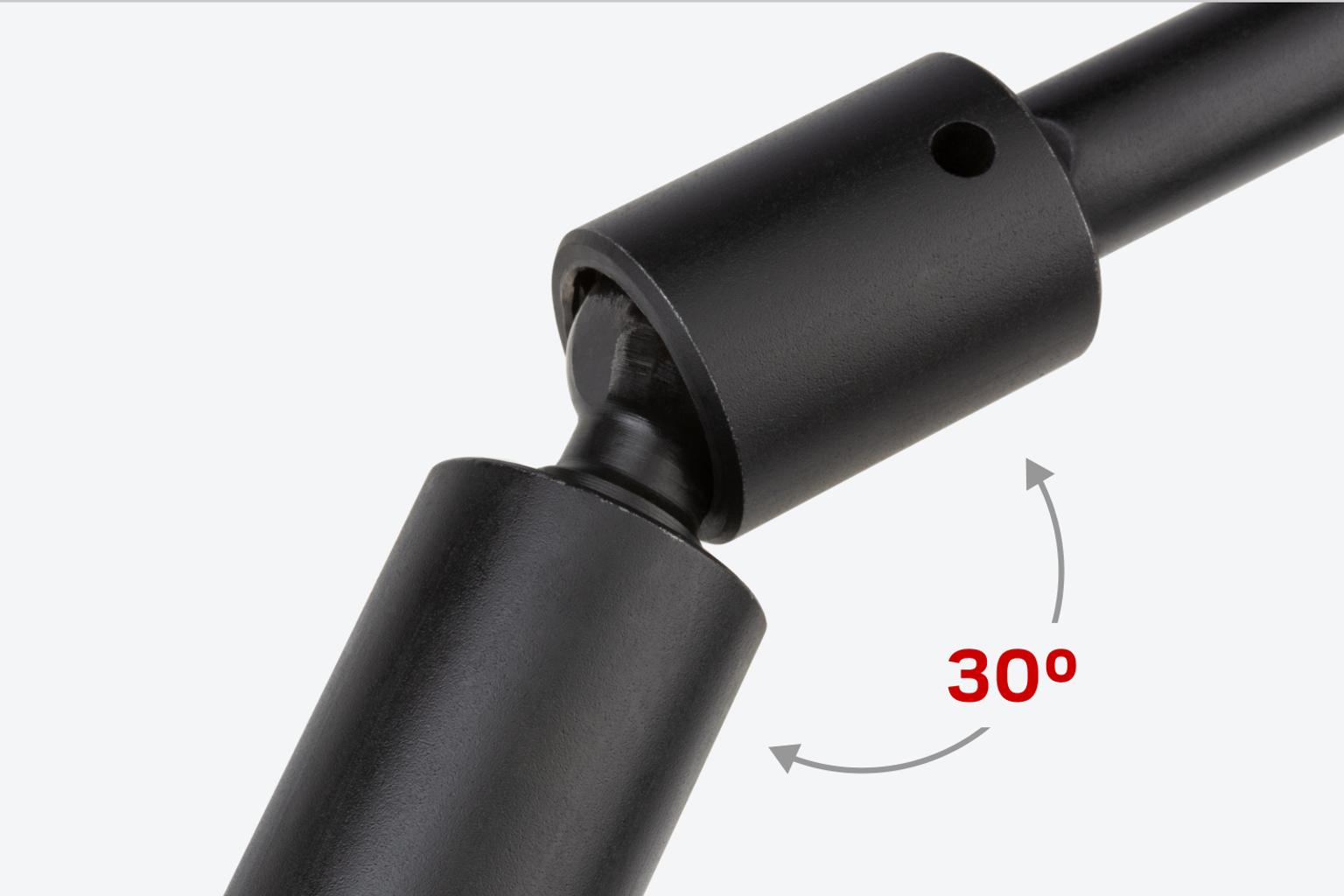

30-Degree Working Angle

The joint rotates smoothly and continuously at up to a 30-degree angle.

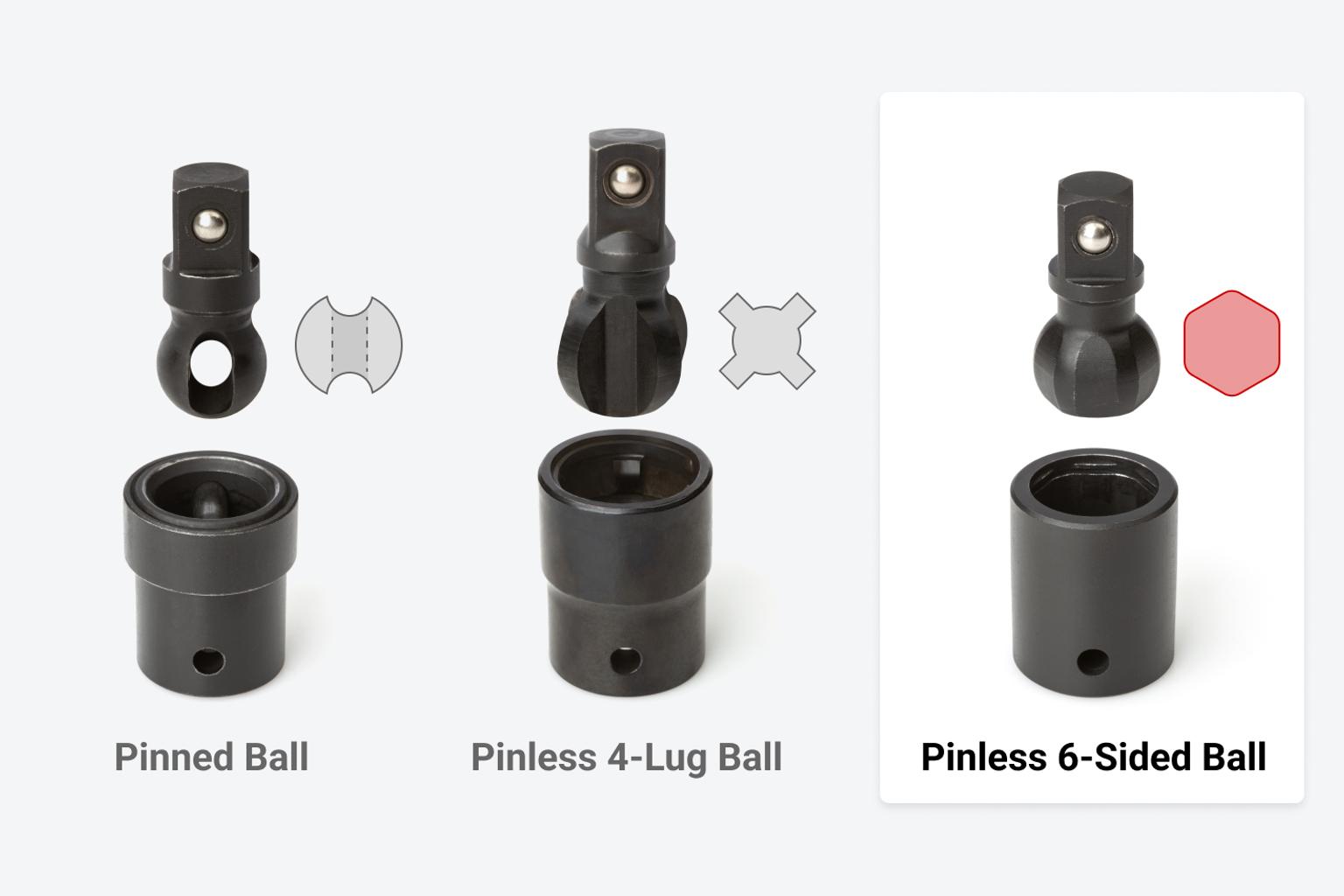

6-Sided Pinless Joint

Our ball-and socket-style joint is stronger than joints that use pins. The 6-sided ball operates more smoothly than 4-lug designs.

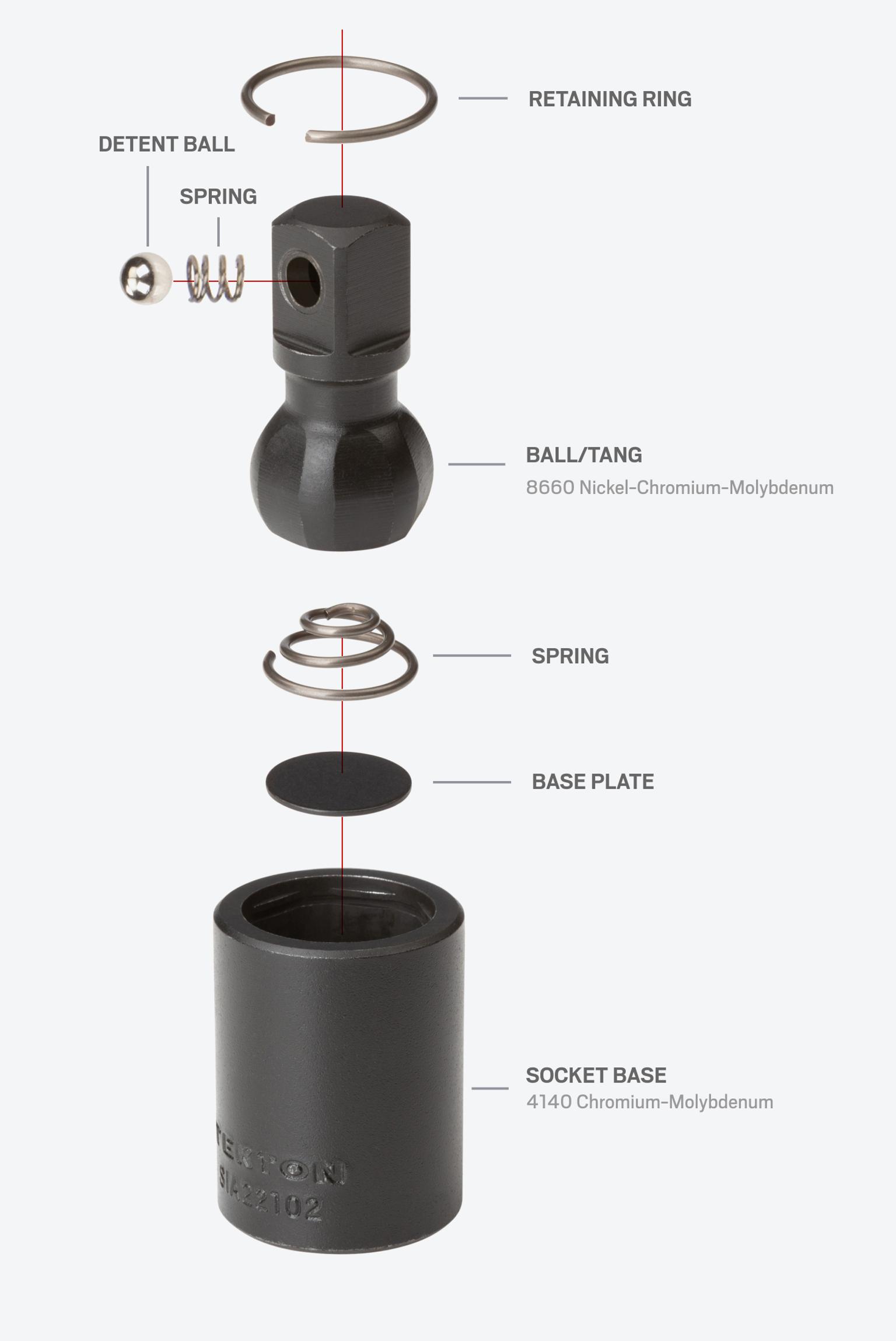

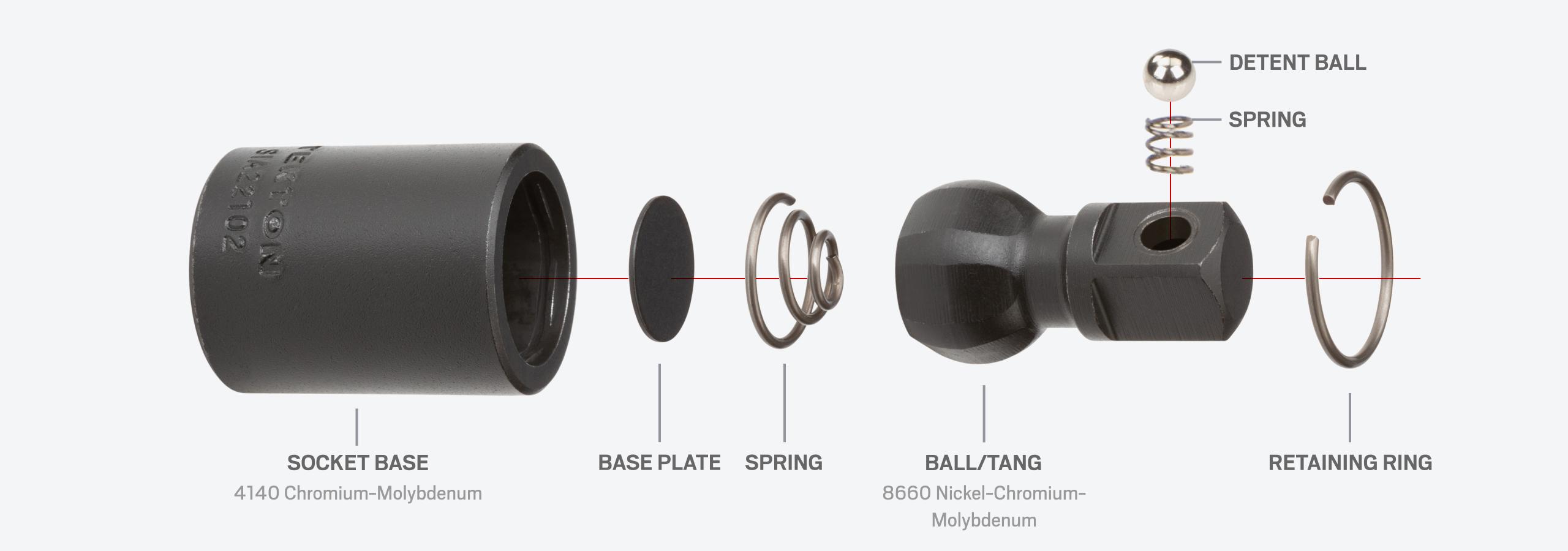

Parts and Assembly

The universal joint comes pre-lubricated with SuperLube Multi-Purpose Synthetic Grease (NLGI 2) with Syncolon® (PTFE). Maintain the lubrication using this grease or a comparable grease as needed to reduce wear over time.

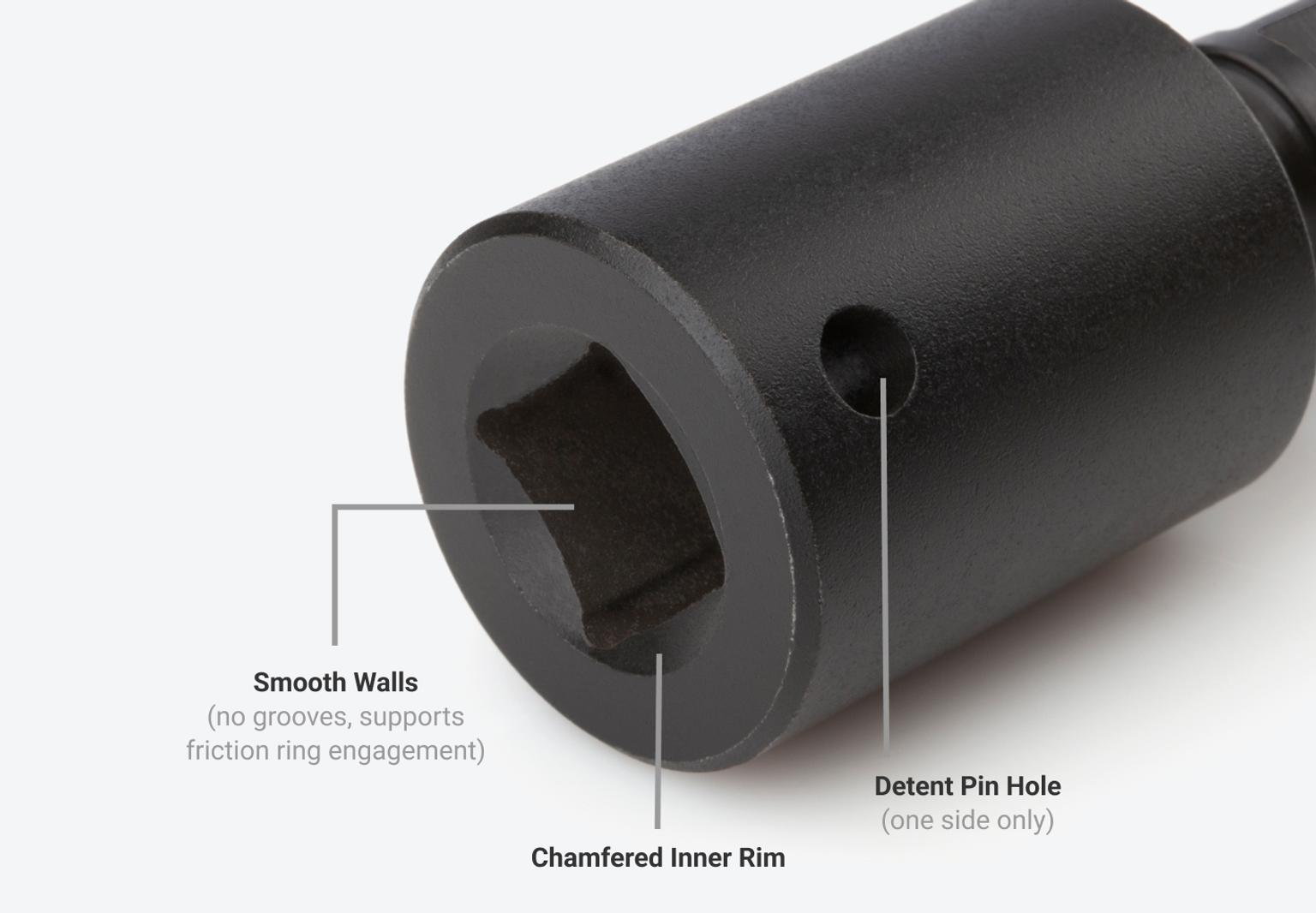

Drive Tool Retention

The universal joint works with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Standard and Deep Lengths)

INCH

Sockets that use 50BV30 Cr-V

5/16 – 1-1/4 in.
(50BV30 Cr-V)

Sockets that use 4140 Cr-Mo

1-5/16 – 2 in.
(4140 Cr-Mo)

METRIC

Sockets that use 50BV30 Cr-V

8 – 32 mm
(50BV30 Cr-V)

Sockets that use 4140 Cr-Mo

33 – 38 mm
(4140 Cr-Mo)

Accessories

Impact socket extensions that use 6140 Cr-V

3 in., 6 in., and 10 in. Extensions
(6140 Cr-V)

Impact socket adapter and reducer that use 8660 Ni-Cr-Mo

Adapter and Reducer
(8660 Ni-Cr-Mo)

Color coded icons showing that impact universal joints use 8660 Ni-Cr-Mo for the ball end and 4140 Cr-Mo for the socket end

Universal Joint
(Ball: 8660 Ni-Cr-Mo)
(Socket: 4140 Cr-Mo)

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specs

1/2 Inch Drive Impact Universal Joint

Specs for 1/2 Inch Drive Impact Universal Joint
Country of Origin
Taiwan
Item Weight
0.44 lb.
