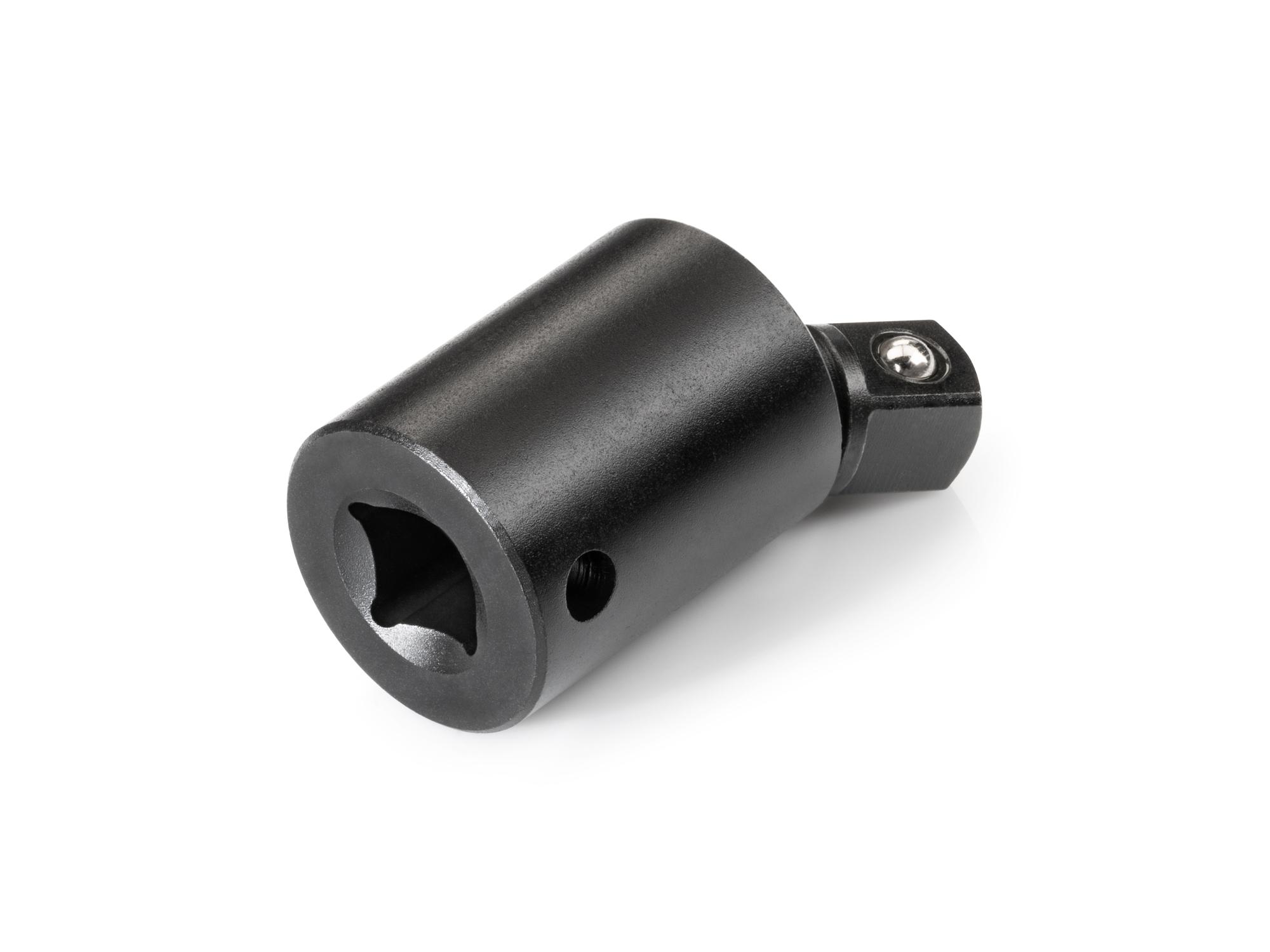

Front-right angle view of Tekton impact drive accessory. Item #SIA12102

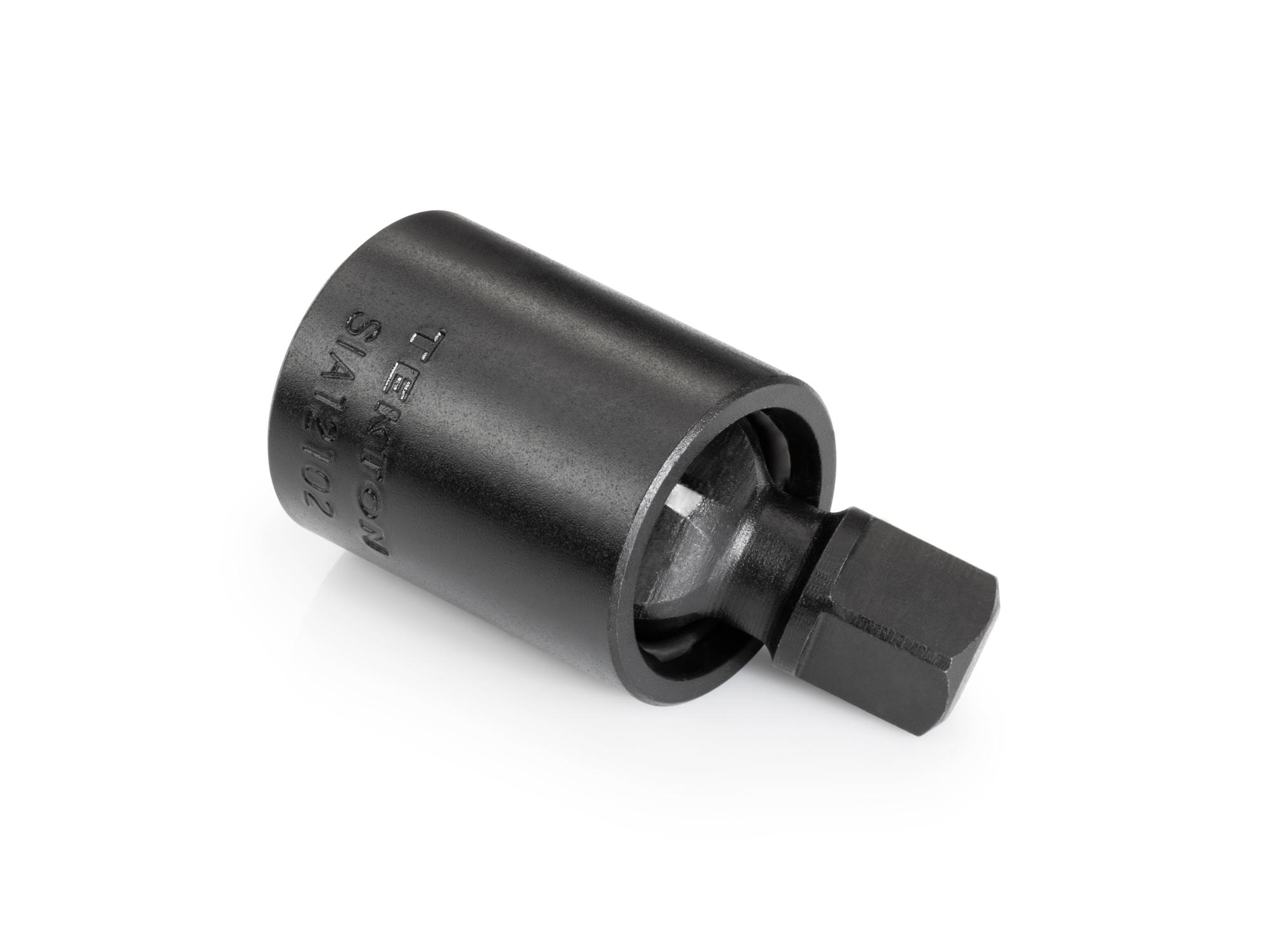

Back angle view of Tekton impact drive accessory. Item #SIA12102

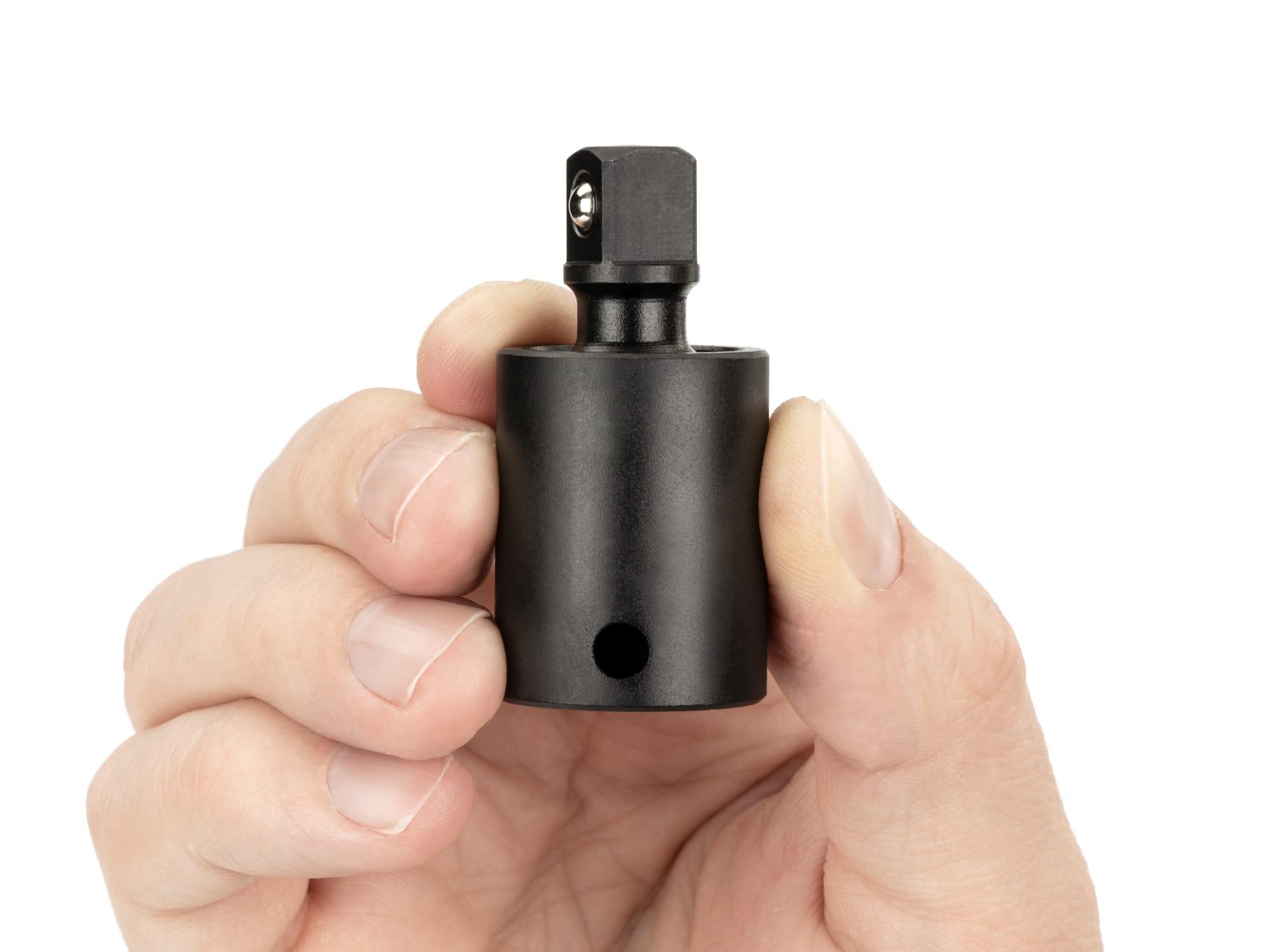

Person holding Tekton impact drive accessory. Item #SIA12102
Tap image to zoom in
Item #SIA12102
3/8 Inch Drive

Impact Universal Joint

•

Drive Size

1/4 Inch Drive
3/8 Inch Drive
1/2 Inch Drive
3/4 Inch Drive

Retention Type

Ball Detent
$11
$11.00
Add to Cart
DetailsSpecifications

Details

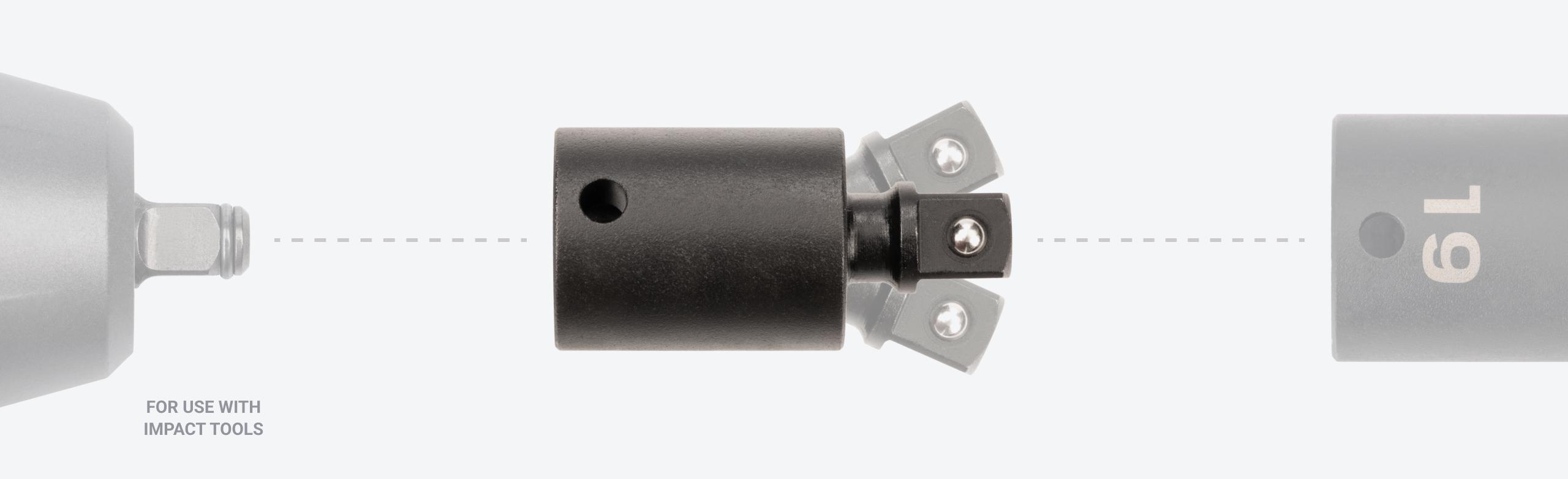

Tekton impact universal joints are for use with impact tools

Access at an Angle

Attach a universal joint to your impact tool to reach around obstructions and access fasteners at an angle.

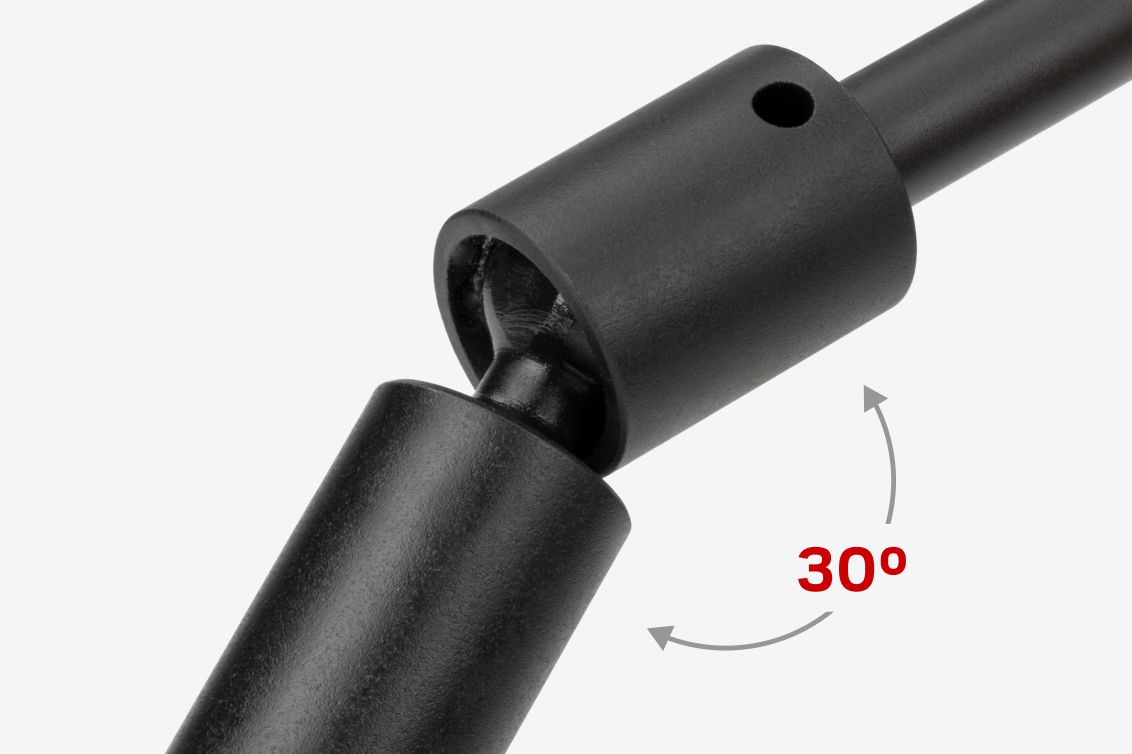

The universal joint has a 30 degree working angle

30-Degree Working Angle

The joint rotates smoothly and continuously at up to a 30-degree angle.
The Tekton pinless 6-sided ball design compared to pinned ball and pinless 4-lug ball designs for impact universal joints

6-Sided Pinless Joint

Our ball-and socket-style joint is stronger than joints that use pins. The 6-sided ball operates more smoothly than 4-lug designs.

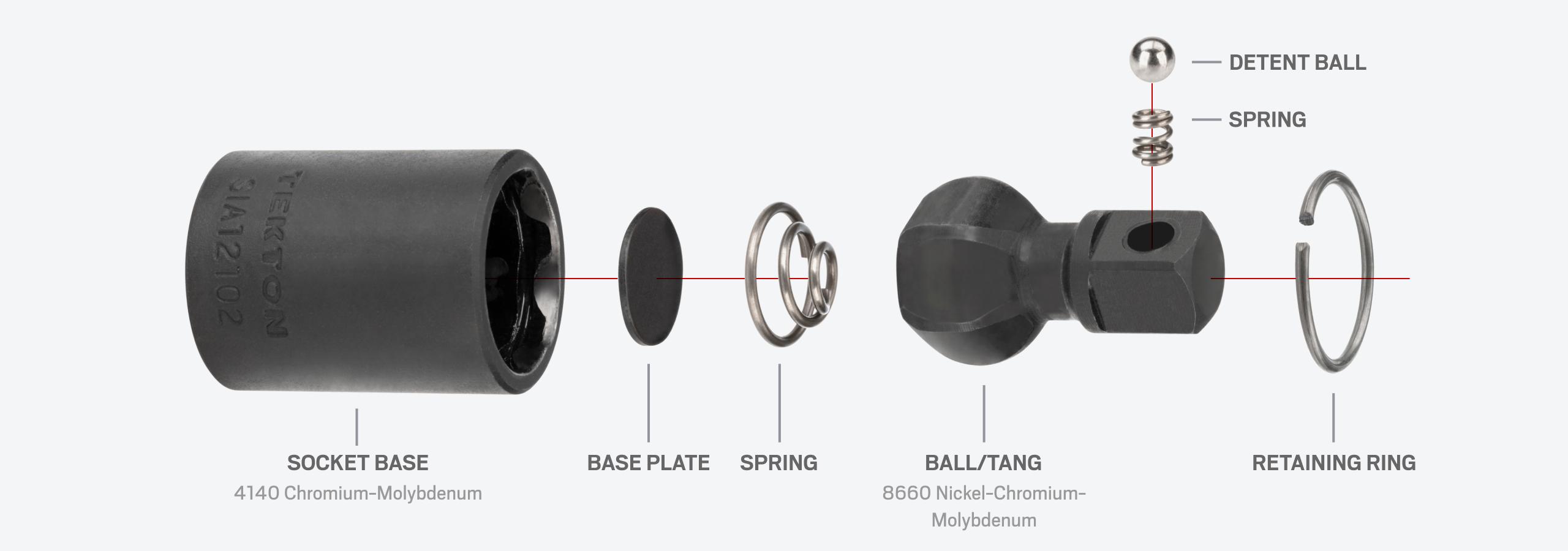

A disassembled impact universal joint, with each component labeled

Parts and Assembly

The universal joint comes pre-lubricated with SuperLube Multi-Purpose Synthetic Grease (NLGI 2) with Syncolon® (PTFE). Maintain the lubrication using this grease or a comparable grease as needed to reduce wear over time.
The drive end of an impact universal joint, with the smooth walls, chamfered inner rim, and detent pin hole highlighted

Drive Tool Retention

The universal joint works with both types of anvils found on 3/8 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

Specifications

3/8 Inch Drive Impact Universal Joint

Specs for 3/8 Inch Drive Impact Universal Joint
Country of Origin
Taiwan
Item Weight
0.24 lb.
