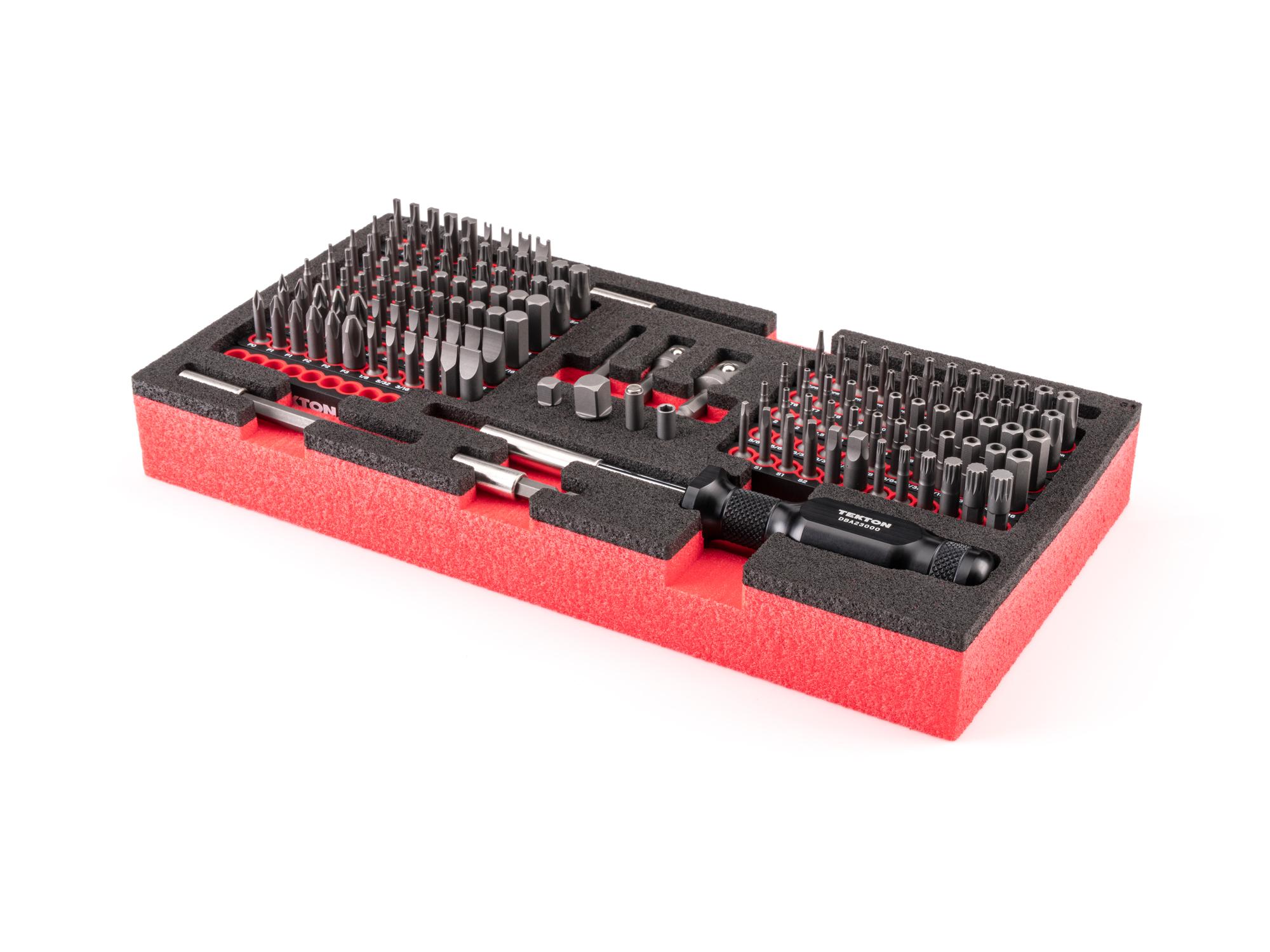

Aluminum Handle Bit Driver and Insert Bit Set with 12 x 6 Inch Foam Organizer (152-Piece)
Set Includes:
- Phillips and Slotted Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Phillips: P0, P1 (x2), P2 (x2), P3 (4 sizes)
-
Slotted: 1/8, 5/32, 3/16, 7/32, 1/4, 5/16 in. (6 sizes)
- Slotted and Pozidriv Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Slotted: 3, 3.5, 4, 4.5, 5.5, 6.5, 8 mm (7 sizes)
-
Pozidriv: PZ0, PZ1, PZ2 (x2), PZ3 (4 sizes)
- Hex Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Hex: 1/16 (x2), 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16 in. (11 sizes)
- Tamper Hex Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Tamper Hex: 5/64 (x2), 3/32 (x2), 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16 in. (10 sizes)
- Hex Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Hex: 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8 mm (12 sizes)
- Tamper Hex Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Tamper Hex: 2 (x2), 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8 mm (11 sizes)
- Star Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Star: T6, T7, T8, T9, T10, T15, T20, T25, T27, T30, T40, T45 (12 sizes)
- Tamper Star Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Tamper Star: T6, T7, T8, T9, T10, T15, T20, T25, T27, T30, T40, T45 (12 sizes)
- Star Plus Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Star Plus: 6IP, 7IP, 8IP, 9IP, 10IP, 15IP, 20IP, 25IP, 27IP, 30IP, 40IP, 45IP (12 sizes)
- Tamper Star Plus Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Tamper Star Plus: 6IPR, 7IPR, 8IPR, 9IPR, 10IPR, 15IPR, 20IPR, 25IPR, 27IPR, 30IPR, 40IPR, 45IPR (12 sizes)
- Square and Triple Square Insert Bit Set (1.18 Inch Length) with Rail (12-Piece)
-
Square: S0, S1 (x2), S2, S3, S4 (5 sizes)
-
Triple Square: M3, M4, M5, M6, M7, M8 (6 sizes)
- Clutch and Spanner Insert Bit Set (1.18 Inch Length) with Rail (9-Piece)
-
Clutch: 1/8, 5/32, 3/16, 7/32, 1/4 in. (5 sizes)
-
Spanner: #4, #6, #8, #10 (4 sizes)
- 1/4 Inch Hex Shank Magnetic Pickup Bit
- 1/4 Inch Hex Shank Magnetic Bit Holder Extensions
2, 4, 8 in. - 1/4 Inch Hex Shank to 4 mm Magnetic Hex Bit Holder
- 1/4 Inch Hex Shank to 1/4 Inch Drive Socket Adapter
0.75, 2 in. - 1/4 Inch Hex Shank to 3/8 Inch Drive Socket Adapter
0.91, 2 in. - 1/4 Inch Hex Shank to 1/2 Inch Drive Socket Adapter
- 1/4 Inch Aluminum Handle Magnetic Bit Driver
- 9-Tool 1/4 Inch Bit Rail
- Aluminum Handle Bit Driver, Bit Rail, and Accessory Set Foam Organizer (12 x 6 Inch)
Details
Bits with Rails
Slightly Longer than Typical Insert Bits
Low Shoulders for Recessed Screws
For small tip sizes, the shoulders on the hex shank are reduced as low as possible, keeping the shaft diameter narrow so it can reach into tight, recessed areas.
Hardened Steel with Precise Tip Geometry
The bits are made of S2 tool steel and are through-hardened to 58 - 61 HRC. Tight tolerances on the tip geometry keep the bit seated in the screw, reducing slip and wear.
Stamped Markings and Satin Finish
The tip size is permanently stamped onto every bit in large, clear type. A zinc-phosphate coating adds a satin finish that resists corrosion.
Free-Standing Bit Rails
The flexible rails securely grip the bits so they can’t fall out, while also making it easy to remove any bit one-handed. The rails can also stand upright on a surface.
Sizes are printed on the rails for easy identification
Magnetic Bit Driver with Aluminum Handle
Coarse Knurling and Rounded Areas for Better Grip and Faster Spinning
1/4 Inch Drive Square in the Handle
Magnetic Bit Holder
Bits are held securely by a magnet that is permanently press-fit and cannot come out.
3.2 Inch Blade Length
Included Accessories
- 4 mm Magnetic Hex Bit Holder
- Magnetic Pickup Bit
- Mini Socket Adapters (1/4, 3/8 inch drive)
- 2 Inch Socket Adapters (1/4, 3/8, 1/2 inch drive)
- Magnetic Bit Holder Extensions (2, 4, 8 in.)

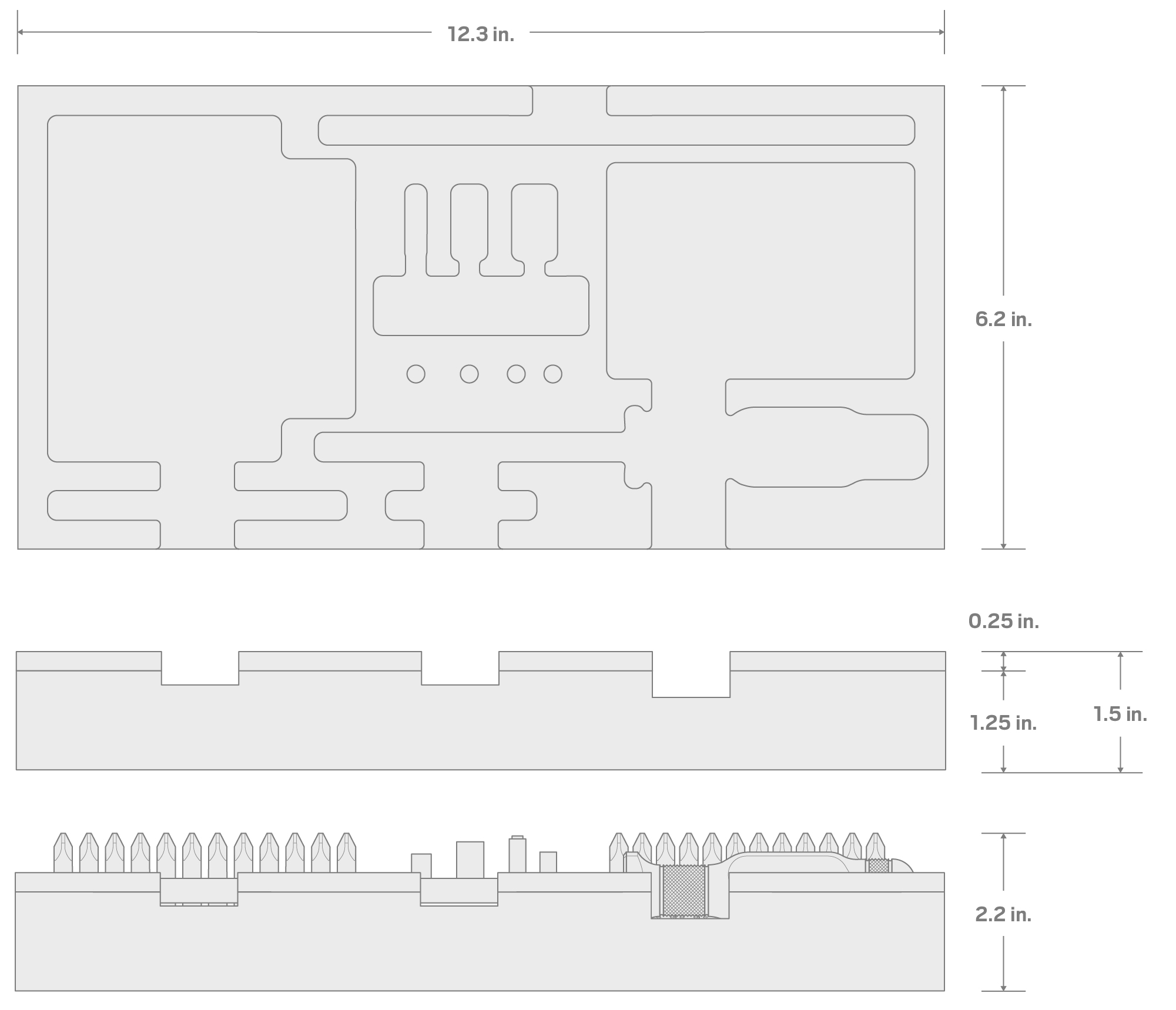

Foam Organization
Material and Construction
We use USA-made, cross-linked polyethylene (XLPE) foam, a closed-cell material that won't absorb liquids. Each organizer has two layers that are permanently heat-laminated together, with densities that are selected to produce clean, tear-resistant cutouts and a secure fit for each tool.
Shown: #SHD90800
Cut in Michigan
We design and CNC-cut each foam organizer in our Grand Rapids, Michigan, manufacturing facility to optimize for high tool density, easy access, and secure fit of Tekton tools.
Specifications
1/4 Inch Aluminum Handle Bit Driver and Insert Bit Set with 12 x 6 Inch Foam Organizer (152-Piece)
| Country of Origin | Bits, bit rails, bit accessories, and bit driver made in Taiwan. Foam made in USA. |
| Item Weight | 2.9 lb. |
