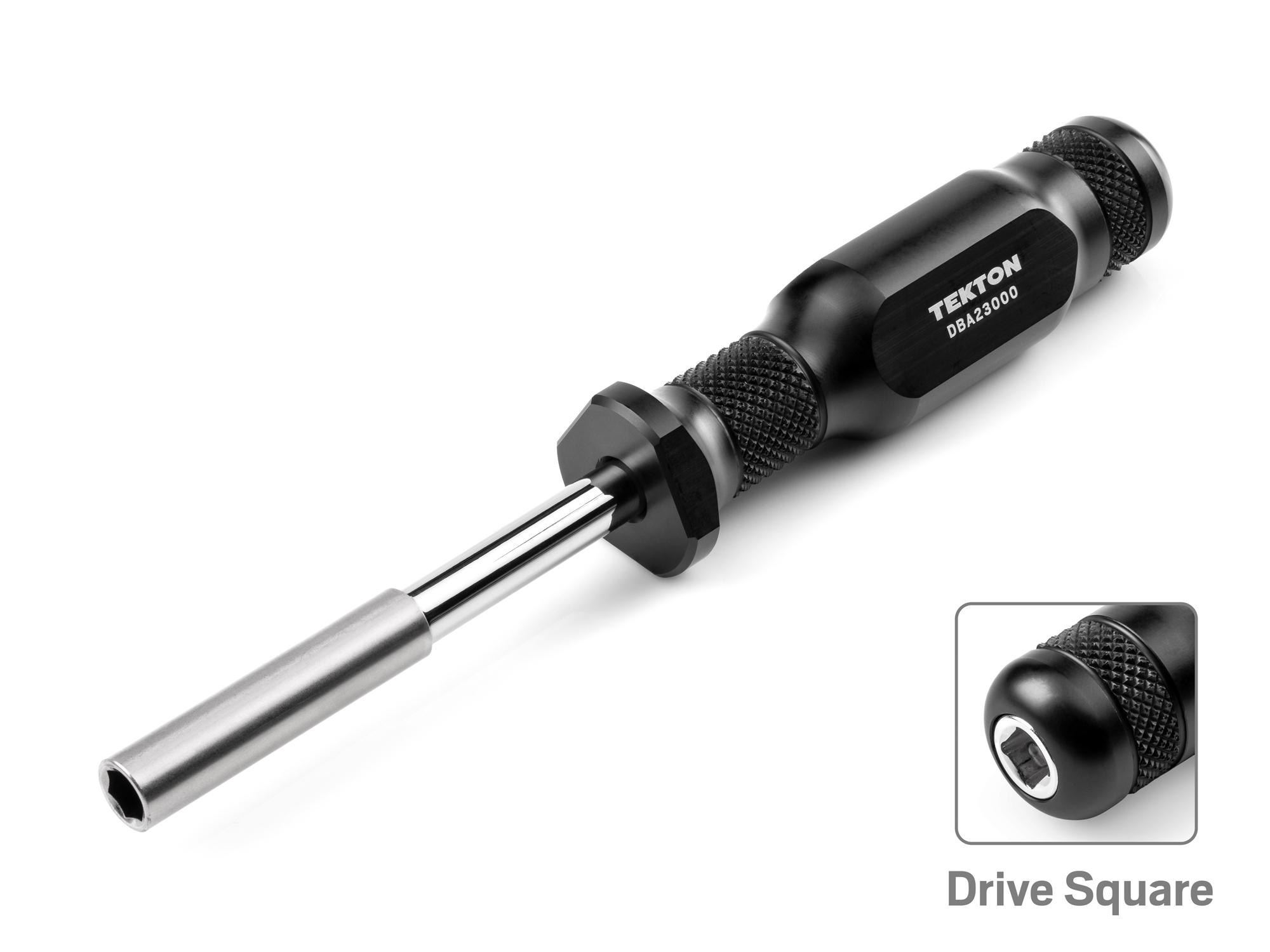

TEKTON 1/4 Inch Aluminum Handle Magnetic Bit Driver

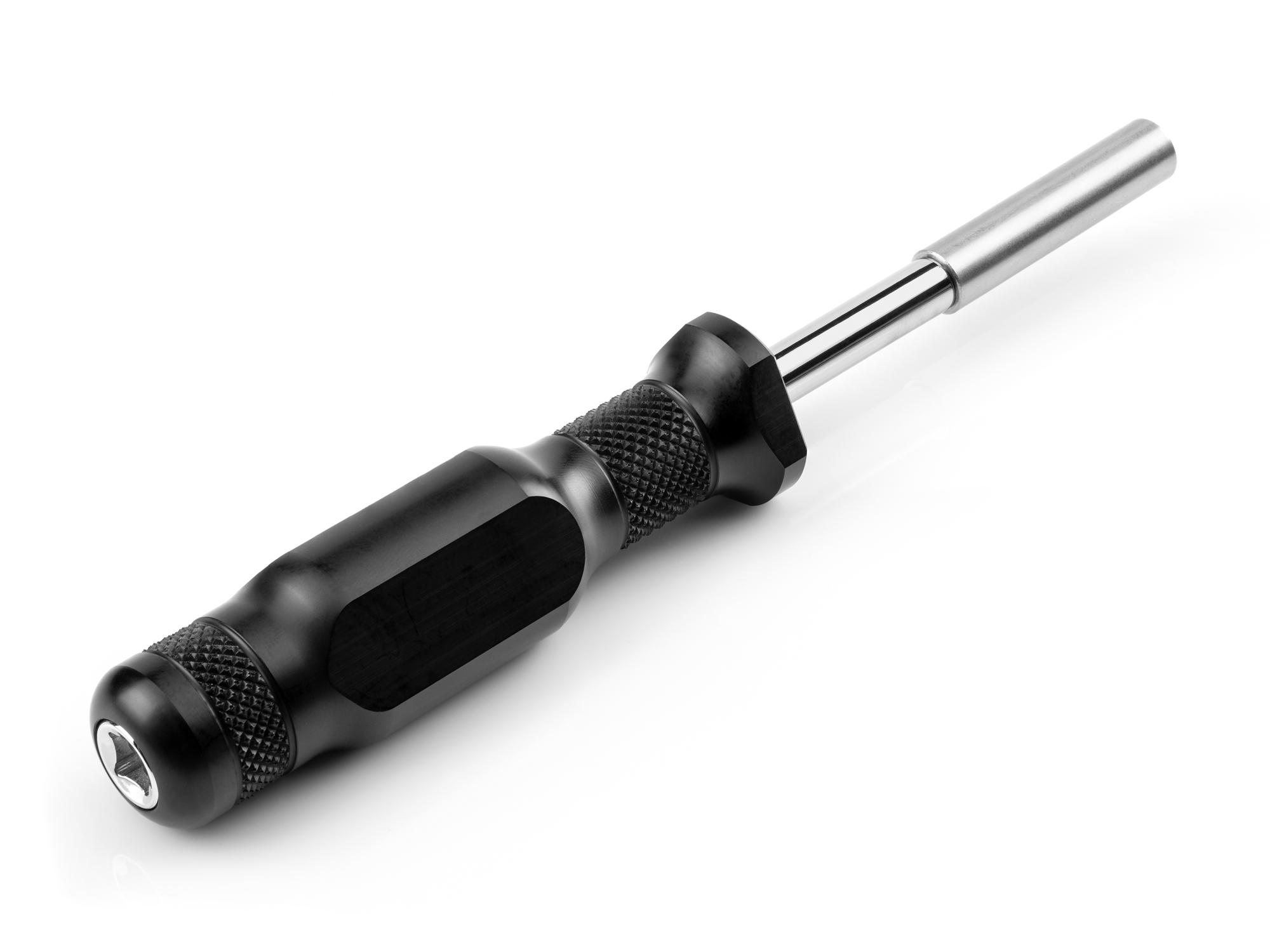

Back angle view of Tekton multi-bit driver. Item #DBA23000

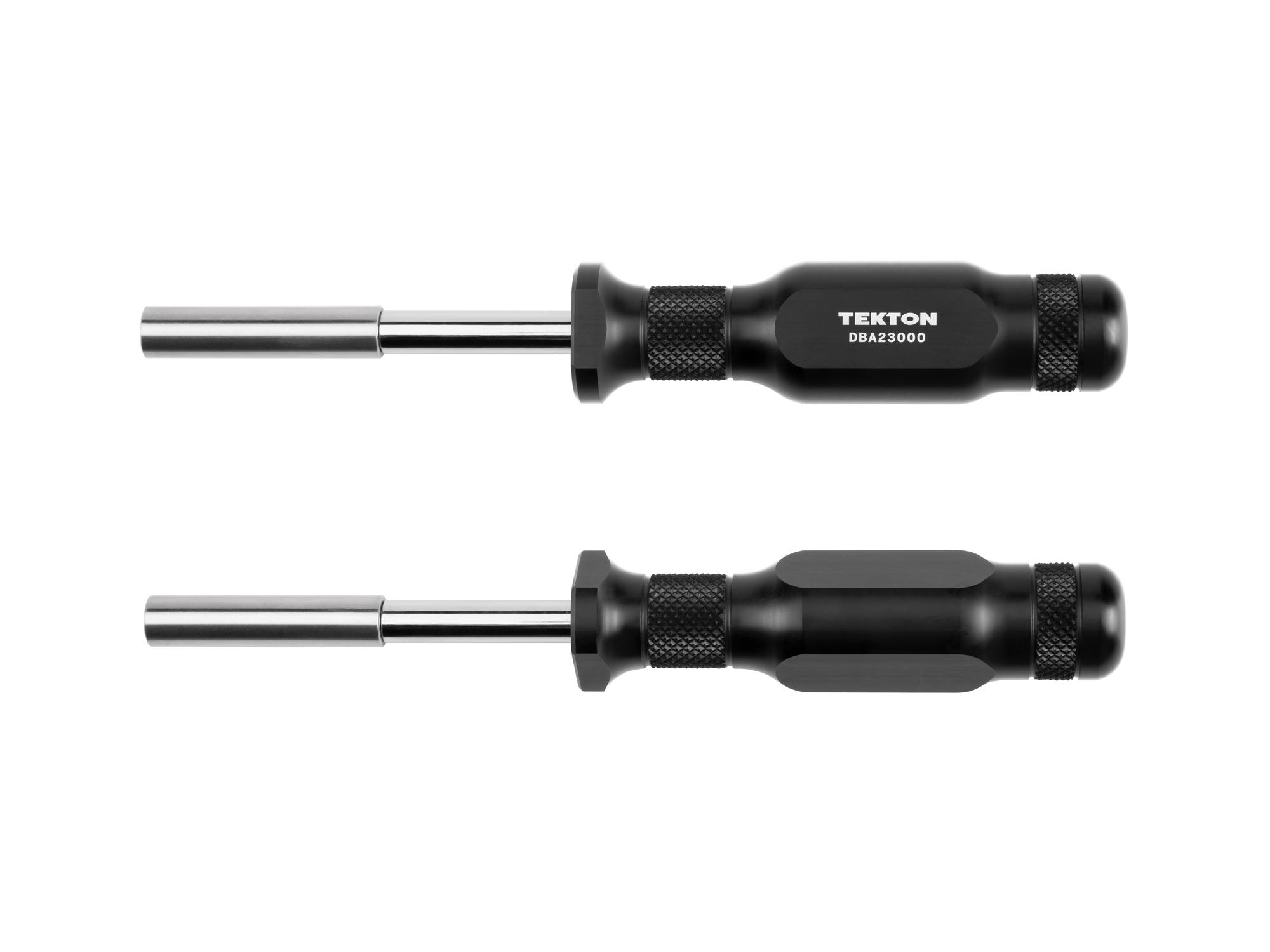

Side view of Tekton multi-bit driver. Item #DBA23000
Closeup view of Tekton 5 inch socket driver. Item #SHM04109

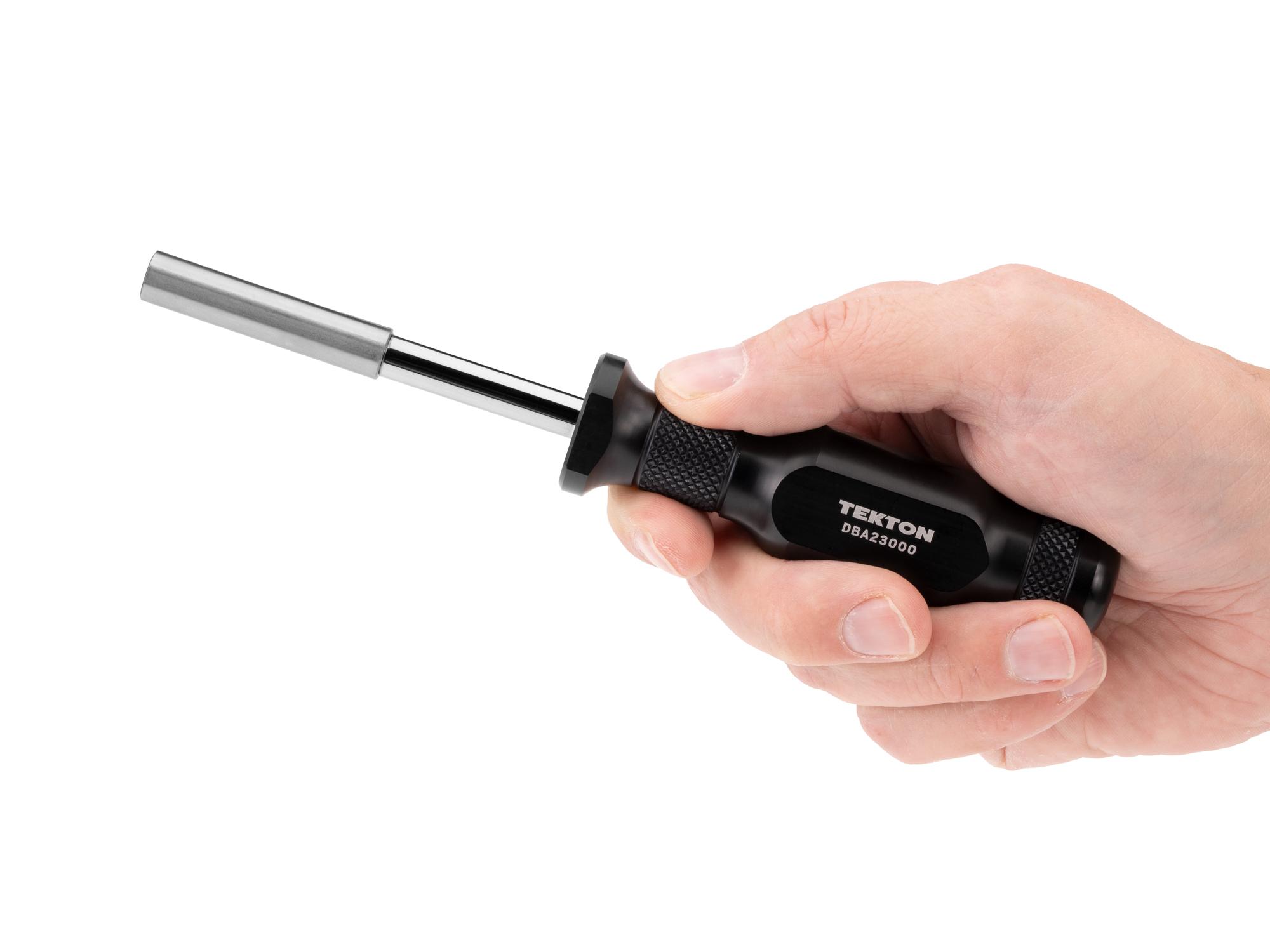

Person holding Tekton multi-bit driver. Item #DBA23000
Tap image to zoom in
Item #DBA23000
1/4 Inch Hex Shank

Aluminum Handle Magnetic Bit Driver

•
$20.00
Add to Cart
DetailsSpecifications

Details

Magnetic Bit Driver with Aluminum Handle

This bit driver has a full-length steel shank permanently pressed into an aluminum handle. The blade extends 3.2 inches and has a magnetic bit holder for 1/4 inch insert bits and accessories. A 1/4 inch drive square at the back of the handle accepts a ratchet for extra leverage. The tri-lobe handle increases torque and won't roll off your bench. Knurled sections let you spin it quickly.

Magnetic Bit Holder


Bits are held securely by a magnet that is permanently press-fit and cannot come out.


A 1.18 inch bit extends 0.79 inches beyond the driver, and a 0.75 inch bit extends 0.36 inches beyond the driver.
Graphic of a cutaway of the bit driver, showing the magnet
Close-up image of the 1/4 inch drive square on the end of the aluminum handle

1/4 Inch Drive Square in the Handle

Add a ratchet for extra leverage to break a fastener loose, then pull the ratchet off and spin the driver to run it out. Swap in a torque wrench to tighten to spec.
Image of a hand putting a ratchet on the drive square
Two hands spinning a bit driver

Coarse Knurling and Rounded Areas for Better Grip and Faster Spinning

A deep, sharp-cut diamond pattern is knurled into the rounded sections at the front and back of the handle to create a coarse, non-slip texture.
Close-up image of the knurling on a bit driver

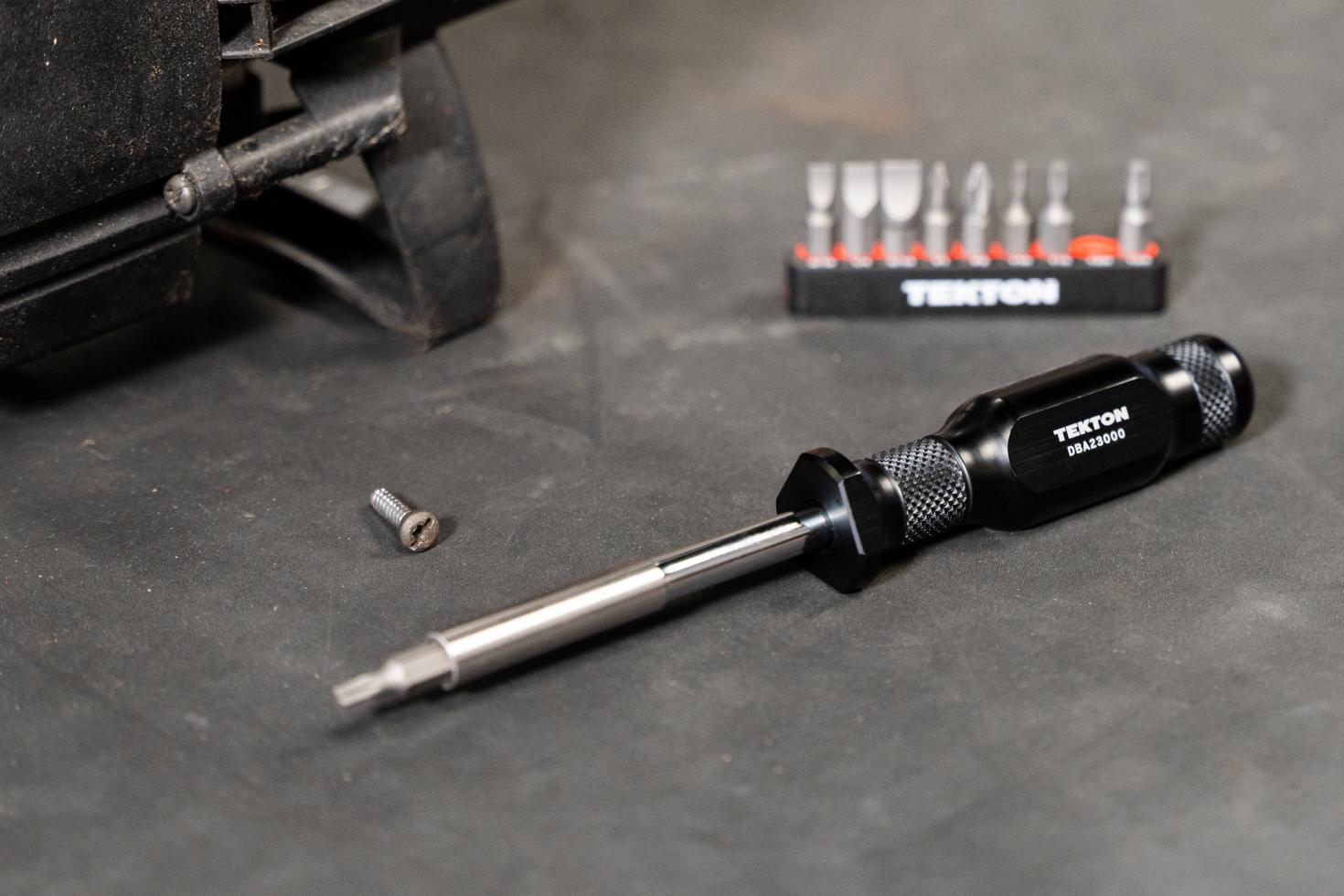

A bit driver on a work surface

Tri-Lobe Shape for More Torque and Roll Resistance

The handle's three-sided geometry gives you the leverage to apply higher turning force by hand while also keeping it from rolling on flat surfaces.
Red graphic showing the cross-section of the bit driver
An aluminum handle bit driver in use

3.2 Inch Blade Length

The exposed blade is similar to a standard screwdriver length and extends your reach into tight spaces.
Graphic showing the exposed blade of the bit driver is 3.2 inches long

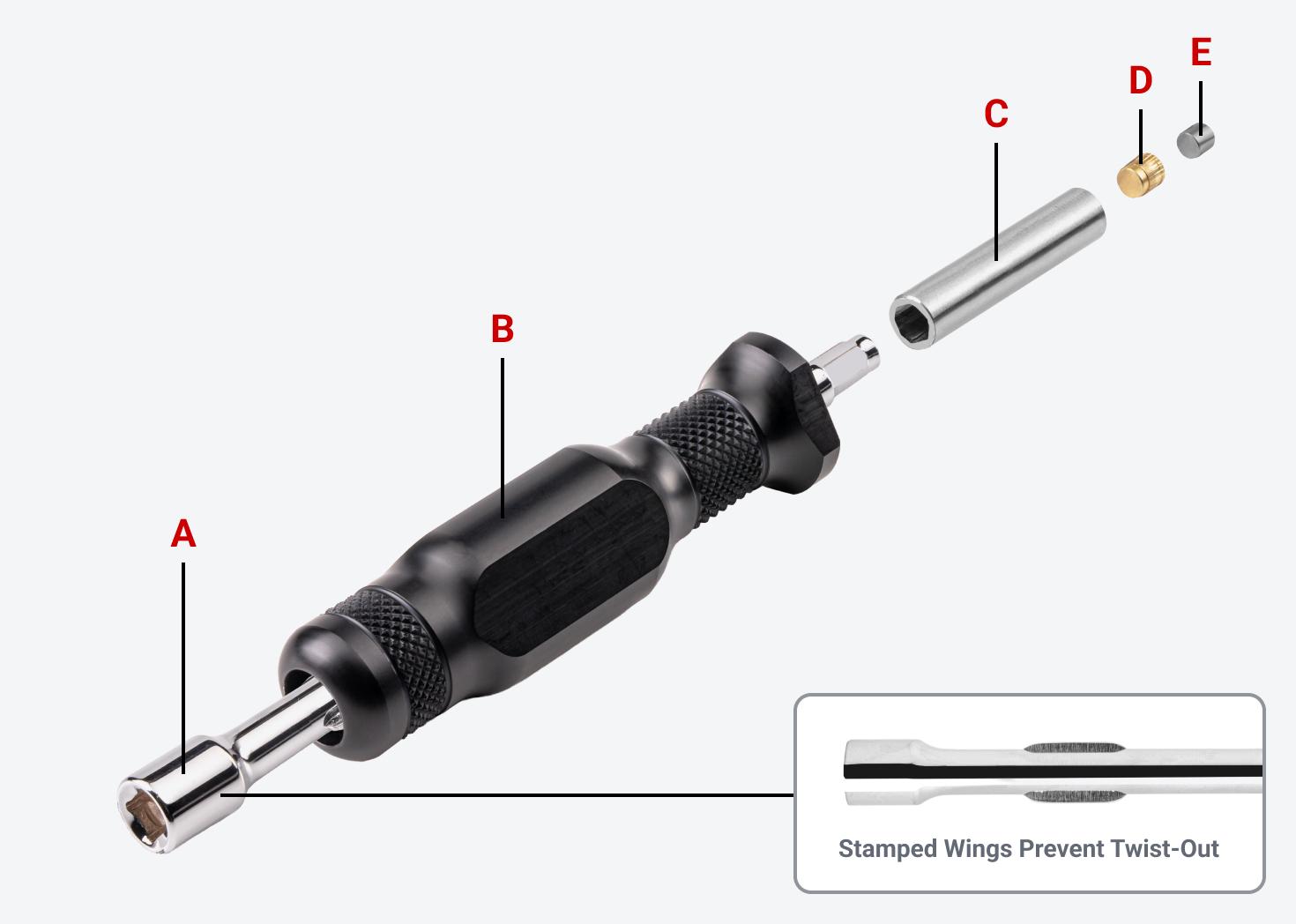

Exploded view of the bit driver with each part labeled

Materials and Construction


A. Shank: 50BV30 chromium-vanadium steel with a chrome-plated finish

B. Handle: 6061 aluminum with a matte black anodized finish

C. Hex Bit Holder: 302 stainless steel, polished

D. Magnet Sleeve: Brass

E. Magnet: Nickel-plated neodymium

Use with 1/4 Inch Shank Accessories


  • 4 mm Magnetic Hex Bit Holder
  • Magnetic Pickup Bit
  • Mini Socket Adapters (1/4, 3/8 inch drive)
  • 2 Inch Socket Adapters (1/4, 3/8, 1/2 inch drive)
  • Magnetic Bit Holder Extensions (2, 4, 8 in.)
Shop All
1/4 inch bit accessories

Specifications

1/4 Inch Aluminum Handle Magnetic Bit Driver

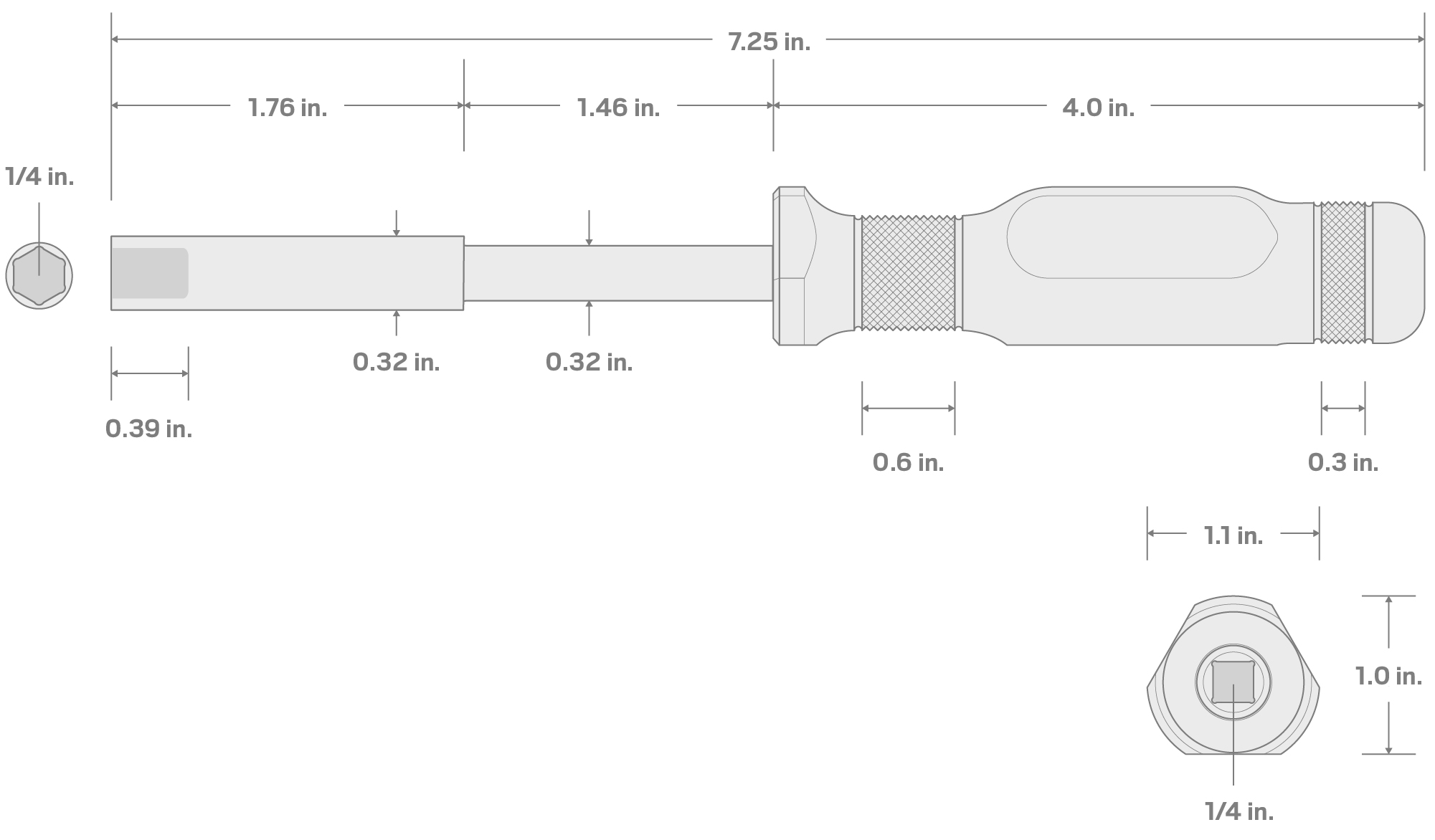

Specs for 1/4 Inch Aluminum Handle Magnetic Bit Driver
Country of Origin
Taiwan
Item Weight
0.37 lb.
