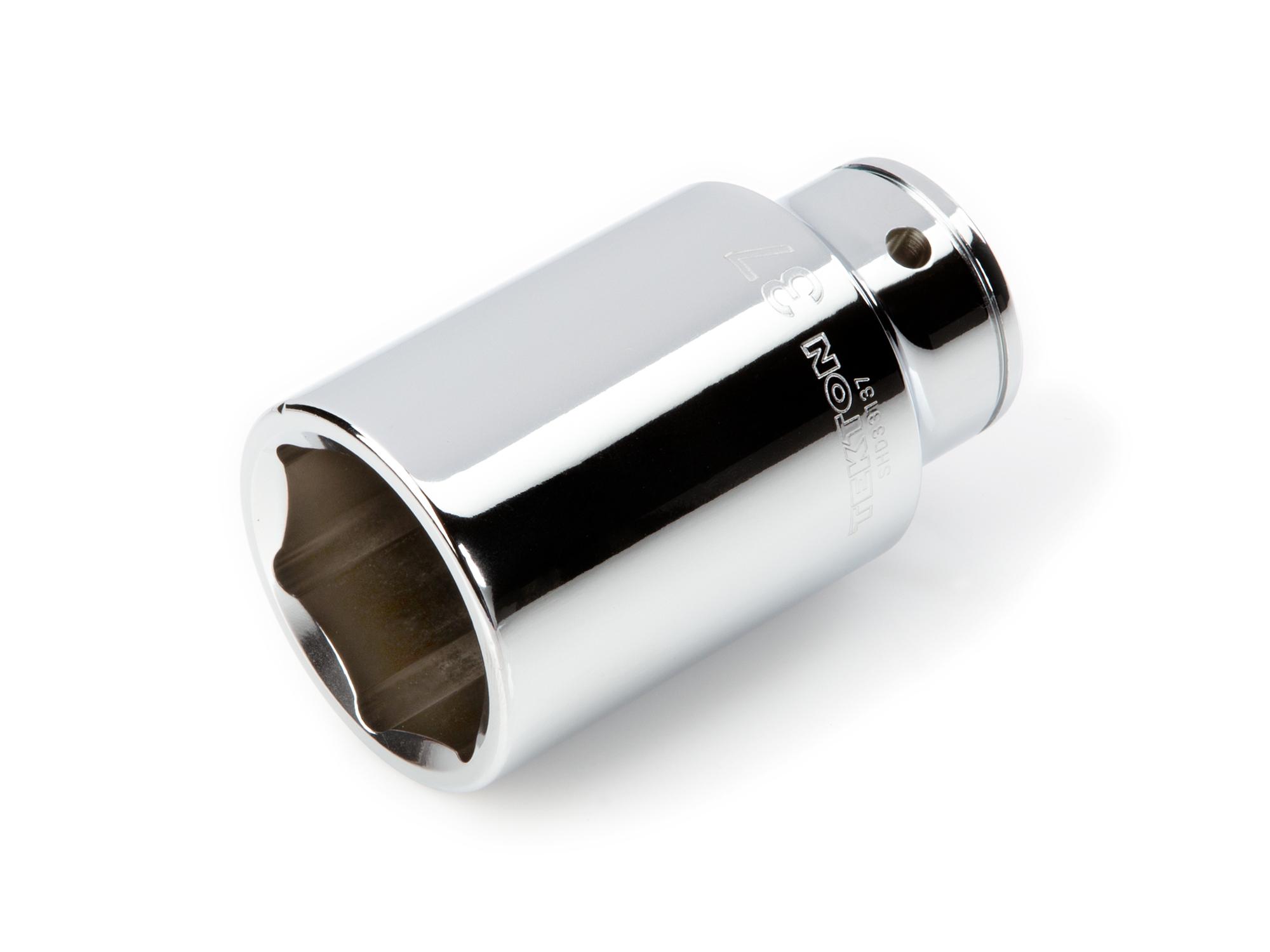

TEKTON 3/4 Inch Drive x 37 mm Deep 6-Point Socket
Tap image to zoom in
Item #SHD33137

3/4 Inch Drive x 37 mm Deep 6-Point Socket

•
InchMetric

Size

19 mm
$15
20 mm
$15
21 mm
$15
22 mm
$16
23 mm
$16
24 mm
$16
25 mm
$16
26 mm
$18
27 mm
$18
28 mm
$18
29 mm
$18
30 mm
$18
31 mm
$19
32 mm
$19
33 mm
$19
34 mm
$21
35 mm
$21
36 mm
$21
37 mm
$23
38 mm
$23
41 mm
$24
46 mm
$27
50 mm
$30
$23.00

Also Available in Deep Length

#SHD32137

DetailsSpecifications

Details

3/4 inch drive 6-point socket lineup comparison

Our 3/4 Inch Drive Socket Lineup

Our 3/4 inch drive 6-point socket lineup consists of shallow (previously called standard) and deep length sockets.

Stamped size markings on 3/4 inch drive socket

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket’s curved surface
  • Clearly visible size numbers with extra-deep outline
Stamped size markings on 3/4 inch drive socket
Cross section showing interior and exterior socket finishes

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat rather than metallic paint
6-point socket opening

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Prevents Fastener Round-Off

6-point socket gripping fastener flats

Radiused corners apply force to the flat sides of fasteners rather than the corners.

Drive tool engaging 3/4 inch drive socket

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection
  • Beveled inner rims guide the socket onto tools

High Torque Strength

Meets a minimum value of 1.3 times the ANSI Proof Torque standard, verified by a single-cycle test without failure or permanent deformation.

METRIC SERIES

Metric torque specifications chart for 3/4 inch drive deep sockets
ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

Inch torque specifications chart for 3/4 inch drive deep sockets
ANSITEKTON
Source: ASME B107.1 - 2002

Specifications

3/4 Inch Drive x 37 mm Deep 6-Point Socket

Specs for 3/4 Inch Drive x 37 mm Deep 6-Point Socket
Country of Origin
Taiwan
Item Weight
1.55 lb.
