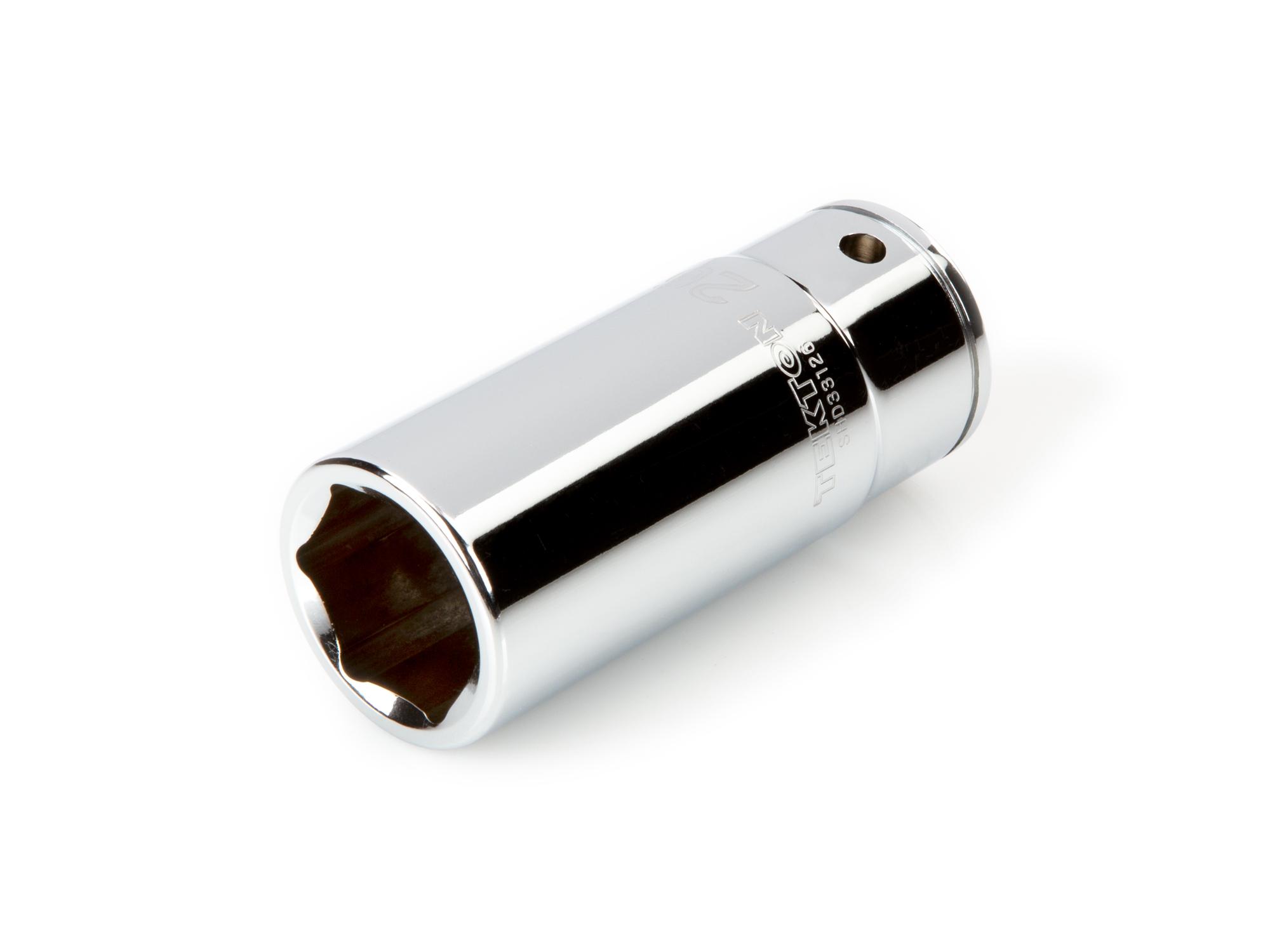

3/4 Inch Drive Deep 6-Point Sockets

Item #SHD33126
•
Ships today
$18.00
•
Description

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket’s curved surface
  • Clearly visible size numbers with extra-deep outline

Exterior + Interior Finishes

  • Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
  • Interior is protected against rust with clear coat, rather than commonly-used metallic paint

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

High Torque Strength

Meets minimum value of 1.3 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

METRIC SERIES

ANSITEKTON
Source: ASME B107.5M - 2002

INCH SERIES

ANSITEKTON
Source: ASME B107.1 - 2002

Most Complete 3/4 Inch Hand Drive Socket Line

Snap-onProtoS•KMacMatco
INCH
6-pt Standard2100000
6-pt Deep21111000
12-pt Standard21262525200
12-pt Deep000000
METRIC
6-pt Standard2300000
6-pt Deep2300000
12-pt Standard23525000
12-pt Deep000000

Competitor totals based on available items in online catalogs as of Jan 16, 2019.

Specs

3/4 Inch Drive x 26 mm Deep 6-Point Socket

A. Length 3.5 in.
B. Socket End Diameter 1.49 in.
C. Drive End Diameter 1.42 in.
D. Socket Opening Size 26 mm
E. Drive Size 3/4 in.
F. Well Depth 1.11 in.
G. Locking Pin Hole Diameter 6 mm
Weight 0.93 lb.
Country of Origin Taiwan
