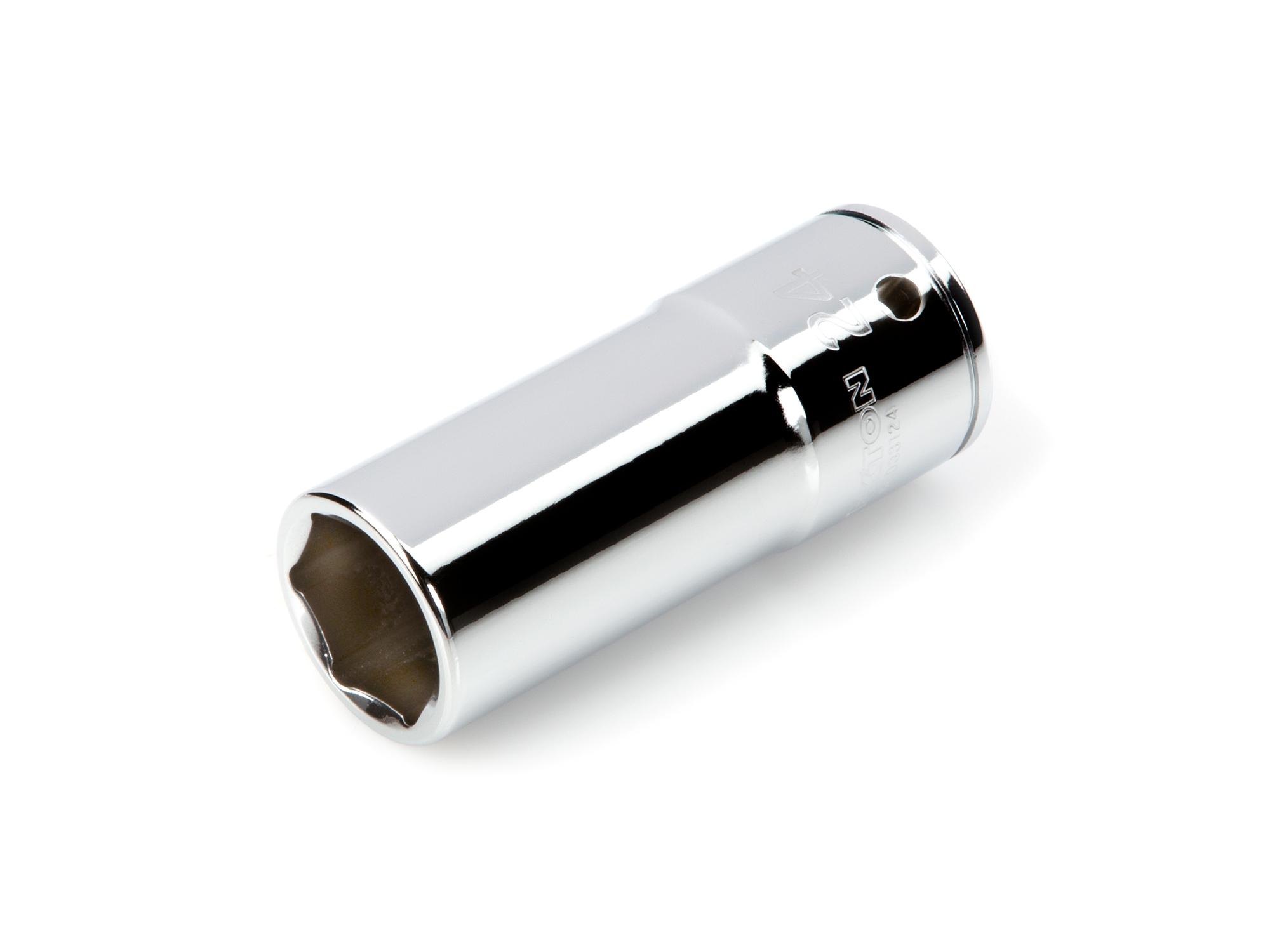

Front-right angle view of Tekton 24 millimeter hand drive 6-point socket. Item #SHD33124
Tap image to zoom in
Item #SHD33124

3/4 Inch Drive x 24 mm Deep 6-Point Socket

•
InchMetric

Sizes

19 mm
$13
20 mm
$13
21 mm
$13
22 mm
$14
23 mm
$14
24 mm
$14
25 mm
$15
26 mm
$15
27 mm
$16
28 mm
$16
29 mm
$17
30 mm
$17
31 mm
$19
32 mm
$19
33 mm
$20
34 mm
$20
35 mm
$22
36 mm
$22
37 mm
$24
38 mm
$24
41 mm
$25
46 mm
$28
50 mm
$30
$14.00
Add to Cart

Also Available in Shallow Socket

#SHD32124

DetailsSpecifications

Details

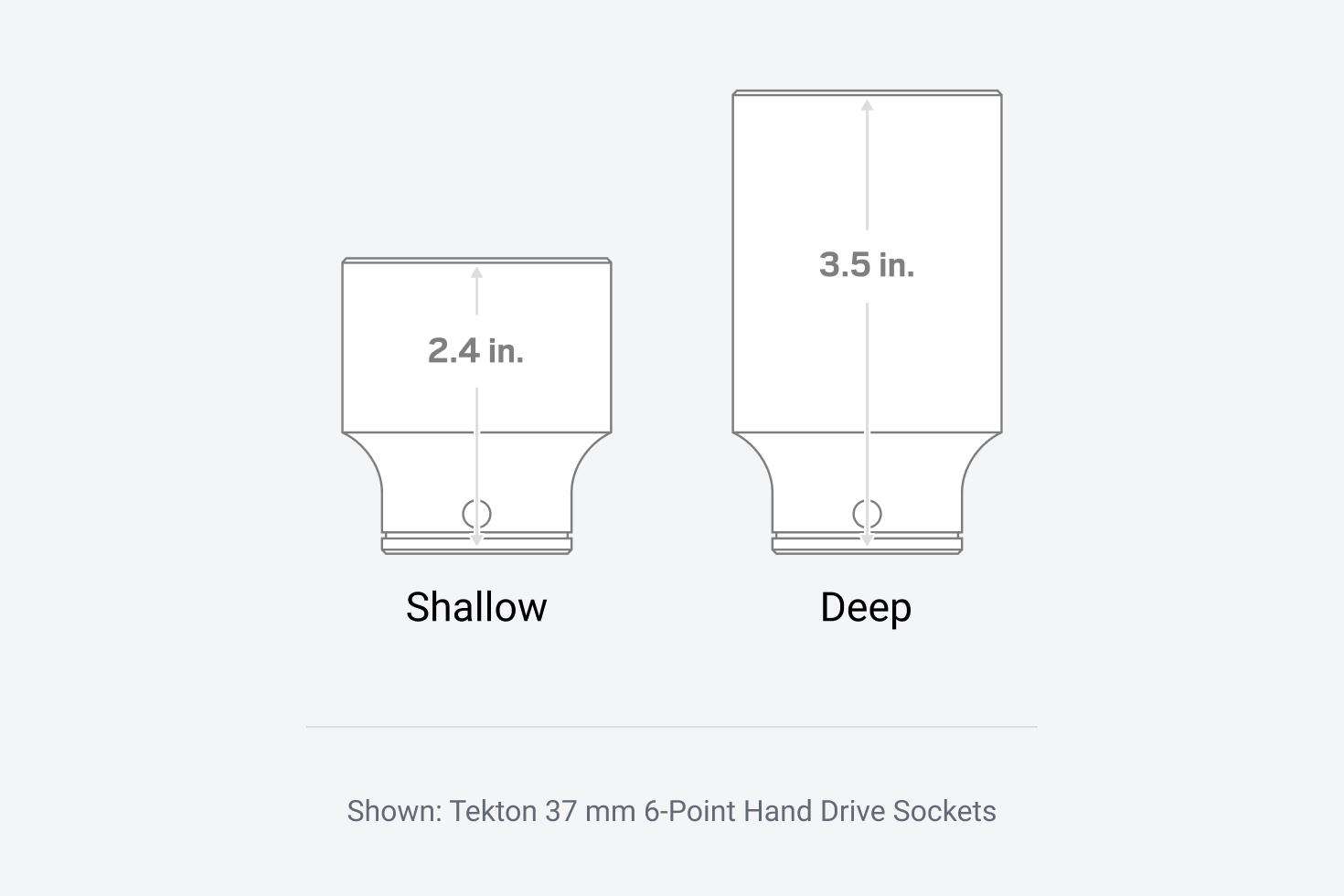

Graphic showing Tekton 37 mm 6-Point Hand Drive Sockets in shallow and deep lengths

Our 3/4 Inch Drive Socket Lineup

Our 3/4 inch drive 6-point socket lineup consists of shallow (previously called standard) and deep length sockets.

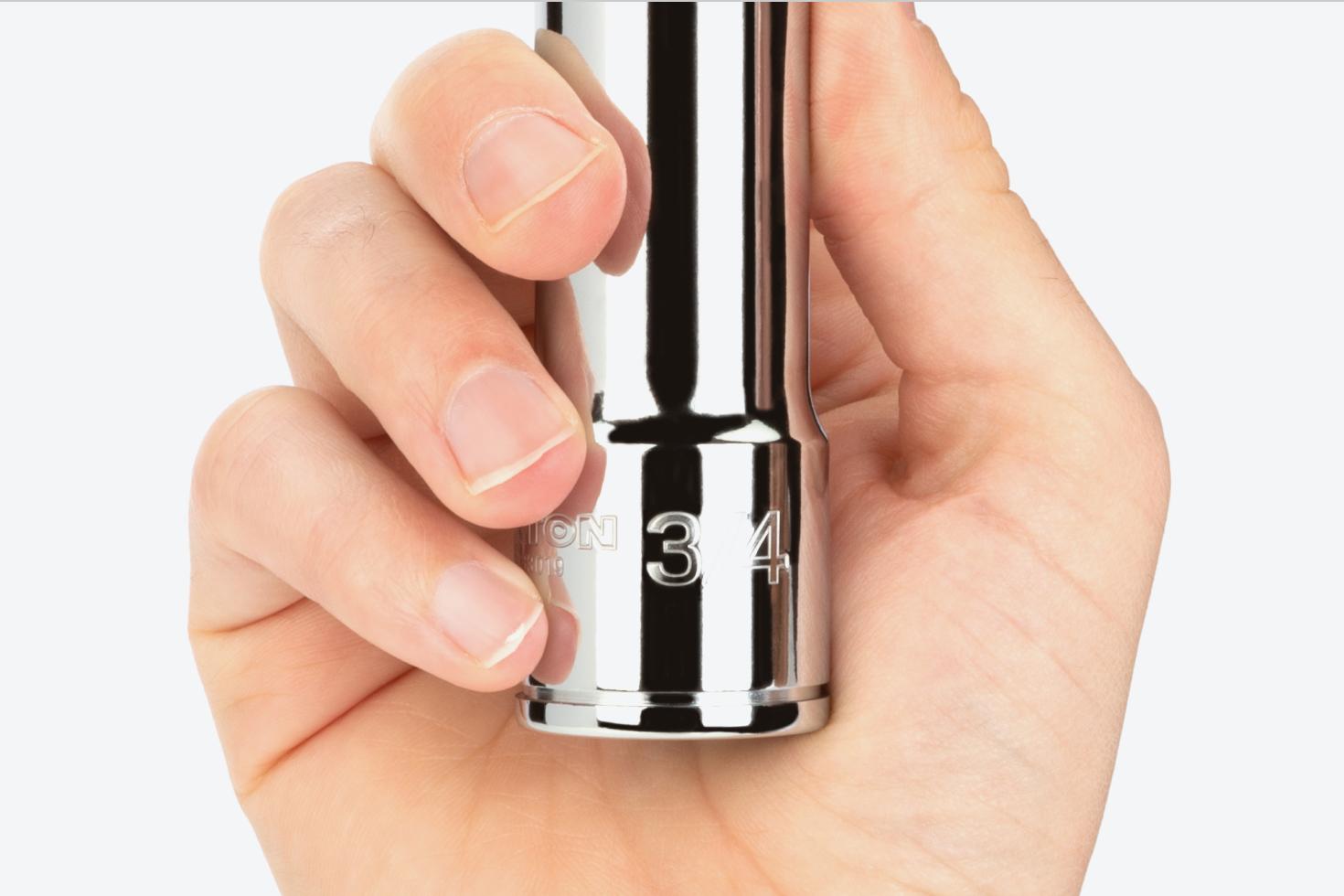

A hand holding a 3/4 inch deep socket

Large, Stamped Markings

  • Markings are permanently impressed into the material by a roll-stamp die
  • Sizes are as large as possible while still being readable along the socket's curved surface

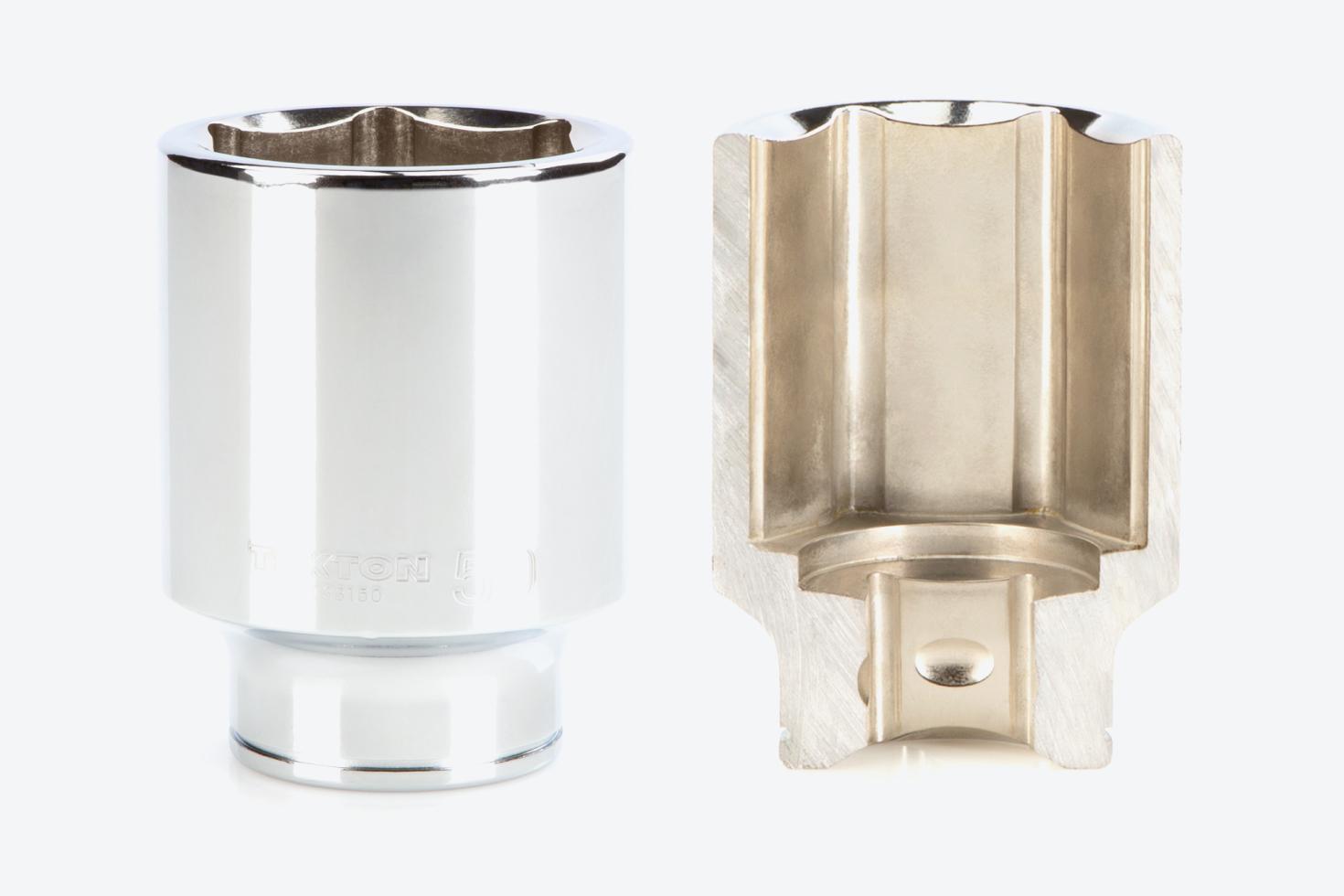

A 6-point deep socket next to another socket that's cut in half, showing the exterior and interior finishes

Exterior and Interior Finishes

  • The exterior is chrome-plated to resist corrosion and wipe clean to a mirror finish
  • The interior is protected against corrosion with chrome plating that is supplemented with a clear coat or painted finish where needed for full coverage

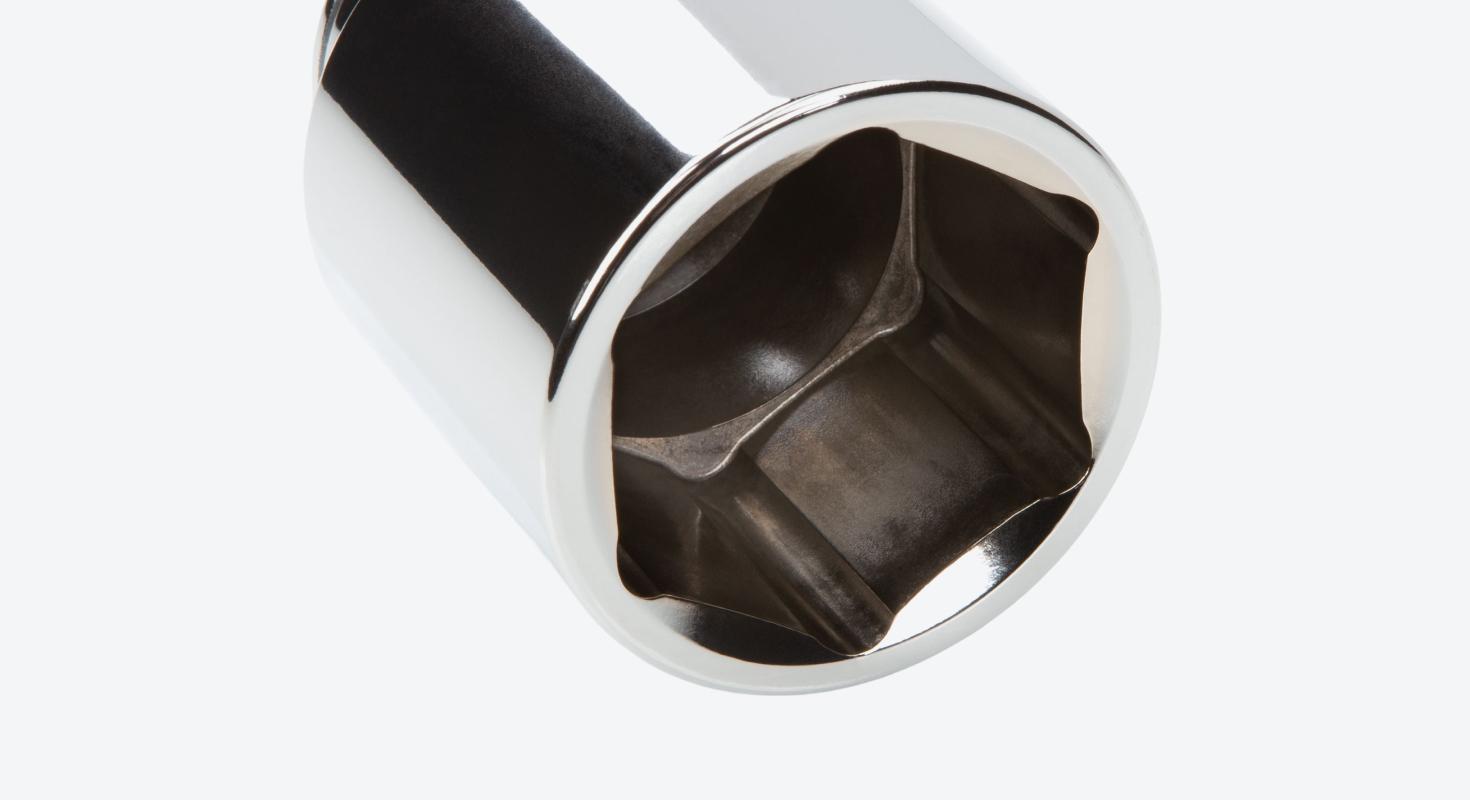

The 6-point socket opening of a deep hand drive socket

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

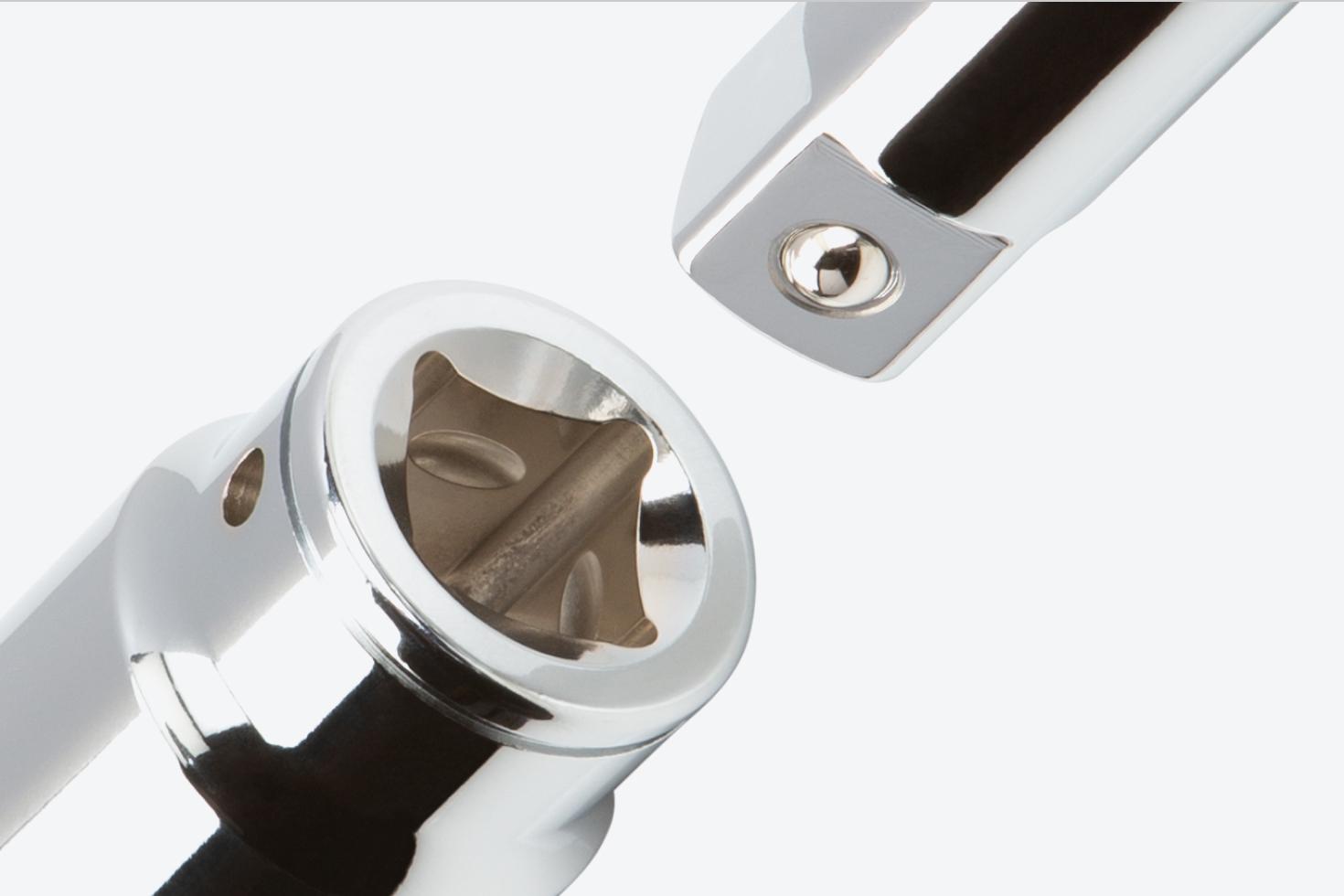

Image of the drive square end of a 3/4 inch drive socket, showing the detent grooves and beveled inner rims.

Secure Drive Tool Engagement

  • Four detent grooves provide a secure connection with the retaining ball of a drive tool
  • Beveled inner rims help guide the socket onto other tools

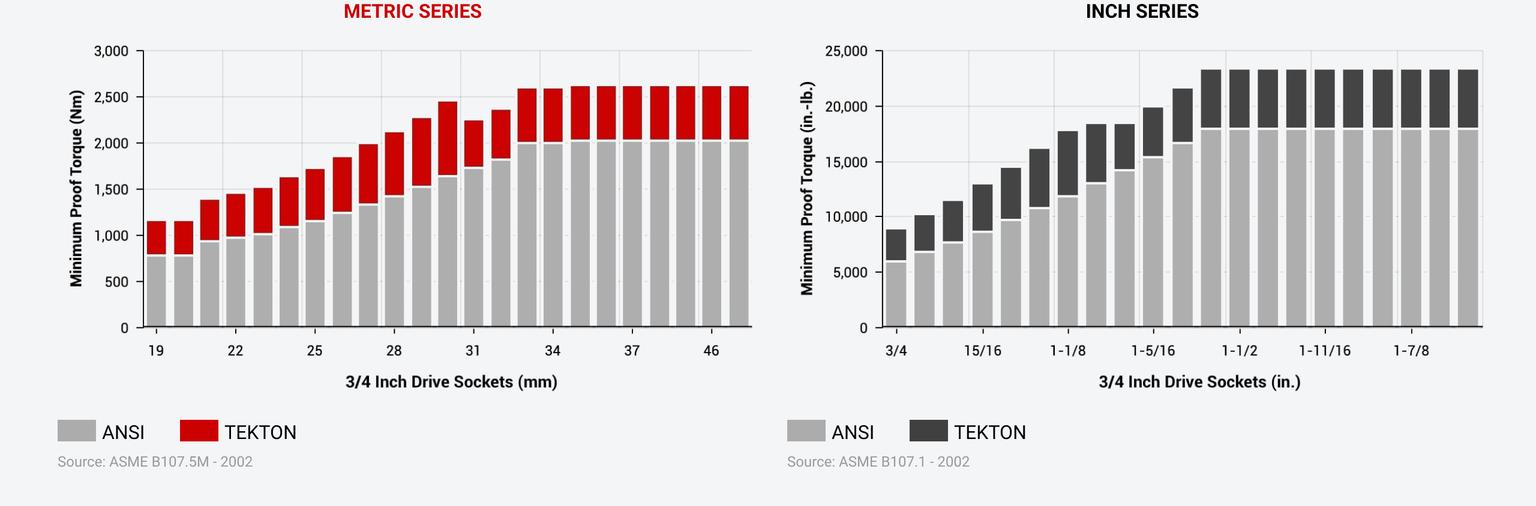

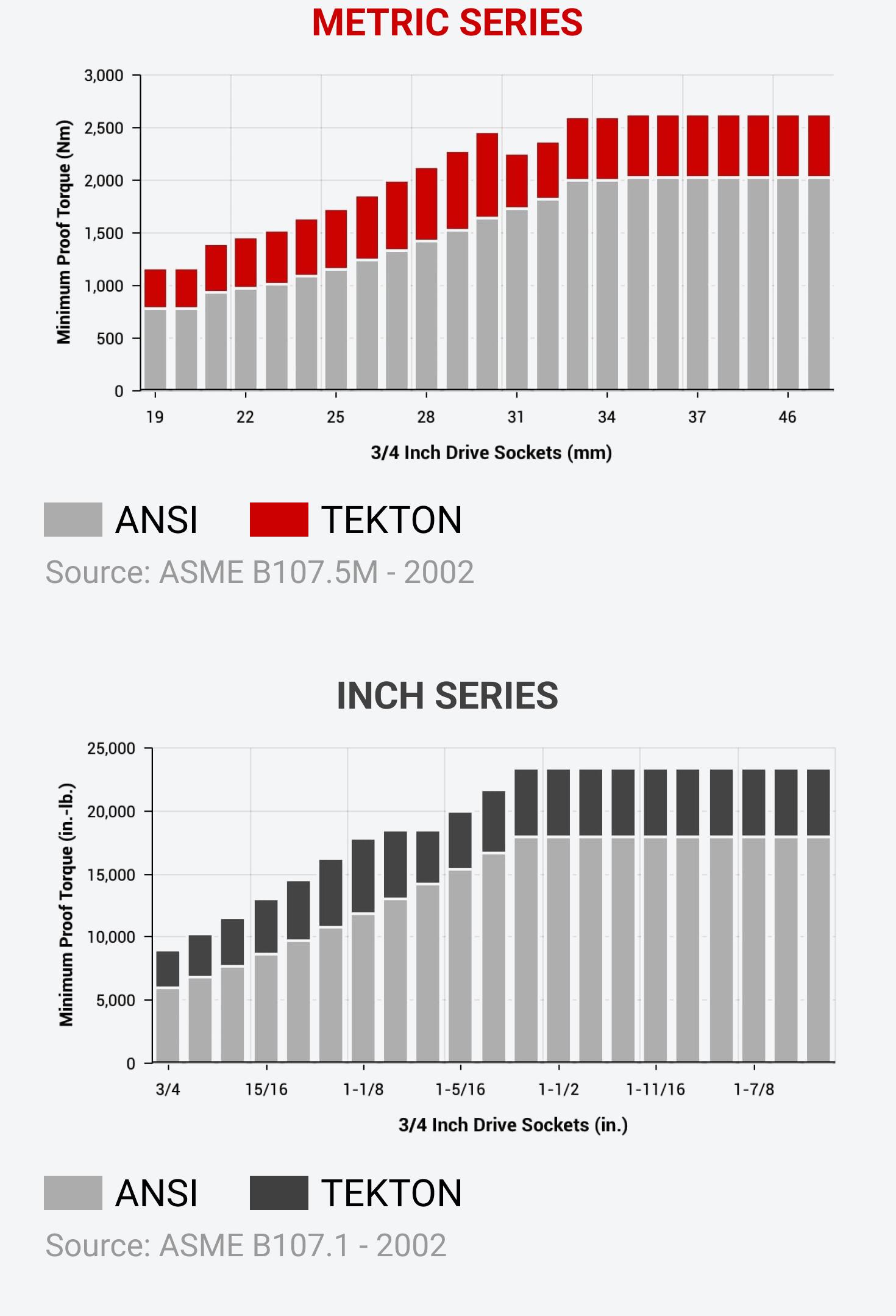

Charts showing the minimum proof torque for Tekton 3/4 inch drive inch and metric sockets

High Torque Strength

Meets minimum value of 1.3 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

Specifications

3/4 Inch Drive x 24 mm Deep 6-Point Socket

Specs for 3/4 Inch Drive x 24 mm Deep 6-Point Socket
Country of Origin
Taiwan
Item Weight
0.77 lb.
