TEKTON 3/4 Inch Drive Ratchet Service Kit
Tap image to zoom in

Item #SRH9X016

3/4 Inch Drive Non-Quick-Release Ratchet Service Kit

$21.00

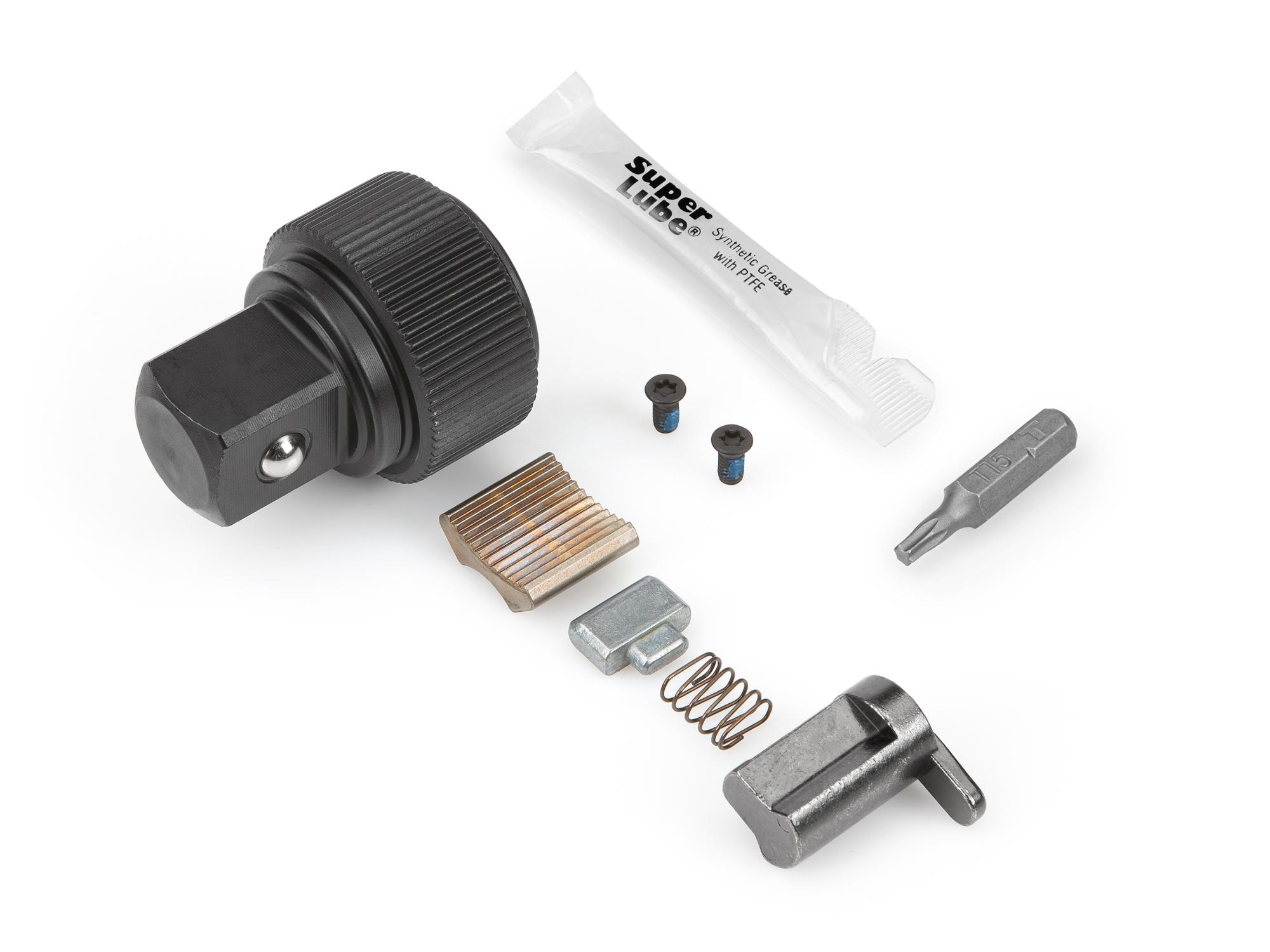

Includes:
  • Service Kit
  • T15 Star x 30 mm 1/4 Inch Shank Bit
  • Super Lube® Multi‑Purpose Synthetic Grease (1 cc)
Compatible with:
  • #SRH01322 - 3/4 Inch Drive x 22 Inch Non-Quick-Release Ratchet

Details

Rescue for Ratchets

Super Lube® Grease is a patented, synthetic, heavy-duty NGLI Grade 2 synthetic grease that provides longer life protection against friction, wear, rust, and corrosion. We recommend relubricating your Tekton ratchet with Super Lube® Grease once a year.


Directions:

  • Clean the internal parts with a degreaser and reassemble them inside the ratchet head.
  • Put a dab of Super Lube® Grease between the pawl and the switch pin and another dab inside the detent spring hole. Use a very small amount—too much grease can degrade the performance of the ratchet. Avoid putting grease on the gear and pawl teeth.
  • Wipe off any excess grease and replace the cover plate.

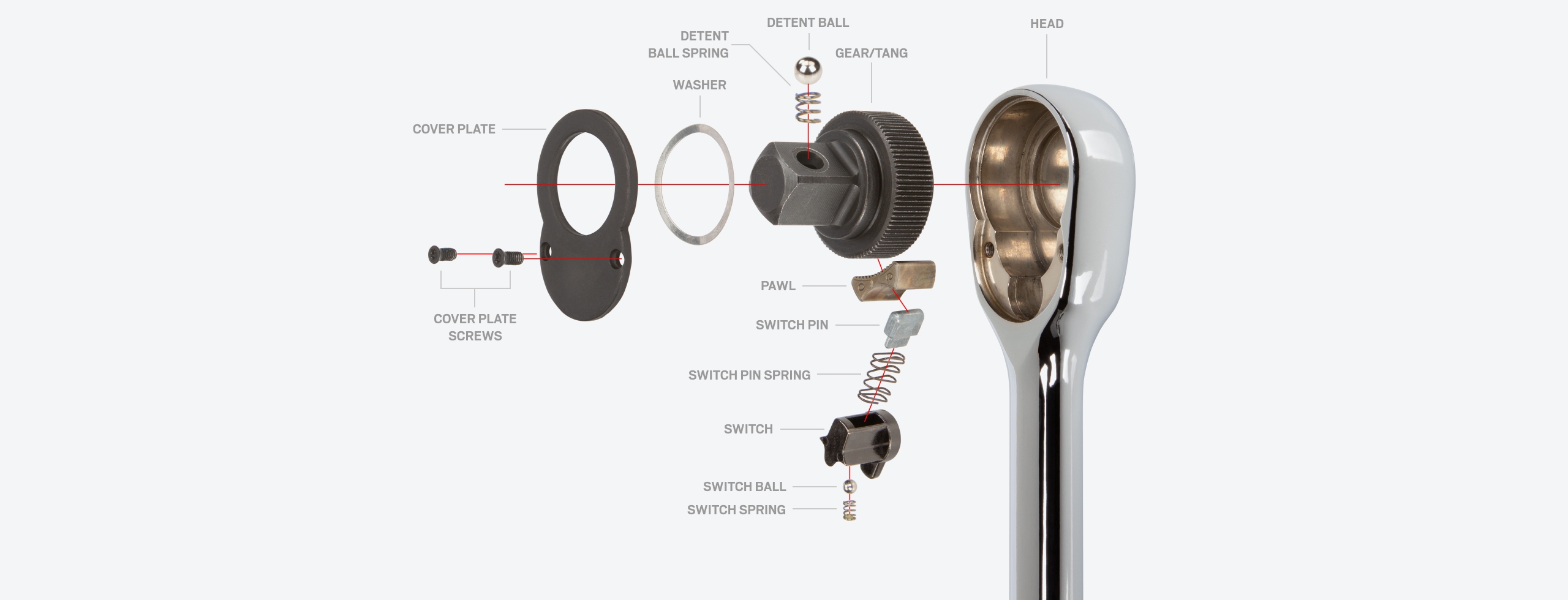

Parts and Assembly


Specifications

3/4 Inch Drive Non-Quick-Release Ratchet Service Kit

Tooth Count
72
Country of Origin
Replacement parts and bit made in Taiwan. Super Lube® made in USA.
Item Weight
0.82 lb.
