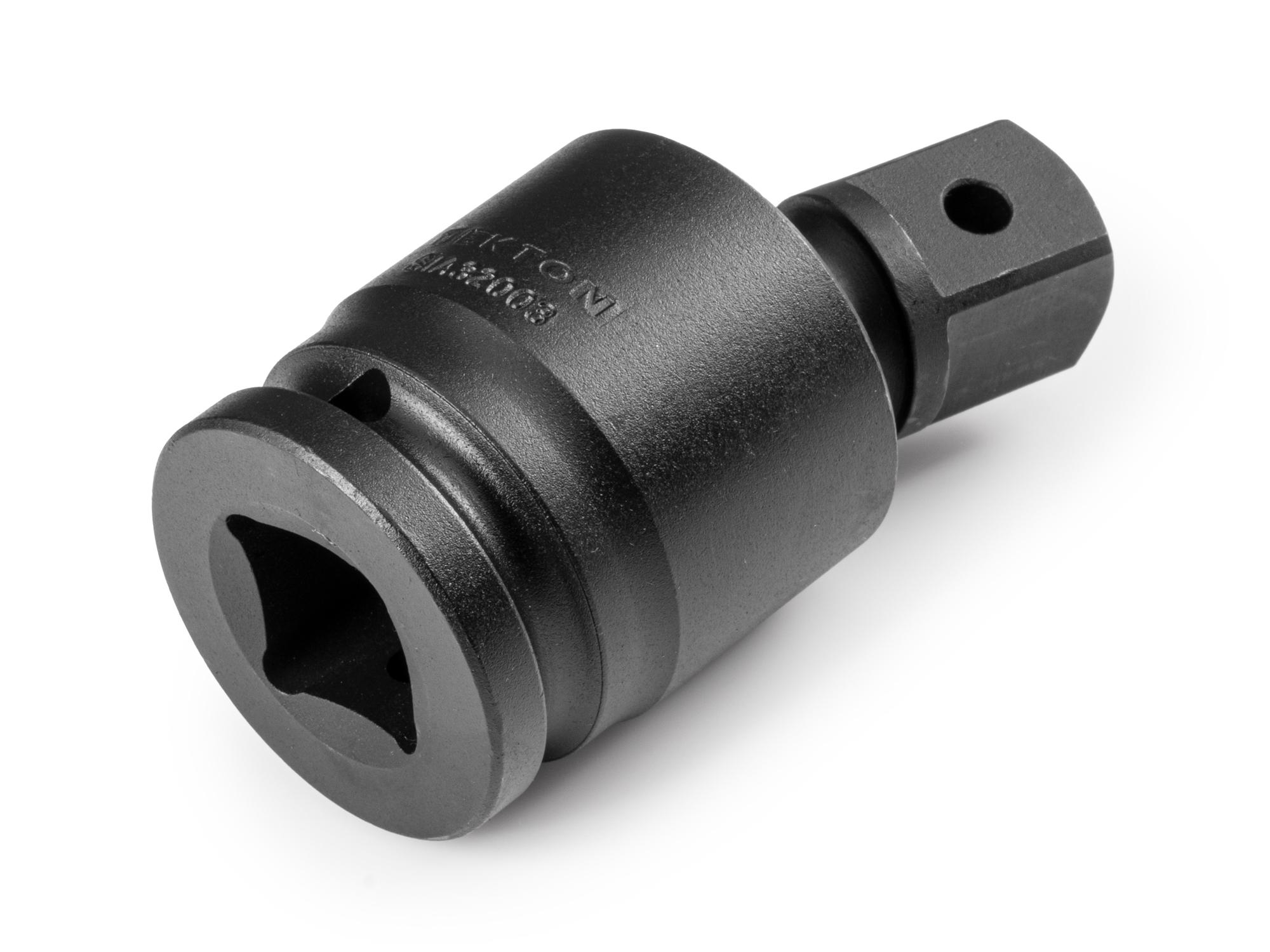

TEKTON 3/4 Inch Drive Impact Universal Joint (Through Hole)

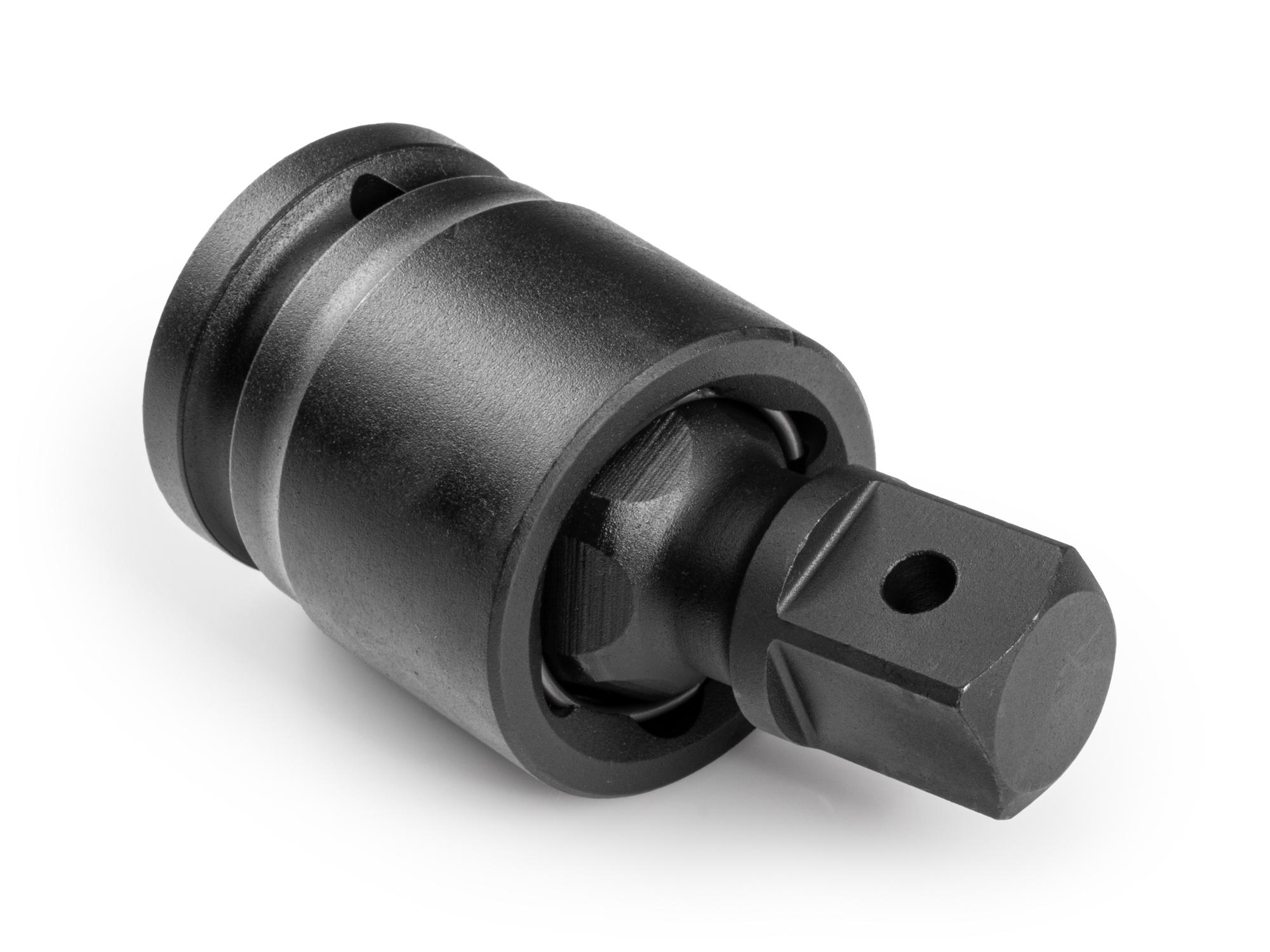

Back angle view of Tekton impact drive 6-point socket. Item #SIA32003

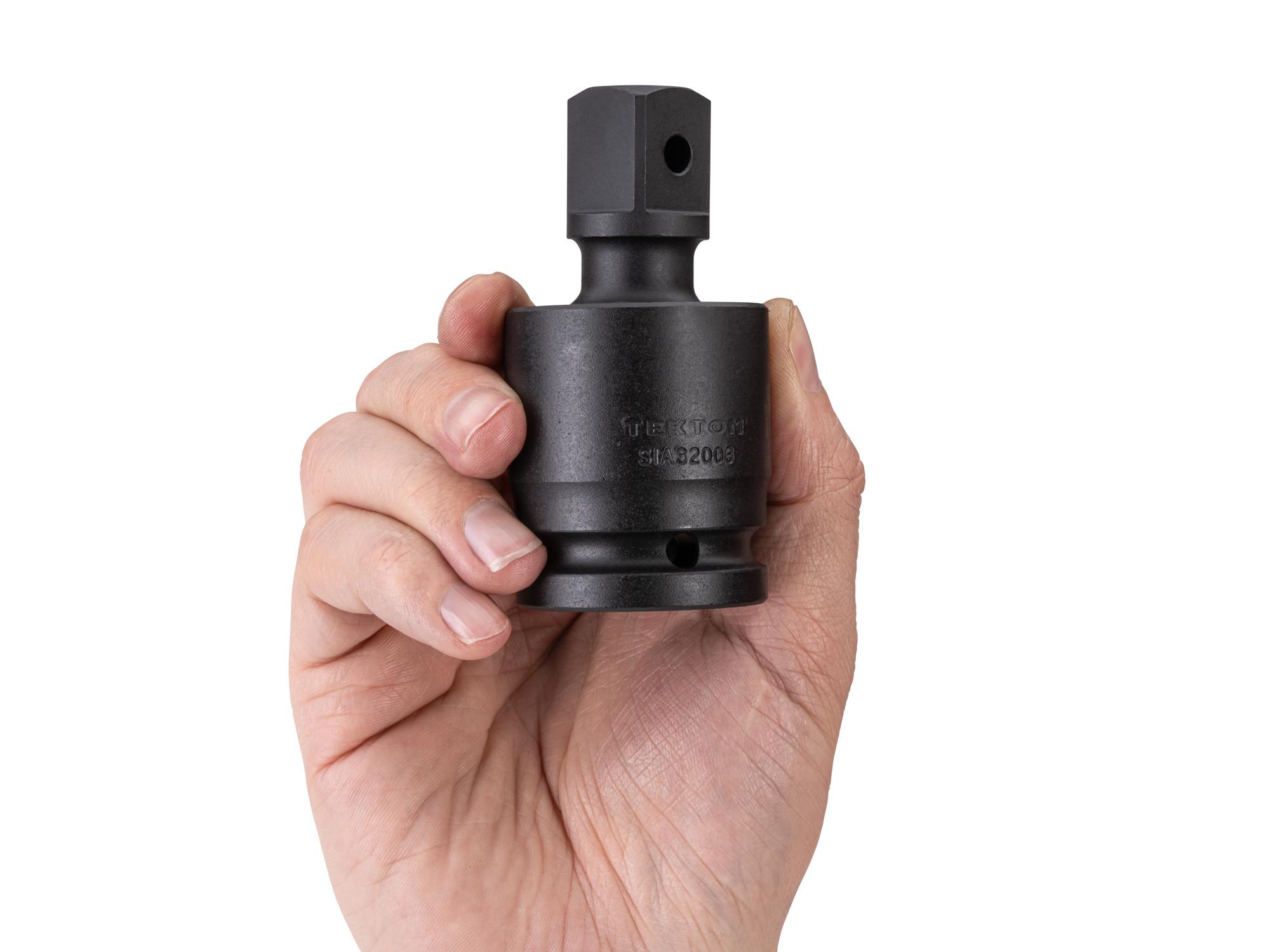

Person holding Tekton impact drive 6-point socket. Item #SIA32003
Tap image to zoom in
Item #SIA32003

3/4 Inch Drive Impact Universal Joint (Through Hole)

•

Drive Size

1/4 in.
3/8 in.
1/2 in.
3/4 in.

Retention Type

Pin Detent
$45
Through Hole
$45
$45.00
Add to Cart
DetailsSpecifications

Details

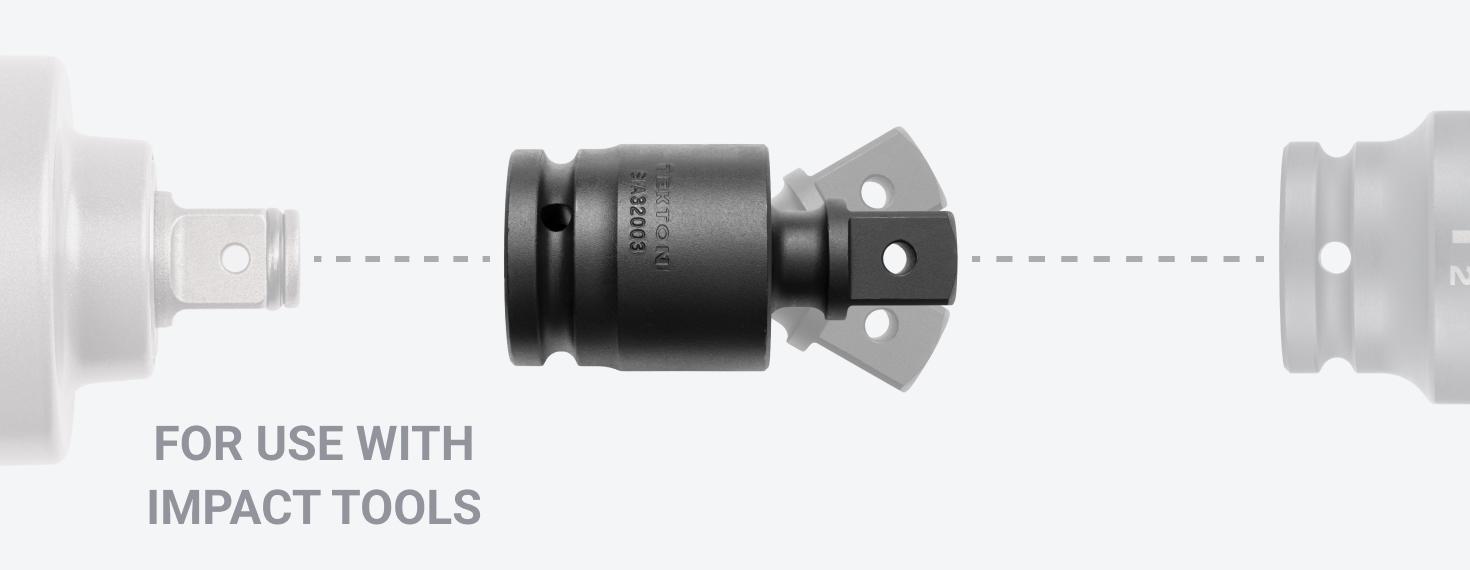

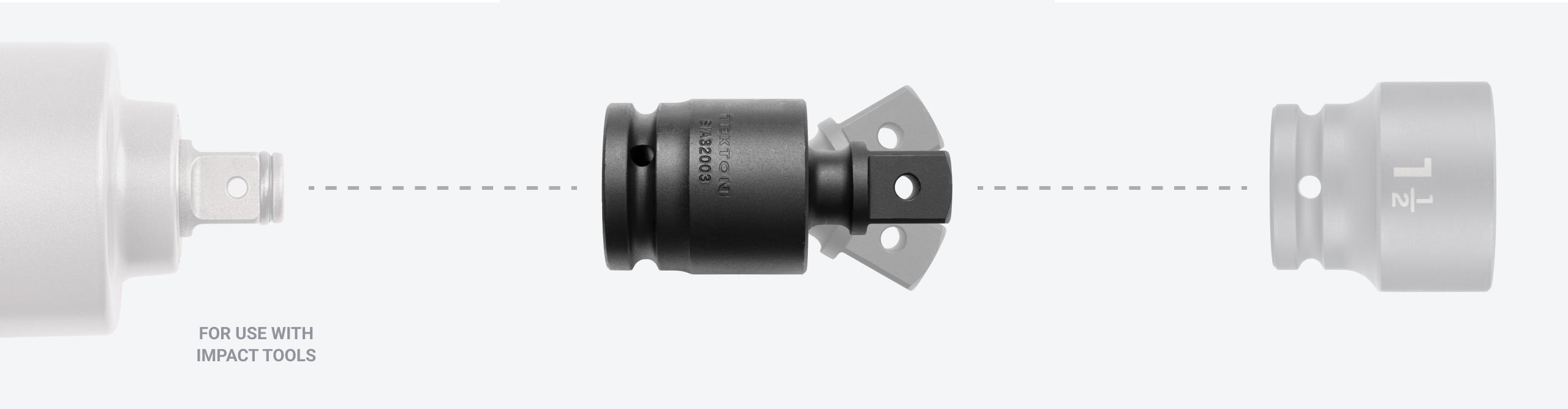

Tekton impact universal joints are for use with impact tools

Access at an Angle

Attach a universal joint to your impact tool to reach around obstructions and access fasteners at an angle.

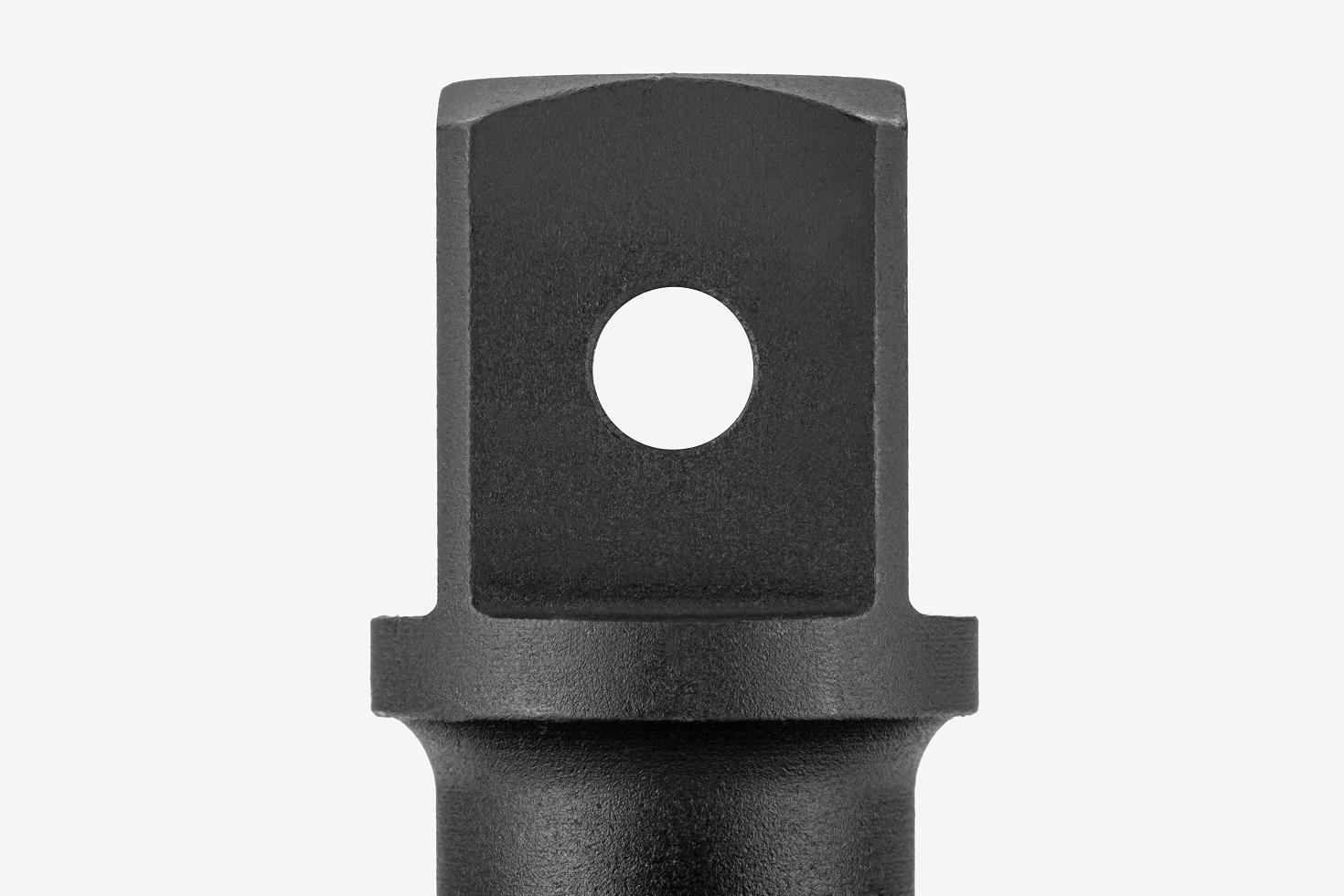

Close-up view of the through hole on a Tekton 3/4 inch drive impact universal joint.

Through Hole Retention

The end of the universal joint has a through hole that requires a retaining pin and ring to securely connect to a socket or another accessory.

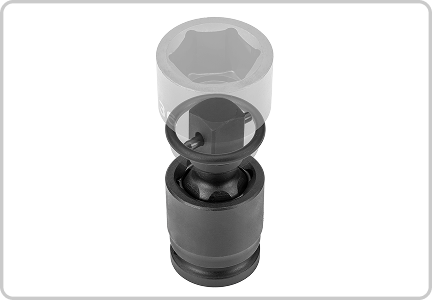

A transparent Tekton 3/4 inch drive impact socket on an impact extension, showing the ring and pin retention
The universal joint has a 30 degree working angle

30-Degree Working Angle

The joint rotates smoothly and continuously at up to a 30-degree angle.

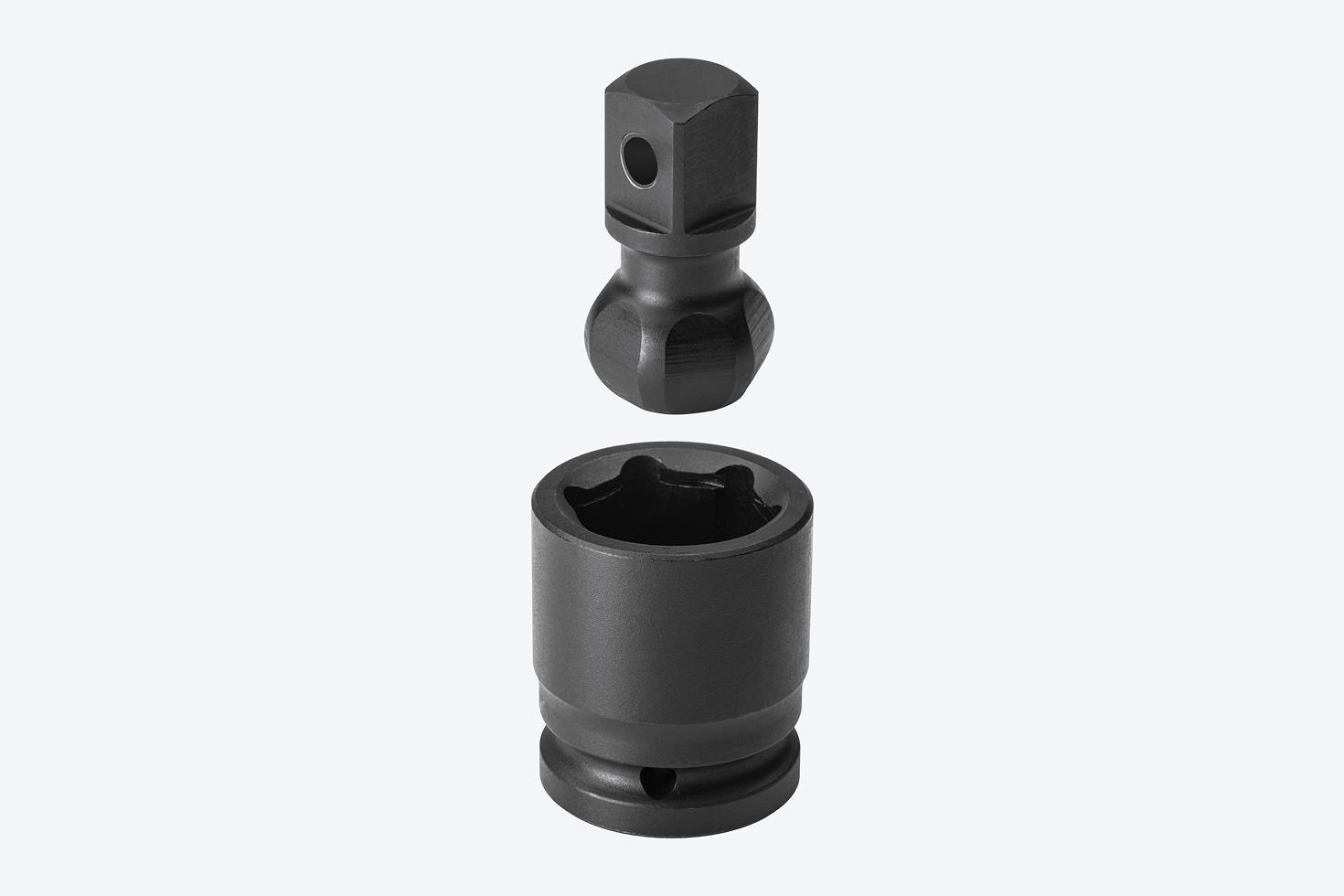

The ball and tang of a 3/4 inch drive impact universal joint separated from the socket base, showing the 6-sided joint

6-Sided Pinless Joint

Our ball-and-socket-style joint is stronger than joints that use pins. The 6-sided ball operates more smoothly than 4-lug designs.

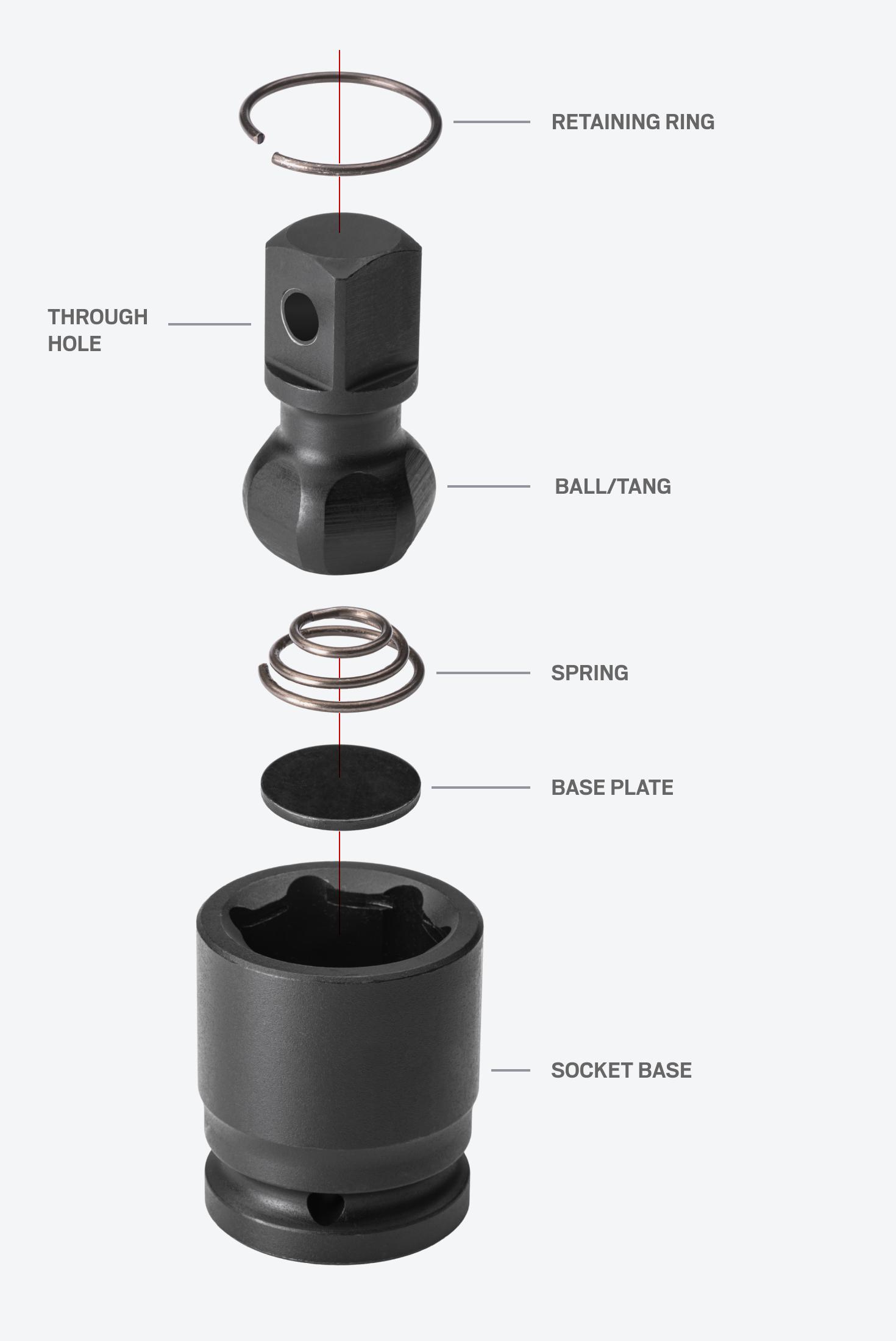

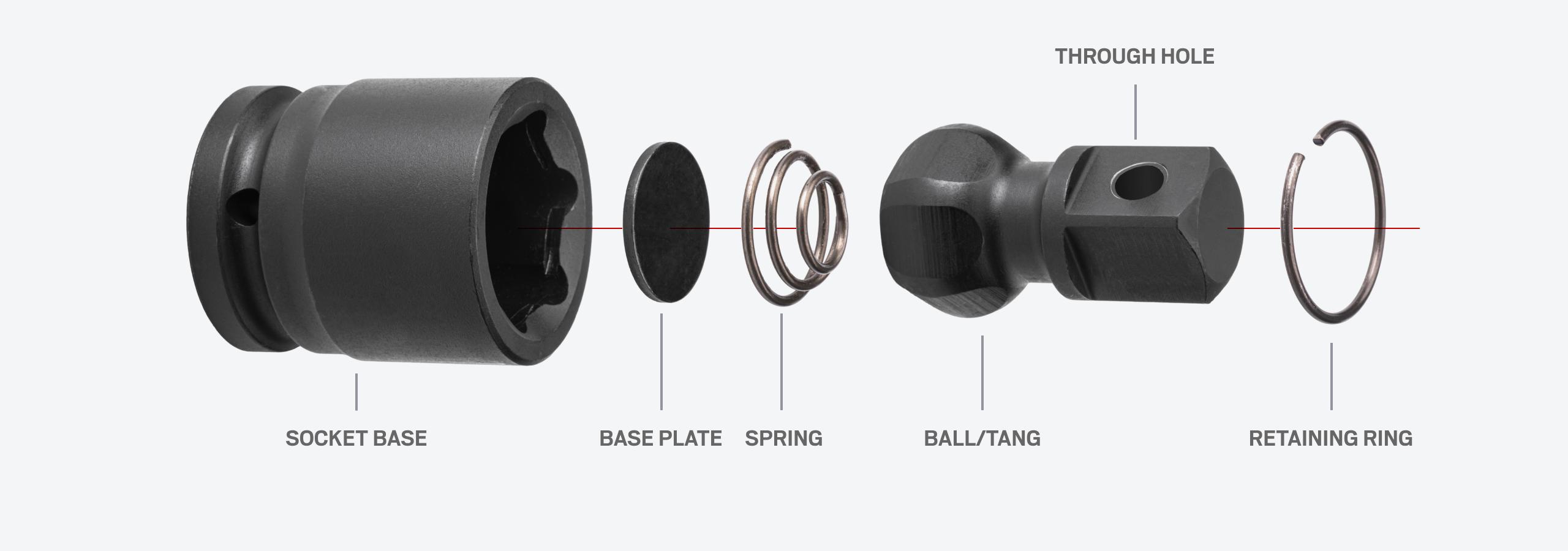

Image of all of the parts of a 3/4 inch drive impact universal joint with each part labeled.

Parts and Assembly

The universal joint comes pre-lubricated with SuperLube Multi-Purpose Synthetic Grease (NLGI 2) with Syncolon® (PTFE). Maintain the lubrication using this grease or a comparable grease as needed to reduce wear over time.
Ring groove supports retaining ring usage, smooth walls support friction ring, and through holes support retaining pin.

Drive Tool Retention

Works with three types of anvils found on 3/4 inch drive impact wrenches.
Graphic showing green check marks on through-hole anvil, friction ring anvil, detent pin anvil.
Tekton #SID32057, #SIA31503, #SIA31506, and #SIA34014 on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

All of our 3/4 inch drive sockets, extensions, universal joints, adapters, and reducers are made out of 4140 steel and have a corrosion-resistant manganese phosphate coating.

Specifications

3/4 Inch Drive Impact Universal Joint (Through Hole)

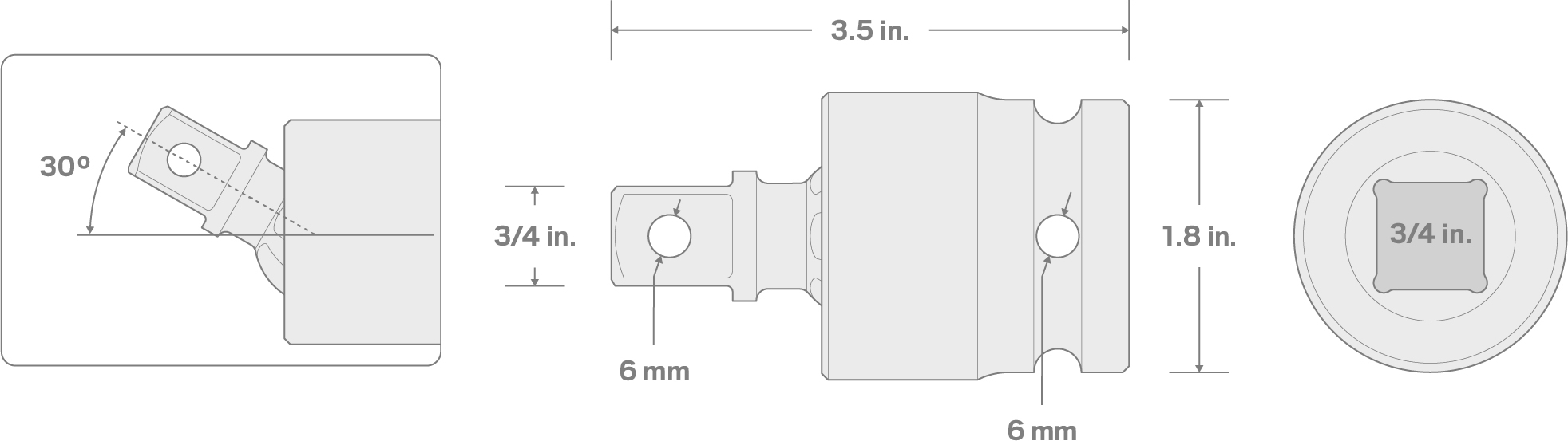

Specs for 3/4 Inch Drive Impact Universal Joint (Through Hole)
Country of Origin
Taiwan
Item Weight
1.3 lb.
