Item #SRH36003

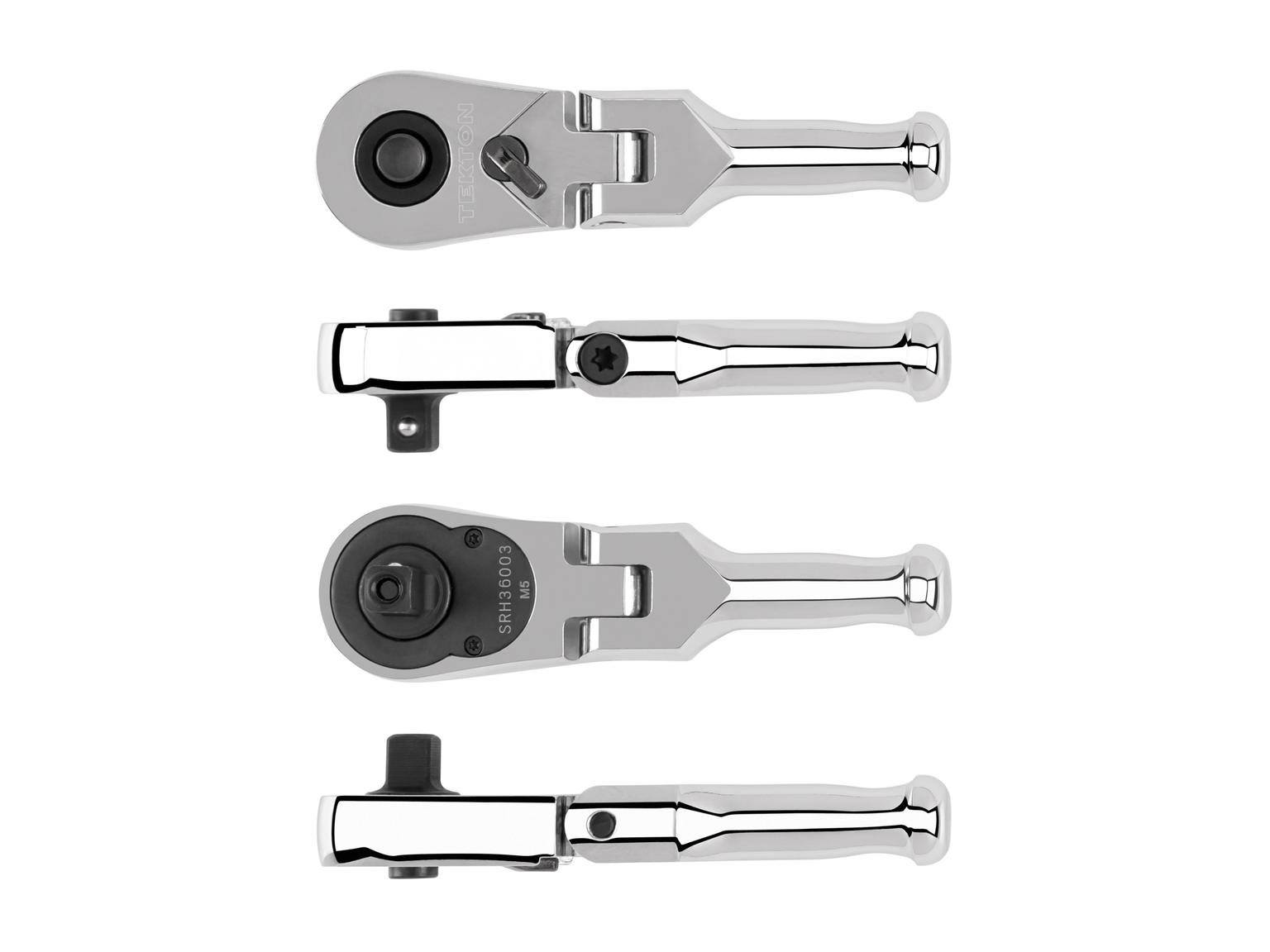

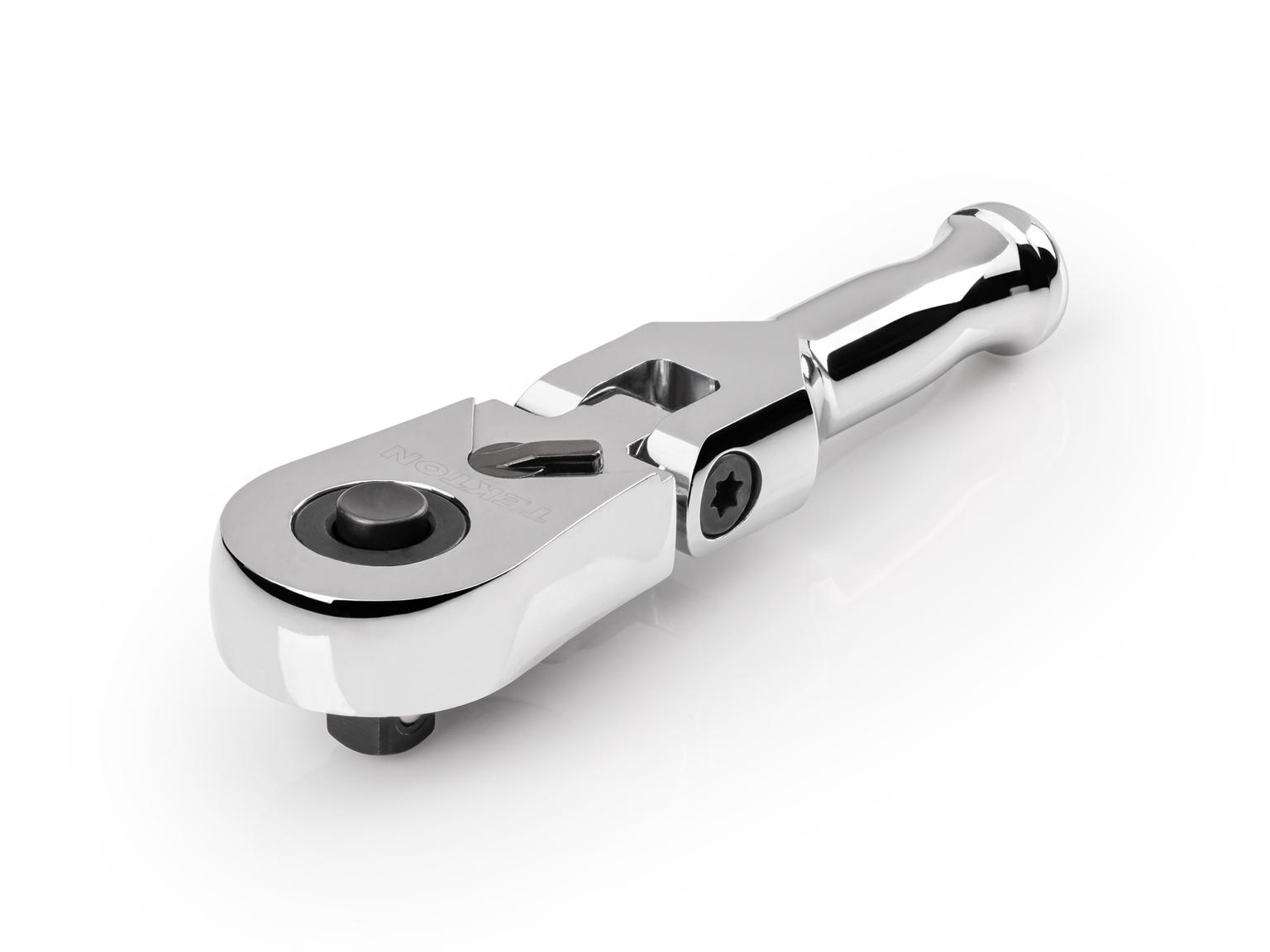

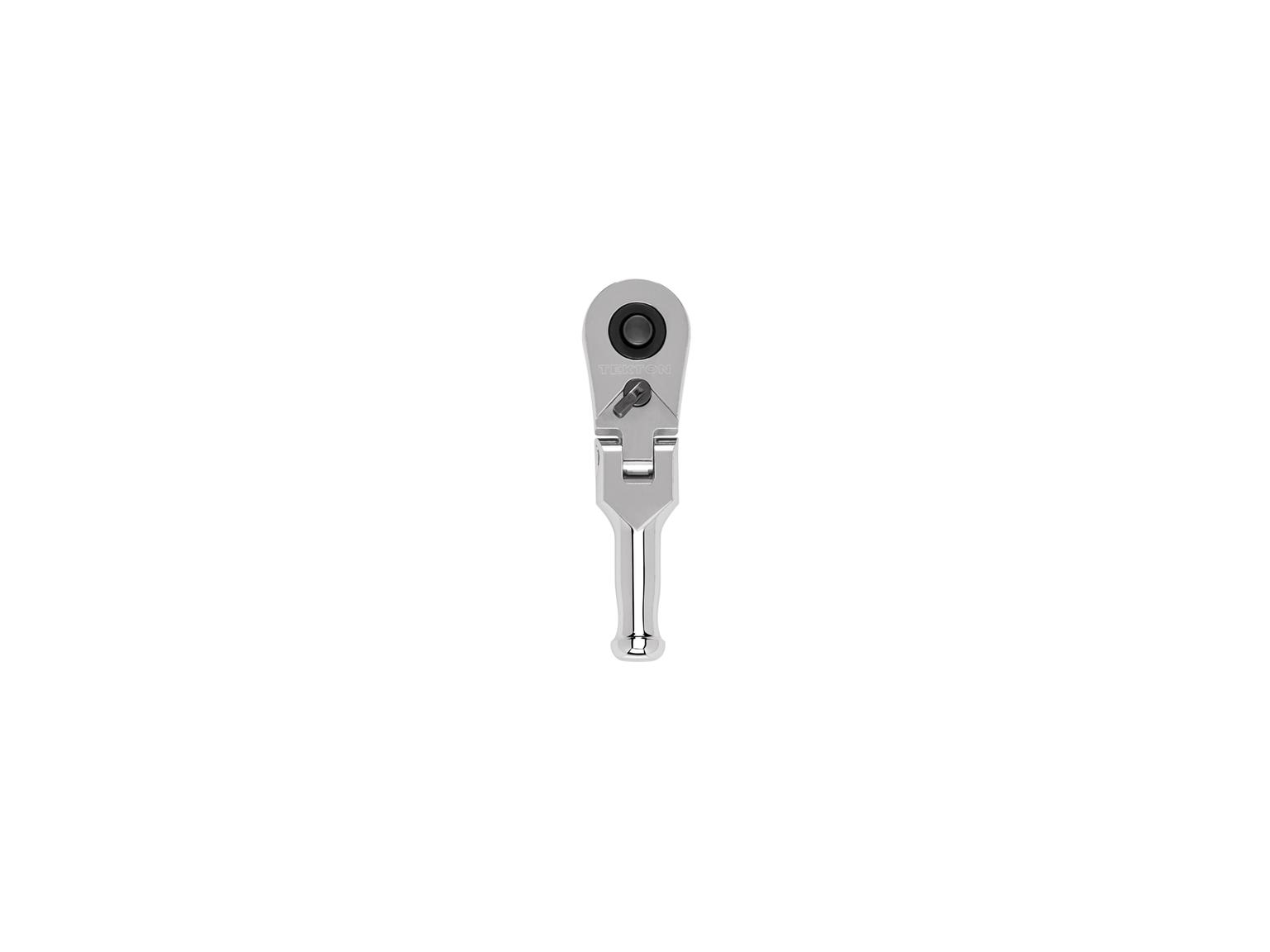

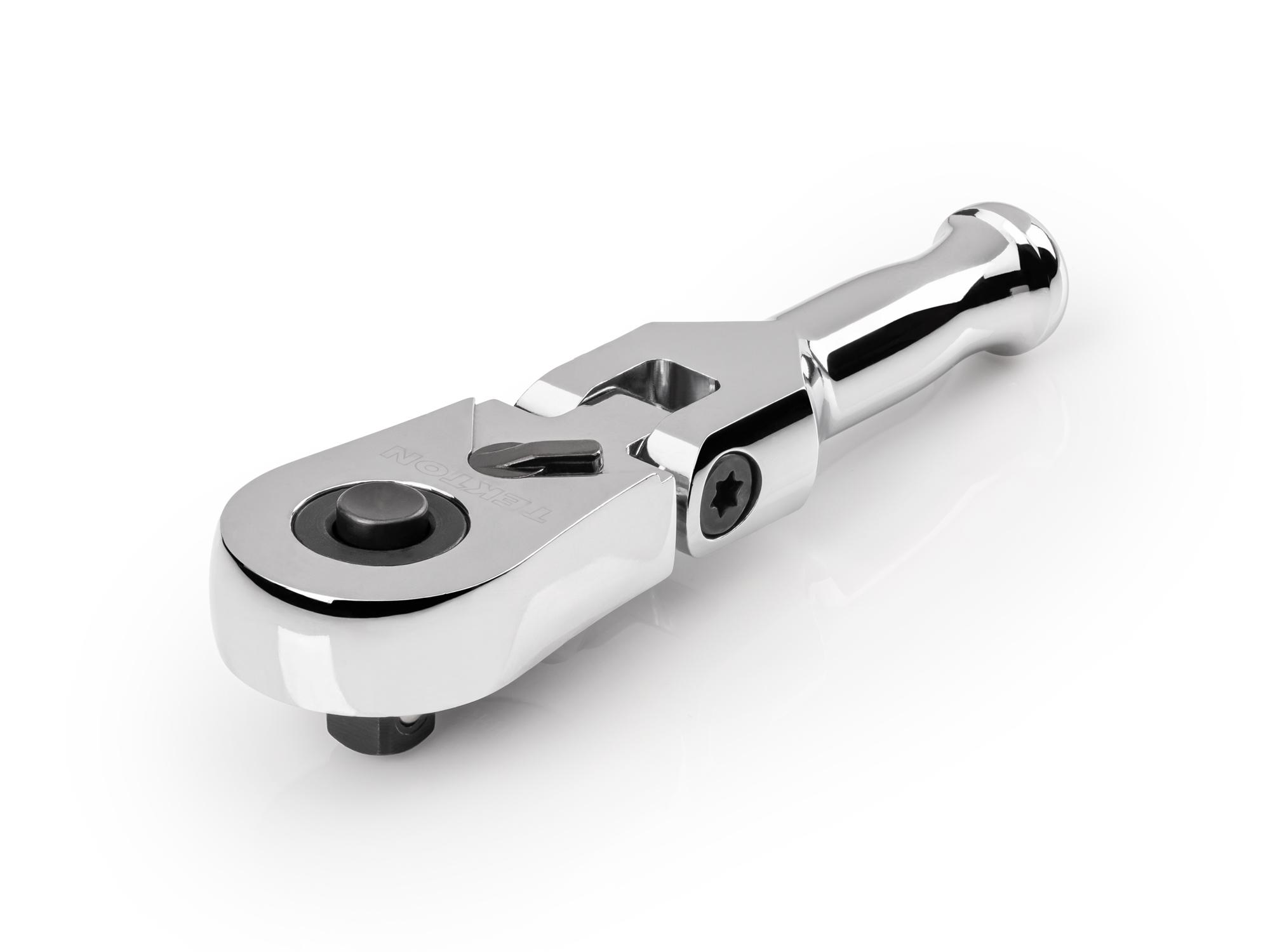

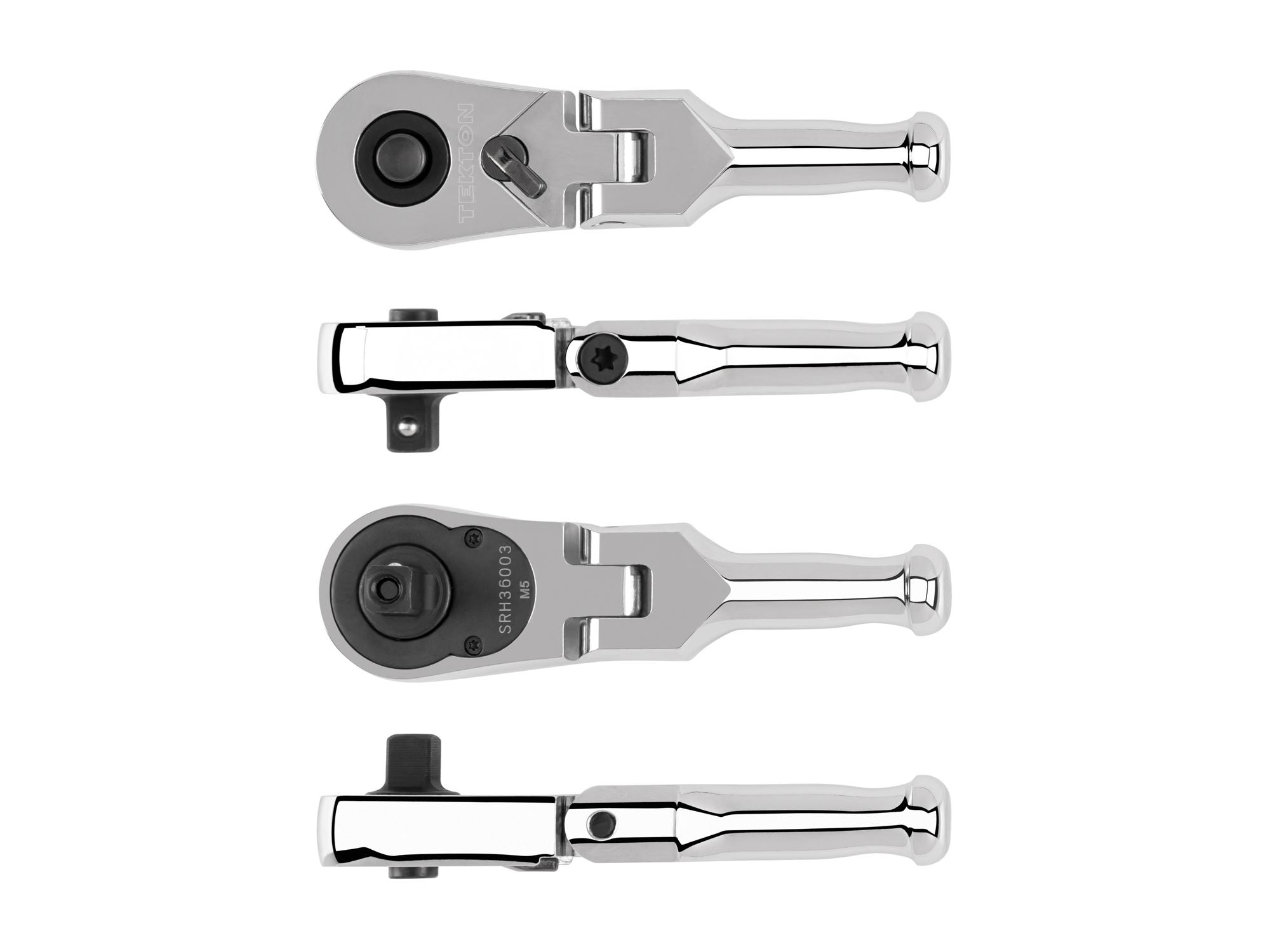

1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet
1/4 Inch Drive x 3 Inch Flex Head Non-Quick-Release Stubby Ratchet with Handle Tang
•
$35.00
Add to Cart
Details
Video Overview
This compact 1/4 inch drive ratchet fits where others can't. The slim head flexes a full 180 degrees with smooth tension that holds wherever you set it.

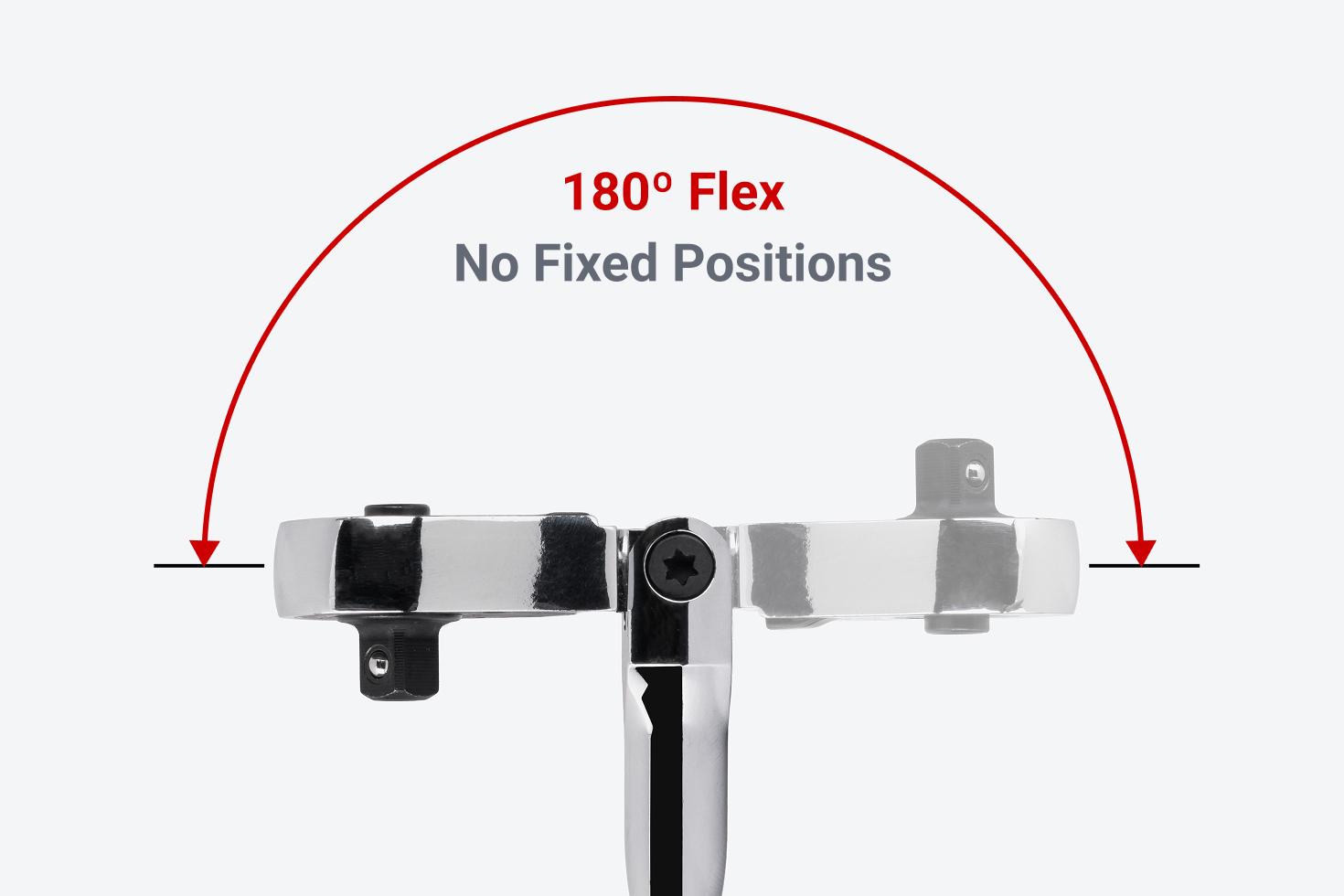

Controlled Tension Flex Joint
The non-locking joint gives the head a continuous 180-degree range of motion. It has just the right amount of tension to hold any position without flopping over.
90-Tooth Gear = 4º Swing Arc
The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.

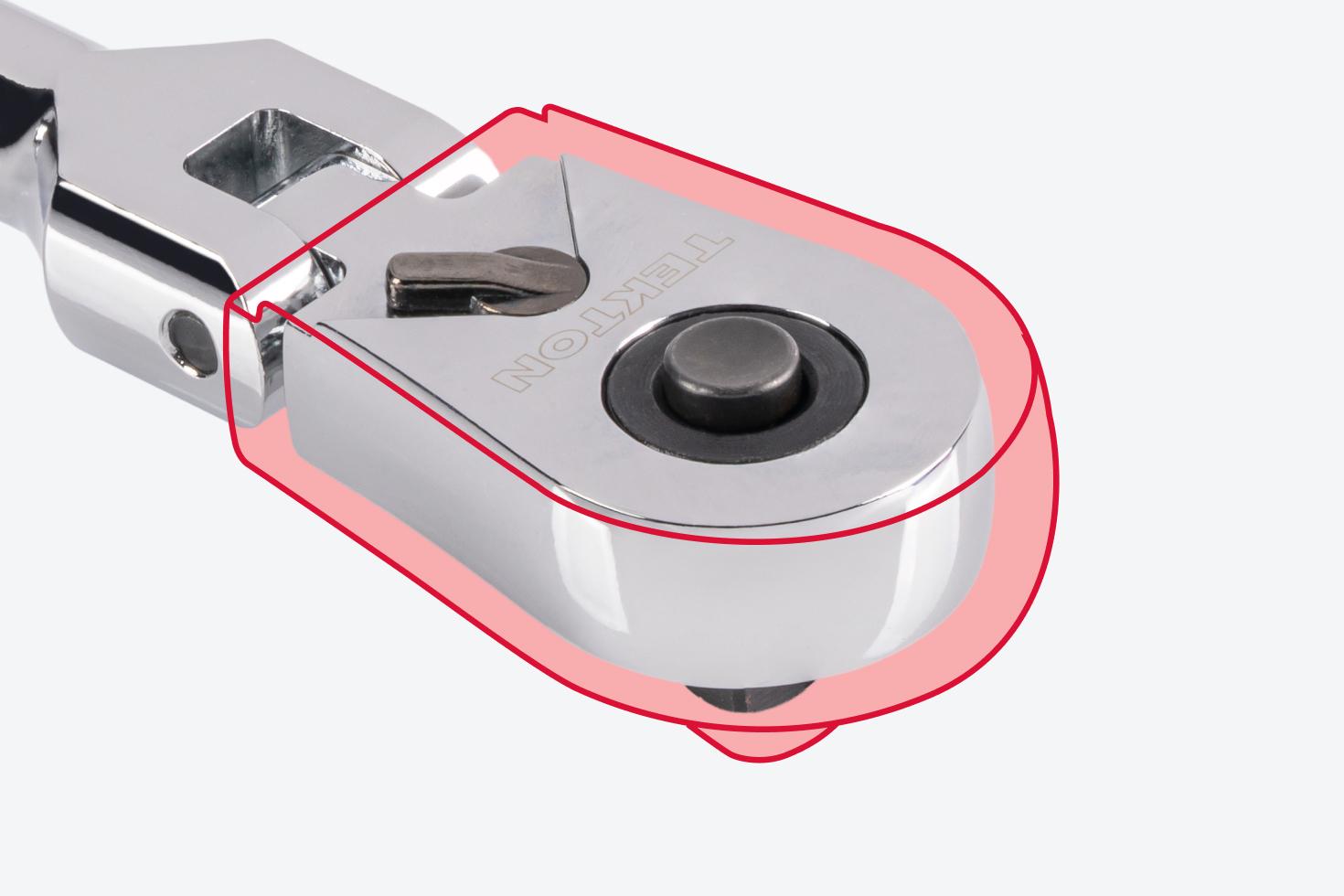

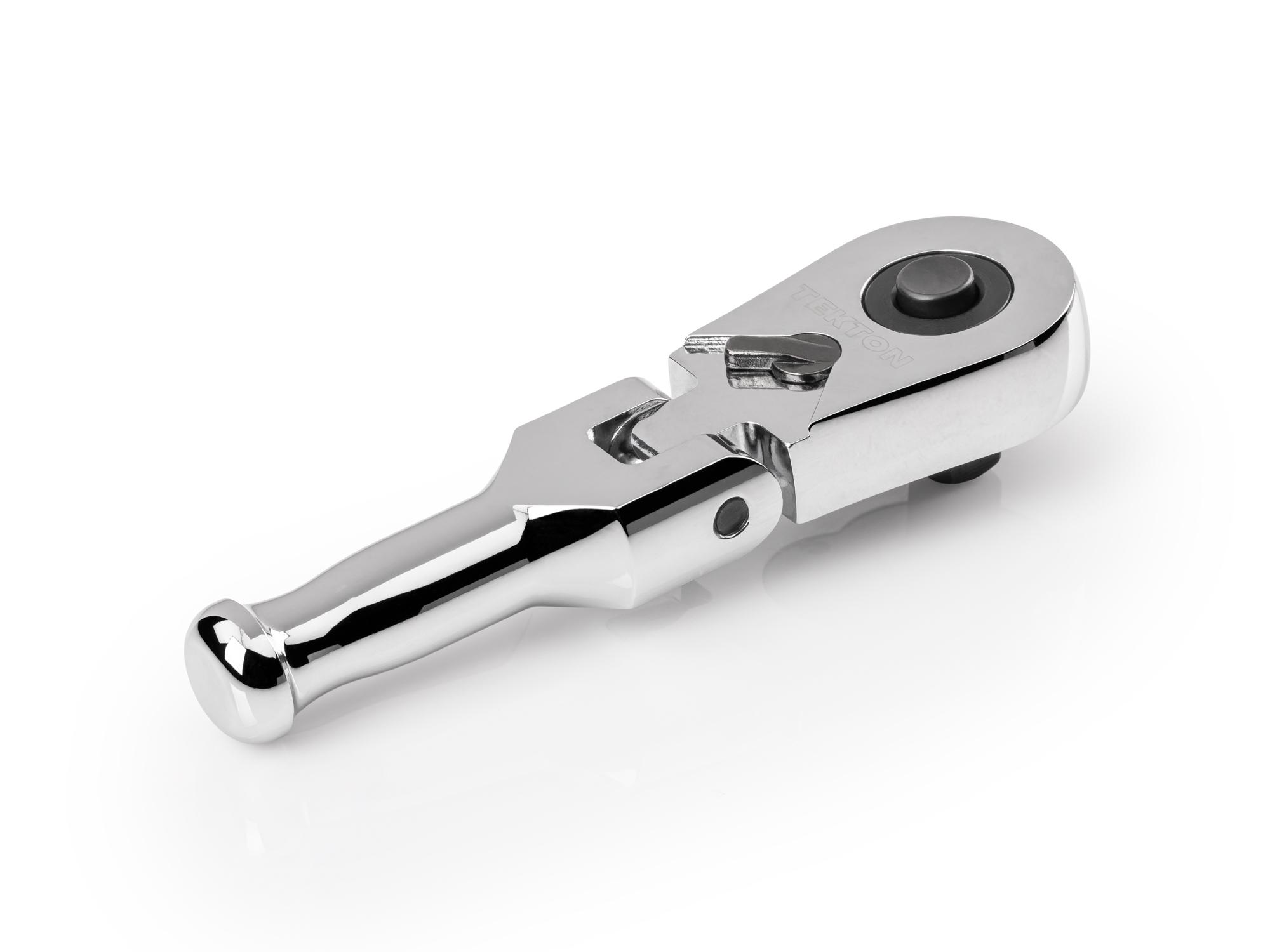

Ultra-Compact Head
Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

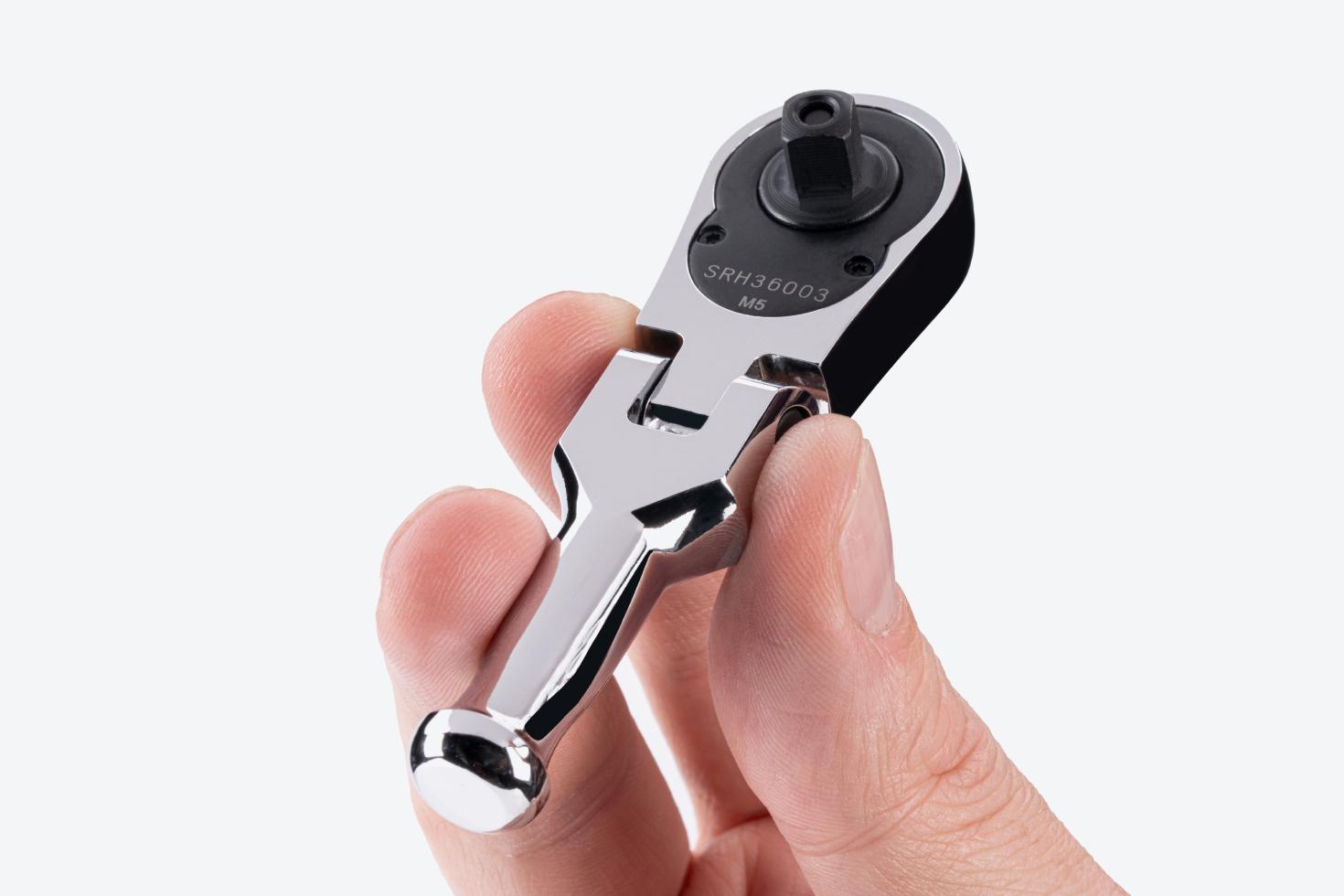

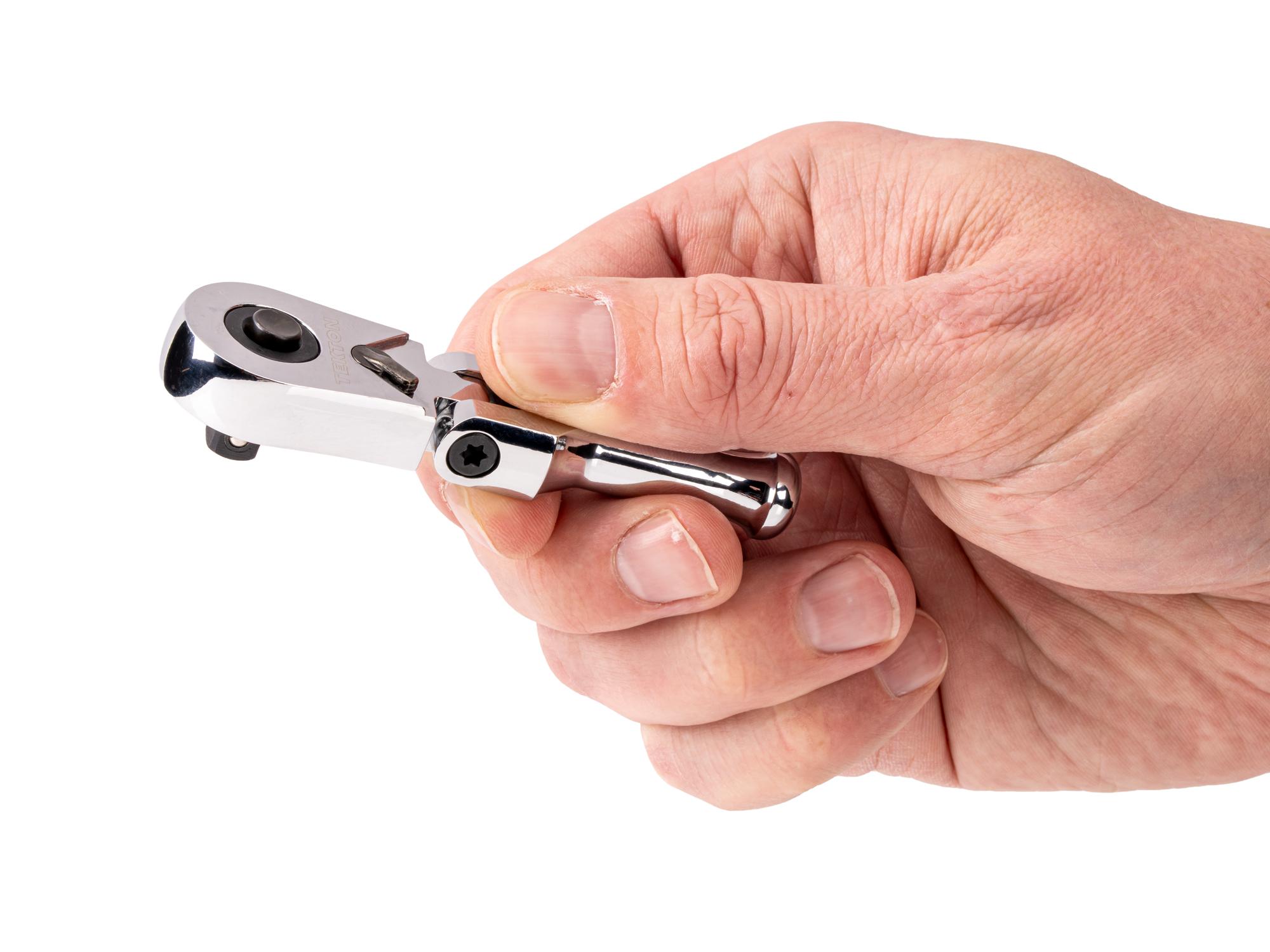

Sleek, Stubby Handle
The handle is kept as short as possible while still providing meaningful leverage in tight spaces. A defined finger groove provides control, and the flared end helps keep your grip secure.

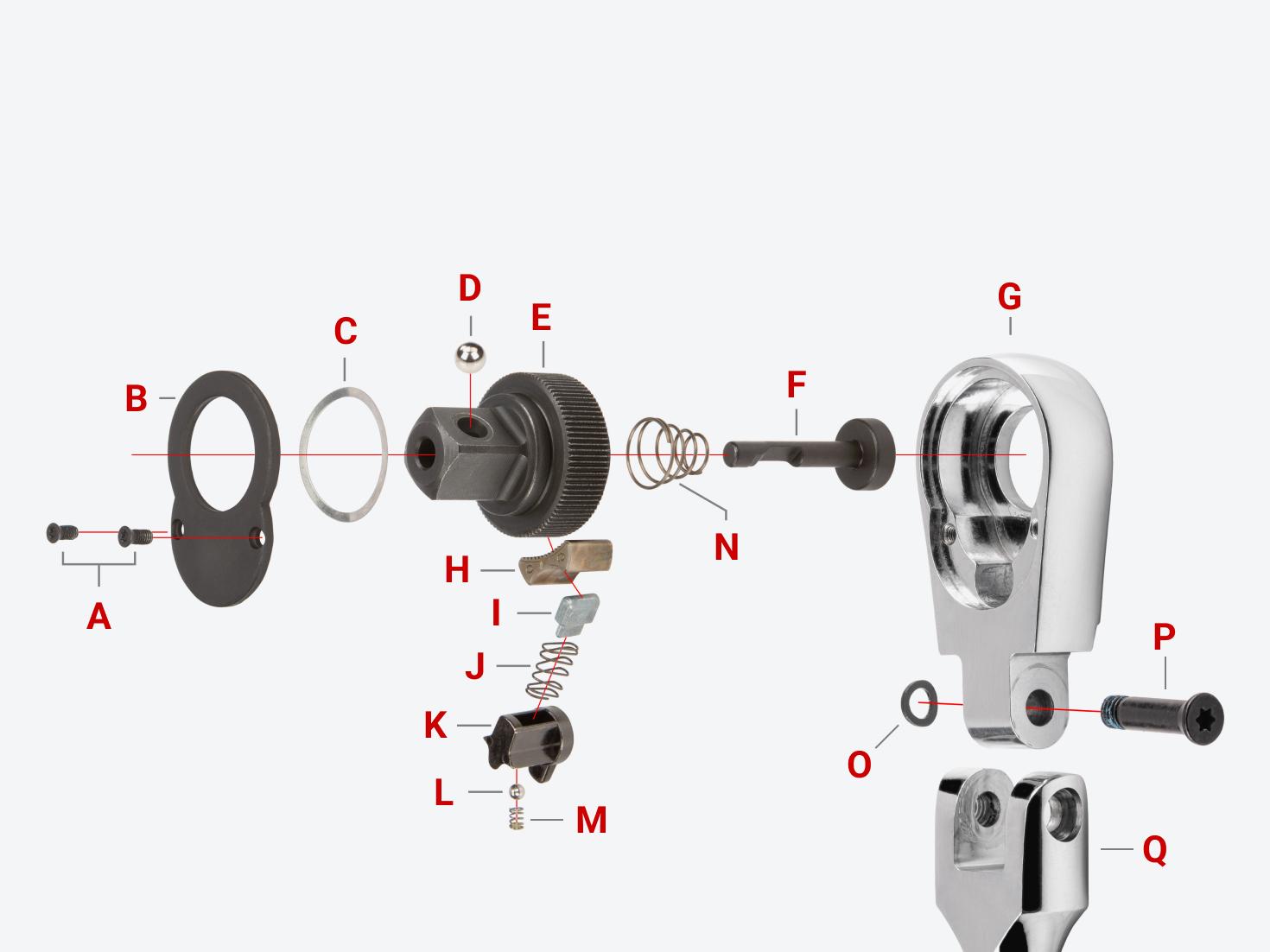

Parts and Assembly
The ratchet head internals are serviceable.
Shop Service Kit
A. Screws
B. Cover Plate
C. Washer
D. Detent Ball
E. Gear/Tang
F. Locking Pin
G. Head
H. Pawl
I. Switch Pin
J. Switch Pin Spring
K. Switch
L. Switch Ball
M. Switch Spring
N. Locking Pin Spring
O. Washer
P. Pivot Pin
Q. Handle
Specifications
1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet
| Country of Origin | Taiwan |
| Item Weight | 0.21 lb. |
