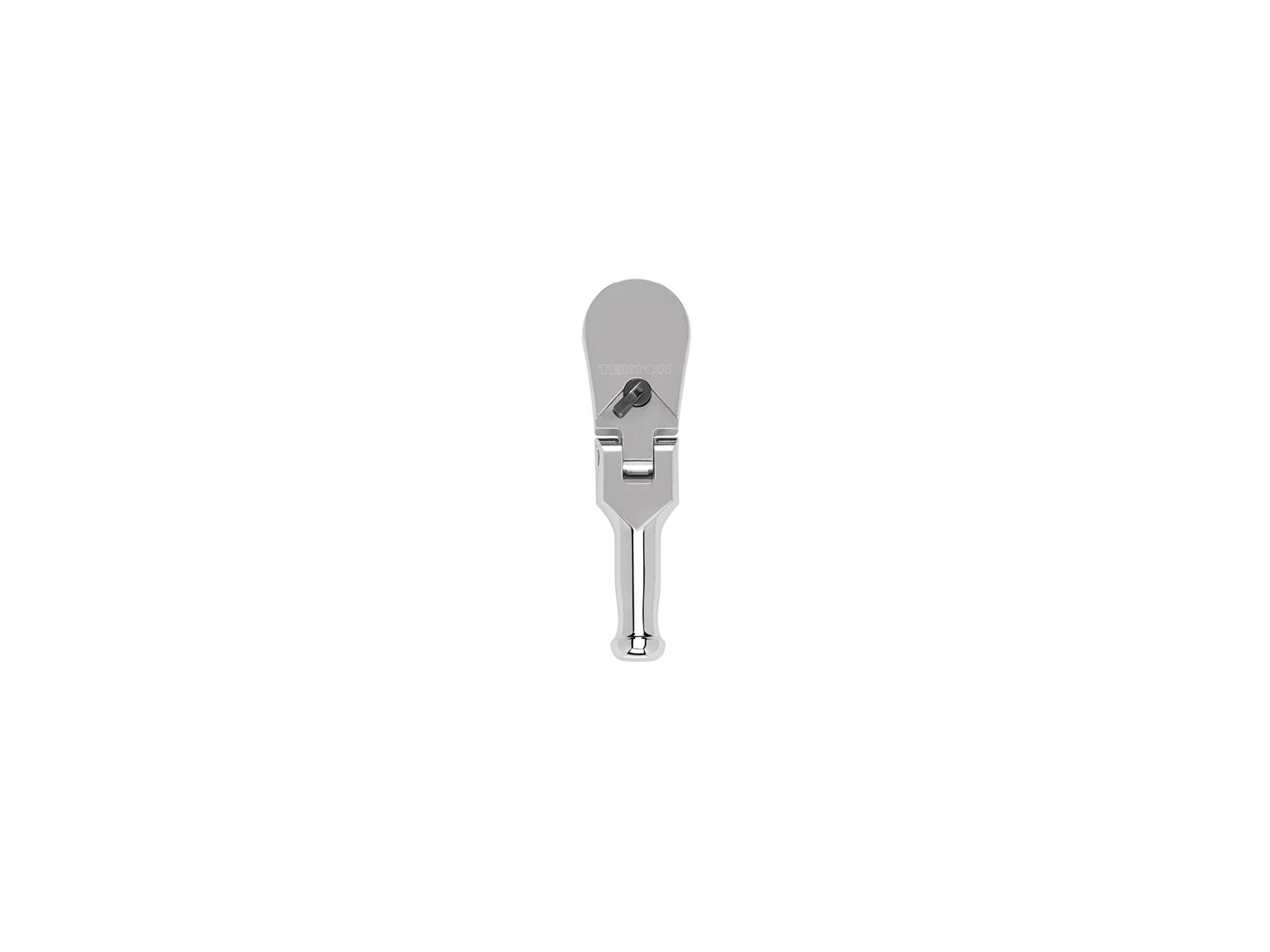

TEKTON 1/4 Inch Drive x 3 Inch Flex Head Non-Quick-Release Stubby Ratchet

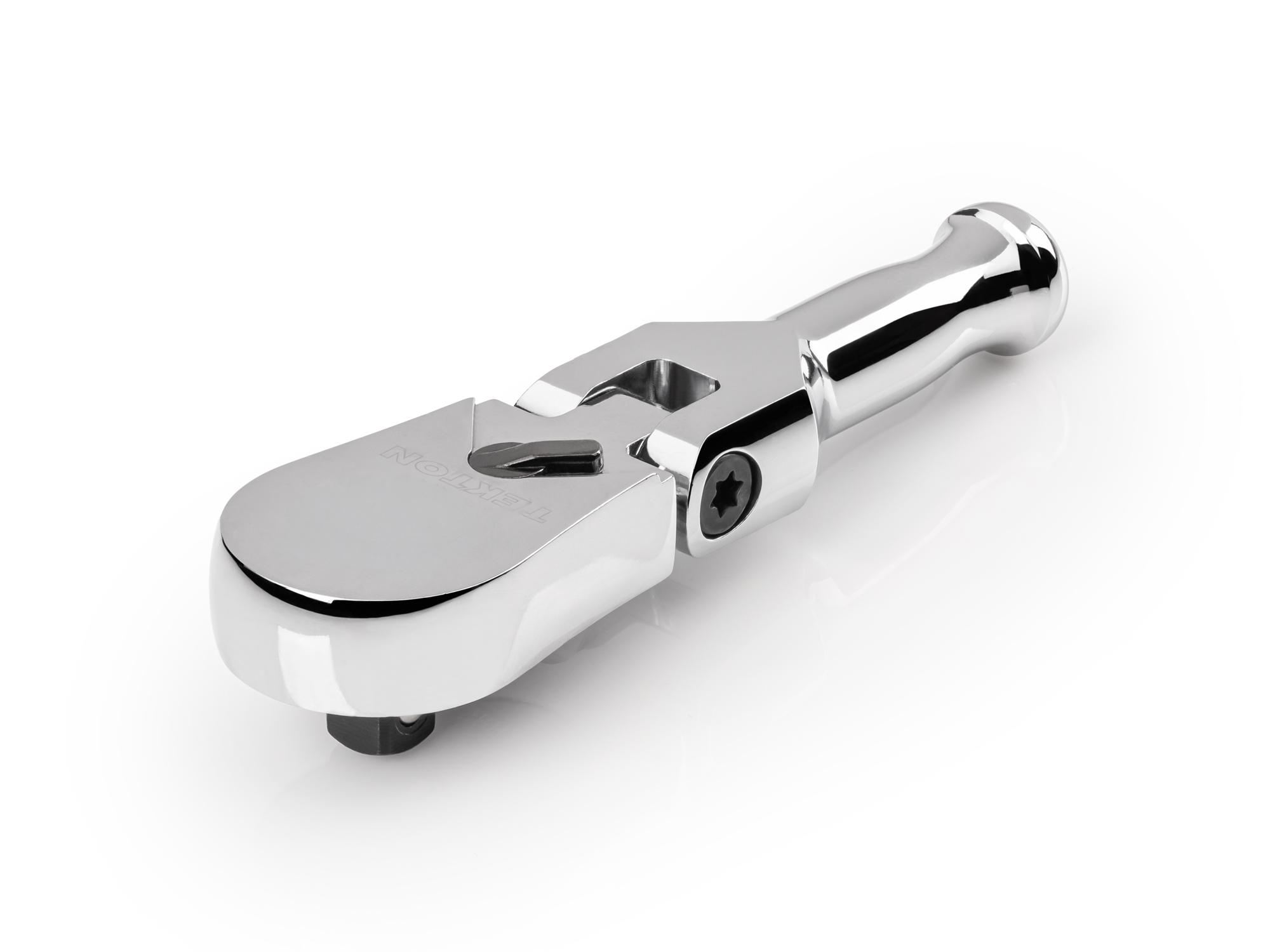

Front-right angle view of Tekton 3 inch ratchet. Item #SRH26003

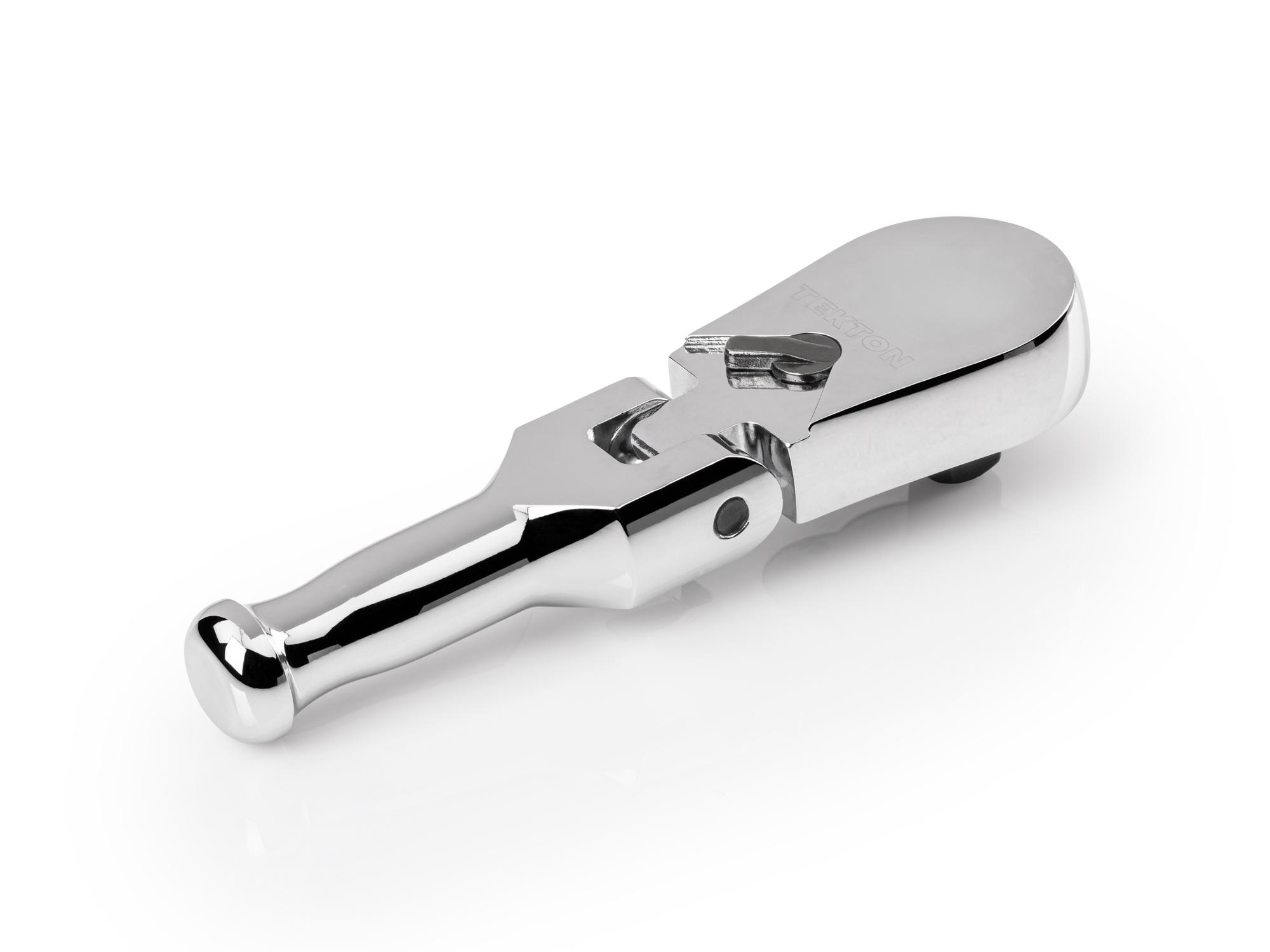

Back angle view of Tekton 3 inch ratchet. Item #SRH26003

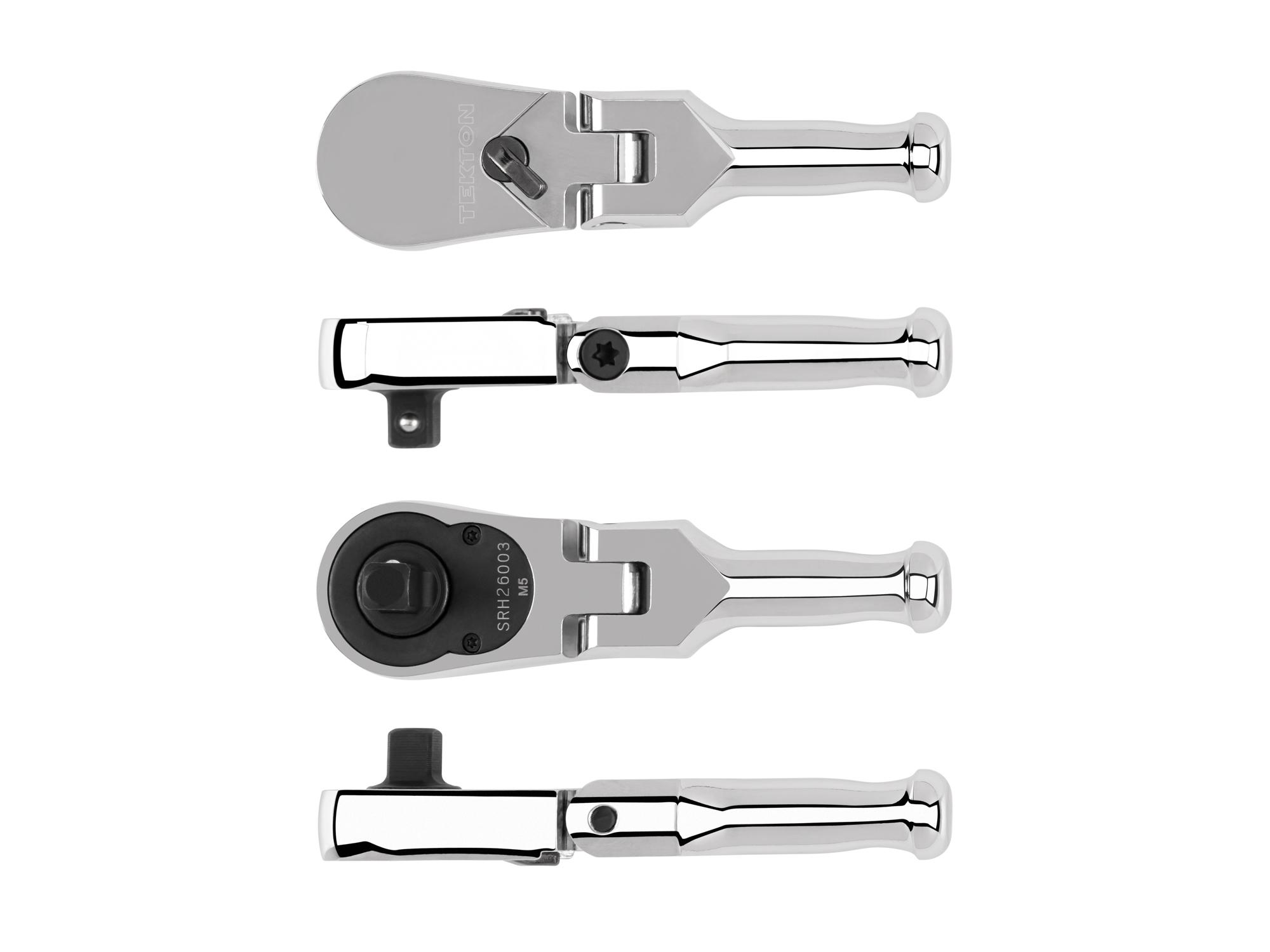

Side view of Tekton 3 inch ratchet. Item #SRH26003

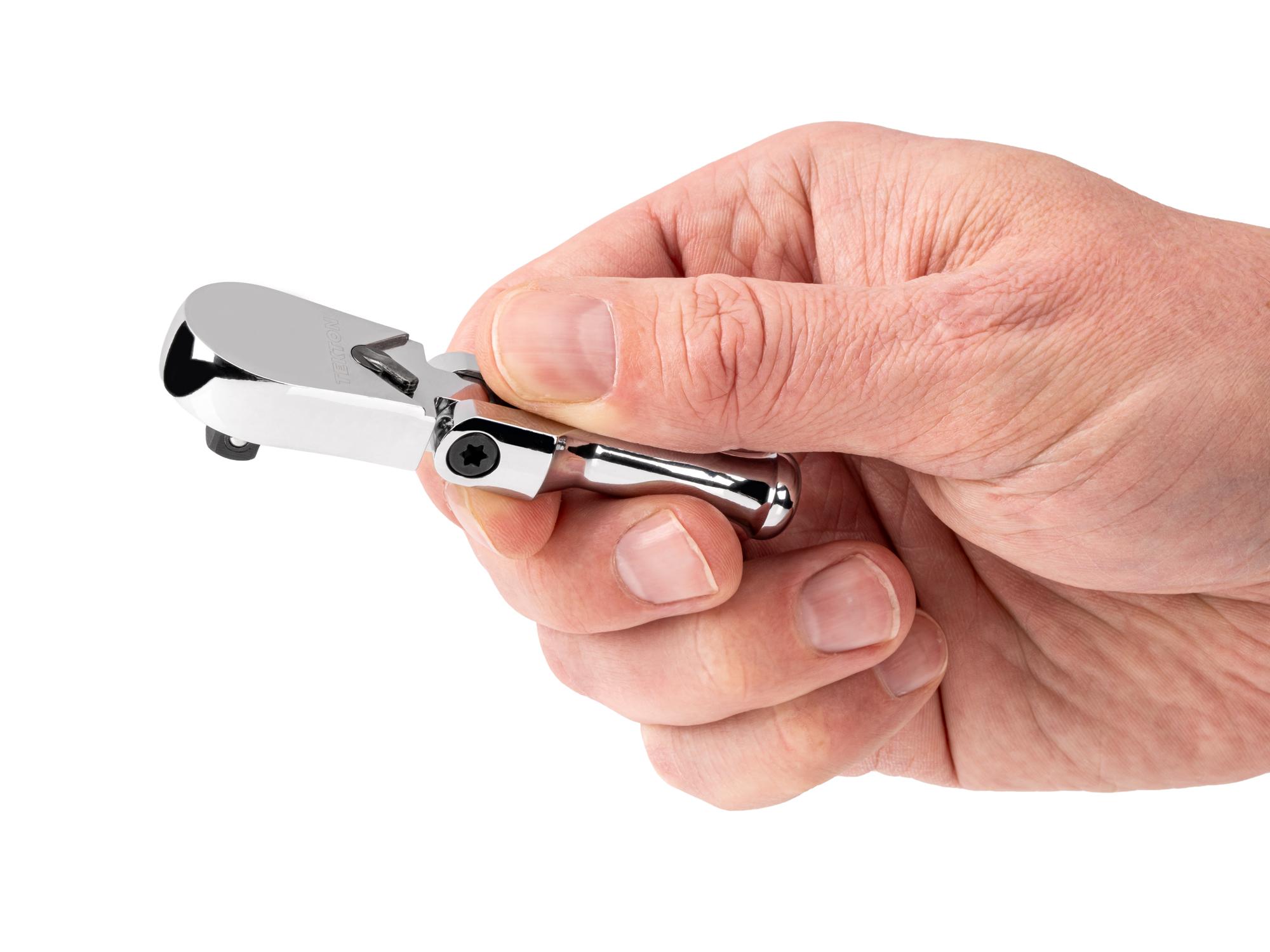

Person holding Tekton 3 inch ratchet. Item #SRH26003
Tap image to zoom in

Item #SRH26003

1/4 Inch Drive x 3 Inch Flex Head Non-Quick-Release Stubby Ratchet

$35.00
Add to Cart

Details

Video Overview

This compact 1/4 inch drive ratchet fits where others can't. The slim head flexes a full 180 degrees with smooth tension that holds wherever you set it.
The ratchet head has 180-degree flex with no fixed positions

Controlled Tension Flex Joint

The non-locking joint gives the head a continuous 180-degree range of motion. It has just the right amount of tension to hold any position without flopping over.

90-Tooth Gear = 4º Swing Arc

The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.
Graphic showing the reduced size of a quick-release ratchet head

Ultra-Compact Head

Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.
A 1/4 inch drive stubby ratchet being held

Sleek, Stubby Handle

The handle is kept as short as possible while still providing meaningful leverage in tight spaces. A defined finger groove provides control, and the flared end helps keep your grip secure.

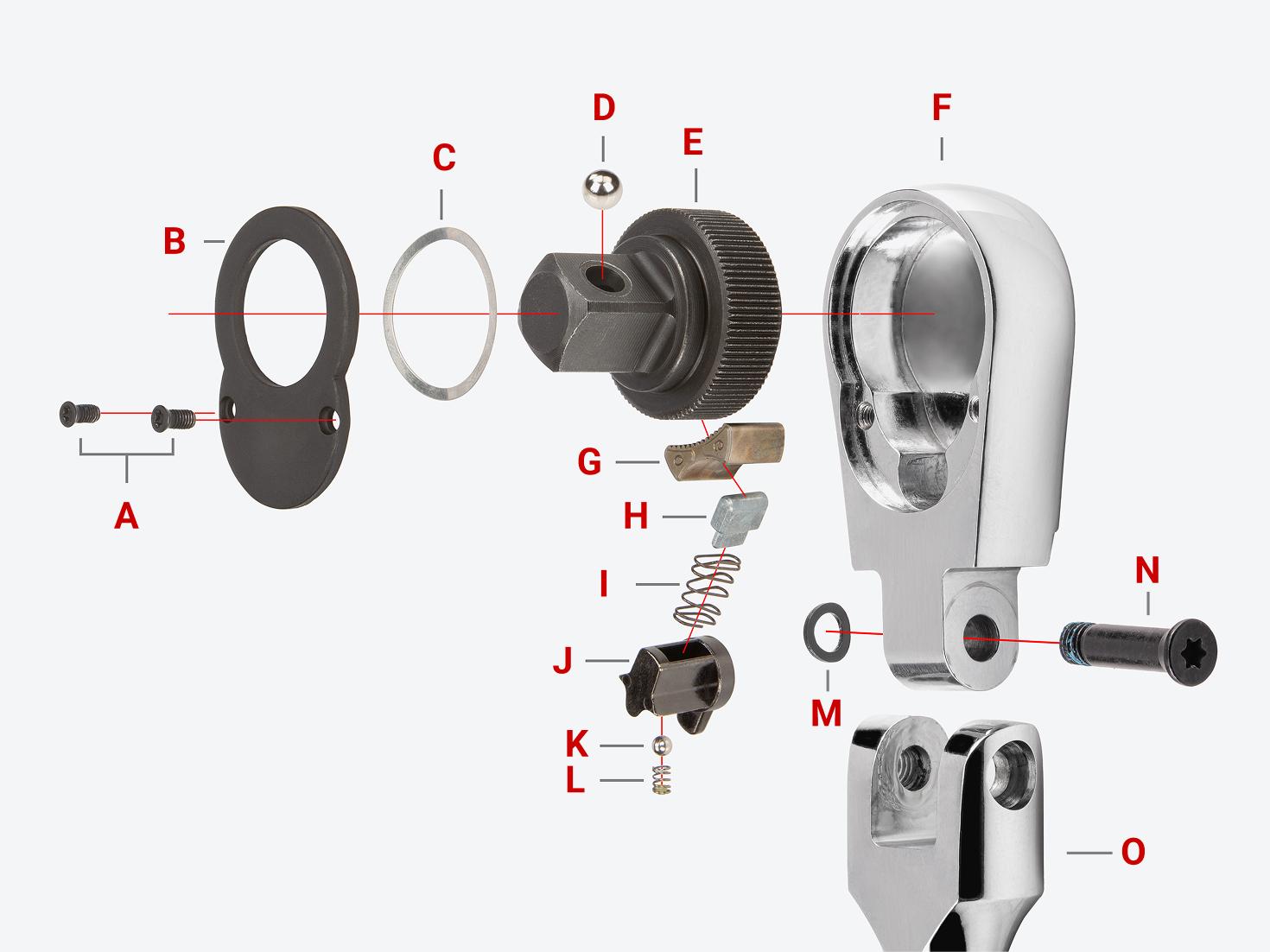

The internals of a non-quick-release ratchet with each part labeled.

Parts and Assembly

The ratchet head internals are serviceable.
Shop Service Kit


A. Screws

B. Cover Plate

C. Washer

D. Detent Ball

E. Gear/Tang

F. Head

G. Pawl

H. Switch Pin

I. Switch Pin Spring

J. Switch

K. Switch Ball

L. Switch Spring

M. Washer

N. Pivot Pin

O. Handle

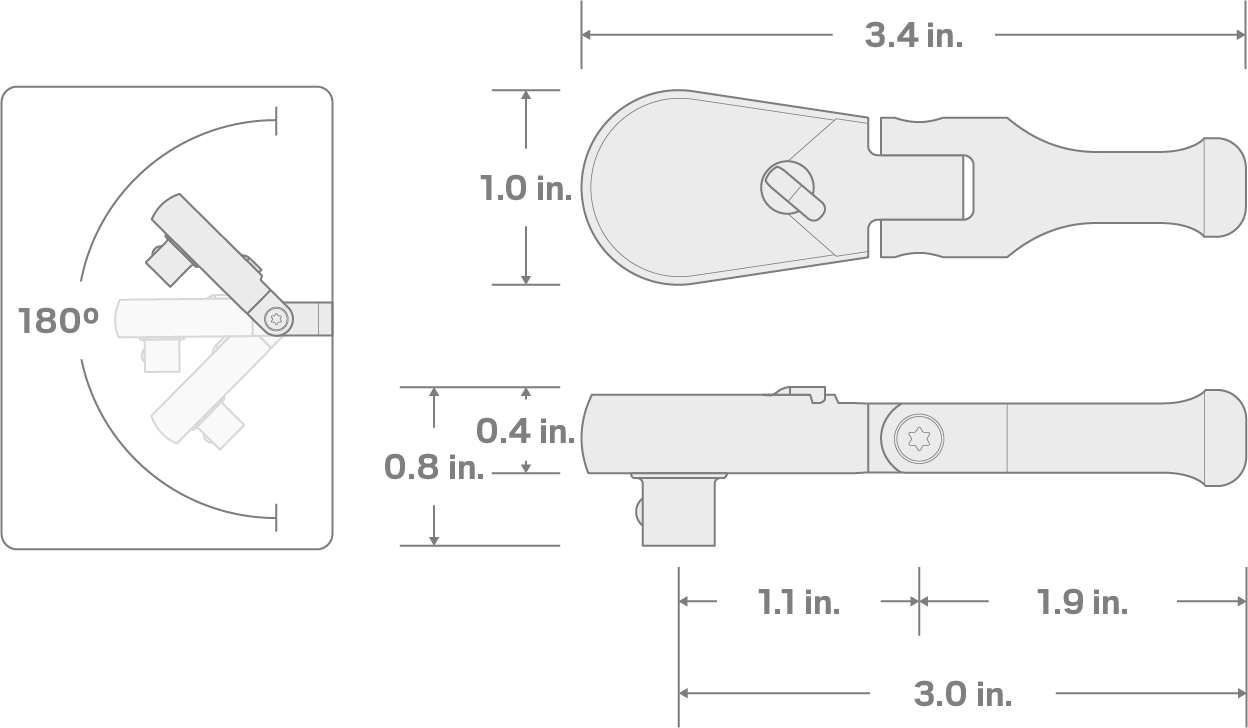

Specifications

1/4 Inch Drive x 3 Inch Flex Head Non-Quick-Release Stubby Ratchet

Specs for 1/4 Inch Drive x 3 Inch Flex Head Non-Quick-Release Stubby Ratchet
Country of Origin
Taiwan
Item Weight
0.21 lb.
