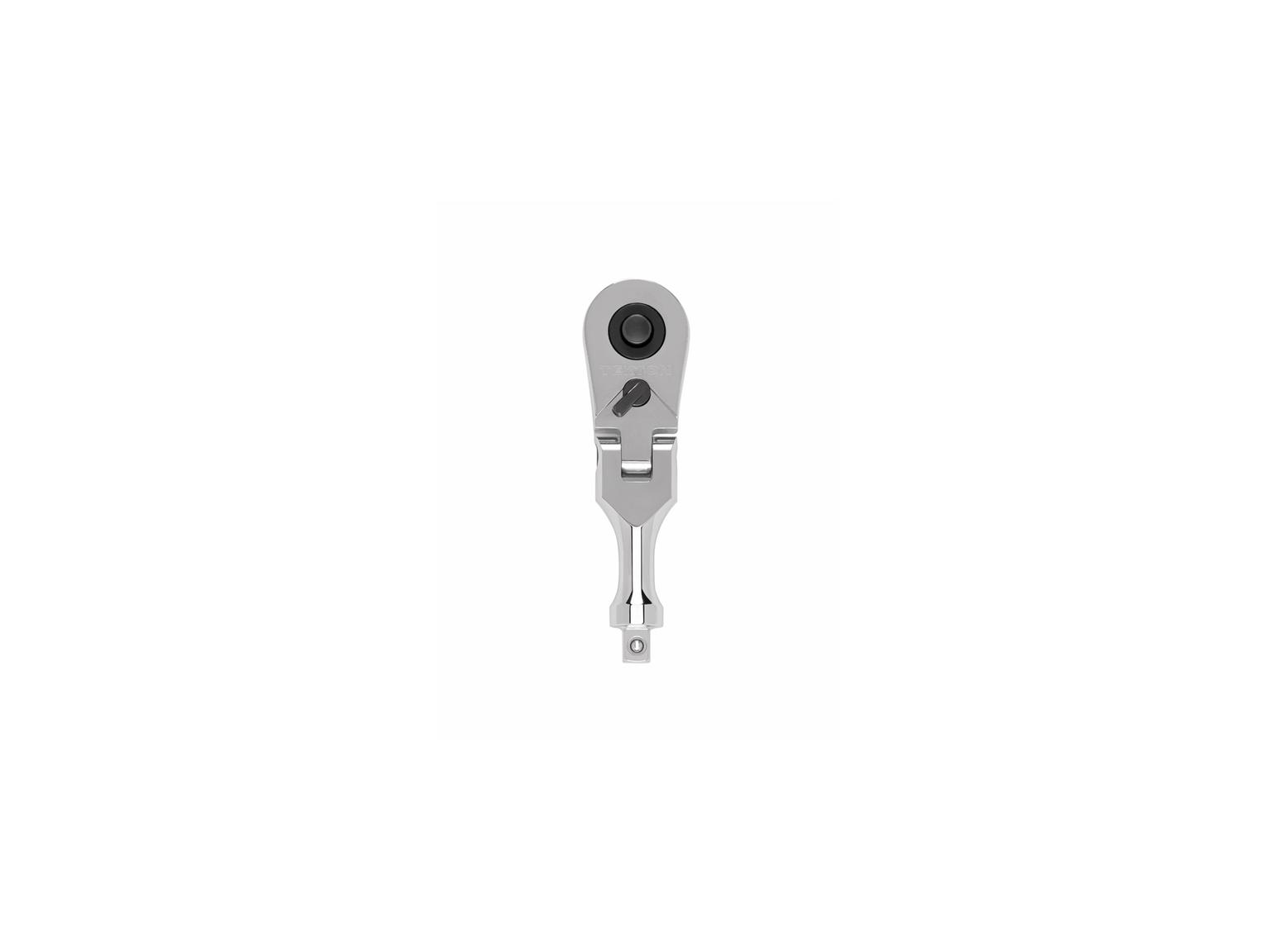

TEKTON 1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet with Handle Tang

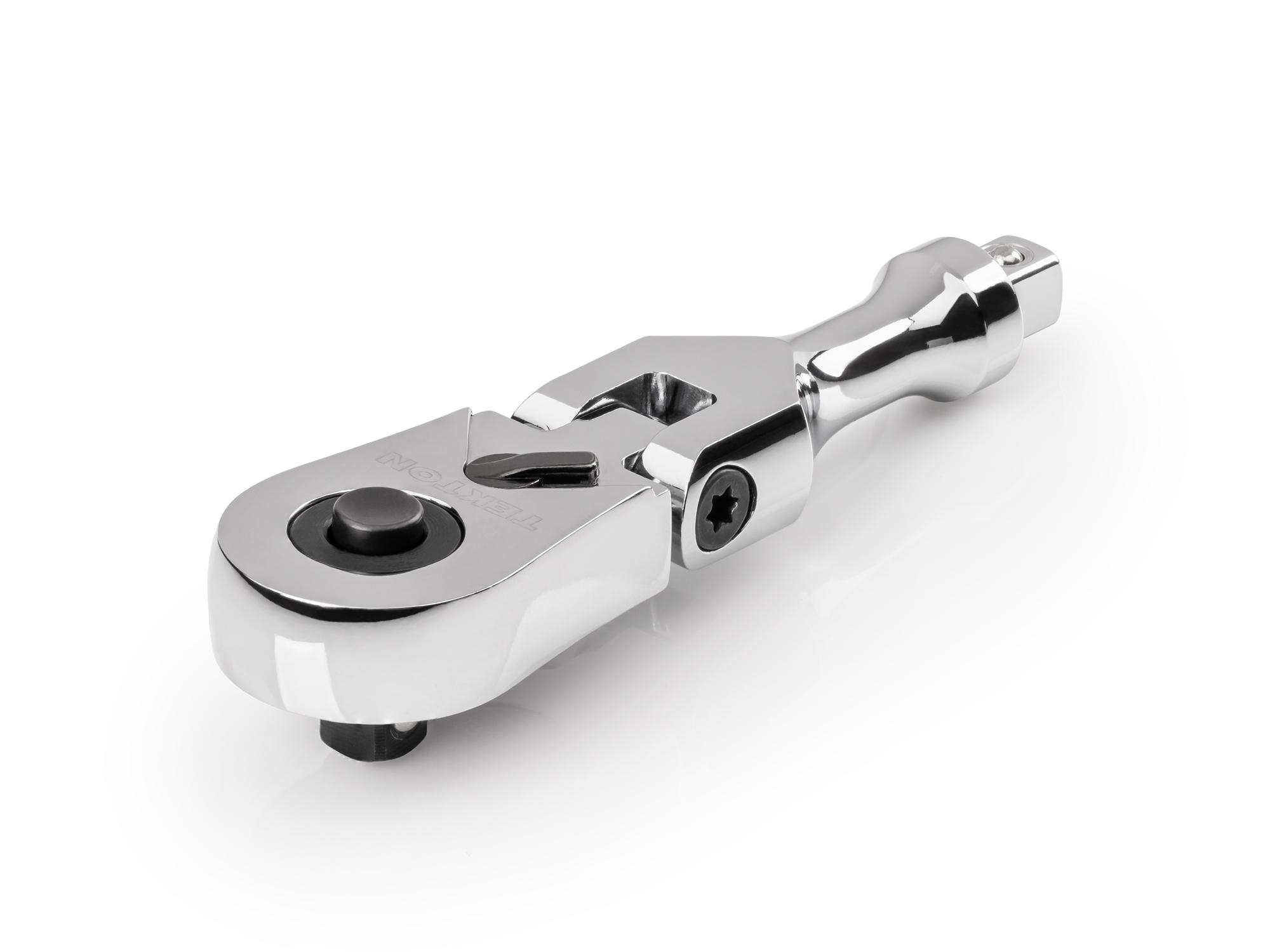

Front-right angle view of Tekton 3 inch ratchet. Item #SRH38003

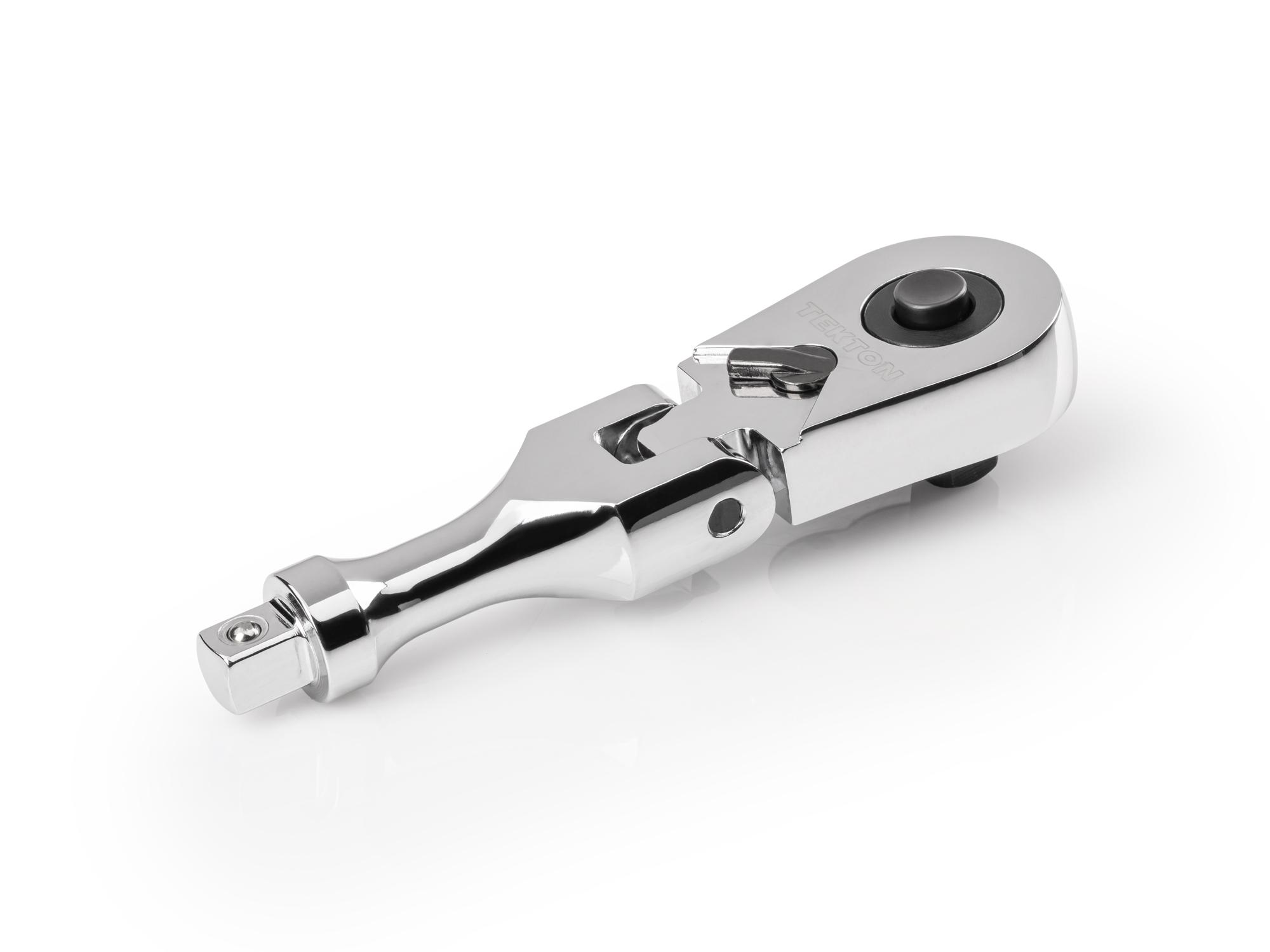

Back angle view of Tekton 3 inch ratchet. Item #SRH38003

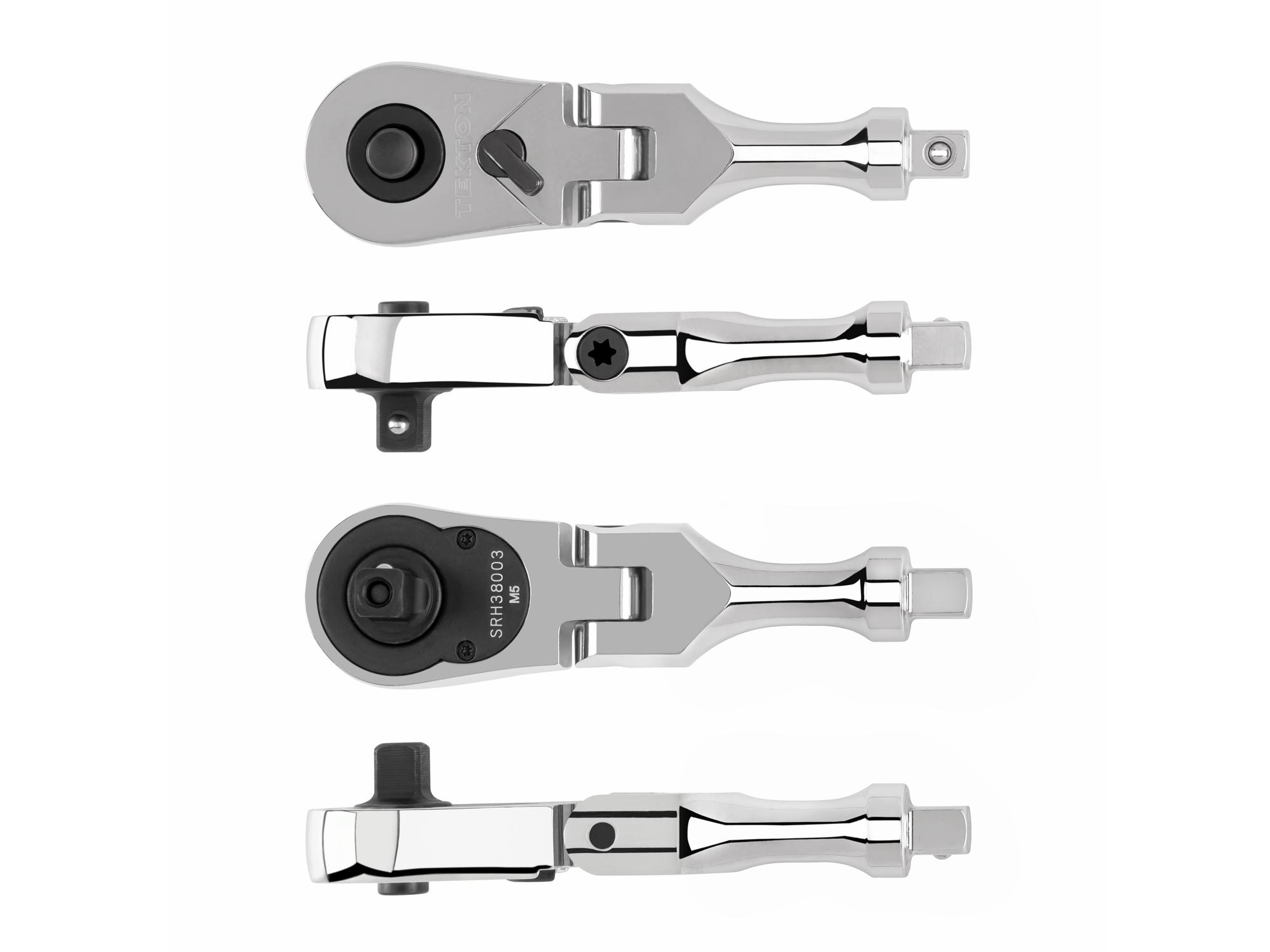

Side view of Tekton 3 inch ratchet. Item #SRH38003

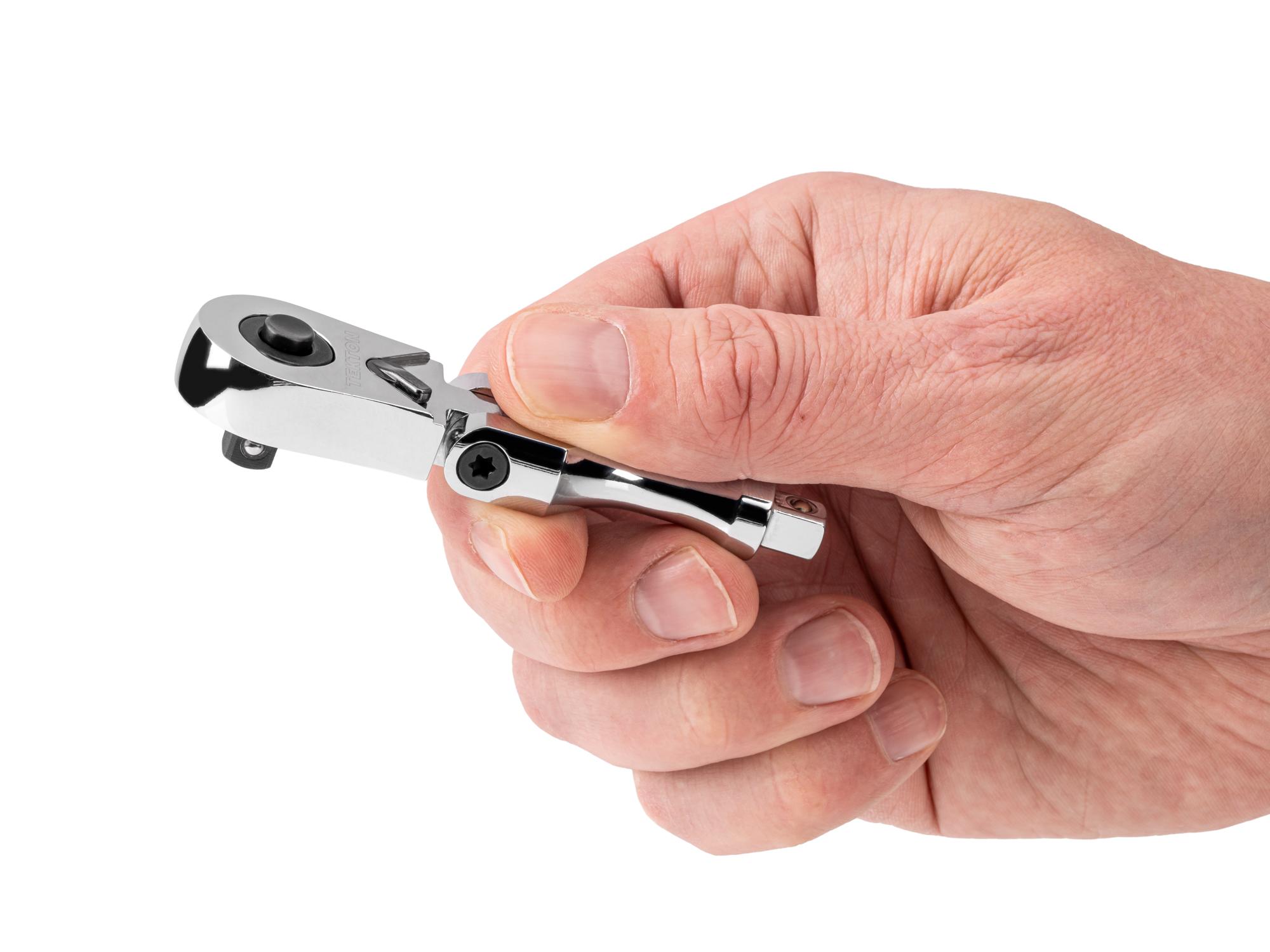

Person holding Tekton 3 inch ratchet. Item #SRH38003
Tap image to zoom in

Item #SRH38003

1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet with Handle Tang

$40.00
Add to Cart

Details

Video Overview

This compact 1/4 inch drive ratchet fits where others can’t. The square drive tang at the end of the handle offers additional capabilities. The slim head flexes a full 180 degrees with smooth tension that holds wherever you set it.

Handle Tang Adds Versatility

The drive tang at the end of the handle lets you attach an extension or other 1/4 inch drive accessories.

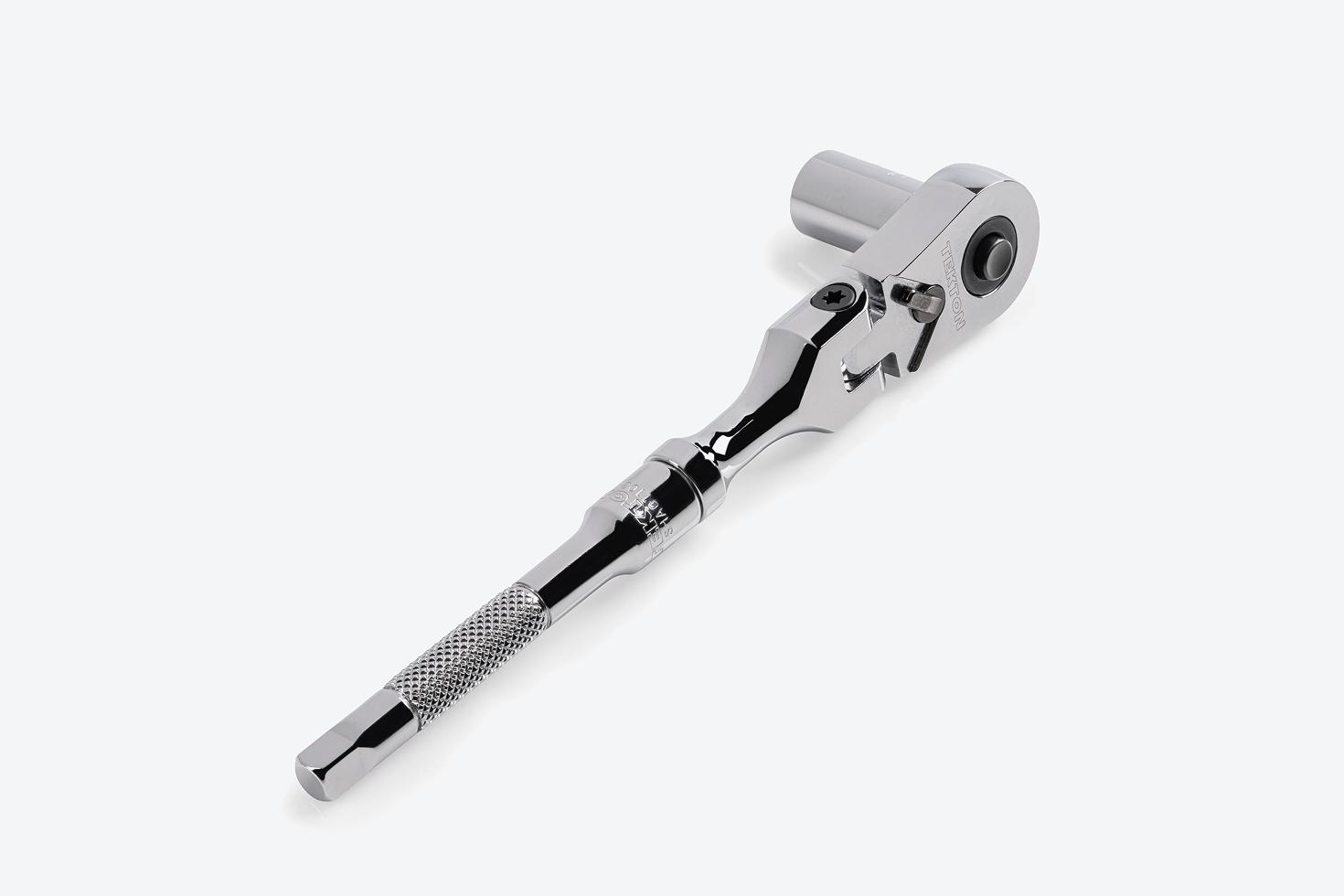

An extension on the handle tang of a 1/4 inch drive ratchet
Pairs well with a 3 inch extension to increase the handle length for reach, leverage, or a better grip.

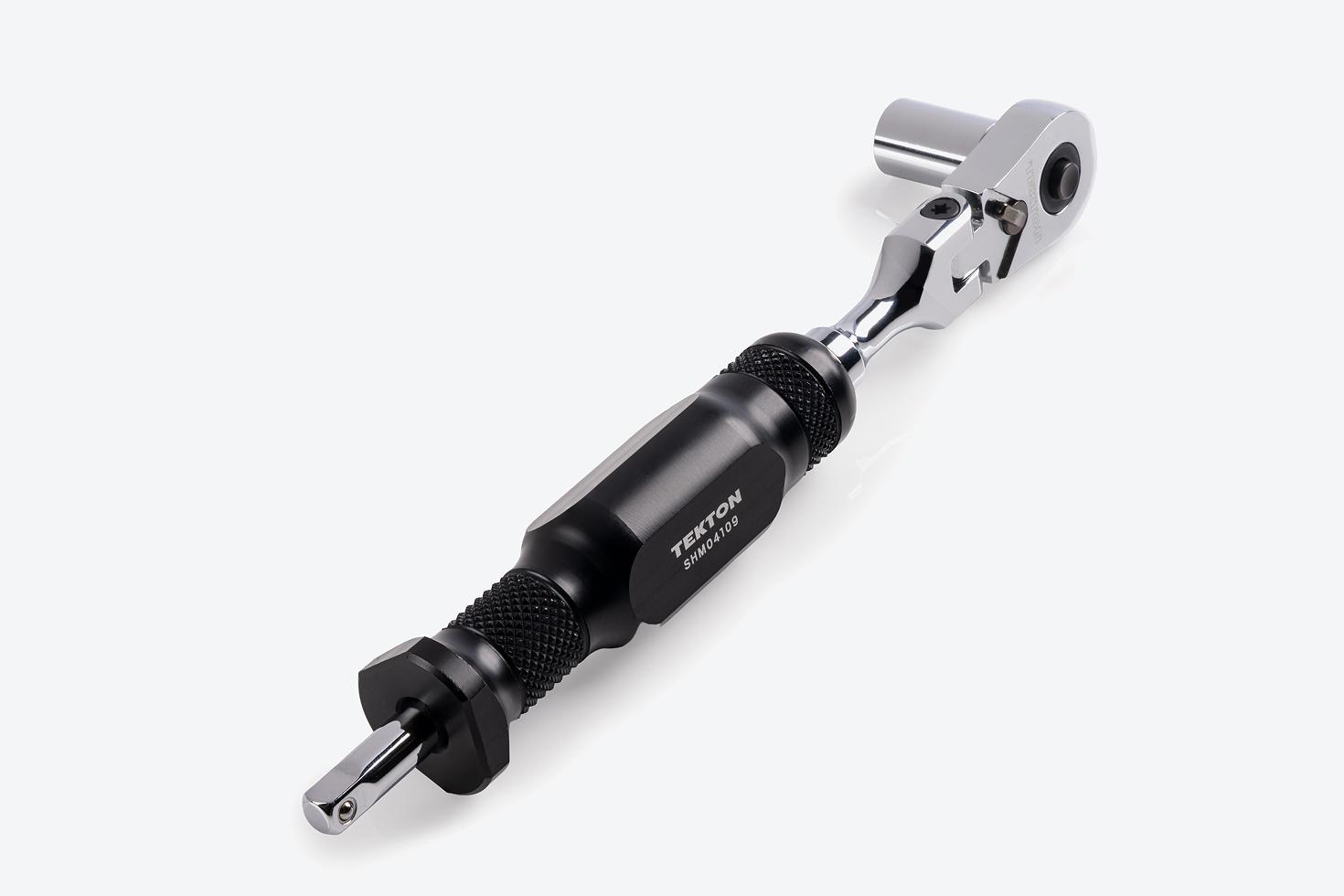

An aluminum spinner handle on the handle tang of a 1/4 inch drive ratchet
Connect to the 1/4 inch drive square on the end of the aluminum spinner handle for a comfortable grip.
A hex bit holder with Phillips bit on the handle tang of a 1/4 inch drive ratchet
Add a bit holder onto the handle tang to drive 1/4 inch hex shank bits in confined spaces.

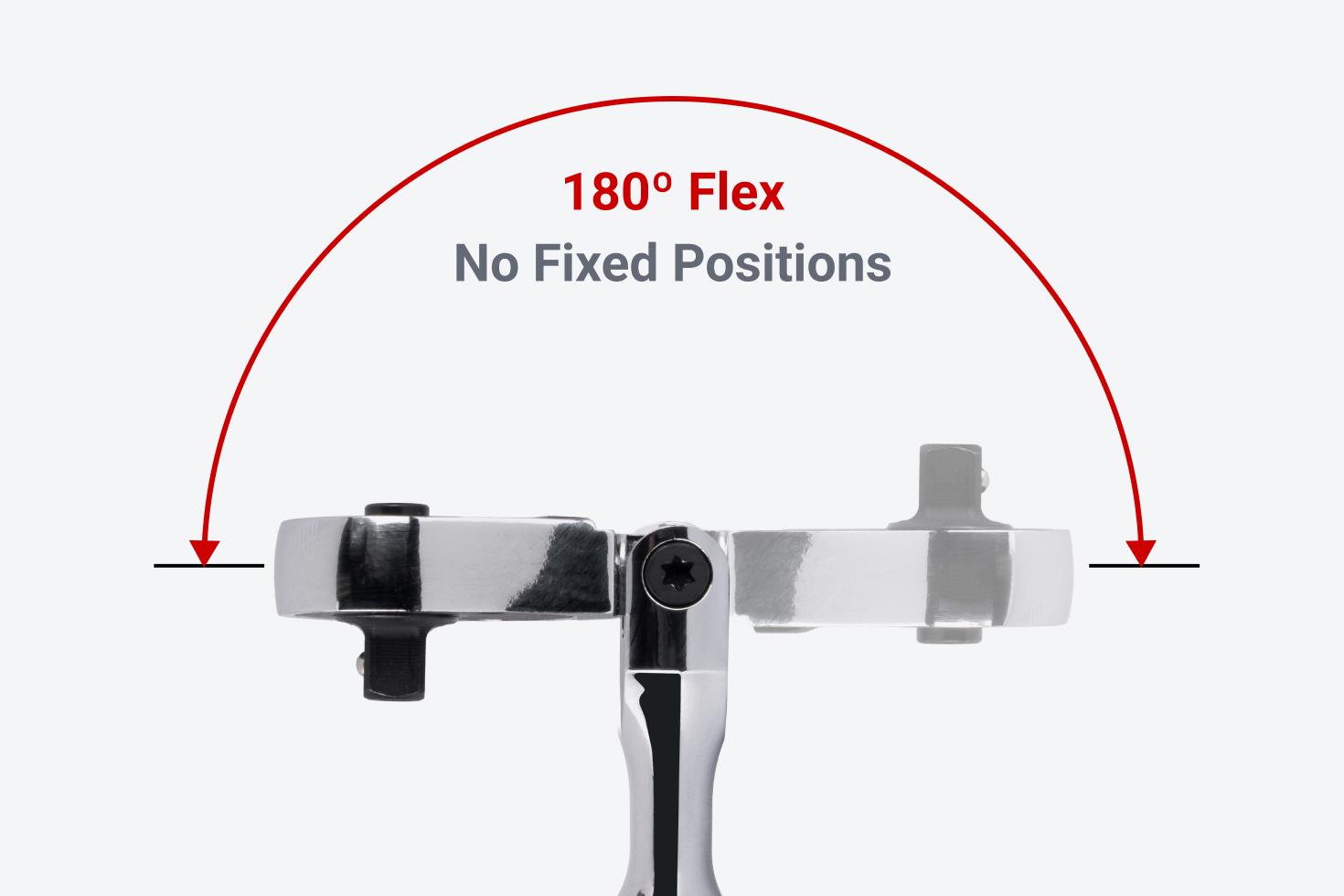

The ratchet head has 180-degree flex with no fixed positions

Controlled Tension Flex Joint

The non-locking joint gives the head a continuous 180-degree range of motion. It has just the right amount of tension to hold any position without flopping over.

90-Tooth Gear = 4º Swing Arc

The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.
Graphic showing the reduced size of a quick-release ratchet head

Ultra-Compact Head

Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

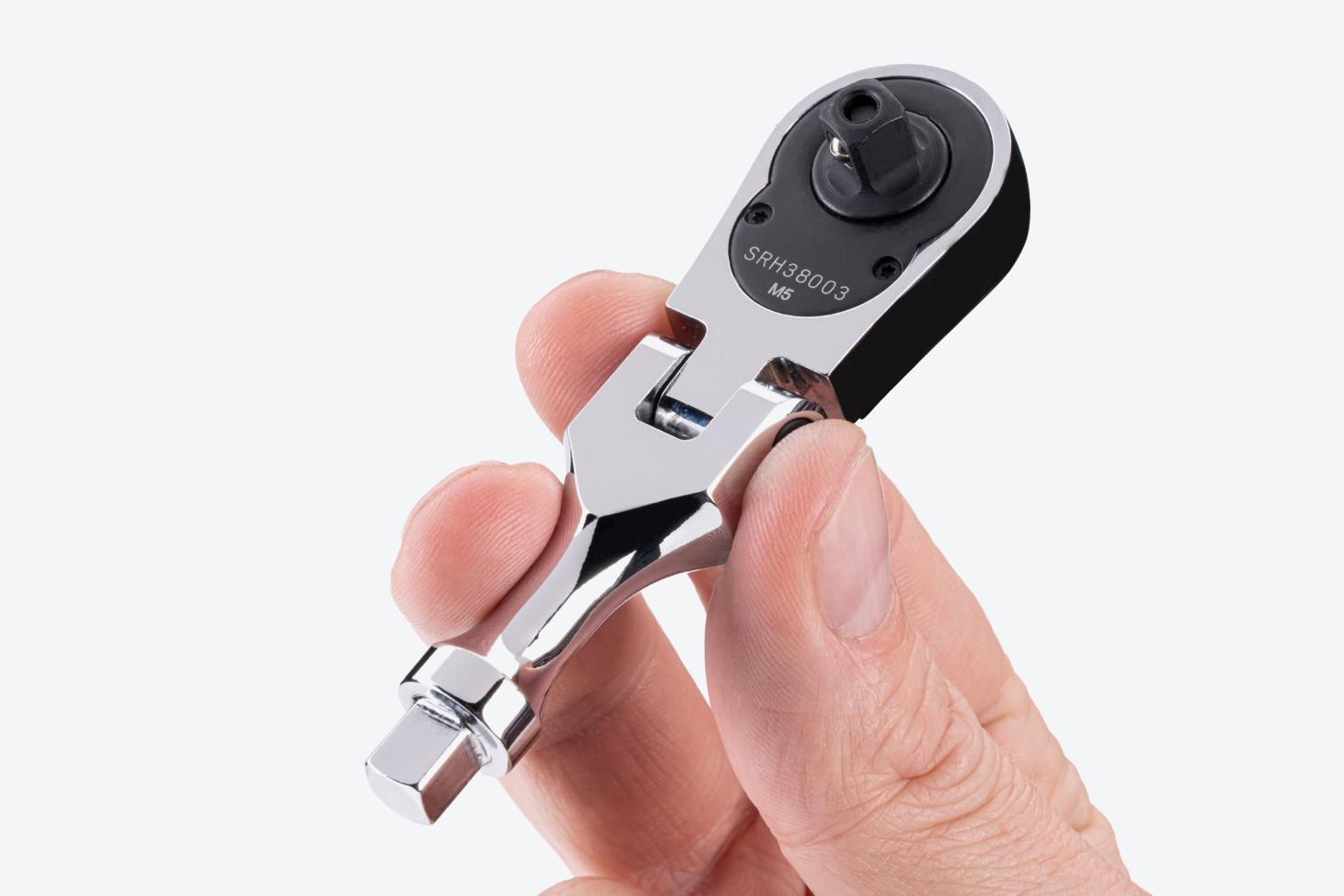

A 1/4 inch drive stubby ratchet with handle tang being held

Sleek, Stubby Handle

The handle is kept as short as possible while still providing meaningful leverage in tight spaces. A defined finger groove provides control, and the flared end helps keep your grip secure.
The internals of a quick-release ratchet with each part labeled.

Parts and Assembly

The ratchet head internals are serviceable.
Shop Service Kit


A. Screws

B. Cover Plate

C. Washer

D. Detent Ball

E. Gear/Tang

F. Locking Pin

G. Head

H. Pawl

I. Switch Pin

J. Switch Pin Spring

K. Switch

L. Switch Ball

M. Switch Spring

N. Locking Pin Spring

O. Washer

P. Pivot Pin

Q. Handle


Specifications

1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet with Handle Tang

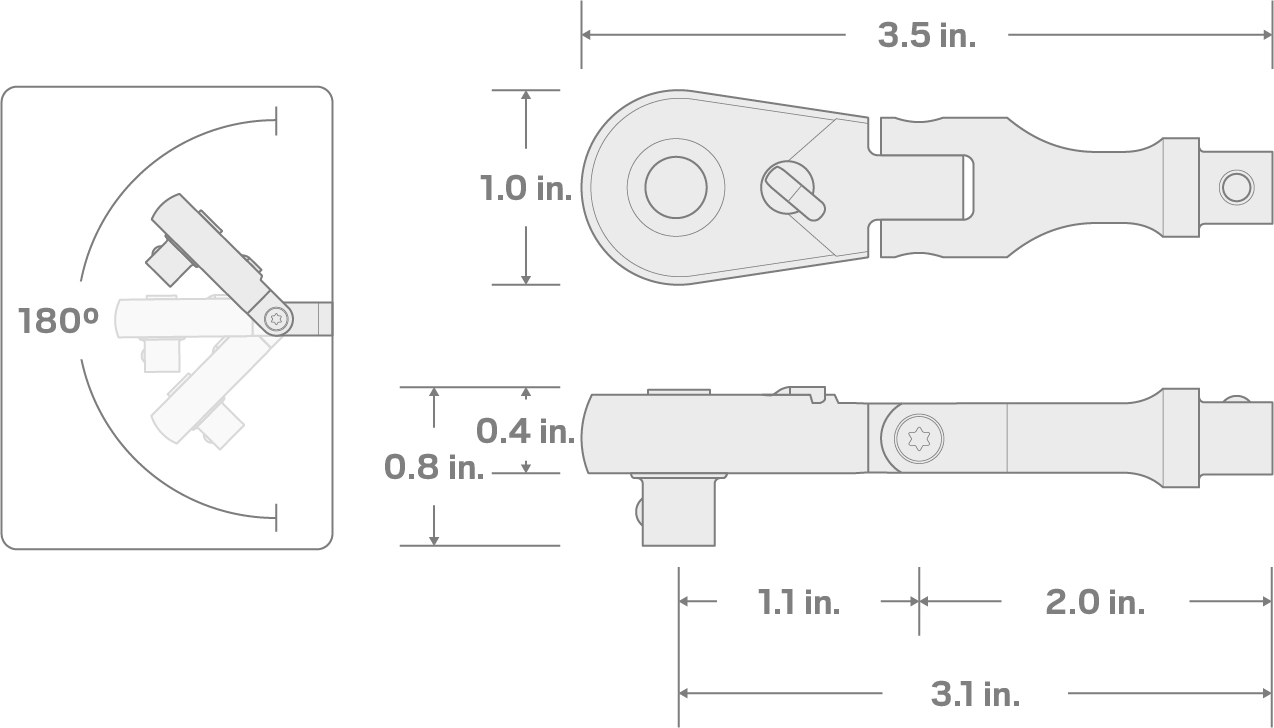

Specs for 1/4 Inch Drive x 3 Inch Flex Head Quick-Release Stubby Ratchet with Handle Tang
Country of Origin
Taiwan
Item Weight
0.2 lb.
