1/4 Inch Drive 6-Point Socket and Ratchet Set, 56-Piece (5/32 - 9/16 in., 4 - 15 mm)
Item #SKT05303
•
$90.00
Set Includes:
- IN Standard length
5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in. (11 sizes) - IN Deep length
5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in. (11 sizes) - MM Standard length
4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm (14 sizes) - MM Deep length
4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm (14 sizes) - Universal joint
- 3 inch extension
- 6 inch extension
- Magnetic hex bit holder
- Spinner handle
- 90-tooth ratchet
- Storage case
Add socket rails and trays:
Details
Large, Stamped Markings
- Permanently impressed into the material by a roll-stamp die
- As large as possible while still being readable along the socket's curved surface
- Clearly visible size numbers with extra-deep outline

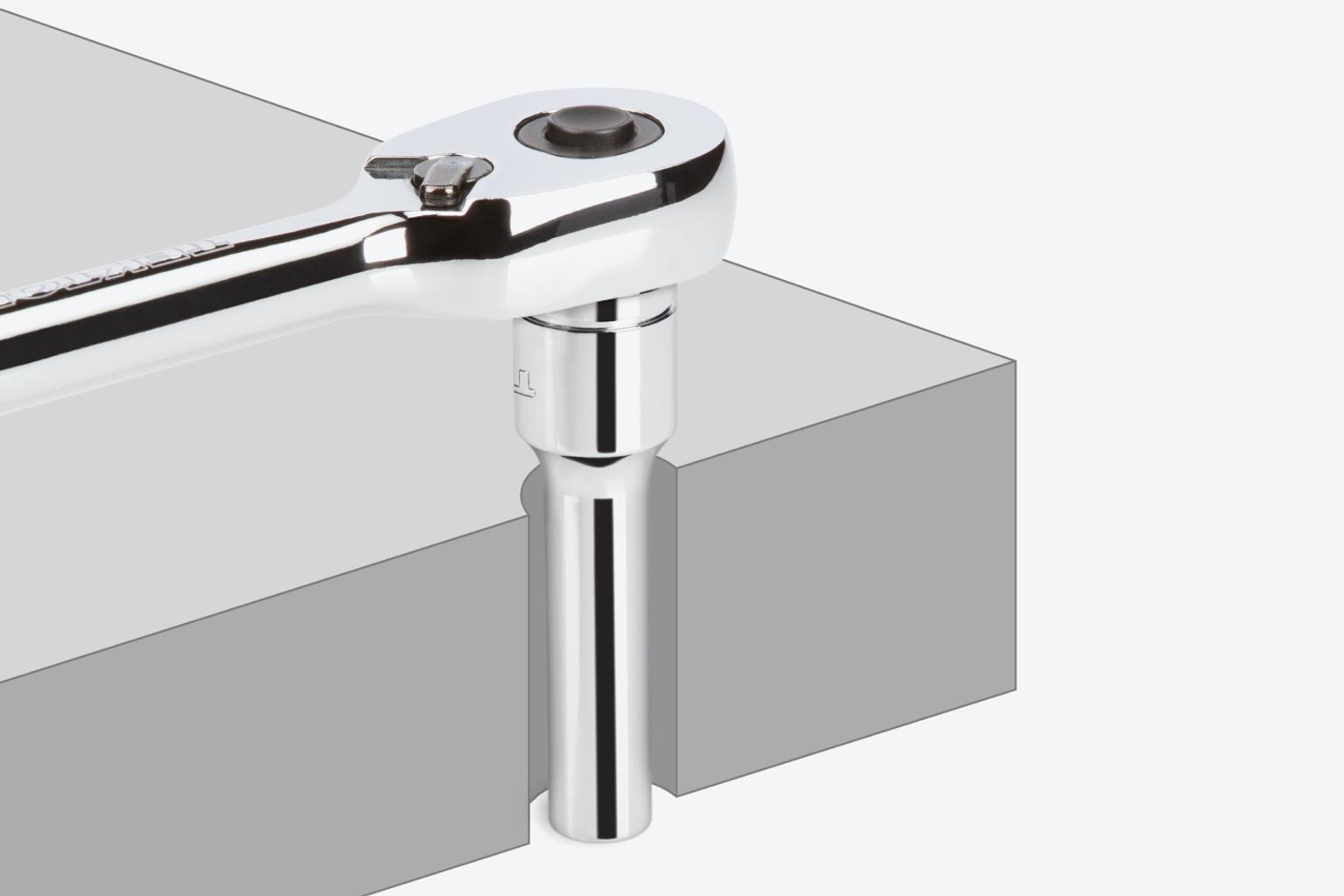

Fully Stepped Shoulders
Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.
![](https://media.tekton.com/images/details/hand-drive-sockets/1-4-in-drive/tekton-socket-fully-stepped-shoulders-2x.png)
Exterior and Interior Finishes
- Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
- Interior is protected against rust with clear coat, rather than commonly-used metallic paint
6-Point Socket Opening
Provides an exact fit and maximum contact for hex fasteners.

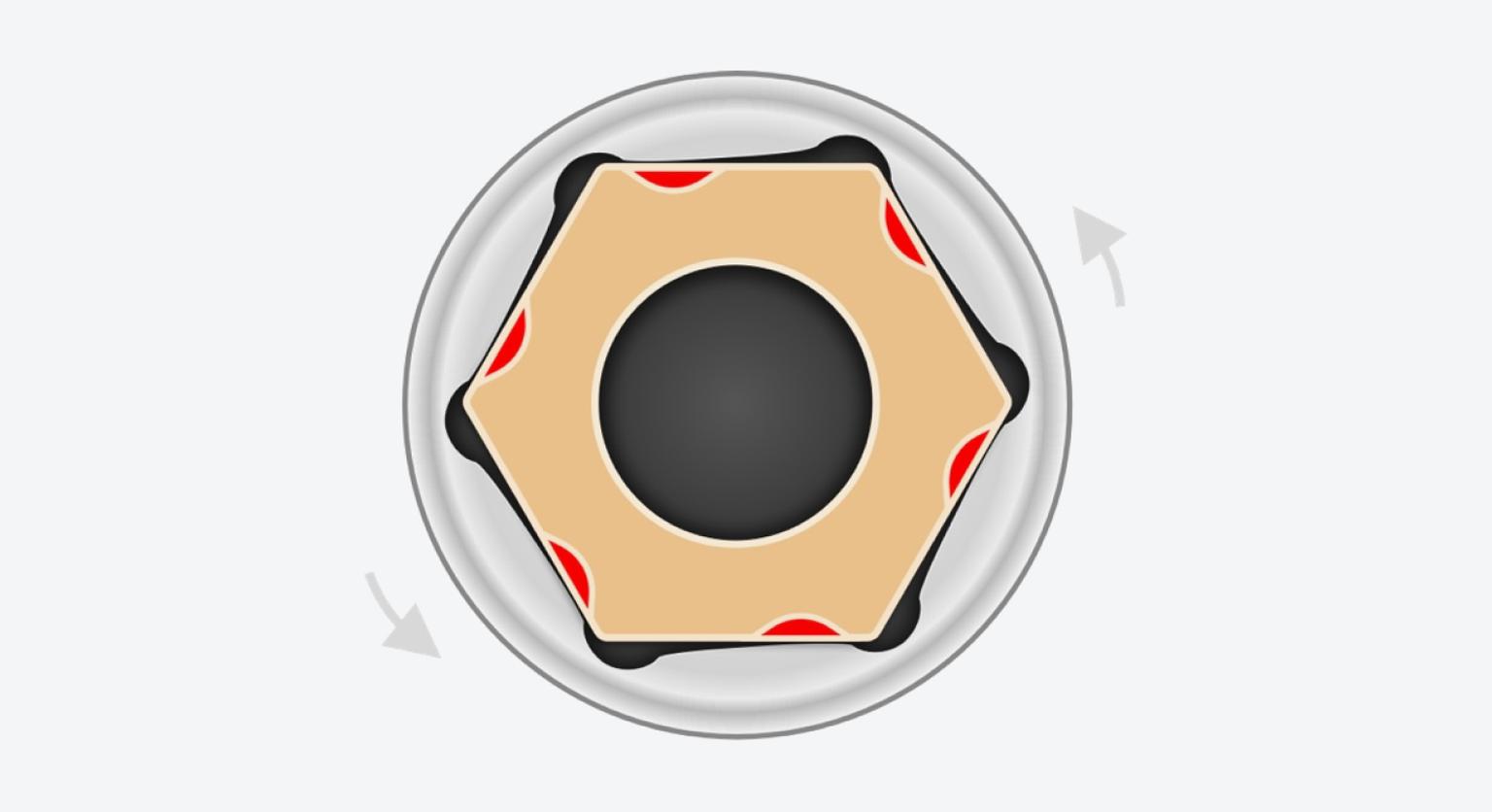

Prevents Fastener Round-Off
Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
Secure Drive Tool Engagement
Detent grooves and beveled edges provide a smooth and secure connection with the drive tool.

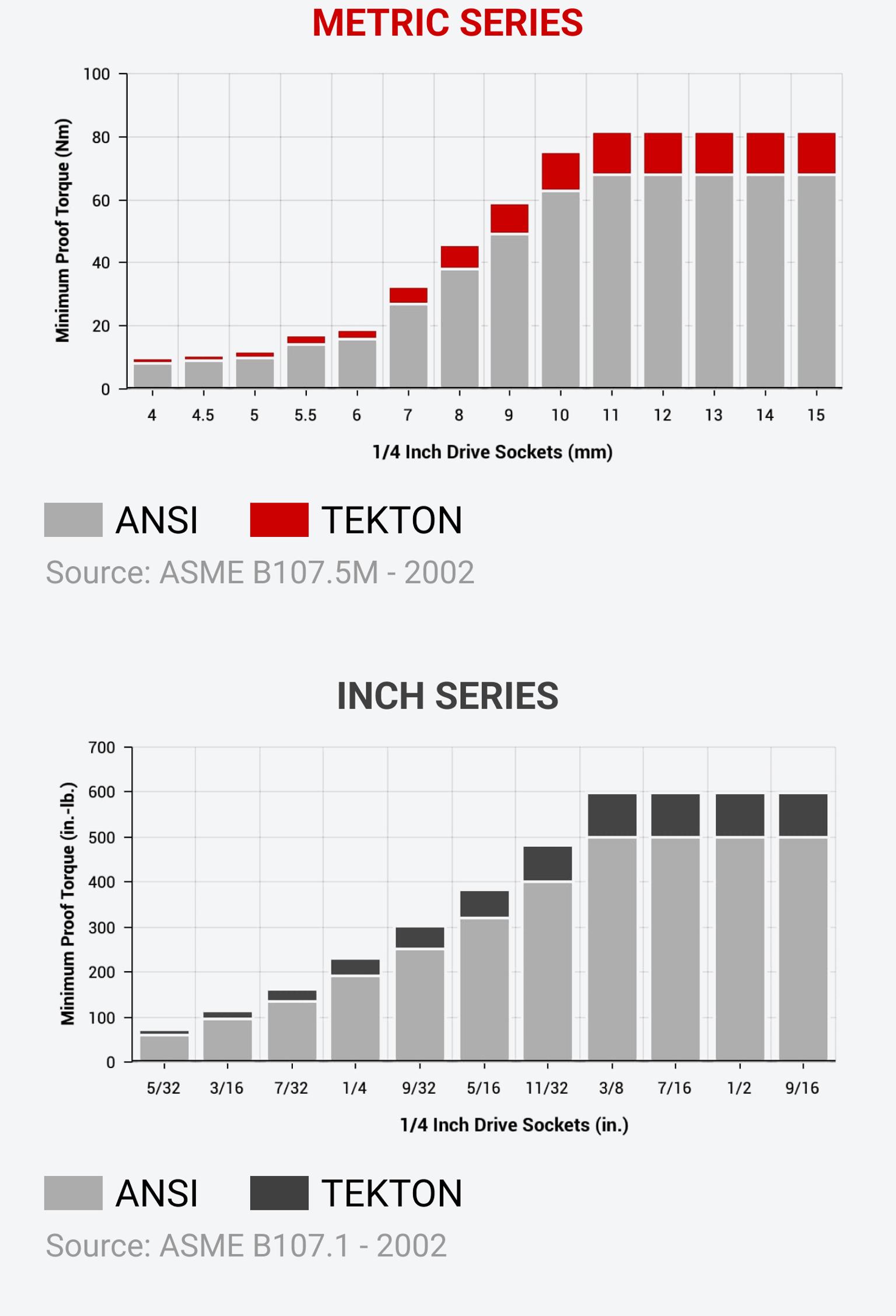

High Torque Strength
Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.
90-Tooth Ratchet
- 4-degree swing arc
- Ultra-compact head is reduced in all dimensions
- Quick-release drive locks sockets onto tang and releases with the press of a button
Included Accessories
3 and 6 Inch Extensions
Reach past obstructions and into tight, narrow spaces.
Universal Joint
Reach around obstructions and access fasteners at an angle.
Spinner Handle
Attach sockets to the spinner handle and use it like a nut driver.
Magnetic Hex Bit Holder
Adapt any 1/4 inch hex shank bit to 1/4 inch drive ratchets, driver handles, and other drive tools.
Storage Case
- Resilient high-density polyethylene material withstands exposure to common lubricants, fuels, and solvents
- Strong latches and metal hinge pins
- Molded size markings for each tool inside the case
Specs
1/4 Inch Drive 6-Point Socket and Ratchet Set, 56-Piece (5/32 - 9/16 in., 4 - 15 mm)
![Specs for 1/4 Inch Drive 6-Point Socket and Ratchet Set, 56-Piece (5/32 - 9/16 in., 4 - 15 mm)](https://media.tekton.com/images/spec/SKT05303_spec.jpg)
Country of Origin | Sockets, accessories, ratchet, spinner handle blade, and case made in Taiwan. Spinner handle molded in USA. |
Item Weight | 4.67 lb. |
