Details
Large, Stamped Markings
- Permanently impressed into the material by a roll-stamp die
- As large as possible while still being readable along the socket's curved surface
- Clearly visible size numbers with extra-deep outline
Fully Stepped Shoulders
Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.
Exterior and Interior Finishes
- Chrome-plated exterior is highly corrosion resistant and wipes clean to a mirror finish
- Interior is protected against rust with clear coat, rather than commonly-used metallic paint
6-Point Socket Opening
Provides an exact fit and maximum contact for hex fasteners.
Prevents Fastener Round-Off
Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.
Secure Drive Tool Engagement
Detent grooves and beveled edges provide a smooth and secure connection with the drive tool.
1/4 Inch Drive Deep Length Socket Proof Torque
Meets a minimum value of 1.2 times the ASME standard for proof torque. Verified by a single-cycle test that applies torque until the specified value is reached without failure or permanent deformation.
Data from: ASME B107.110-2019
Specs

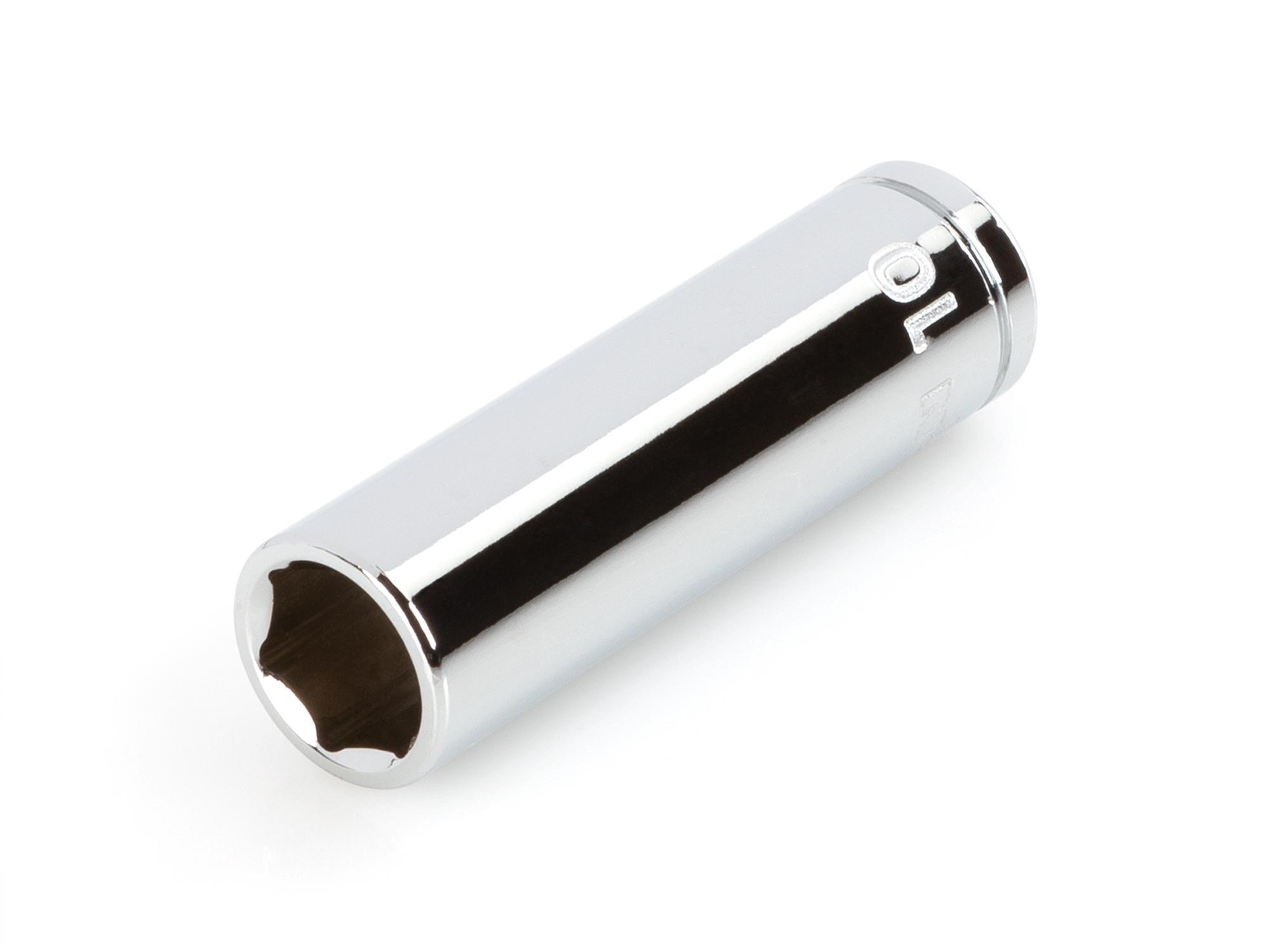

1/4 Inch Drive x 10 mm Deep 6-Point Socket
| Country of Origin | Taiwan |
| Item Weight | 0.1 lb. |
