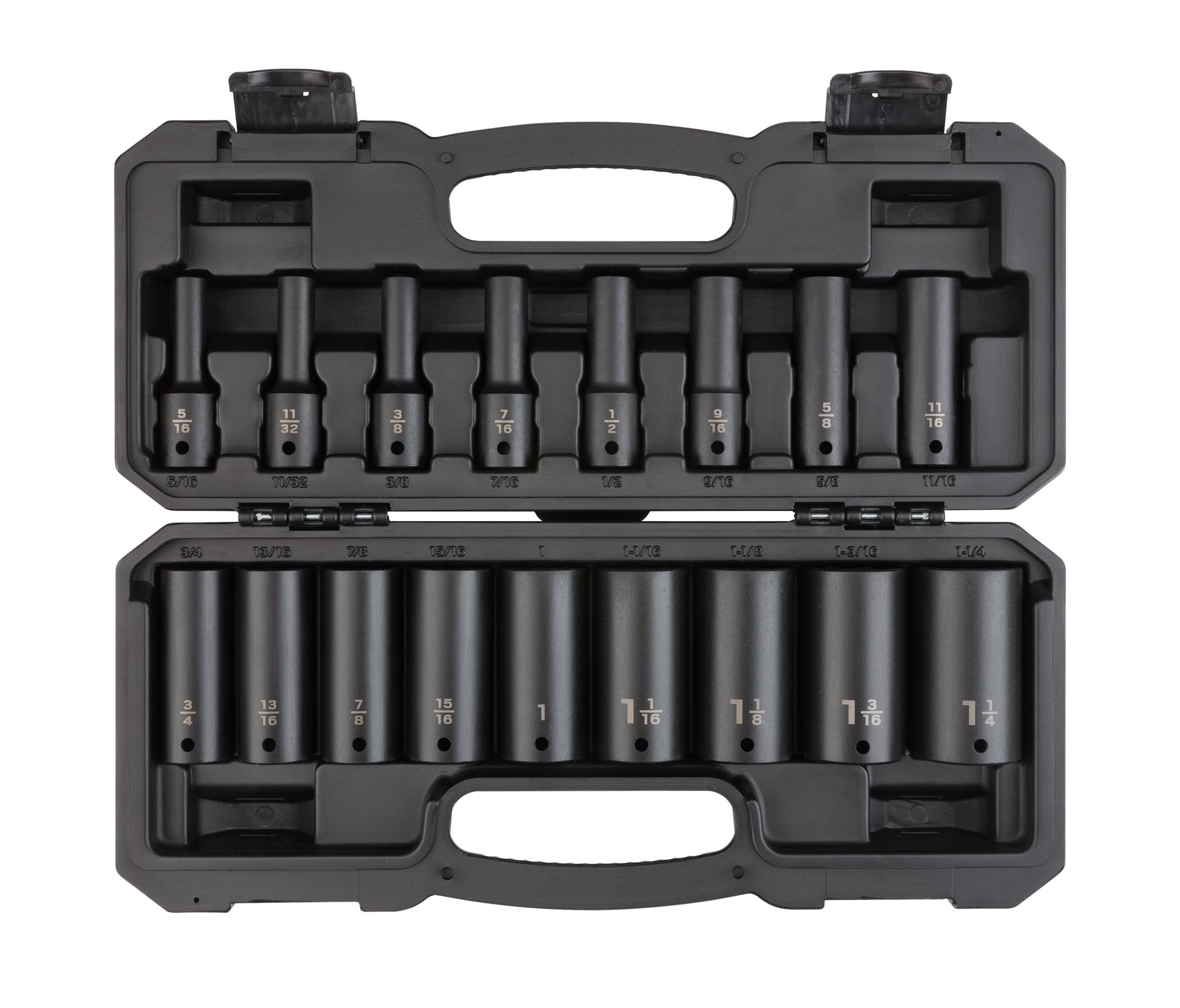

Front view of Tekton case impact drive 6-point socket set. Item #SID92305

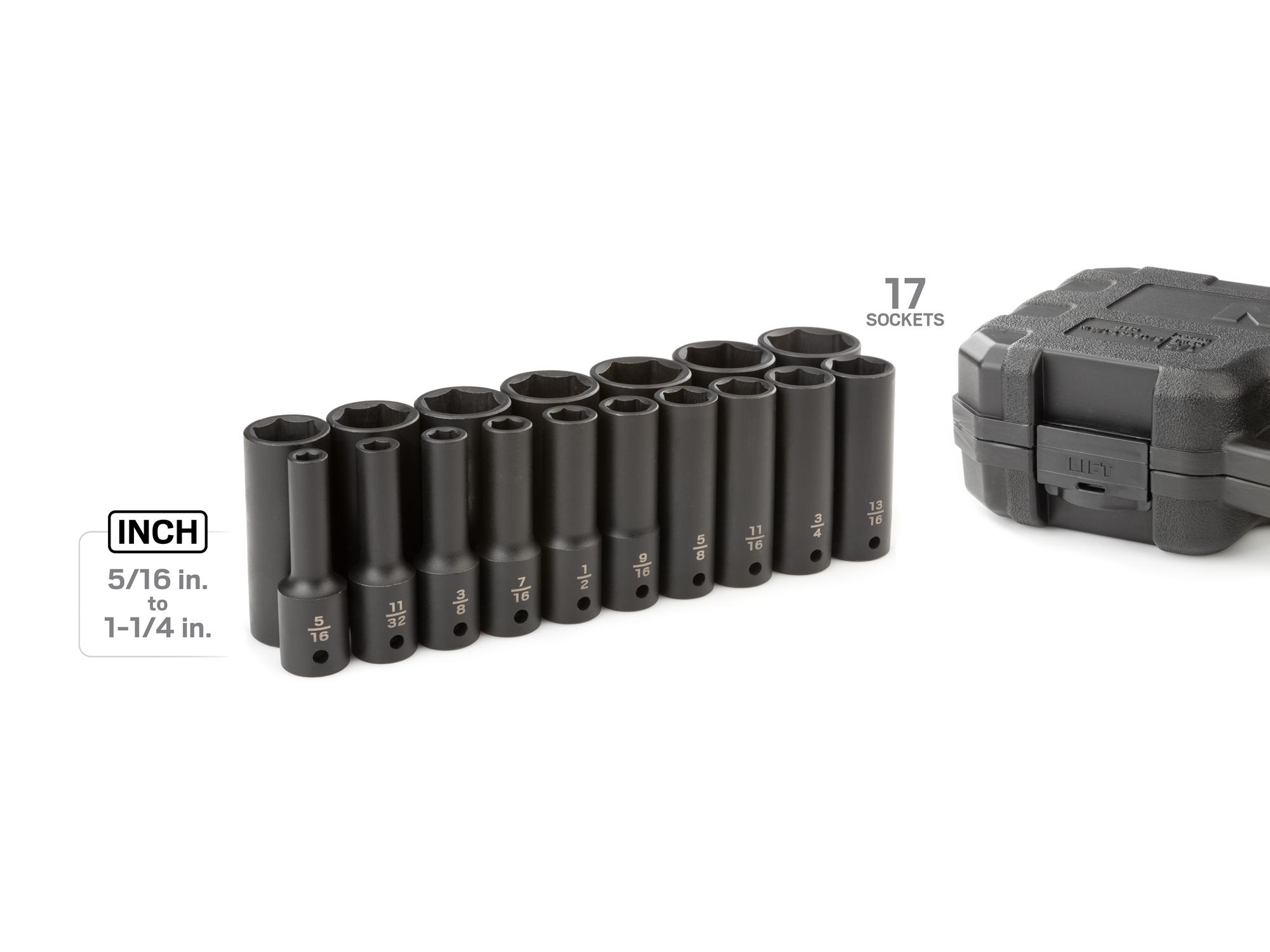

Laid out contents of Tekton case impact drive 6-point socket set. Item #SID92305

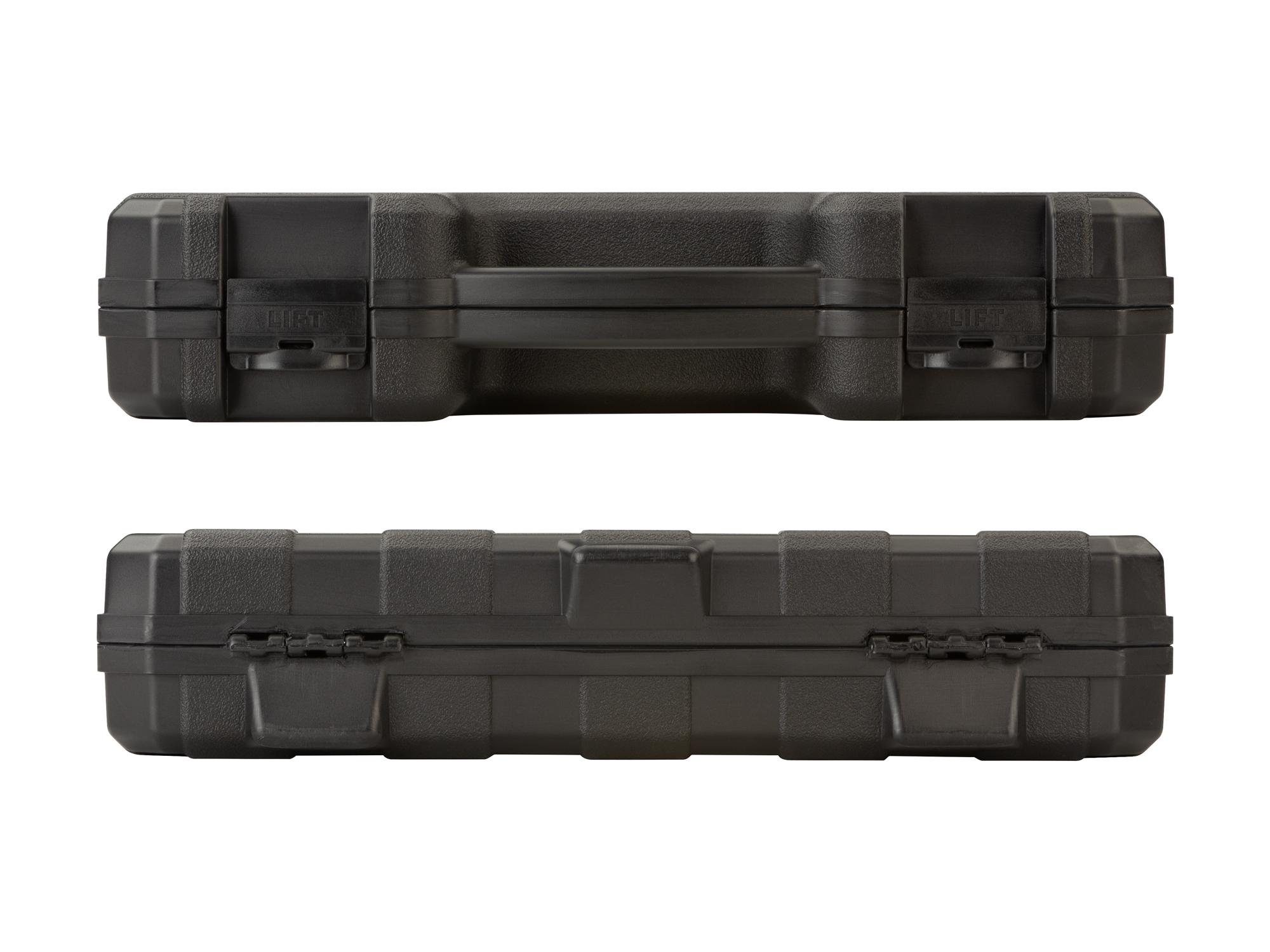

Side view of Tekton case impact drive 6-point socket set. Item #SID92305

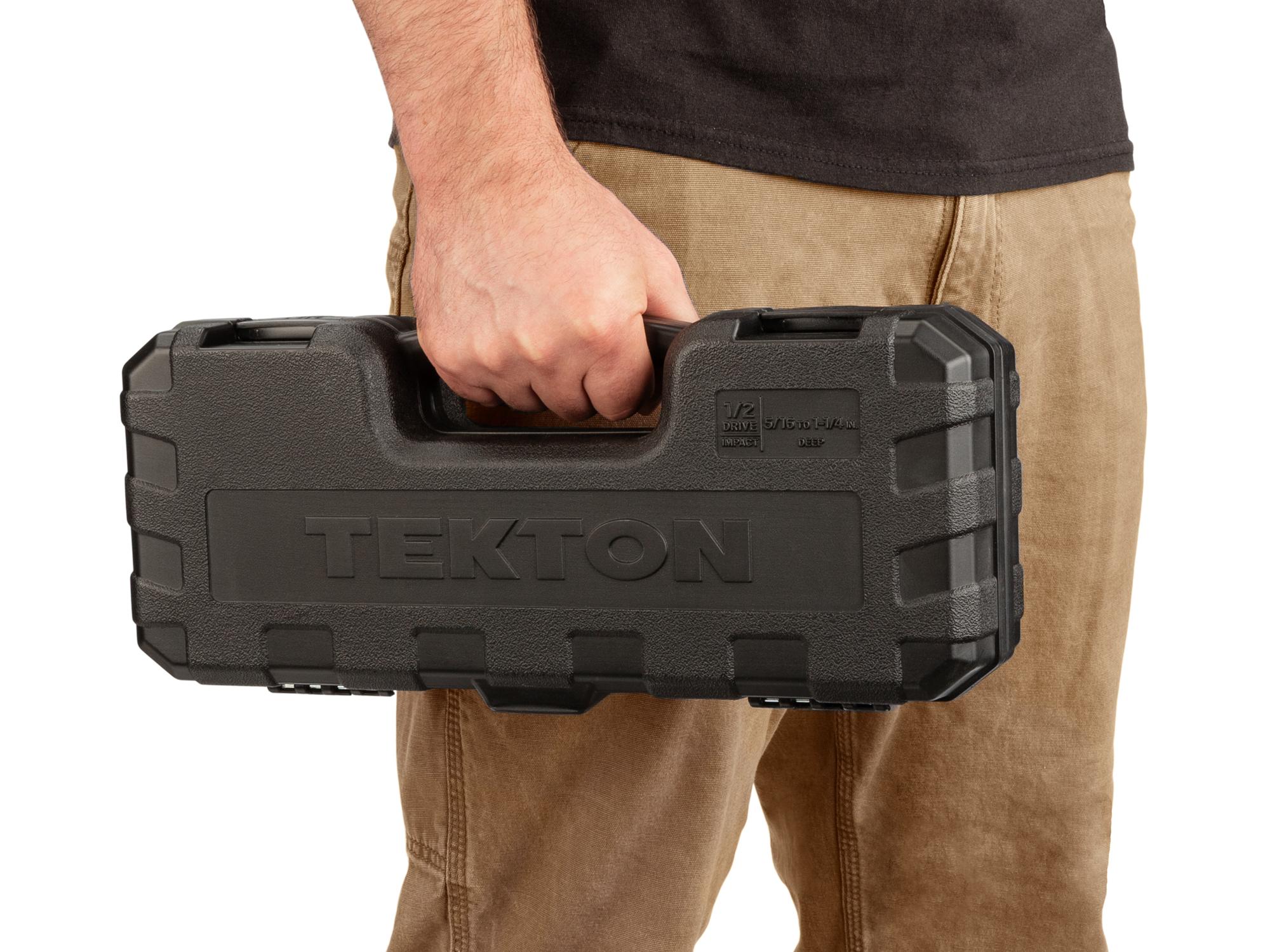

Person holding Tekton case impact drive 6-point socket set. Item #SID92305
Tap image to zoom in
Item #SID92305
1/2 Inch Drive
Deep
6‑Point

Impact Socket Set with Case (17-Piece)

IN
5/16 - 1-1/4 in.
•

Socket Depth

Shallow
$75
Deep
$95
$95.00
Add to Cart

Shop Additional Set Ranges

1/2 Inch Drive 6-Point Impact Sockets

Also Available In:

12-Point

Set Includes:
DetailsSpecifications

Details

Front laser markings and back stamped markings on a 32 mm impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A line next to an 8 mm impact socket showing the fully stepped shoulders.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small deep-length sizes. This allows for better reach into tight, recessed areas.
A cutaway view of a deep impact socket on a fitting, showing the full-length socket well.

Full-Length Socket Well

The interior well extends fully into the socket, which provides room to fit over long threaded studs.
The drive end of a 34 mm impact socket, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round-off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton 1/2 inch drive impact sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - IN 5/16 - 1-1/4 in. sockets
    - MM 8 - 32 mm sockets
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - IN 1-5/16 - 2 in. sockets
    - MM 33 - 50 mm sockets
    - Flip sockets
    - Universal joint socket base
  • 6140 Chromium-Vanadium (Cr-V)
    - 3, 6, and 10 inch extensions
  • 8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)
    - Adapter
    - Reducer
    - Universal joint ball/tang
All pieces have a corrosion-resistant manganese phosphate coating.
Tekton #SID92305

Carrying Case

  • High-density polyethylene material withstands exposure to common lubricants, fuels, and solvents
  • Strong latches and metal hinge pins
  • Molded size markings for each tool inside the case

Specifications

1/2 Inch Drive Deep 6-Point Impact Socket Set with Case, 17-Piece (5/16 - 1-1/4 in.)

Specs for 1/2 Inch Drive Deep 6-Point Impact Socket Set with Case, 17-Piece (5/16 - 1-1/4 in.)
Country of Origin
Taiwan
Item Weight
11.5 lb.
