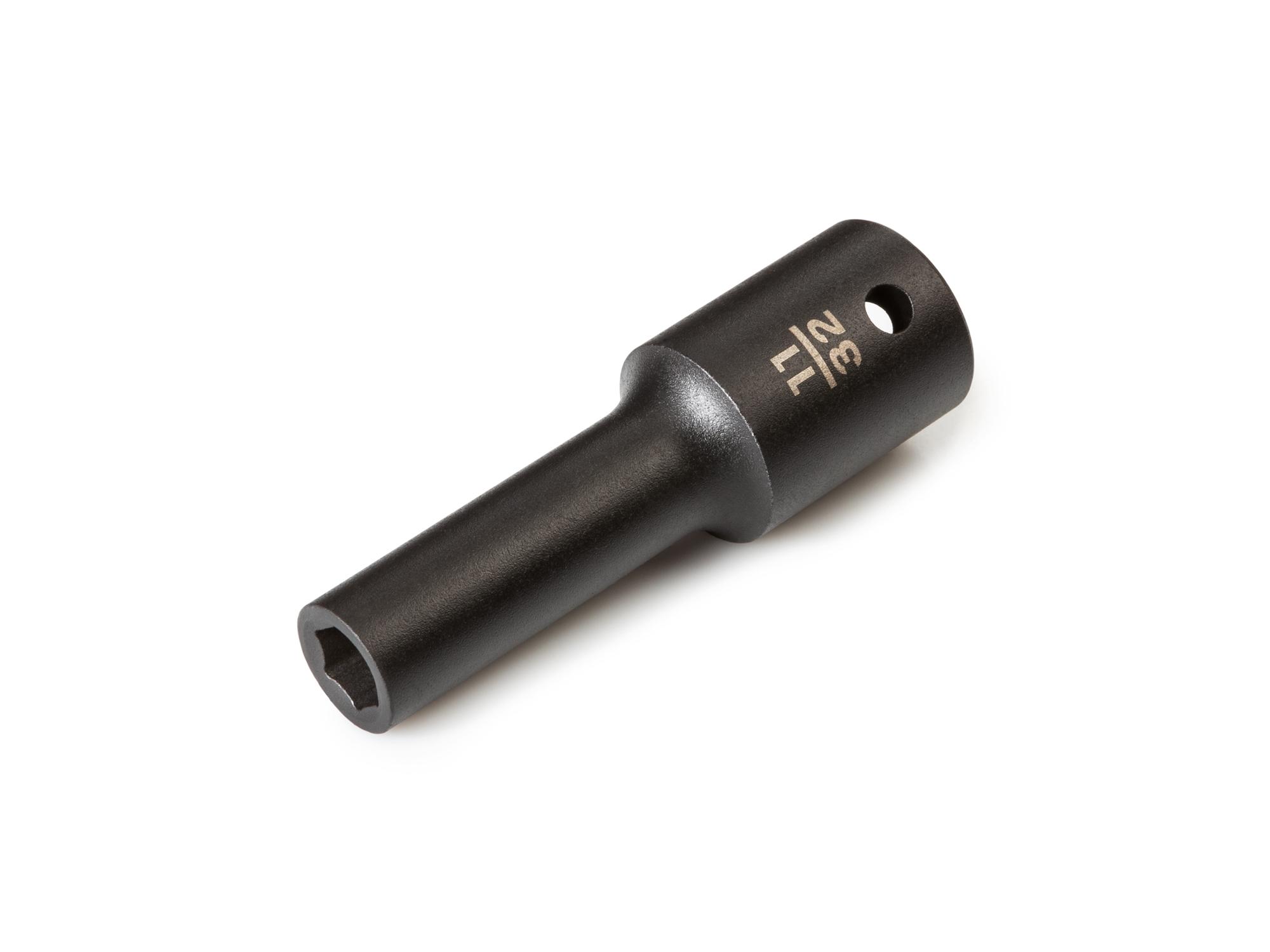

Front-right angle view of Tekton impact drive 6-point socket. Item #SID23009

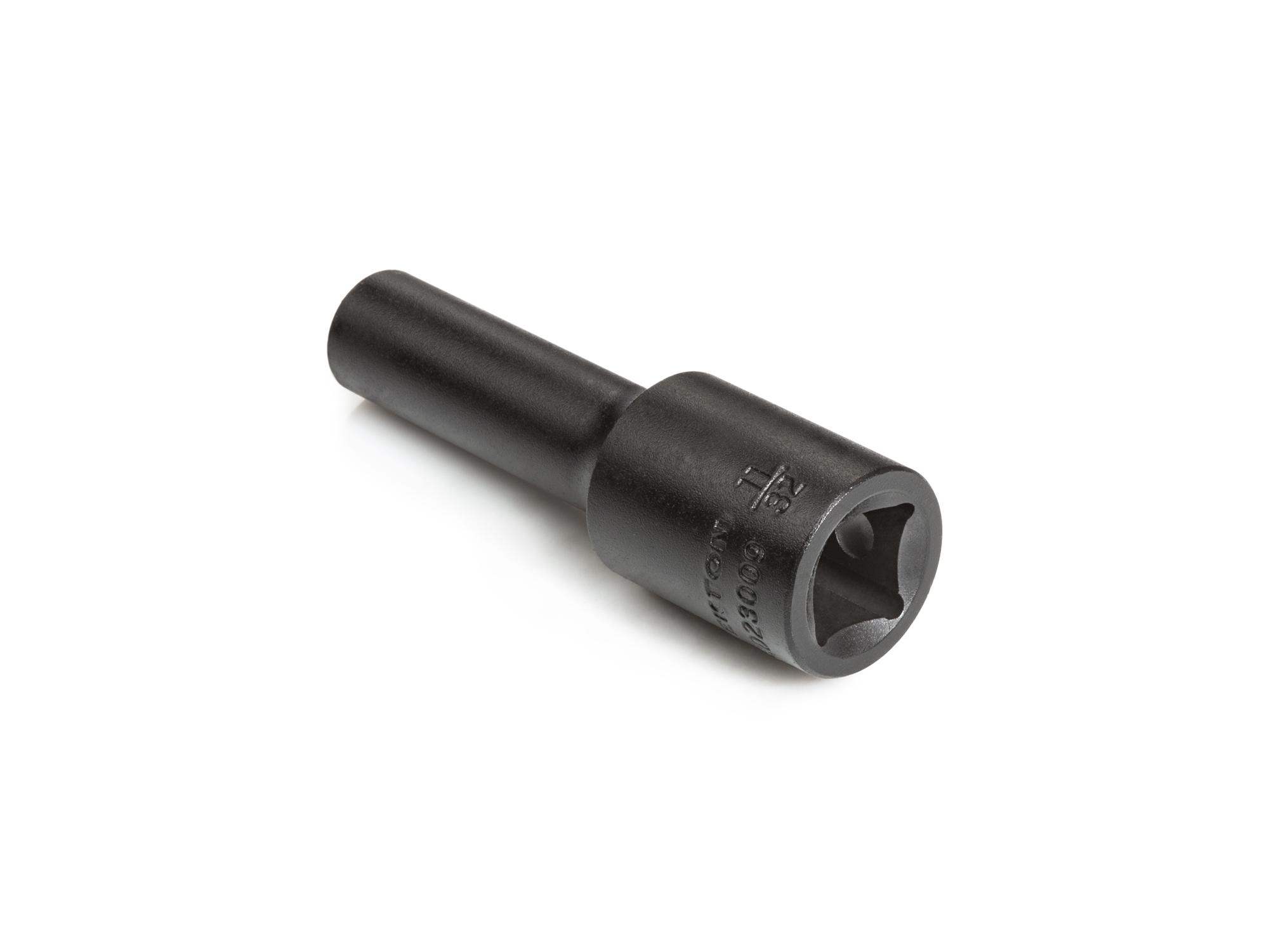

Back angle view of Tekton impact drive 6-point socket. Item #SID23009

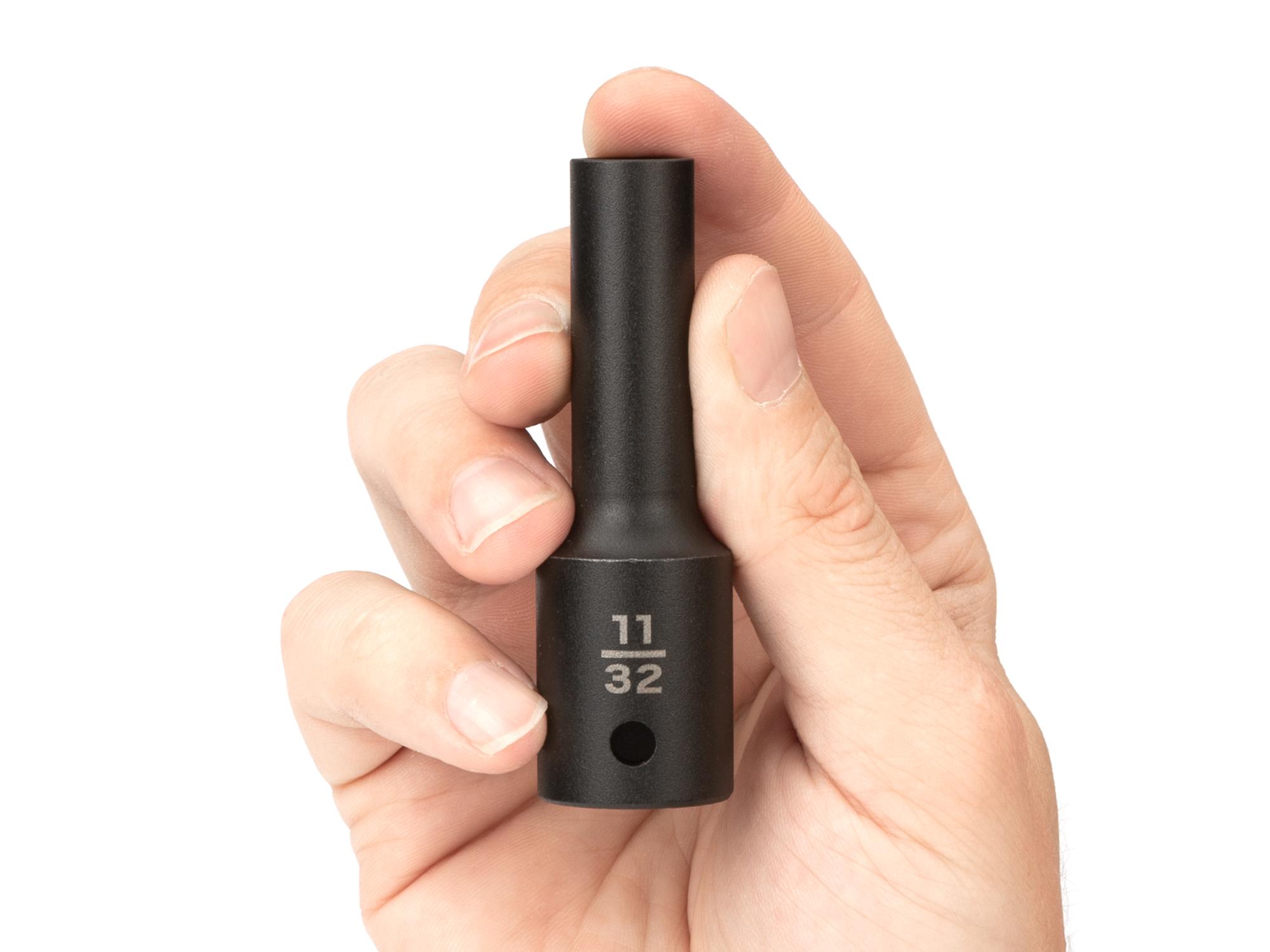

Person holding Tekton impact drive 6-point socket. Item #SID23009
Tap image to zoom in
Item #SID23009
1/2 Inch Drive
Deep
6‑Point
IN

11/32 Inch Impact Socket

•
InchMetric

Sizes

5/16 in.
$7
11/32 in.
$7
3/8 in.
$7
7/16 in.
$7
1/2 in.
$7
9/16 in.
$7
5/8 in.
$8
11/16 in.
$9
3/4 in.
$9
13/16 in.
$10
7/8 in.
$10
15/16 in.
$11
1 in.
$12
1-1/16 in.
$13
1-1/8 in.
$13
1-3/16 in.
$15
1-1/4 in.
$15
1-5/16 in.
$17
1-3/8 in.
$19
1-7/16 in.
$20
1-1/2 in.
$21
1-9/16 in.
$23
1-5/8 in.
$25
1-11/16 in.
$26
1-3/4 in.
$29
1-13/16 in.
$32
1-7/8 in.
$35
1-15/16 in.
$36
2 in.
$39
$7.00
Add to Cart

Also Available In:

Shallow

12-Point

DetailsSpecifications

Details

Graphic showing Tekton 18 mm 6-Point Impact Drive Sockets in shallow and deep lengths

Part of Our 1/2 Inch Drive Impact Socket Lineup

Our 1/2 inch drive 6-point impact socket lineup consists of shallow and deep sockets.
Front laser markings and back stamped markings on a 32 mm impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A line next to an 8 mm impact socket showing the fully stepped shoulders.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small deep-length sizes. This allows for better reach into tight, recessed areas.
A cutaway view of a deep impact socket on a fitting, showing the full-length socket well.

Full-Length Socket Well

The interior well extends fully into the socket, which provides room to fit over long threaded studs.
The drive end of a 34 mm impact socket, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round-off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton 1/2 inch drive impact sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - IN 5/16 - 1-1/4 in. sockets
    - MM 8 - 32 mm sockets
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - IN 1-5/16 - 2 in. sockets
    - MM 33 - 50 mm sockets
    - Flip sockets
    - Universal joint socket base
  • 6140 Chromium-Vanadium (Cr-V)
    - 3, 6, and 10 inch extensions
  • 8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)
    - Adapter
    - Reducer
    - Universal joint ball/tang
All pieces have a corrosion-resistant manganese phosphate coating.

Specifications

1/2 Inch Drive x 11/32 Inch Deep 6-Point Impact Socket

Specs for 1/2 Inch Drive x 11/32 Inch Deep 6-Point Impact Socket
Country of Origin
Taiwan
Item Weight
0.26 lb.
