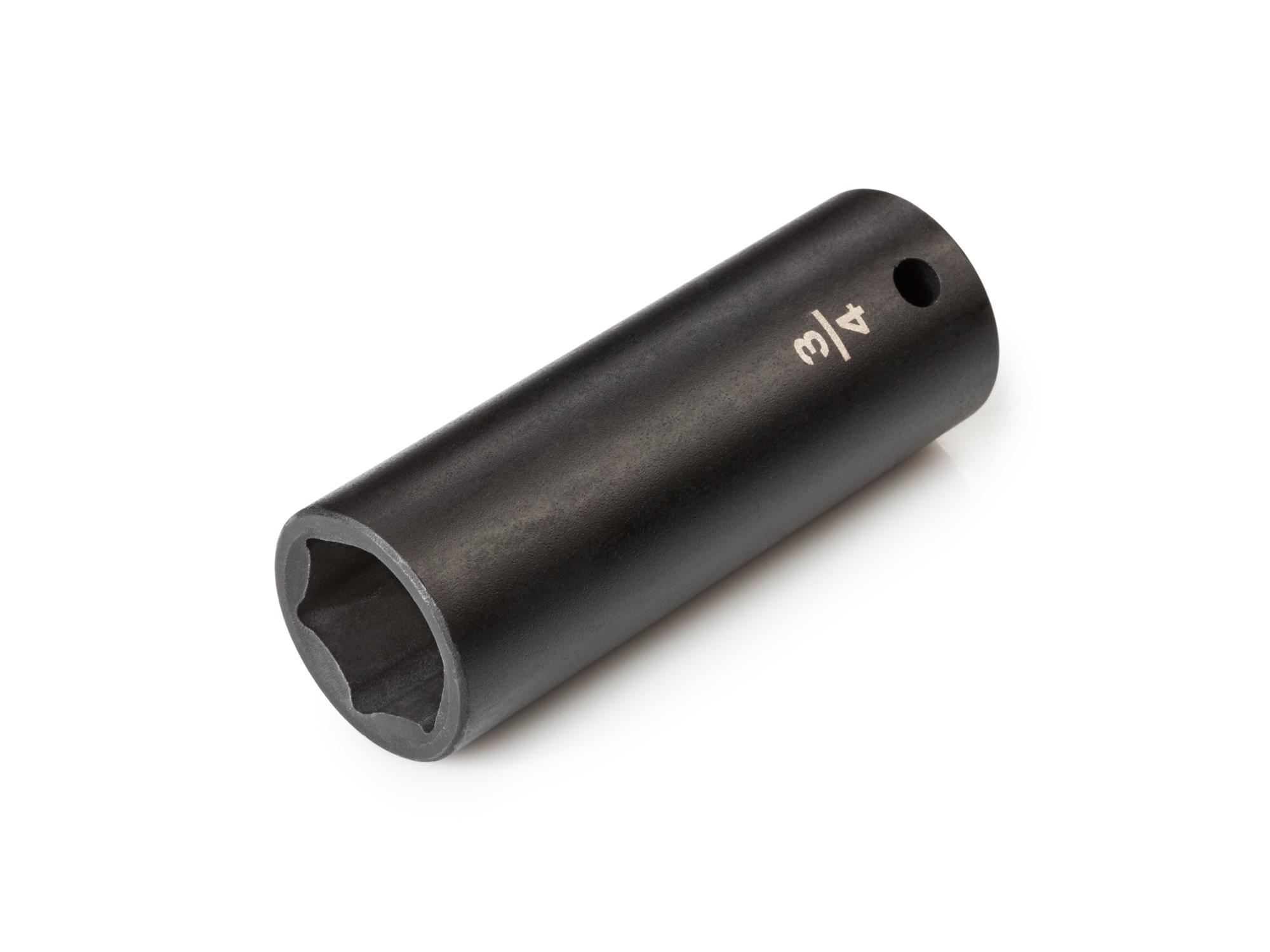

1/2 Inch Drive x 3/4 Inch Deep 6-Point Impact Socket
Details

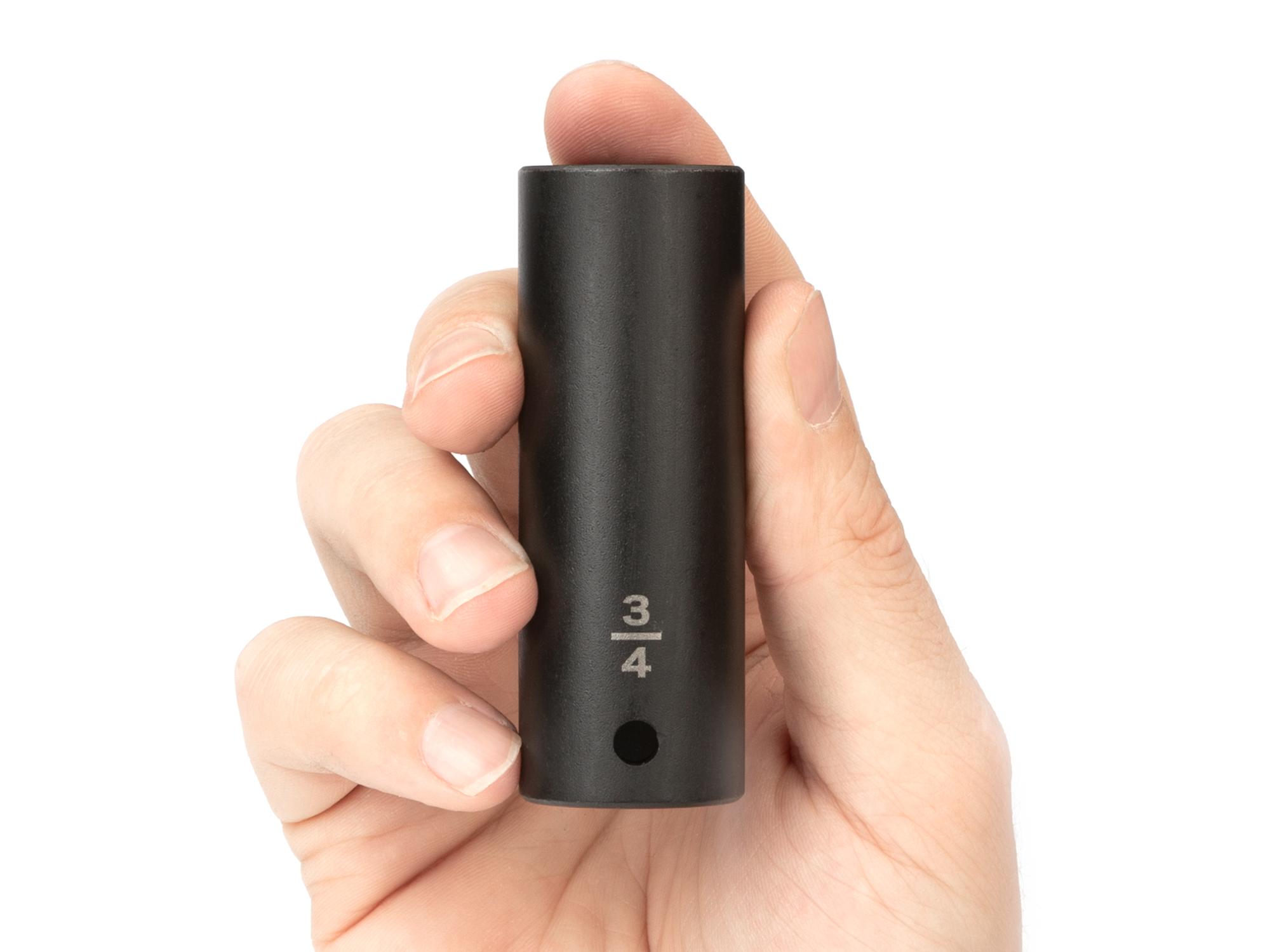

Two Size Markings
The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
![TEKTON Impact Socket Markings](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-markings-19-mm-2x.jpg)
The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
Access + Versatility
![TEKTON Deep Impact Socket Fully-Stepped Shoulders](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-stepped-shoulders-2x.jpg)
Fully Stepped Shoulders
The narrowed socket diameter goes all the way down to the base of the socket on small deep-length sizes. This allows for better reach into tight recessed areas.
![TEKTON Deep Impact Socket Well](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-engagement-2x.jpg)
Full-Length Socket Well
Not only is the socket a deep length, but the interior well also extends far into the socket, which allows for better fastener engagement in more situations.

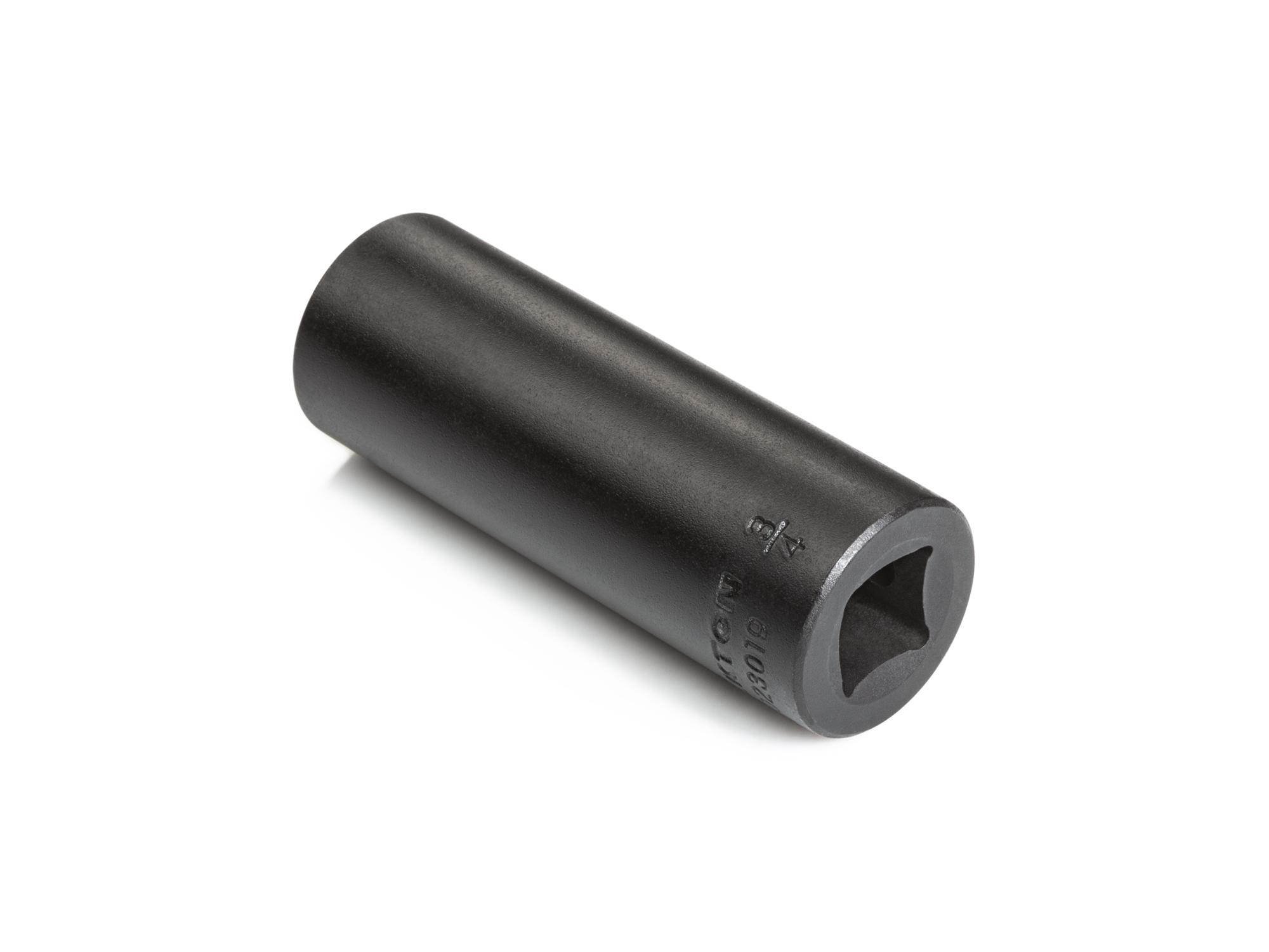

Drive Tool Retention
Sockets work for both types of anvils found on 1/2 inch drive impact wrenches:
Friction Ring Anvil |
Detent Pin Anvil |
![TEKTON Impact Socket Drive End](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-drive-end-2x.jpg)
6-Point Socket Opening
Provides an exact fit for hex fasteners
Learn more
![TEKTON Deep Impact Socket Opening](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-opening-2x.jpg)
6-Point Socket Opening
Provides an exact fit for hex fasteners
Learn more
Prevents Fastener Round-Off
![TEKTON Impact Socket Radiused Corners](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-radiused-corners-2x.png)
Prevents Fastener Round-Off
Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides rather than its corners.
Sockets Exceed ANSI Torque Standards
Each socket size meets a minimum of 1.3 times the ANSI/ASME standard for proof torque.
(A single-cycle test applies torque until a specified value is reached without failure or permanent deformation.)
INCH SERIES
![TEKTON 1/2 Inch Drive Deep Impact Sockets - Proof Torque Chart (Inch Series)](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-torque-chart-in-2x.jpg)
ANSI | TEKTON | ||
Source: ASME B107.2 - 2002 |
METRIC SERIES
![TEKTON 1/2 Inch Drive Deep Impact Sockets - Proof Torque Chart (Metric Series)](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-deep-impact-socket-torque-chart-mm-2x.jpg)
ANSI | TEKTON | ||
Source: ASME B107.33M - 2002 |
Note: There are no published ASME standards for 5/16 in., 11/32 in., 8 mm, 37 mm, and 38 mm impact sockets in 1/2 inch drive.
High-Performing Steel Alloys
Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more
50BV30 Chromium-Vanadium (Cr-V) Show Elements Carbon: 0.27 - 0.33%
|
4140 Chromium-Molybdenum (Cr-Mo) Show Elements Carbon: 0.38 - 0.43%
|
6140 Chromium-Vanadium (Cr-V) Show Elements Carbon: 0.38 - 0.43%
|
8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo) Show Elements Carbon: 0.56 - 0.64%
|
All pieces have a corrosion-resistant manganese phosphate coating.
Sockets (Standard and Deep Lengths)
INCH
![Sockets that use 50BV30 Cr-V](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-icons-inch-cr-v-2x.png)
5/16 – 1-1/4 in.
(50BV30 Cr-V)
![Sockets that use 4140 Cr-Mo](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-icons-inch-cr-mo-2x.png)
1-5/16 – 1-1/2 in.
(4140 Cr-Mo)
METRIC
![Sockets that use 50BV30 Cr-V](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-icons-metric-cr-v-2x.png)
8 – 32 mm
(50BV30 Cr-V)
![Sockets that use 4140 Cr-Mo](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-socket-icons-metric-cr-mo-2x.png)
33 – 38 mm
(4140 Cr-Mo)
Accessories
![Impact socket extensions that use 6140 Cr-V](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-extension-icons-2x.png)
3 in., 6 in., and 10 in. Extensions
(6140 Cr-V)
![Impact socket adapter and reducer that use 8660 Ni-Cr-Mo](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-adapter-reducer-icons-2x.png)
Adapter and Reducer
(8660 Ni-Cr-Mo)
![Color coded icons showing that impact universal joints use 8660 Ni-Cr-Mo for the ball end and 4140 Cr-Mo for the socket end](https://media.tekton.com/images/details/impact-sockets/1-2-in-drive/tekton-impact-u-joint-icon-2x.png)
Universal Joint
(Ball: 8660 Ni-Cr-Mo)
(Socket: 4140 Cr-Mo)
Specs
1/2 Inch Drive x 3/4 Inch Deep 6-Point Impact Socket
![Specs for 1/2 Inch Drive x 3/4 Inch Deep 6-Point Impact Socket](https://media.tekton.com/images/spec/SID23019_spec.jpg)
Country of Origin | Taiwan |
Item Weight | 0.48 lb. |
