New
Top view of Tekton 1/4 inch drive shallow and deep 12-point socket set with foam organizer. SHD90814

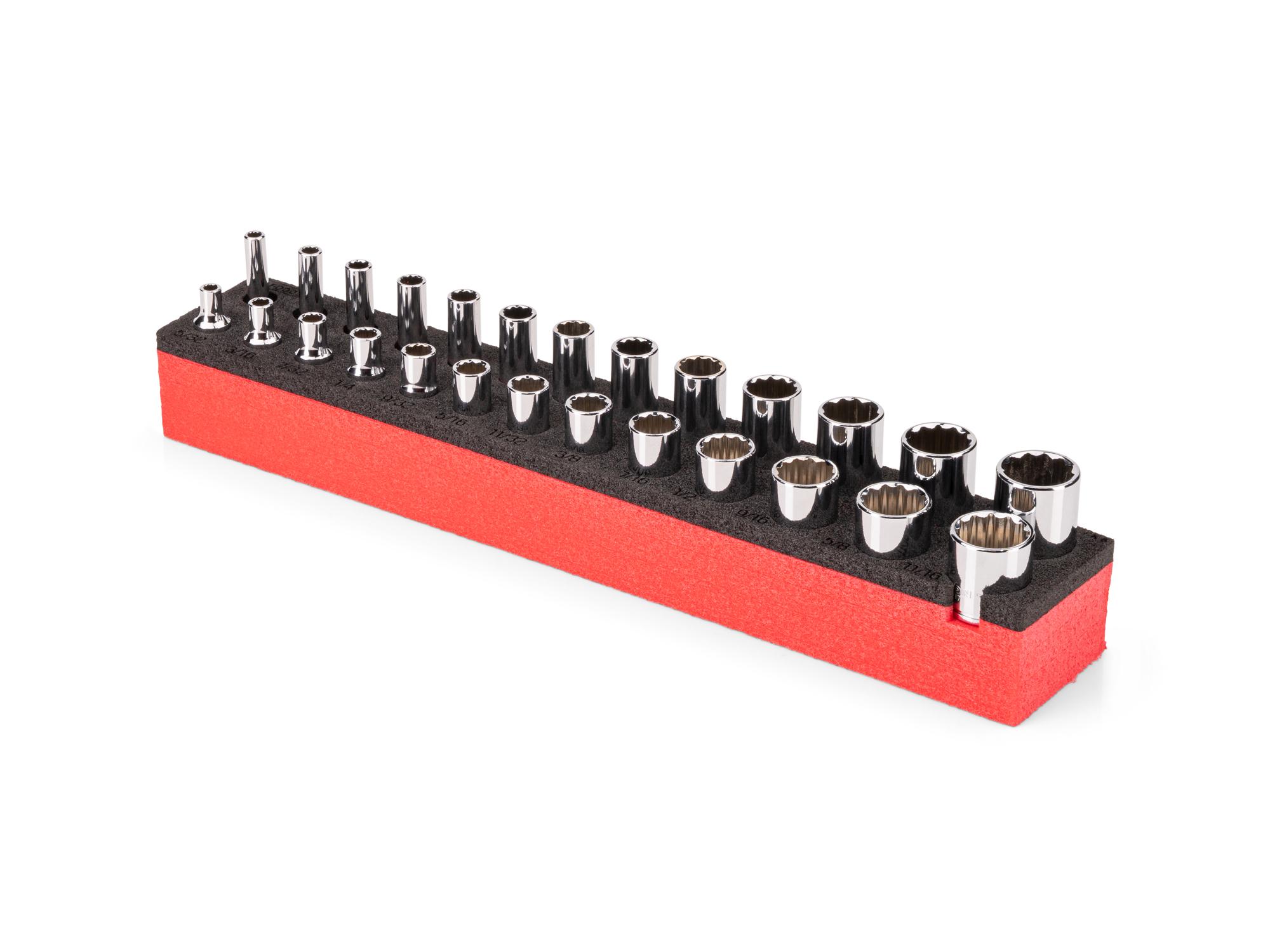

Angled view of Tekton 1/4 inch drive shallow and deep 12-point socket set. SHD90814
Tap image to zoom in
Item #SHD90814
1/4 Inch Drive
Shallow
Deep
12‑Point

Socket Set with 12 x 2 Inch Foam Organizer (26-Piece)

IN
5/32 - 11/16 in.
•

Socket Depth

Shallow
Semi-Deep
Deep
Shallow and Deep
Shallow, Semi-Deep, and Deep

Organization Option

TEKTON 1/4 Inch Drive Shallow and Deep 12-Point Socket Set with Rails and Tray, 26-Piece (5/32 - 11/16 in.)
Rail
$68
Top view of Tekton 1/4 inch drive shallow and deep 12-point socket set with foam organizer. SHD90814
Foam
$62
$62.00
Add to Cart

RIG Compatible

| Shop the RIG System

Shop Additional Set Ranges

1/4 Inch Drive 12-Point Sockets

Also Available In:

6-Point

Set Includes:
DetailsSpecifications

Details

A person holding a 5/8 inch chrome socket, showing the markings

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket's curved surface
  • Clearly visible size numbers with extra-deep outline
Graphic showing the increased access as a result of the stepped shoulders

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small sizes. This provides greater reach into tight, recessed areas.
Graphic showing a comparison between the diameter of a competitor's deep socket and the longer narrowed diameter of a Tekton deep socket
A cutout of the interior and exterior finish on a Tekton deep socket

Exterior and Interior Finishes

  • The smooth chrome-plated exterior resists corrosion and wipes clean to a mirror finish
  • The interior is protected against corrosion with chrome plating that is supplemented with a clear coat or painted finish where needed for full coverage
The inside of a 12-point chrome socket

12-Point Socket Opening

Get more access positions for multiple types of fasteners.
Graphic showing hex, double hex, and square fasteners in a 12-point socket opening
Graphic showing how the radiused corners on a hand drive socket apply force to the flat sides of a 12-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
An extension going into the drive end of a socket

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool.
Tekton socket inch and metric proof of torque charts comparing to ASME standard

High Torque Strength

Meets a minimum value of 1.2 times the ASME standard for proof torque. Verified by a single-cycle test that applies torque until the specified value is reached without failure or permanent deformation.
Data from: ASME B107.110-2019. Sizes 5/8 in., 11/16 in., and 17 mm do not have a standard ASME measurement.
Tekton 1/4 inch drive sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - Semi-deep sockets
    - Deep sockets
    - External star (E-star) sockets
    - Adapter
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - Universal joint socket head
  • 6140 Chromium-Vanadium (Cr-V)
    - Shallow sockets
    - Extensions
    - Universal joint socket base/pivot block
    - Universal joint base/pivot block/tang
    - Hex bit holder socket
  • 6150 Chromium-Vanadium (Cr-V)
    - Universal joint socket pin
    - Universal joint pin
Materials shown are for 1/4 inch drive hand drive sockets and accessories.

Foam Organization

Material and Construction


We use USA-made, cross-linked polyethylene (XLPE) foam, a closed-cell material that won't absorb liquids. Each organizer has two layers that are permanently heat-laminated together, with densities that are selected to produce clean, tear-resistant cutouts and a secure fit for each tool.


Shown: #SHD90800

Foam socket organizers being cut

Cut in Michigan


We design and CNC-cut each foam organizer in our Grand Rapids, Michigan, manufacturing facility to optimize for high tool density, easy access, and secure fit of Tekton tools.

Specifications

1/4 Inch Drive Shallow and Deep 12-Point Socket Set with 12 x 2 Inch Foam Organizer, 26-Piece (5/32 - 11/16 in.)

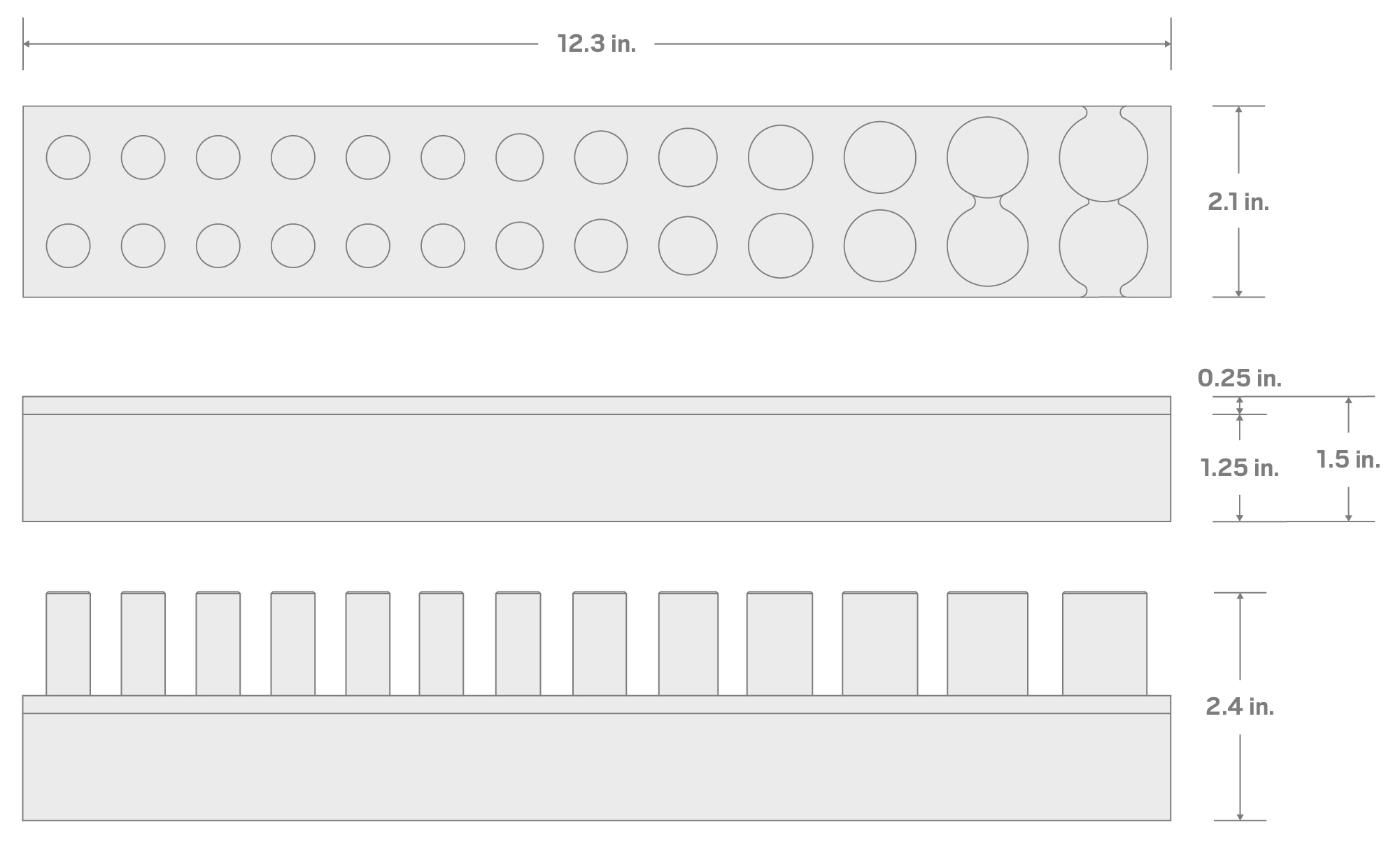

Specs for 1/4 Inch Drive Shallow and Deep 12-Point Socket Set with 12 x 2 Inch Foam Organizer, 26-Piece (5/32 - 11/16 in.)
Country of Origin
Sockets made in Taiwan. Foam made in USA.
Item Weight
1.73 lb.
