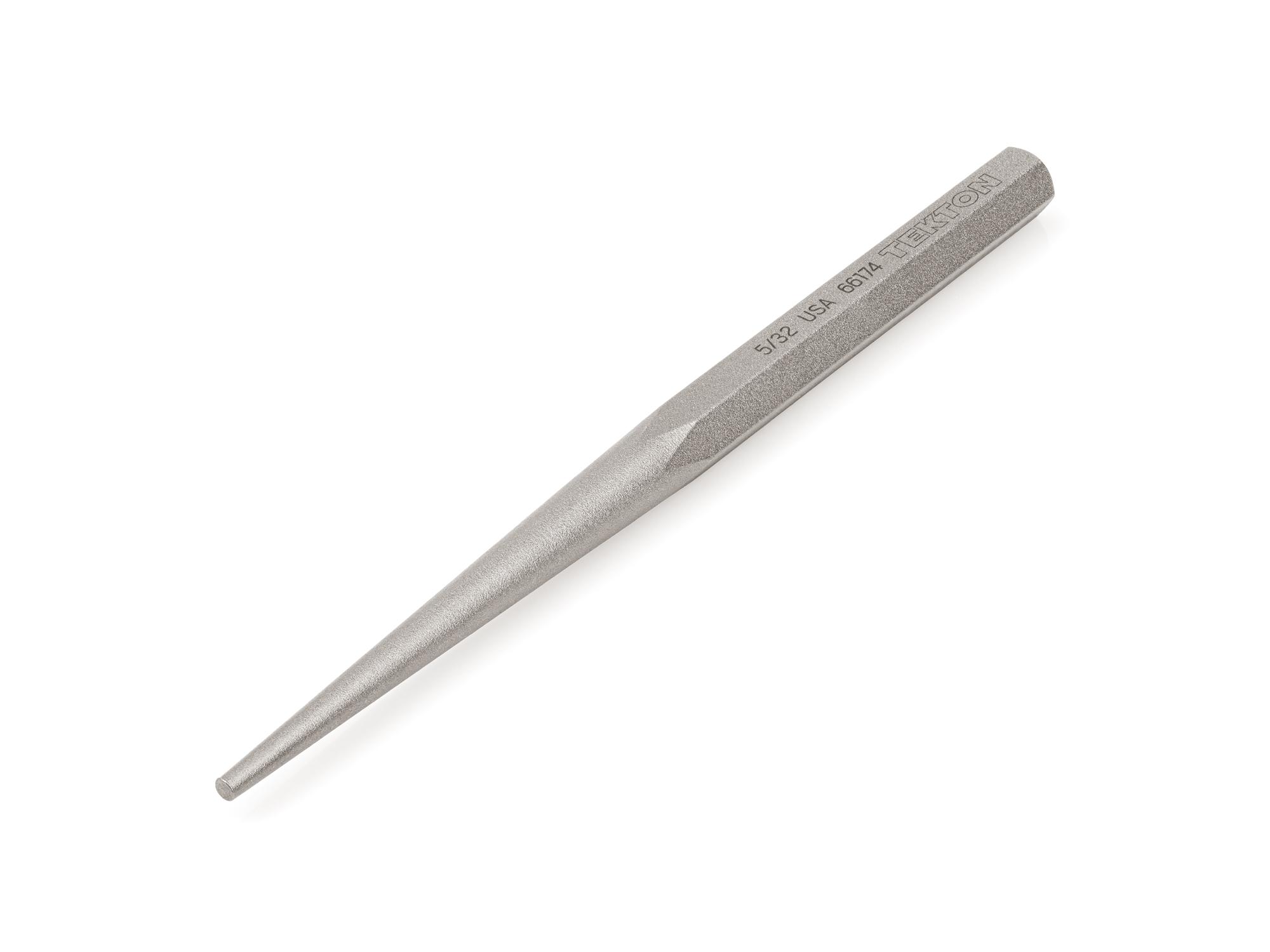

Front-right angle view of Tekton punch. Item #66174

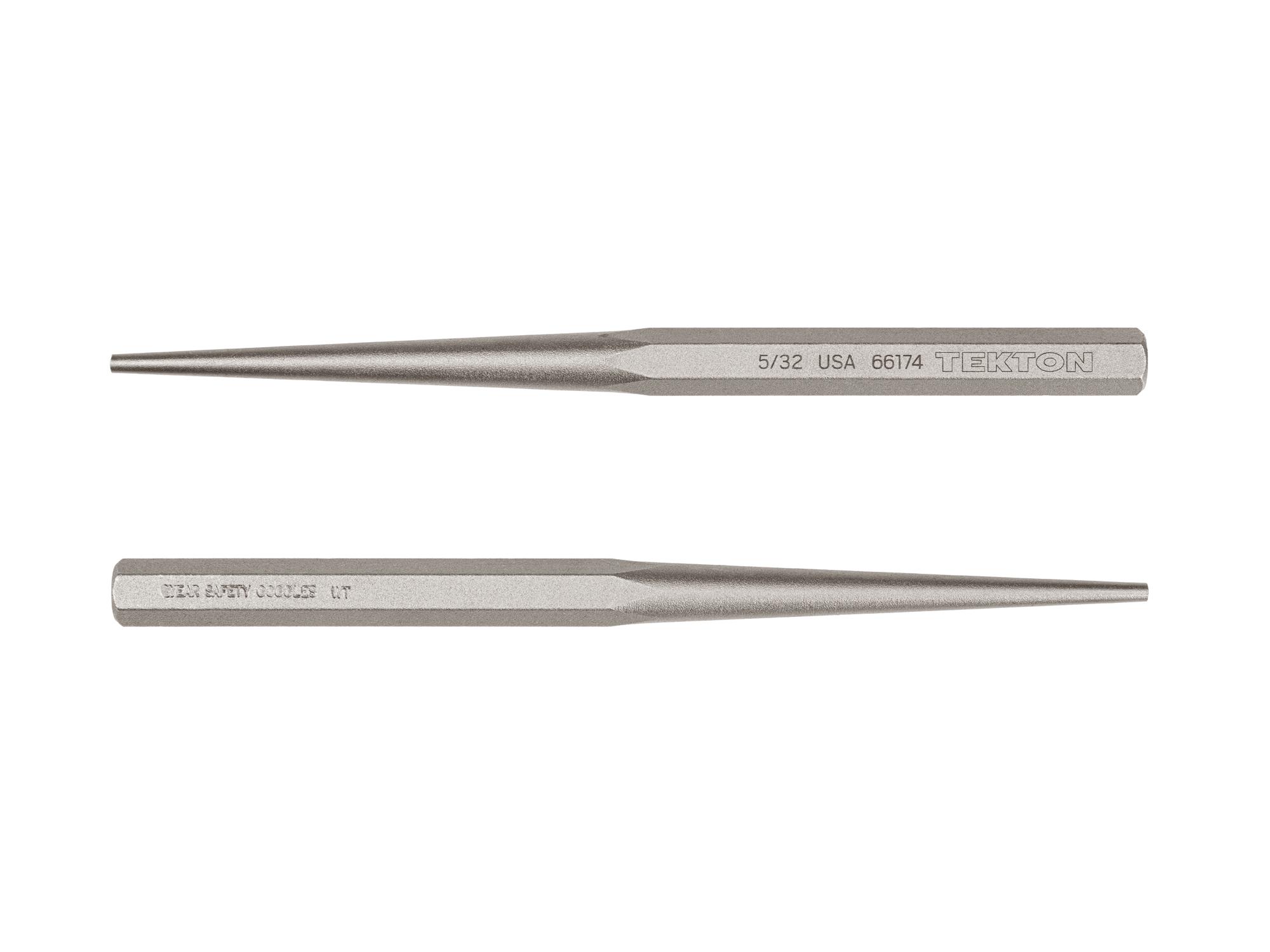

Side view of Tekton punch. Item #66174

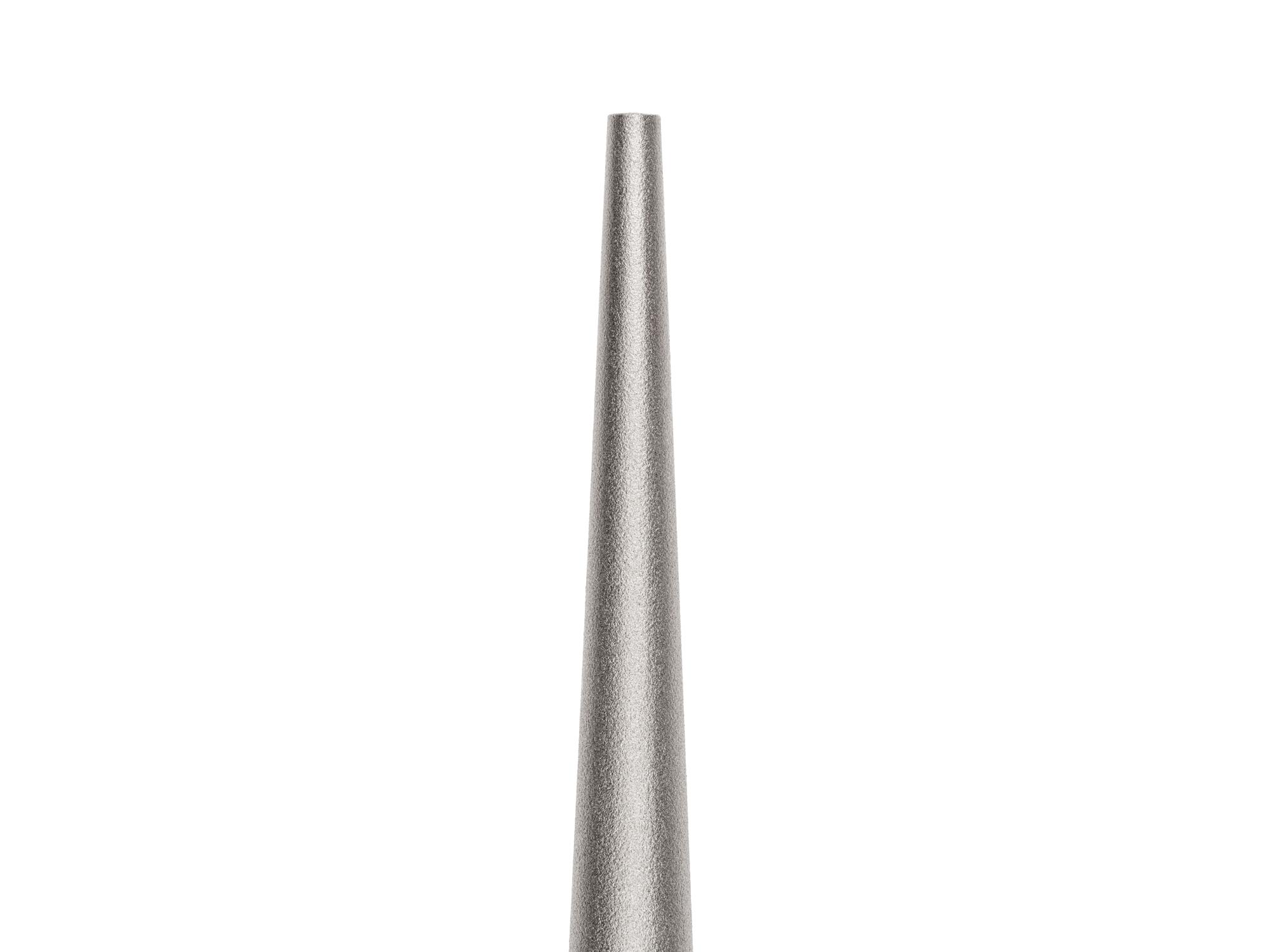

Closeup view of Tekton punch. Item #66174

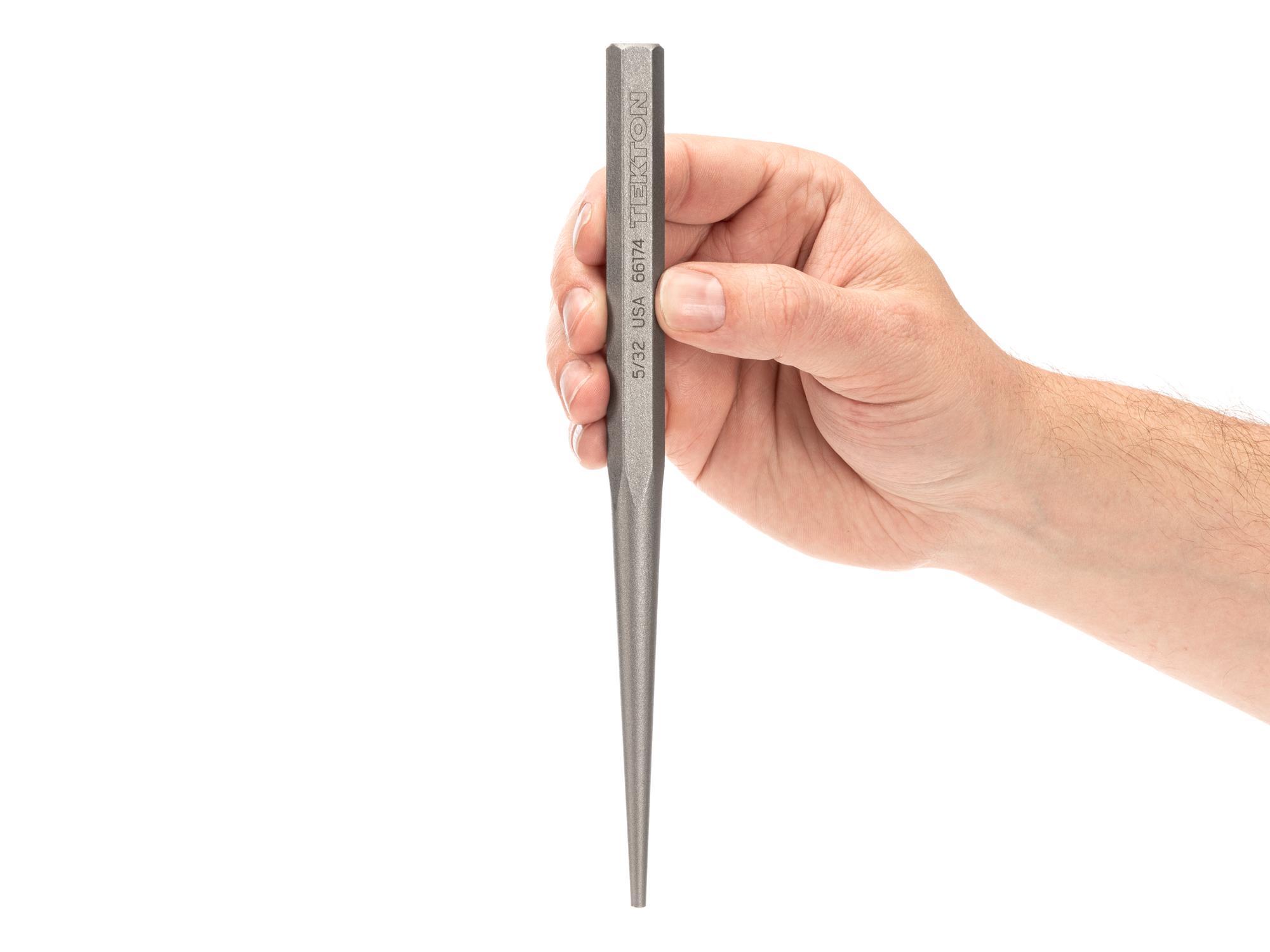

Person holding Tekton punch. Item #66174
Tap image to zoom in
Item #66174

5/32 Inch Alignment Punch

•

Sizes

1/8 in.
$8
5/32 in.
$9
3/16 in.
$10
7/32 in.
$10
1/4 in.
$13
5/16 in.
$13
3/8 in.
$22
$9.00
Add to Cart

Also Available In:

7-Piece Set

DetailsSpecifications

Details

A diagram of a Tekton alignment punch

Align Holes to Position Parts

The gradually tapered alignment punch is machined to precise tolerances and is designed to align holes to position multiple parts for accurate assembly.
Diagram of Tekton heat treatment on an alignment punch

Individually Heat Treated

Each punch is individually heat treated to harden and strengthen the tip while maintaining the soft temper of the striking end.
Image of Tekton ball peen hammer striking the end of a punch
The striking end absorbs hammer blows without chipping.
A close up of a Tekton punch and chisel flat end

Materials and Finish

Made from 5160 high carbon steel and finished with a dry, rust-preventative coating.
Side view of a Tekton punch with a size callout

Clear Markings

Tekton punch and chisel sizes are marked with a high-visibility laser marking.

Specifications

5/32 Inch Alignment Punch

Specs for 5/32 Inch Alignment Punch
Country of Origin
United States
Item Weight
0.38 lb.
