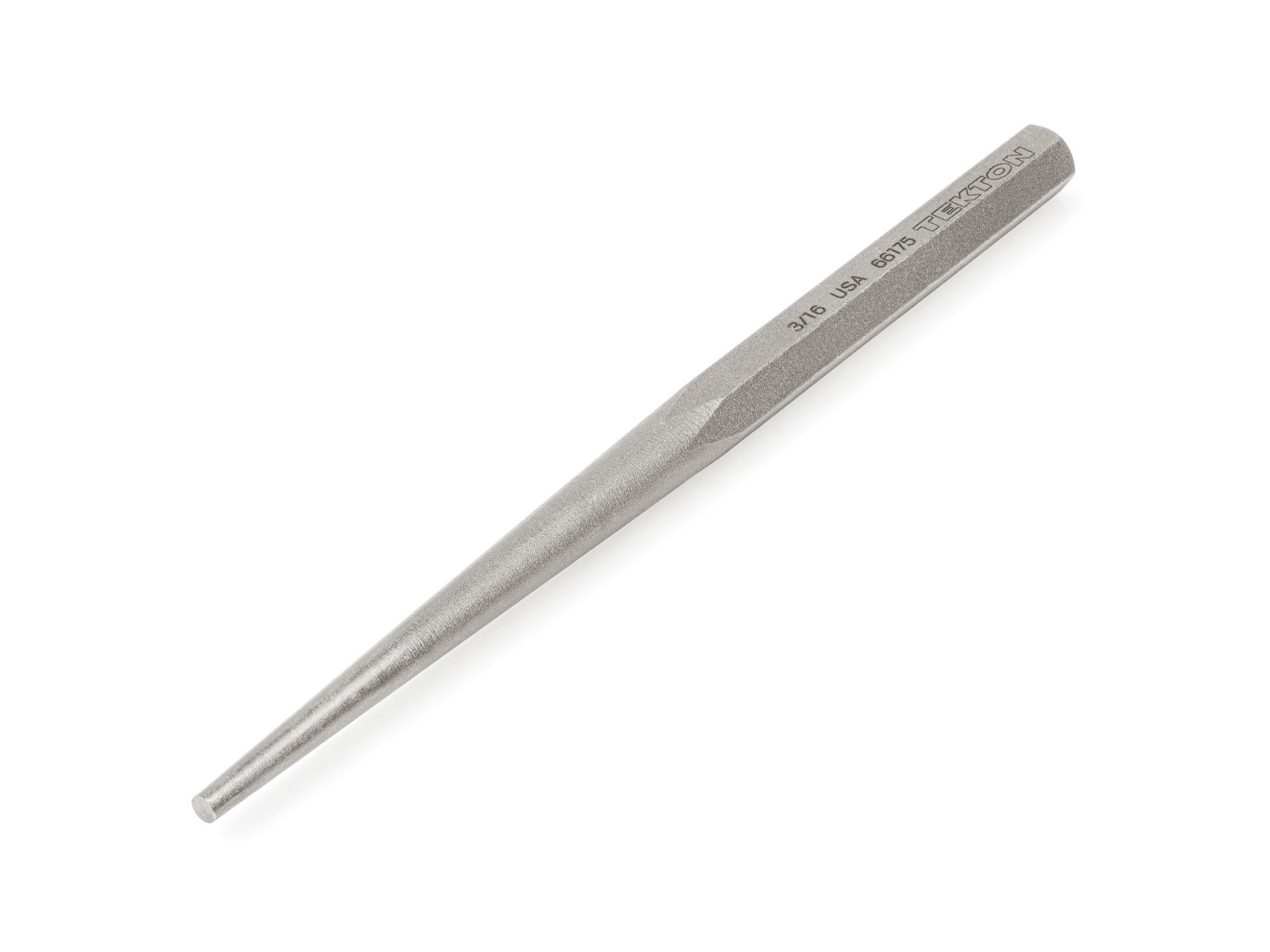

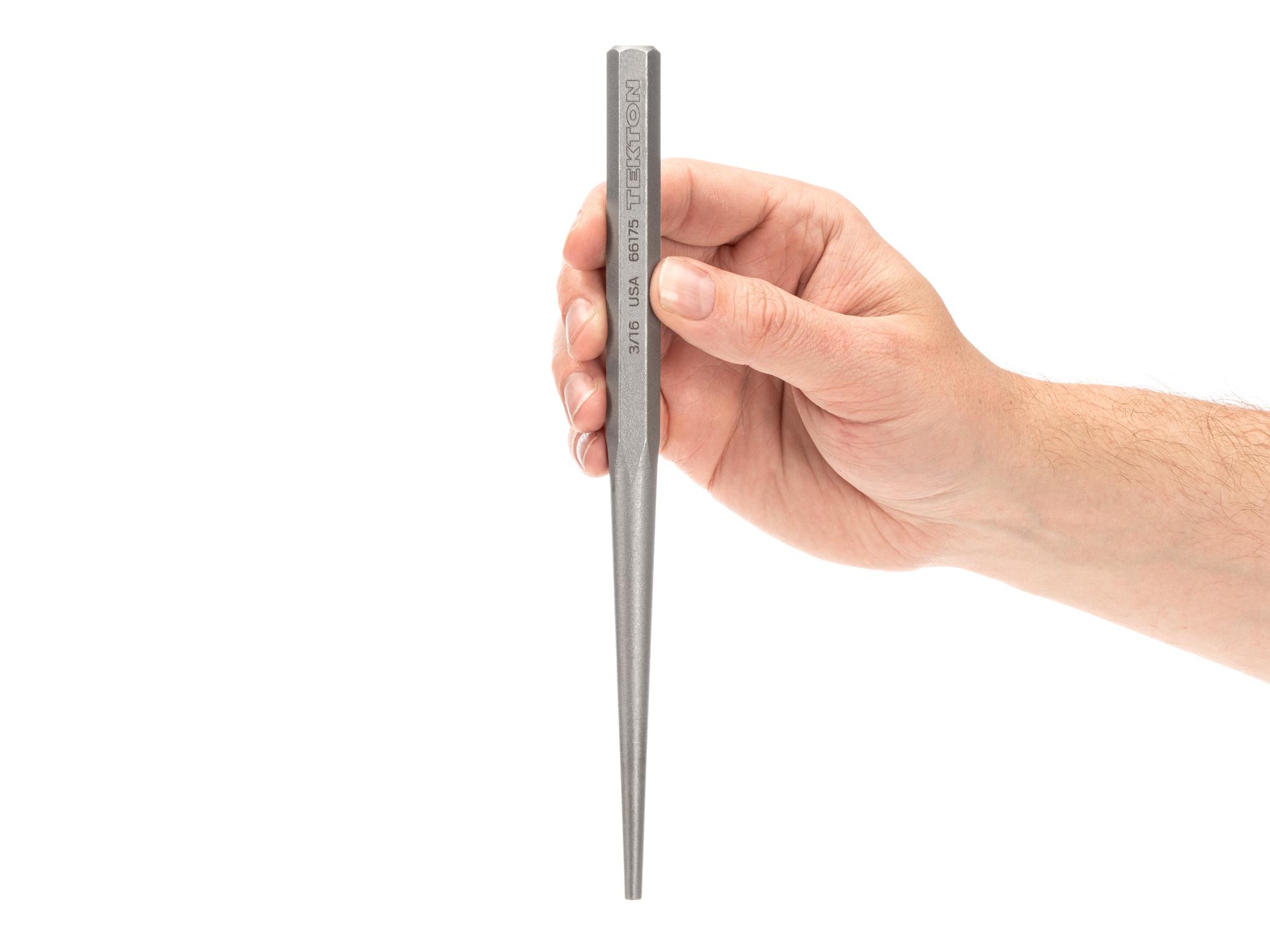

3/16 Inch Alignment Punch

Item #66175
 • Ships tomorrow

Size

1/16 in.
$7
3/32 in.
$7
1/8 in.
$9
5/32 in.
$10
3/16 in.
$11
7/32 in.
$11
1/4 in.
$14
5/16 in.
$14
3/8 in.
$22
$11.00

Also available in a 9-piece set

  • Gradually tapered, self-centering nose aligns holes in multiple parts, positioning them for accurate assembly
  • Made from premium, high carbon steel
  • Straight and true, tip and taper are precisely machined to meet exacting tolerances
  • Individual heat treatment allows careful control of tip hardness and temper of striking end
  • Classic natural finish has a dry-touch, rust-preventative coating

Details

TEKTON Alignment Punch aligns and positions parts

Align and Position

  • Drive the gradually tapered punch through holes in two or more parts to position them for accurate fastening or welding.
  • Use the punch to create leverage and guide even heavy pieces into alignment with smooth control.

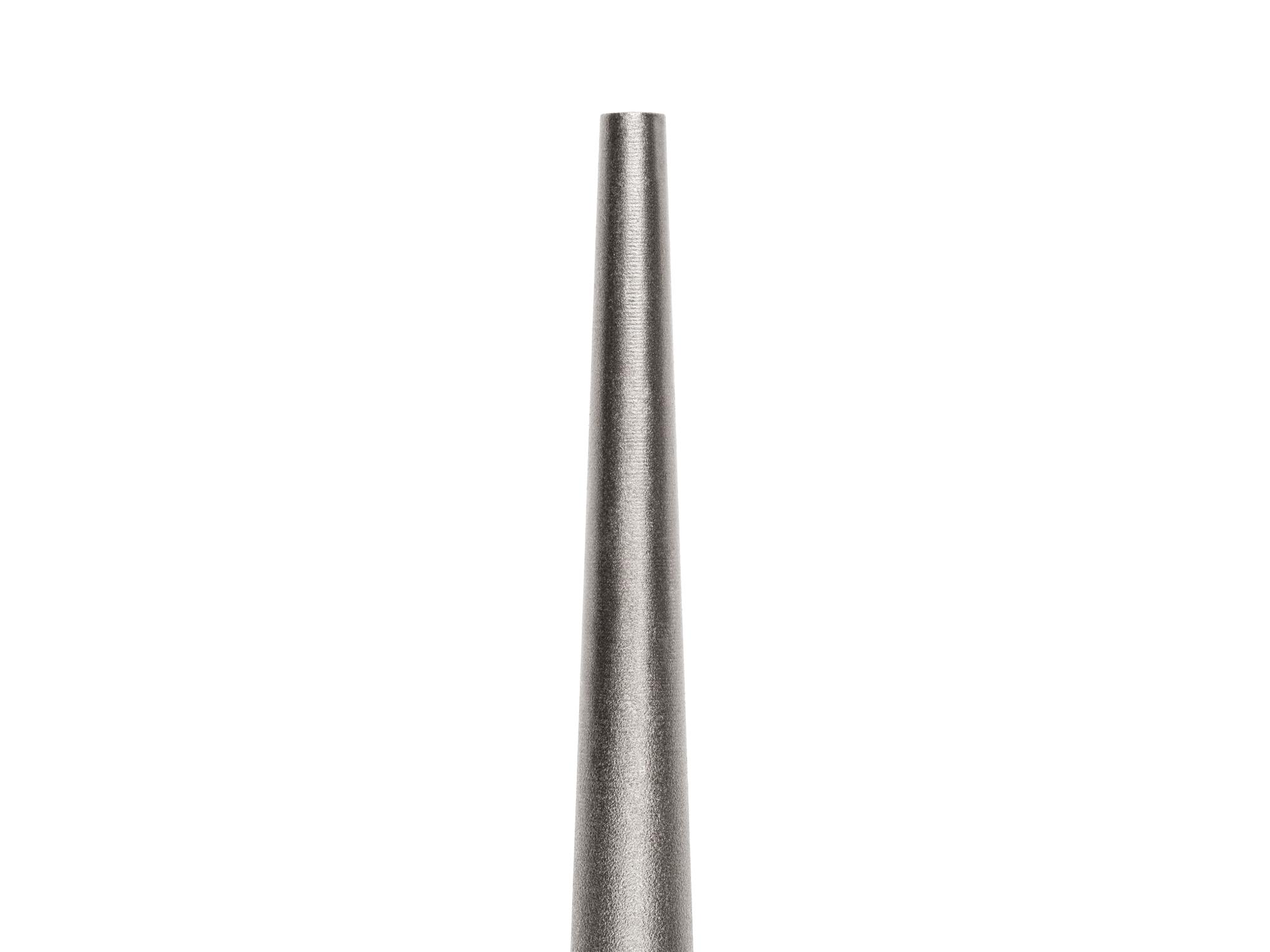

Precise Tips

Each tip and taper are carefully machined to meet exact tolerances.

TEKTON Alignment Punch tip sizes

Strong and Refined

  • Made from premium, high carbon steel

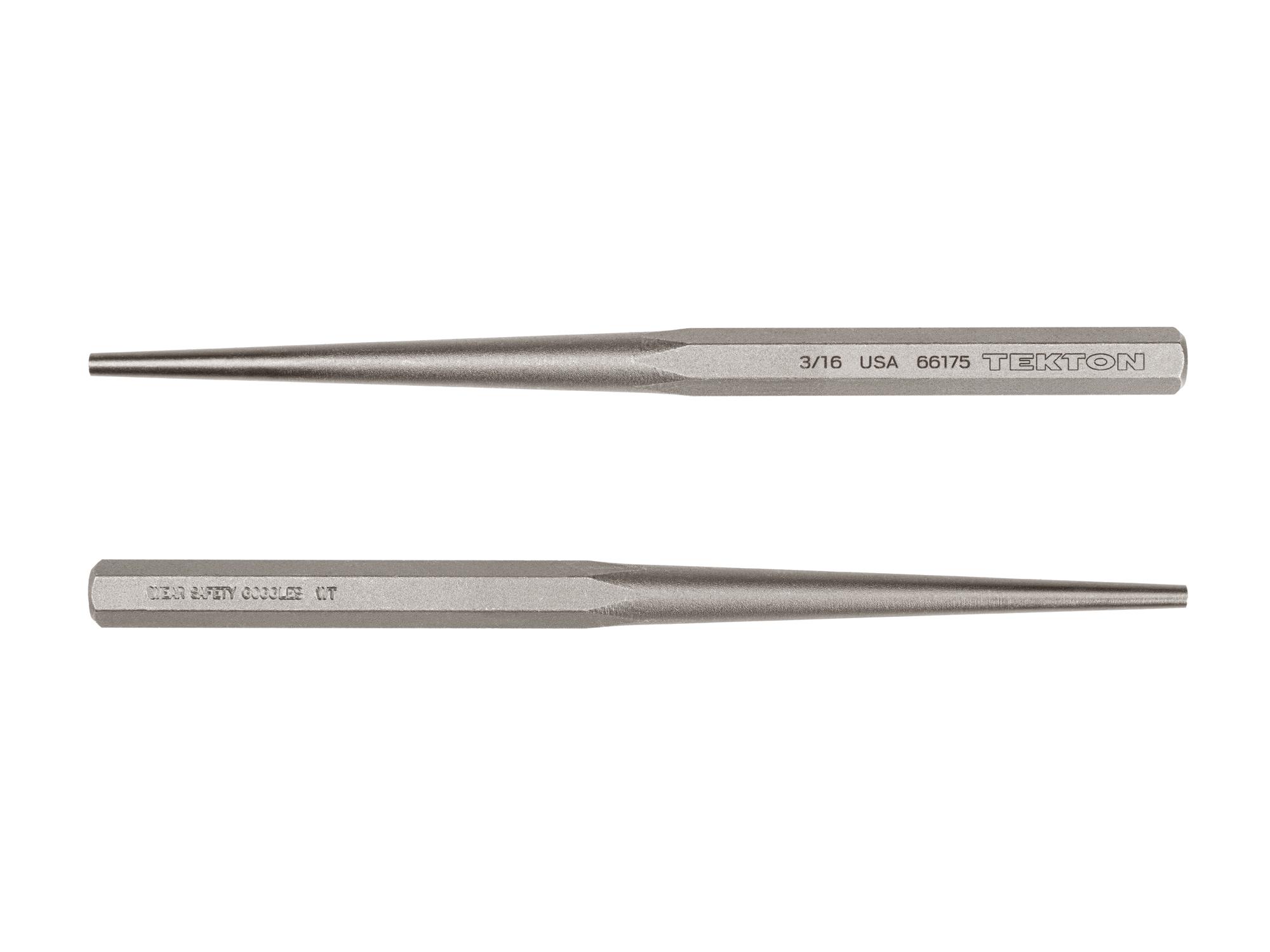

  • Laser marked with the tip size and part number
  • Finished with a dry, rust-preventative coating
TEKTON Alignment Punch

Individually Heat Treated

Each punch is individually heat treated to harden and strengthen the tip while maintaining the soft temper of the striking end.

TEKTON Alignment Punch heat treated

Hardened Tip

Maintains its precise size and shape

Tempered Striking End

Absorbs hammer blows without chipping

Specs

3/16 Inch Alignment Punch

Specs for 3/16 Inch Alignment Punch
Country of Origin
United States
Item Weight
0.39 lb.
