Front-right angle view of Tekton case split beam torque wrench set. Item #TRQ99902

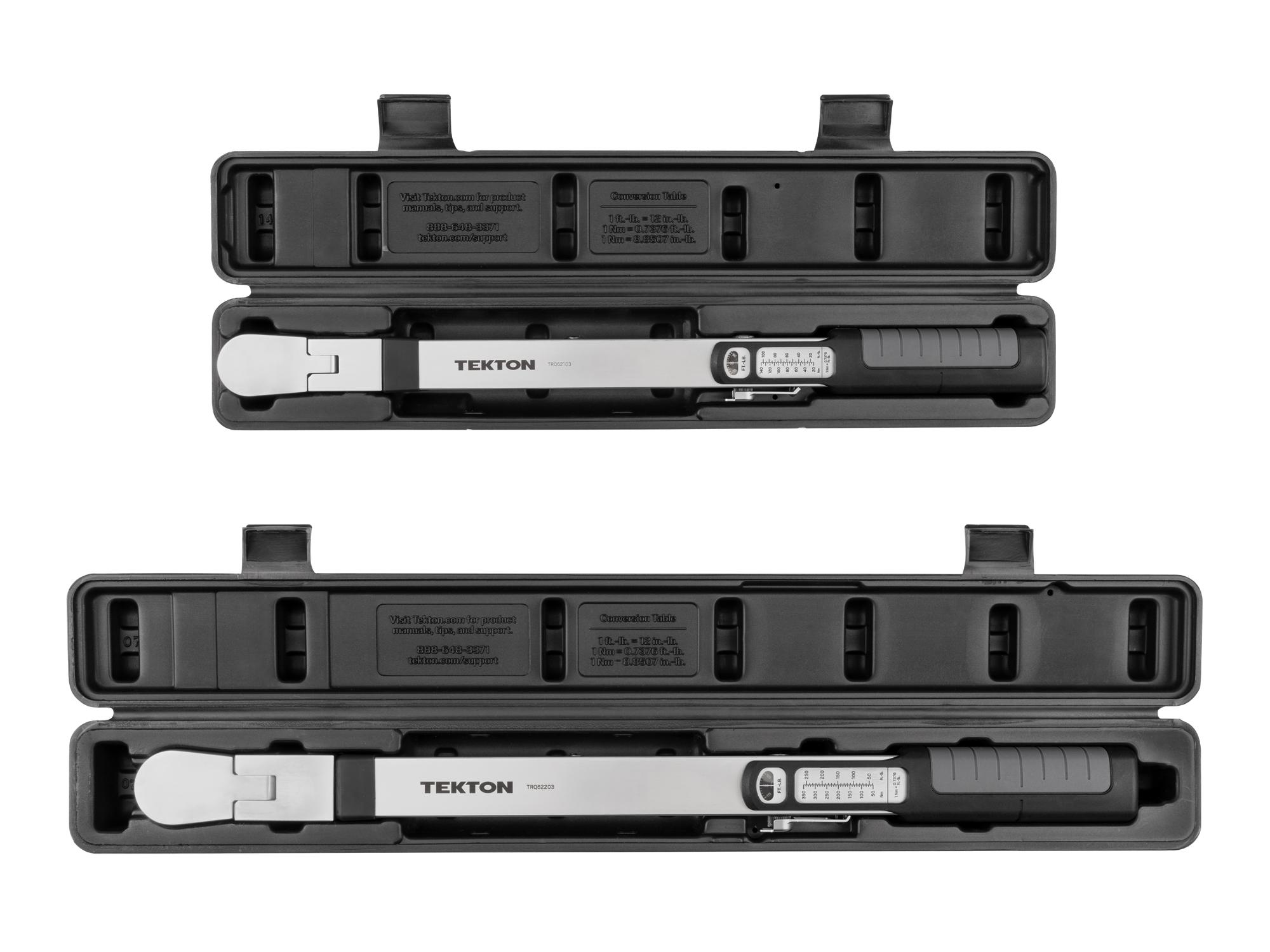

Front view of Tekton case split beam torque wrench set. Item #TRQ99902
Tap image to zoom in
Item #TRQ99902

3/8, 1/2 Inch Drive 72-Tooth Flex Head Split Beam Torque Wrench Set (2-Piece)

3/8 IN
20 - 100 ft-lb
1/2 IN
40 - 250 ft-lb
•

Unit

ft-lb
$255
Nm
$255
$255.00
Add to Cart
Set Includes:
Download Product Manual

Need to recertify your torque wrench?
We offer a recertification service for Tekton split beam torque wrenches. Learn more about our recertification service.

DetailsSpecifications

Details

Easy to Read, Easy to Set

Set — Quickly turn to the desired torque value with a smooth thumbscrew adjustment.

Lock — Teeth inside the cover lock the torque setting in place while you are using the wrench.

Leave – Because there’s no internal tension when the wrench is at rest, you don’t need to turn it to the lowest setting for storage.

Serialized Certificate of Calibration

Each wrench is calibrated according to the ASME B107.300-2010 standard. The detailed test results are recorded on the included certificate.

Design and Components

How it Operates

As force is applied to the handle, the wrench flexes until the catch contacts the calibration set screw. This disengages the anchor beam from the main beam, causing it to spring into the wrench body and produce a "click" sound.

Flex Head

The flex head offers the clearance to work around nearby obstructions.
As with any flex-head torque wrench, some accuracy is lost when the handle is not in the straight position, so this feature should only be used when needed.

Compare Torque Wrenches

Electronic

A Tekton electronic torque wrench

A multi-unit, dual-direction electronic torque wrench that can measure torque and angle. The large LCD screen provides real-time feedback along with lights, sounds, and vibration. It stores 10 custom presets and the last 50 history records. It’s our most capable and accurate torque wrench.

Accuracy: Within ±2% Torque, ±1% Angle
Directions: Clockwise, Counterclockwise
Tooth Count: 90 (4º Swing Arc)
Head Style: 15º Flex
Drive Sizes: 3/8, 1/2 in.
Feedback: LCD, Lights, Sounds, Vibration
Units: in-lb, ft-lb, Nm, kg-m


Shop All

Micrometer

A Tekton micrometer torque wrench

A single-unit, dual-direction mechanical torque wrench with a high-resolution micrometer scale that’s easy to read and lock in place but requires being set to the minimum value when storing. It's an affordable combination of accuracy and mechanical reliability.

Accuracy: Within ±3%
Directions: Clockwise, Counterclockwise
Tooth Count: 90 (4º Swing Arc)
Head Style: Fixed
Drive Sizes: 1/4, 3/8, 1/2 in.
Feedback: Mechanical Click
Units: in-lb, ft-lb, Nm


Shop All

Split Beam

A Tekton split beam torque wrench

A single unit, single-direction mechanical torque wrench that is fast and easy to set and can be stored at any setting because it uses a durable deflecting beam rather than a spring to measure torque. It has a clear, consistent click. It's ideal for users who measure in the usual clockwise tightening direction and make frequent setting changes.

Accuracy: Within ±4%
Directions: Clockwise
Tooth Count: 72 (5º Swing Arc)
Head Style: 10º Flex
Drive Sizes: 3/8, 1/2 in.
Feedback: Mechanical Click
Units: ft-lb, Nm


Currently Viewing

Specifications

3/8, 1/2 Inch Drive 72-Tooth Flex Head Split Beam Torque Wrench Set, 2-Piece (20 - 100 ft-lb, 40 - 250 ft-lb)

Country of Origin
Taiwan
Item Weight
5.8 lb.
