Item #TRQ62203
Download Product Manual

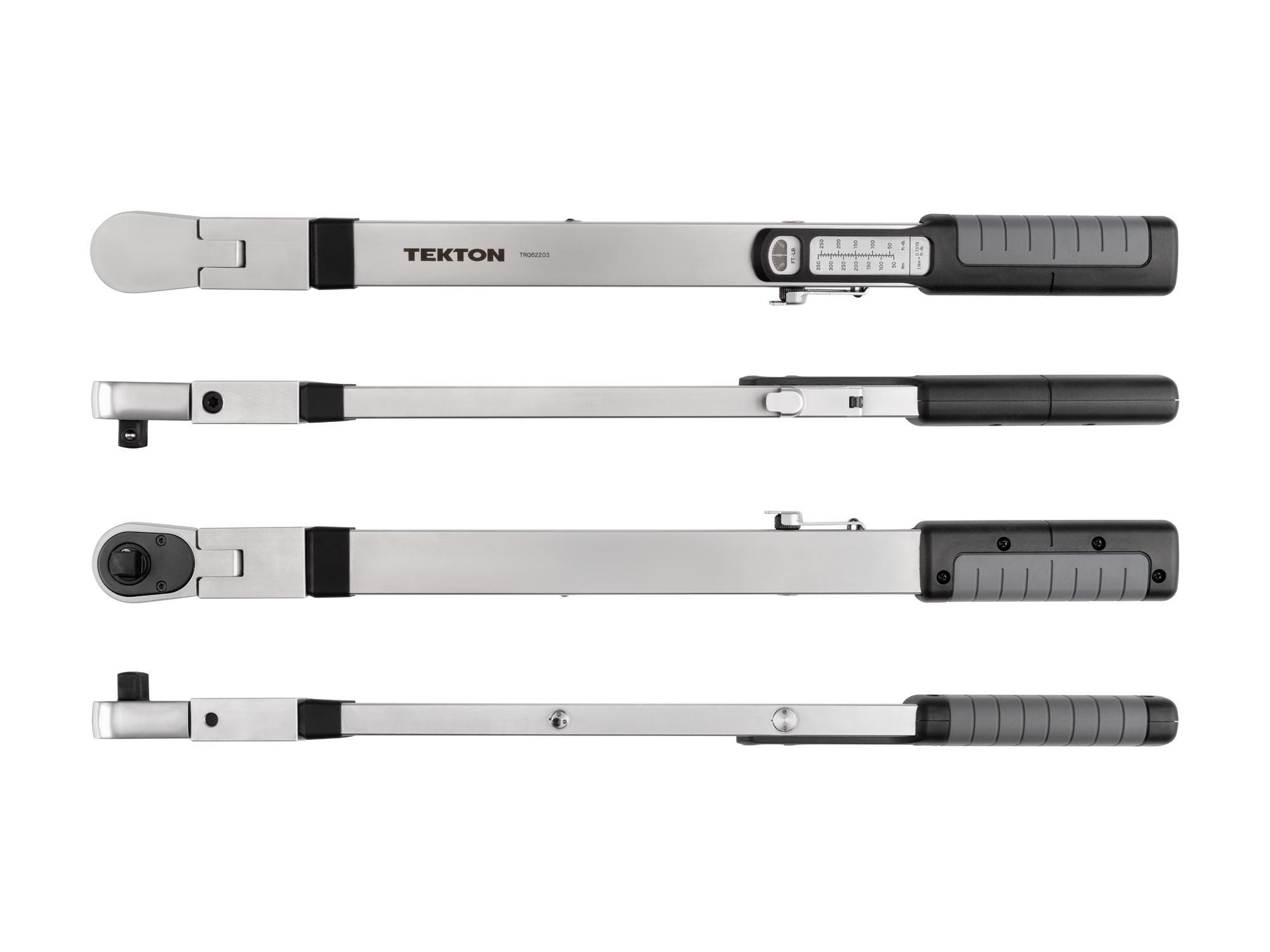

1/2 Inch Drive 72-Tooth Flex Head Split Beam Torque Wrench
40 - 250 ft-lb
1/2 Inch Drive 72-Tooth Flex Head Split Beam Torque Wrench
40 - 250 ft-lb
•
$150.00
Also Available in a 2-Piece Set
#TRQ99902
| Drive Size | 1/2 in. |
|---|---|
| Tooth Count / Swing Arc | 72-Tooth / 5º |
| Head Style | 10º Flex |
| Listed Torque Range | 40 - 250 ft-lb |
| Calibrated Working Range | 40 - 250 ft-lb |
| Unit Scale | ft-lb |
| Minimum Increment | 5 ft-lb |
| Measuring Direction | Clockwise |
| Accuracy | ±4% CW |
| Target Torque Feedback | Mechanical Click |
| Standards (meets or exceeds) | ASME B107.300-2010, 2021 |
| Working Length | 19.2 in. |
| Overall Length | 22.8 in. |
| Item Weight | 3.7 lb. |
| Country of Origin | Taiwan |
| Other Included Items |
|
Download Product Manual
Need to recertify your wrench’s calibration?
We are developing a recertification service for this torque wrench.
Please
subscribe to Tekton news
to be notified when the service is available.
Details
Easy to Read, Easy to Set
Set — Quickly turn to the desired torque value with a smooth thumbscrew adjustment.
Lock — Teeth inside the cover lock the torque setting in place while you are using the wrench.
Leave – Because there’s no internal tension when the wrench is at rest, you don’t need to turn it to the lowest setting for storage.

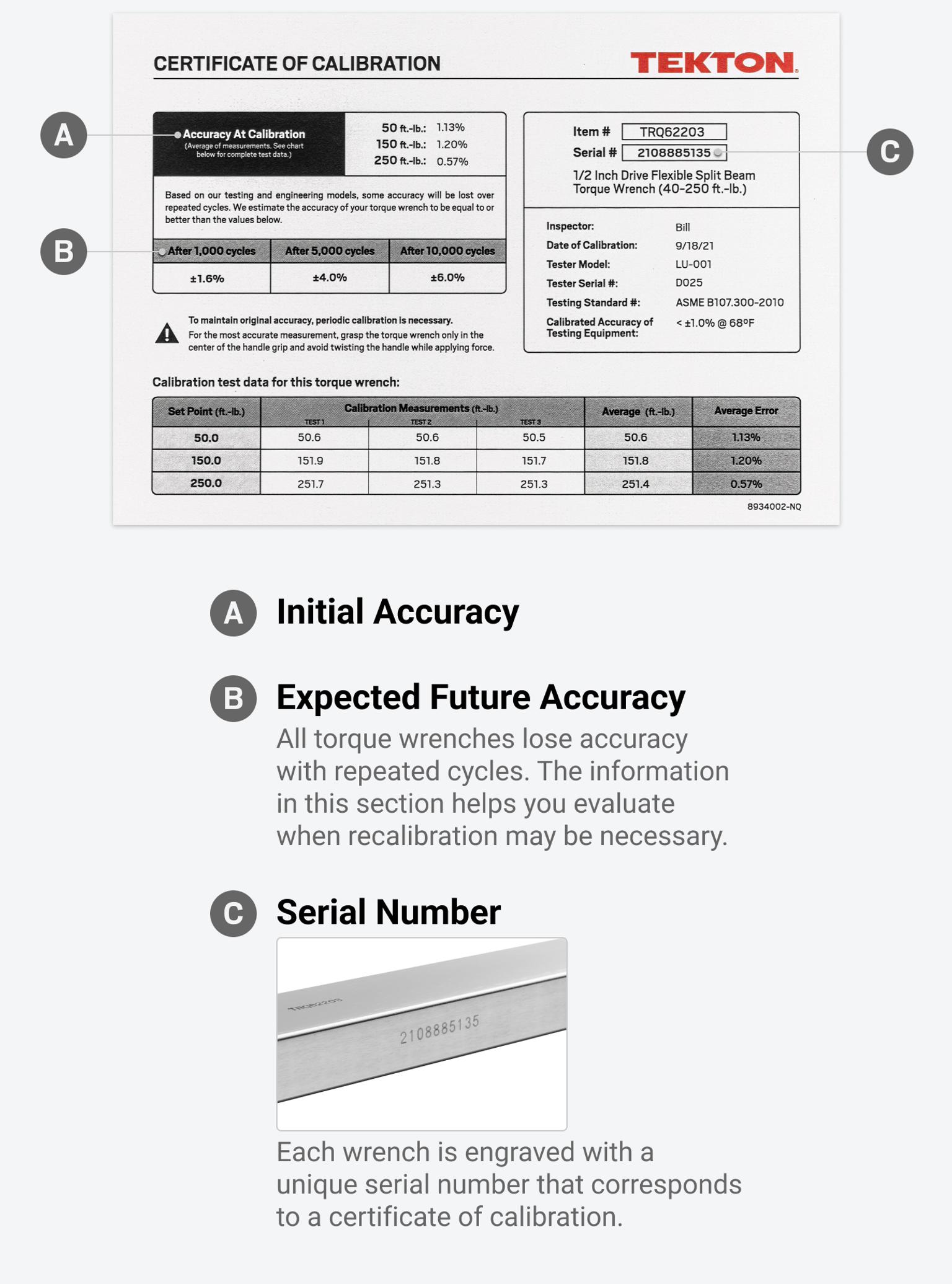

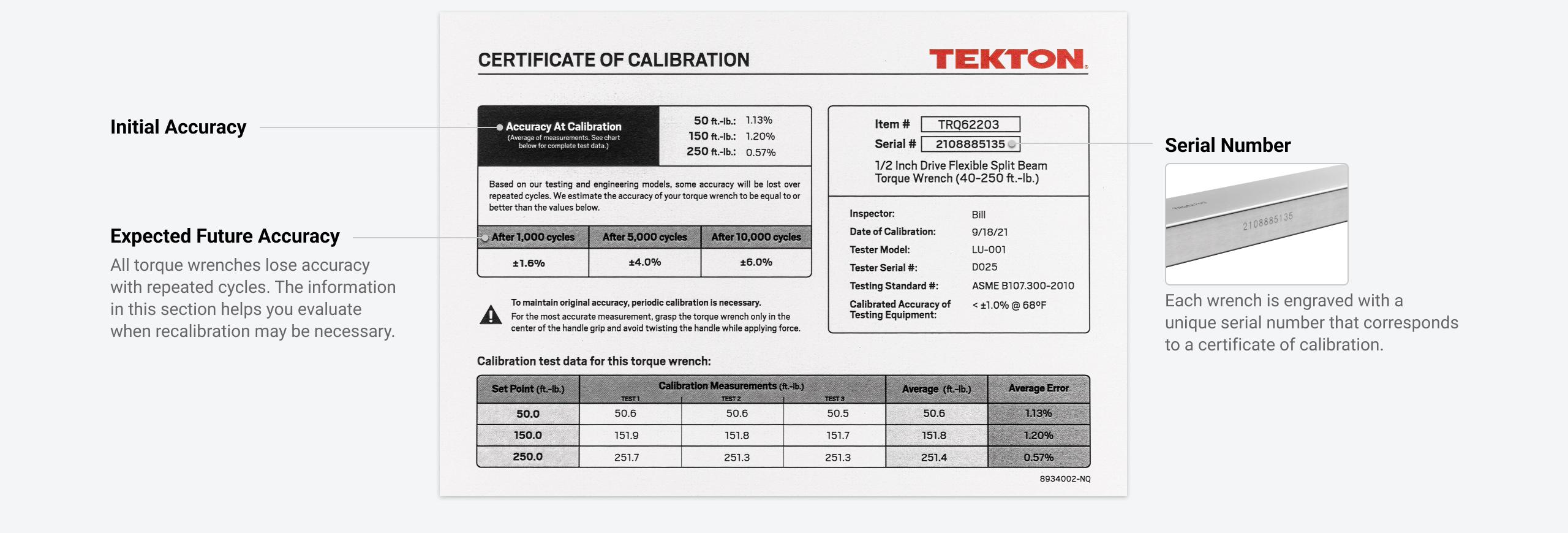

Serialized Certificate of Calibration
Each wrench is calibrated according to the ASME B107.300-2010 standard. The detailed test results are recorded on the included certificate.

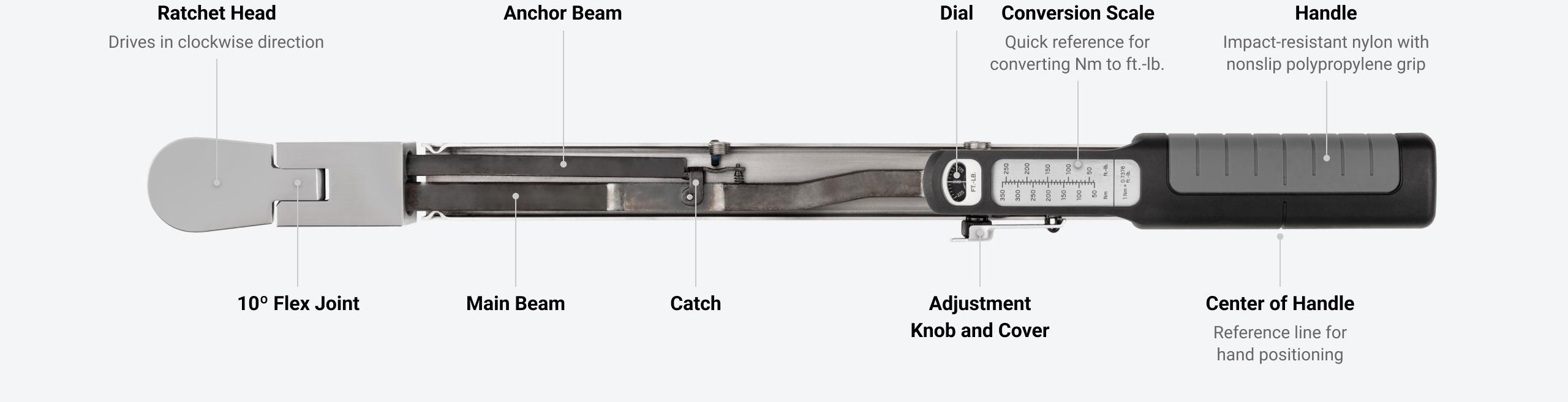

Design and Components
How it Operates
As force is applied to the handle, the wrench flexes until the catch contacts the calibration set screw. This disengages the anchor beam from the main beam, causing it to spring into the wrench body and produce a "click" sound.

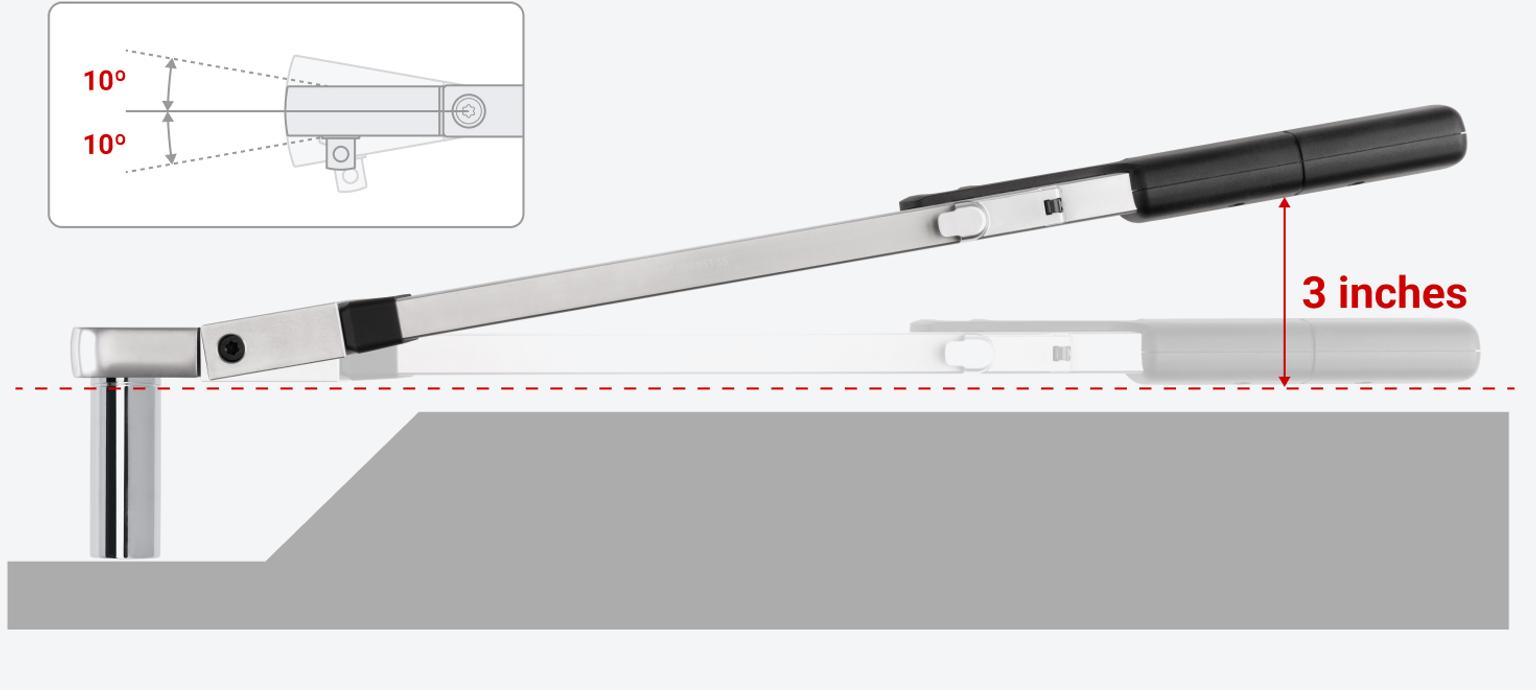

Flex Head
The flex head offers the clearance to work around nearby obstructions.
As with any flex-head torque wrench, some accuracy is lost when the handle is not in the straight position, so this feature should only be used when needed.
Specs
1/2 Inch Drive 72-Tooth Flex Head Split Beam Torque Wrench (40 - 250 ft-lb)
| Country of Origin | Taiwan |
| Item Weight | 3.7 lb. |
