Item #OCC84404

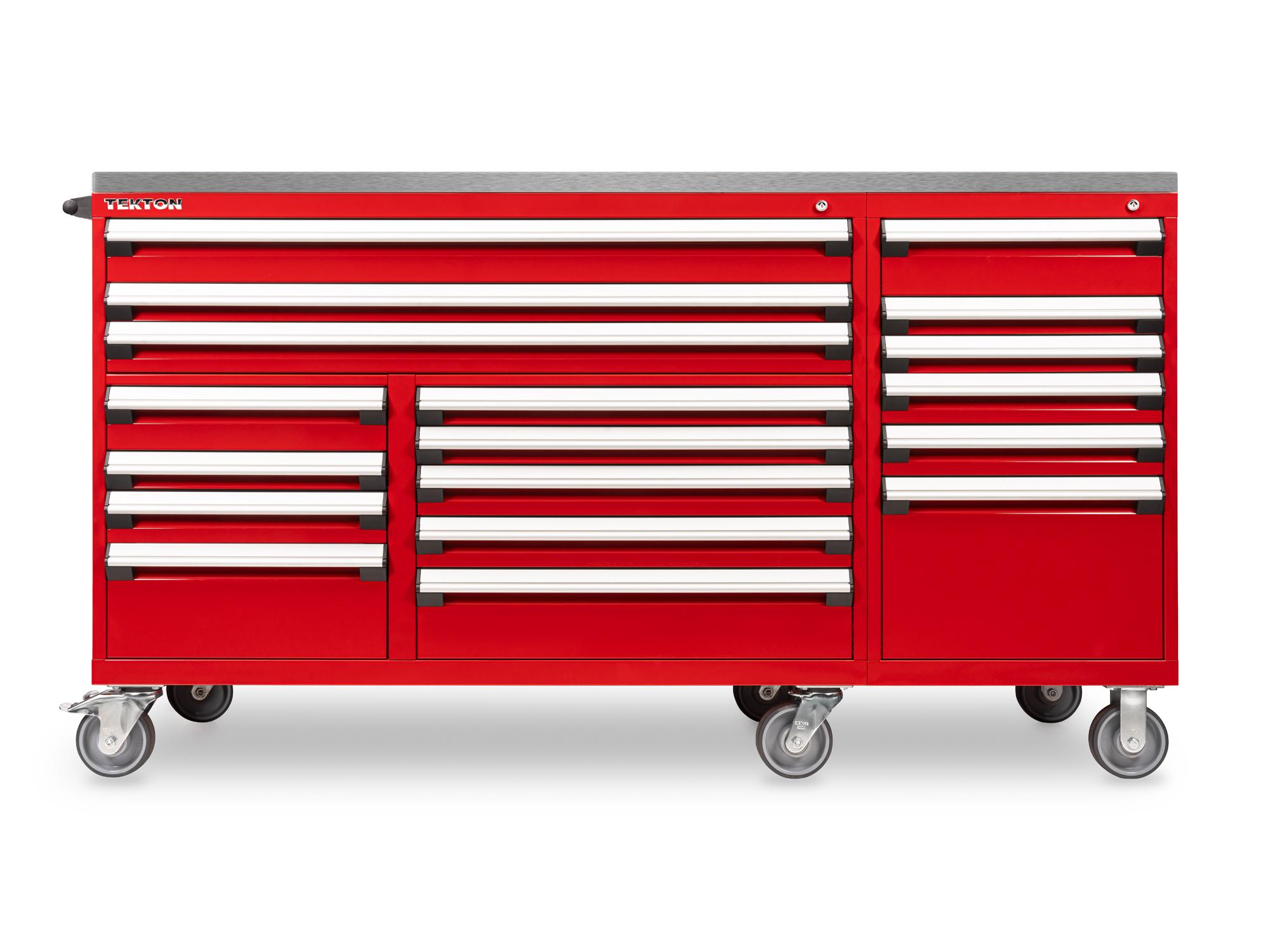

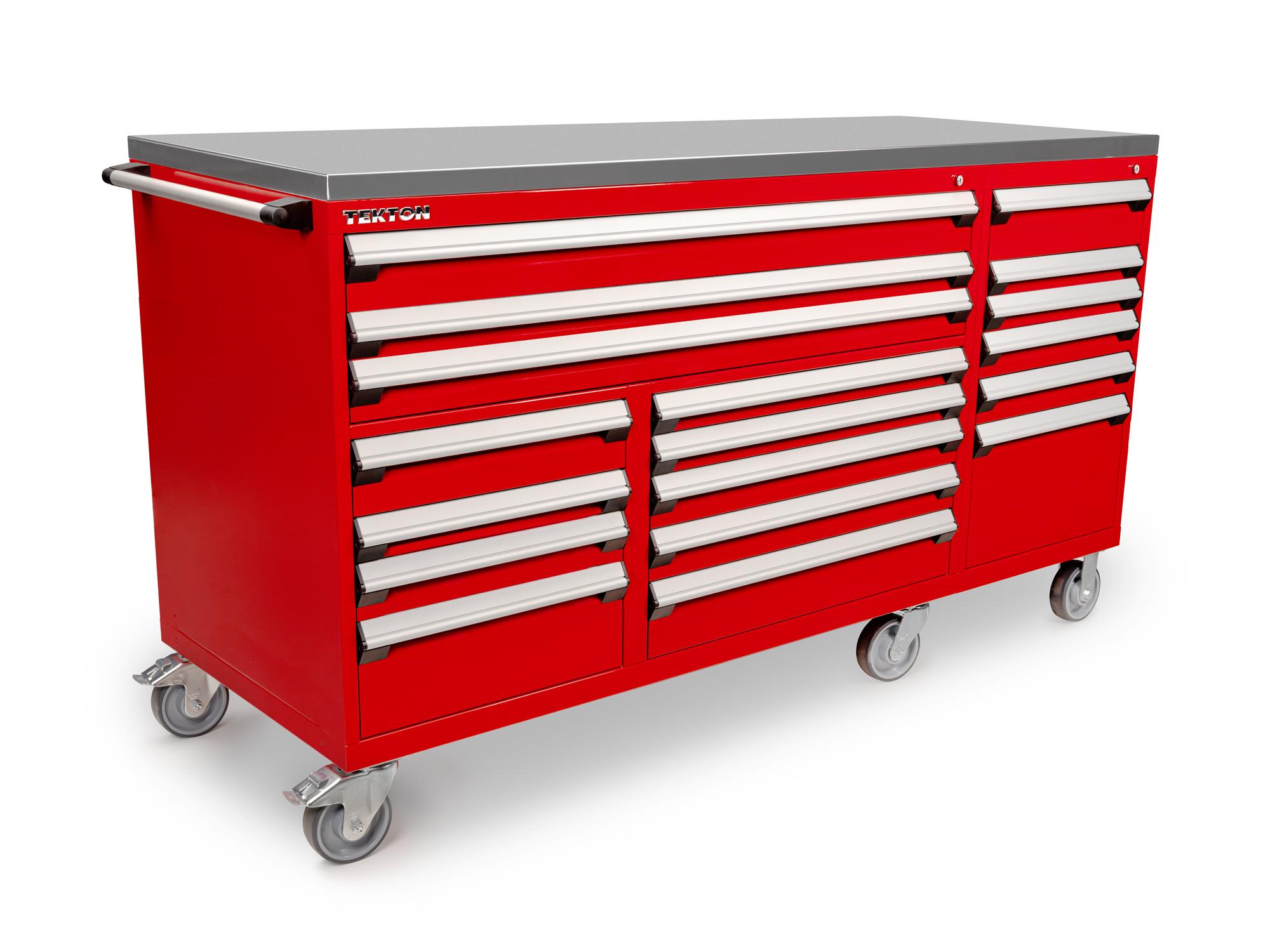

18-Drawer 40/60 Split Bank Tool Cabinet with Stainless Steel Top (84 W x 30 D x 47.2 H in.)
16-Drawer 40/60 Split Bank Tool Cabinet with Stainless Steel Top (84 W x 30 D x 43.2 H in.)
$9,275.00
Out of Stock
- Includes pre-installed stainless steel top
- Purchase includes a 90-day trial, terms apply
- Free shipping to 48 U.S. states
- Delivery includes a liftgate service
- Typically delivers between 2 - 6 days after placing your order
Details
Drawer Features

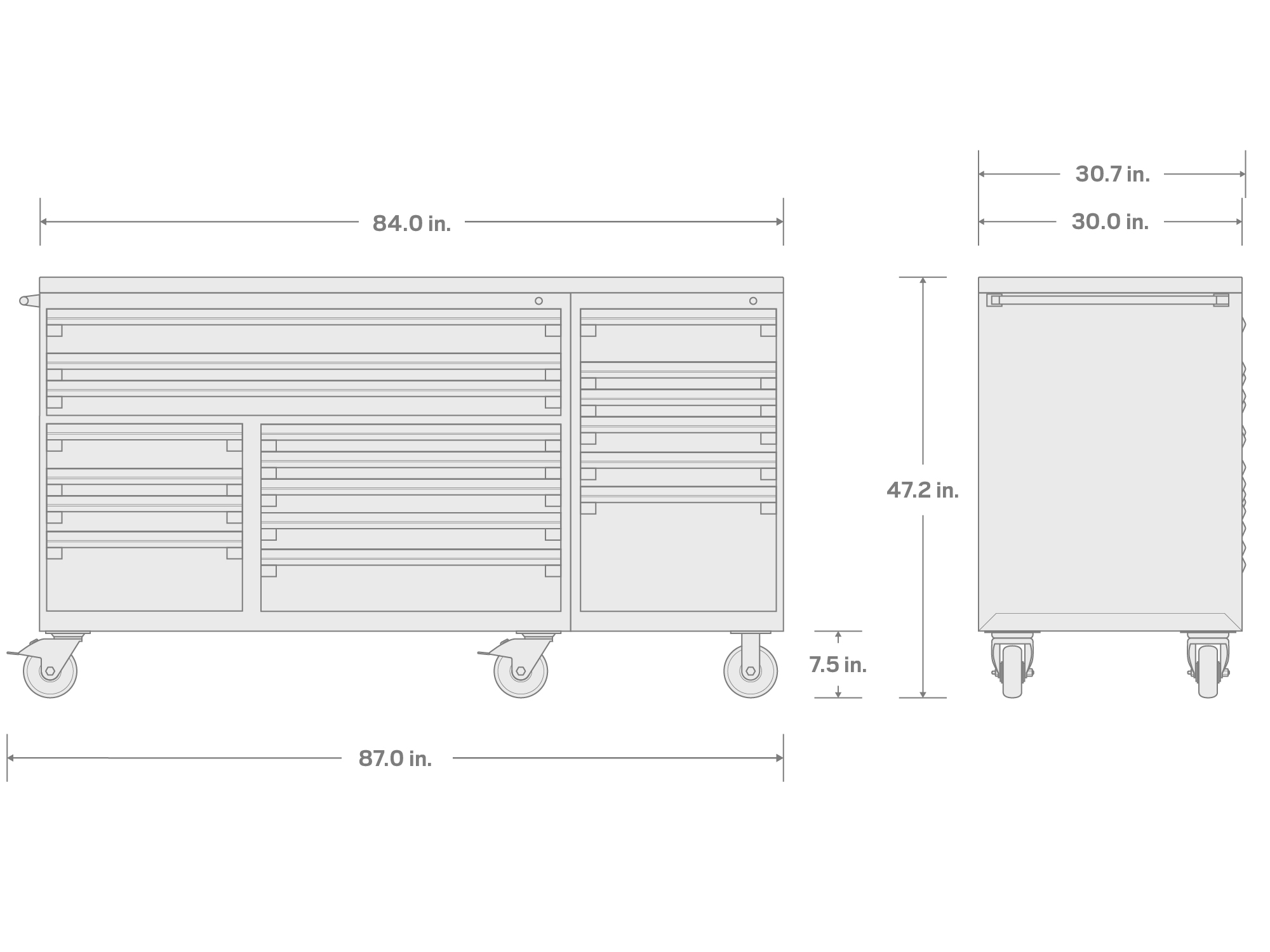

Drawer Interior and Exterior Dimensions
Lift Anywhere Handle
Easily open the drawers by lifting anywhere along the anodized aluminum handles.
The 60 inch main cabinet section and 24 inch side cabinet section each have their own drawer lock. Both locks use the same key, and four keys are included.
100% Drawer Extension
Each drawer extends all the way, allowing access to the very back with no inaccessible space.
100% Drawer Height Clearance
Fill the drawers all the way to the brim with nothing getting in your way.
Anti-Tip Drawer System
Only one drawer per bank can be opened at a time, which prevents the cabinet from tipping.
Robust Construction
400 lb. Capacity for Every Drawer
Each drawer is supported by an independent steel carriage system that holds up to 400 lb. at full extension.
Drawers are tested with 200 lb. to over 130,000 open-and-close cycles, which equates to opening the drawer 10 times a day for 35 years.
Heavy-Duty Drawer Carriages
The drawer carriages are constructed of 12-gauge side rails and 14-gauge welded crossmembers to withstand heavy weights and rugged use. Each drawer carriage has 10 bearings: 6 ball, 2 floating, and 2 nylon.
Cabinet Housing Max Load
The cabinet housing is made of commercial grade steel components ranging from 20-gauge to 12-gauge in thickness. The cabinet housing can support a vertical load of 12,000 lb. and remain completely functional. It can support a vertical load of 24,000 lb. before breaking.
Total Caster Max Load
The cabinet comes with 6 industrial casters: 4 locking swivel and 2 fixed. Each caster supports a max load of 1,100 lb., for a total cabinet weight capacity of 6,600 lb. The caster wheels are made of a non-marking polyurethane that resists shocks, vibrations, and a variety of chemicals.
Long-Lasting Electrostatic Powder Coat Finish
Tekton tool cabinets are finished with a glossy electrostatic powder coat, which results in a uniformly thick, durable paint layer that's resistant to corrosion and chemicals.
Stainless Steel Cabinet Top
The cabinet comes with a pre-installed stainless steel top that's 1.75 inches thick, with a 16-gauge steel surface and sides over an MDF core.
Included Liners
Each drawer includes a 1/16-inch thick PVC liner.
Partitions and Subdividers Available
Set up compartments of various sizes to organize your tools and restrict their movement.

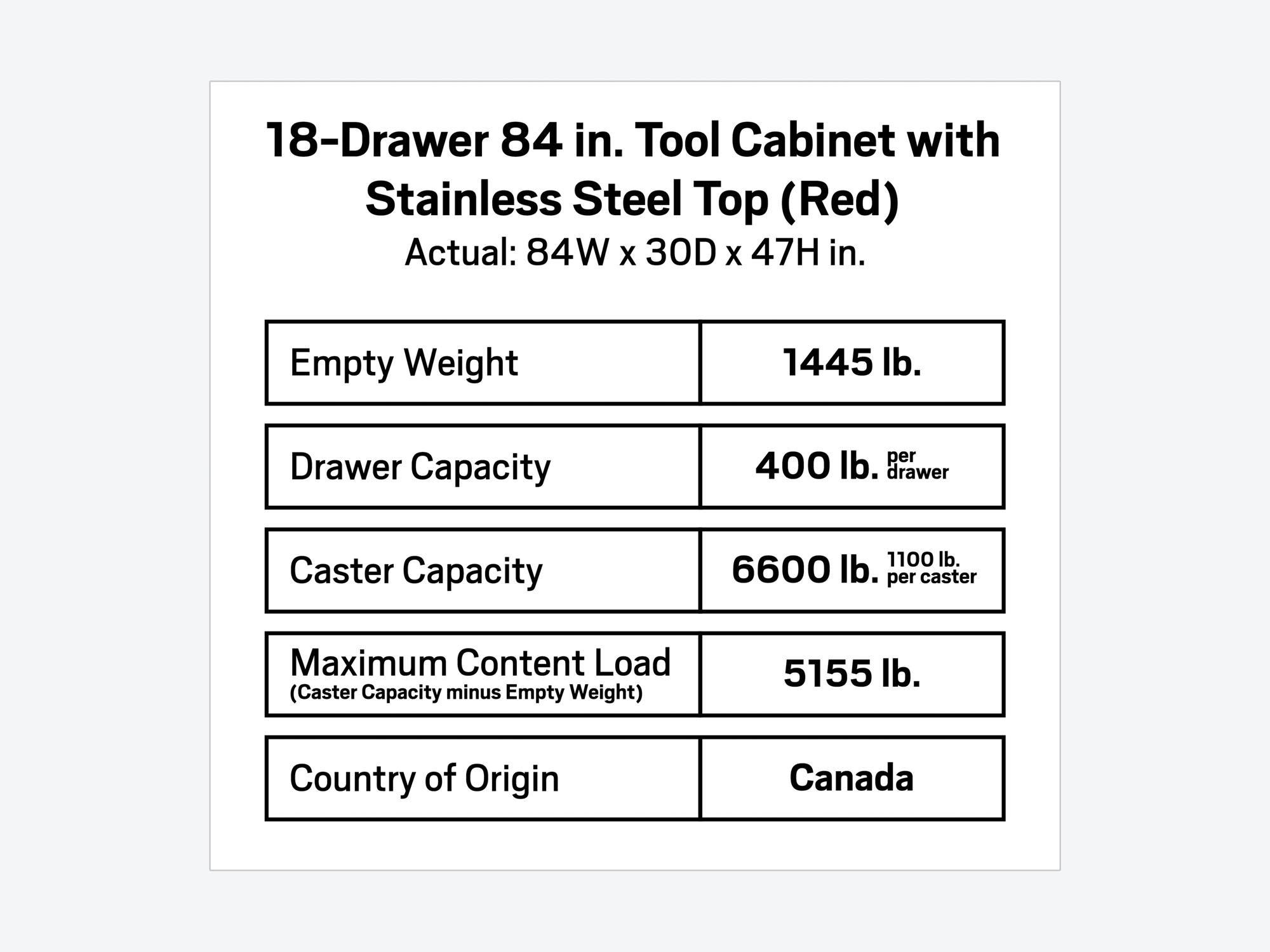

Specifications
18-Drawer 40/60 Split Bank Tool Cabinet with Stainless Steel Top, Red (84 W x 30 D x 47.2 H in.)
| Country of Origin | Cabinet and cabinet top made in Canada. Casters made in Germany. Drawer liners made in China. |
| Item Weight | 1445 lb. |
