Front view of Tekton rail impact drive 12-point socket set. Item #SID90104

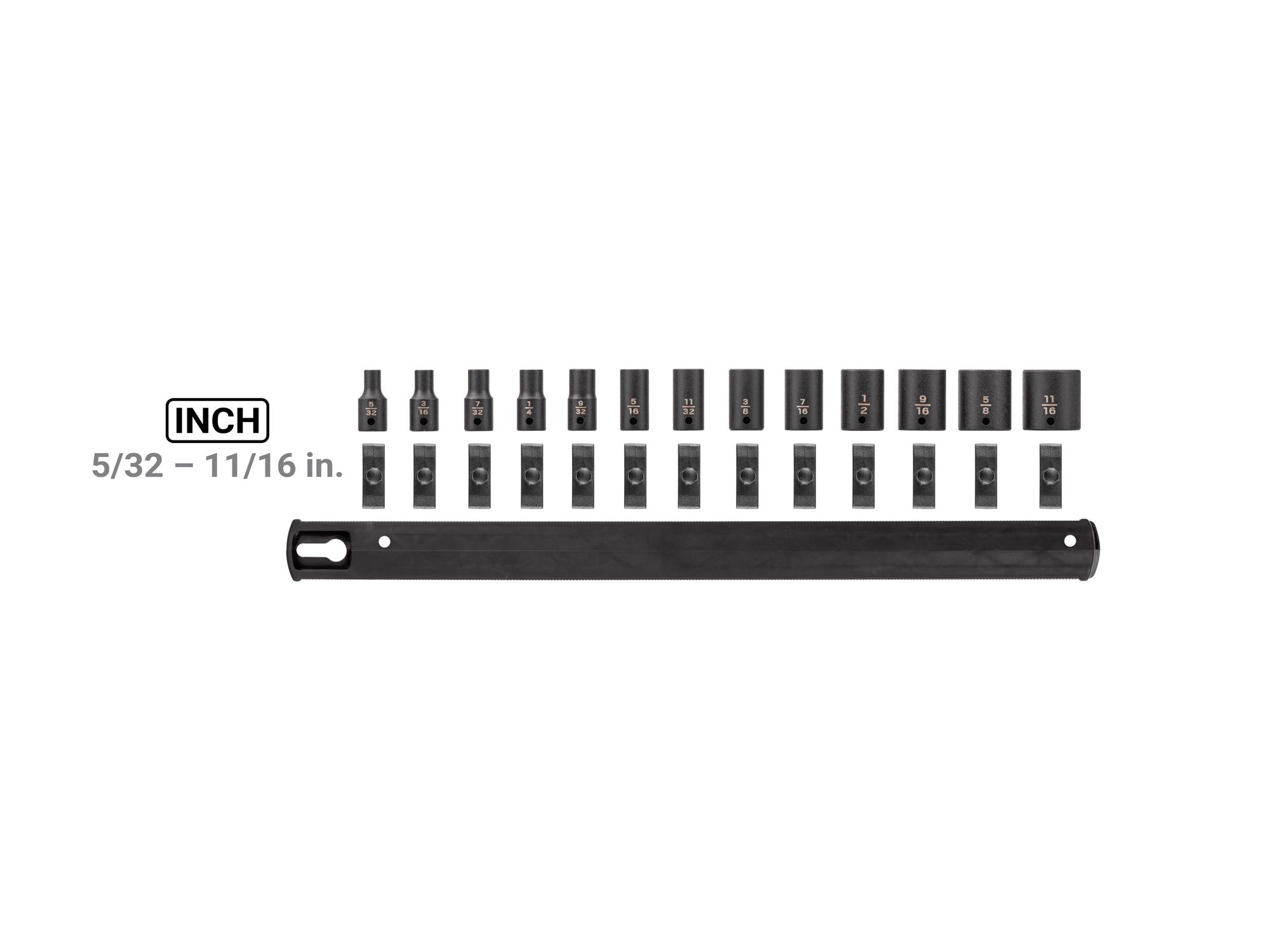

Laid out contents of Tekton rail impact drive 12-point socket set. Item #SID90104

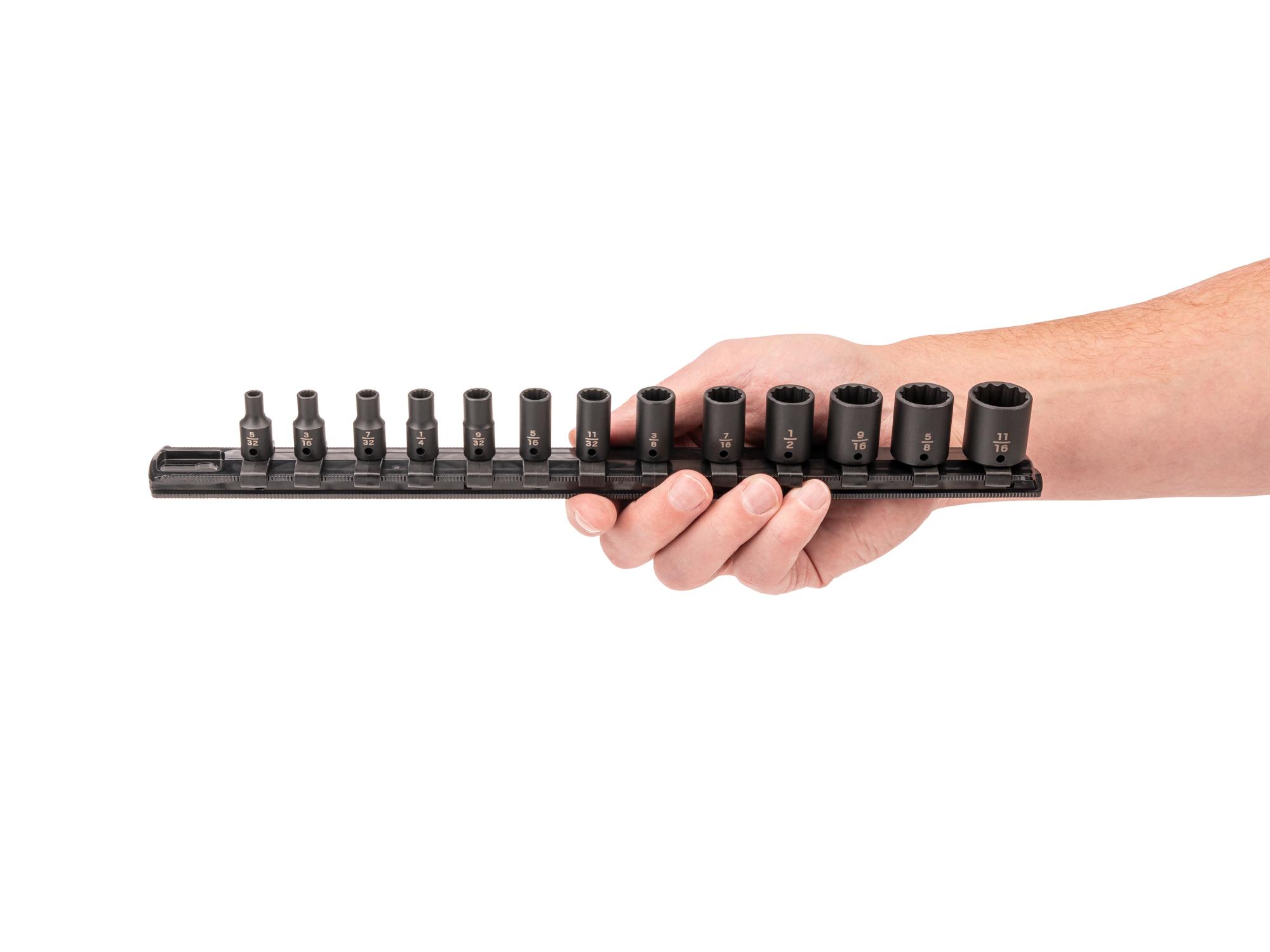

Person holding Tekton rail impact drive 12-point socket set. Item #SID90104
Tap image to zoom in
Item #SID90104
1/4 Inch Drive
Shallow
12‑Point

Impact Socket Set with Rail (13-Piece)

IN
5/32 - 11/16 in.
•

Socket Depth

Shallow
$42
Semi-Deep
$46
Deep
$49
Shallow and Deep
$83
Shallow, Semi-Deep, and Deep
$120
$42.00
Add to Cart

Shop Additional Set Ranges

1/4 Inch Drive 12-Point Impact Sockets

Also Available In:

6-Point

Set Includes:
DetailsSpecifications

Details

Front laser markings and back stamped markings on a 12-point shallow 10 mm impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A shallow 12-point impact socket cut in half, showing how the interior well extends fully into the socket

Full-Length Socket Well

The interior well extends fully into the socket, which allows for better fastener engagement in more situations.
An impact reducer with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

The adapters and reducers work with both friction ring and detent pin impact wrench anvils.
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the radiused corners on an impact socket apply force to the flat sides of a 12-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow and Deep Lengths)

inch impact sockets

5/32 – 11/16 Inch Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

metric impact sockets

4 – 17 mm Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

impact extensions

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

impact adapter

Adapter
8660 Ni-Cr-Mo

impact universal joint

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More
A black socket rail with twist to lock callout

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories
Shop Socket Organization

Specifications

1/4 Inch Drive Shallow 12-Point Impact Socket Set with Rail, 13-Piece (5/32 - 11/16 in.)

Specs for 1/4 Inch Drive Shallow 12-Point Impact Socket Set with Rail, 13-Piece (5/32 - 11/16 in.)
Country of Origin
Sockets made in Taiwan. Rail made in USA.
Item Weight
0.71 lb.
