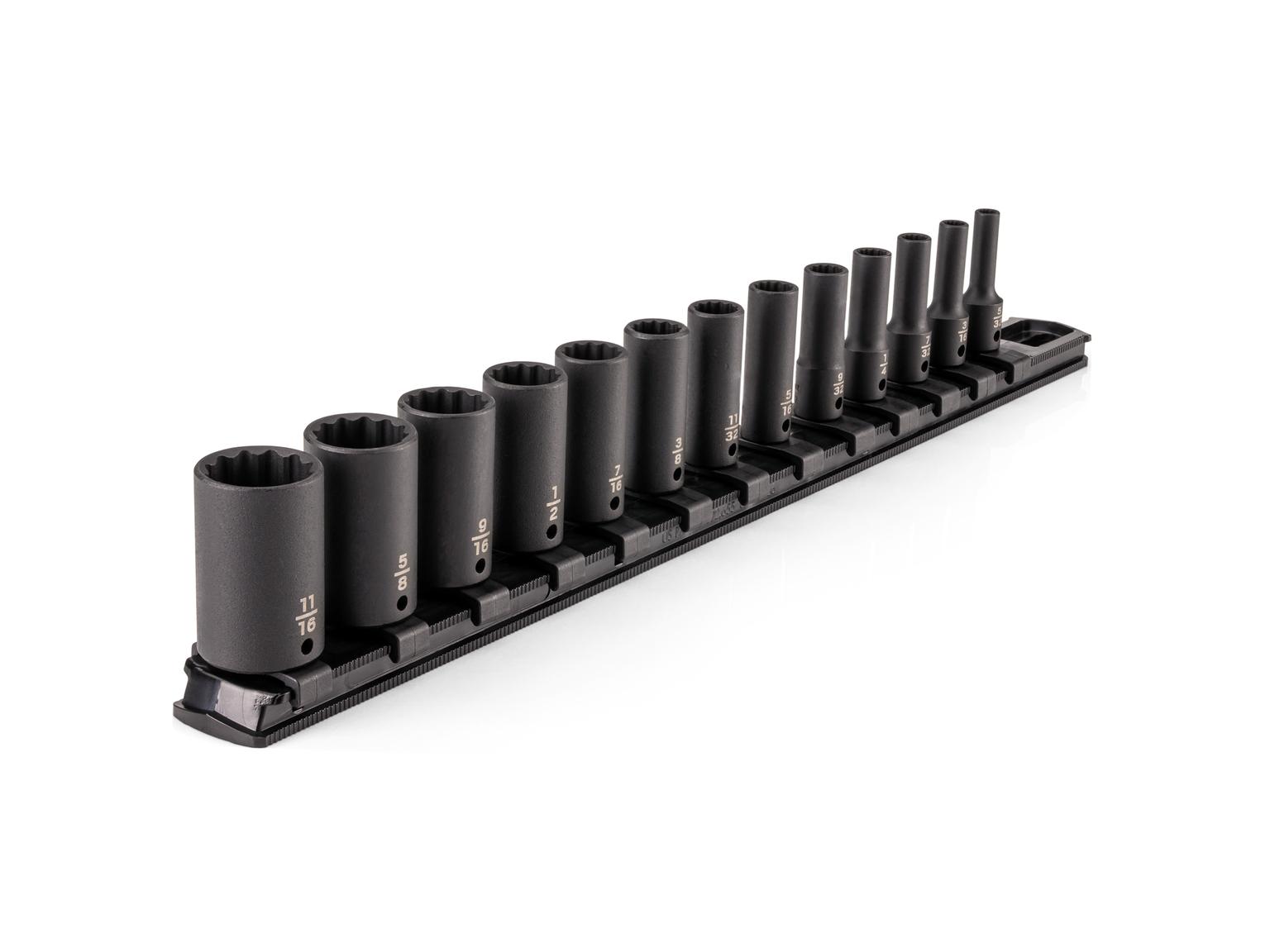

TEKTON 1/4 Inch Drive Semi-Deep 12-Point Impact Socket Set with Rail, 13-Piece (5/32 - 11/16 in.)
Laid out contents of Tekton rail impact drive 6-point socket set. Item #SID90109
Person holding Tekton rail impact drive 12-point socket set. Item #SID90111
Tap image to zoom in
Item #SID90111
1/4 Inch Drive
Semi‑Deep
12‑Point

Impact Socket Set with Rail (13-Piece)

IN
5/32 - 11/16 in.
•

Socket Depth

Shallow
$42
Semi-Deep
$46
Deep
$49
Shallow and Deep
$83
Shallow, Semi-Deep, and Deep
$120
$46.00
Add to Cart

Shop Additional Set Ranges

1/4 Inch Drive 12-Point Impact Sockets

Also Available In:

6-Point

Set Includes:
DetailsSpecifications

Details

Images of the front and back of a 10 mm impact socket, showing the laser marking on the front and the stamped marking on the back

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A line next to a 5 mm impact socket showing the fully stepped shoulders.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small sizes. This allows for better reach into tight, recessed areas.
A semi-deep 12-point impact socket cut in half to show the full-length socket well

Full-Length Socket Well

The interior well extends fully into the socket, which provides room to fit over long threaded studs.
The drive end of a 10 mm impact socket with notes for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Each socket works with both types of anvils found on 1/4 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the radiused corners on an impact socket apply force to the flat sides of a 12-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton 1/4 inch drive impact sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - Semi-deep sockets
    - Deep sockets
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - Universal joint socket base
  • 6140 Chromium-Vanadium (Cr-V)
    - Shallow sockets
    - 3, 6, and 9 inch extensions
  • 8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)
    - Adapter
    - Universal joint ball/tang
All pieces have a corrosion-resistant manganese phosphate coating.
A black socket rail with twist to lock callout

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories
Shop Socket Organization

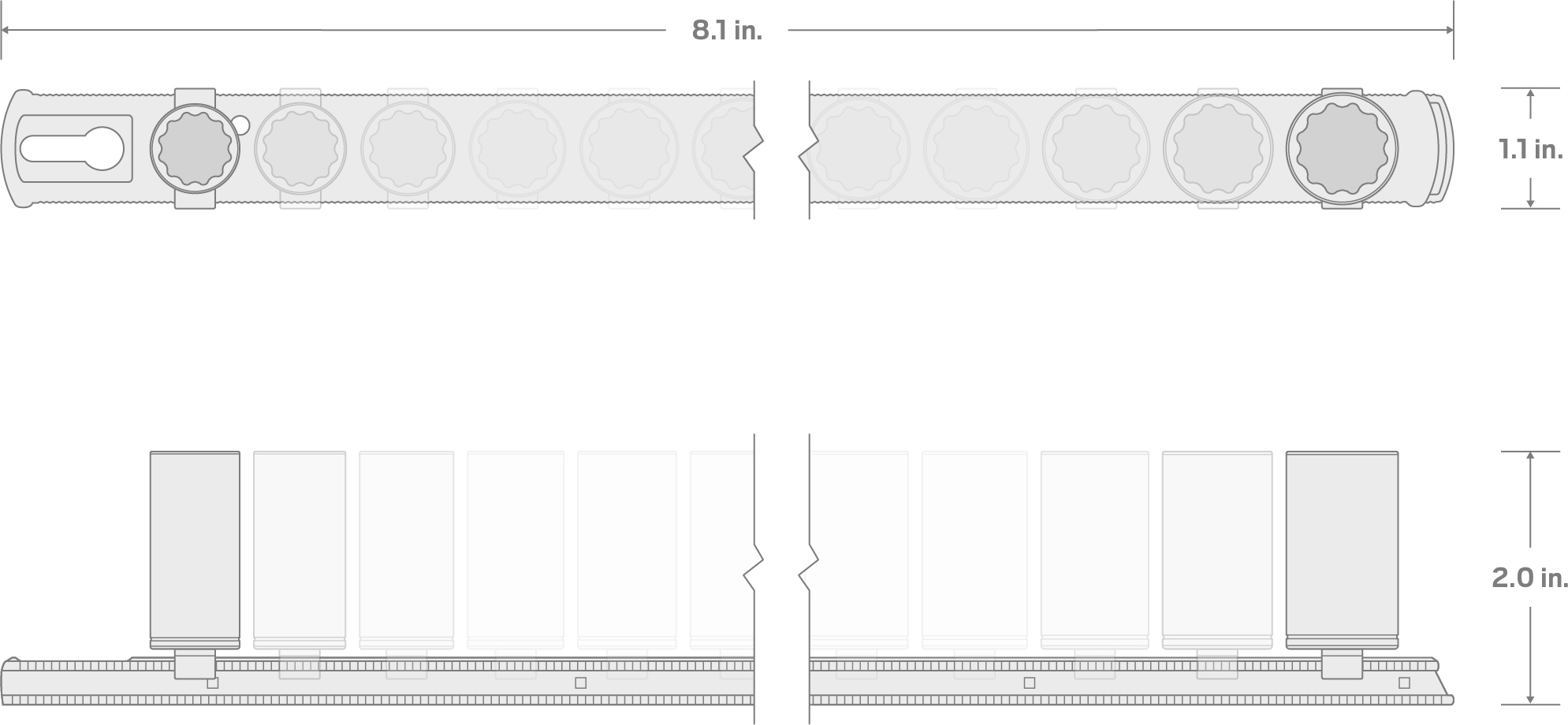

Specifications

1/4 Inch Drive Semi-Deep 12-Point Impact Socket Set with Rail, 13-Piece (5/32 - 11/16 in.)

Specs for 1/4 Inch Drive Semi-Deep 12-Point Impact Socket Set with Rail, 13-Piece (5/32 - 11/16 in.)
Country of Origin
Sockets made in Taiwan. Rail made in USA.
Item Weight
1.02 lb.
