Front-right angle view of Tekton impact drive accessory set. Item #SIA90001

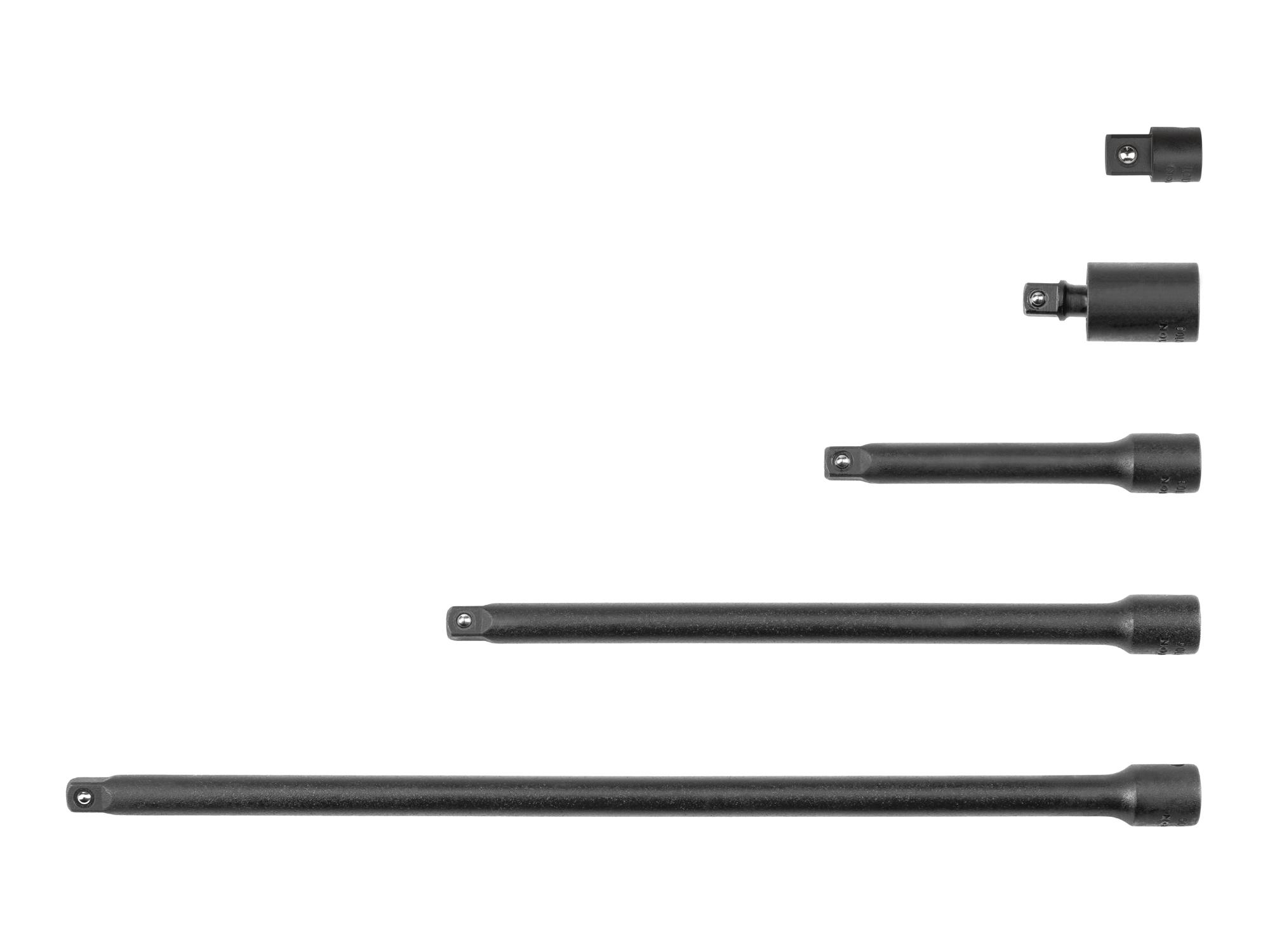

Front view of Tekton impact drive accessory set. Item #SIA90001

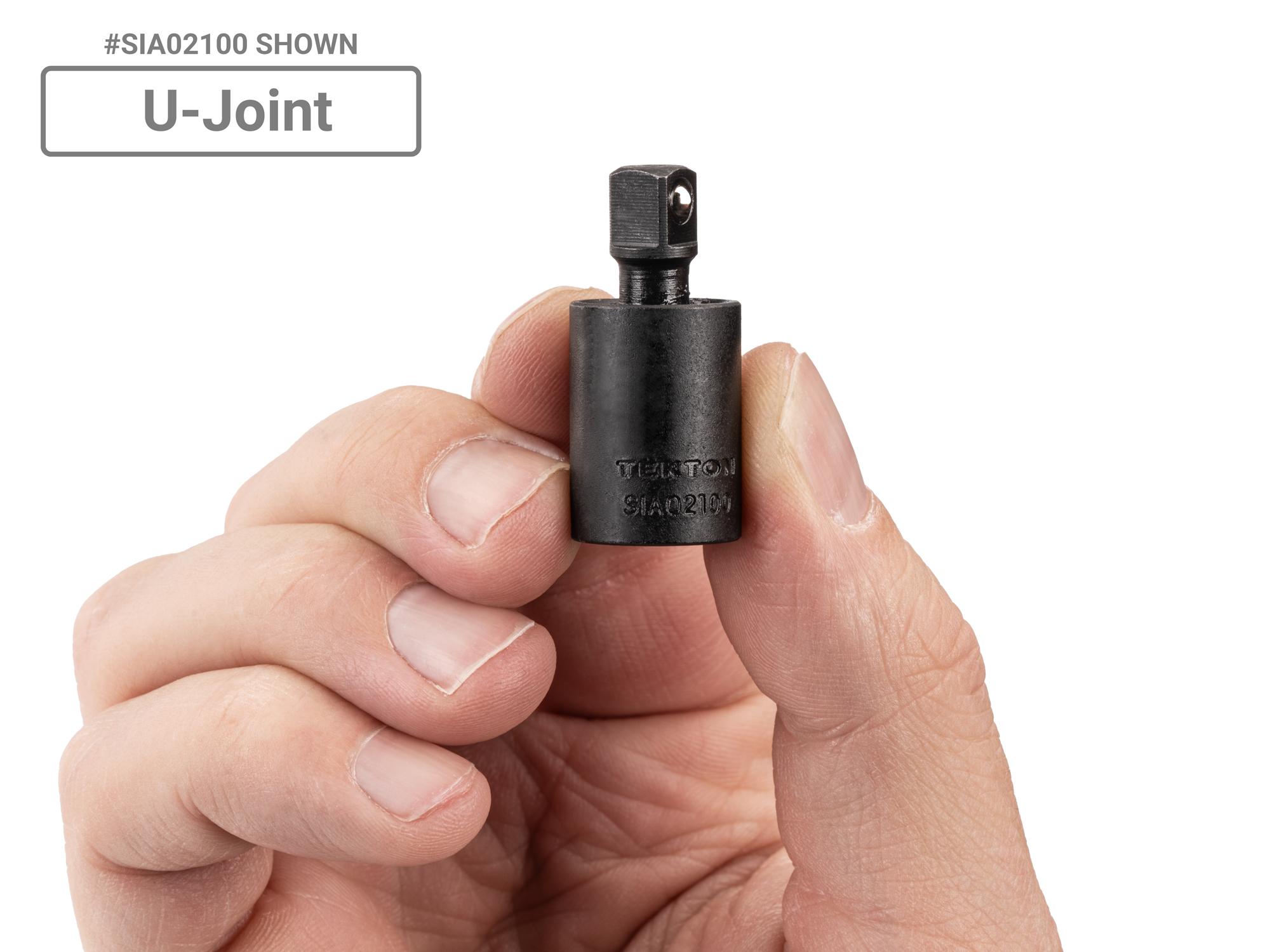

Item #SIA02100

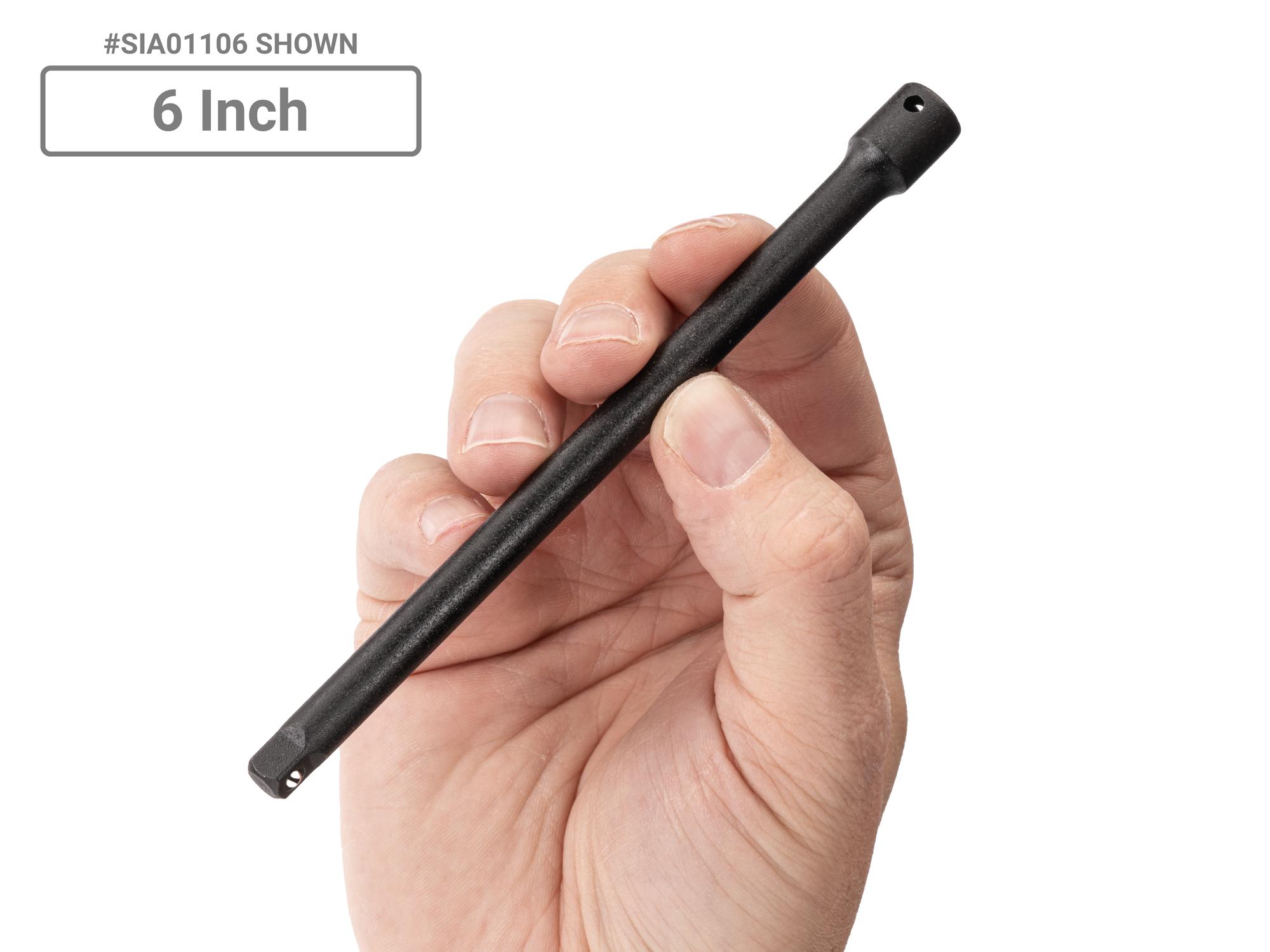

Item #SIA01106
Tap image to zoom in
Item #SIA90001
1/4 Inch Drive

Impact Socket Accessories Set (5-Piece)

•

Organization Option

Front-right angle view of Tekton impact drive accessory set. Item #SIA90001
Tool Only
$26

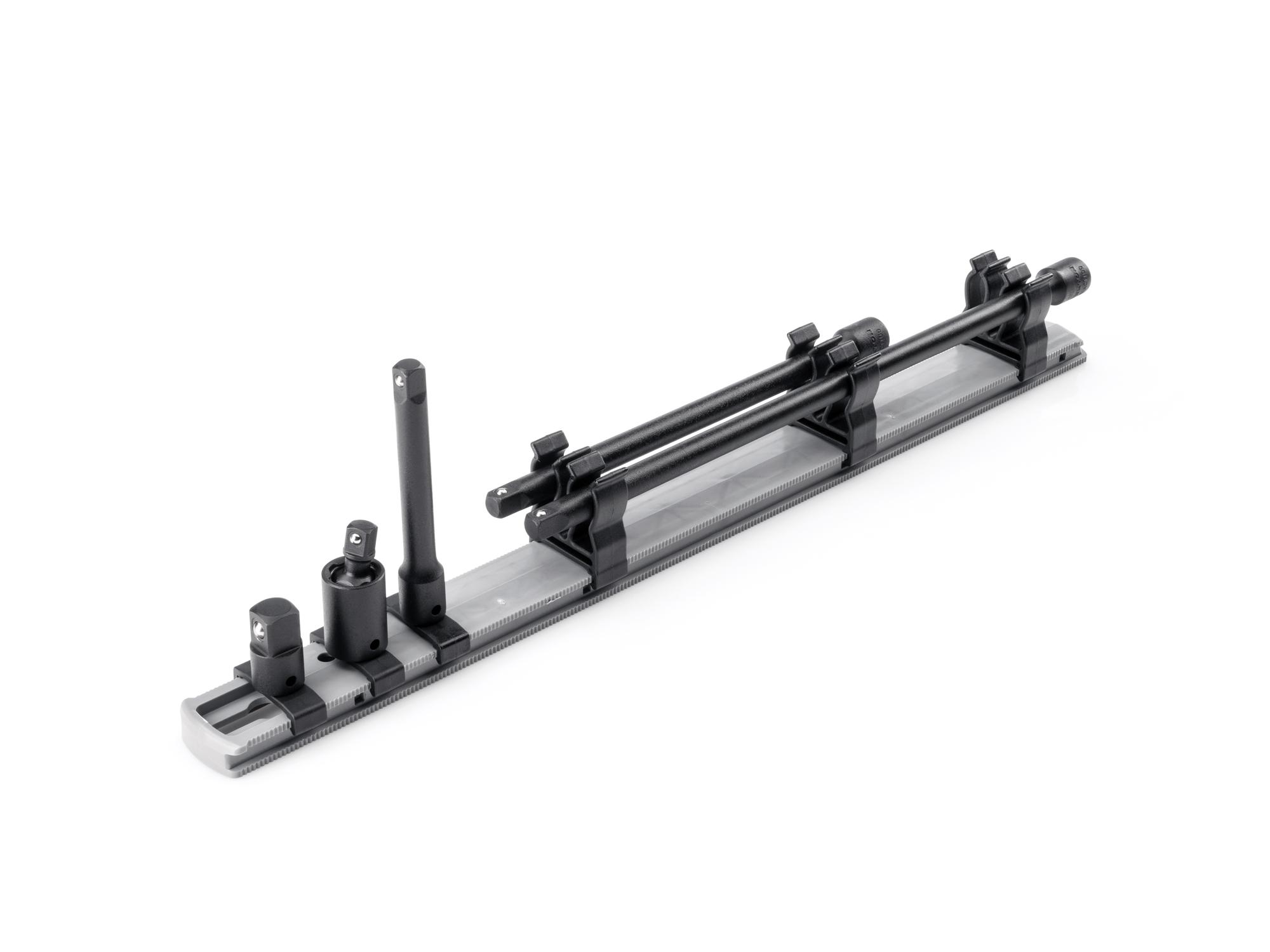

Front-right angle view of Tekton 13.1 impact drive accessory set. Item #SIA90101
Rail
$32
$26.00
Add to Cart
Set Includes:
DetailsSpecifications

Details

Tekton 1/4 inch drive impact extensions are available in 3 inch, 6 inch, and 9 inch lengths.

Three Extensions

#SIA02100

Universal Joint

Reach around obstructions and access fasteners at an angle.
#SIA04101

Adapter

Adapt 1/4 inch drive tools to 3/8 inch drive sockets.
The drive end of an impact universal joint, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Each accessory works with both types of anvils found on 1/4 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow and Deep Lengths)

inch impact sockets

5/32 – 11/16 Inch Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

metric impact sockets

4 – 17 mm Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

impact extensions

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

impact adapter

Adapter
8660 Ni-Cr-Mo

impact universal joint

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specifications

1/4 Inch Drive Impact All Accessories Set (5-Piece)

Country of Origin
Taiwan
Item Weight
0.52 lb.
