Front-right angle view of Tekton 6 inch impact drive accessory. Item #SIA01106

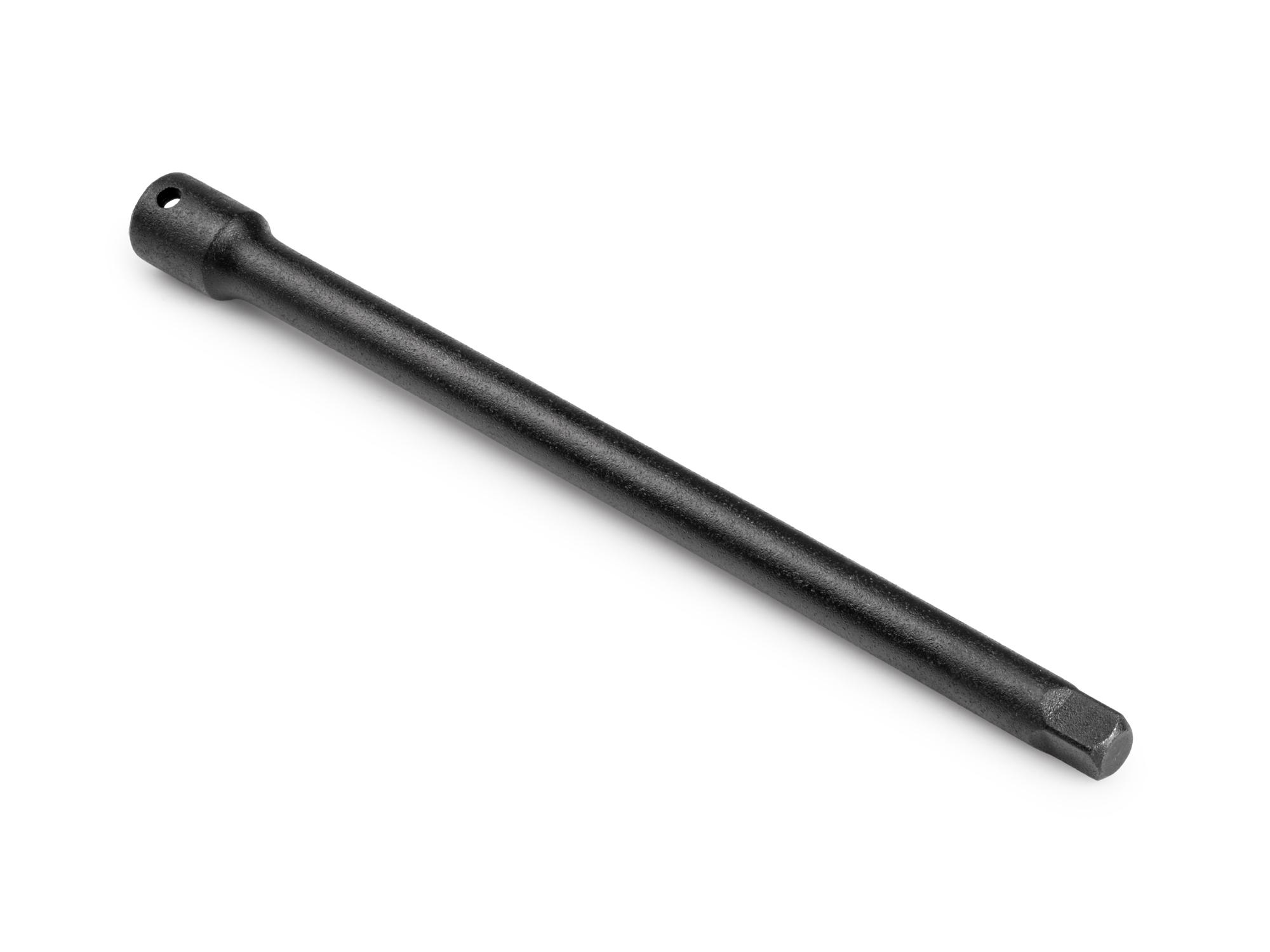

Back angle view of Tekton 6 inch impact drive accessory. Item #SIA01106

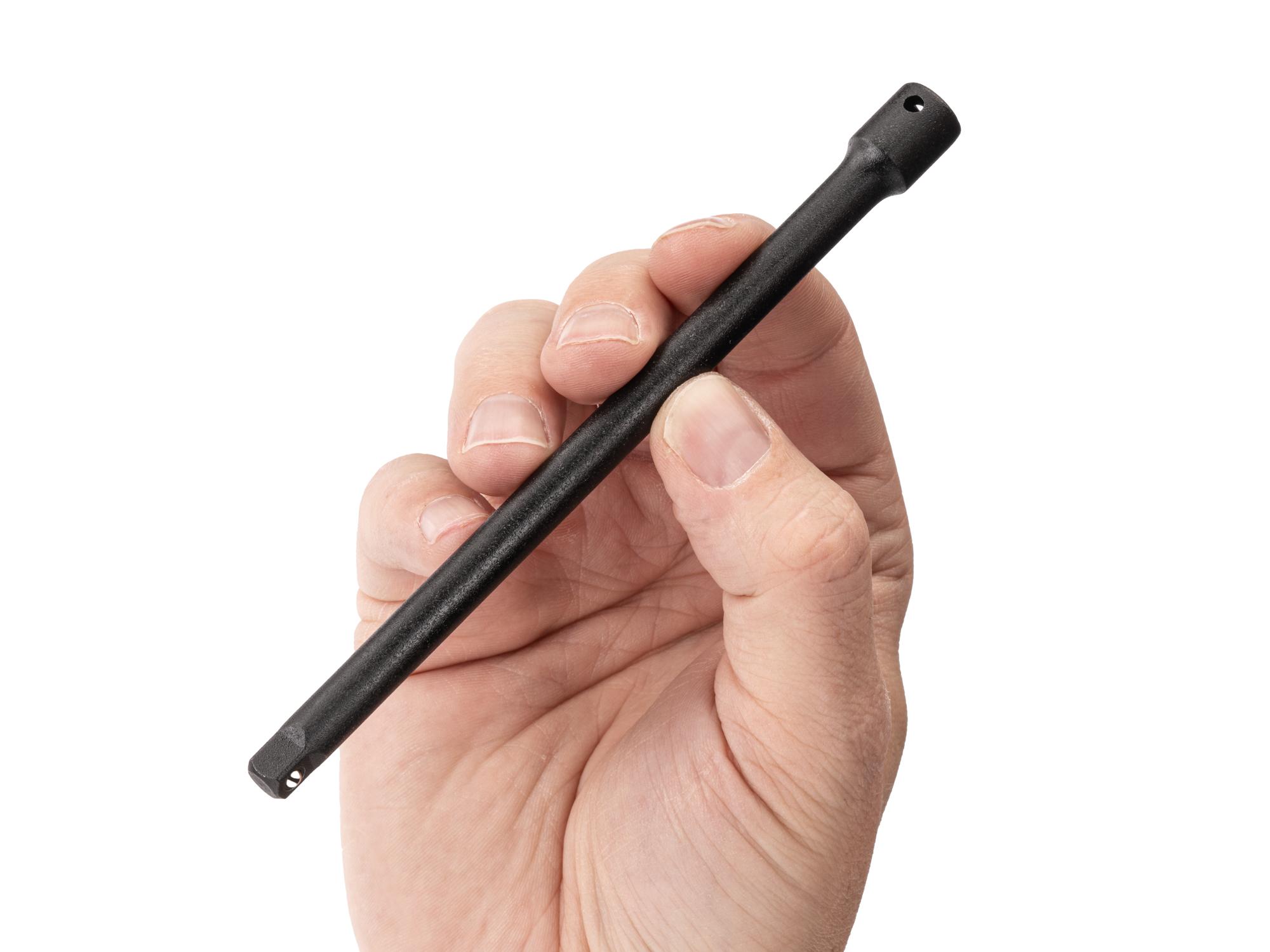

Person holding Tekton 6 inch impact drive accessory. Item #SIA01106
Tap image to zoom in
Item #SIA01106
1/4 Inch Drive

6 Inch Impact Extension

•

Length

3 in.
$5
6 in.
$6
9 in.
$7
$6.00
Add to Cart
DetailsSpecifications

Details

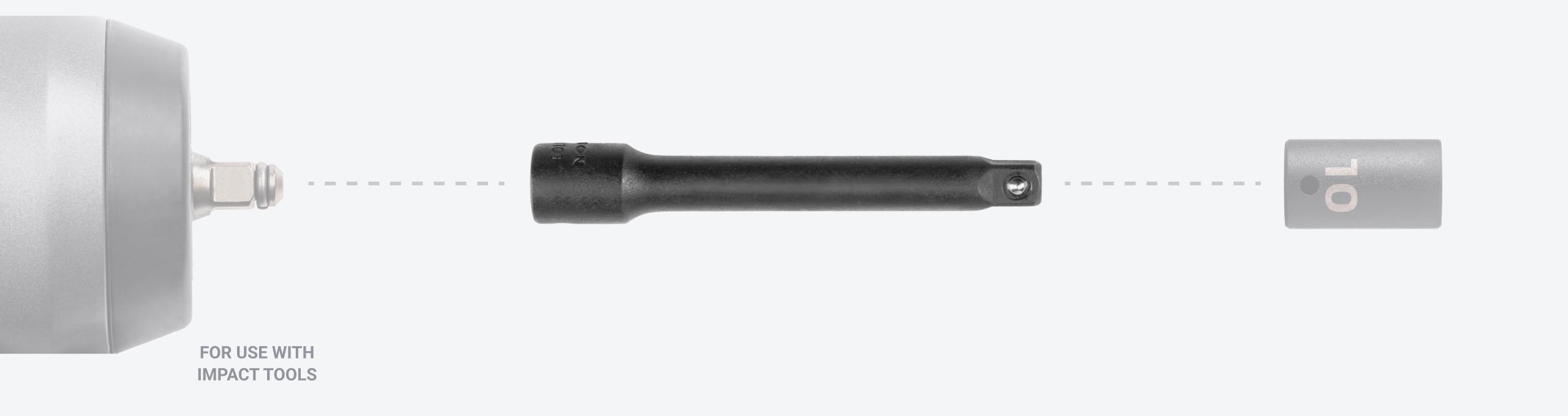

Tekton impact extensions are for use with impact tools

Extend Your Reach

Attach an extension to your drive tool to reach past obstructions or into tight spaces.
The drive end of an impact extension, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Extensions work with both types of anvils found on 1/4 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil

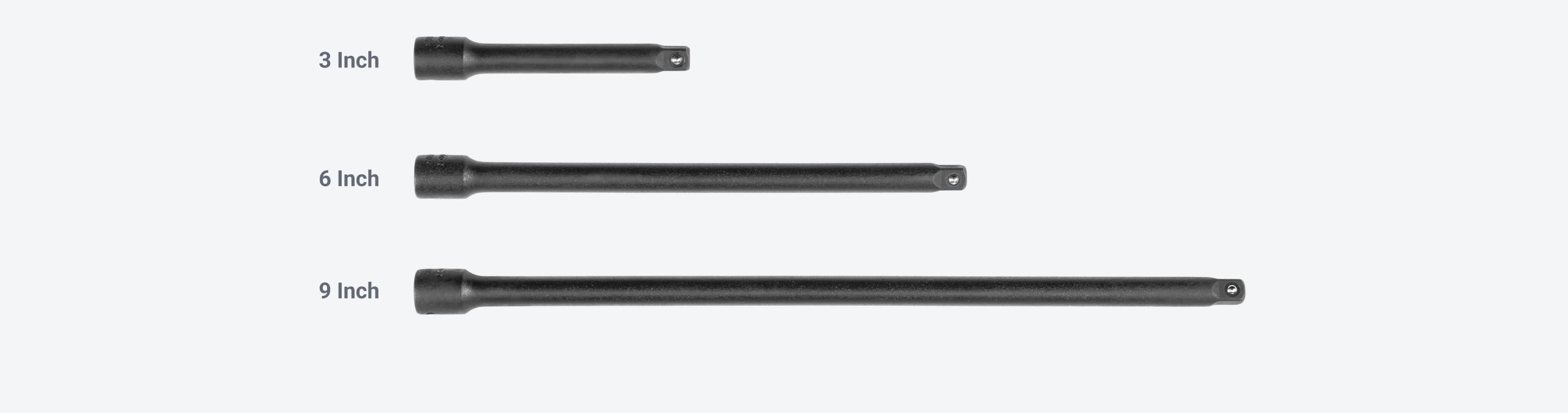

Tekton 1/4 inch drive impact extensions are available in 3 inch, 6 inch, and 9 inch lengths.

Available in Three Lengths

50BV30 Chromium-Vanadium (Cr-V)

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

6140 Chromium-Vanadium (Cr-V)

Carbon: 0.38 - 0.43%
Chromium: 0.50 - 0.70%
Manganese: 0.6 - 0.9%
Nickel: ≤0.030%
Phosphorous: ≤0.030%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Iron: 97.38 - 98.18%

8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)

Carbon: 0.56 - 0.64%
Chromium: 0.40 - 0.60%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.25%
Nickel: 0.40 - 0.70%
Phosphorous: ≤0.035%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.04%
Vanadium: 0.15 - 0.25%
Iron: 96.13 - 97.36%

Sockets (Shallow and Deep Lengths)

inch impact sockets

5/32 – 11/16 Inch Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

metric impact sockets

4 – 17 mm Sockets
Shallow: 6140 Cr-V
Deep: 50BV30 Cr-V

Accessories

impact extensions

3 in., 6 in., and 9 in. Extensions
6140 Cr-V

impact adapter

Adapter
8660 Ni-Cr-Mo

impact universal joint

Universal Joint
Ball: 8660 Ni-Cr-Mo
Socket: 4140 Cr-Mo

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. All pieces have a corrosion-resistant manganese phosphate coating.
Learn More

Specifications

1/4 Inch Drive x 6 Inch Impact Extension

Specs for 1/4 Inch Drive x 6 Inch Impact Extension
Country of Origin
Taiwan
Item Weight
0.15 lb.
