Item #SRH26206
1/2 Inch Drive x 6 Inch Flex Head Non-Quick-Release Stubby Ratchet
1/2 Inch Drive x 6 Inch Flex Head Non-Quick-Release Stubby Ratchet
•
$50.00
Add to Cart
Details
Video Overview
This compact 1/2 inch drive ratchet fits where others can't. The slim head flexes a full 180 degrees with smooth tension that holds wherever you set it.
Controlled Tension Flex Joint
The non-locking joint gives the head a continuous 180-degree range of motion. It has just the right amount of tension to hold any position without flopping over.
90-Tooth Gear = 4º Swing Arc
The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.

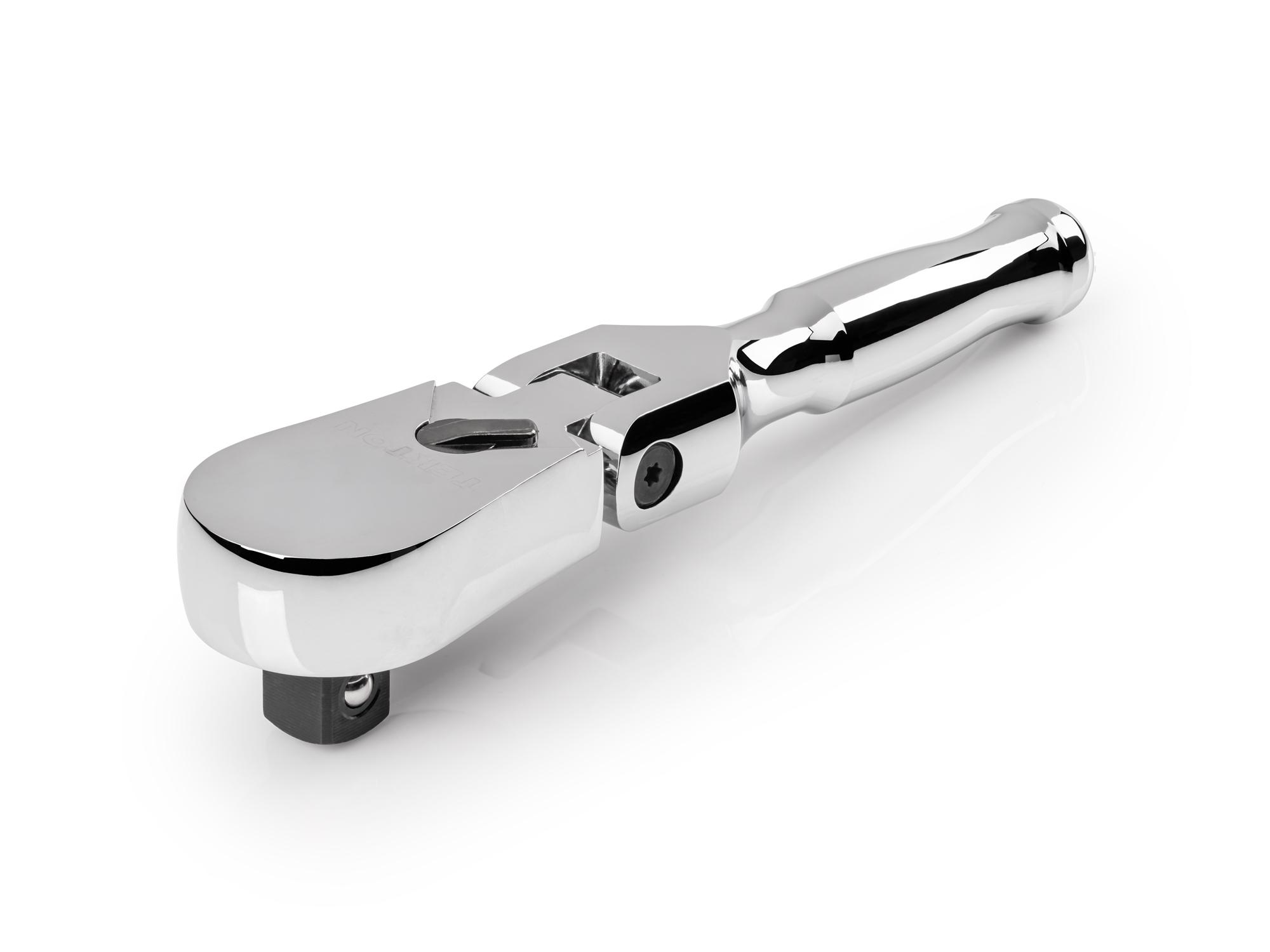

Ultra-Compact Head
Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.
Proof Torque
Our ratchets meet (and most far exceed) the industry standard for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 2 Handles, Ratchet, Reversible.” ASME B107.110-2019.

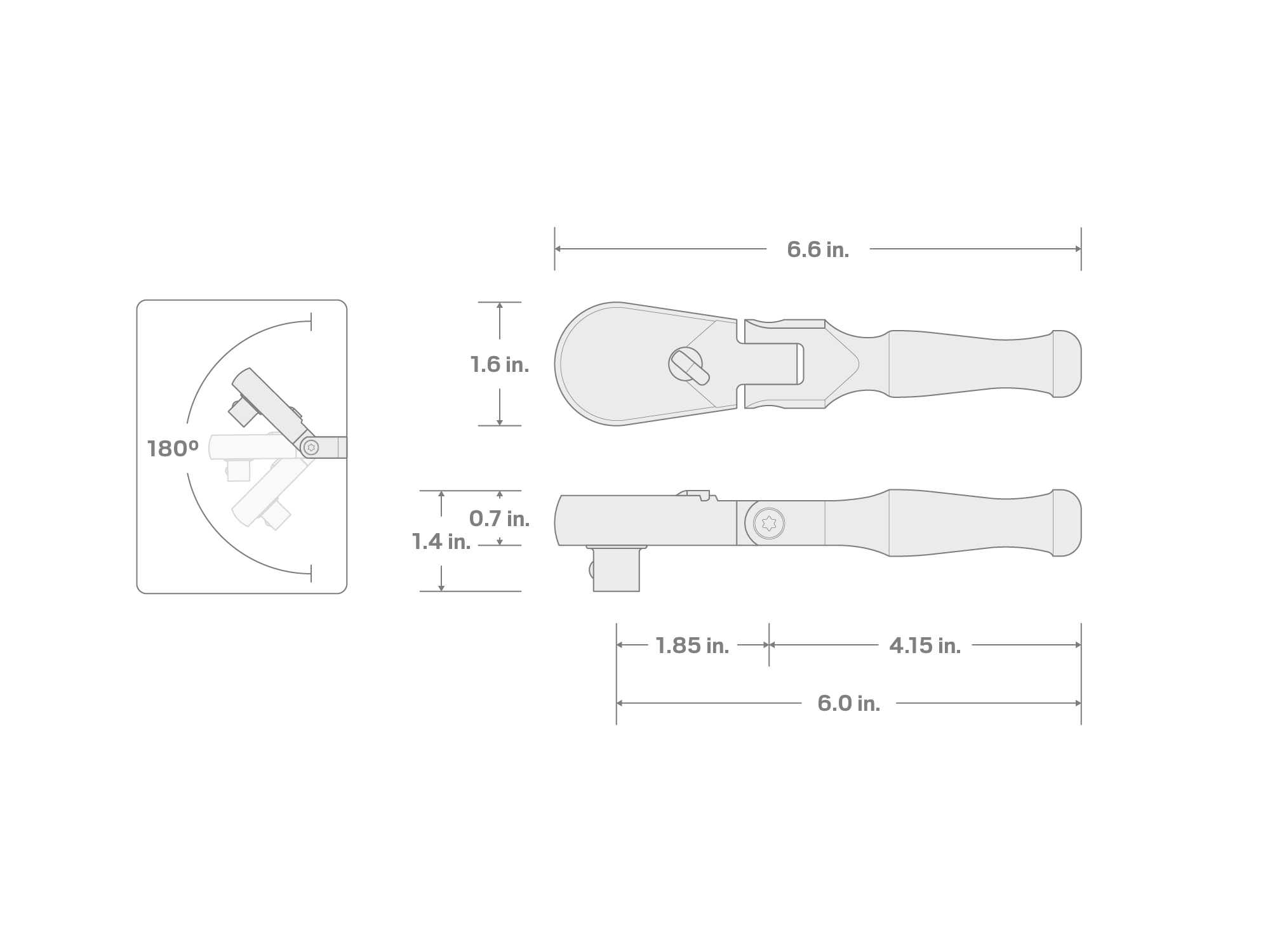

Working Handle Length
We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.

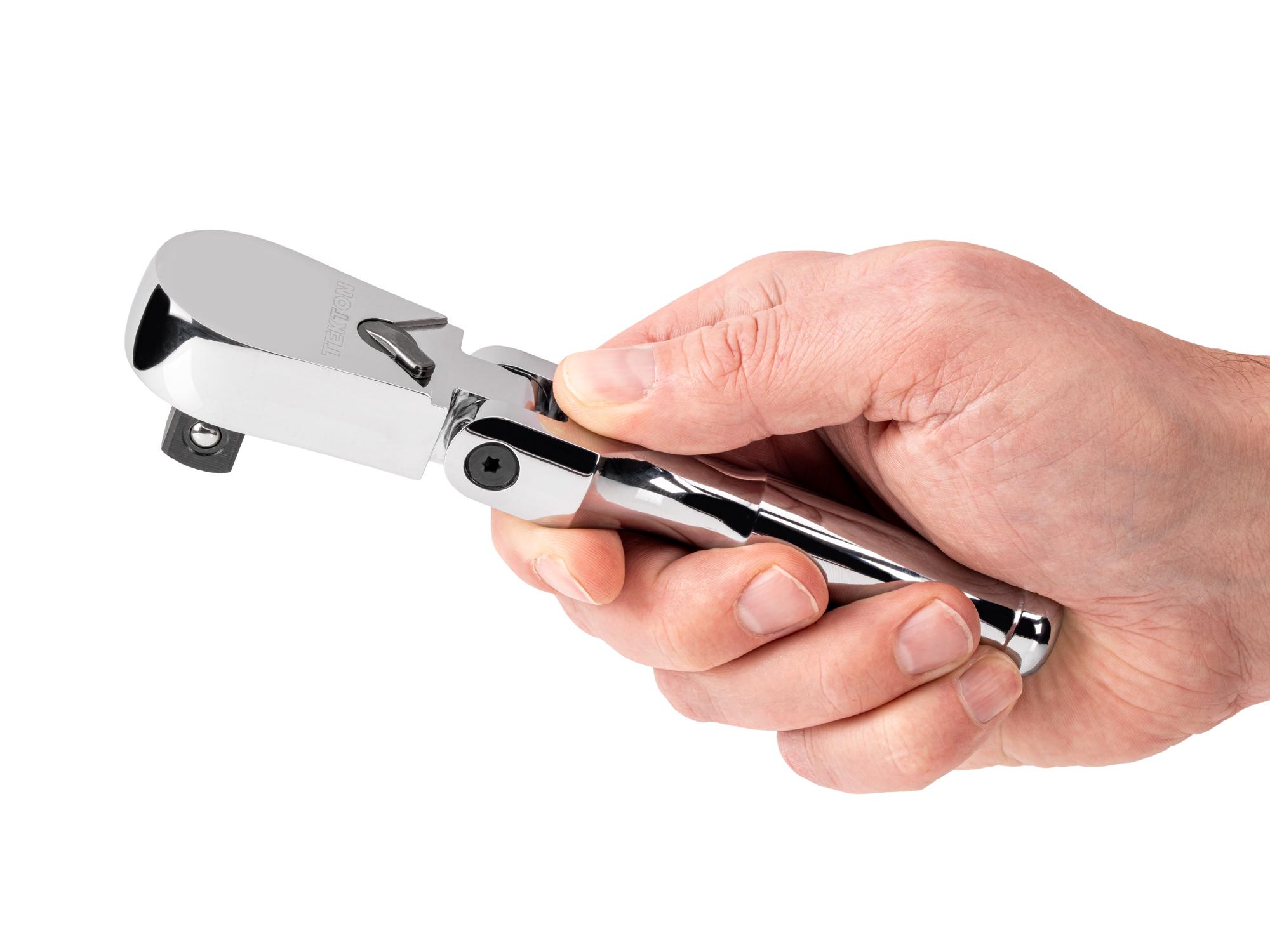

Sleek, Stubby Handle
The handle is kept as short as possible while still providing meaningful leverage in tight spaces. A defined finger groove provides control, and the flared end helps keep your grip secure.
Parts and Assembly
The ratchet head internals are serviceable.
A. Screws
B. Cover Plate
C. Washer
D. Detent Ball
E. Gear/Tang
F. Head
G. Pawl
H. Switch Pin
I. Switch Pin Spring
J. Switch
K. Switch Ball
L. Switch Spring
M. Washer
N. Pivot Pin
O. Handle
Specifications
1/2 Inch Drive x 6 Inch Flex Head Non-Quick-Release Stubby Ratchet
| Country of Origin | Taiwan |
| Item Weight | 1.04 lb. |
