Home/Impact Sockets/6-Point Impact Sockets/1/2 Inch Drive 6-Point Impact Sockets
New

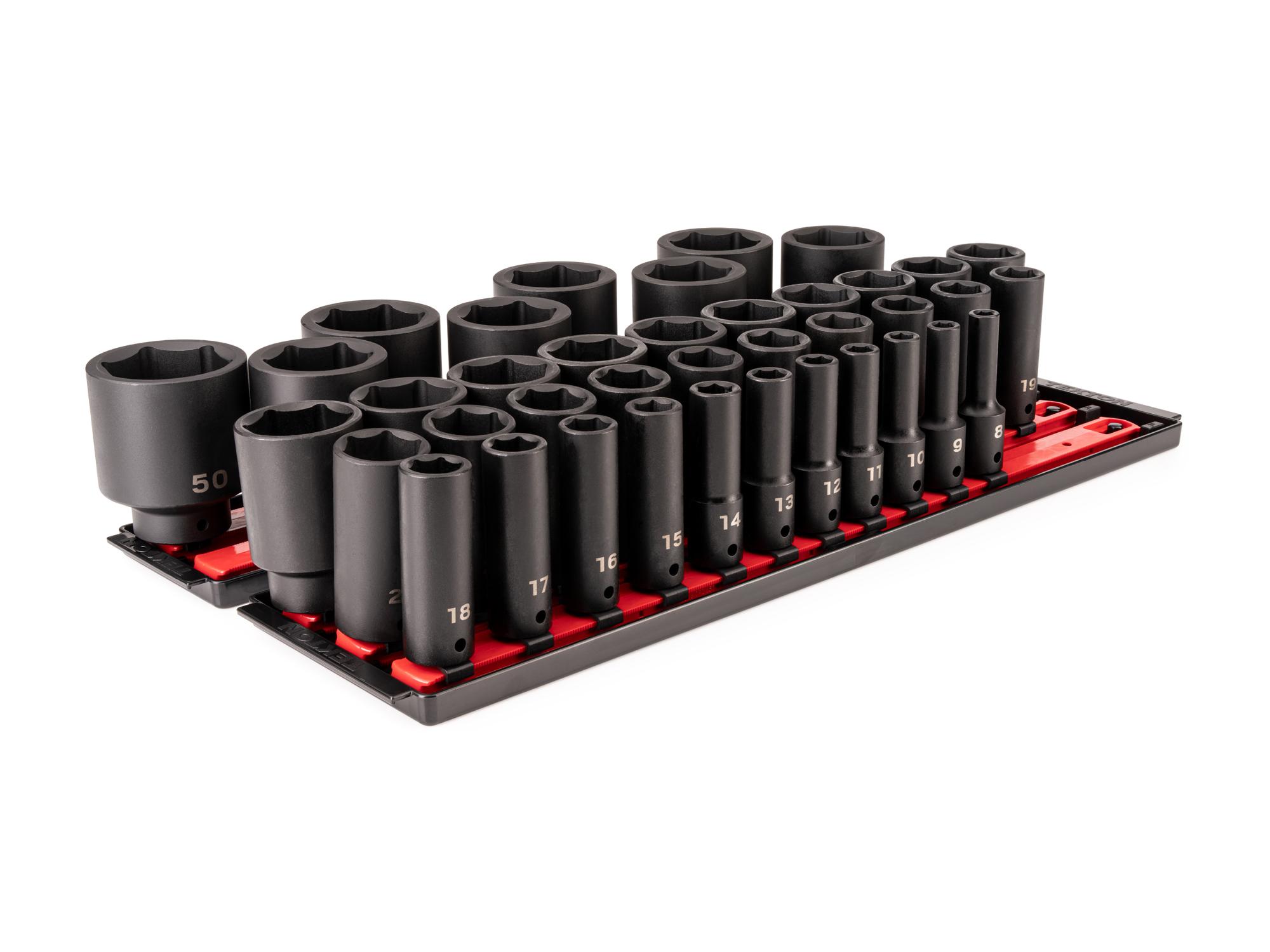

Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92113

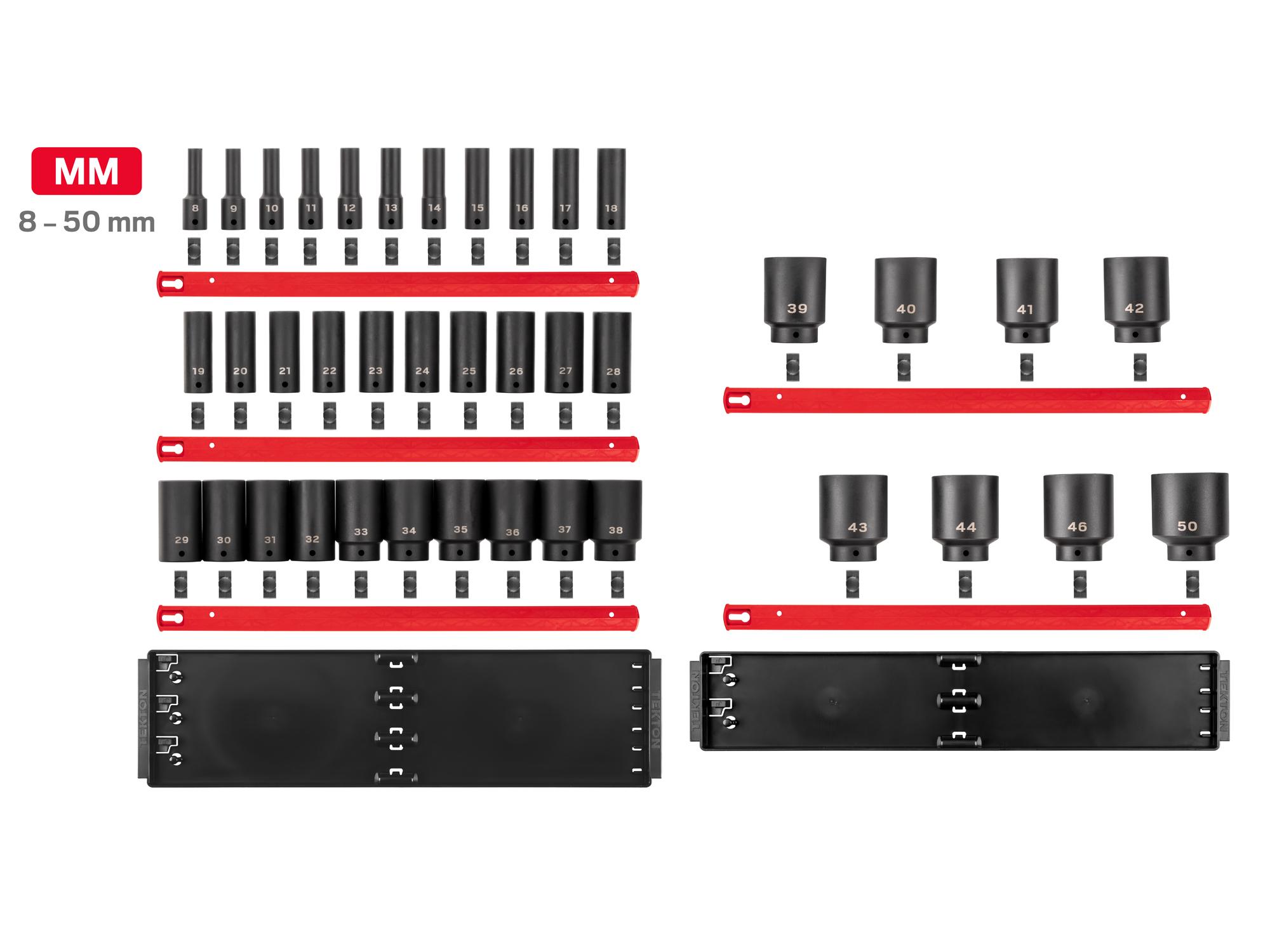

Laid out contents of Tekton impact drive 6-point socket set. Item #SID92113

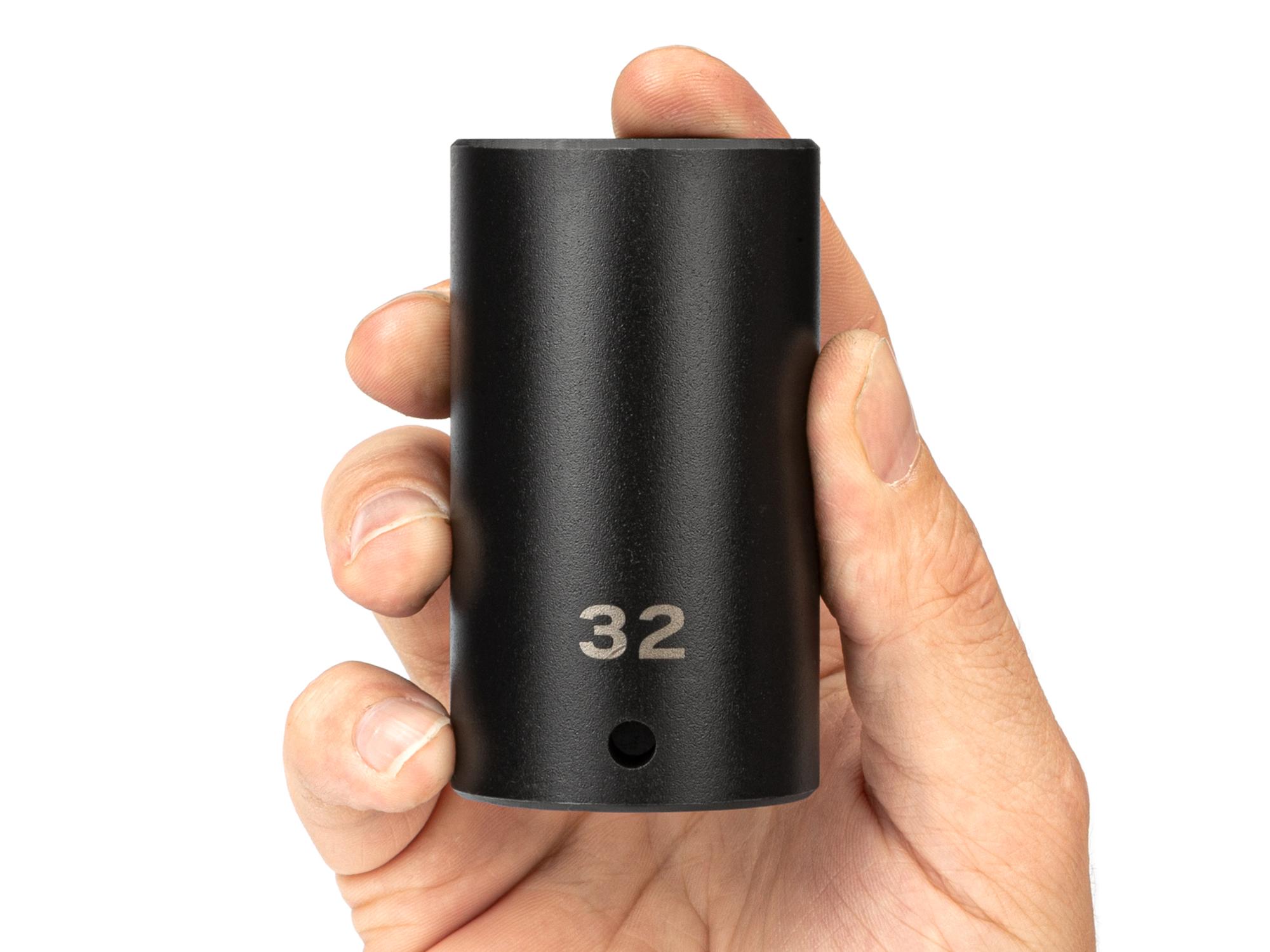

Person holding Tekton 32 millimeter impact drive 6-point socket. Item #SID23132
Tap image to zoom in
Item #SID92113

1/2 Inch Drive Deep 6-Point Impact Socket Set with Rails and Tray (39-Piece)

MM
8 - 50 mm
•
InchMetric

Set Range

8 - 38 mm
8 - 50 mm
39 - 50 mm

Socket Depth

Shallow
Deep

Organization Option

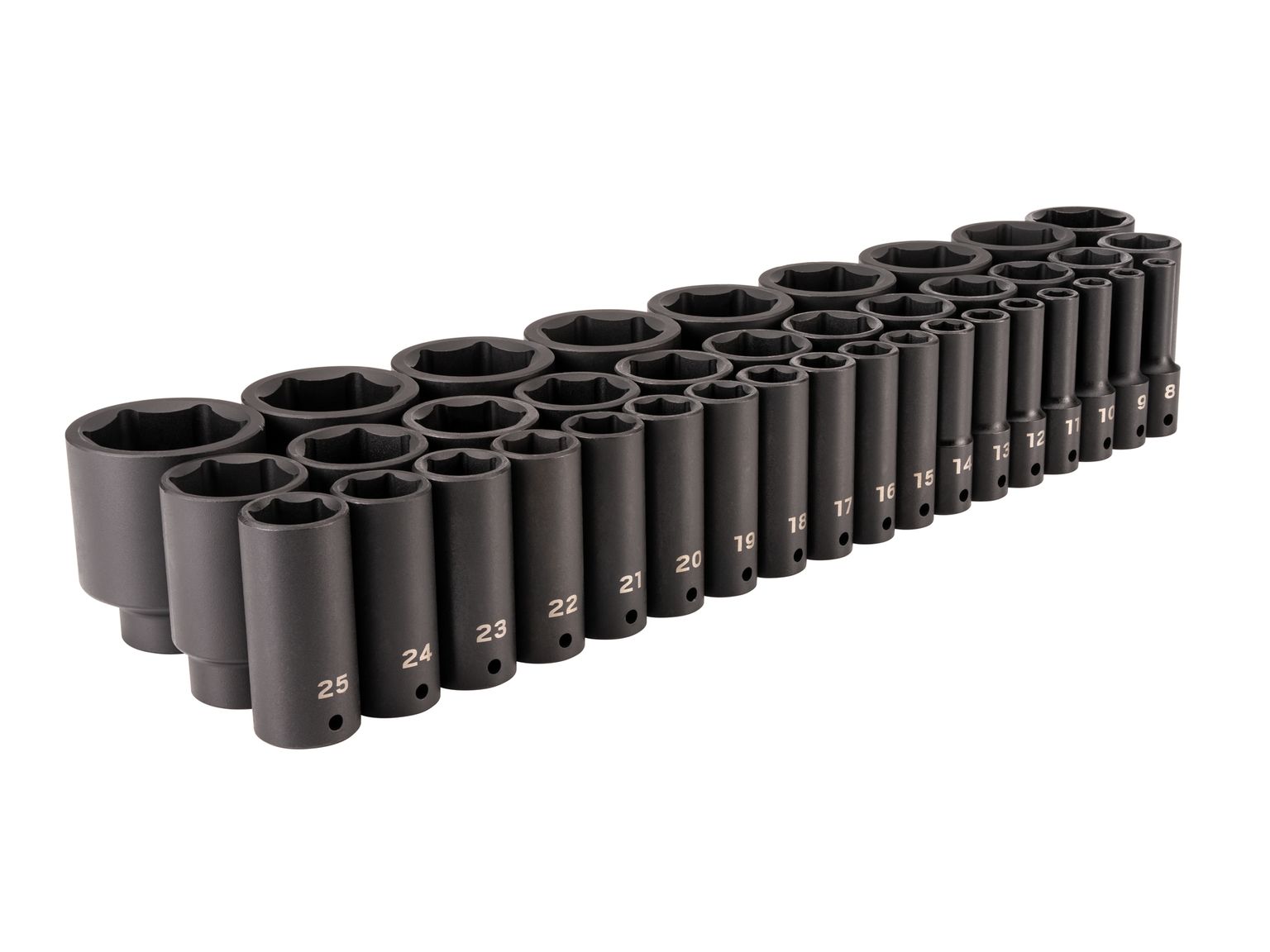

Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92011
Tool Only
$370
Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92113
Rail
$410
$410.00
Add to Cart
Set Includes:
DetailsSpecifications

Details

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A line next to an 8 mm impact socket showing the fully stepped shoulders.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small deep-length sizes. This allows for better reach into tight, recessed areas.
A cutaway view of a deep impact socket on a fitting, showing the full-length socket well.

Full-Length Socket Well

Not only is the socket a deep length, but the interior well also extends far into the socket, which allows for better fastener engagement in more situations.

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton 1/2 inch drive impact sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - IN 5/16 - 1-1/4 in. sockets
    - MM 8 - 32 mm sockets
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - IN 1-5/16 - 2 in. sockets
    - MM 33 - 50 mm sockets
    - Universal joint socket base
  • 6140 Chromium-Vanadium (Cr-V)
    - 3, 6, and 10 inch extensions
  • 8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)
    - Adapter
    - Reducer
    - Universal joint ball/tang
All pieces have a corrosion-resistant manganese phosphate coating.

Socket Rail Organization

  • Patented twist-to-lock design securely holds sockets on the rail
  • Keyhole slot mounts to wall or workbench
  • Combine multiple socket rails with trays and other accessories

Specifications

1/2 Inch Drive Deep 6-Point Impact Socket Set with Rails and Tray, 39-Piece (8 - 50 mm)

Country of Origin
Sockets made in Taiwan. Rails and trays made in USA.
Item Weight
41.4 lb.
