Home/Impact Sockets/6-Point Impact Sockets/1/2 Inch Drive 6-Point Impact Sockets

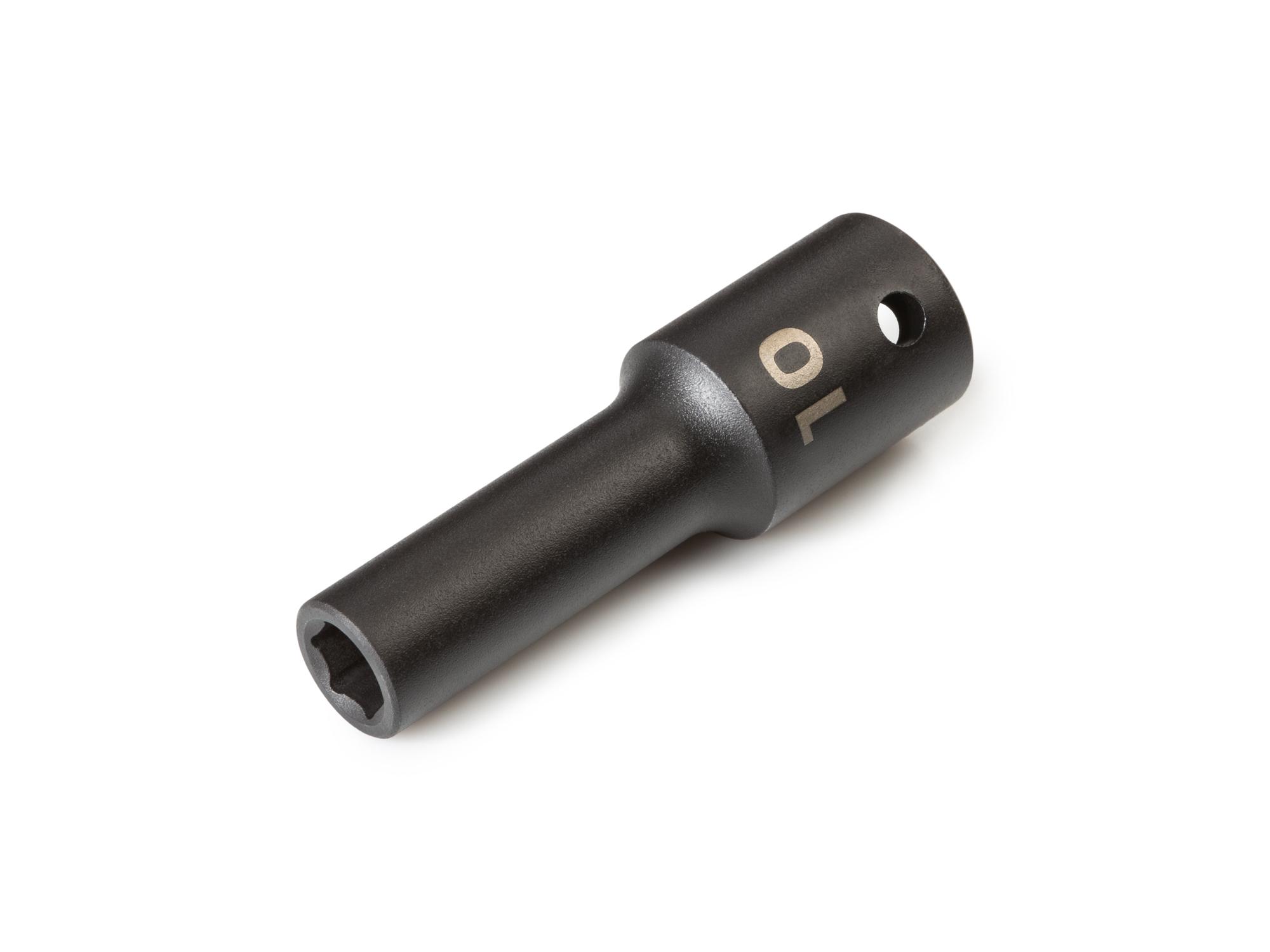

Front-right angle view of Tekton 10 millimeter impact drive 6-point socket. Item #SID23110

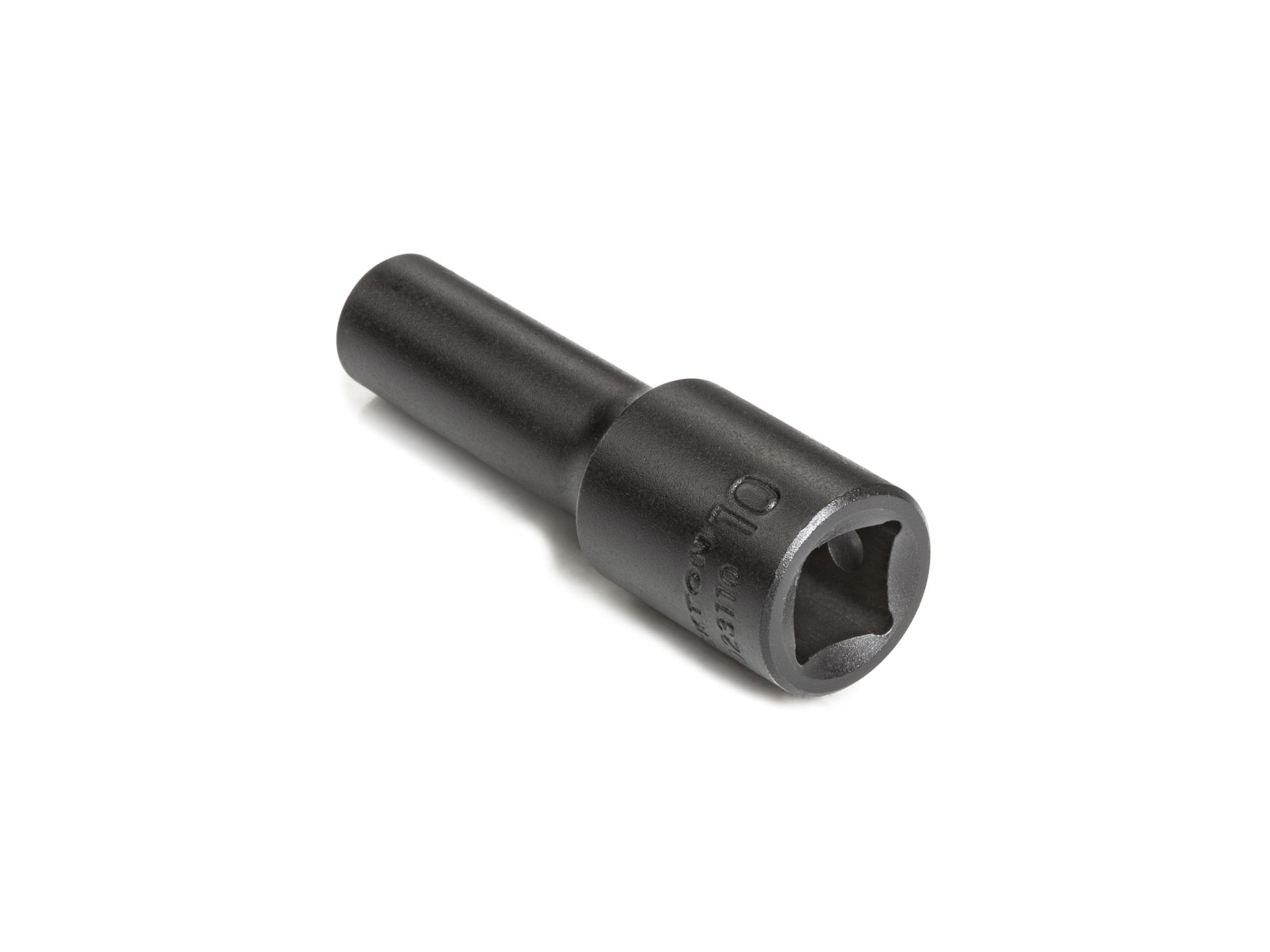

Back angle view of Tekton 10 millimeter impact drive 6-point socket. Item #SID23110

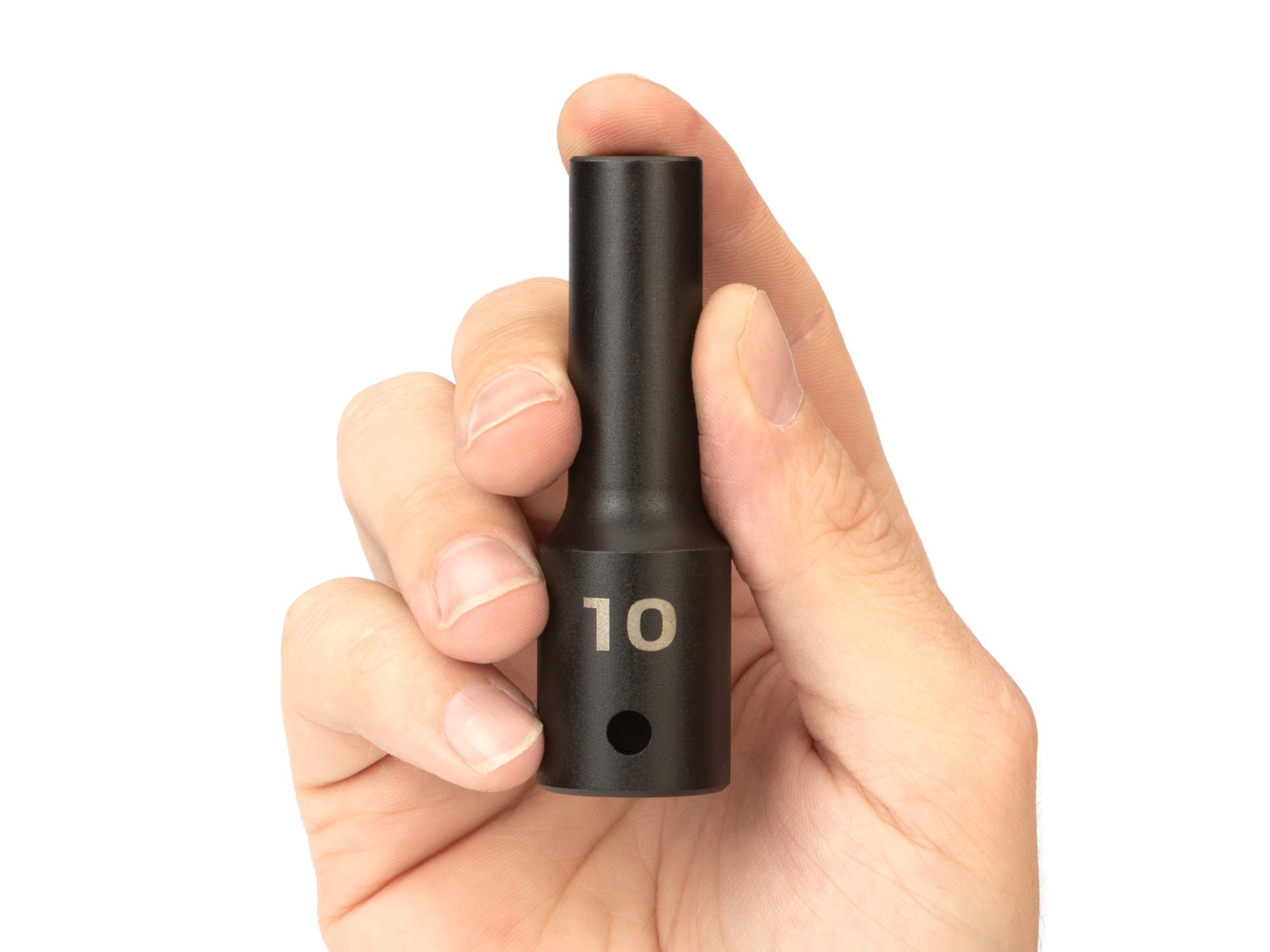

Person holding Tekton 10 millimeter impact drive 6-point socket. Item #SID23110
Tap image to zoom in
Item #SID23110

1/2 Inch Drive x 10 mm Deep 6-Point Impact Socket

•
InchMetric

Sizes

8 mm
$7
9 mm
$7
10 mm
$7
11 mm
$7
12 mm
$7
13 mm
$7
14 mm
$7
15 mm
$8
16 mm
$8
17 mm
$9
18 mm
$9
19 mm
$9
20 mm
$10
21 mm
$10
22 mm
$10
23 mm
$11
24 mm
$11
25 mm
$12
26 mm
$12
27 mm
$12
28 mm
$13
29 mm
$13
30 mm
$15
31 mm
$15
32 mm
$15
33 mm
$17
34 mm
$17
35 mm
$19
36 mm
$20
37 mm
$20
38 mm
$21
39 mm
$23
40 mm
$23
41 mm
$25
42 mm
$26
43 mm
$26
44 mm
$29
46 mm
$32
50 mm
$39
$7.00
Add to Cart

Also Available:

Shallow Socket • 12-Point

DetailsSpecifications

Details

Graphic showing Tekton 18 mm 6-Point Impact Drive Sockets in shallow and deep lengths

Our 1/2 Inch Drive Impact
Socket Lineup

Our 1/2 inch drive 6-point impact socket lineup consists of shallow (previously called standard) and deep length sockets.

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.
A line next to an 8 mm impact socket showing the fully stepped shoulders.

Fully Stepped Shoulders

The narrowed socket diameter goes all the way down to the base of the socket on small deep-length sizes. This allows for better reach into tight, recessed areas.
A cutaway view of a deep impact socket on a fitting, showing the full-length socket well.

Full-Length Socket Well

Not only is the socket a deep length, but the interior well also extends far into the socket, which allows for better fastener engagement in more situations.

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:
Graphic showing green check marks on friction ring anvil and detent pin anvil
Graphic showing how the force applied by a socket to a fastener is on the flat sides of the socket and not the corners, preventing fastener round off.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener's flat sides, rather than its corners.
Tekton 1/2 inch drive impact sockets and accessories on a light gray background.

High-Performing Steel Alloys

Part by part, we choose the best combination of steel alloys, heat treating specifications, and forming processes to meet the highest performance requirements. Learn more

  • 50BV30 Chromium-Vanadium (Cr-V)
    - IN 5/16 - 1-1/4 in. sockets
    - MM 8 - 32 mm sockets
  • 4140 Chromium-Molybdenum (Cr-Mo)
    - IN 1-5/16 - 2 in. sockets
    - MM 33 - 50 mm sockets
    - Universal joint socket base
  • 6140 Chromium-Vanadium (Cr-V)
    - 3, 6, and 10 inch extensions
  • 8660 Nickel-Chromium-Molybdenum (Ni-Cr-Mo)
    - Adapter
    - Reducer
    - Universal joint ball/tang
All pieces have a corrosion-resistant manganese phosphate coating.

Specifications

1/2 Inch Drive x 10 mm Deep 6-Point Impact Socket

Specs for 1/2 Inch Drive x 10 mm Deep 6-Point Impact Socket
Country of Origin
Taiwan
Item Weight
0.26 lb.
