TEKTON SID92340-D 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)
TEKTON SID92340-D 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)
TEKTON SID92340-D 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)
TEKTON SID92340-D 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)
Click image to zoom in

1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)

#SID92340
 •
$76.00

This set contains impact sockets from our current lineup that fit axle nut sizes commonly found on passenger vehicles.

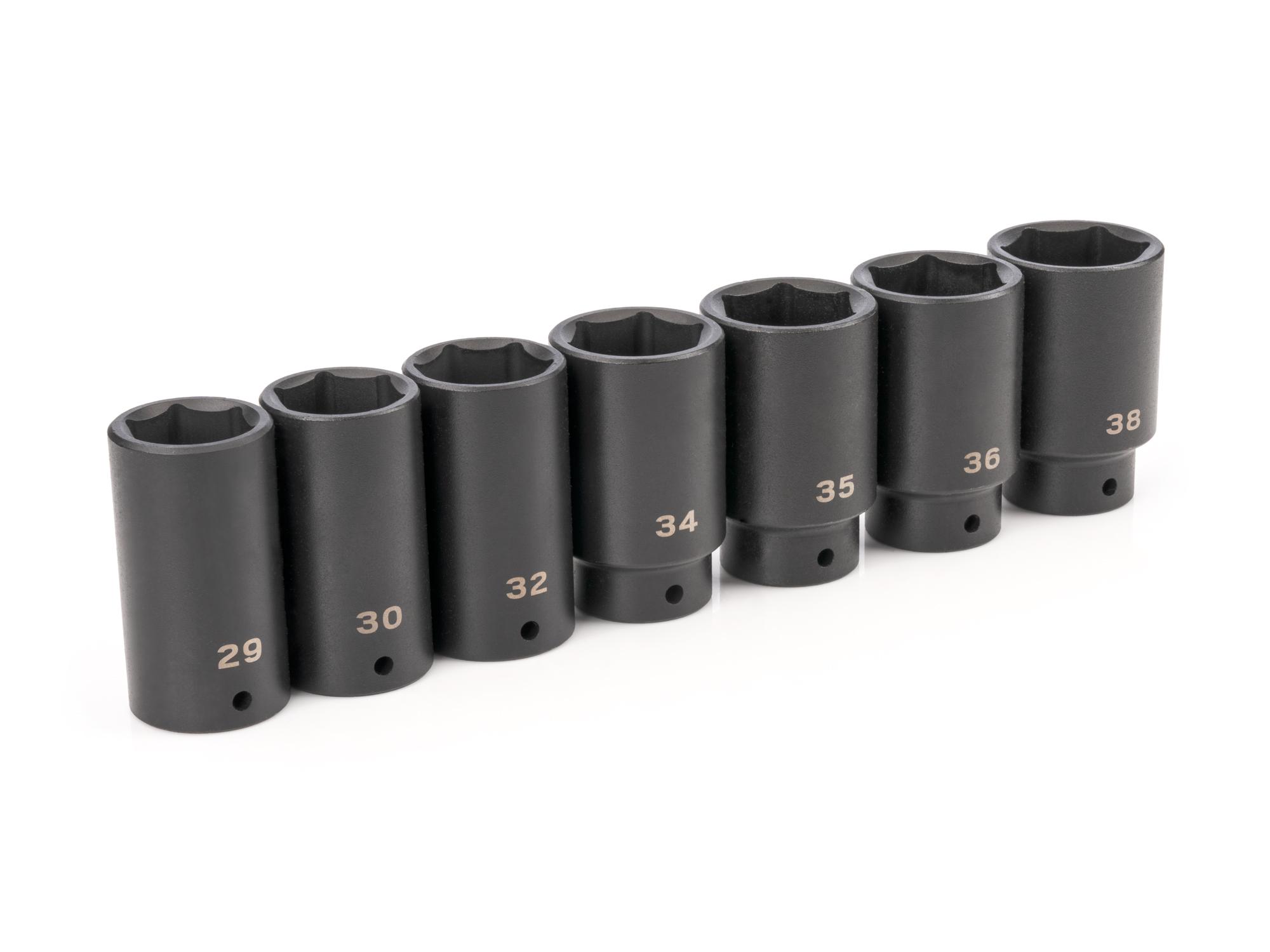

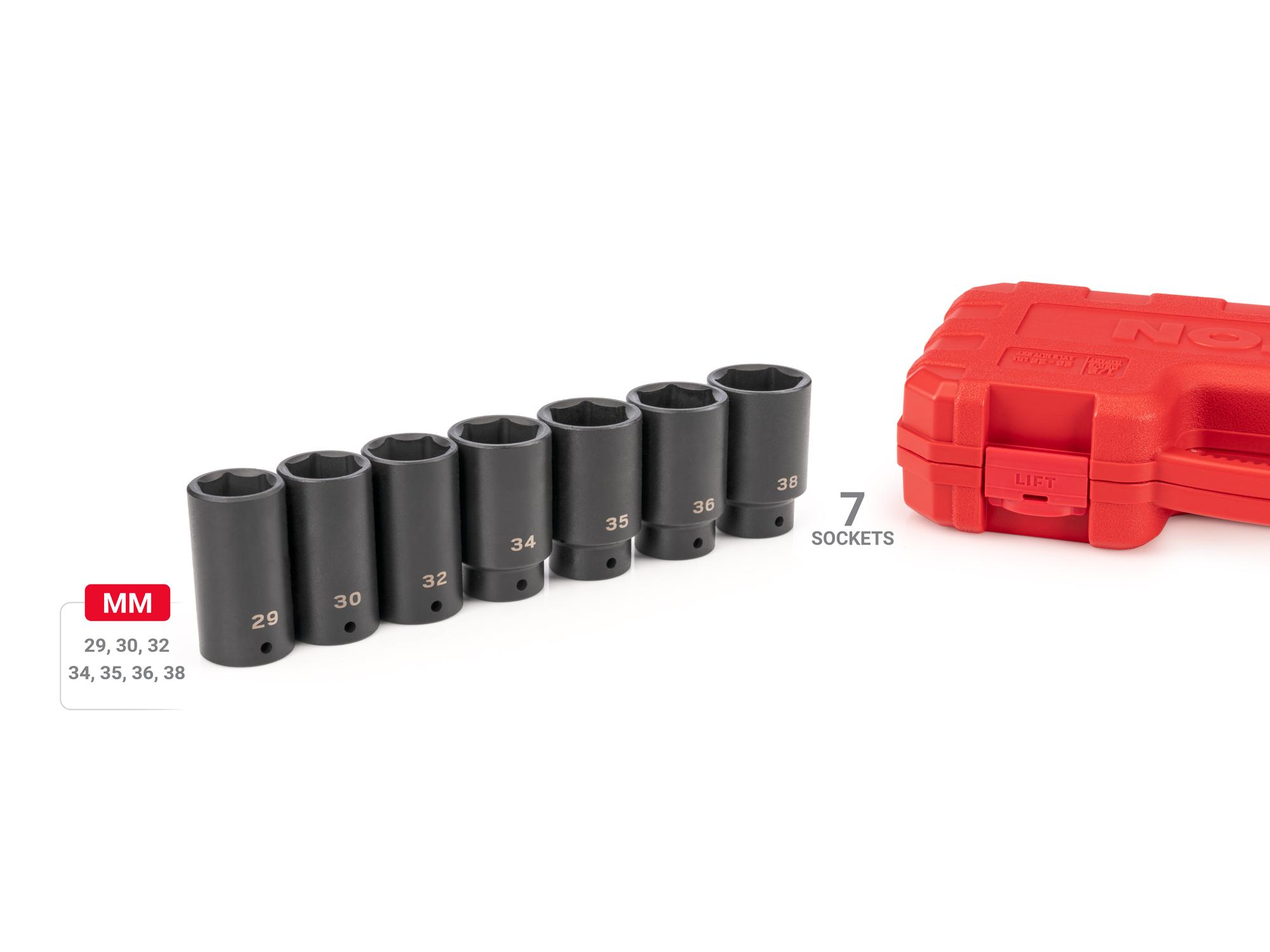

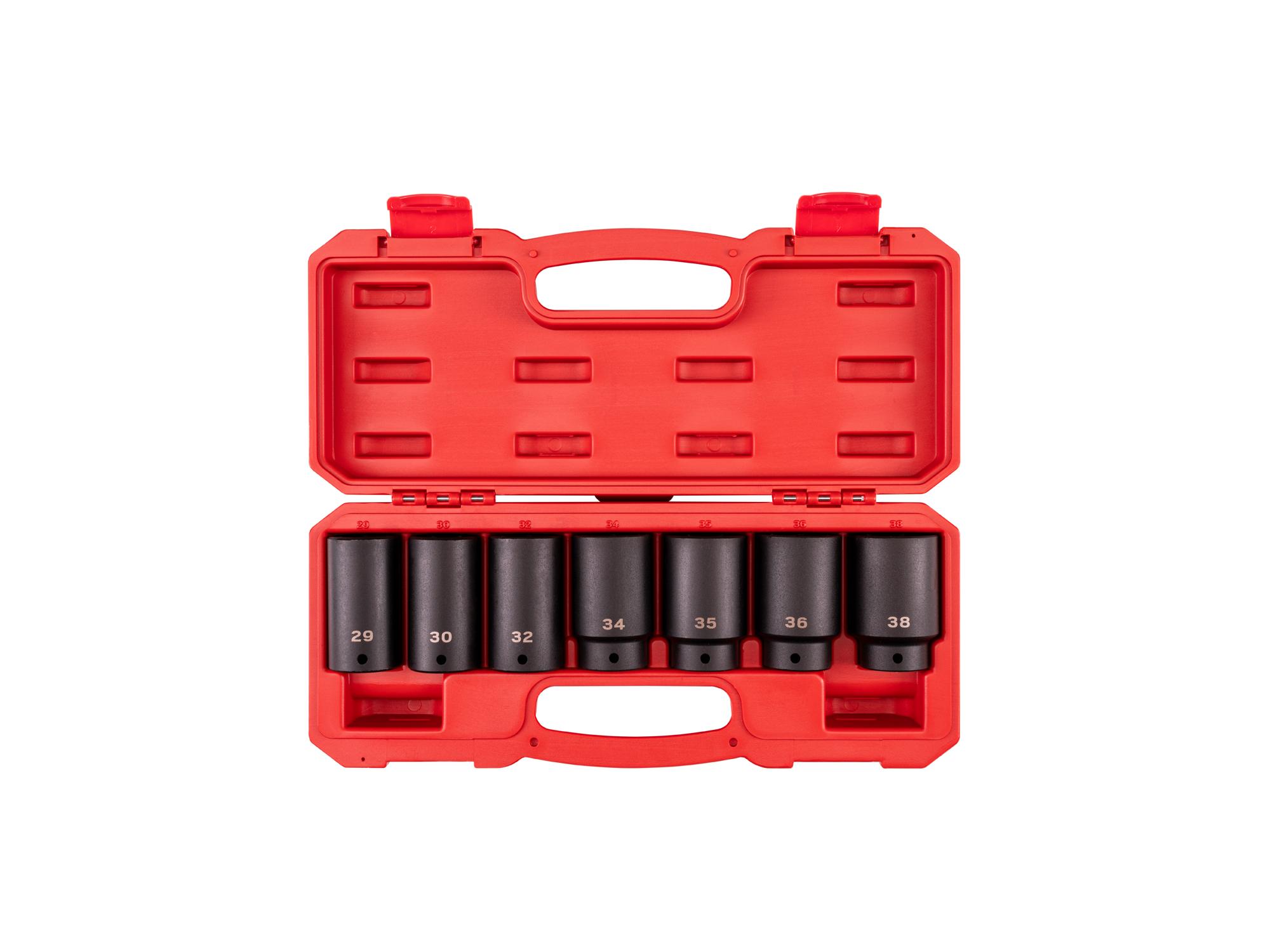

Set Includes:

Details

Quickly Remove Axle Nuts

Impact sockets are ideal for quickly and safely removing and replacing axle nuts. This set contains sockets for servicing 6-point axle nuts.

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Deep Length for Greater Reach

  • The deep length socket can reach into wells to access axle nuts without the use of an impact extension, which could reduce torque.
  • The interior well extends far into the socket, providing ample room for the axle nut and spindle.

Drive Tool Retention

Sockets work for both types of anvils found on 1/2 inch drive impact wrenches:

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

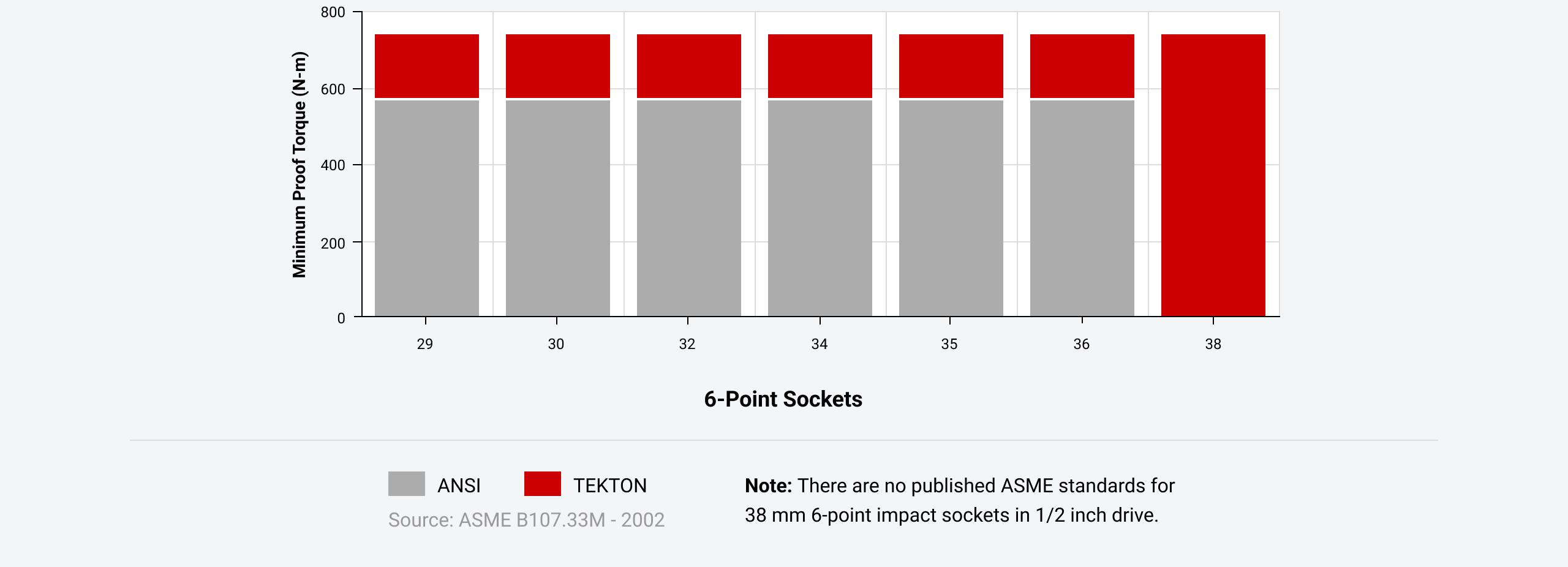

Sockets Exceed ANSI Torque Standards

Each socket size meets a minimum of 1.3 times the ANSI/ASME standard for proof torque.
(A single-cycle test applies torque until a specified value is reached without failure or permanent deformation.)

High-Performing Steel Alloys

We choose the best combination of steel alloys, heat treating specifications, and forming processes for each socket to meet the highest performance requirements.
Cr-V sockets include 6-point 27, 29, 30, 31, and 32mm and 12-point 30 and 32mm. Cr-Mo sockets include 6-point 33, 34, 35, 36, and 38mm and 12-point 36 and 39mm

50BV30 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

All sockets have a corrosion-resistant manganese phosphate coating. Learn More About Our Materials

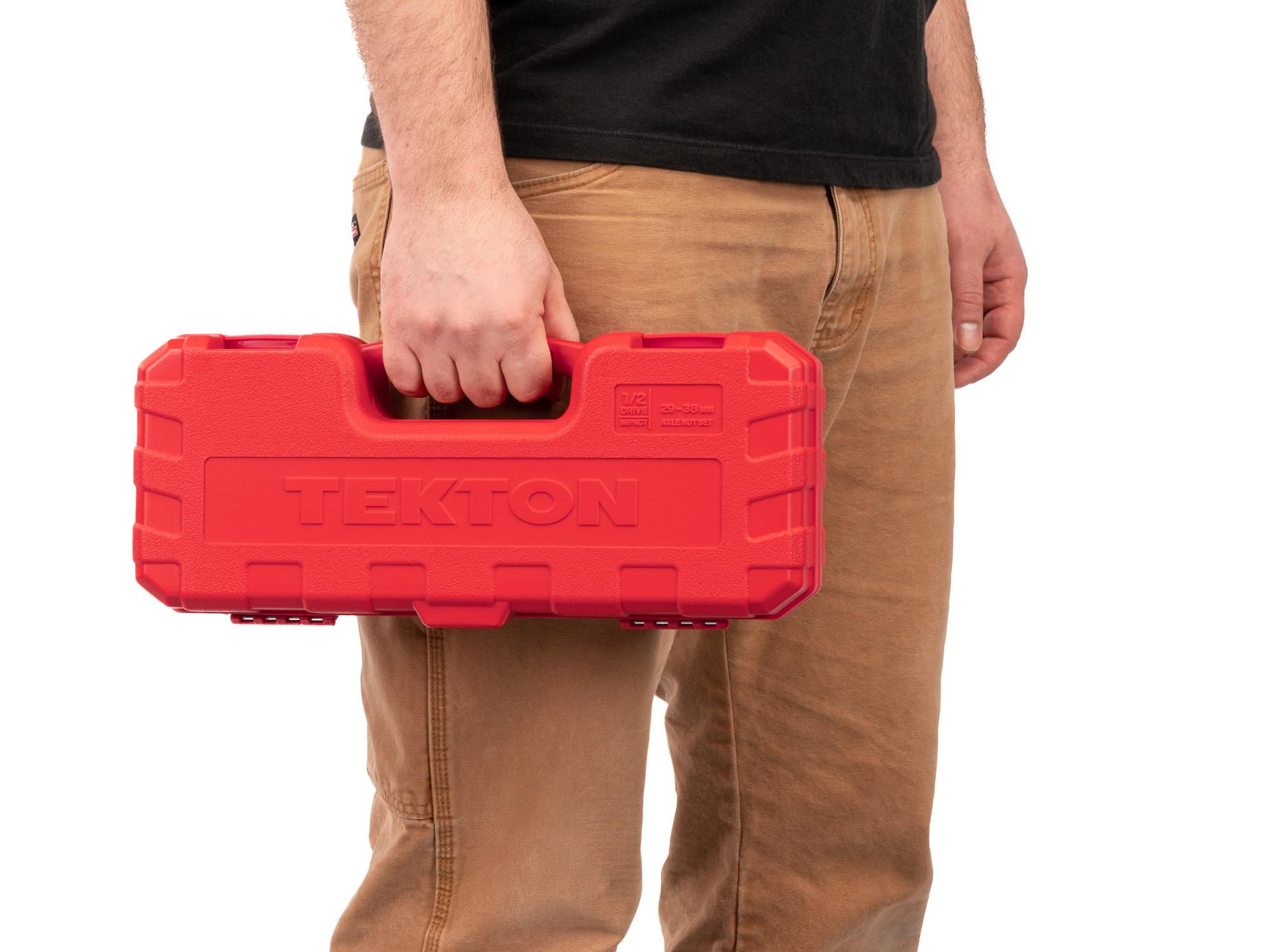

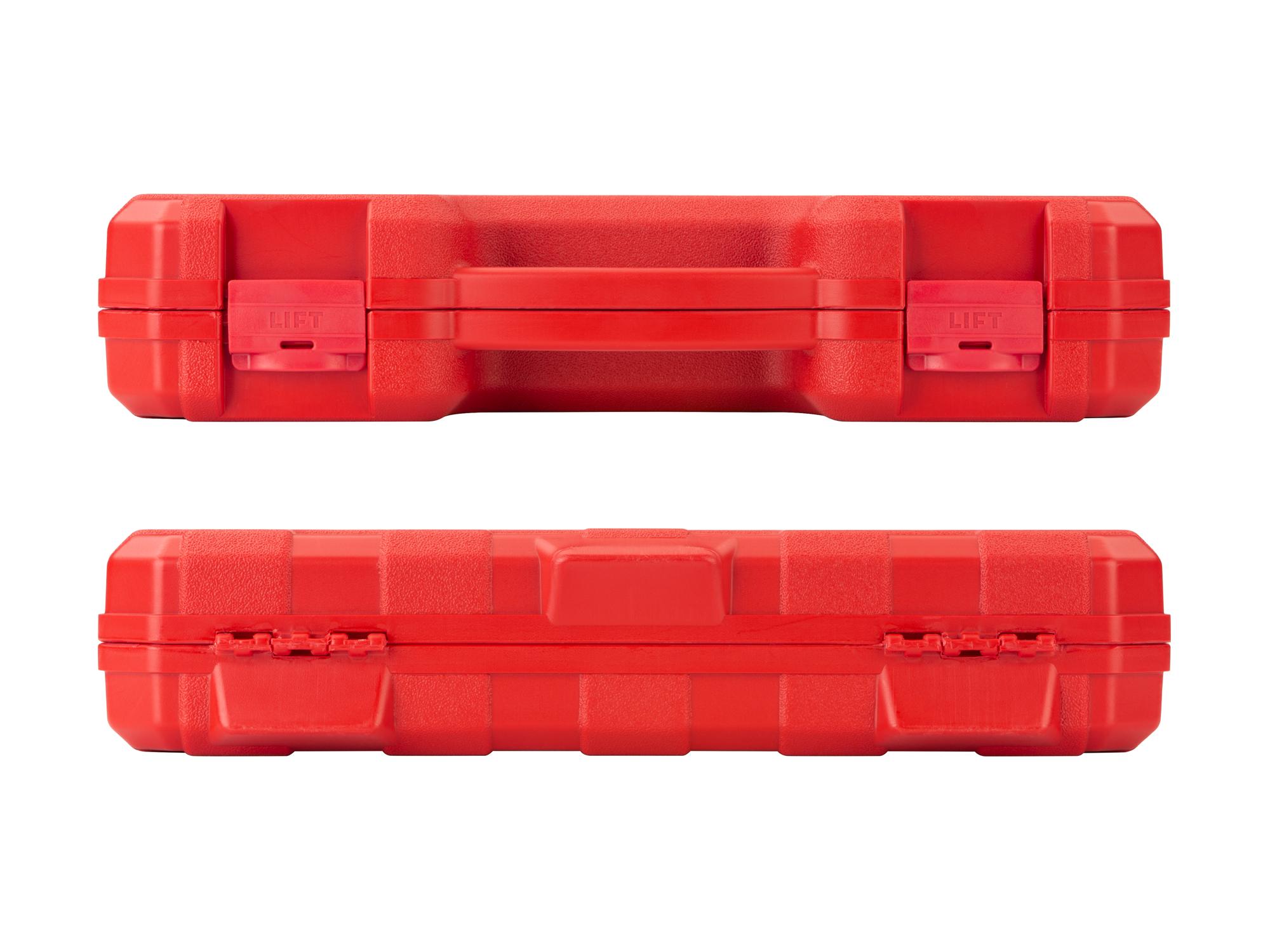

Storage Case

High-density polyethylene case withstands common lubricants, fuels, and solvents.

Specs

1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)

Specs for 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Case, 7-Piece (29-38 mm)
Country of Origin
Taiwan
Item Weight
9 lb.
