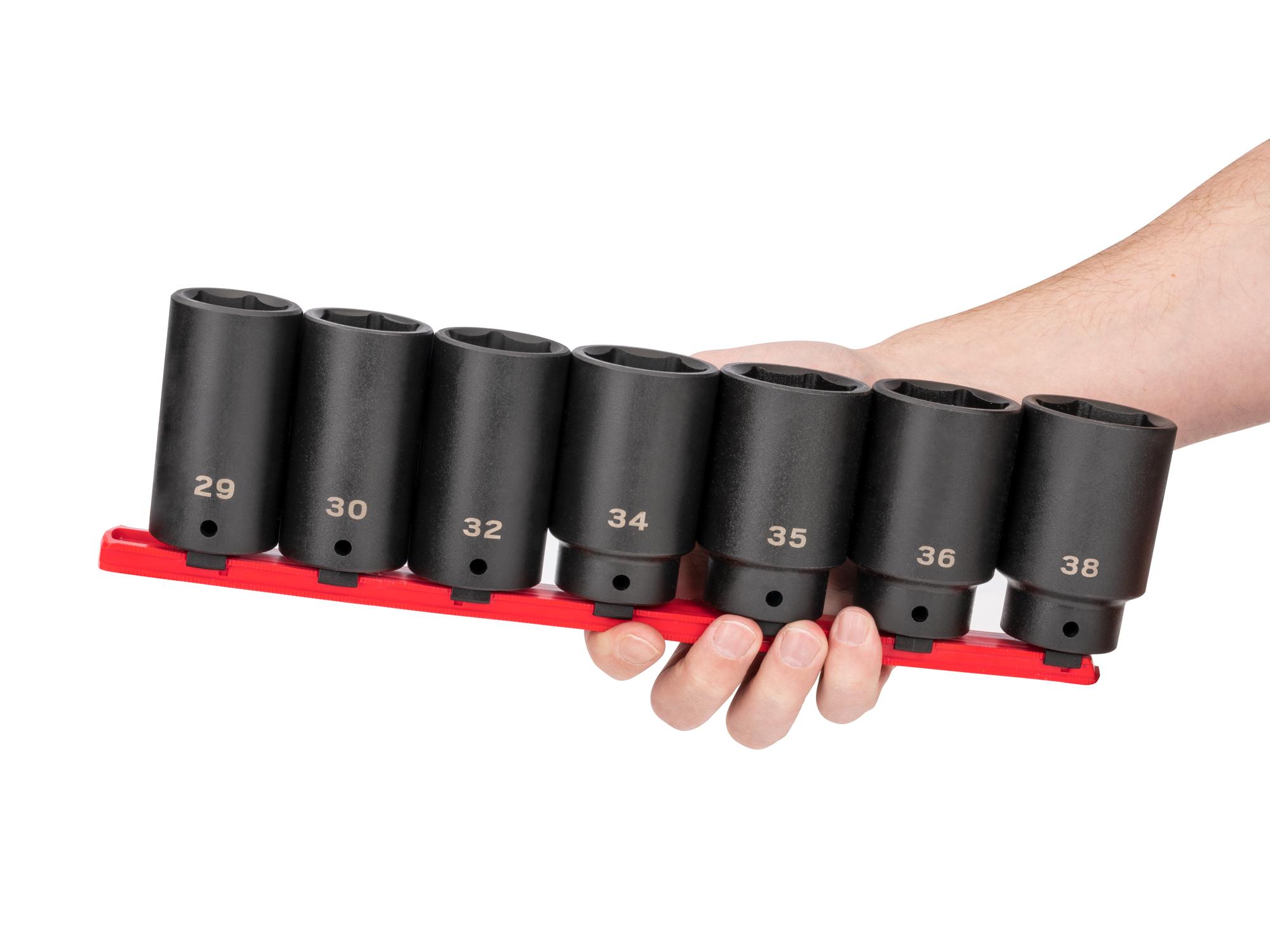

Front-right angle view of Tekton rail impact drive 6-point socket set. Item #SID92101

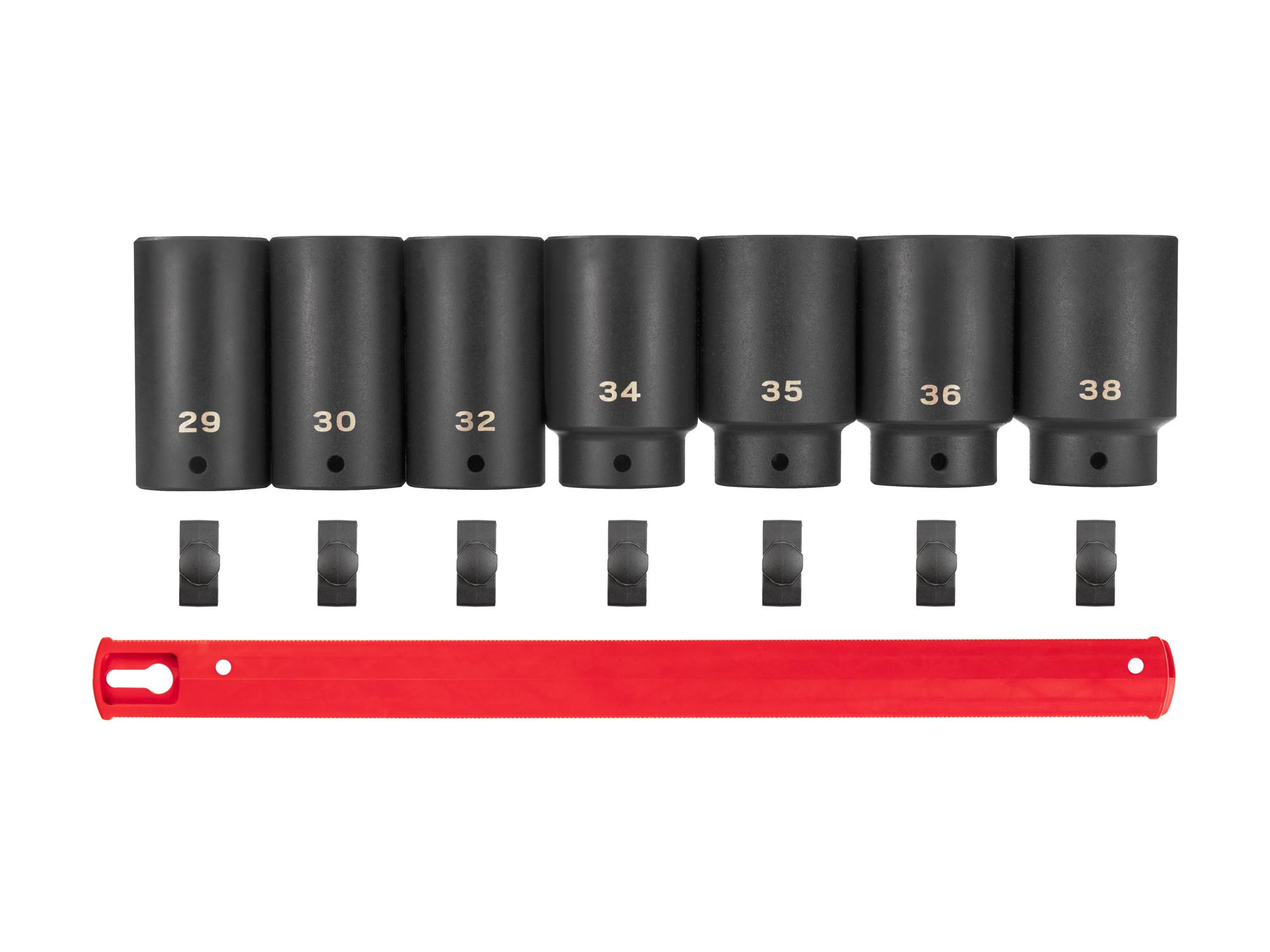

Laid out contents of Tekton rail impact drive 6-point socket set. Item #SID92101

Tap Click image to zoom in

Item #SID92101

Axle Nut Impact Socket Set with Rail (7-Piece)

Name: 1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Rail, 7-Piece (29 - 38 mm)
Brand: TEKTON
SKU: SID92101
Price: 87 USD
Availability: InStock

•

Organization Option

Front-right angle view of Tekton impact drive 6-point socket set. Item #SID92003

$87.00

This set contains impact sockets from our current lineup that fit axle nut sizes commonly found on passenger vehicles.

Set Includes:

MM Deep Sockets
29, 30, 32, 34, 35, 36, 38 mm (7 sizes)
13 Inch Socket Rail

Details Specifications

Details

A 36 mm impact socket being used to remove an axle nut

Quickly Remove Axle Nuts

Impact sockets are ideal for quickly and safely removing and replacing axle nuts. This set contains sockets for servicing 6-point axle nuts.

Front laser markings and back stamped markings on a 32 mm impact socket

Two Size Markings

The size is marked in two ways on every socket—both as a high-visibility laser marking and a permanent stamped marking.

Cutaway view of an impact socket, showing the interior well

Deep Length for Greater Reach

The deep socket can reach into wells to access axle nuts without the use of an impact extension, which could reduce torque.
The interior well extends far into the socket, providing ample room for the axle nut and spindle.

The drive end of a 34 mm impact socket, with labels for the smooth walls, chamfered inner rim, and detent pin hole

Drive Tool Retention

Sockets work with both types of anvils found on 1/2 inch drive impact wrenches:

Graphic showing green check marks on friction ring anvil and detent pin anvil

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Graphic showing how the radiused corners on an impact socket apply force to the flat sides of a 6-point fastener

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Chart comparing the ANSI proof torque standard to proof torque for Tekton impact sockets

Sockets Exceed ANSI Torque Standards

Each socket size meets a minimum of 1.3 times the ANSI/ASME standard for proof torque.

(A single-cycle test applies torque until a specified value is reached without failure or permanent deformation.)

Cr-V sockets include 6-point 27, 29, 30, 31, and 32mm and 12-point 30 and 32mm. Cr-Mo sockets include 6-point 33, 34, 35, 36, and 38mm and 12-point 36 and 39mm

High-Performing Steel Alloys

We choose the best combination of steel alloys, heat treating specifications, and forming processes for each socket to meet the highest performance requirements.

50BV30 Chromium-Vanadium (Cr-V)

Show Elements

Carbon: 0.27 - 0.33%
Chromium: 0.30 - 0.50%
Manganese: 0.70 - 1.00%
Phosphorous: ≤0.030%
Silicon: ≤0.10%
Sulfur: ≤0.030%
Vanadium: 0.10 - 0.15%
Boron: ≥0.0005%
Iron: 97.86 - 98.47%

4140 Chromium-Molybdenum (Cr-Mo)

Show Elements

Carbon: 0.38 - 0.43%
Chromium: 0.80 - 1.10%
Manganese: 0.75 - 1.00%
Molybdenum: 0.15 - 0.30%
Nickel: ≤0.025%
Phosphorous: ≤0.025%
Silicon: 0.15 - 0.35%
Sulfur: ≤0.025%
Iron: 96.74 - 97.69%

All sockets have a corrosion-resistant manganese phosphate coating. Learn More About Our Materials

Red socket rail with twist-to-lock graphic

Portable Socket Rail

Keep your sockets organized and ready to go using the included socket rail. The twist-to-lock clips hold sockets securely and can be repositioned anywhere along the rail.

Specifications

1/2 Inch Drive Deep 6-Point Axle Nut Impact Socket Set with Rail, 7-Piece (29 - 38 mm)

Country of Origin	Sockets made in Taiwan. Rail made in USA.
Item Weight	8.82 lb.
