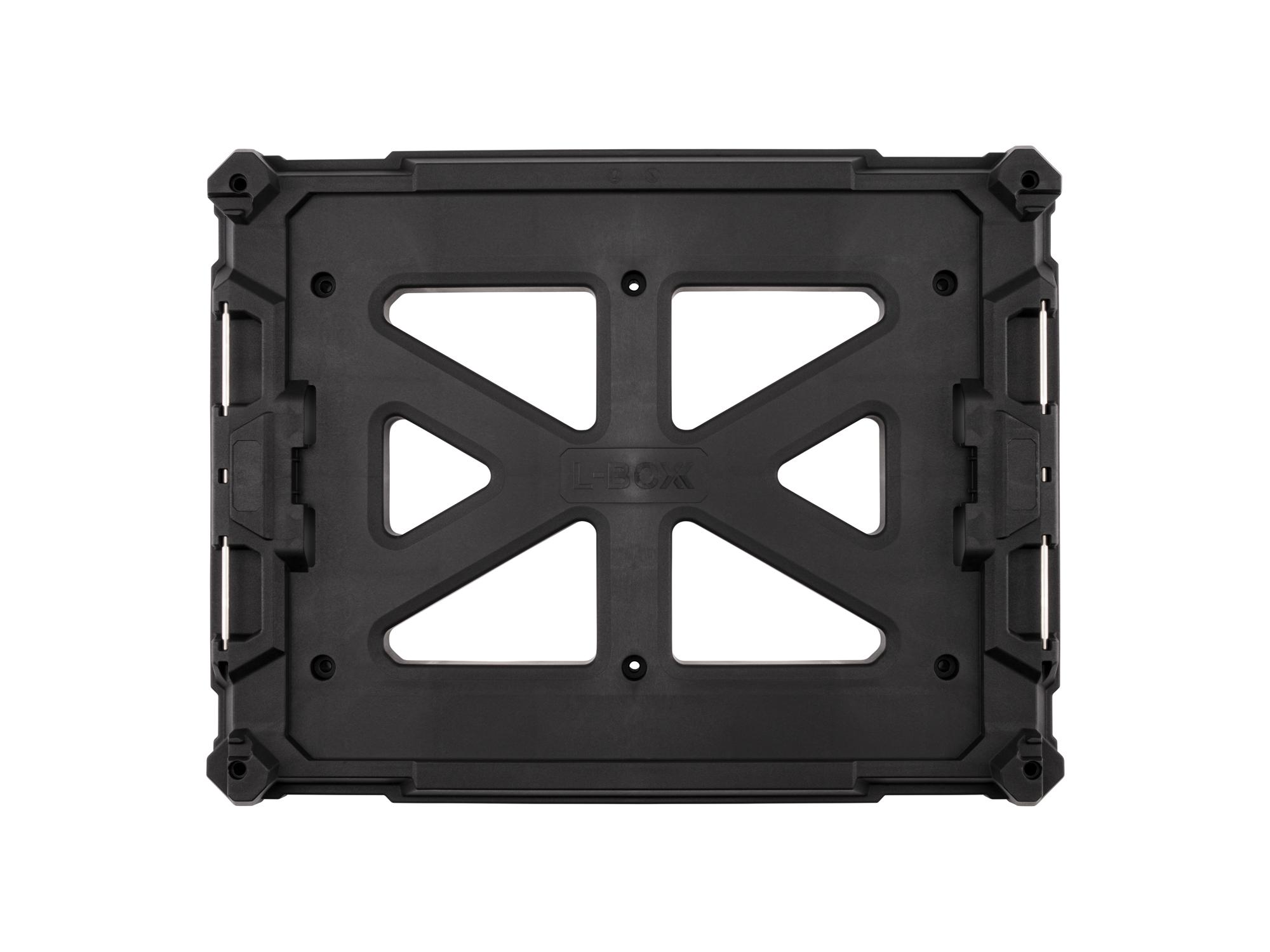

Top view of black Tekton mounting plate for RIG and L-BOXX. OLC81000

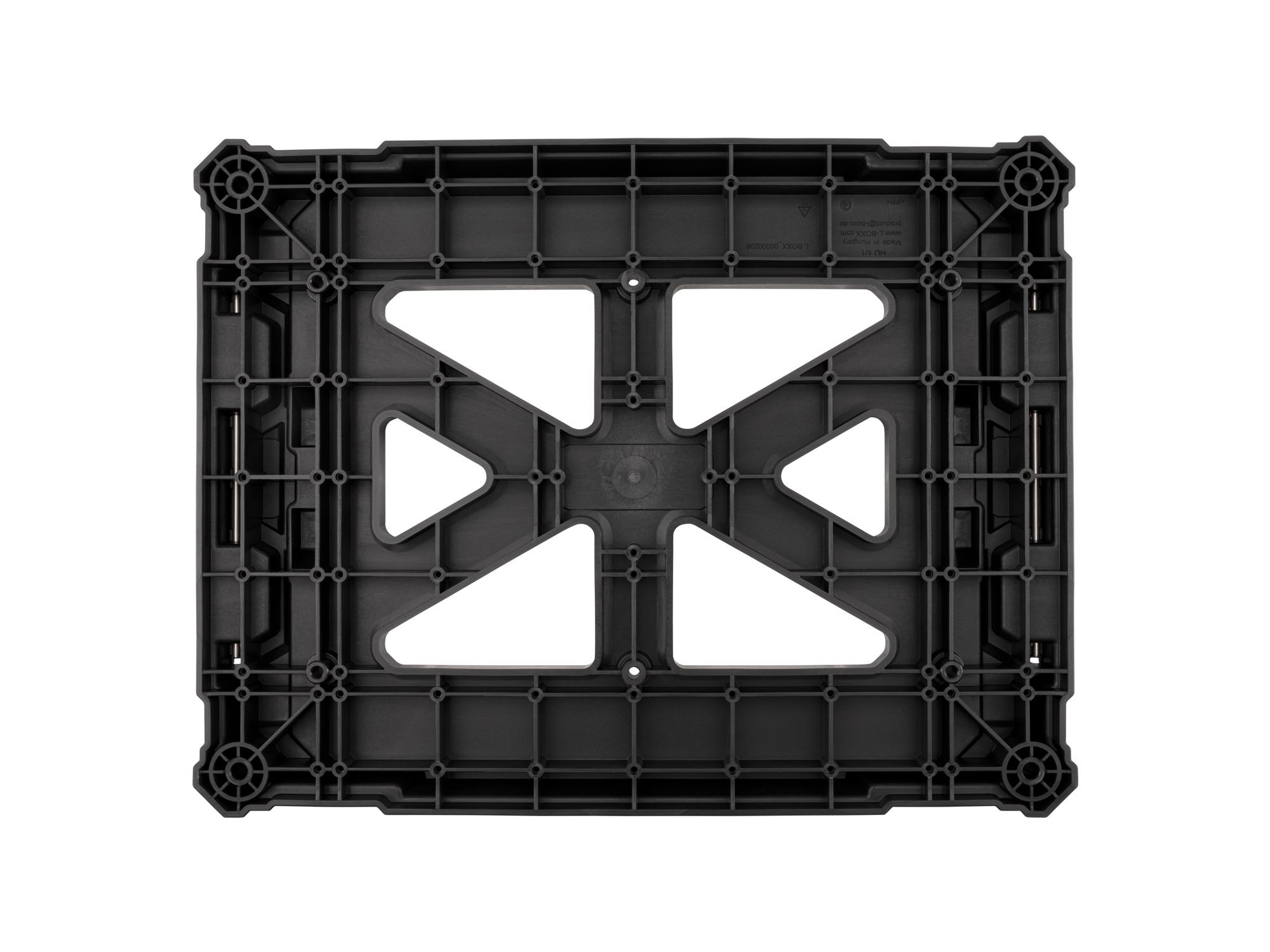

Bottom view of black Tekton mounting plate for RIG and L-BOXX. OLC81000
Tap image to zoom in
Item #OLC81000

Mounting Plate for RIG and L-BOXX

•
$50.00
Add to Cart
Compatible With:
DetailsSpecifications

Details


Wall Mount


Note: It's recommended to only mount one box to a wall at a time.

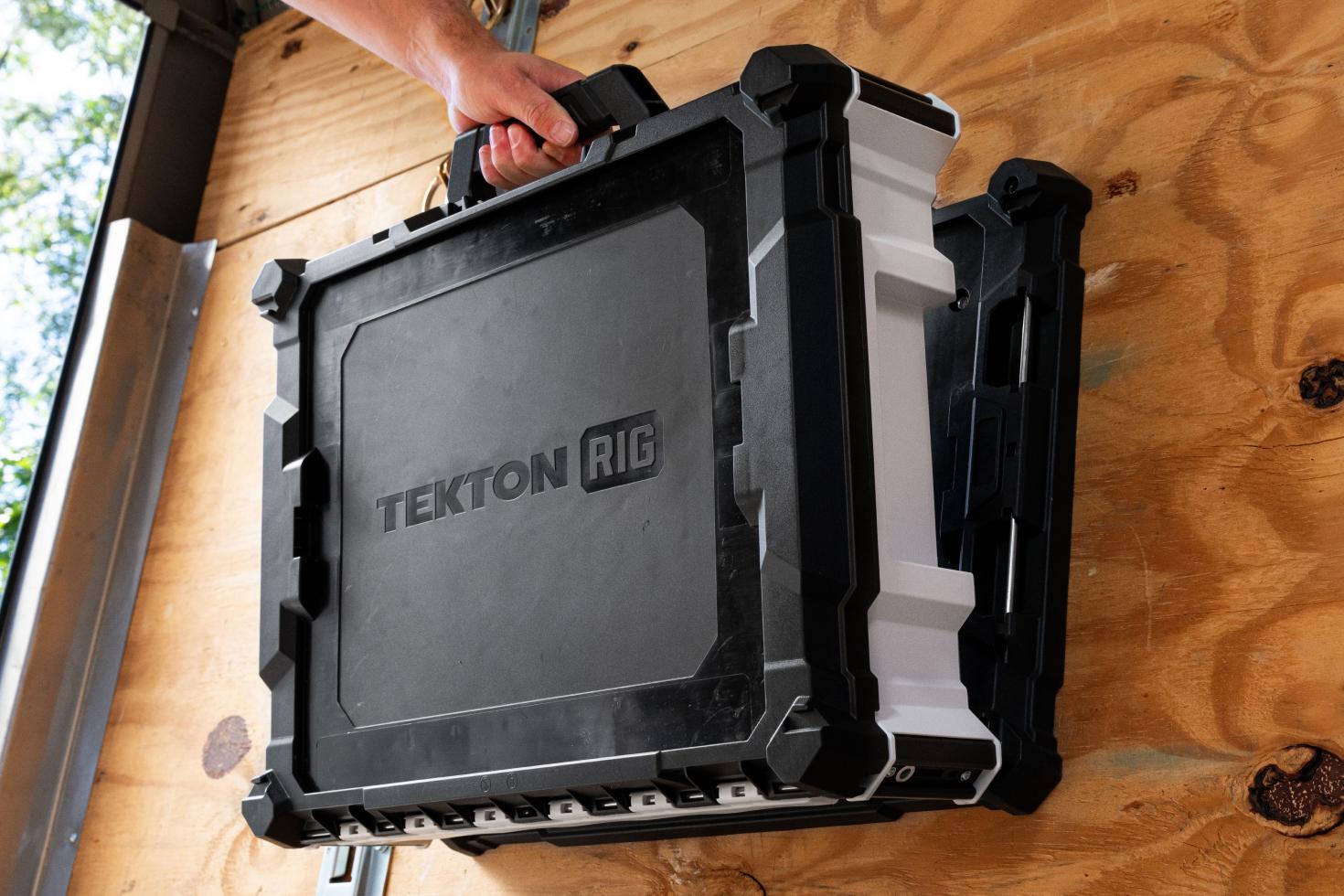

A RIG tool box mounted to the wall of an enclosed trailer

Floor Mount

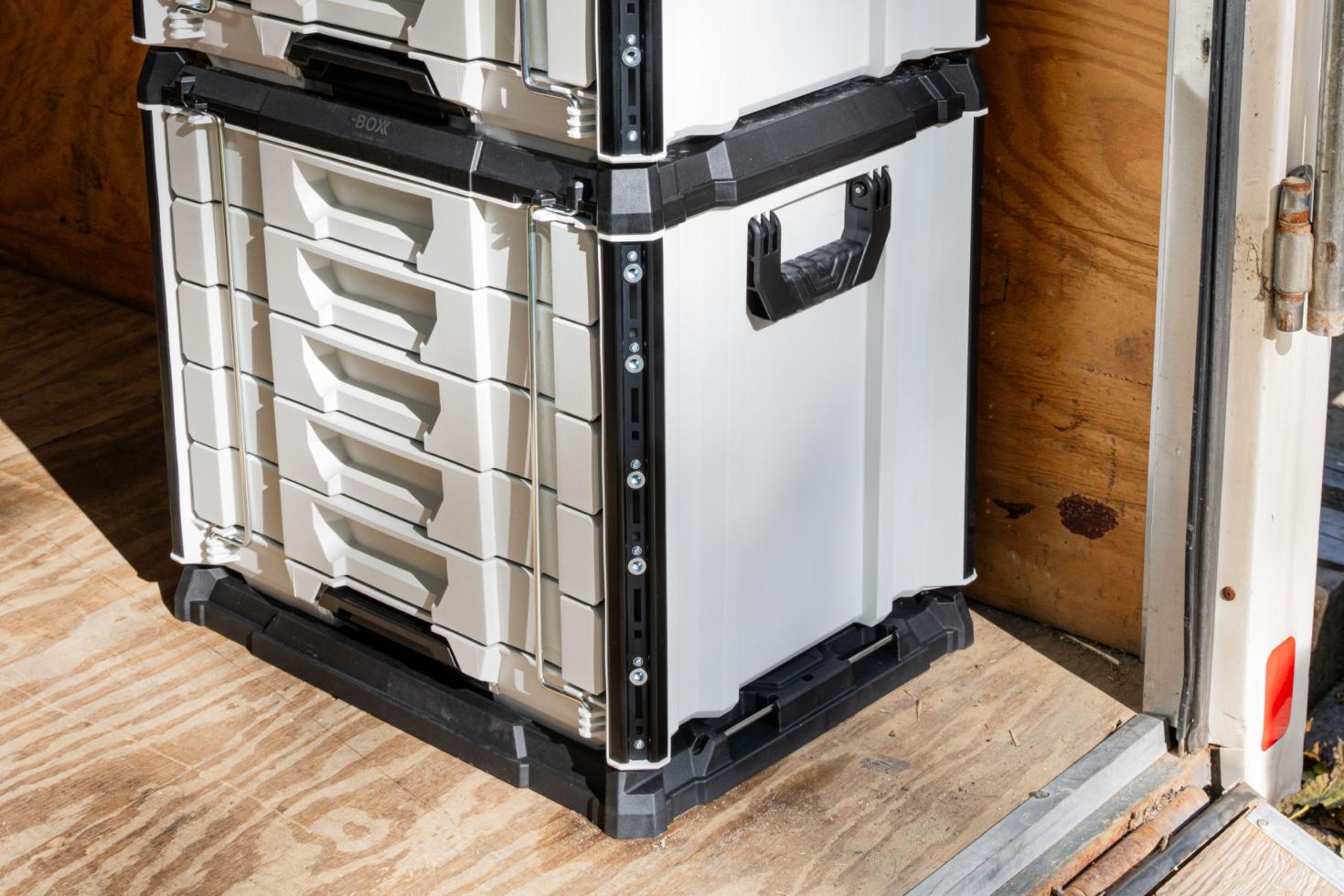

A RIG tool box mounted to the floo of an enclosed trailer

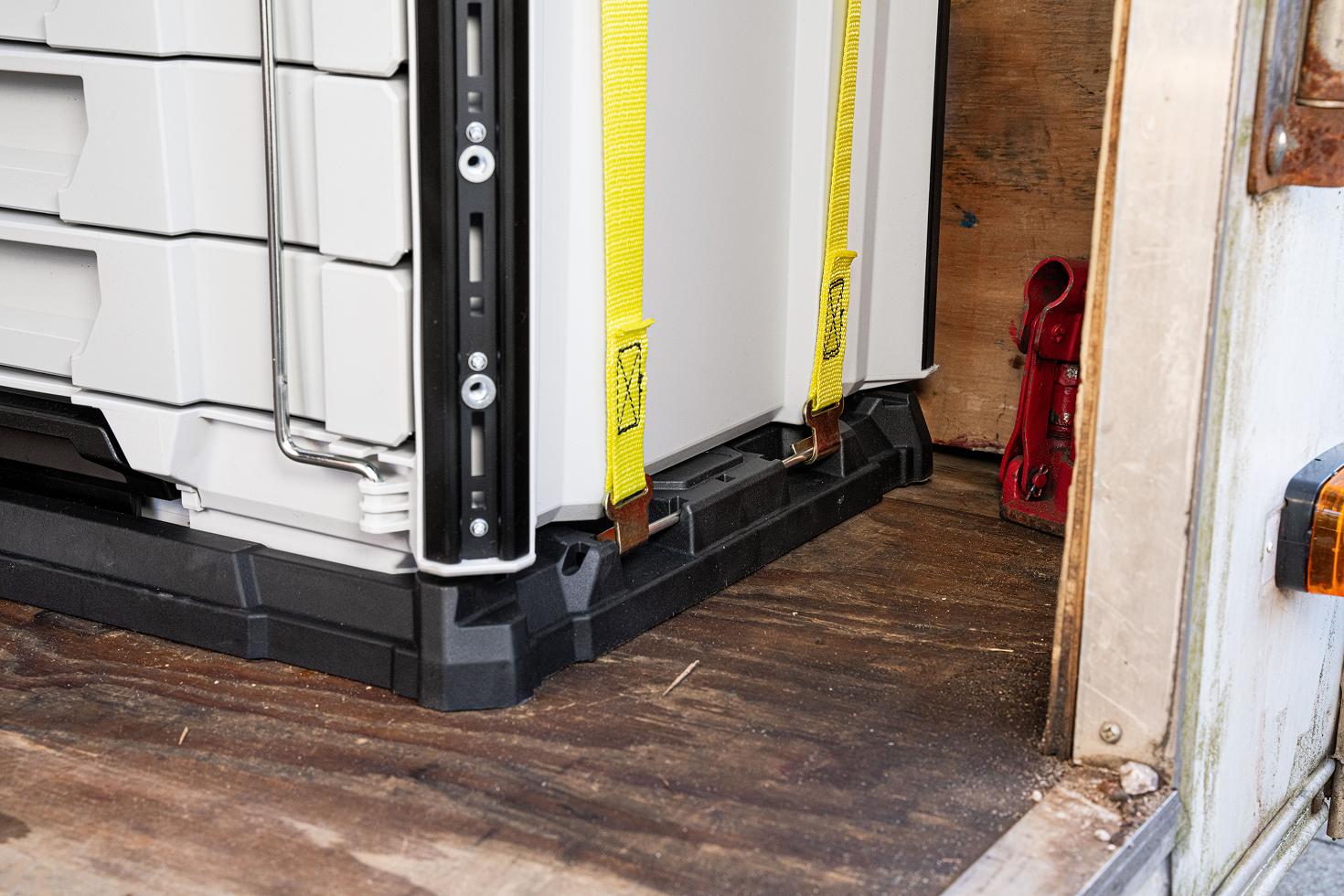

5-drawer tool boxes strapped onto a mounting plate on the floor of an enclosed trailer

Tie-Down Rods


A steel rod runs along each side of the plate so you can secure your RIG stack with tie-down straps.

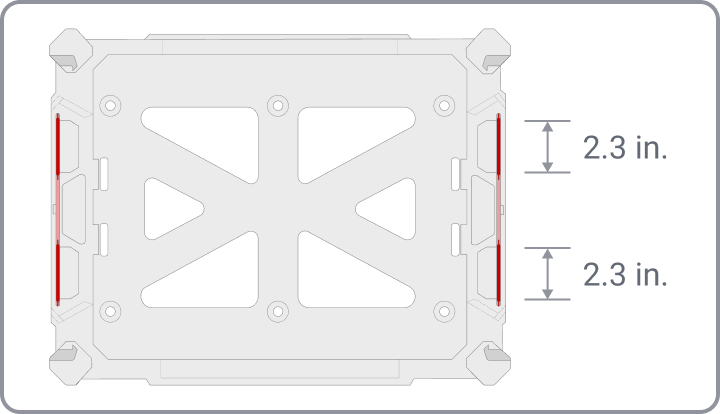

Graphic highlighting the tie-down rods.

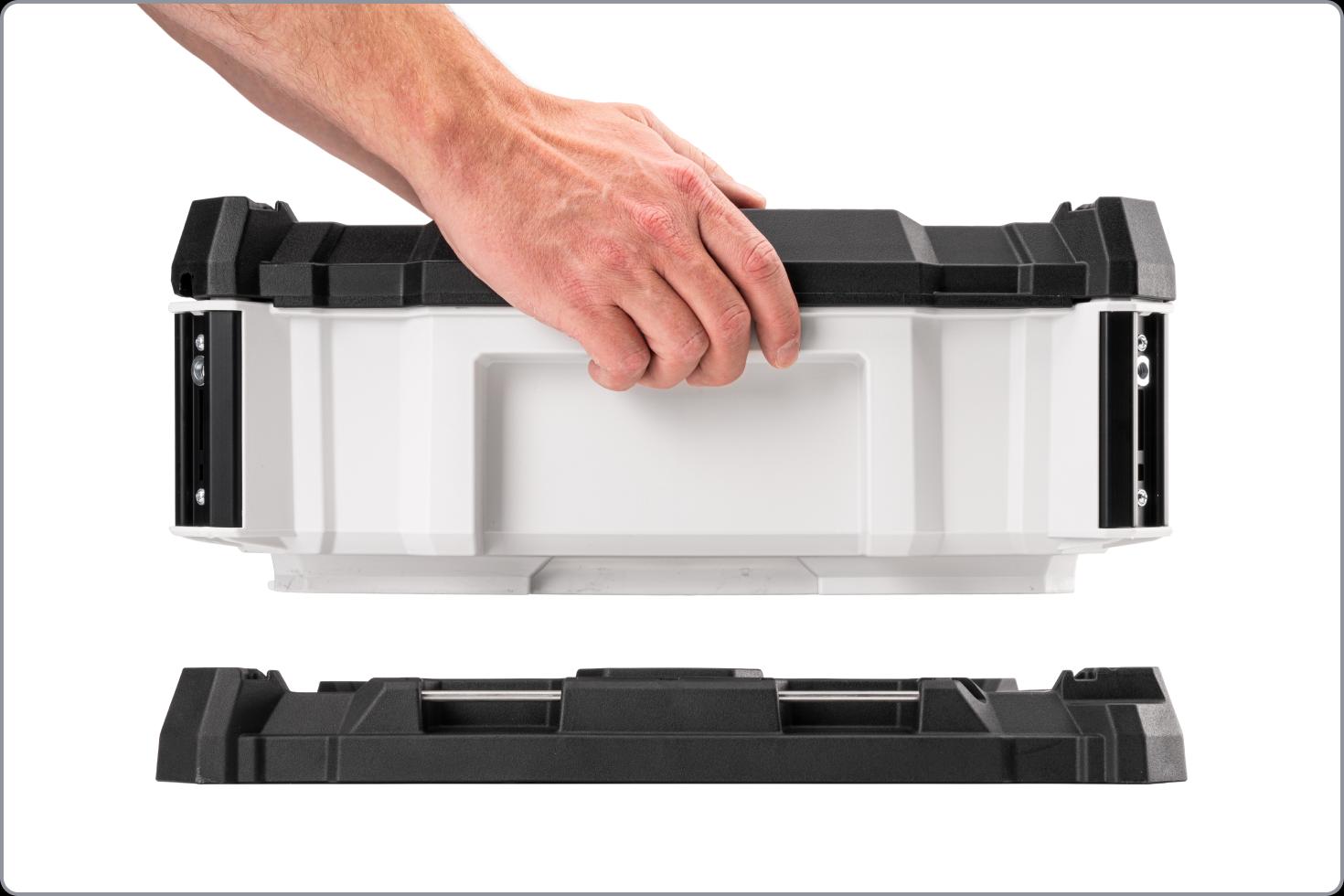

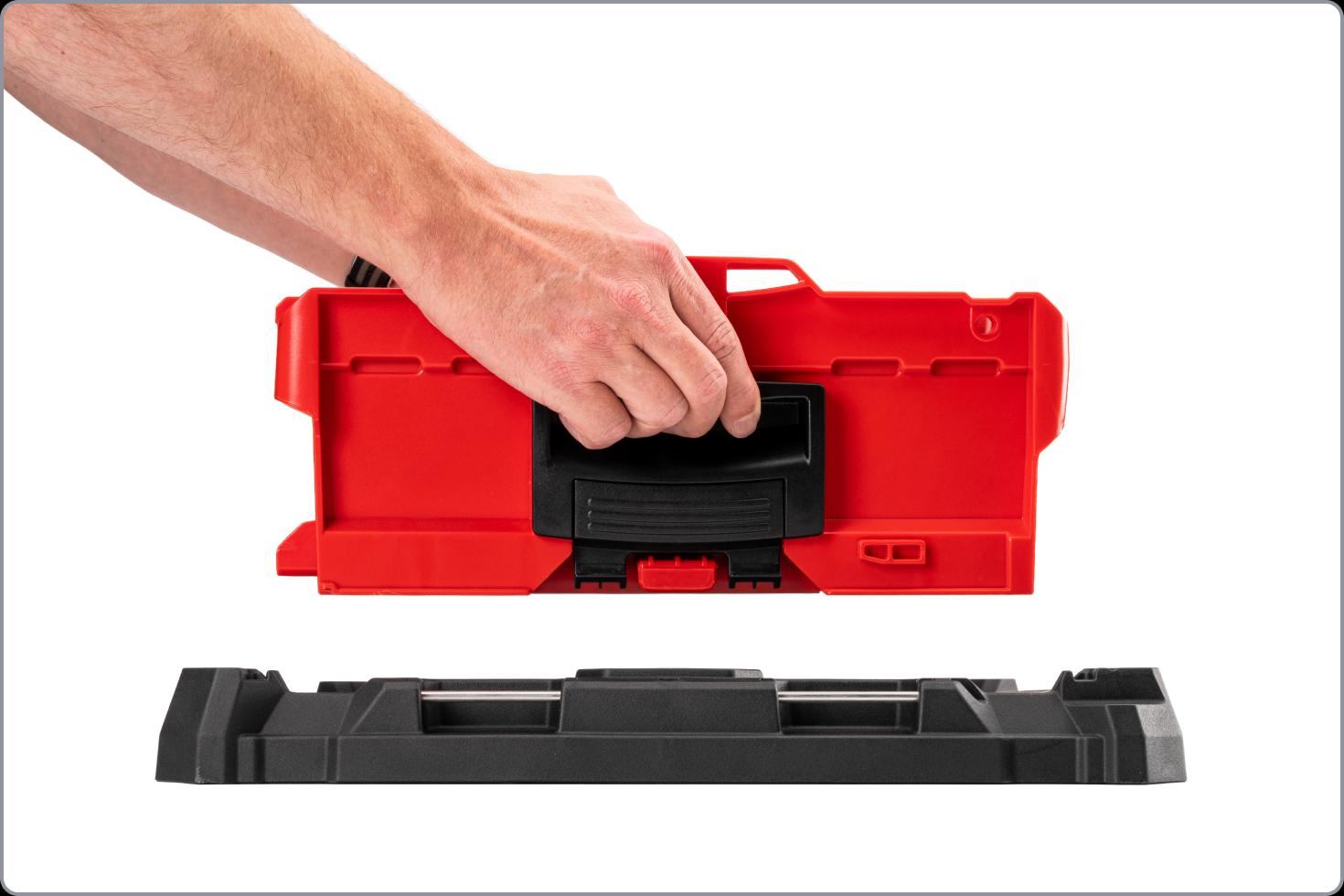

Compatible with RIG and L-BOXX

Mounting Guide

Use all six mounting holes for the most secure installation.

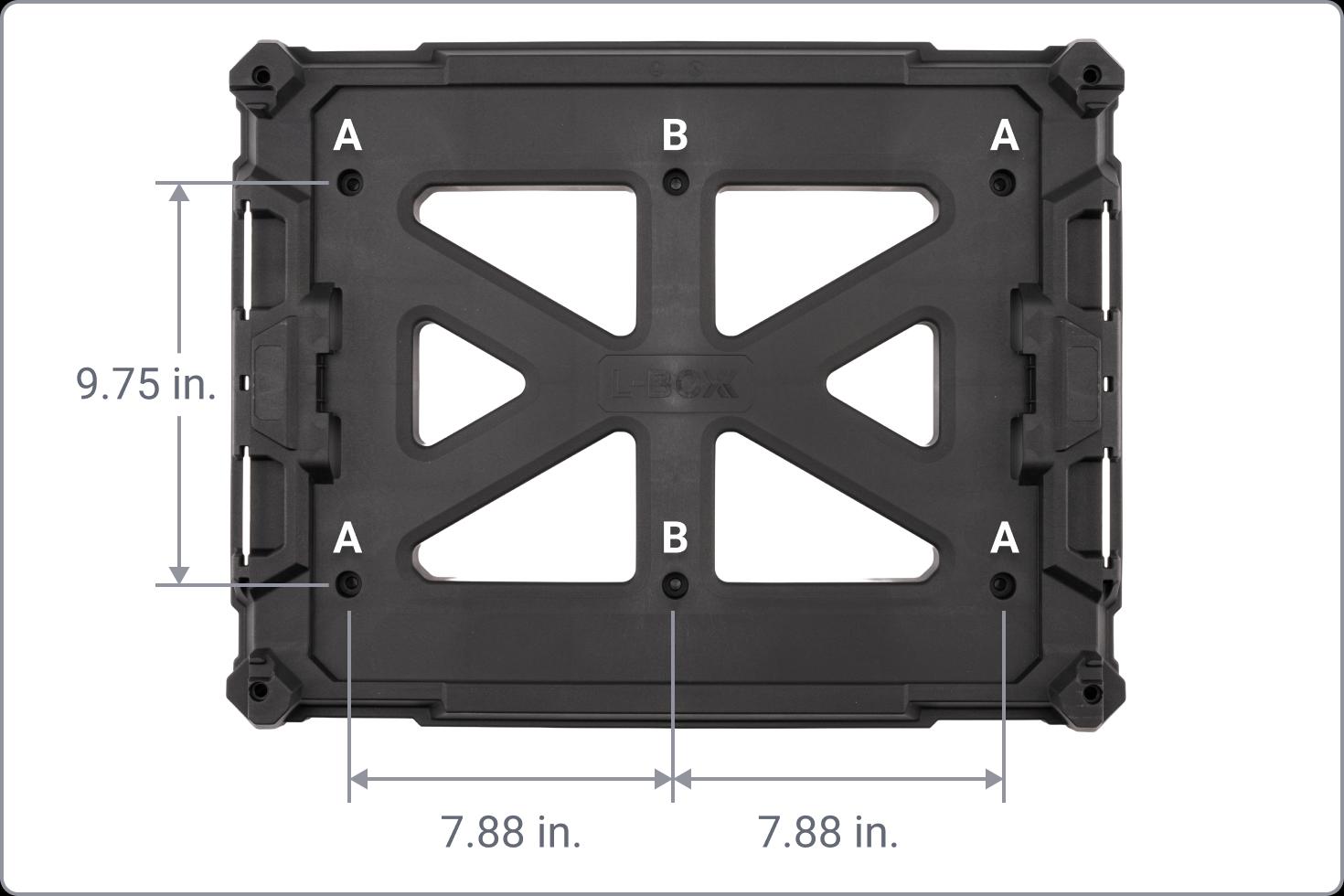

Mounting Hole Locations


Graphic showing the locations of the mounting holes

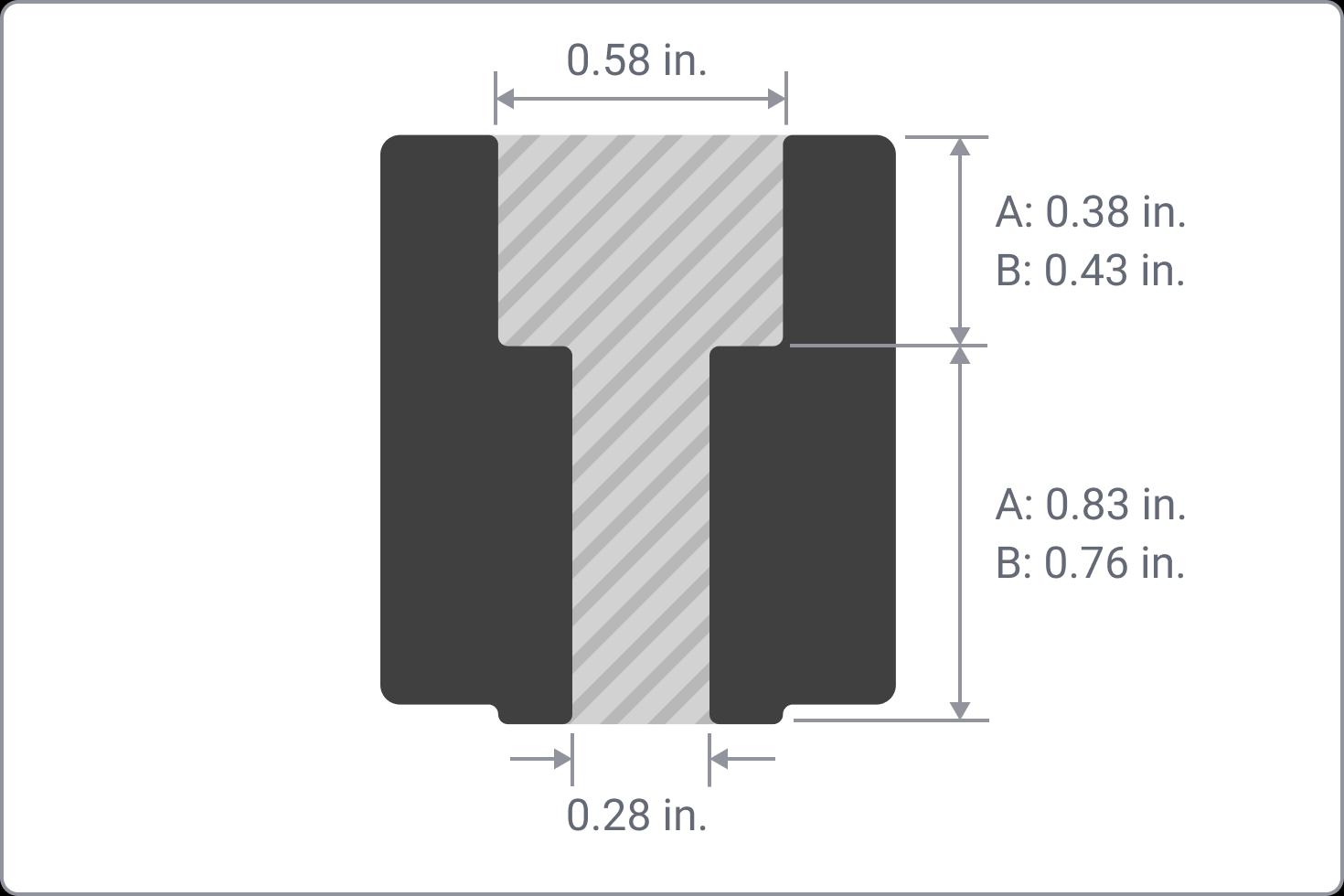

Mounting Hole Dimensions


Graphic showing the dimensions of the mounting holes
Cutaway View of Mounting Hole

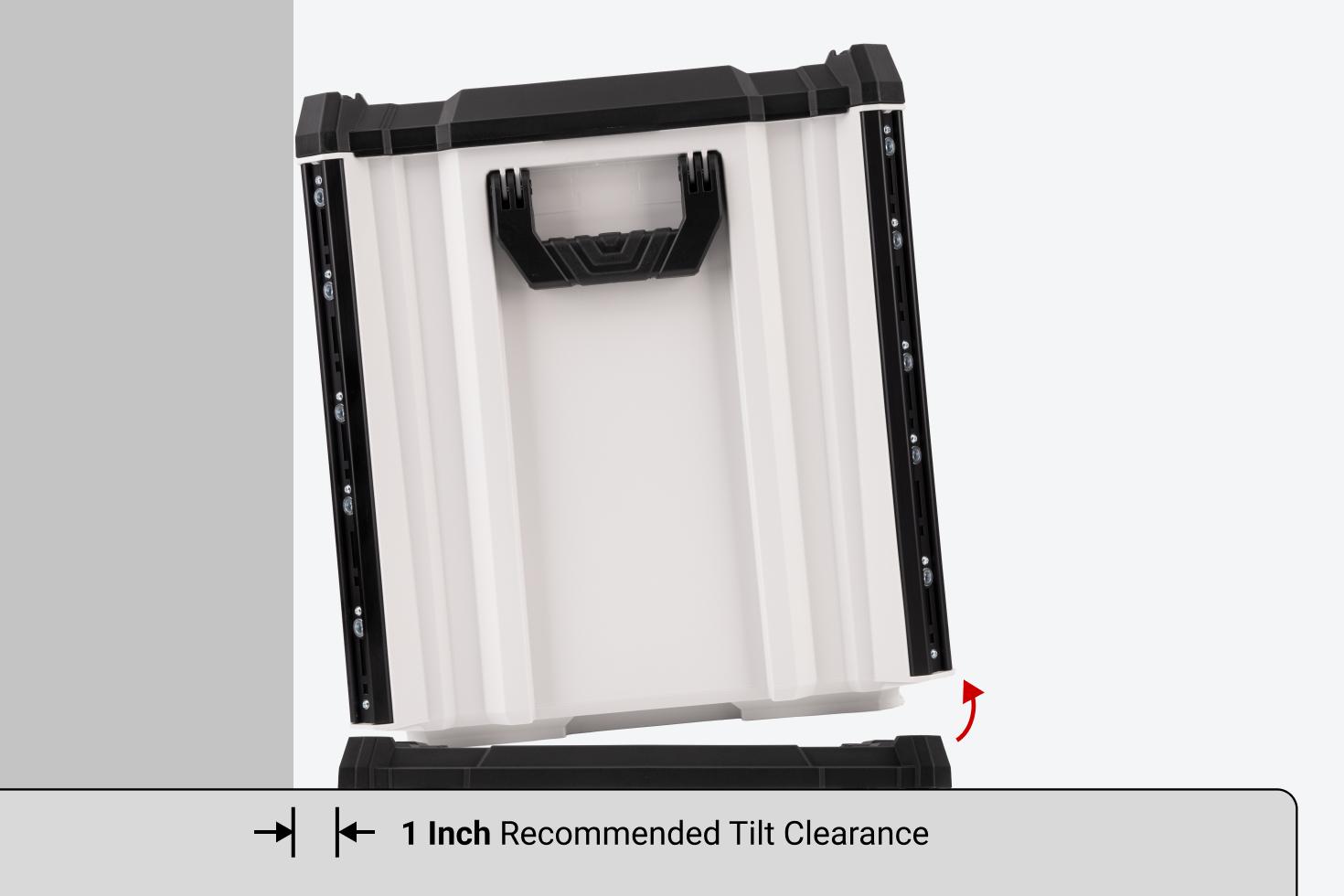

A 5-drawer tool box tilting backwards off a mounting plate so it can be removed.

Tilt Clearance


RIG boxes tilt back slightly to detach, so 1 inch of clearance from the wall is recommended.

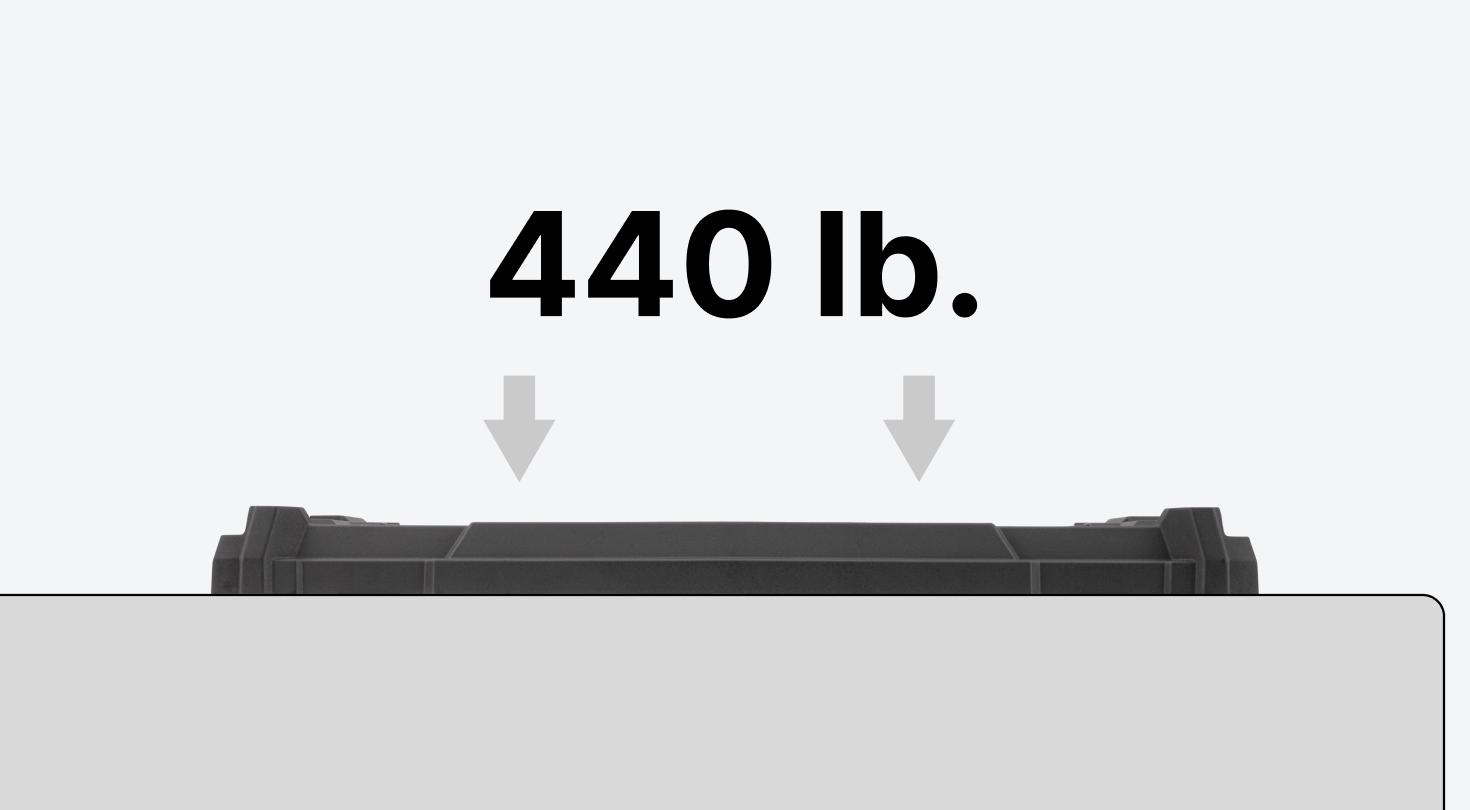

Graphic showing 440 lb. of weight on a mounting plate

440 lb. Max Load on Top

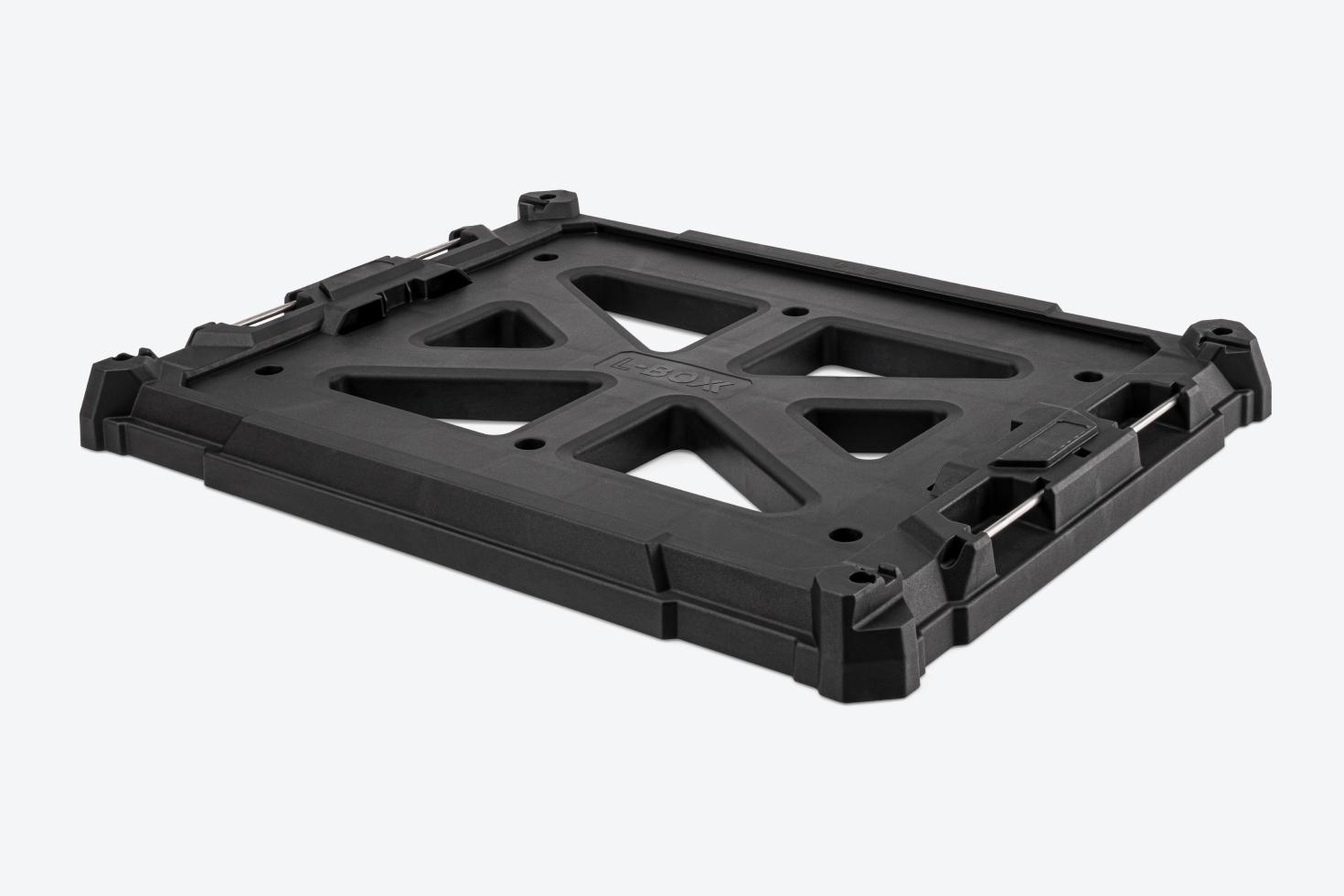

Image of the mounting pla

Materials and Construction


The plate is made of glass-fiber-reinforced polypropylene. The tie-down rods are 0.2 inch diameter steel.


Mounting hardware is not included.

Specifications

Mounting Plate for RIG and L-BOXX

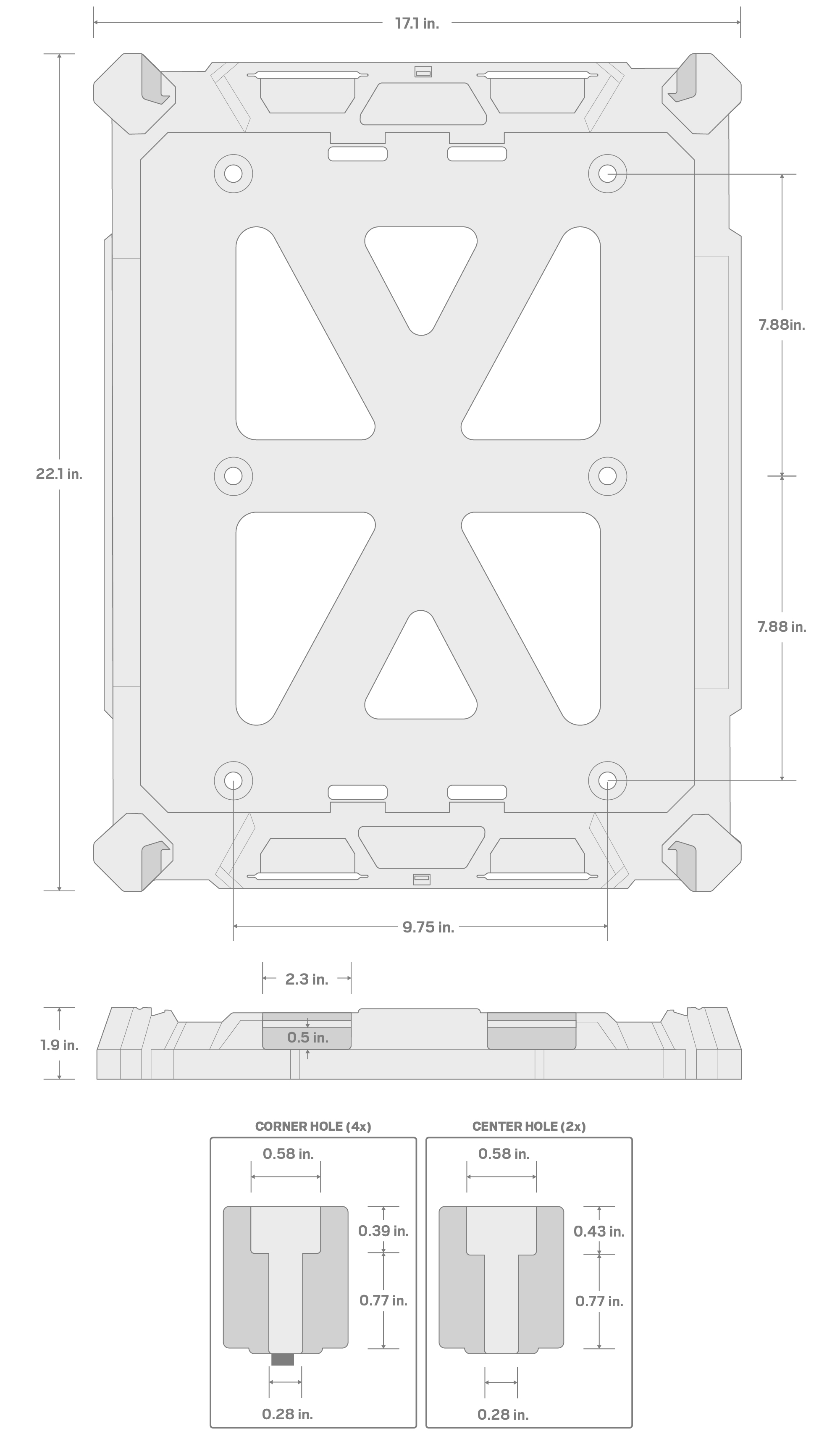

Specs for Mounting Plate for RIG and L-BOXX
Country of Origin
Hungary
Item Weight
5.37 lb.
