Mini Needle Nose Pliers

Item #PMN01001
Ships today
$14.00
Also available with smooth jaw

  • Extra long and slender, tapered nose with a fine tip
  • Crosscut teeth create uniform contact across jaw for sure grip in any direction
  • Recessed coil spring gently assists opening to minimize hand fatigue
  • Wide, flat handles with slim, nonslip grips provide comfortable fingertip control

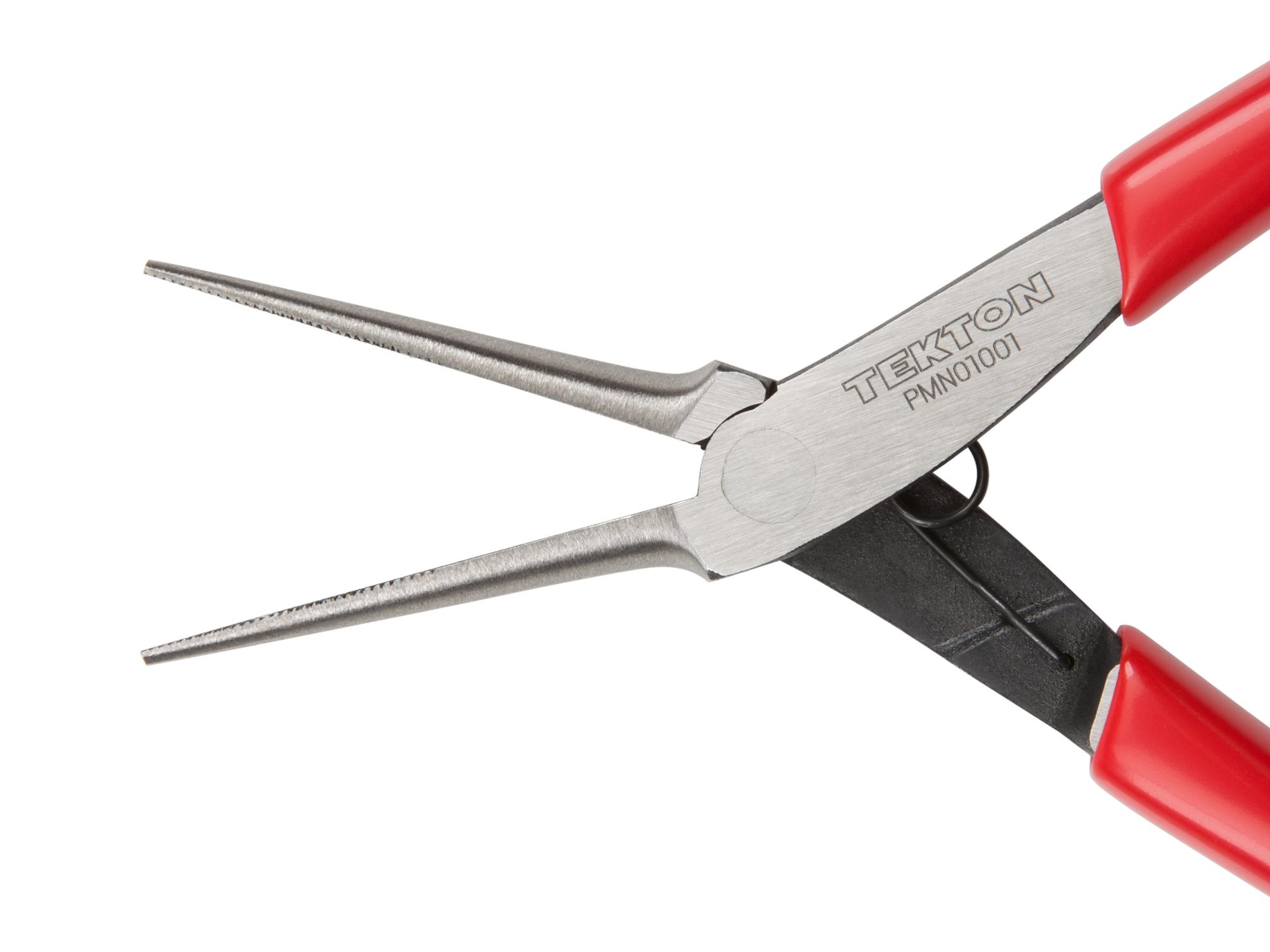

Extra Long, Slender Nose

Offering an exceptional reach into the narrowest spaces, the extra long and slender nose tapers from a slightly wider base to a fine tip. To make sure the tip can consistently grasp the tiniest wires or parts, the base of the jaws is relieved with a small gap (0.3 mm +/- 0.1 mm) to prevent contact that would keep the tips from closing tightly together.

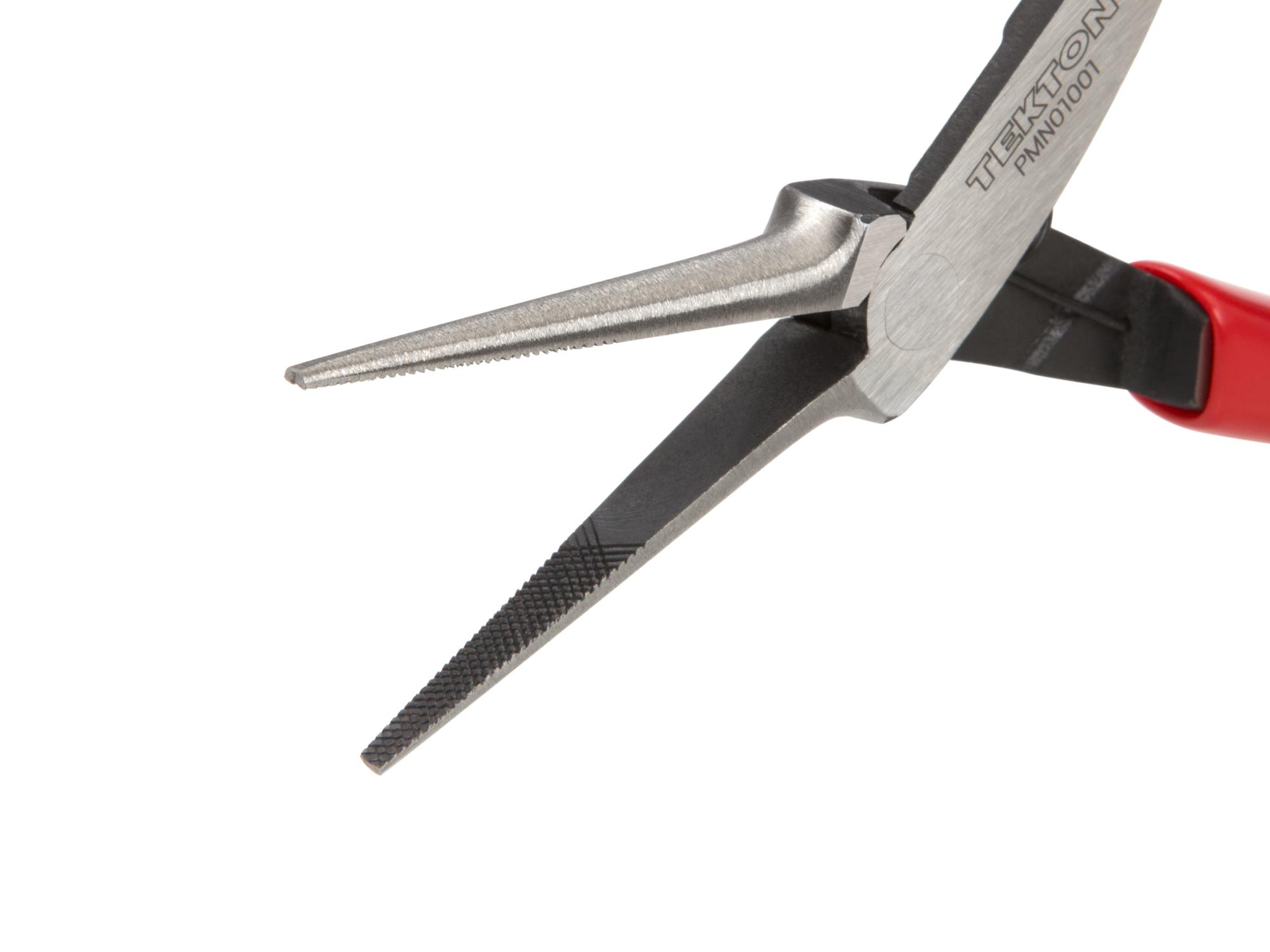

Fine Crosscut Teeth

Oriented at 120 degrees to each other—60 degrees to each side of the jaw centerline—the serrations are cut in two passes to form fine, regularly-spaced, diamond-shaped teeth. Unlike single serrations cut straight across the jaw, this pattern creates uniform contact across the jaw surface, allowing you to grasp, pull, and twist evenly in any direction.

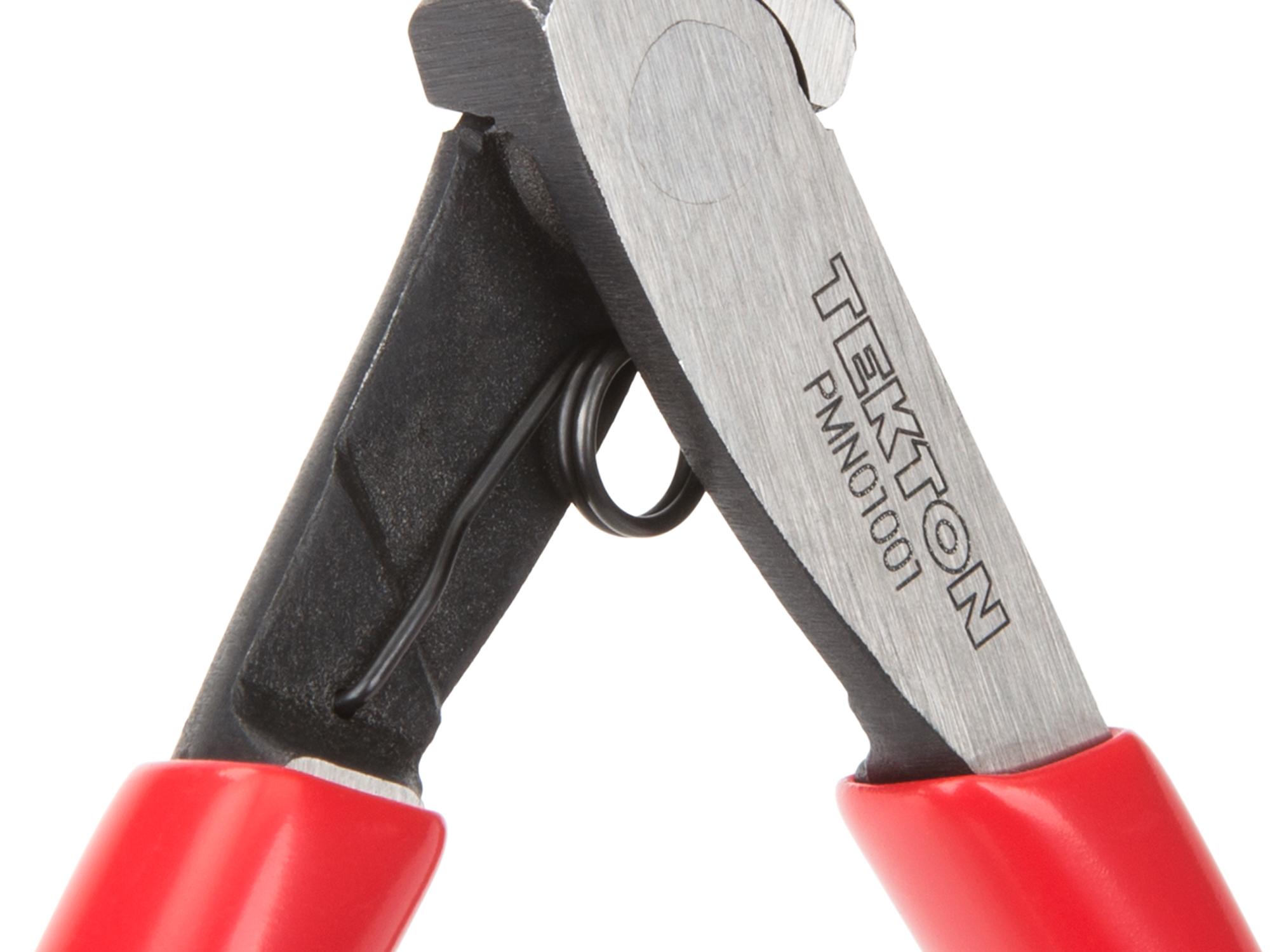

Recessed Coil Spring

Gently assisting the opening action of pliers, the long-arm coil spring is neatly tucked between handles so it won't get in the way or be accidentally dislodged. The spring itself has a relaxed opening angle of 137 degrees—nearly twice the opening angle of the pliers—so it stays properly tensioned when pliers are fully opened. Coiled twice, it achieves the right balance of the force required to open pliers with that required to close them, greatly improving overall control and reducing hand fatigue.

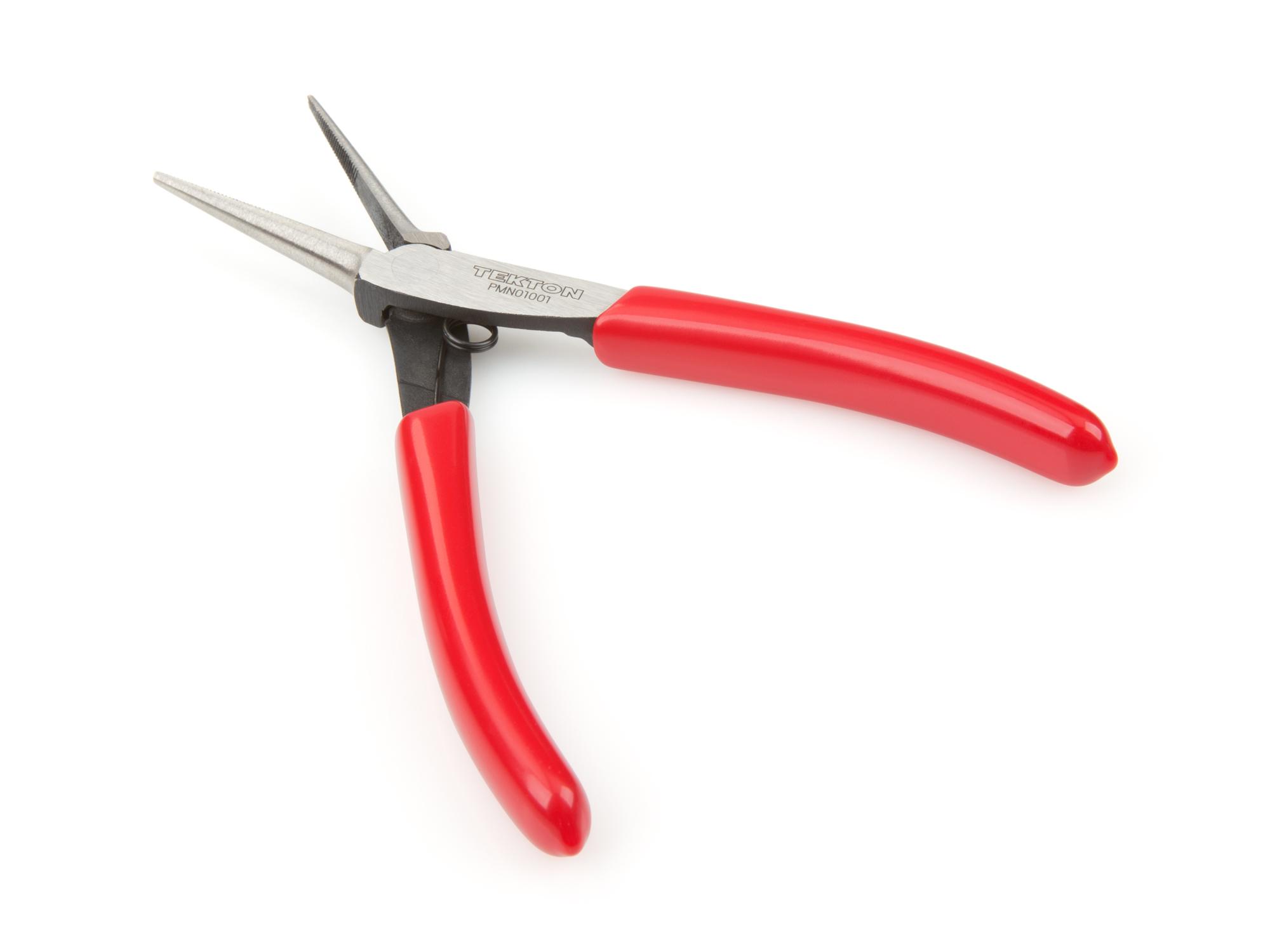

Wide Profile Handles

Generous in overall size, the handles have a wide, flat profile that creates a large contact area for fingertips to comfortably rest and exert exacting control. Slim vinyl grips add a bit of cushion and a nonslip surface without being bulky.

Custom-Engineered Alloy

Formulated for key performance characteristics, our pliers are made from a custom-engineered steel alloy with a high carbon content that strikes an ideal balance between machinability and toughness in its final hardened state (HRC 44-48). This allows for precise machining of tips and edges, strong, well-formed teeth, high hardenability on cutting blades, and minimizes flexing under stress.

Classic Finish

The main faces of the head and upper handle get their final surface with an extra fine 320 grit polishing process. Instead of adding a thick lacquer coating that scratches or chips off over time, the surface is protected by an ultra thin layer of dry-to-touch oil that can be maintained and recoated throughout the life of the pliers.

Individually Tuned

After final assembly and heat treatment, each pliers is individually inspected and tuned for jaw alignment and overall operation, ensuring optimal performance. For pliers with cutting edges, the resulting cut quality is verified on every pliers according to ASME testing procedures.

Mini Needle Nose Pliers

A. Length 5.4 in.
B. Width 3.8 in.
C. Height 0.6 in.
D. Jaw Length 1.6 in.
Weight 0.21 lb
Country of Origin Taiwan
