TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
TEKTON PMN23001-T Mini Flat Nose Pliers (Smooth Jaw)
Click image to zoom in

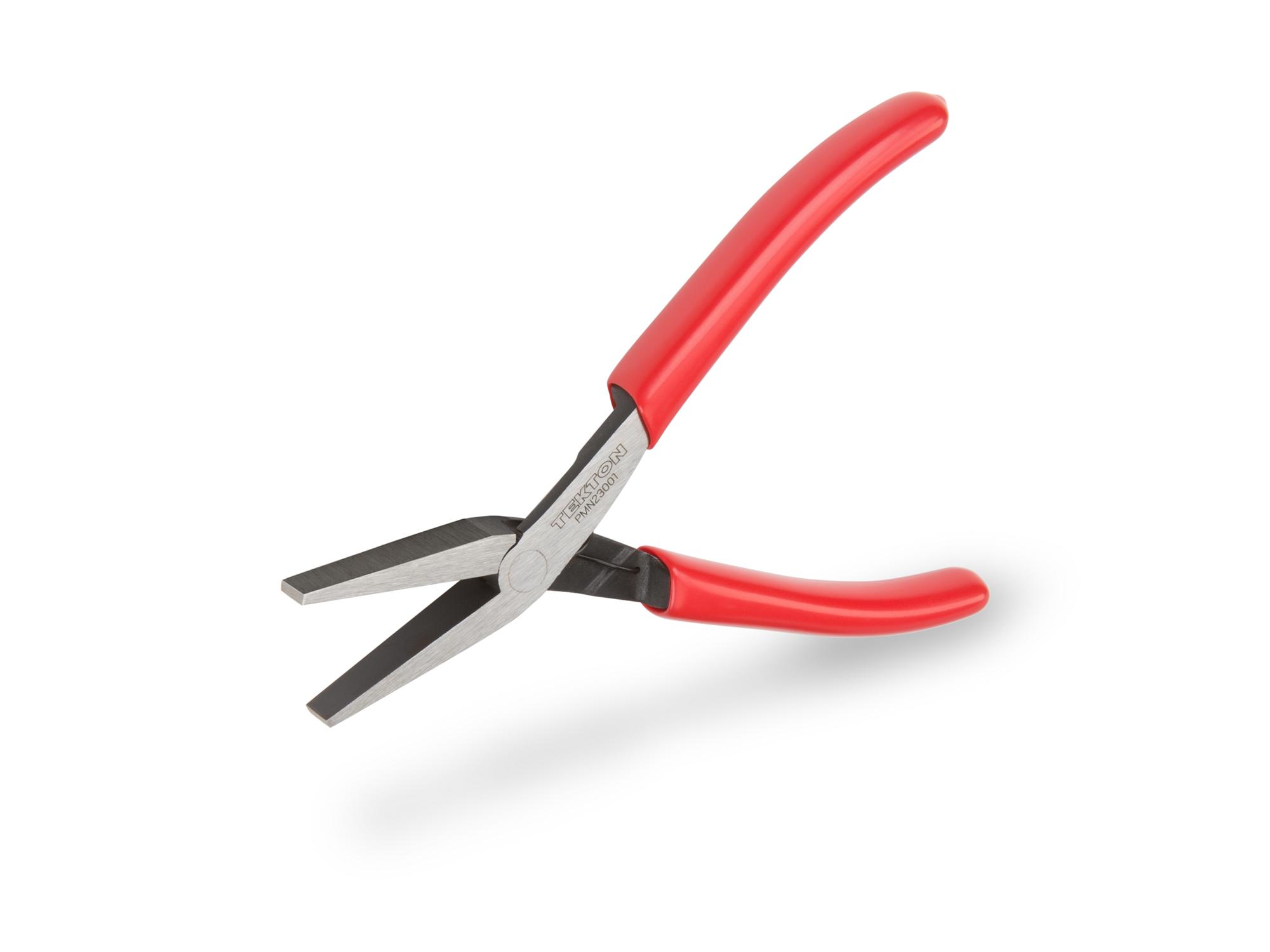

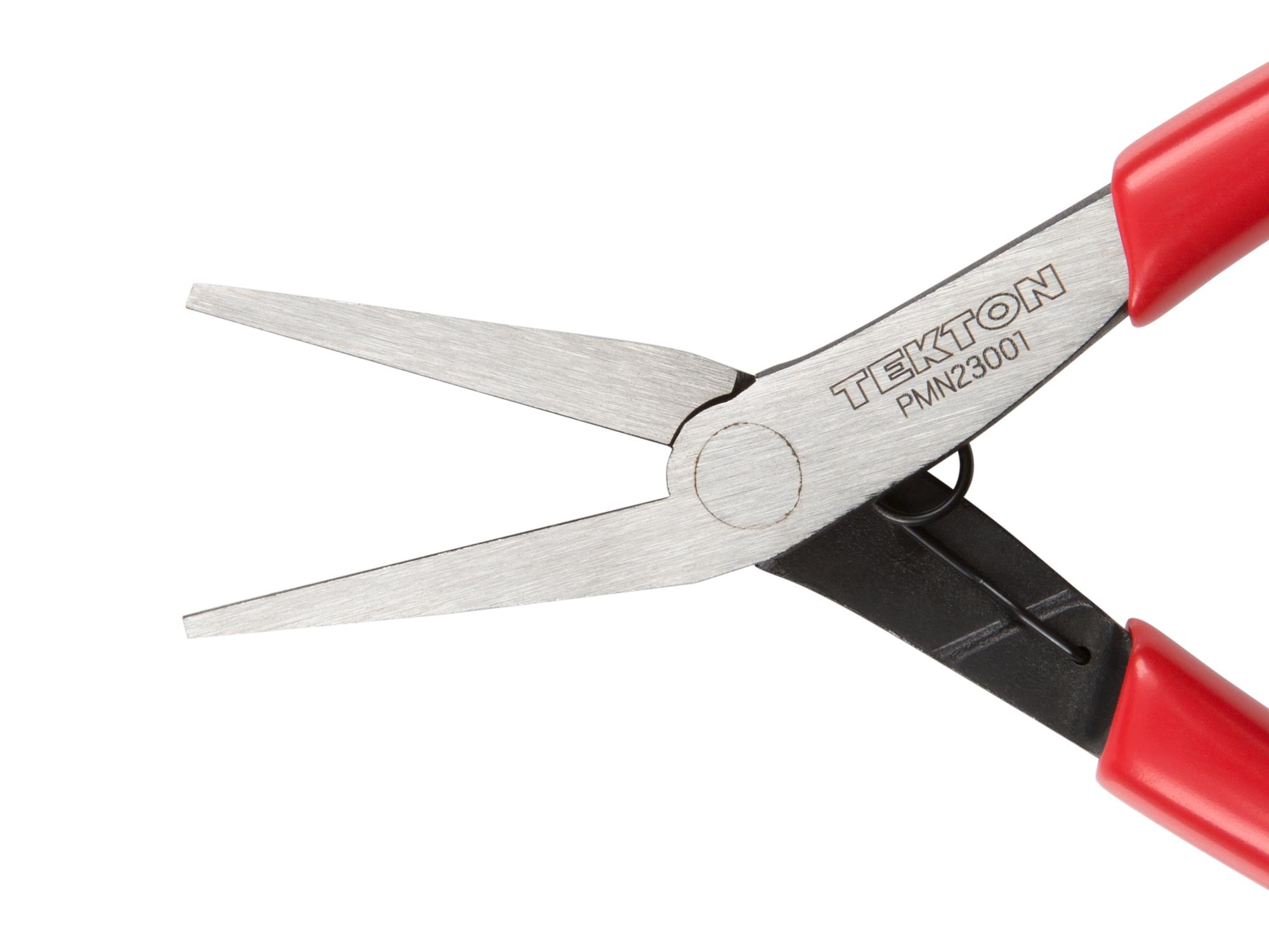

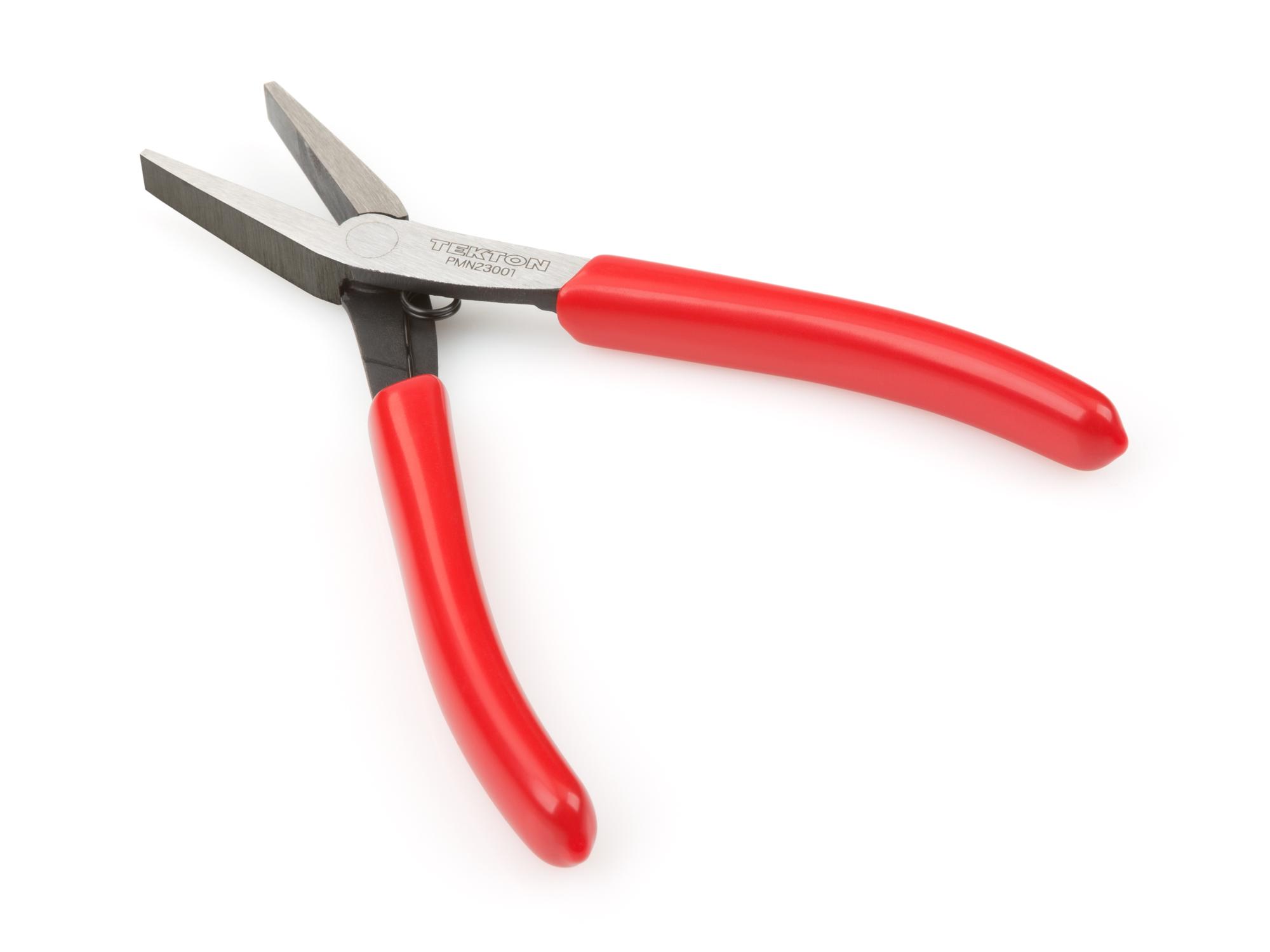

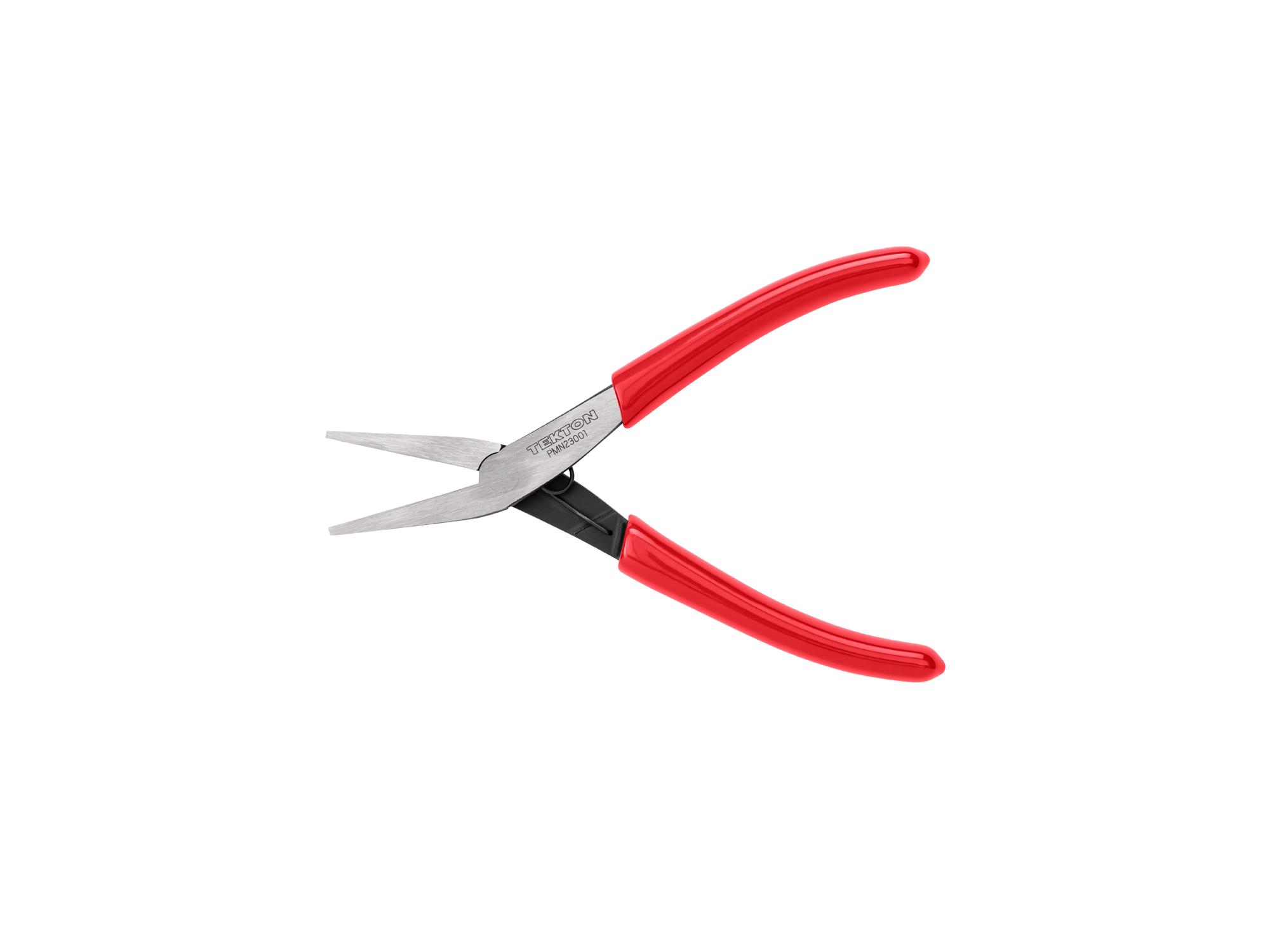

Mini Flat Nose Pliers (Smooth Jaw)

#PMN23001
 •
$16.00

Also available with serrated jaw


  • Broad, straight-edged jaws securely grasp flat parts and offer extra leverage for twisting or bending
  • Smooth, non-serrated jaw faces won't mar soft metals or finished parts
  • Recessed coil spring gently assists opening to minimize hand fatigue
  • Wide, flat handles with slim, nonslip grips provide comfortable fingertip control
  • Designed for jewelry, model making, and other delicate work

Details

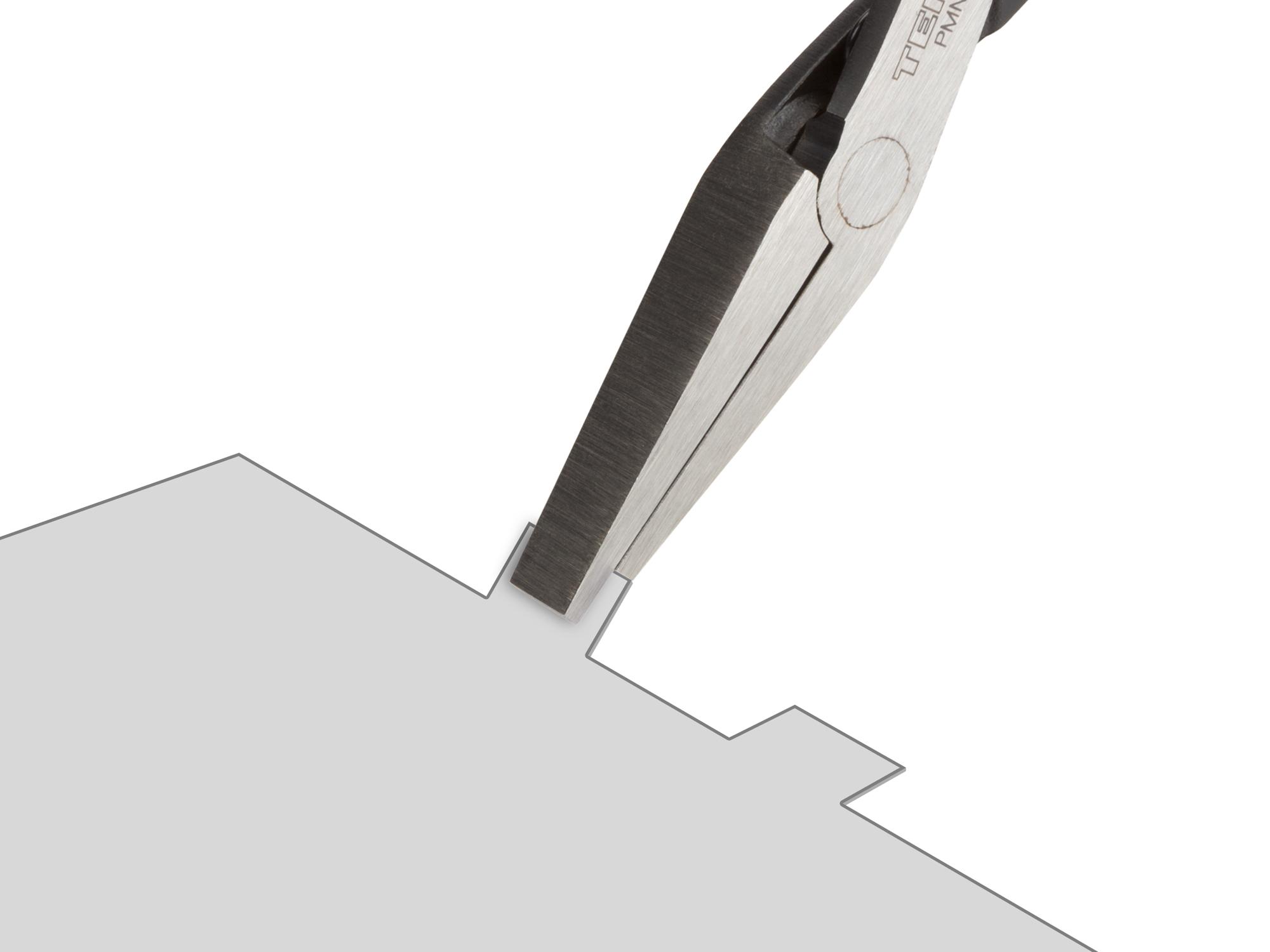

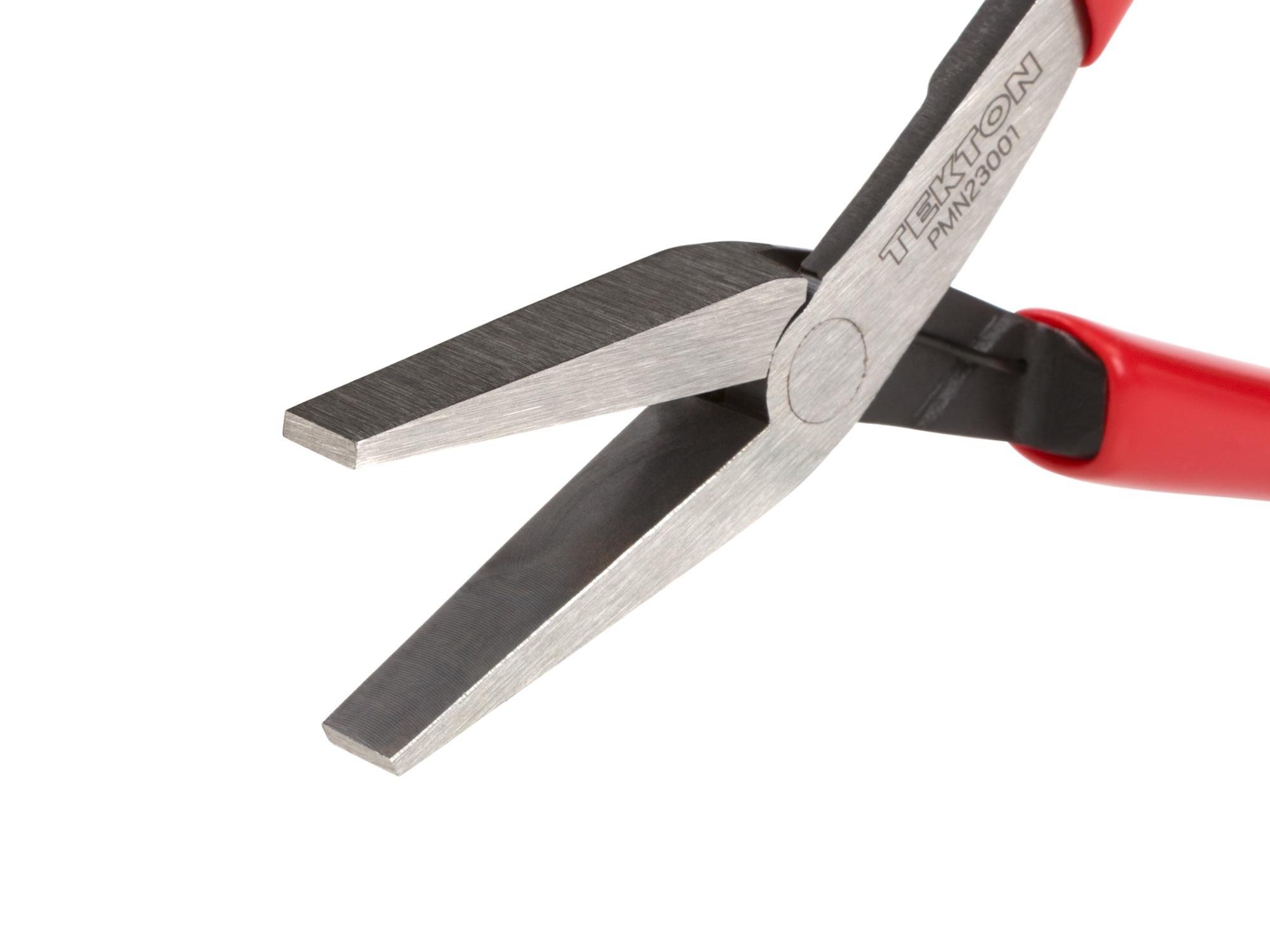

Broad, Flat Jaws

Made for sure handling of thin parts and sheet stock, the broad, flat jaws have large contact faces that hold work pieces much more securely than fine-tipped pliers and provide extra control and leverage for pulling, positioning, or bending. The straight, 90-degree edges along the sides and tip allow you to start a bend at an exact spot and form crisp corners. To ensure the tip can consistently grasp the thinnest parts, the base of the jaws is relieved with a small gap (0.3 mm +/- 0.1 mm) to prevent contact that would keep the tips from closing tightly together.

Smooth Jaws

Designed for jewelry, model making, and other delicate work, the faces of the jaws are smooth and flat to safely grasp soft metals and finished parts without marring sensitive surfaces.

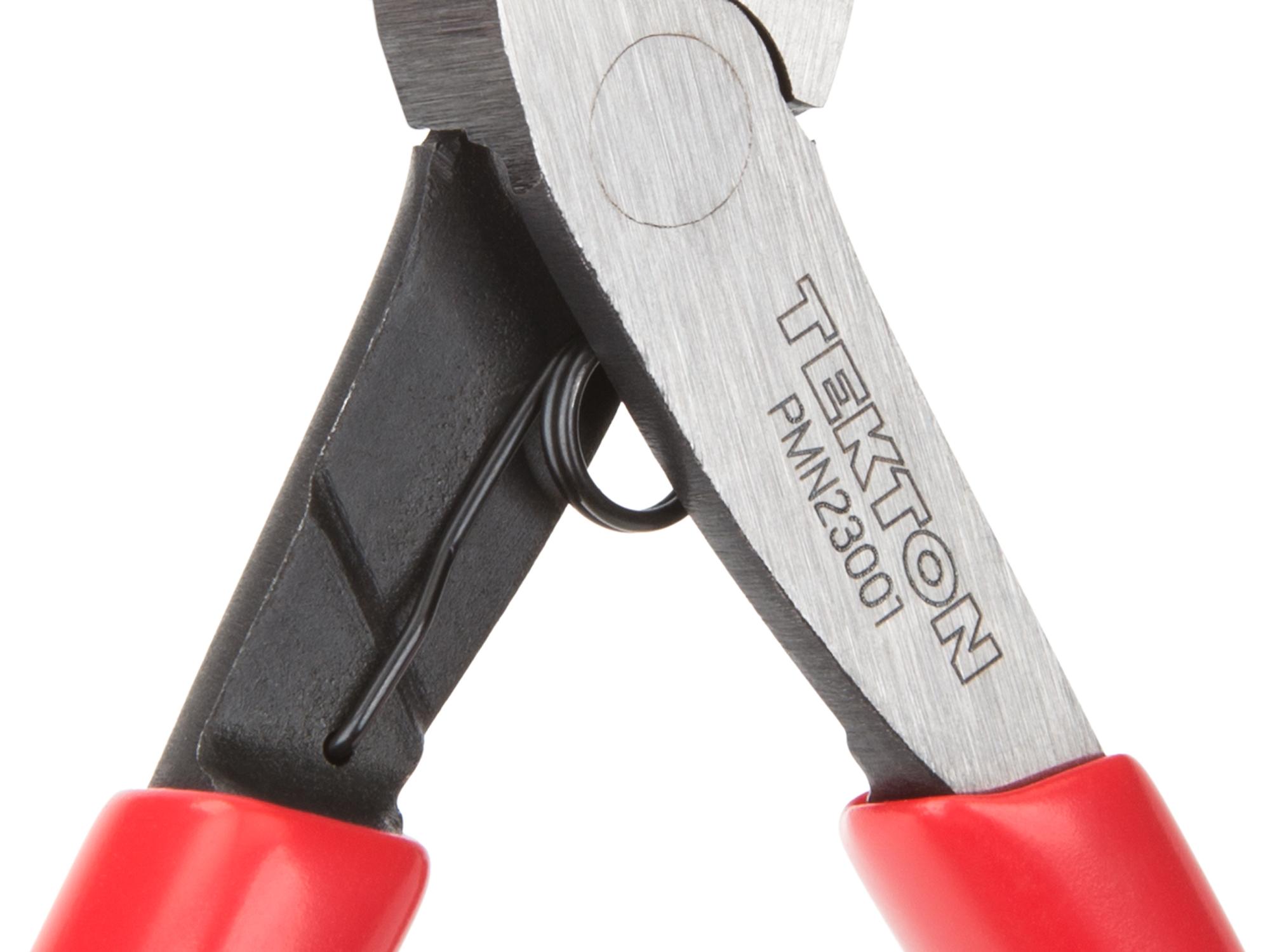

Recessed Coil Spring

Gently assisting the opening action of pliers, the long-arm coil spring is neatly tucked between handles so it won't get in the way or be accidentally dislodged. The spring itself has a relaxed opening angle of 137 degrees—nearly twice the opening angle of the pliers—so it stays properly tensioned when pliers are fully opened. Coiled twice, it achieves the right balance of the force required to open pliers with that required to close them, greatly improving overall control and reducing hand fatigue.

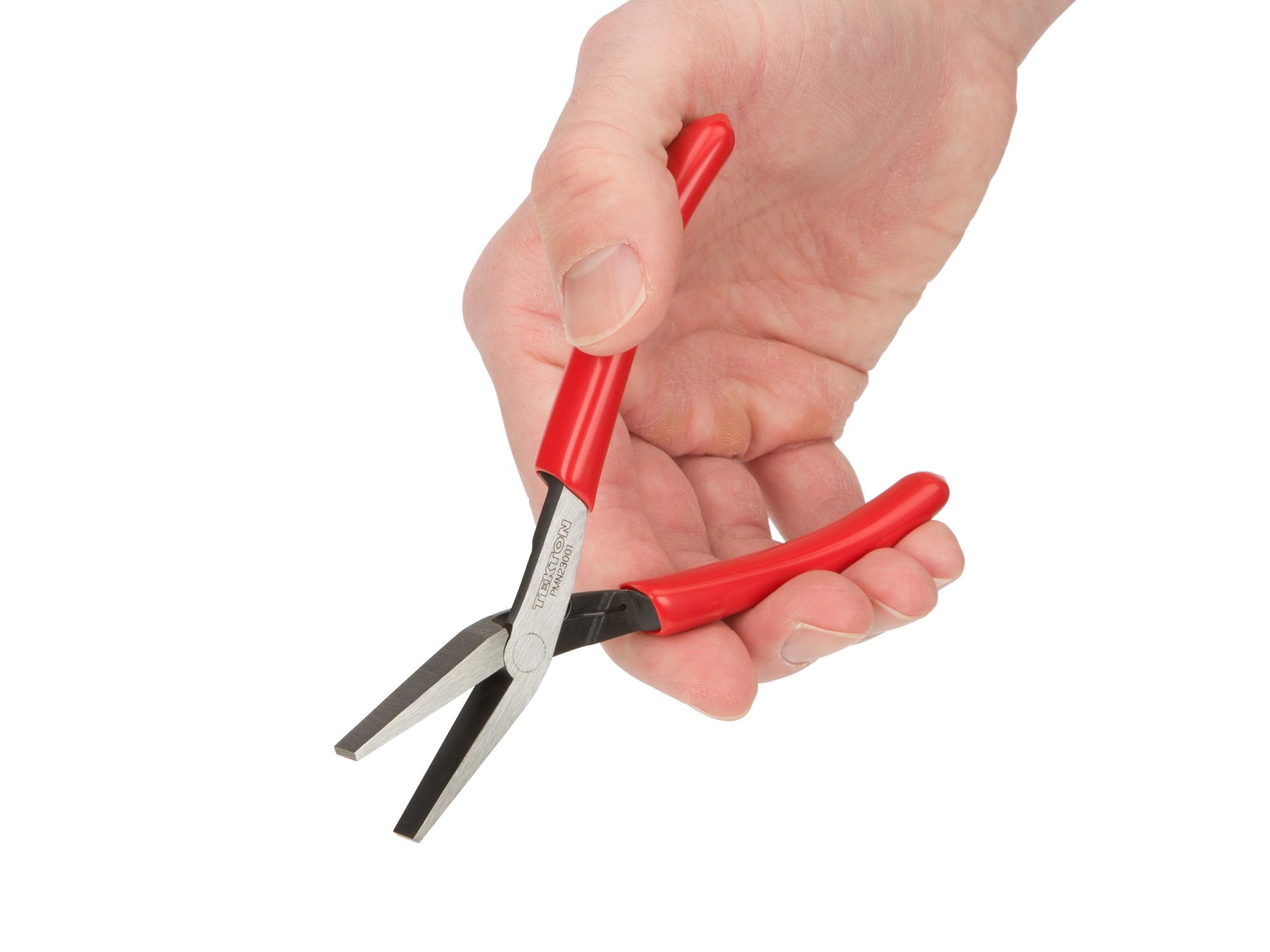

Wide Profile Handles

Generous in overall size, the handles have a wide, flat profile that creates a large contact area for fingertips to comfortably rest and exert exacting control. Slim vinyl grips add a bit of cushion and a nonslip surface without being bulky.

Custom-Engineered Alloy

Formulated for key performance characteristics, our pliers are made from a custom-engineered steel alloy with a high carbon content that strikes an ideal balance between machinability and toughness in its final hardened state (HRC 44-48). This allows for precise machining of tips and edges, strong, well-formed teeth, high hardenability on cutting blades, and minimizes flexing under stress.

Classic Finish

The main faces of the head and upper handle get their final surface with an extra fine 320 grit polishing process. Instead of adding a thick lacquer coating that scratches or chips off over time, the surface is protected by an ultra thin layer of dry-to-touch oil that can be maintained and recoated throughout the life of the pliers.

Individually Tuned

After final assembly and heat treatment, each pliers is individually inspected and tuned for jaw alignment and overall operation, ensuring optimal performance. For pliers with cutting edges, the resulting cut quality is verified on every pliers according to ASME testing procedures.


Specs

Mini Flat Nose Pliers (Smooth Jaw)

Specs for Mini Flat Nose Pliers (Smooth Jaw)
Country of Origin
Taiwan
Item Weight
0.21 lb.
