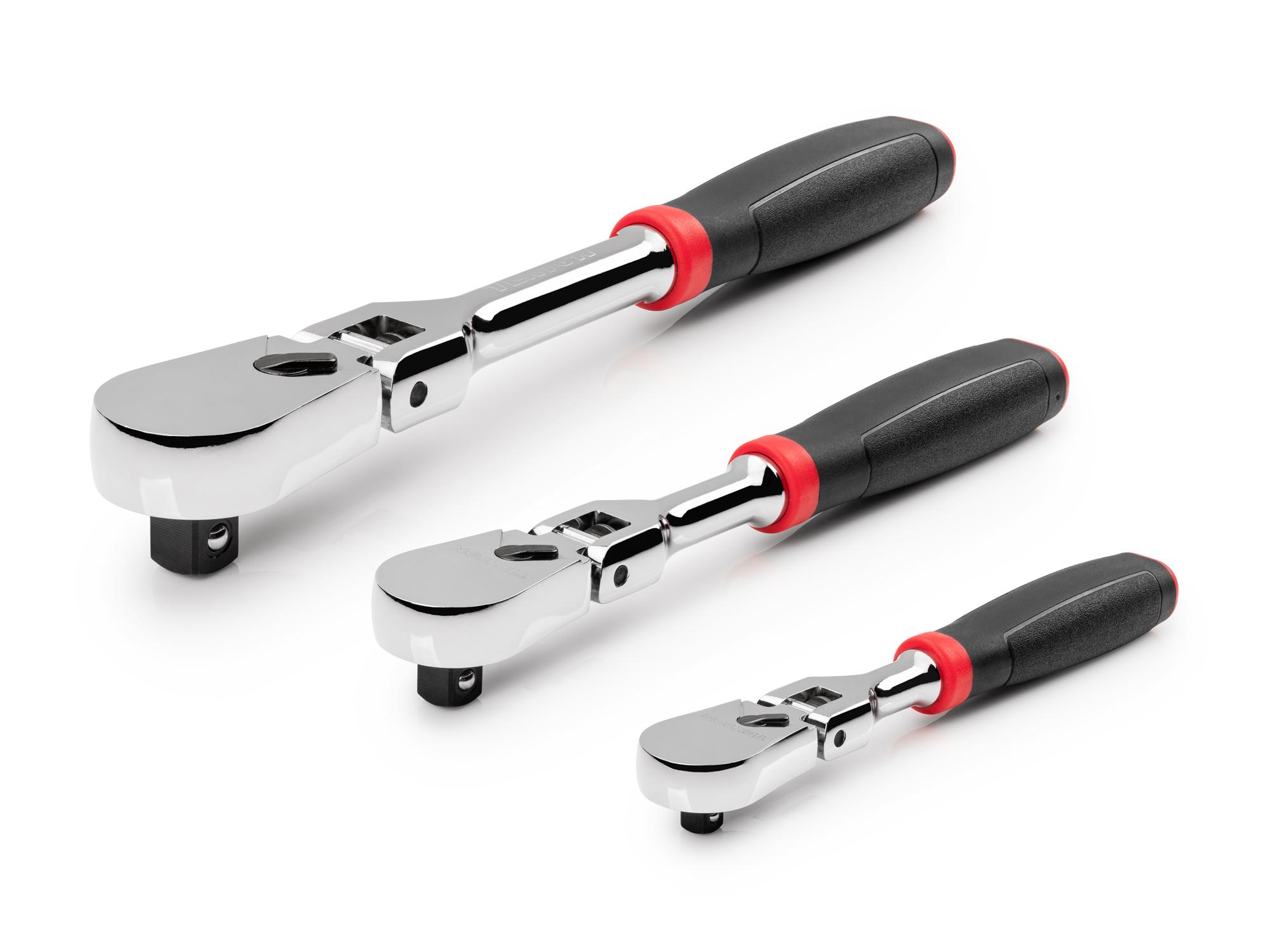

1/4, 3/8, 1/2 Inch Drive Flex Head Comfort Grip Ratchet Set (3-Piece)
Details
90-Tooth Gear = 4° Swing Arc
90-Tooth Gear = 4° Swing Arc
The single half-moon pawl maintains 6 to 9 teeth (depending on the drive size)
in contact with the gear at all times, ensuring that it won't slip or skip
under stress.
180° Flex, 9-Positions
The flex head sweeps through 180 degrees, snapping to nine different detent angles to reach around obstructions while a spring-actuated pawl engages with well-defined teeth to hold the head in position.
Ultra-Compact Head
Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.
Classic, Non-Quick-Release Drive
To add or remove sockets, push or pull them over the spring-actuated detent ball. The ratchet’s flat back improves its clearance, since there’s no release button to get in the way.
Comfort Grip Handle
We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.
Comfort Grip Handle
We designed our comfort grip handle with a rounded oval shape to fit your hand without being bulky.
The rounded oval shape supports your palm and fingers when you push or pull
The rounded oval shape supports your palm
and fingers when you push or pull
The rounded oval shape supports your palm and fingers when you push or pull
The rounded oval shape supports your palm and fingers when you push or pull
Handle Materials and Construction
Handle Materials and Construction
Rigid Inner Handle
- Made of polypropylene
- Impact resistant
- Shore D 68 durometer
Soft Overmold Grip
- Made of SantopreneTM TPV
- Abrasion and chemical resistant
- Lightly textured on two sides
- Shore A 55 durometer
Steel Shaft Core
- Made of 6135 Chromium-Vanadium steel
- Fully chrome-plated finish
- Press-fit deeply into the handle and won't pull apart
Won't Twist Out
The steel shaft has two flat
sides so it can't twist inside the handle
Steel Shaft Core
- Made of 6135 Chromium-Vanadium steel
- Fully chrome-plated finish
- Press-fit deeply into the handle and won't pull apart
Rigid Inner Handle
- Made of polypropylene
- Impact resistant
- Shore D 68 durometer
Soft Overmold Grip
- Made of SantopreneTM TPV
- Abrasion and chemical resistant
- Lightly textured on two sides
- Shore A 55 durometer
Won't Twist Out
The steel shaft has two flat
sides so it can't twist inside the handle
Working Handle Length
To be clear and consistent about the size of our ratchets, we use the
actual working length (center of drive tang to end
of handle), not the overall length of the tool. As
a result, Tekton tools may be a little longer than other similarly described
tools in the market.
Proof Torque
Our ratchets meet (and most far exceed) industry standards for important
baselines like Proof Torque, a measure of strength verified by a
single-cycle test that applies
torque until the specified value is reached without failure or any
permanent deformation.
Parts + Assembly
Specs
1/4, 3/8, 1/2 Inch Drive Flex Head Comfort Grip Ratchet Set (3-Piece)
| Tooth Count | 90 |
| Country of Origin | Taiwan |
| Item Weight | 2.32 lb. |
