TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
TEKTON KLX91202-D Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
Click image to zoom in

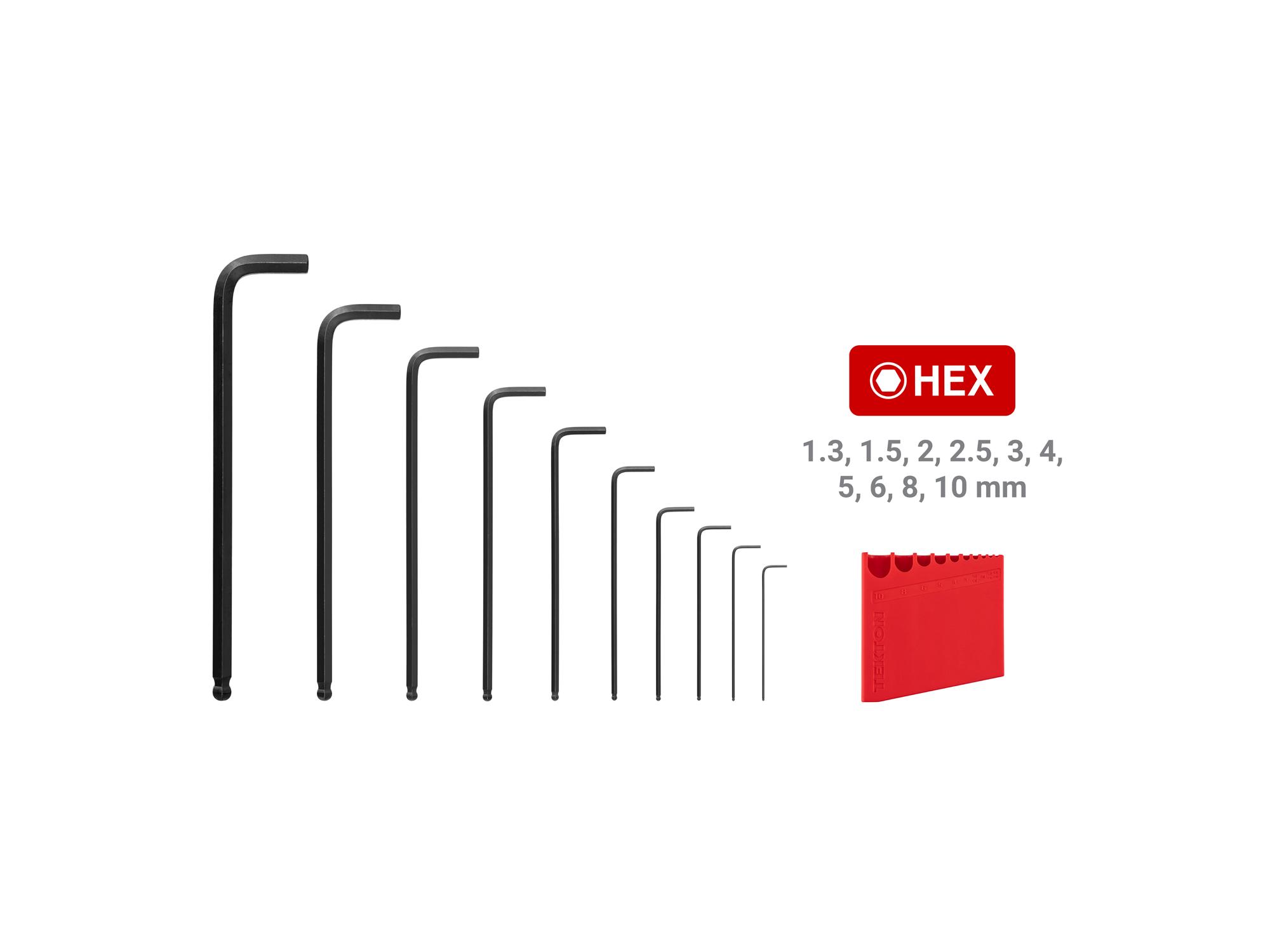

Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)

#KLX91202
 •
$20.00

Also available:

Flat EndShort Arm

Details

High Leverage

We designed the keys to be longer in the largest sizes to increase leverage where it matters.
Tekton 10 mm ball end keys are longer than competitors and ISO standards.
Tekton 8 mm ball end keys are longer than competitors and ISO standards.
Tekton 6 mm ball end keys are longer than competitors and ISO standards.
Tekton 5 mm ball end keys are longer than or the same as competitors and ISO standards.
Tekton 4 mm ball end keys are longer ISO standards and competitors except Bondhus.
Tekton 3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton
KLX91202
Eklind Extra Long
17709
Bondhus Extra Long
BLX15MB
ISO 2936:2014(E) Long
Tekton 10 mm ball end keys are longer than competitors and ISO standards.
Tekton 8 mm ball end keys are longer than competitors and ISO standards.
Tekton 6 mm ball end keys are longer than competitors and ISO standards.
Tekton 5 mm ball end keys are longer than or the same as competitors and ISO standards.
Tekton 4 mm ball end keys are longer ISO standards and competitors except Bondhus.
Tekton 3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 2 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.5 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton 1.3 mm ball end keys are longer ISO standards but shorter than competitors.
Tekton L-key in fastener

Tight Fit with Fasteners

We precisely manufacture our hex key geometry on the large end of the applicable range, resulting in less slop in fasteners.

Two Measures of Tolerance Control

We measure our hex key tolerances in two ways, from point-to-point and side-to-side, to ensure the highest standards of dimensional accuracy and consistency.
Tekton hex key ball end inserting into a fastener at 20 degrees

20º Ball Angle Increases Access

Our keys implement a steep ball end angle that increases your ability to access fasteners while still maintaining sufficient strength.
A closeup comparision of Tekton's hex key's chamfer edge with Eklind competitior hex key

Refined Edges

Tekton keys have slightly chamfered edges (except sizes that are too small to be chamfered: 1.3 mm, 1.5 mm, 2 mm, 0.050 in., 1/16 in., and 5/64 in.) and a smooth top face to optimize engagement with fasteners.

Materials and Finishes

Bar chart comparison between ISO and ASME standards, Tekton, Bondhus, and Eklind L-key minimum proof torque

Maximum Torque Strength

We make our L-keys with 8660 nickel chromium molybdenum steel that's heat-treated to 54-58 HRC to produce tools that are hard, but not brittle. As a result, the maximum torque of the L-keys consistently exceeds the ASME standards for minimum torsion load and the ISO standards for minimum proof torque.
Corroded Eklind and Bondhus ball end hex keys next to Tekton's Key with corrosion-resistant finish.

Corrosion-Resistant Finish

We coat all of our keys with a durable manganese phosphate finish that’s resistant to corrosion.
Tekton's ball end hex key with laser marking and stamped sizes

Clear Markings

With the exception of the smallest sizes, Tekton L-key sizes are marked in two ways—both with a high-visibility laser marking and a stamped marking.

Organization Features

Quick Access

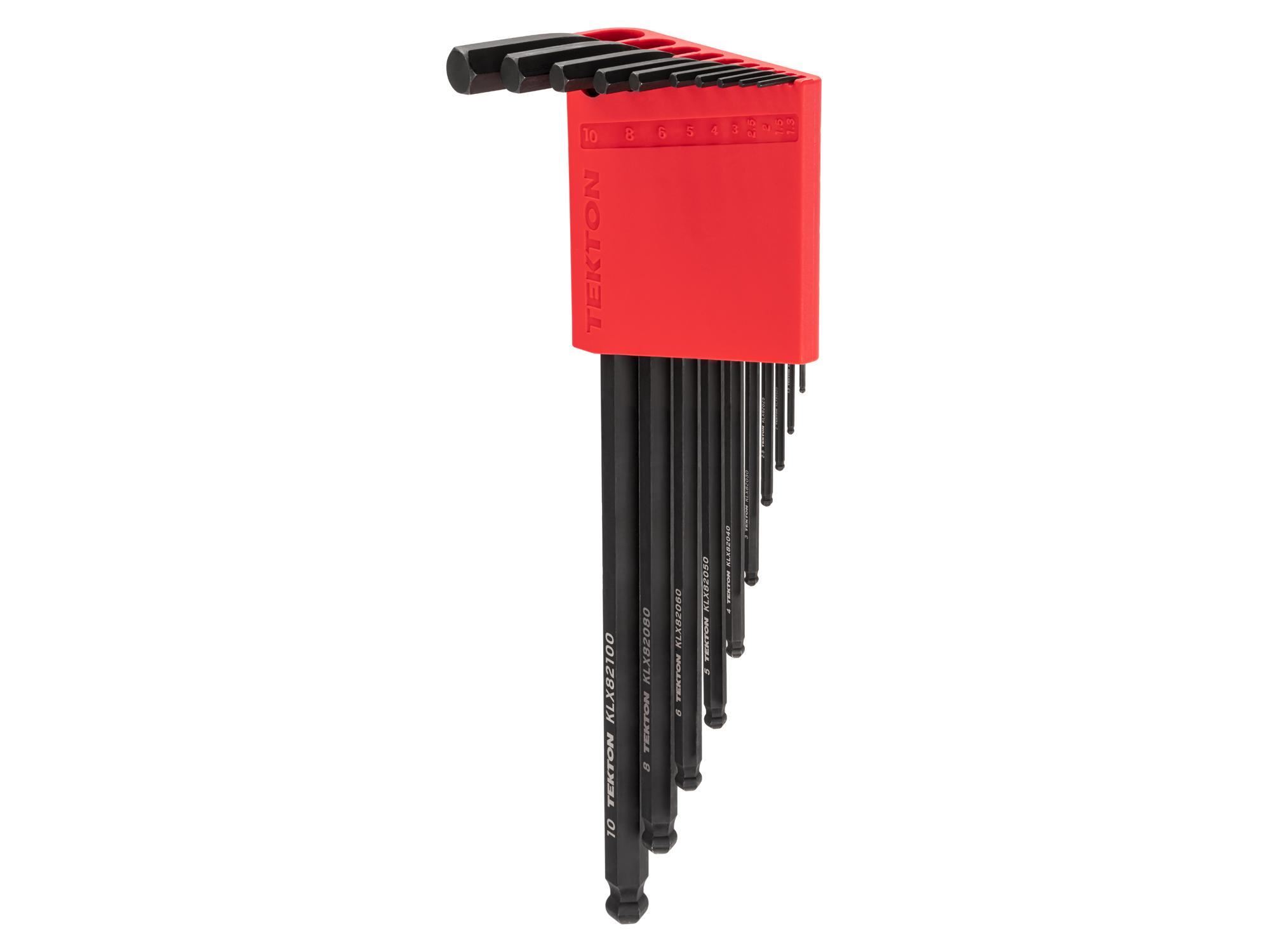

We designed the holder to organize the L-keys facing forward so you can easily access each tool without having to move others out of the way.

Low-Profile Organization

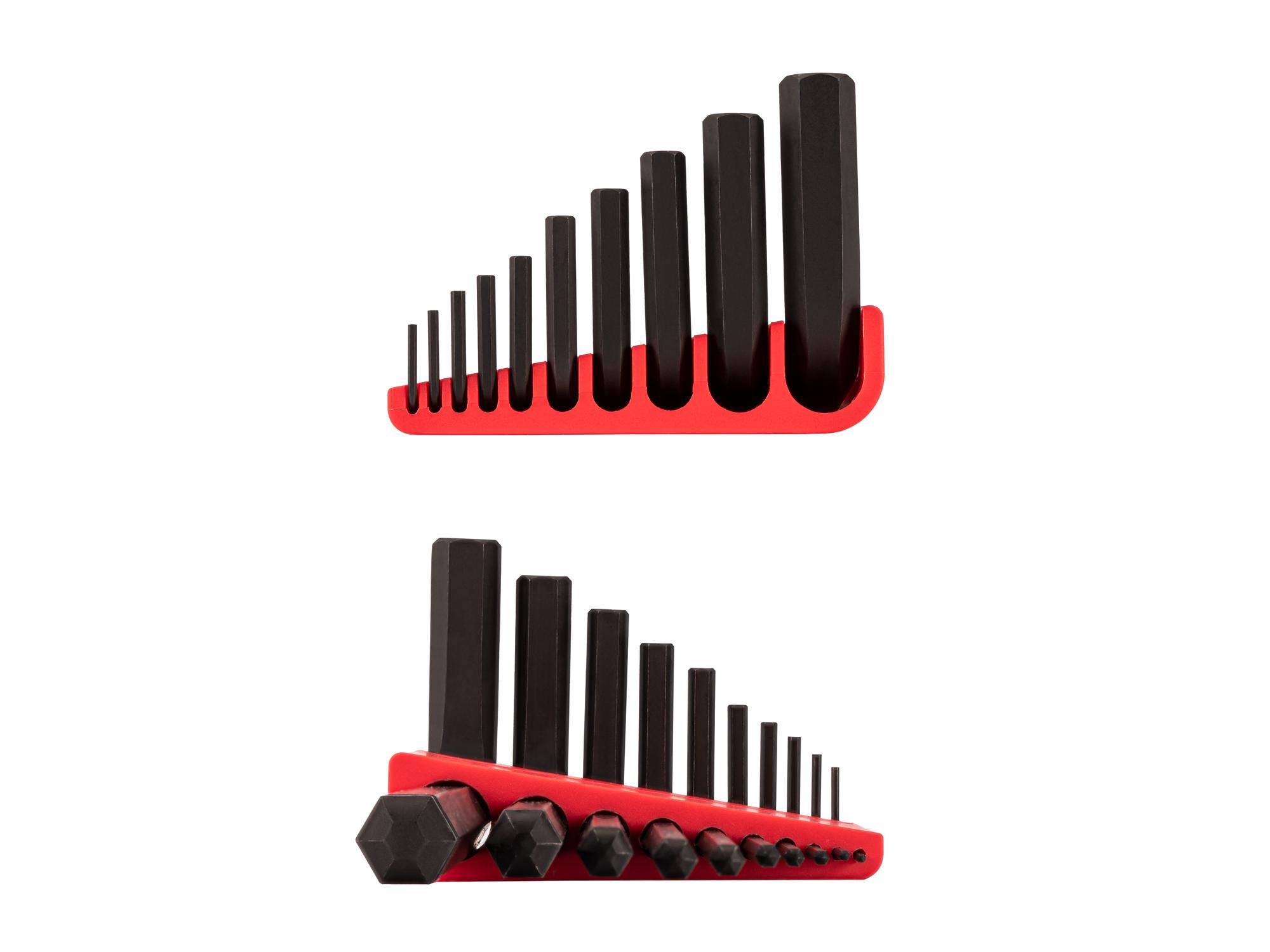

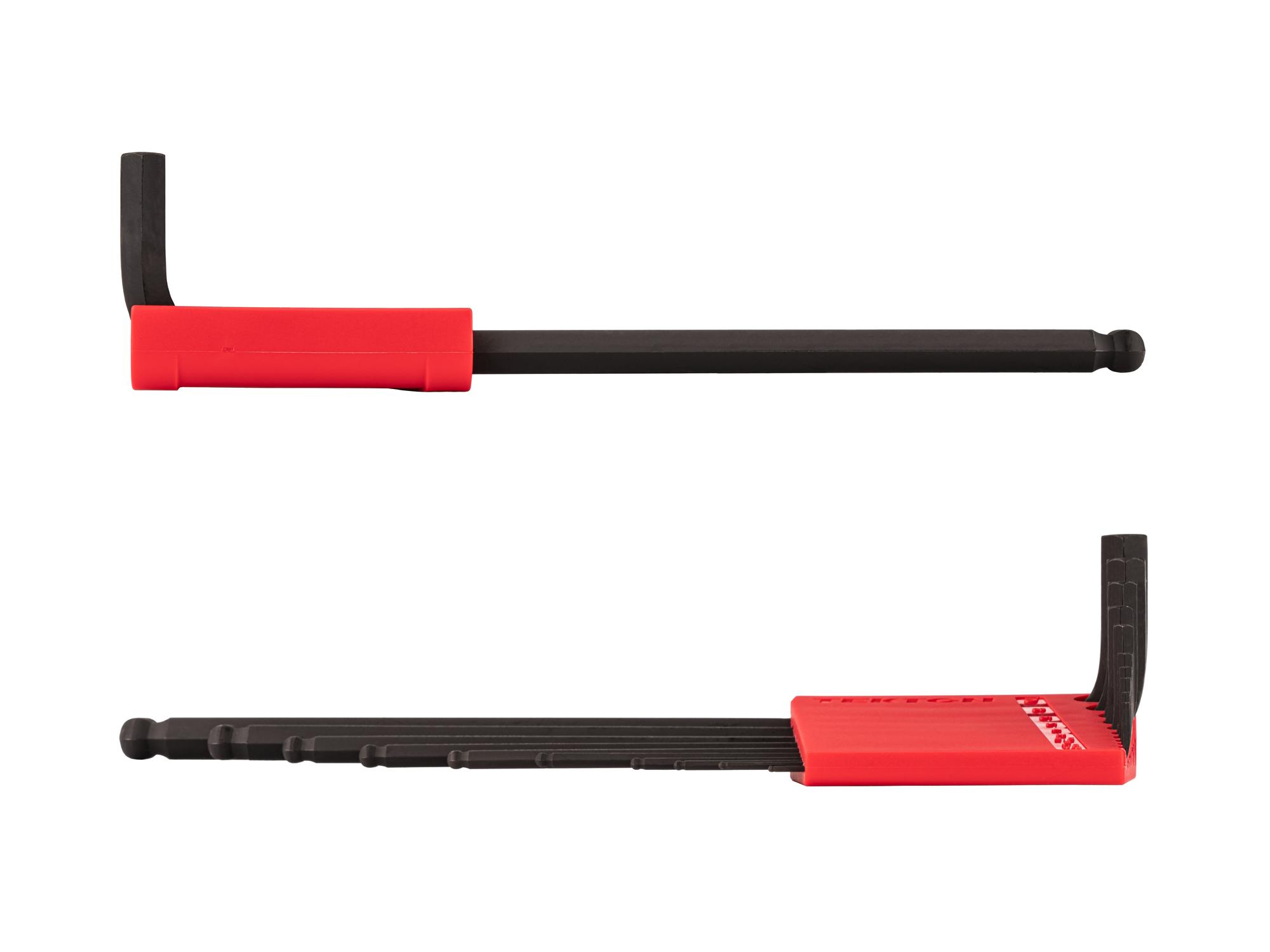

You can also face the L-keys to the side for a flat, low-profile organization solution.

Self-Aligning Key Slots

The slots are uniquely shaped to guide the head of each L-key into alignment with the others.

Durable Material

The holder provides a firm, flexible grip and resists cracking or breaking.

Specs

Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)

Specs for Ball End Hex L-Key Set with Holder, 10-Piece (1.3-10 mm)
Country of Origin
Taiwan
Item Weight
1 lb.
