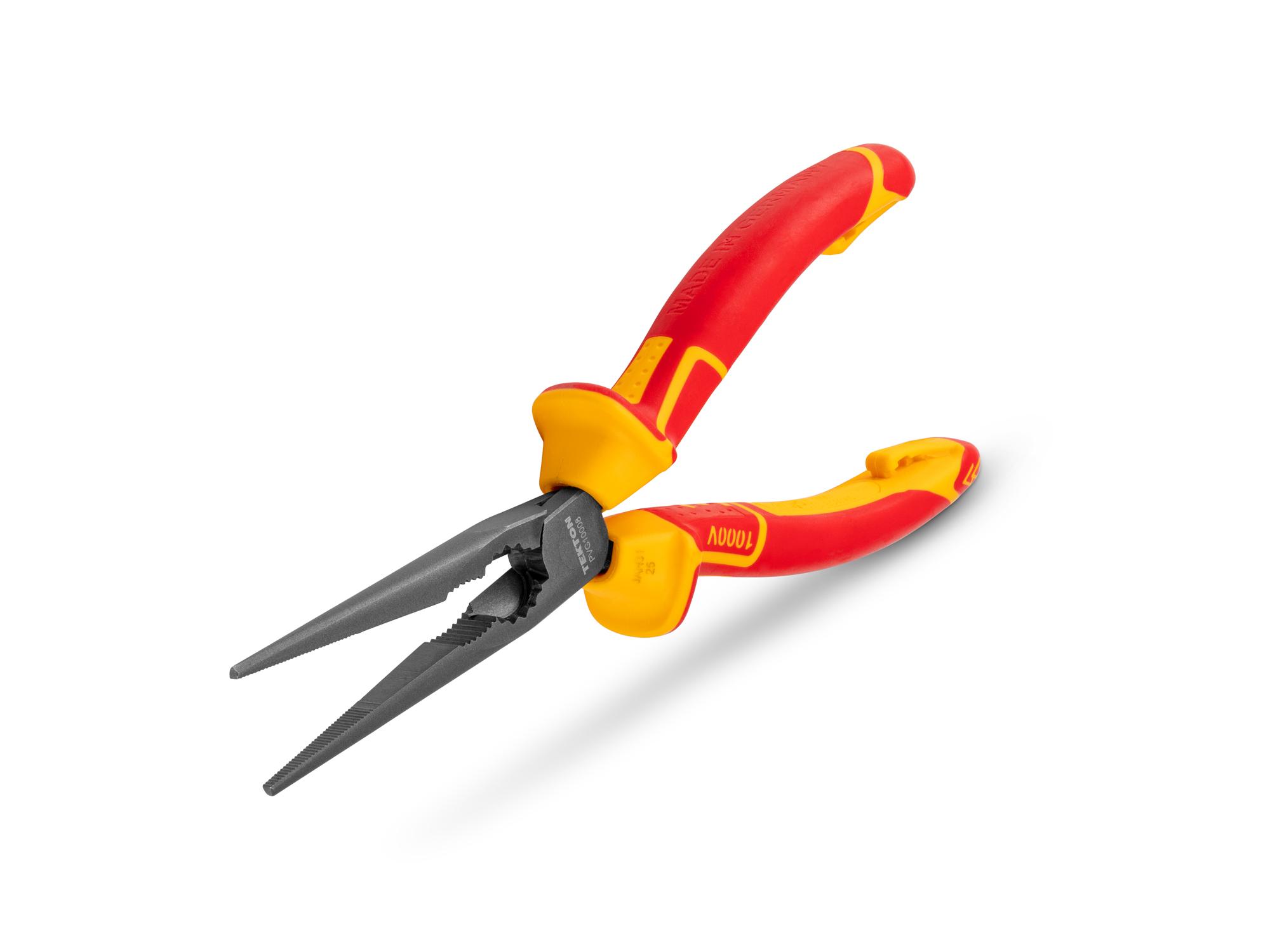

Front-right angle view of Tekton 8 inch gripping pliers set. Item #PVG10008

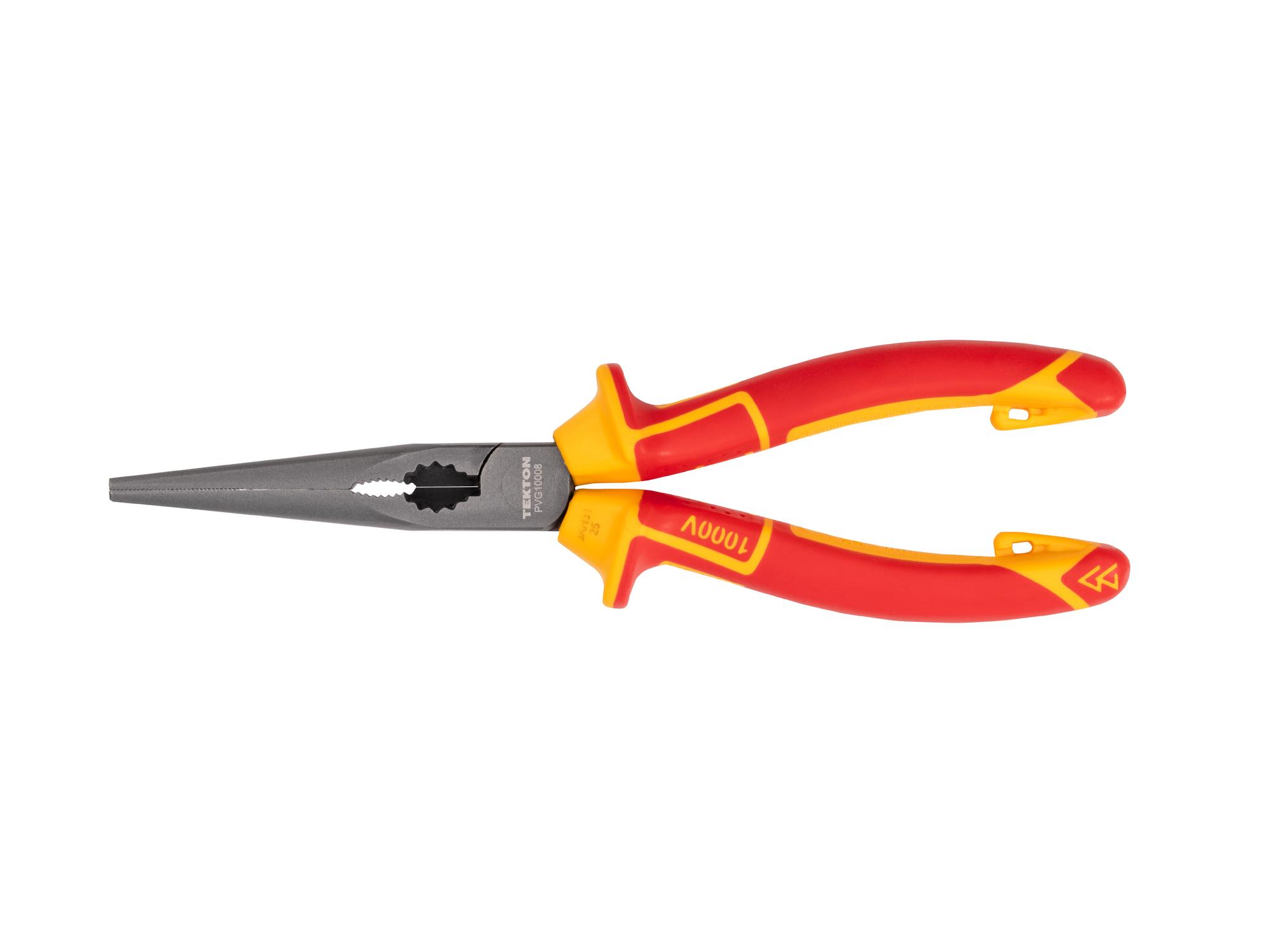

Front view of Tekton 8 inch gripping pliers set. Item #PVG10008

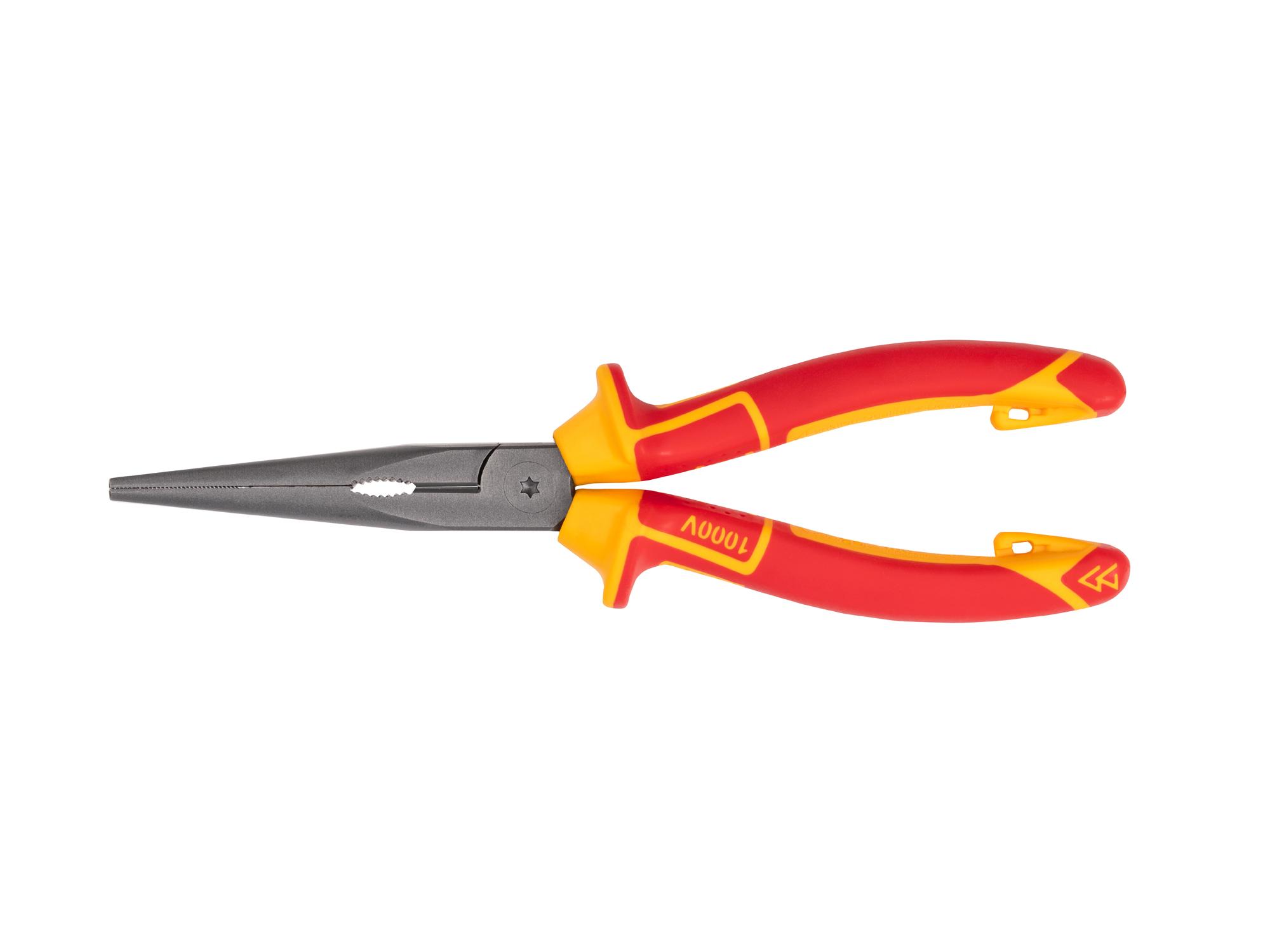

Back view of Tekton 8 inch gripping pliers set. Item #PVG10008

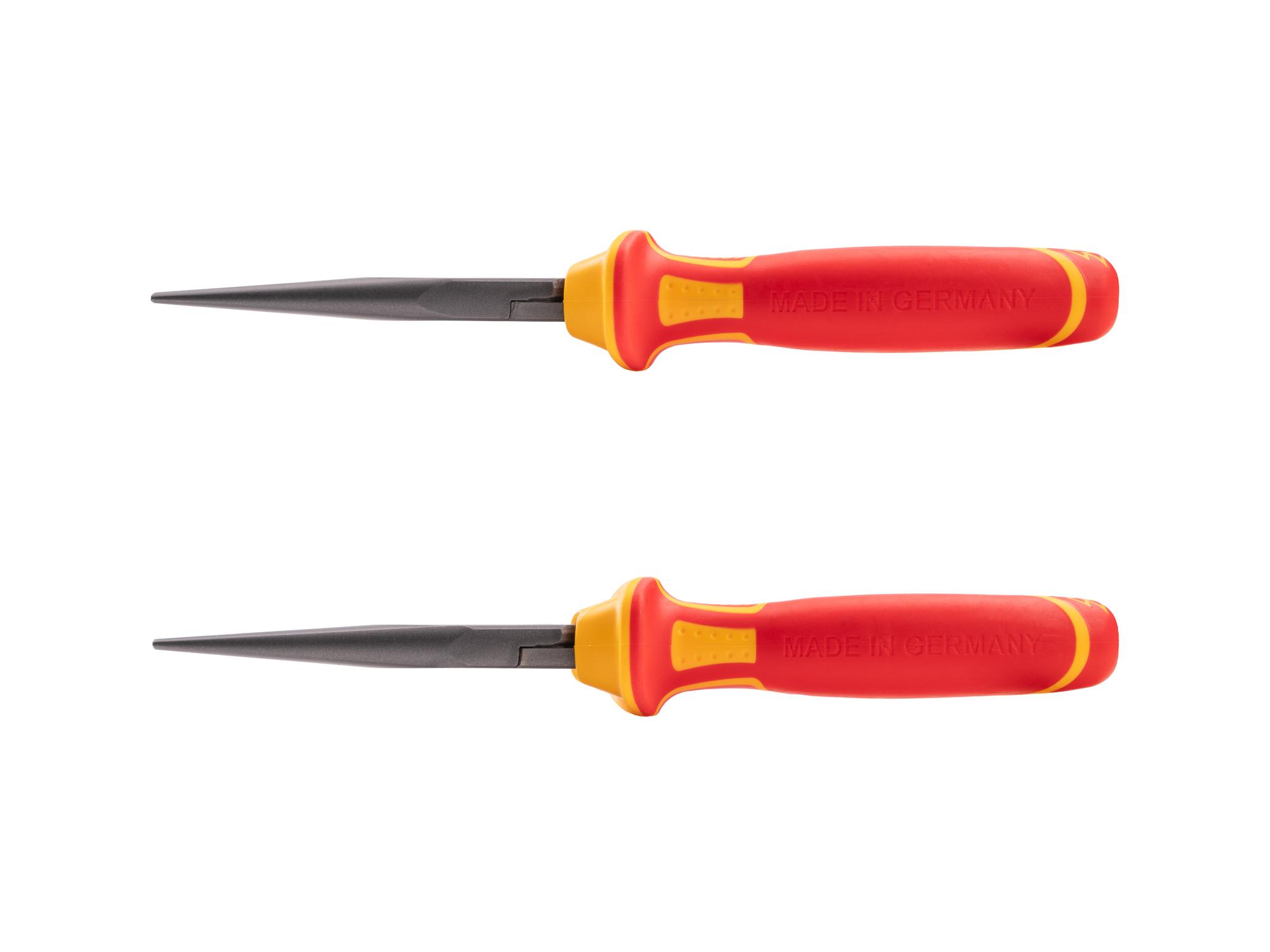

Side view of Tekton 8 inch gripping pliers set. Item #PVG10008

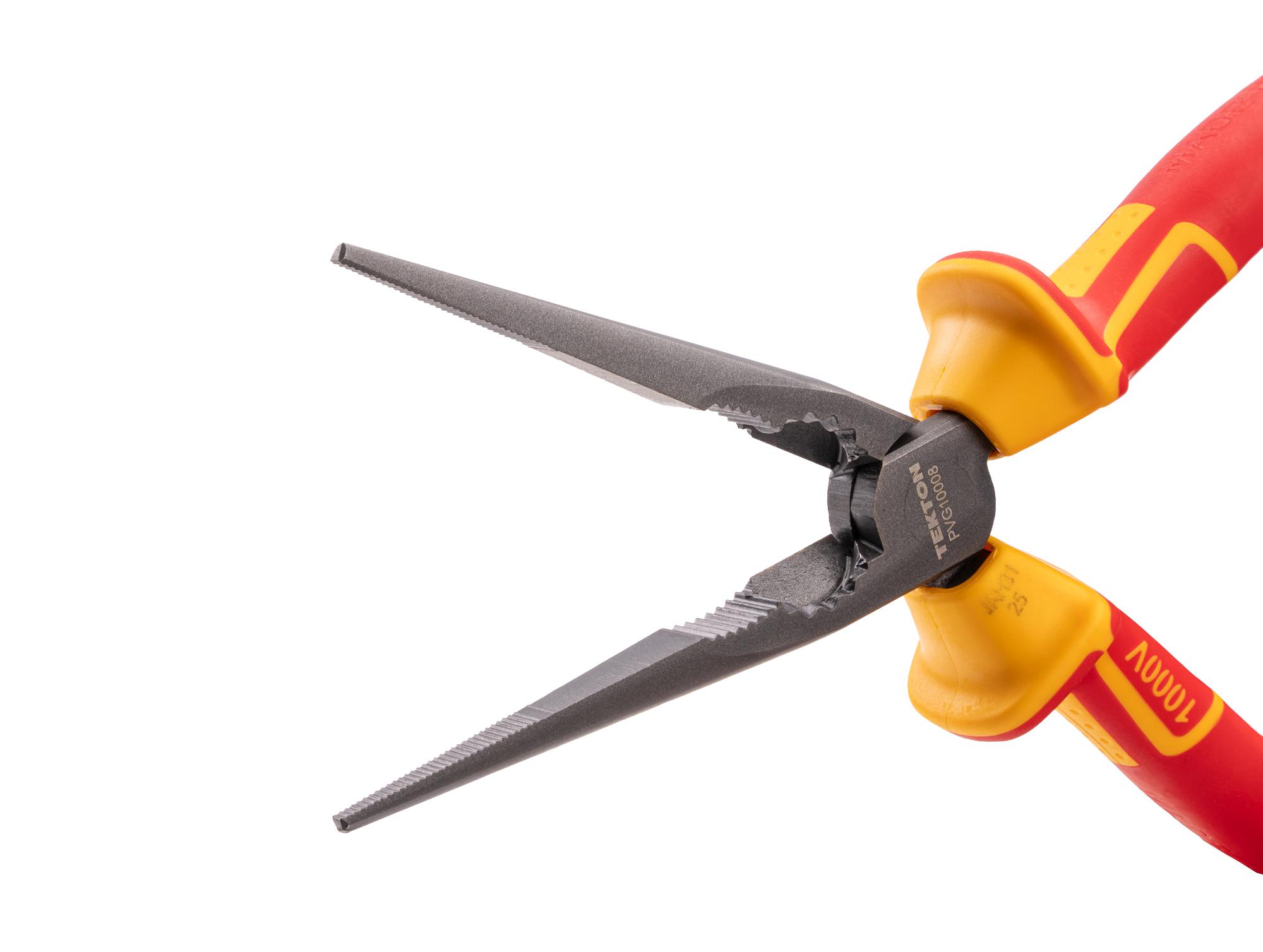

Closeup view of Tekton 8 inch gripping pliers set. Item #PVG10008

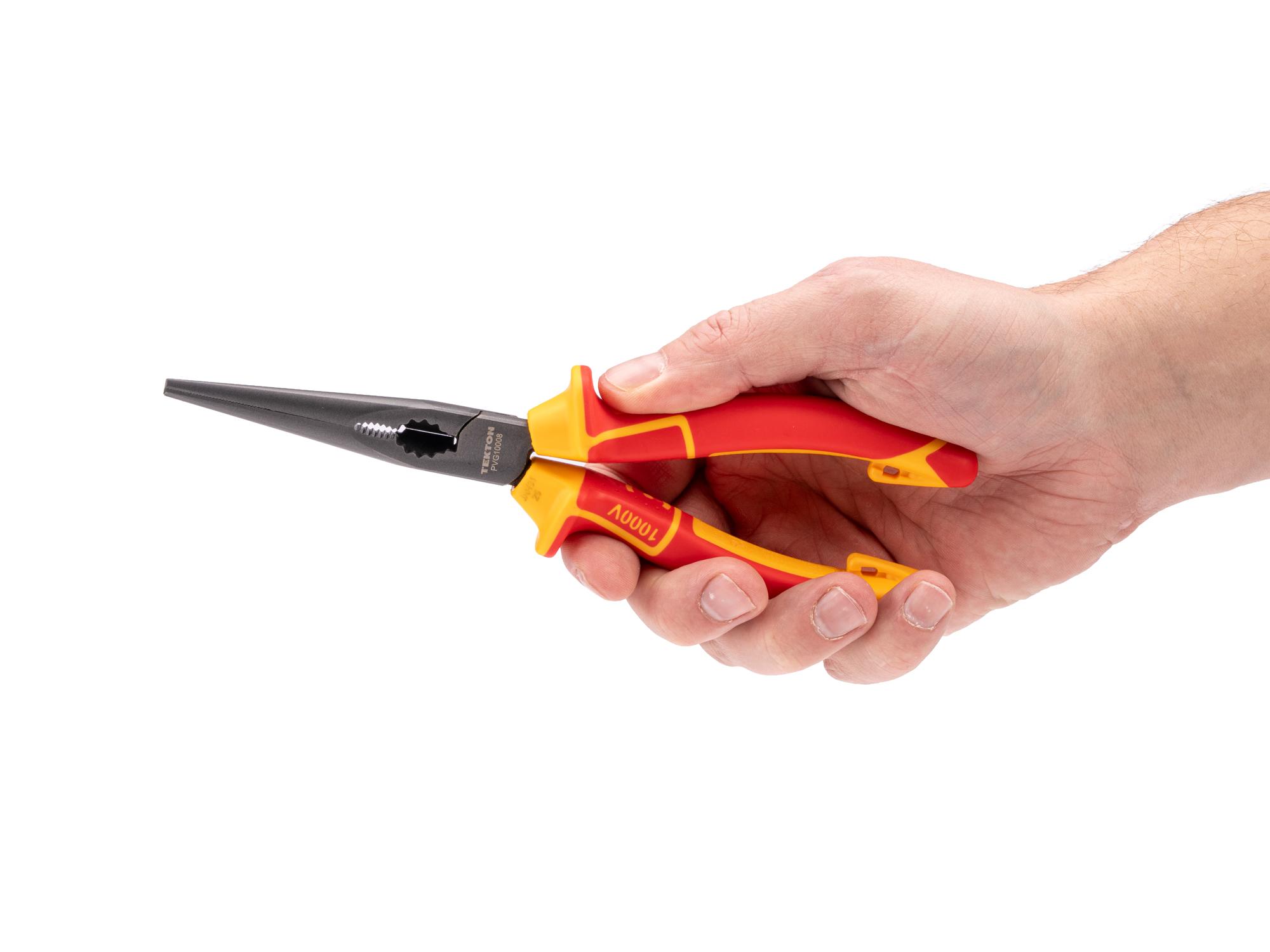

Person holding Tekton 8 inch gripping pliers set. Item #PVG10008
Tap image to zoom in
Item #PVG10008

8 Inch Insulated Long Nose Pliers

•
$40.00
Add to Cart
DetailsSpecifications

Details

Two insulated pliers in the pockets of a work bag.

Insulated for Electrical Work

The handles are insulated to protect against electrical shock for voltages up to 1000 V AC and 1500 V DC. They are individually tested and VDE certified in accordance with IEC 60900.

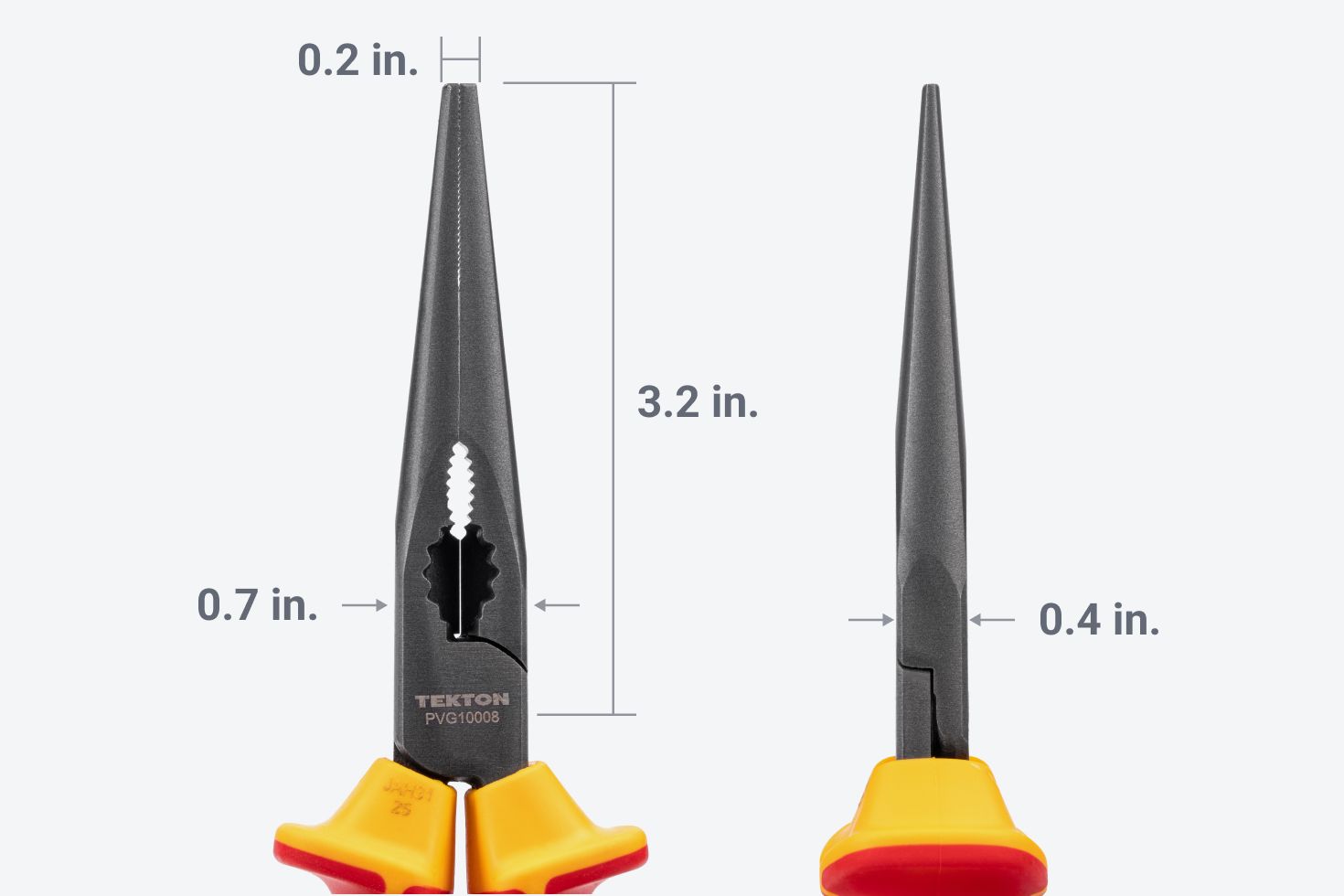

Tekton insulated long nose pliers are 3.2 inches long, 0.7 inches wide at the joint, and 0.2 inches wide at the tips.

Long, Slim Jaws for More Access

The slim jaws are 3.2 inches long from the center of the joint to the end of the tips, allowing you to reach into tight spaces.

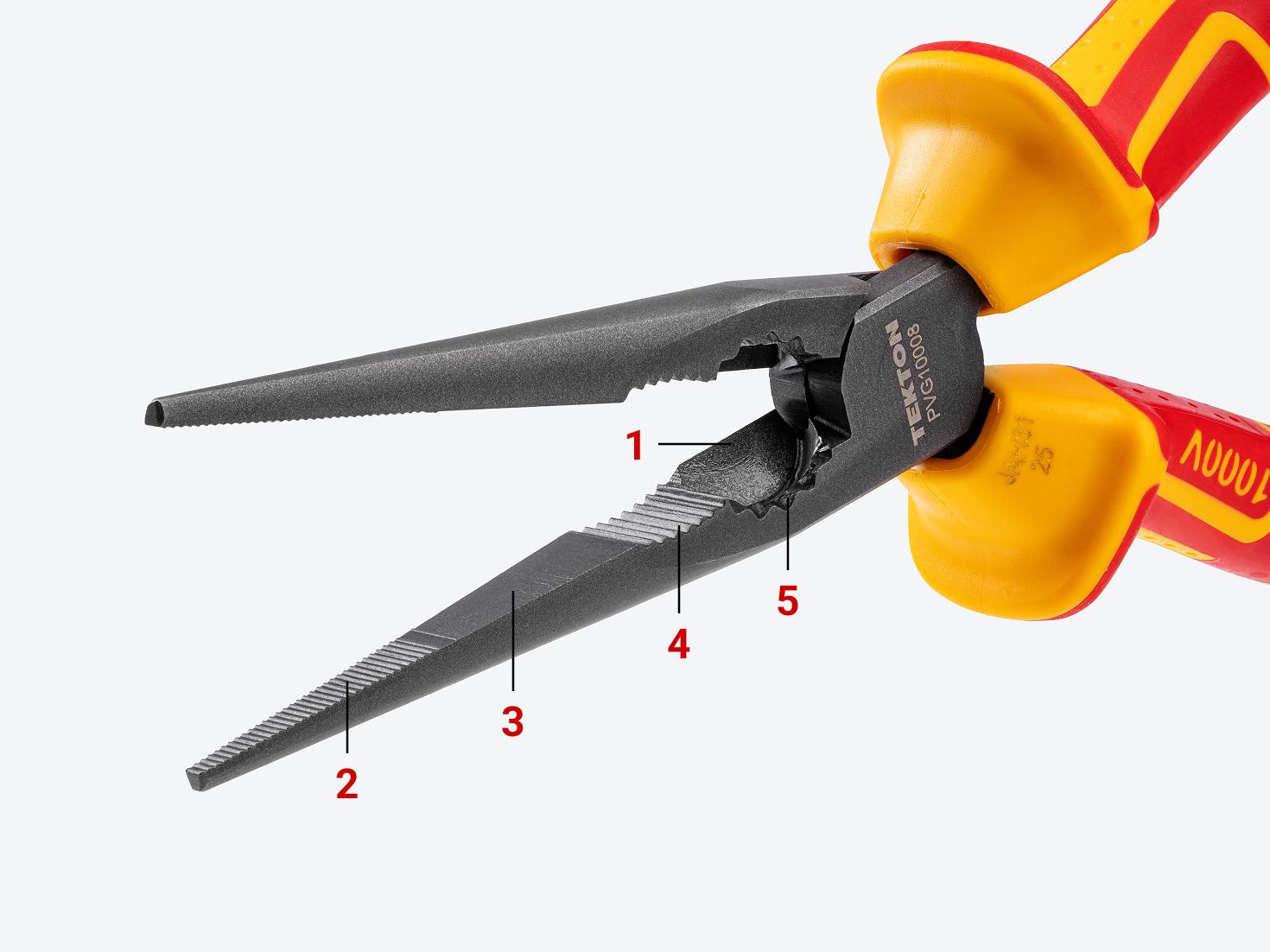

Tekton insulated long nose pliers #PVG10008 with areas of the jaw labeled.

Five Work Zones

The slender jaws offer five distinct work zones:

1. Wire Cutter for fast, clean cuts

2. Serrated Surface for controlled gripping

3. Smooth Surface for non-marring clamping

4. Coarse Teeth for an aggressive bite

5. Hex-Grip Teeth for turning hex bolts

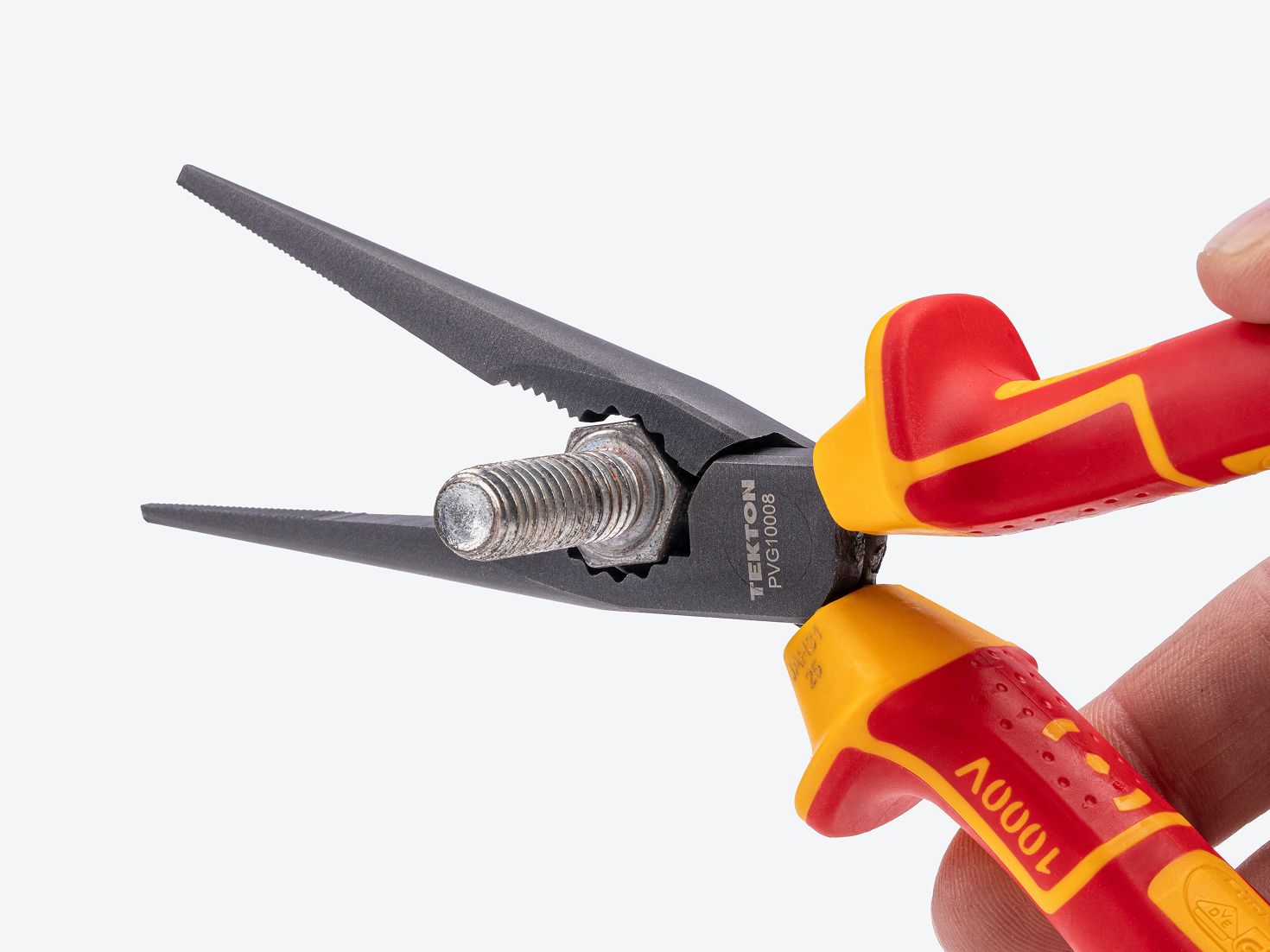

Tekton insulated long nose pliers #PVG10008 holding a hex bolt.

Hex Grip Teeth

The jaws have a unique set of teeth that positively engage small- to medium-sized hex fasteners, similar to a 12-point box-end wrench.
Minimum Hex SizeMaximum Hex Size
11/32 in. | 8 mm3/4 in. | 18 mm

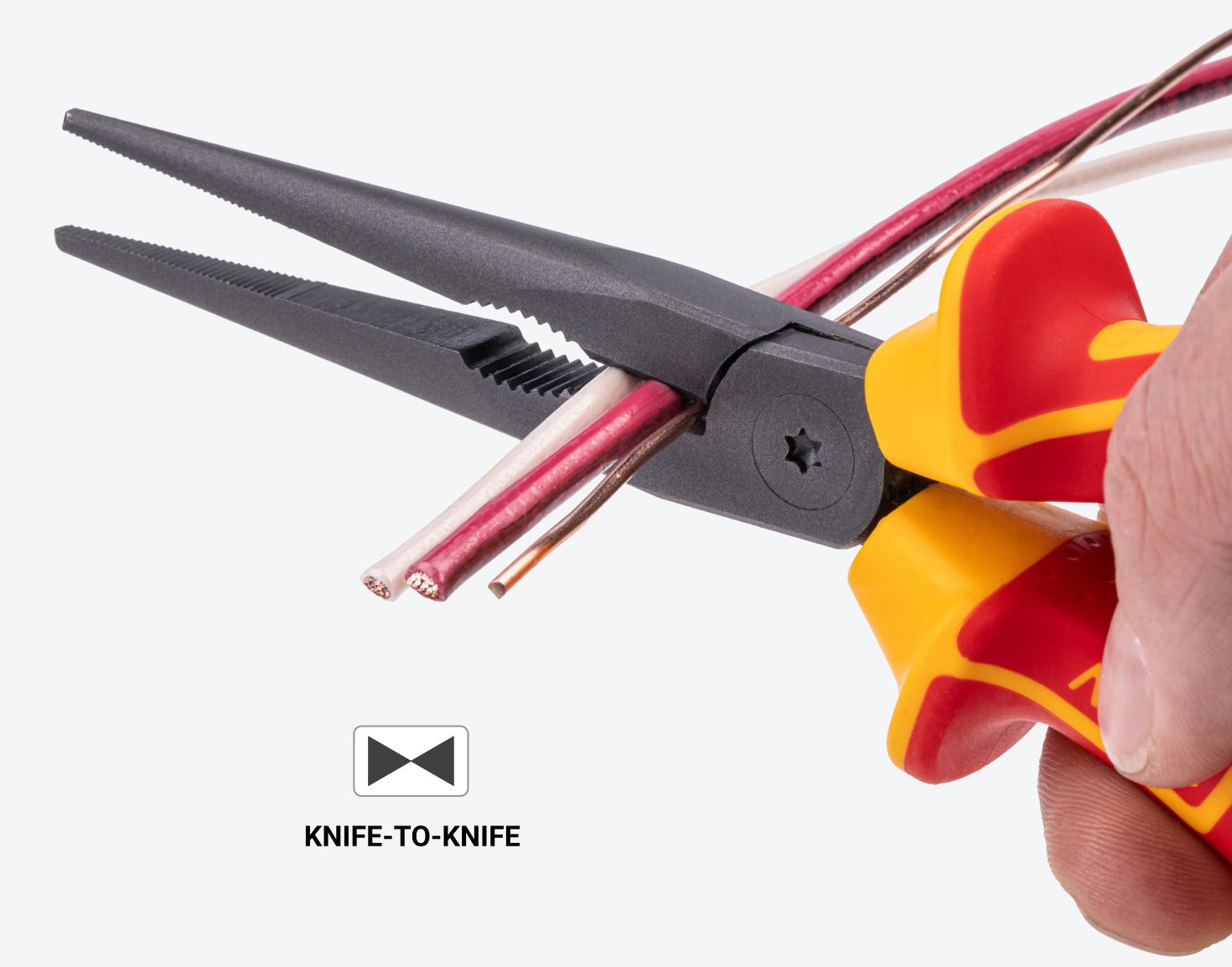

Tekton insulated long nose pliers #PVG10008 cutting through wire.

Hardened Cutting Knives

The wire cutter has two opposing knives that meet in the center and are induction-hardened to 55 - 59 HRC.
MaterialMax Size
WIRESSoft Wire and Plastic (220 N/mm2)7 AWG
Medium Hard Wire (750 N/mm2)8 AWG
Hard Wire (1800 N/mm2)12 AWG
CABLES Aluminum and Copper Cable (Single, stranded, and multi-wired) N/A
NM Cable (i.e. Romex®)N/A

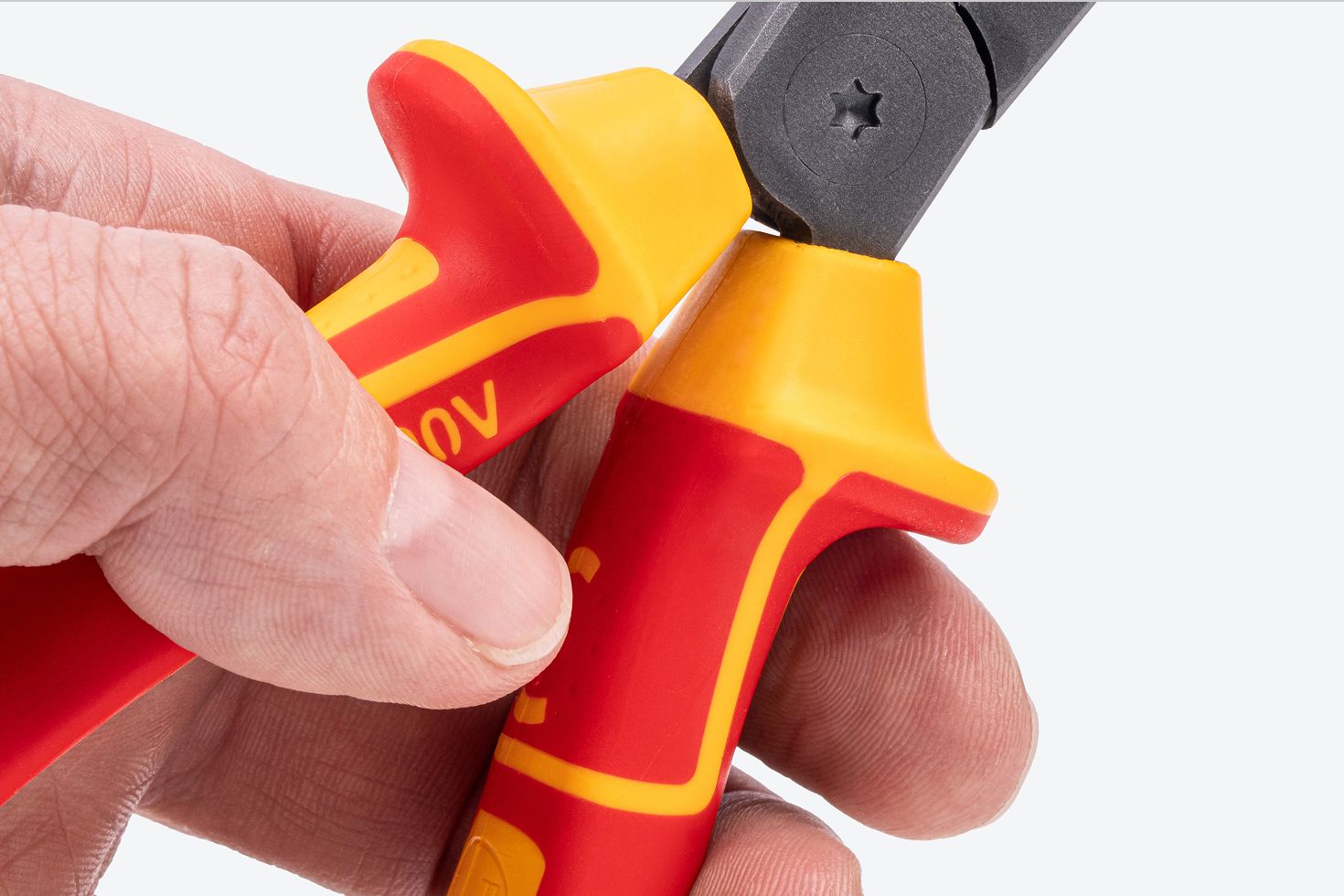

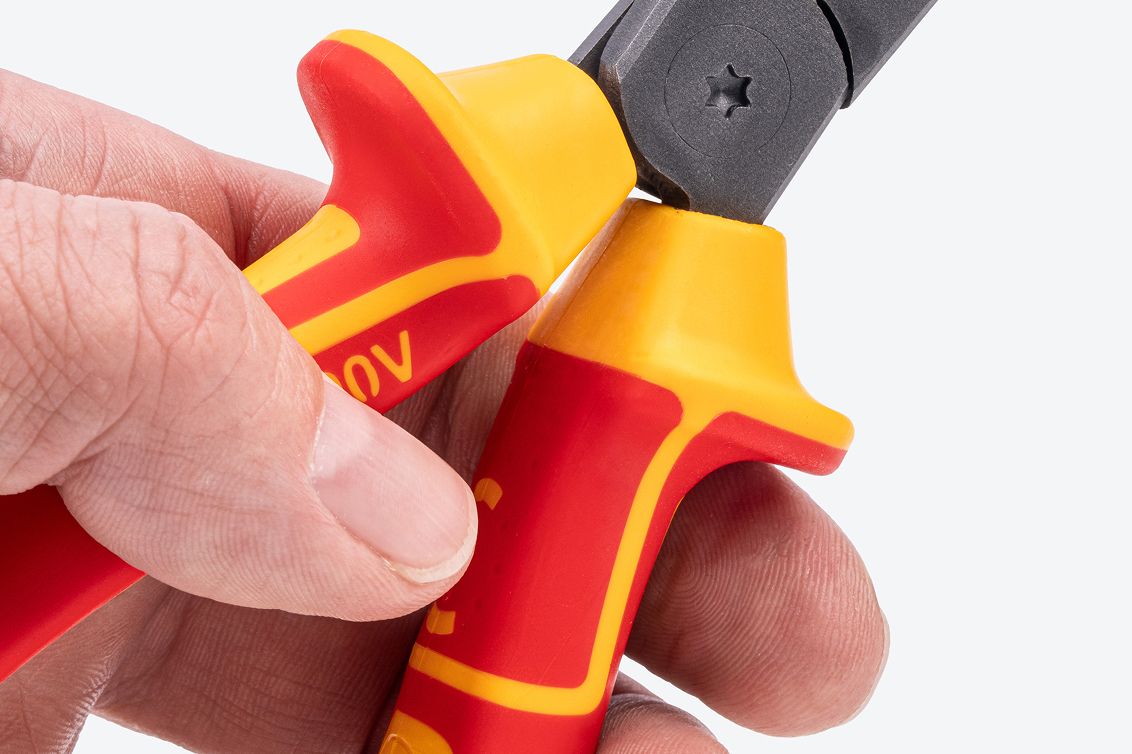

Close up view of the flared handles of Tekton insulated long nose pliers #PVG10008.

Flared Handles

The tops of the handles are flared to give your hand a positive stop to push against, allowing better control with a looser grip and reduced hand fatigue. The flared shape also keeps the pliers from slipping through your hand or settling to the bottom of a storage pocket.

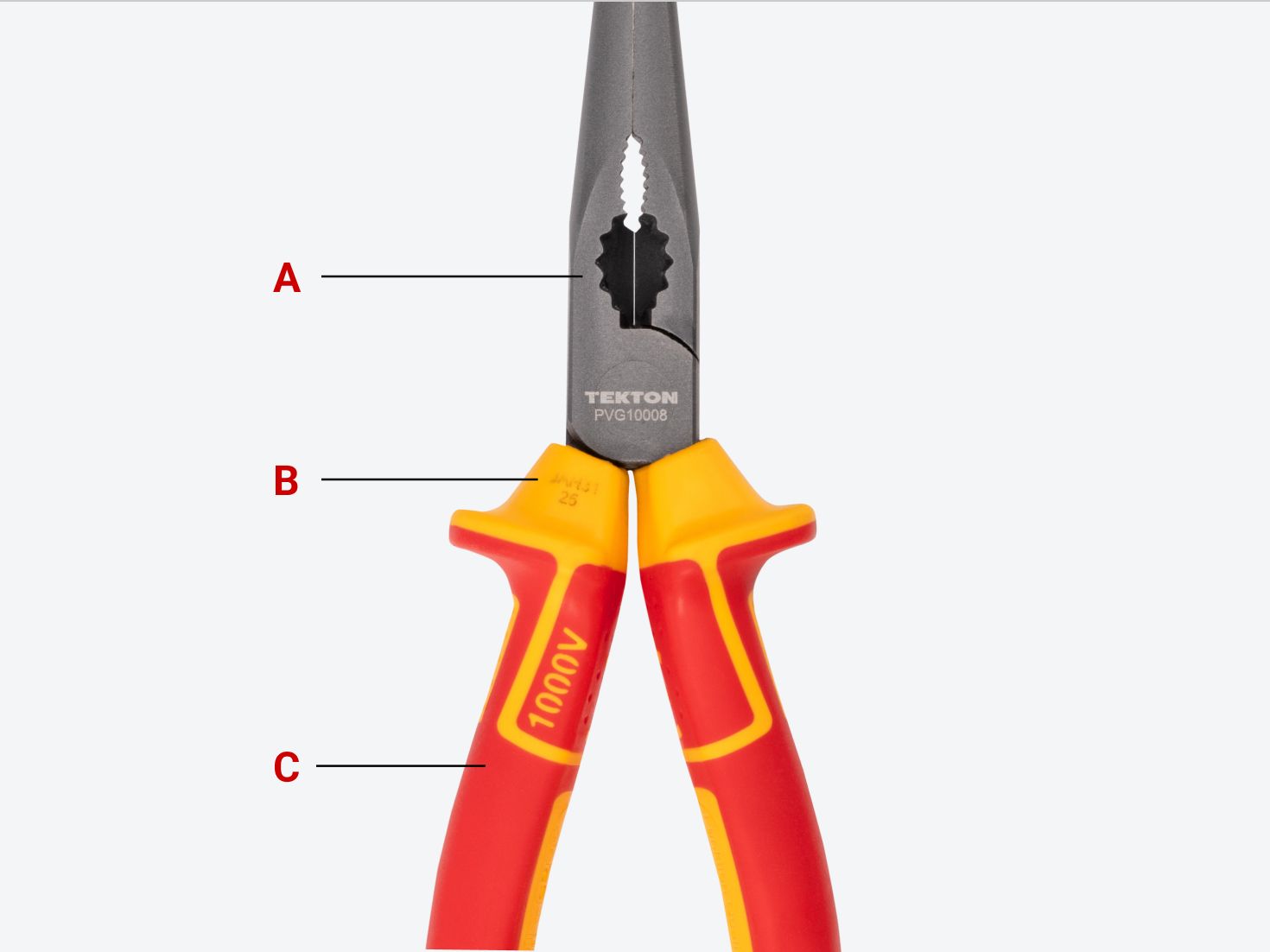

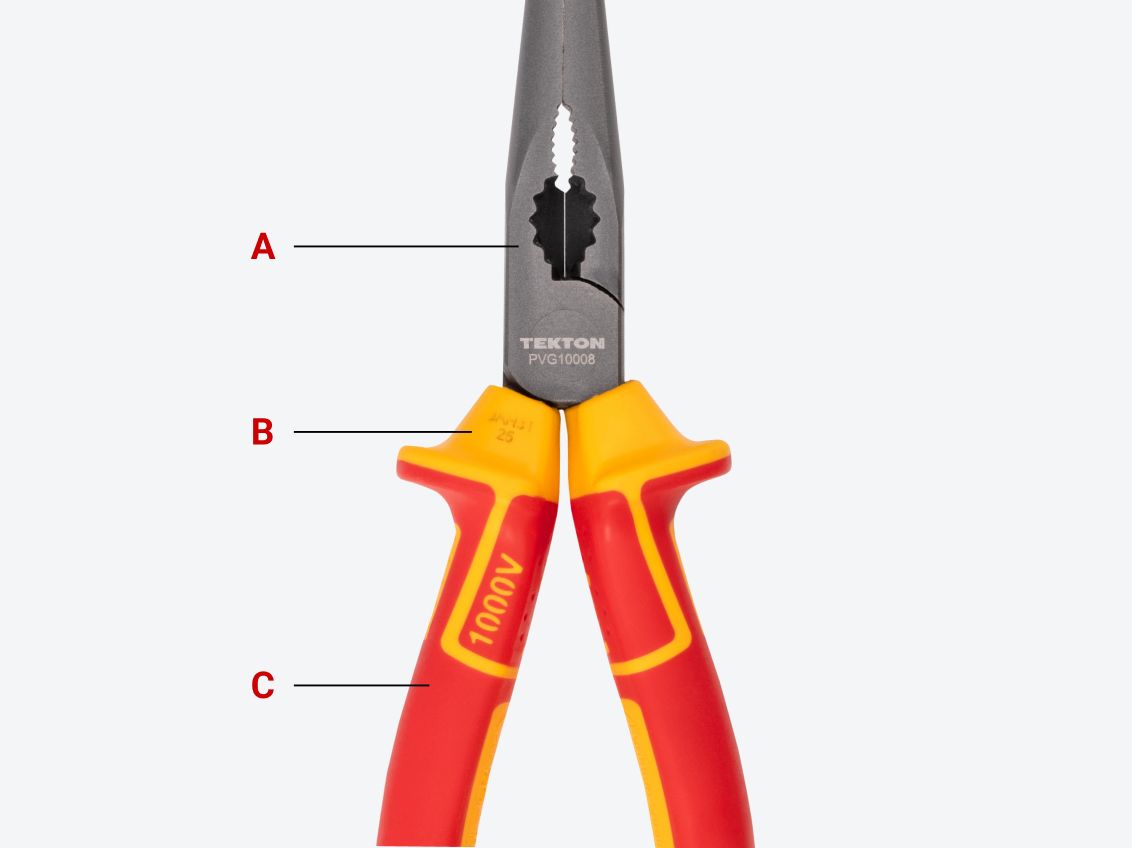

Tekton insulated long nose pliers #PVG10008 with areas of the pliers labeled.

Materials

A. Pliers Body — Drop-forged steel, oil-hardened to 43 - 45 HRC, and enamel-coated. Cutting knives are induction-hardened to 55 - 59 HRC.

B. Yellow Handle Core — Hard polypropylene.

C. Red Handle Overmold — Soft, grippy thermoplastic elastomer (TPE).

Specifications

8 Inch Insulated Long Nose Pliers

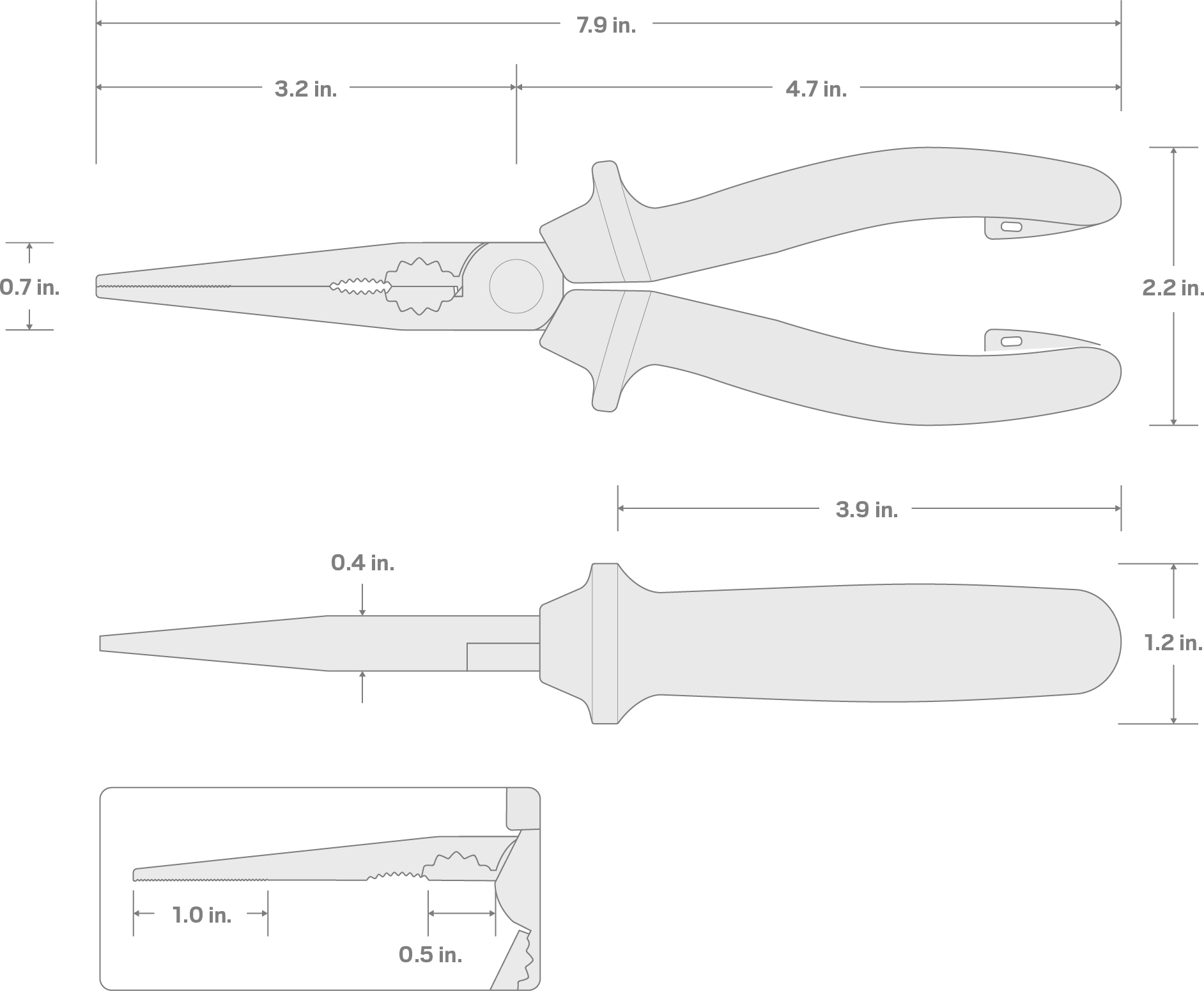

Specs for 8 Inch Insulated Long Nose Pliers
Country of Origin
Germany
Item Weight
0.41 lb.
