Item #PVC00007
7 Inch Insulated Diagonal Cutting Pliers
7 Inch Insulated Diagonal Cutting Pliers
•
$35.00
Add to Cart
Details
Insulated for Electrical Work
The handles are insulated to protect against electrical shock for voltages up to 1000 V AC and 1500 V DC. They are individually tested and VDE certified in accordance with IEC 60900.

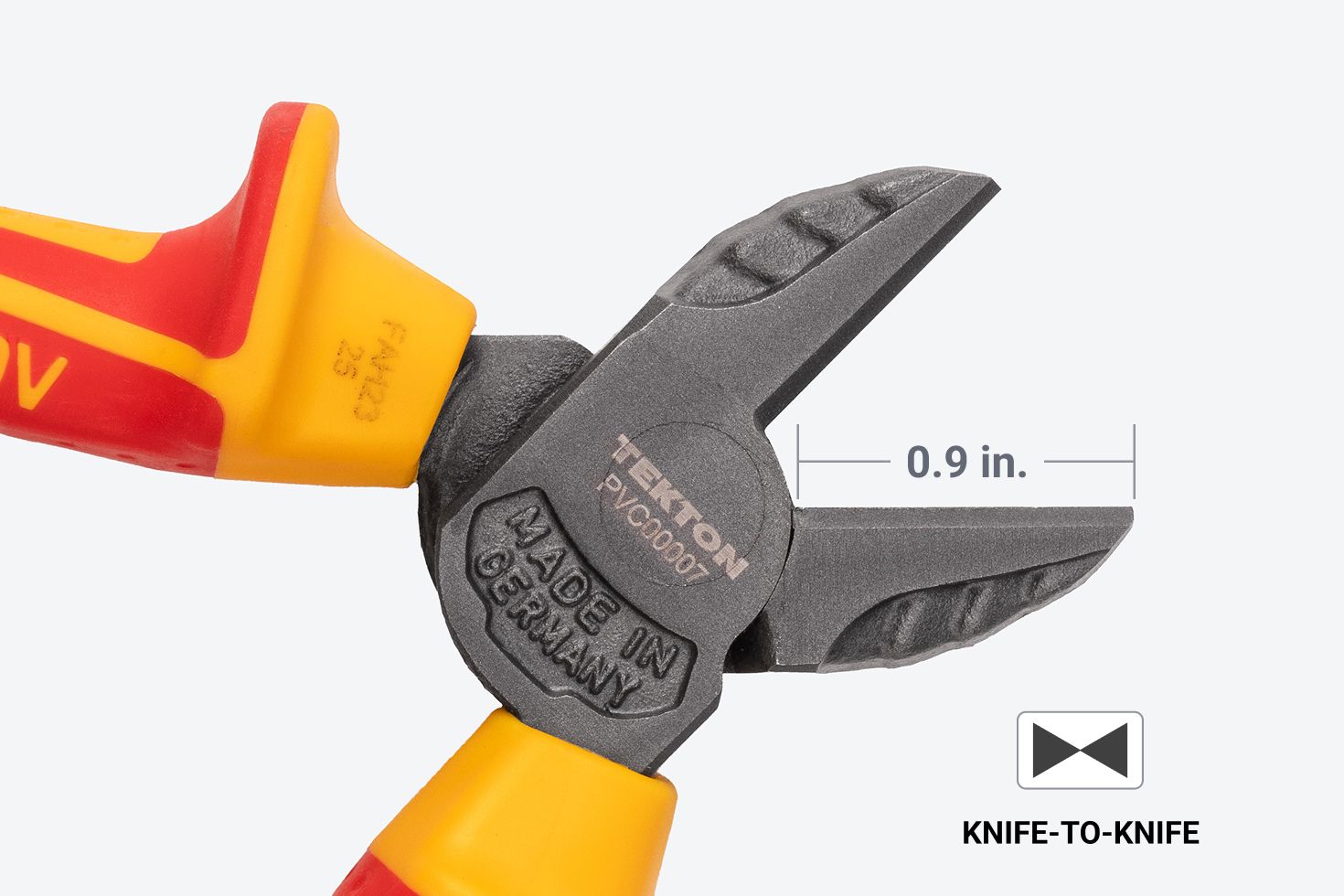

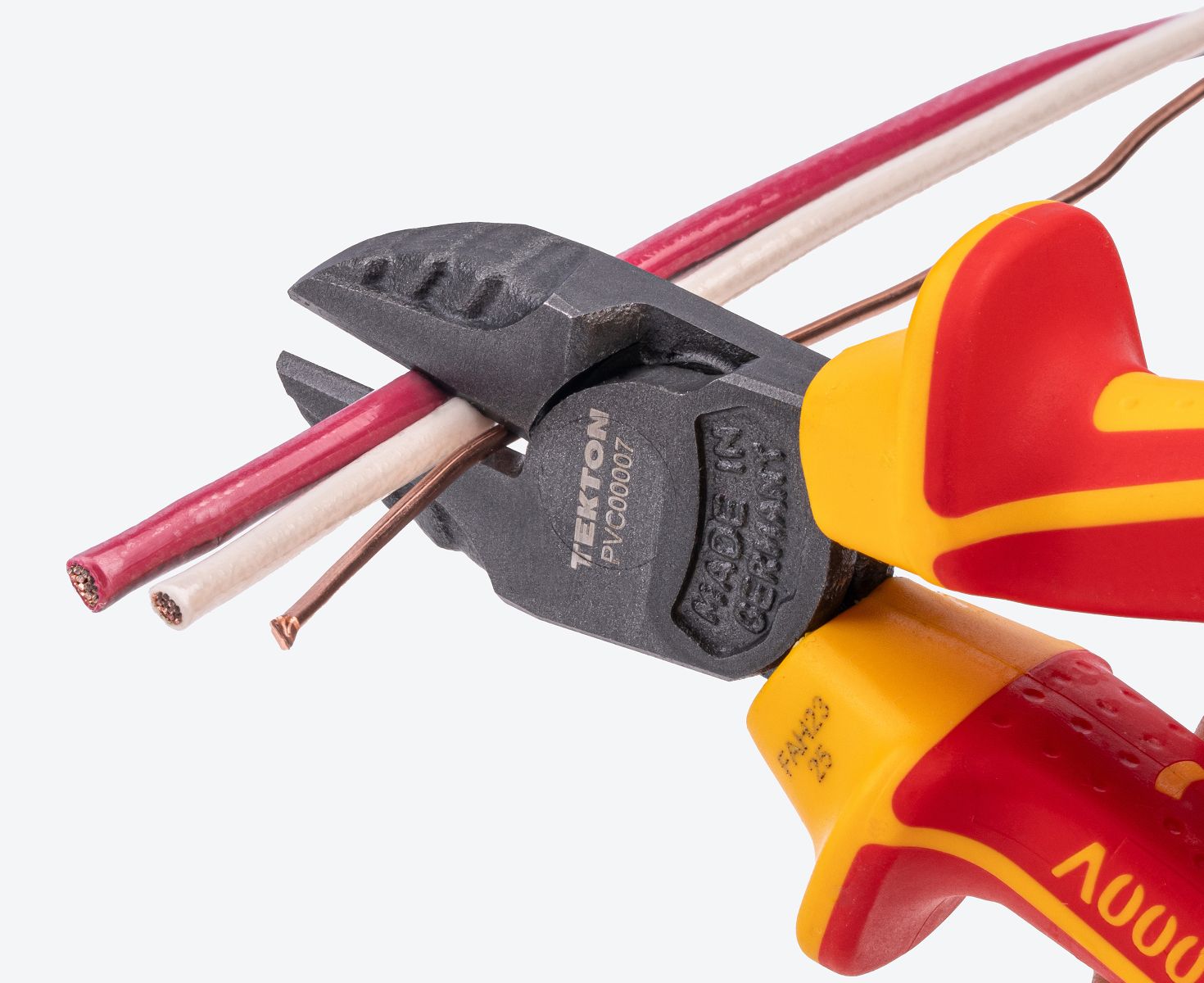

Dedicated Wire Cutters
The pliers have a 0.9 inch cutting capacity for a variety of wire and cable sizes. Two opposing knives meet in the center, offering clean wire cuts with less effort.

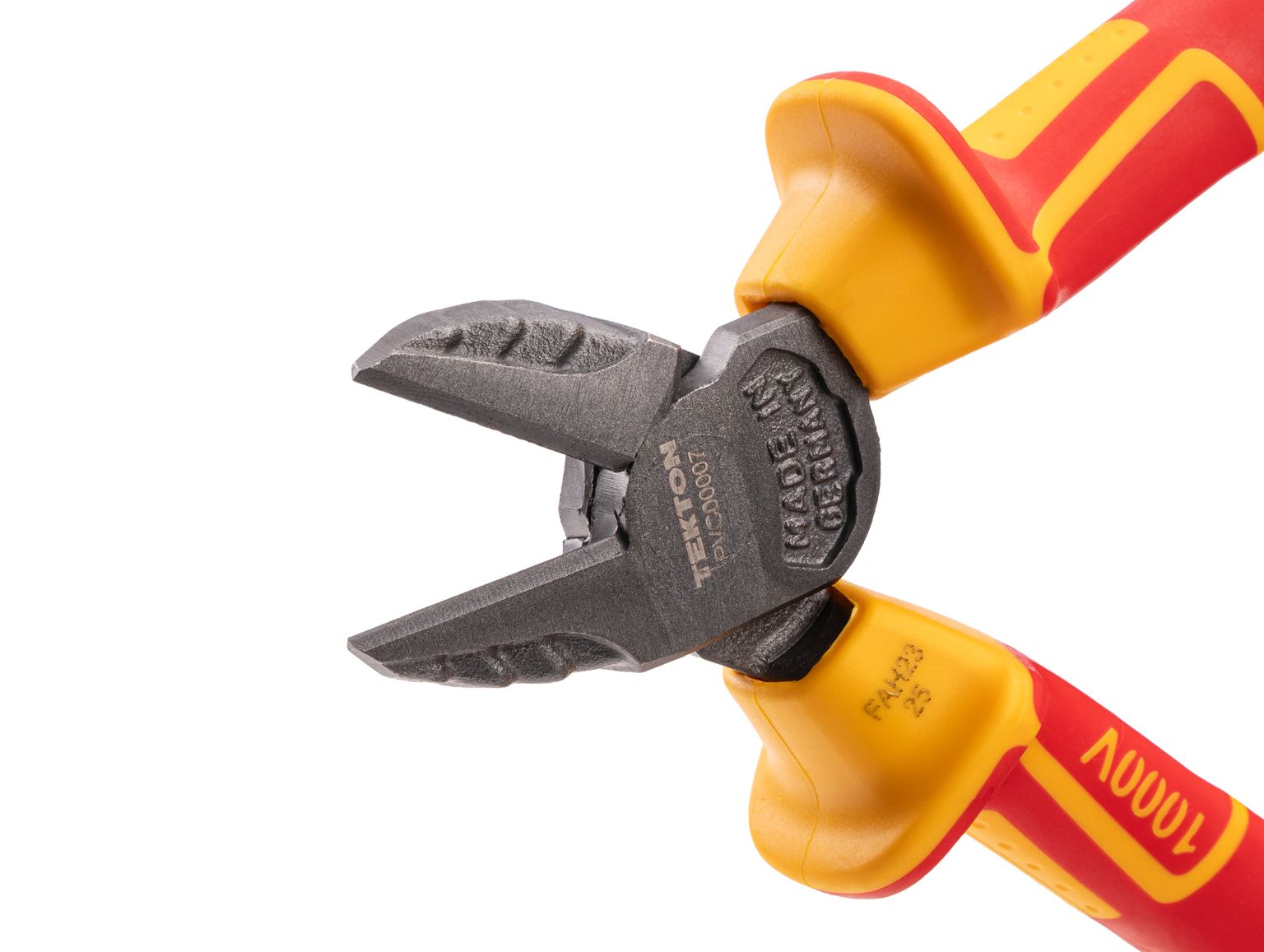

Hardened Cutting Knives
The cutting knives are induction-hardened to 59 - 63 HRC.
| Material | Max Size | |
|---|---|---|
| WIRES | Soft Wire and Plastic (220 N/mm2) | 2 AWG |
| Medium Hard Wire (750 N/mm2) | 7 AWG | |
| Hard Wire (1800 N/mm2) | 12 AWG | |
| CABLES | Aluminum and Copper Cable (Single, stranded, and multi-wired) | 4/0 |
| NM Cable (i.e. Romex®) | 10/2 |

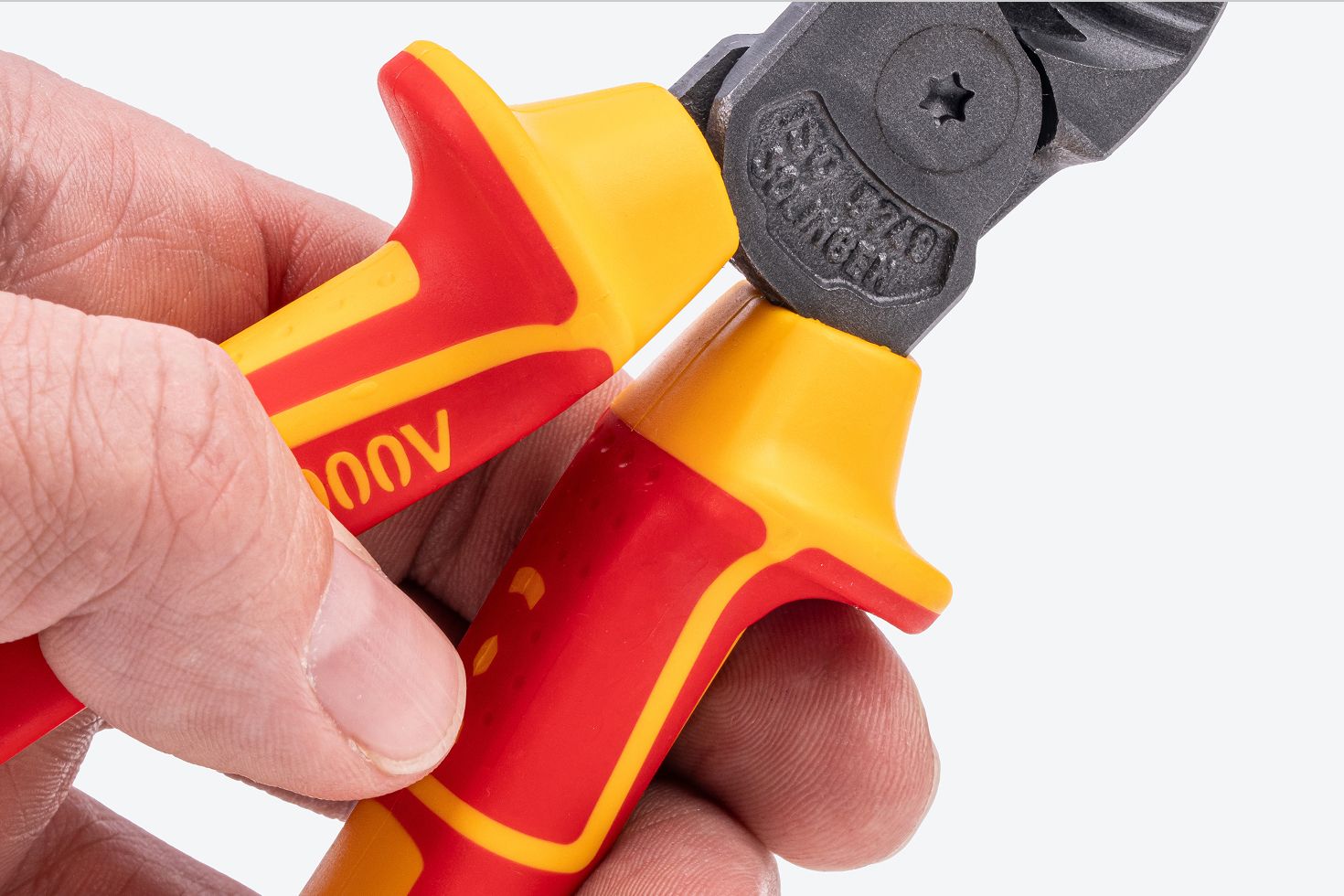

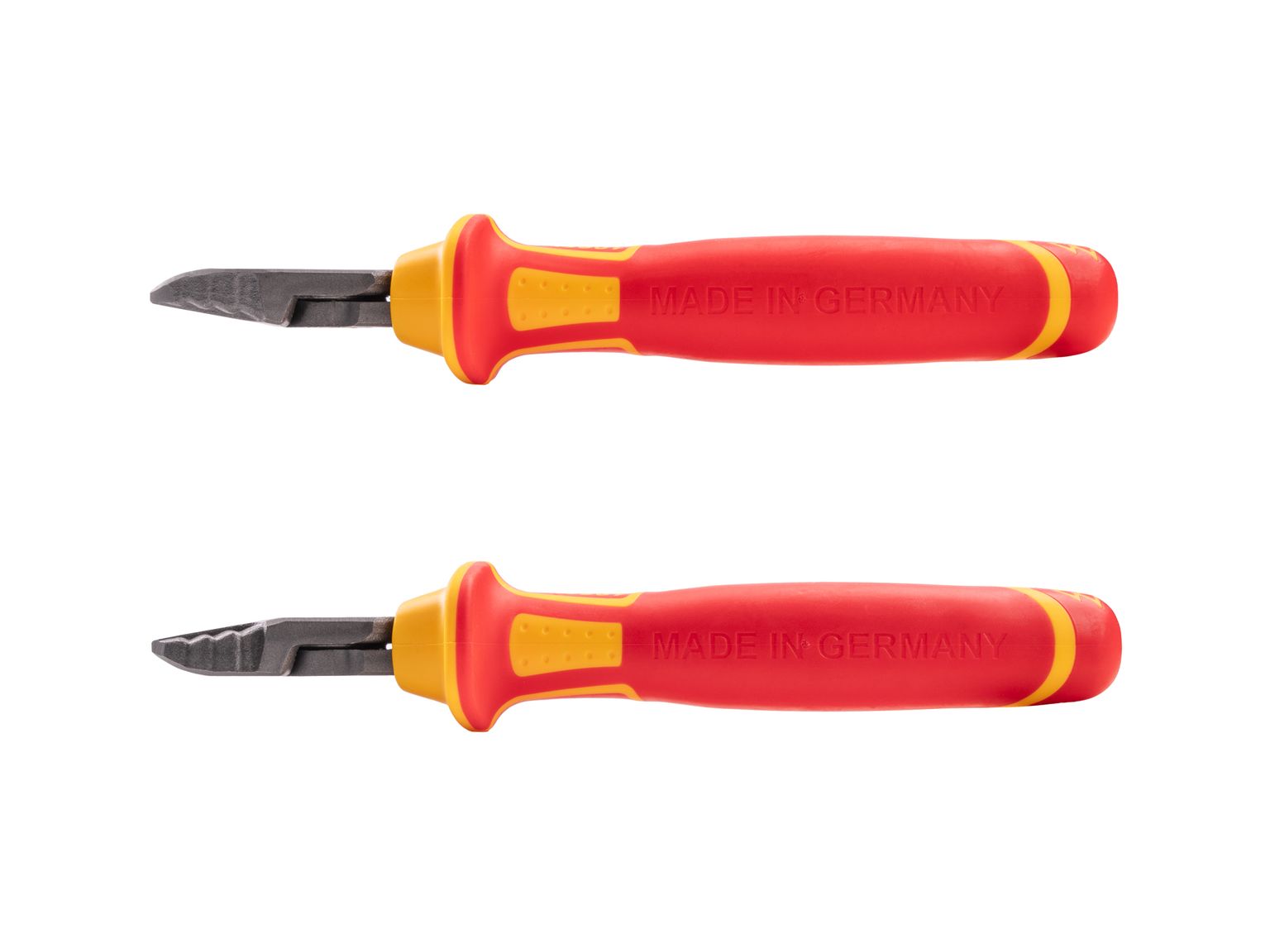

Flared Handles
The tops of the handles are flared to give your hand a positive stop to push against, allowing better control with a looser grip and reduced hand fatigue. The flared shape also keeps the pliers from slipping through your hand or settling to the bottom of a storage pocket.

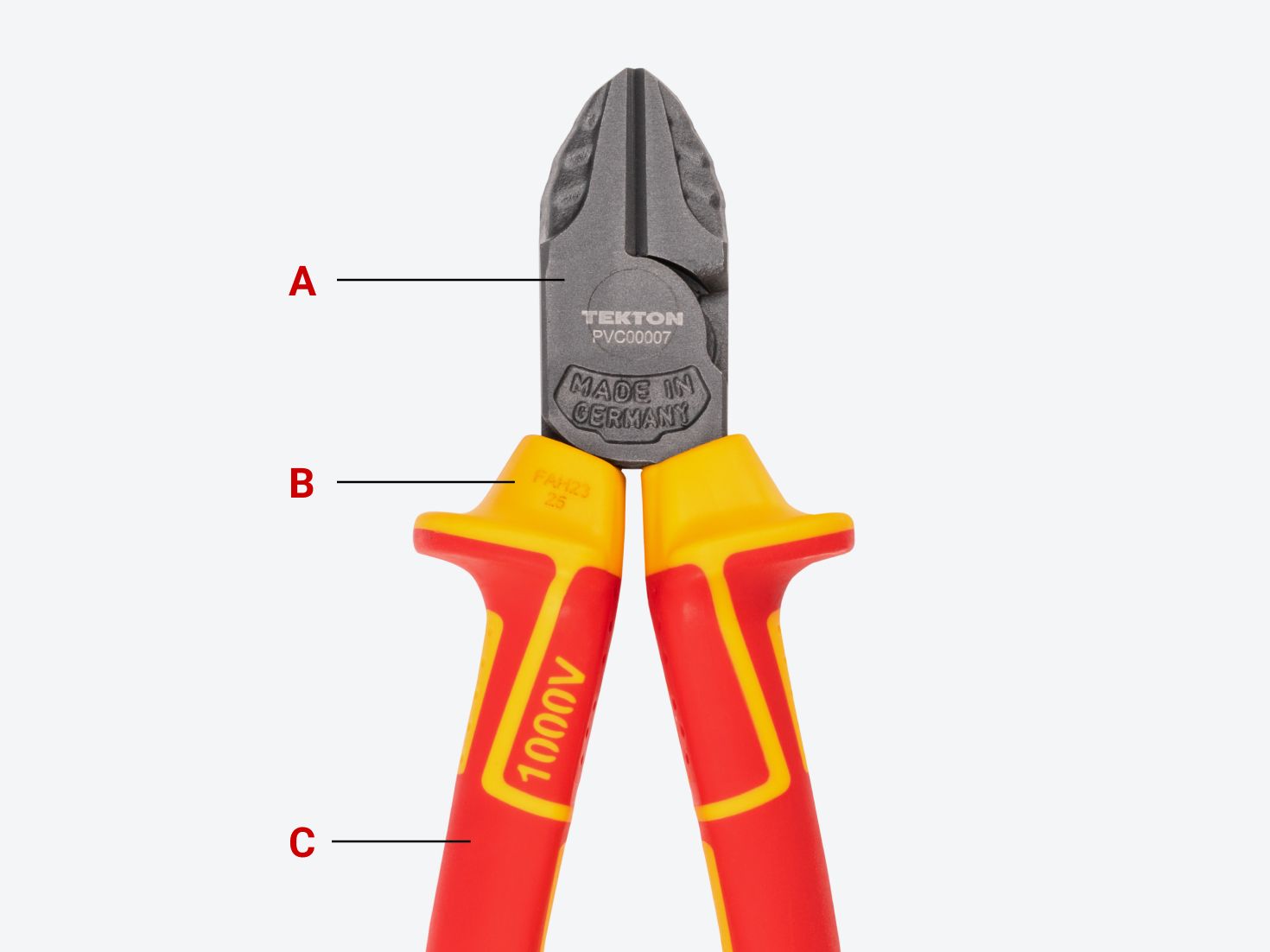

Materials
A. Pliers Body — Drop-forged steel, oil-hardened to 43 - 45 HRC, and enamel-coated. Cutting knives are induction-hardened to 59 - 63 HRC.
B. Yellow Handle Core — Hard polypropylene.
C. Red Handle Overmold — Soft, grippy thermoplastic elastomer (TPE).

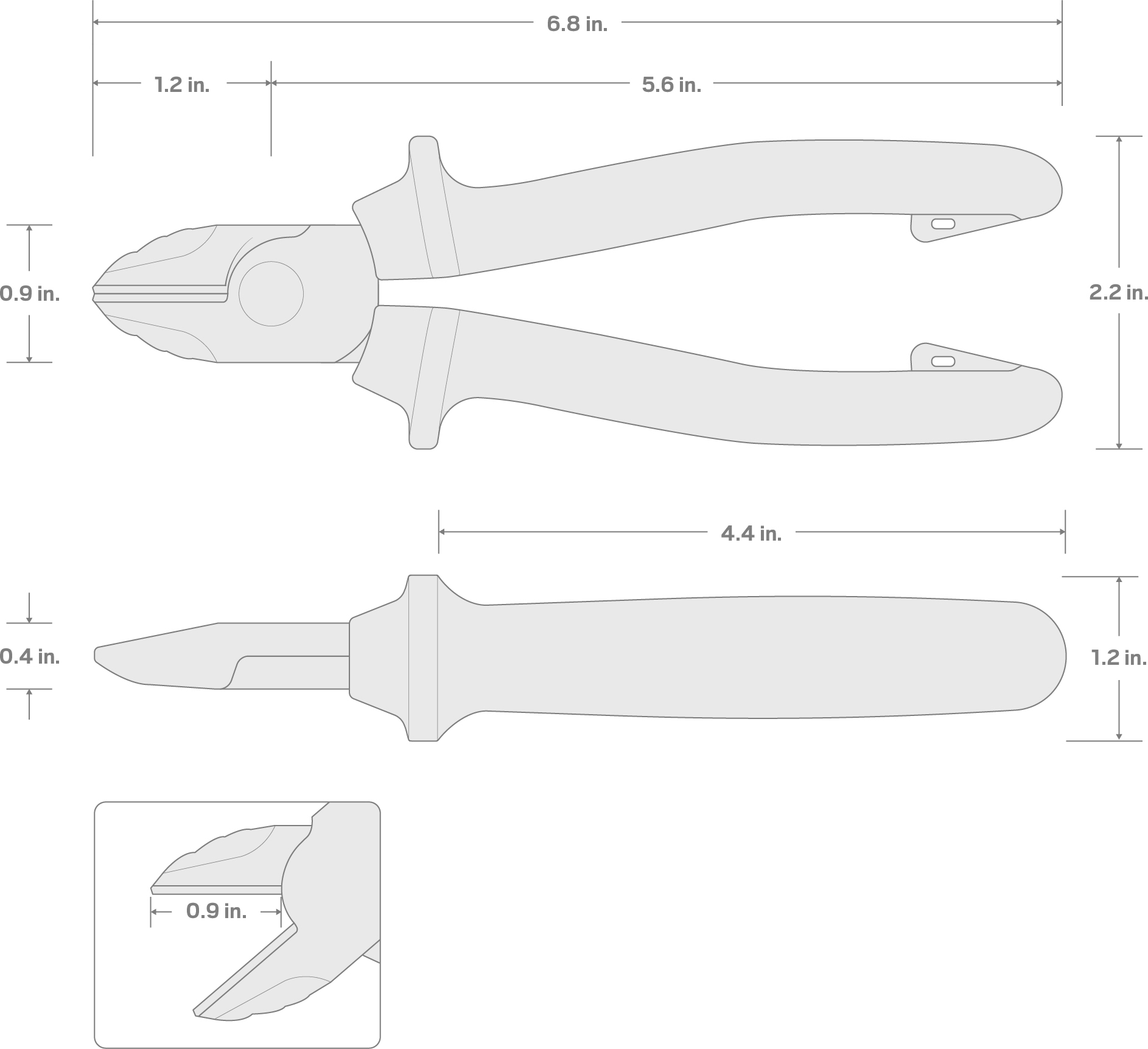

Specifications
7 Inch Insulated Diagonal Cutting Pliers
| Country of Origin | Germany |
| Item Weight | 0.45 lb. |
