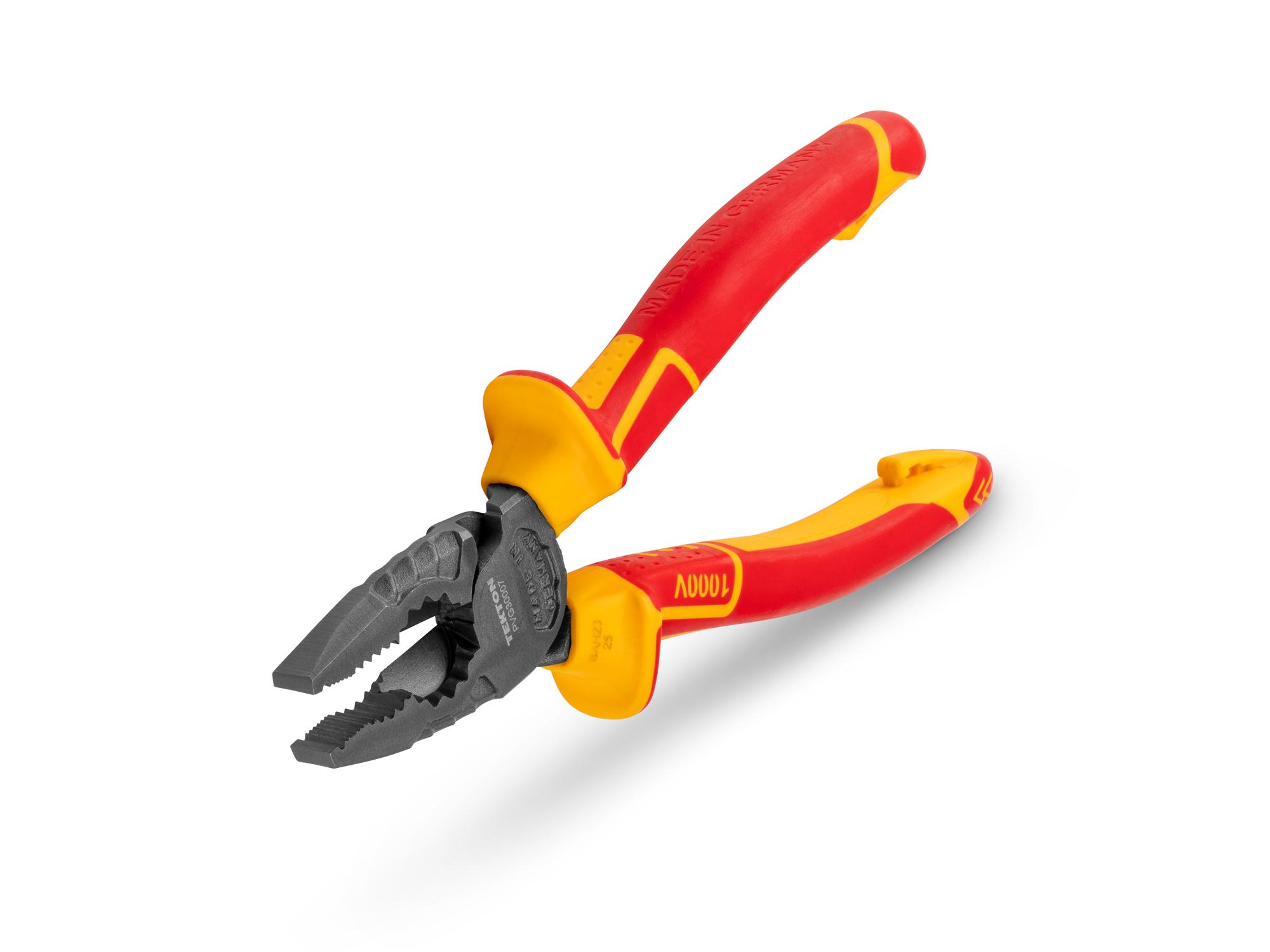

Front-right angle view of Tekton 7 inch cutting pliers set. Item #PVG30007

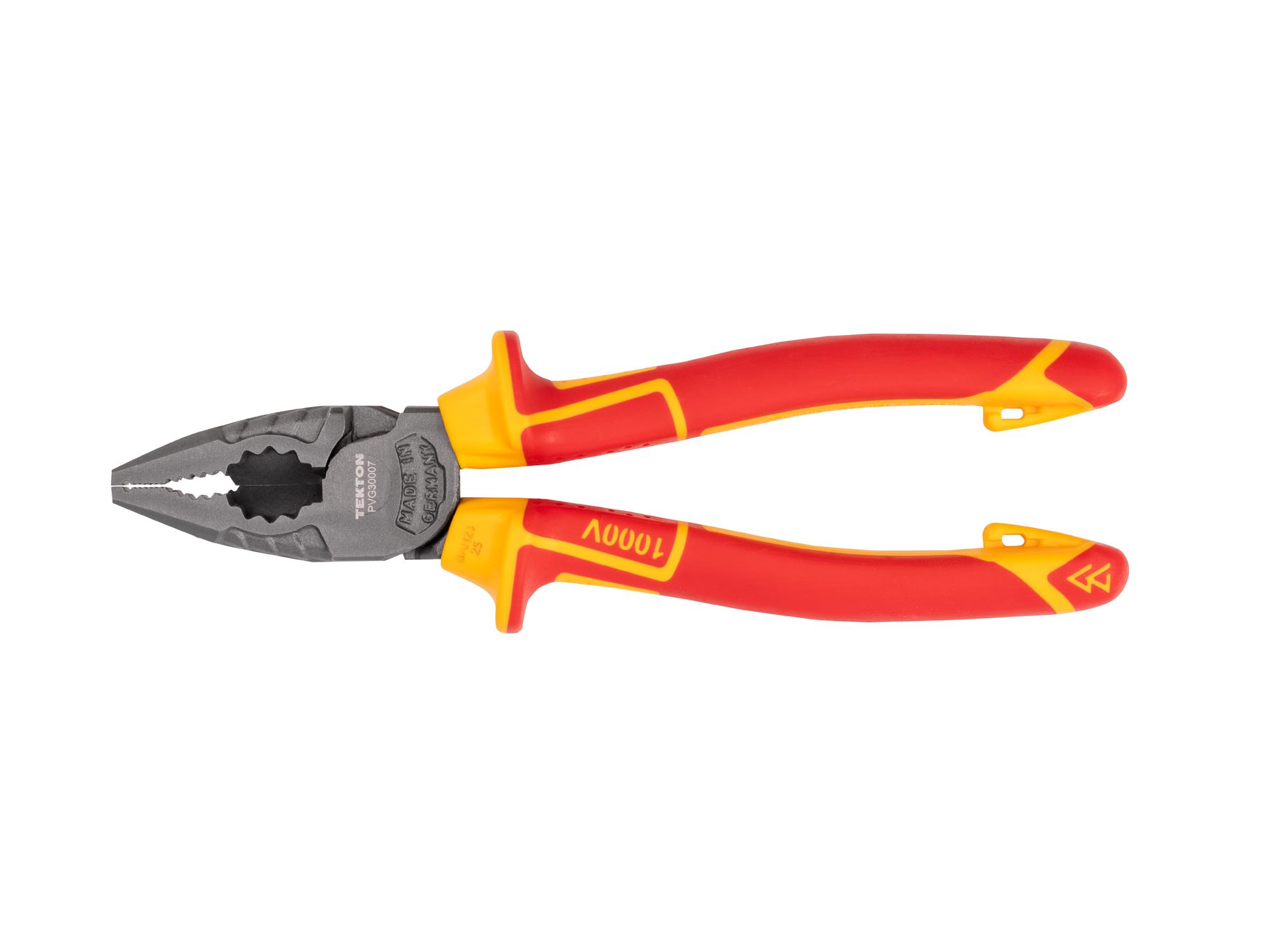

Front view of Tekton 7 inch cutting pliers set. Item #PVG30007

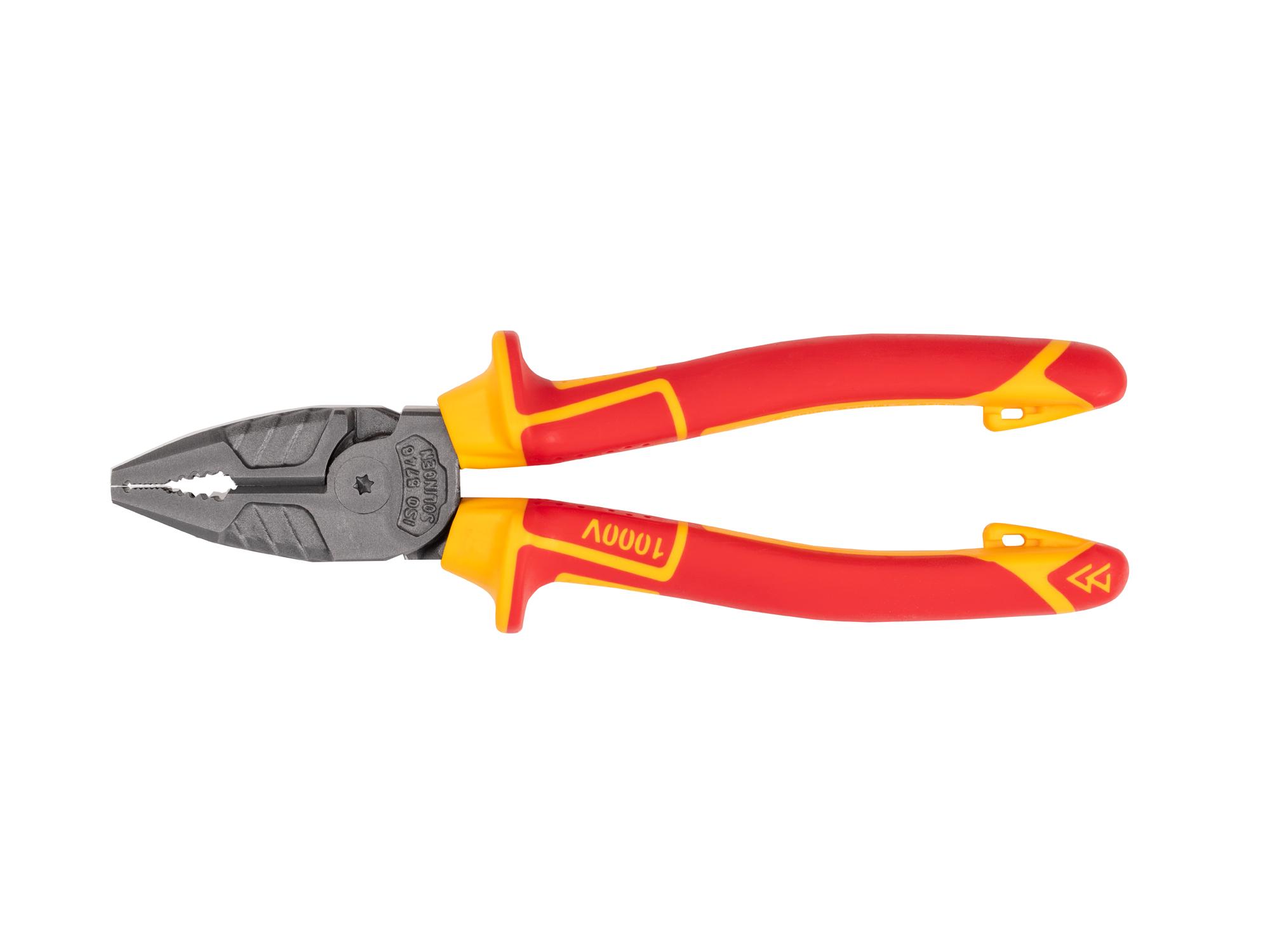

Back view of Tekton 7 inch cutting pliers set. Item #PVG30007

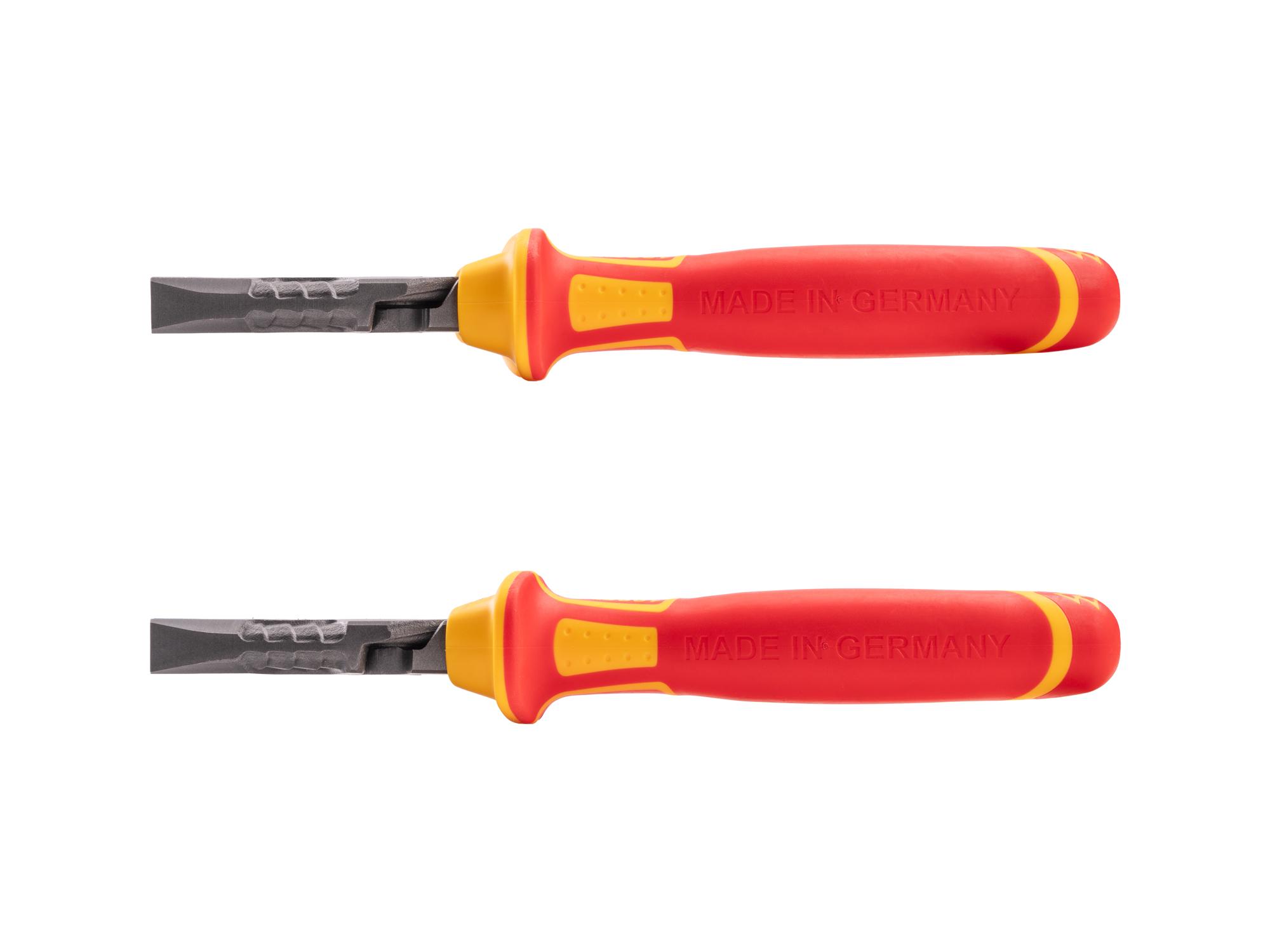

Side view of Tekton 7 inch cutting pliers set. Item #PVG30007

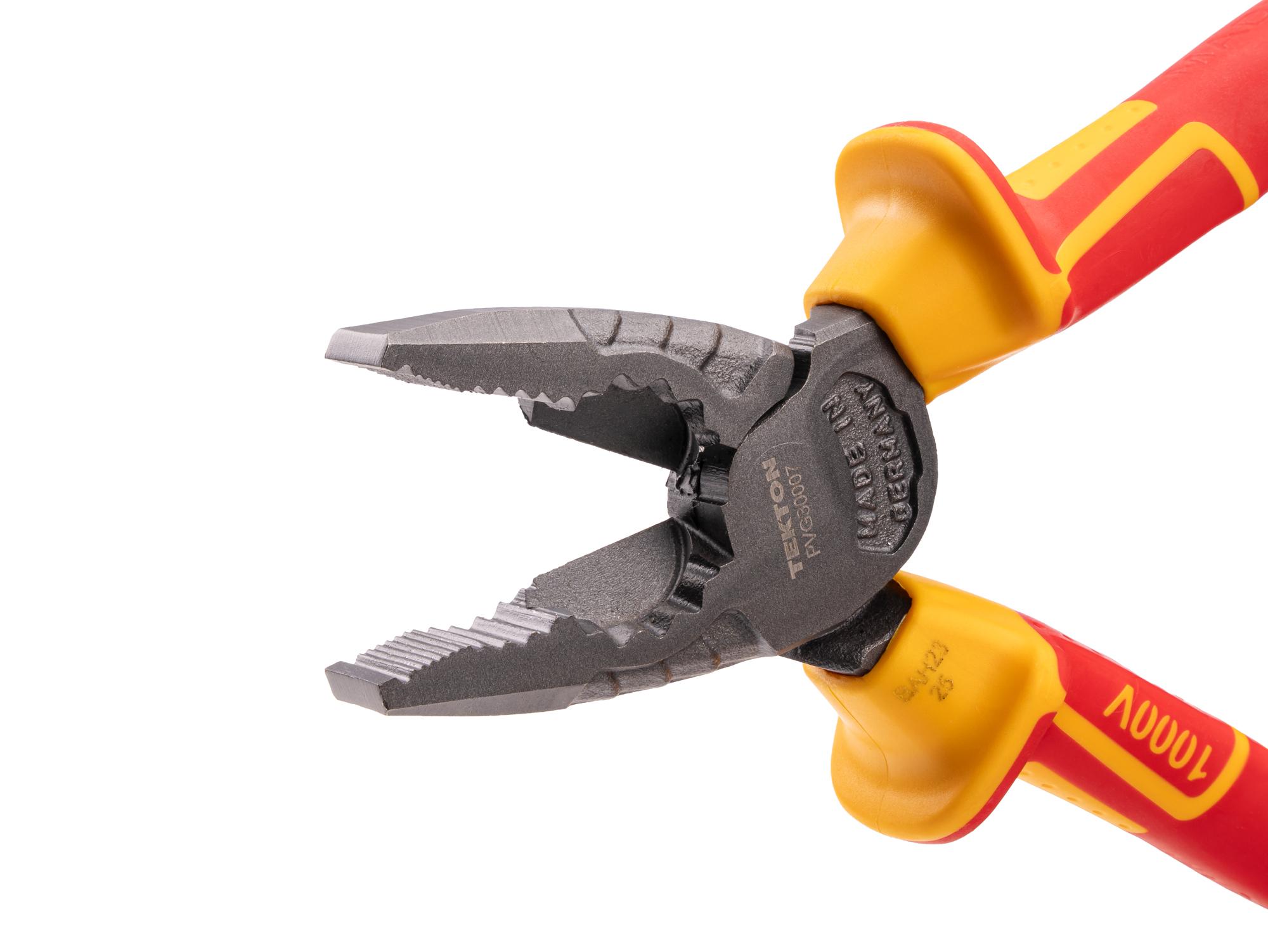

Closeup view of Tekton 7 inch cutting pliers set. Item #PVG30007

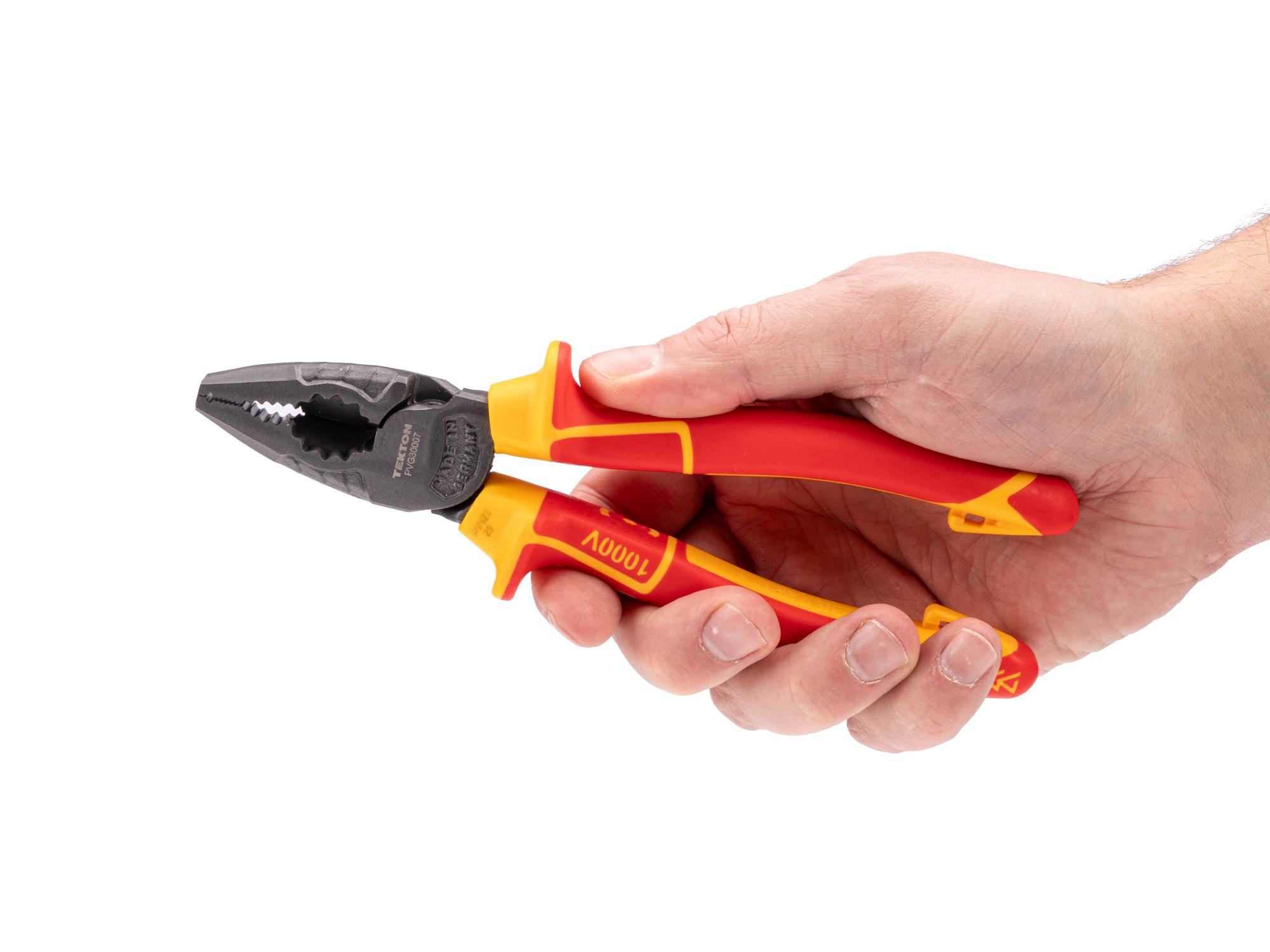

Person holding Tekton 7 inch cutting pliers set. Item #PVG30007
Tap image to zoom in
Item #PVG30007

7 Inch Insulated Combination Pliers

•
$35.00
Add to Cart
DetailsSpecifications

Details

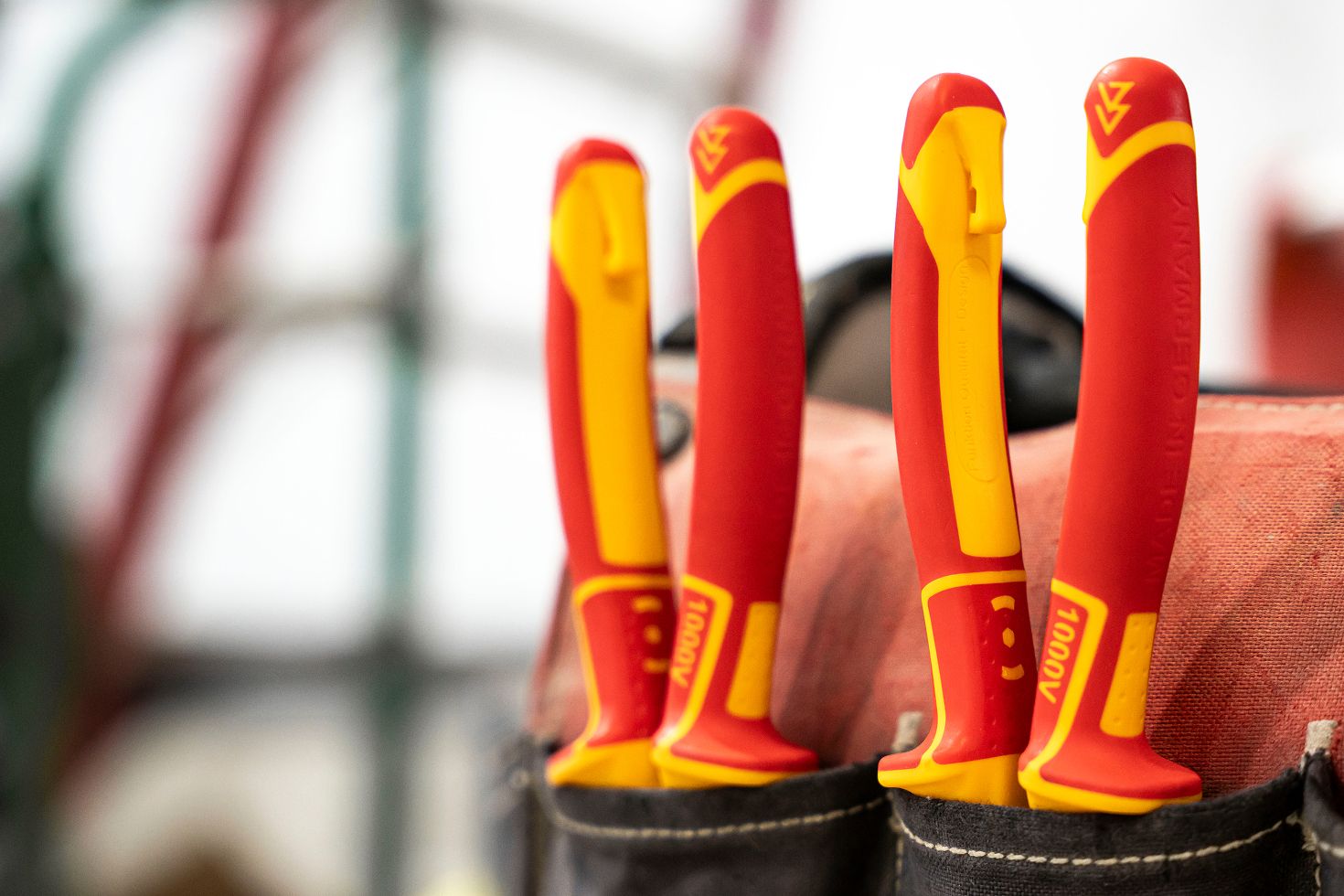

Two insulated pliers in the pockets of a work bag.

Insulated for Electrical Work

The handles are insulated to protect against electrical shock for voltages up to 1000 V AC and 1500 V DC. They are individually tested and VDE certified in accordance with IEC 60900.
Tekton insulated combination pliers #PVG30007 with areas of the jaw labeled.

Six Work Zones

The stout jaws offer six distinct work zones:

1. Wire Cutter for fast, clean cuts

2. Flat Tips for even clamping

3. Hex-Grip Teeth for turning hex bolts

4. Coarse Teeth for an aggressive bite

5. Fine Teeth for controlled gripping

6. Wire Groove for holding a single wire

Hardened Cutting Knives

The wire cutter has two opposing knives that meet in the center and are induction-hardened to 55 - 59 HRC.
MaterialMax Size
WIRESSoft Wire and Plastic (220 N/mm2)4 AWG
Medium Hard Wire (750 N/mm2)8 AWG
Hard Wire (1800 N/mm2)12 AWG
CABLES Aluminum and Copper Cable (Single, stranded, and multi-wired) 4/0
NM Cable (i.e. Romex®)N/A

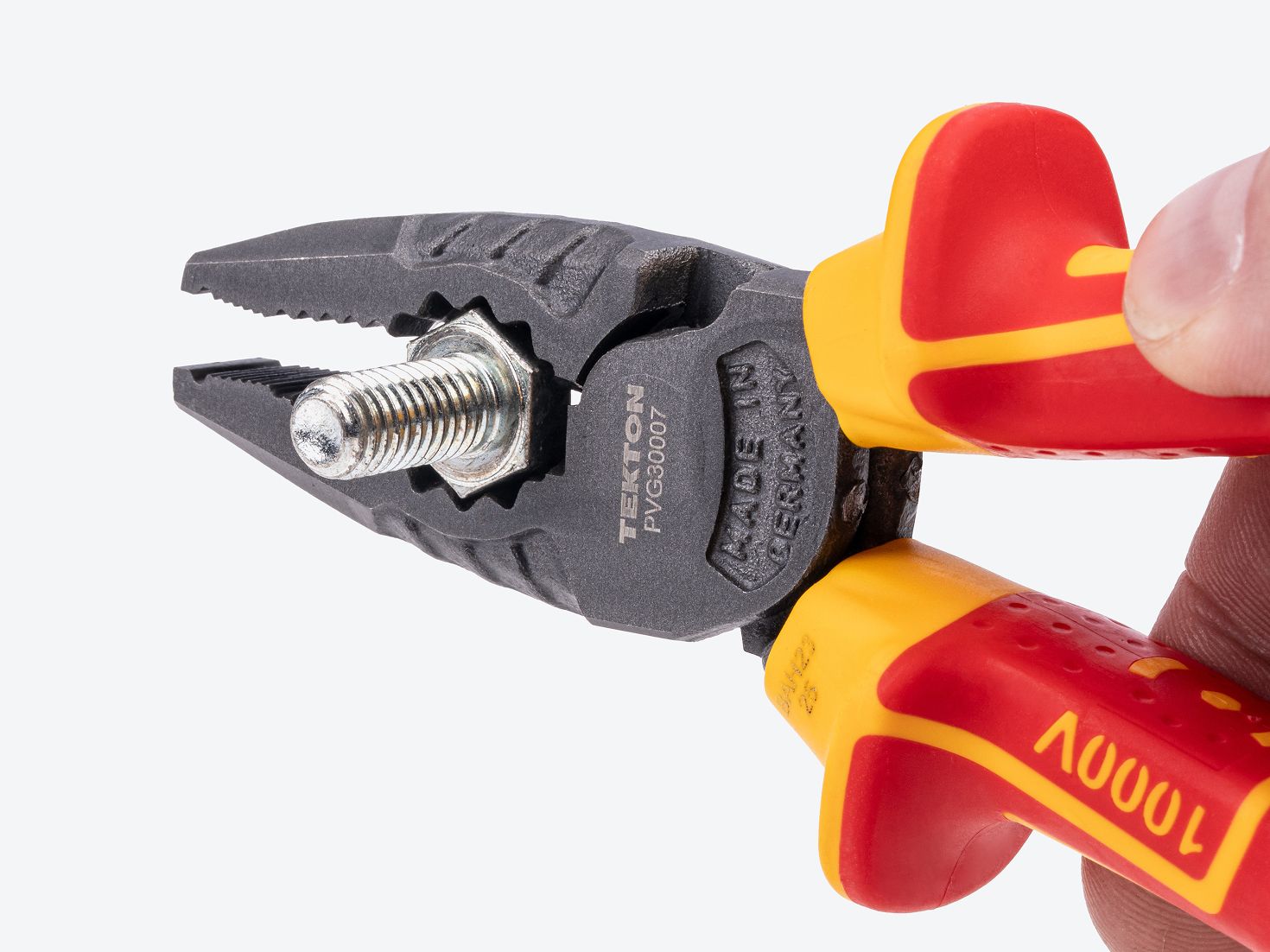

Tekton insulated combination pliers #PVG30007 holding a hex bolt.

Hex Grip Teeth

The jaws have a unique set of teeth that positively engage small- to medium-sized hex fasteners, similar to a 12-point box-end wrench.
Minimum Hex SizeMaximum Hex Size
7/16 in. | 11 mm3/4 in. | 18 mm

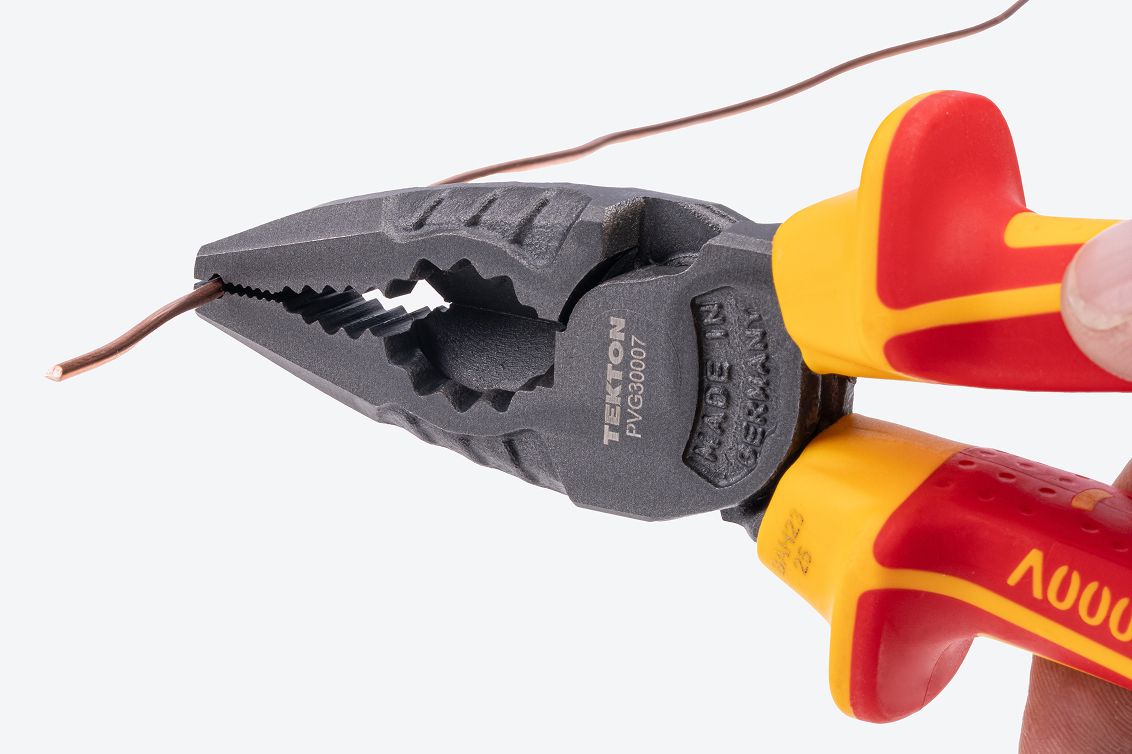

Tekton insulated combination pliers #PVG30007 holding a wire.

Wire-Holding Groove

The jaws have a dedicated wire-holding groove behind the tips, allowing you to firmly grip and bend a single wire without marring.

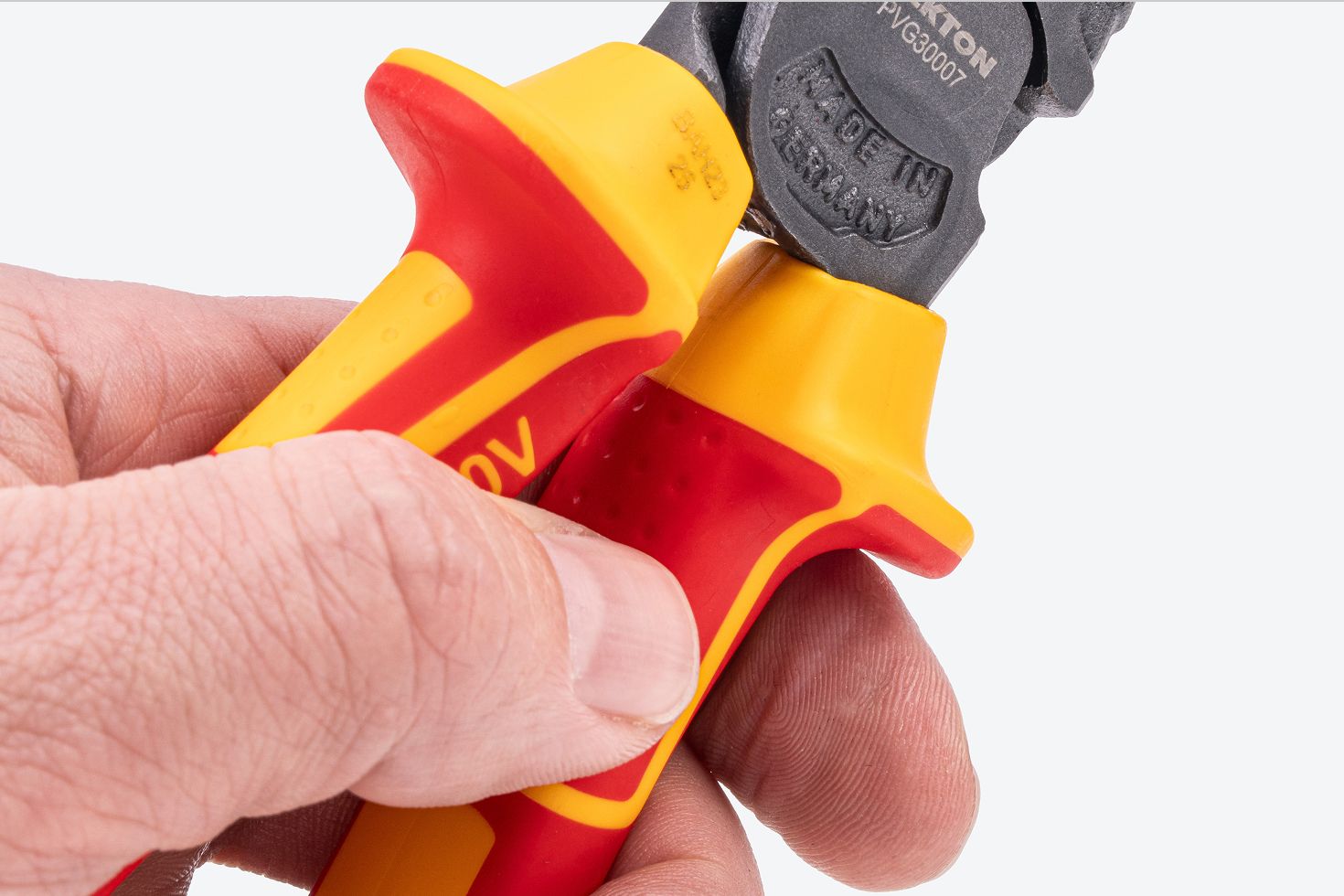

Close up view of the flared handles of Tekton insulated combination pliers #PVG30007.

Flared Handles

The tops of the handles are flared to give your hand a positive stop to push against, allowing better control with a looser grip and reduced hand fatigue. The flared shape also keeps the pliers from slipping through your hand or settling to the bottom of a storage pocket.

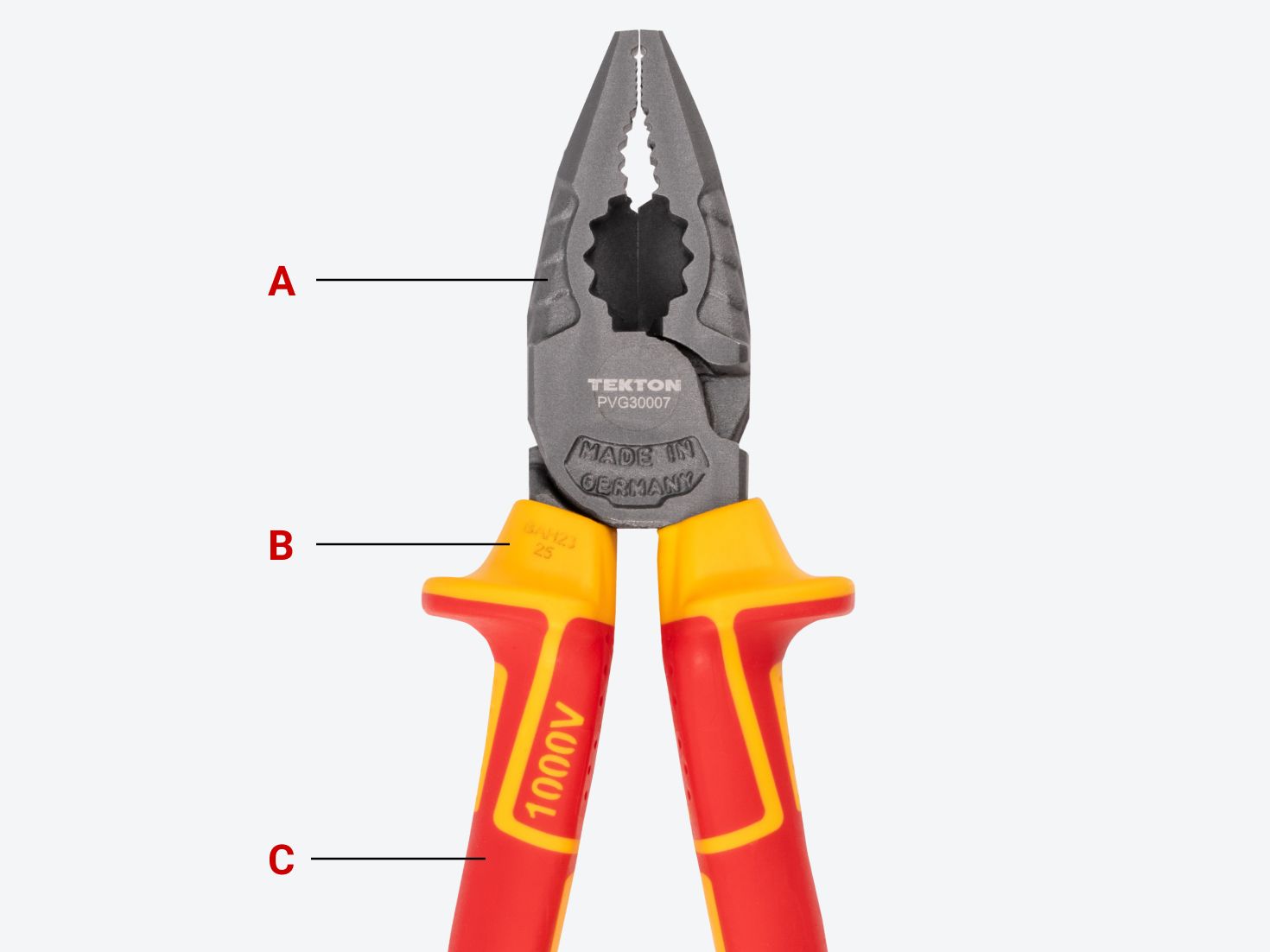

Tekton insulated combination pliers #PVG30007 with areas of the pliers labeled.

Materials

A. Pliers Body — Drop-forged steel, oil-hardened to 43 - 45 HRC, and enamel-coated. Cutting knives are induction-hardened to 55 - 59 HRC.

B. Yellow Handle Core — Hard polypropylene.

C. Red Handle Overmold — Soft, grippy thermoplastic elastomer (TPE).

Specifications

7 Inch Insulated Combination Pliers

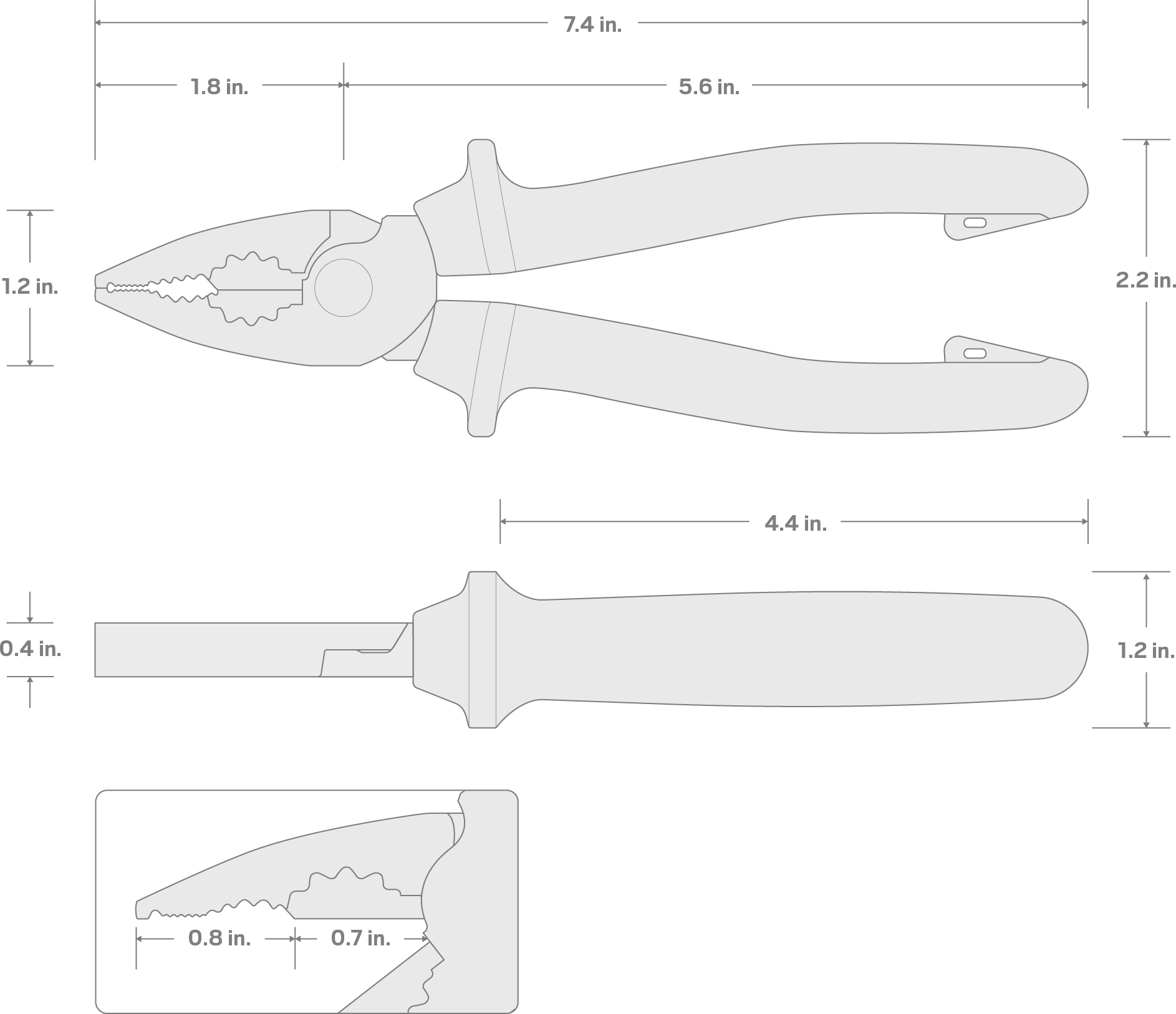

Specs for 7 Inch Insulated Combination Pliers
Country of Origin
Germany
Item Weight
0.55 lb.
