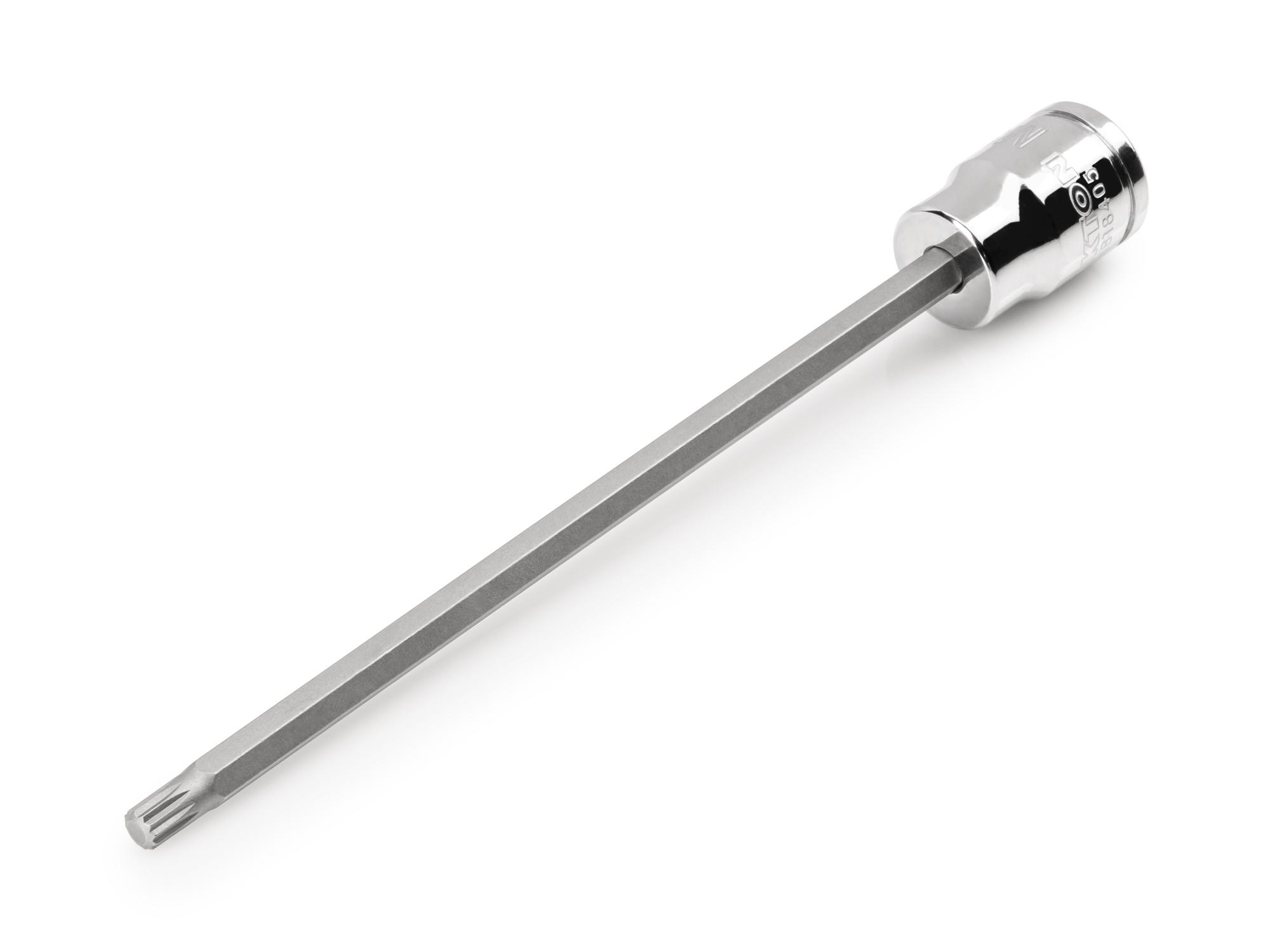

Front-right angle view of Tekton hand drive bit socket. Item #SHB18405

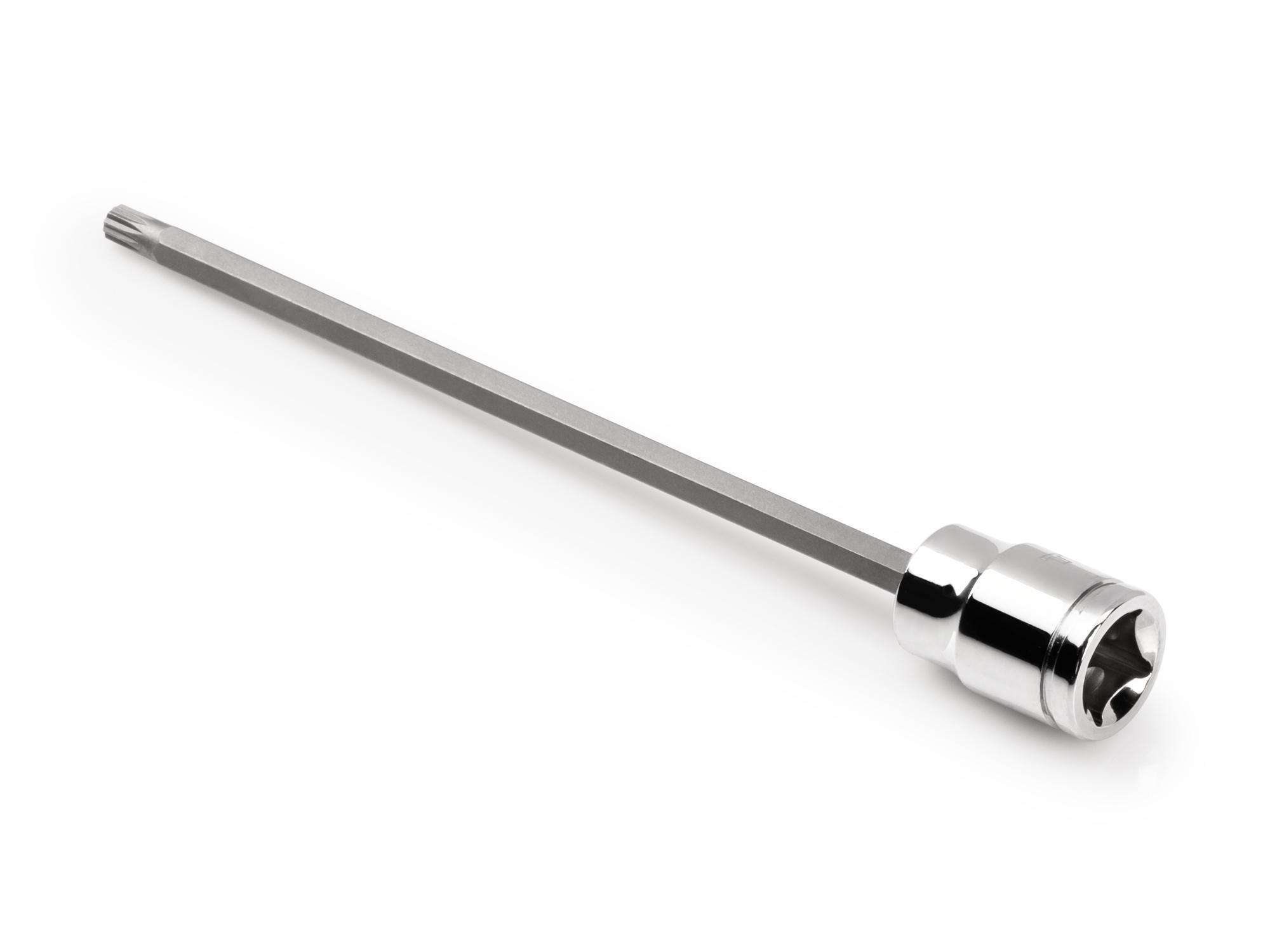

Back angle view of Tekton hand drive bit socket. Item #SHB18405

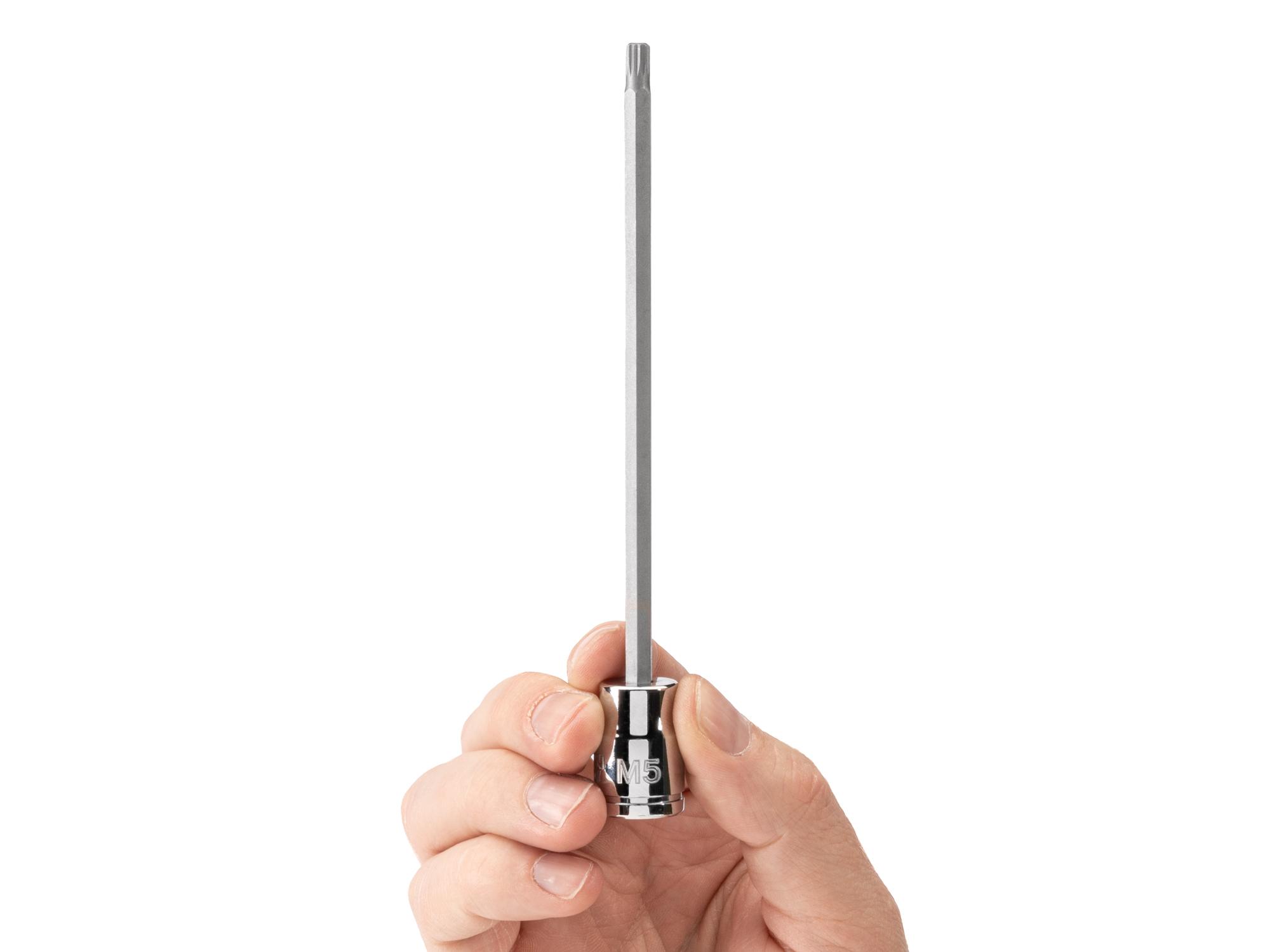

Person holding Tekton hand drive bit socket. Item #SHB18405
Tap image to zoom in
Item #SHB18405
3/8 Inch Drive

M5 Long Triple Square Bit Socket

Triple Square
•

Sizes

M4
$6
M5
$6
M6
$6
M7
$6
M8
$6
M9
$6
M10
$7
M12
$7
$6.00
Add to Cart
DetailsSpecifications

Details

A close up view of a triple square bit tip with callout, "For use with triple square fasteners".

Strong, Precise Triple Square Bits

The triple square (also called XZN) tip is machined to precise tolerances for an exact fit with triple square fasteners.
Triple square double hex comparison illustration

90º Geometry

The internal star shape is formed by 3 squares superimposed, each with a 30º offset. The points are shaped to an internal angle of 90º, different from double-hex geometries.
An illustration comparing the reach of a standard and long triple square bit socket

Long Reach Bits

Extra-long bits allow you to reach deep into narrow, recessed areas.
A steel bit press fit into the socket

Straight, Permanent Connection

  • Bits are pressed directly into the socket for a permanent connection
  • The carefully controlled process ensures bits are exceptionally straight
  • A tightly mated fit means bits will not loosen over time or under stress
A person holding a M8 long bit socket.

Large, Stamped Markings

  • Permanently impressed into the material by a roll-stamp die
  • As large as possible while still being readable along the socket’s curved surface
  • Clearly visible size numbers with extra-deep outline
Close up view of socket accessory ends

Secure Drive Tool Engagement

Four detent grooves provide a secure connection with the retaining ball of a drive tool.

Specifications

3/8 Inch Drive x M5 Long Triple Square Bit Socket

Specs for 3/8 Inch Drive x M5 Long Triple Square Bit Socket
Country of Origin
Taiwan
Item Weight
0.12 lb.
