Front-right angle view of Tekton hand drive oxygen sensor socket. Item #SHD16022

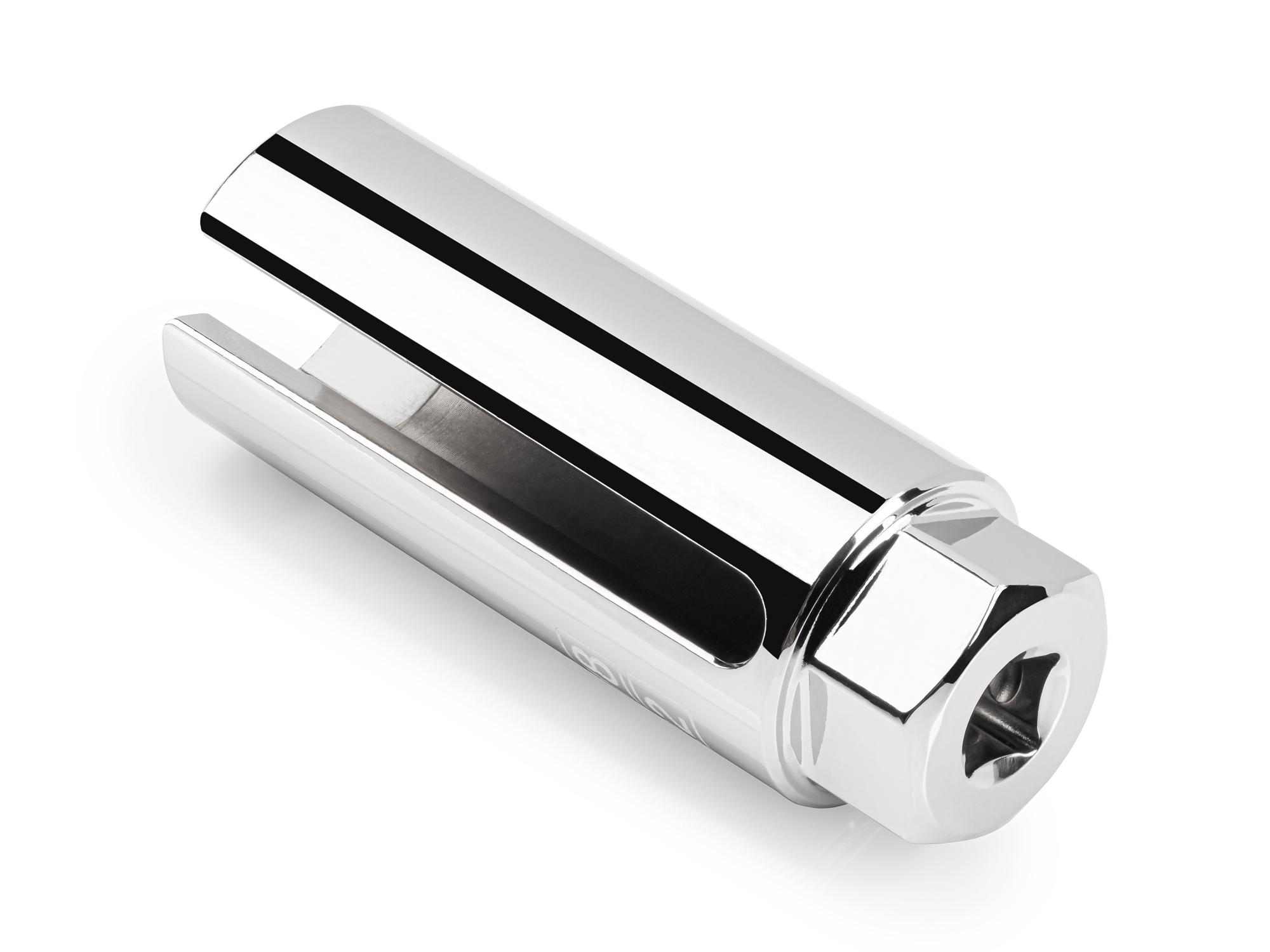

Back angle view of Tekton hand drive oxygen sensor socket. Item #SHD16022

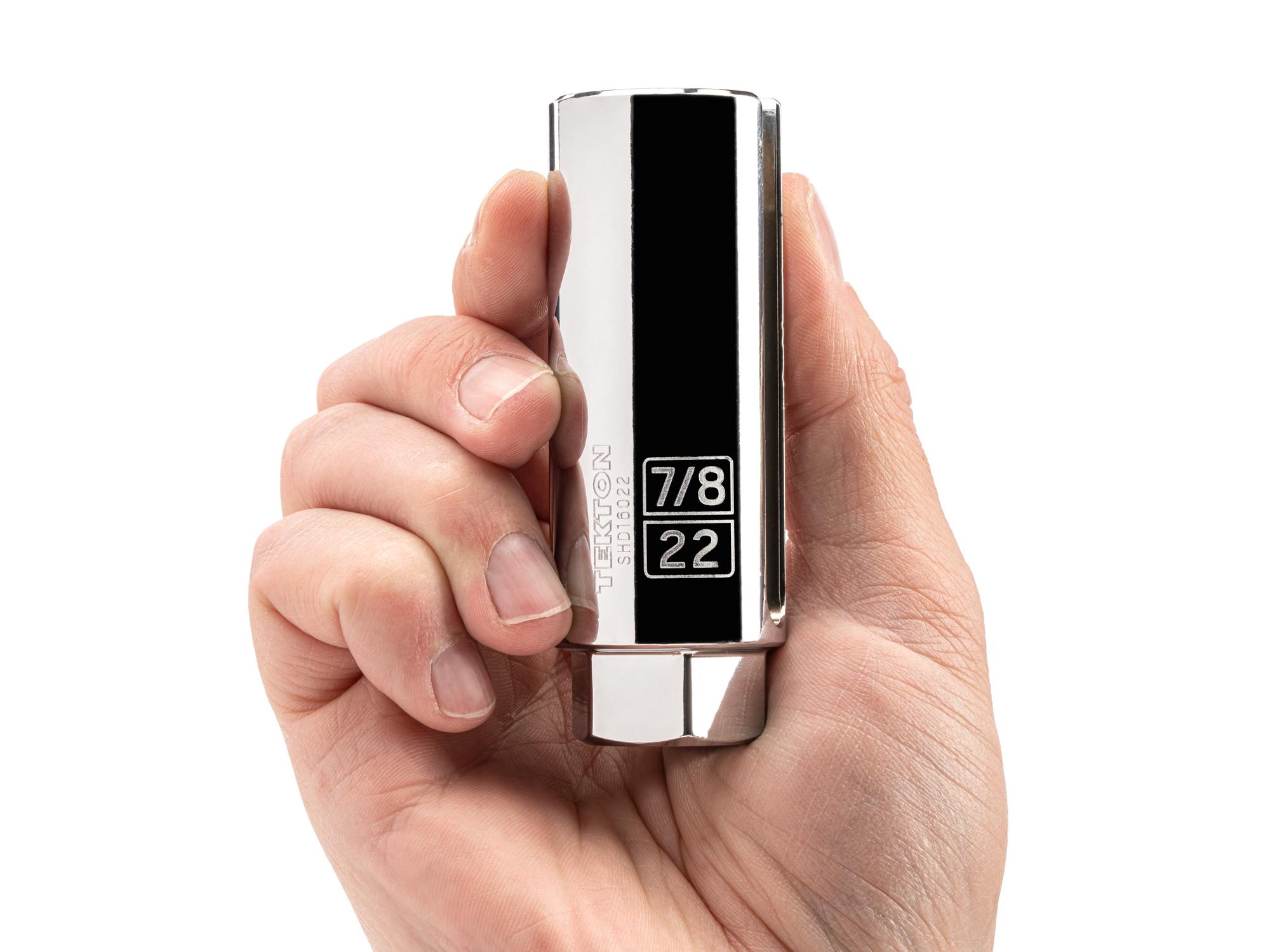

Person holding Tekton hand drive oxygen sensor socket. Item #SHD16022

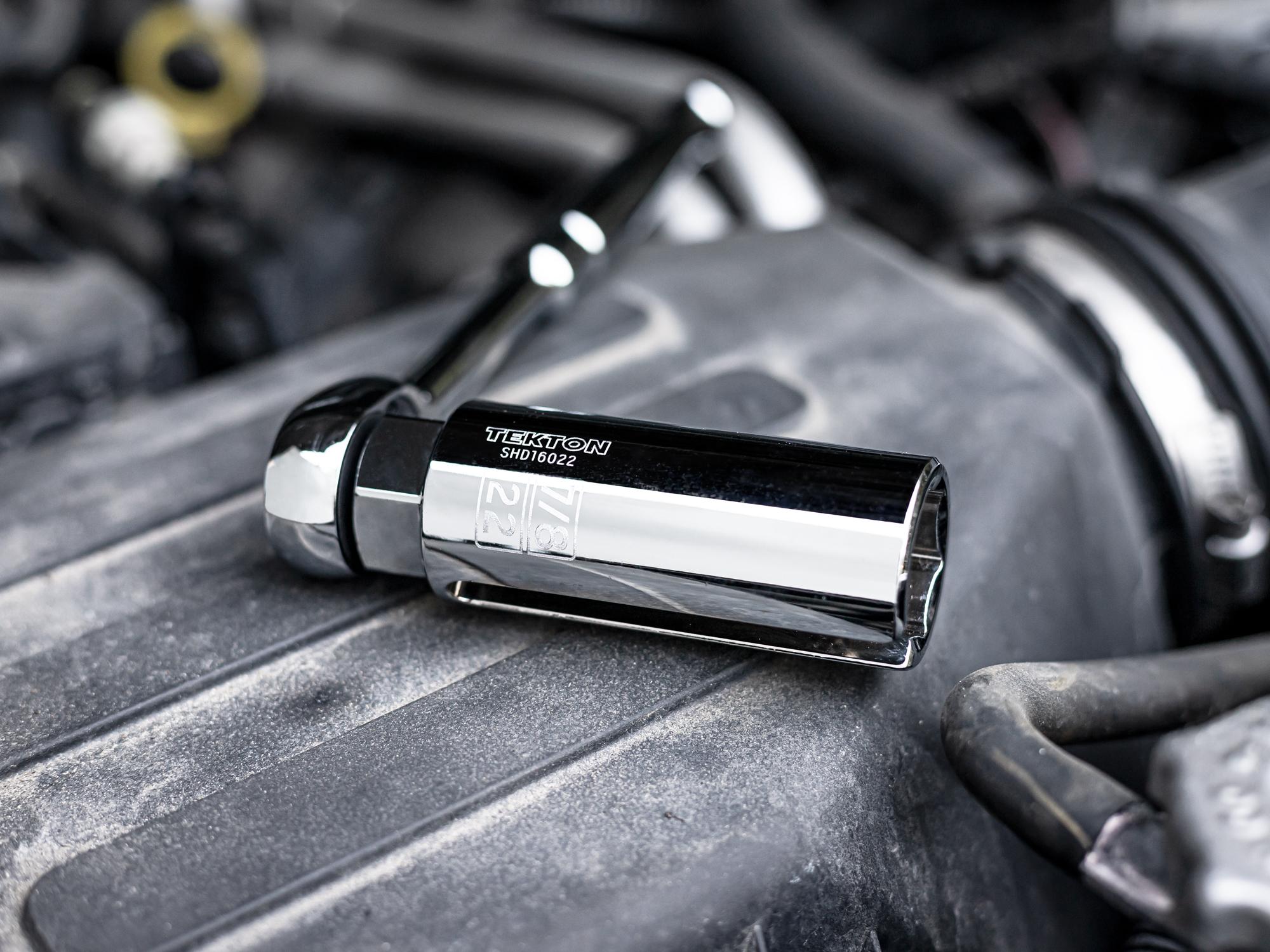

A chrome-plated Tekton oxygen sensor socket (Item #SHD16022) on a ratchet sitting on an engine.
Tap image to zoom in
Item #SHD16022
3/8 Inch Drive
Deep
6‑Point
IN

7/8 Inch Oxygen Sensor Socket

•
$14.00
Add to Cart

Also Available:

3/8 Inch Drive x 7/8 Inch Flare Nut Crowfoot Wrench

DetailsSpecifications

Details

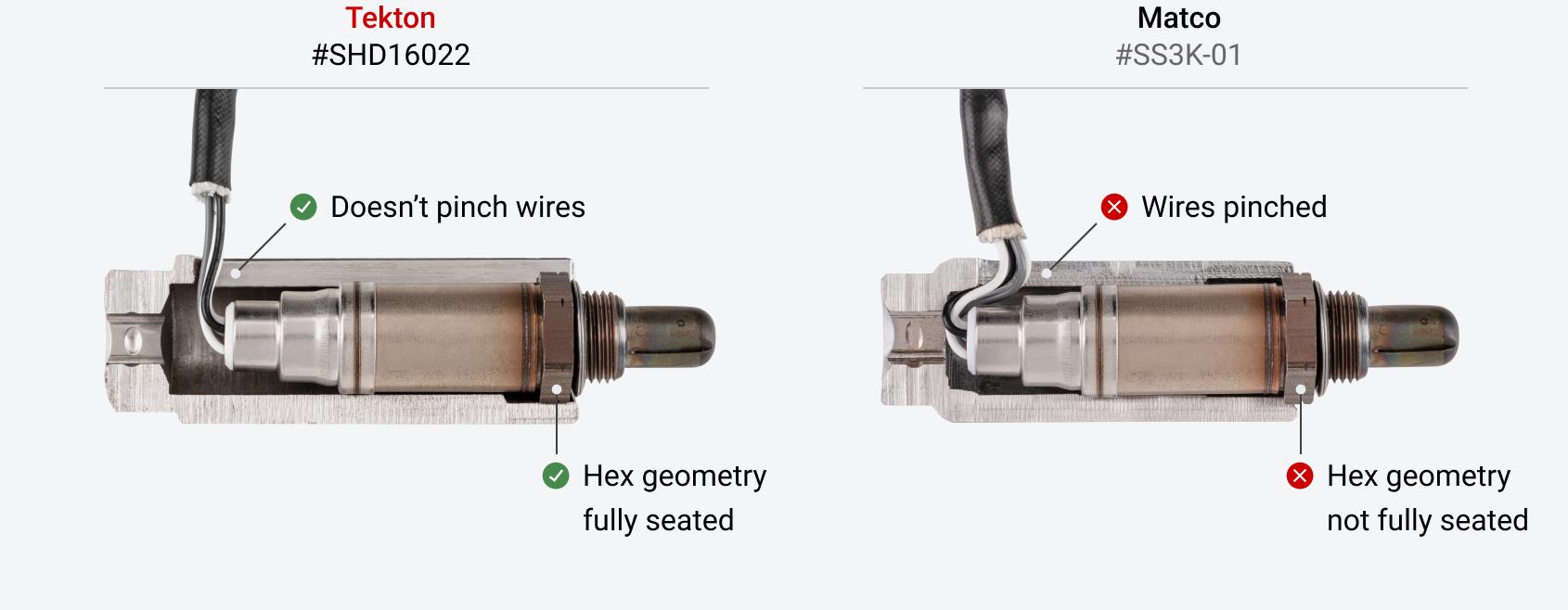

Comparison of the slot depth between the Tekton oxygen sensor socket and a Matco oxygen sensor socket

Deeper Slot Depth

We optimized our oxygen sensor sockets for wire clearance by adding more depth to the slot.
The extended slot depth doesn't pinch wires and allows the hex geometry to be fully seated

Prevents Damage to Wires

Increased socket slot and well depth keep the sensor’s wires from getting pinched or damaged.

Fits Most Oxygen Sensors

The internal bore and wire slot were designed to accommodate the vast majority of oxygen sensor styles encountered today.
Close-up of the 6-point end of the socket

6 Points of Engagement

Provides an exact fit and maximum contact with oxygen sensors.
Graphic showing how the radiused corners on an oxygen sensor socket apply force to the flat sides of an oxygen sensor socket

Radiused Corners Prevent Round-Off

Radiused corners prevent damage to oxygen sensors by applying force to the flat sides, rather than the corners.
Close-up image of the size markings

Clear Markings

The size numbers are deeply laser engraved with a textured finish to create a contrasted, easy-to-read marking. The engraving takes place before the socket is chrome-plated for added corrosion resistance.
The drive end of an oxygen sensor socket

Materials and Finish

The oxygen sensor socket is made from 50BV30 chromium-vanadium steel and hardened to 41 - 49 HRC for strength and durability. The socket is protected against corrosion with chrome plating on the outside and chrome plating supplemented with a clear coat or painted finish where needed for full coverage on the inside.

Specifications

3/8 Inch Drive x 7/8 Inch Deep 6-Point Oxygen Sensor Socket

Specs for 3/8 Inch Drive x 7/8 Inch Deep 6-Point Oxygen Sensor Socket
Country of Origin
Taiwan
Item Weight
0.66 lb.
