Item #SRH21506
3/8 Inch Drive
Flex

Non-Quick-Release Small Body Ratchet

Standard
6 in.
$43.00
Add to Cart

Details

Graphic comparing the bodies of #SRH21506/#SRH31506 with #SRH21108/#SRH31108

A 3/8 Inch Drive on a 1/4 Inch Drive Body

This small body ratchet uses the same body as our 1/4 inch drive x 6 inch ratchet so that you get the access and agility of a smaller handle and ratchet head in 3/8 inch drive.

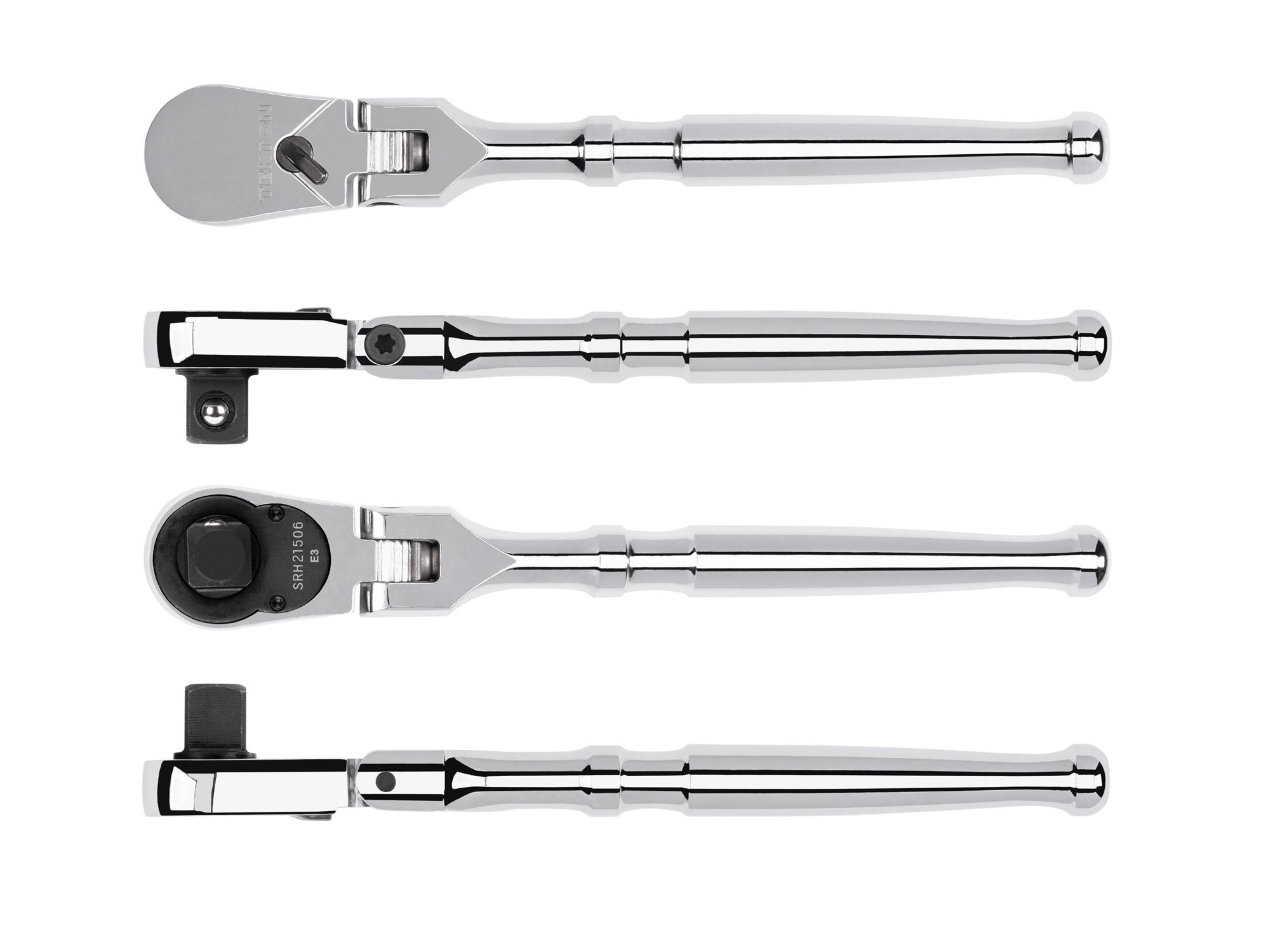

Image comparing the side profiles of #SRH21506 to #SRH21108

Smaller Ratchet Head Improves Access

Chart comparing the proof torque of a 3/8 inch drive small body ratchet to a 1/4 inch drive ratchet and 3/8 inch drive ratchet

Performs Like a 1/4 Inch Drive Ratchet

A non-quick-release flex head ratchet with a graphic showing the 9 positions

180º Flex, 9 Positions

The flex head sweeps through 180 degrees, snapping to nine different detent angles to reach around obstacles. A spring-actuated pawl engages with well-defined teeth to hold the head in position.

90-Tooth Gear = 4º Swing Arc

The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.
Close-up image of the handle of the ratchet

Sleek, Comfortable Handle

The finger groove has pronounced interior edges for traction and control for any finger placement. The pommel at the end of the handle keeps your hand from slipping off and is rounded for comfort.
Graphic showing the working length is measured from the center of the drive tang to the end of the handle

Working Handle Length

We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.
The ratchet head taken apart, with different parts labeled

Parts and Assembly


Specifications

3/8 Inch Drive x 6 Inch Flex Head Non-Quick-Release Small Body Ratchet

Specs for 3/8 Inch Drive x 6 Inch Flex Head  Non-Quick-Release Small Body Ratchet
Country of Origin
Taiwan
Item Weight
0.36 lb.
