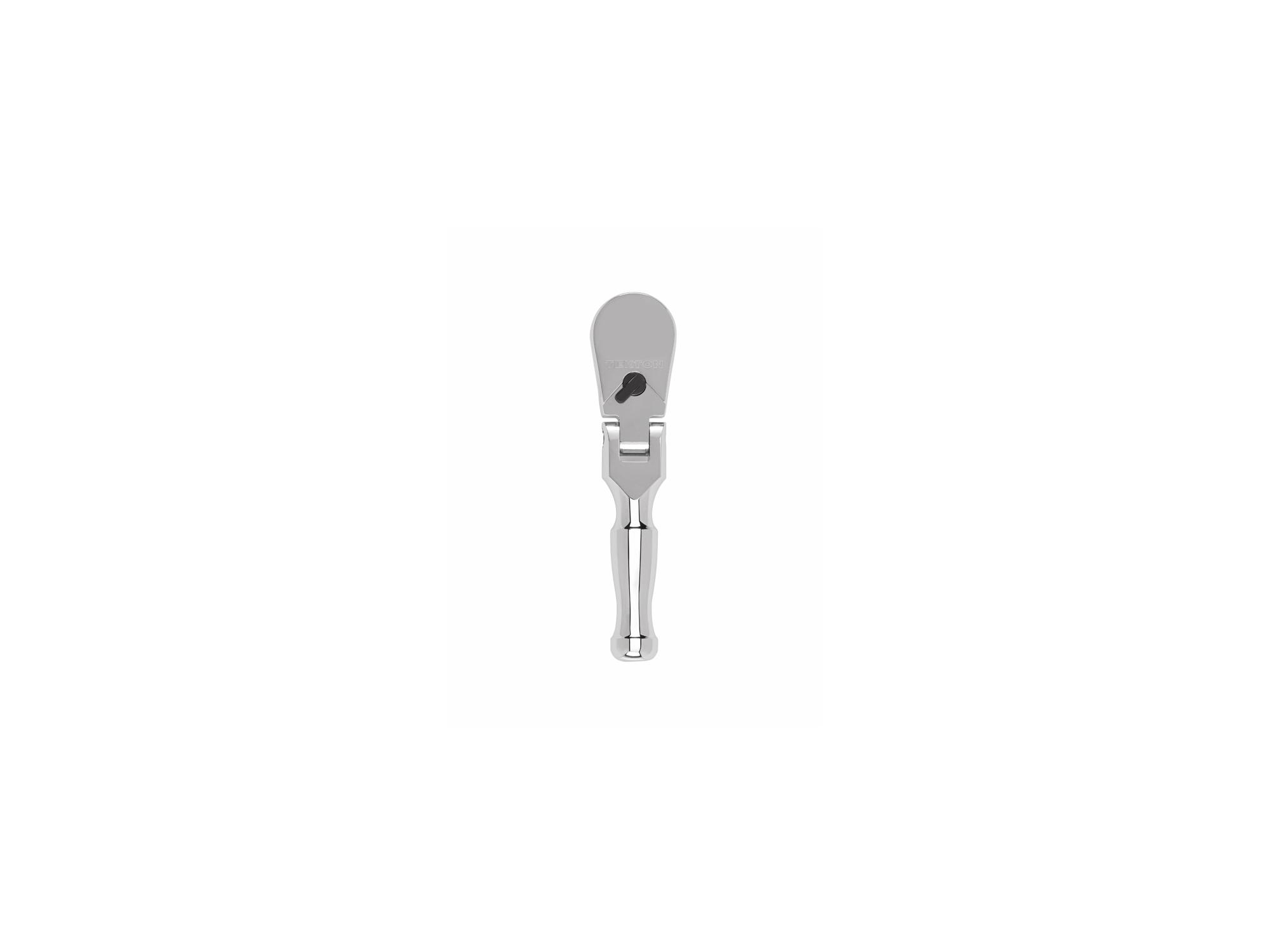

TEKTON 3/8 Inch Drive x 4-1/2 Inch Flex Head Non-Quick-Release Stubby Ratchet

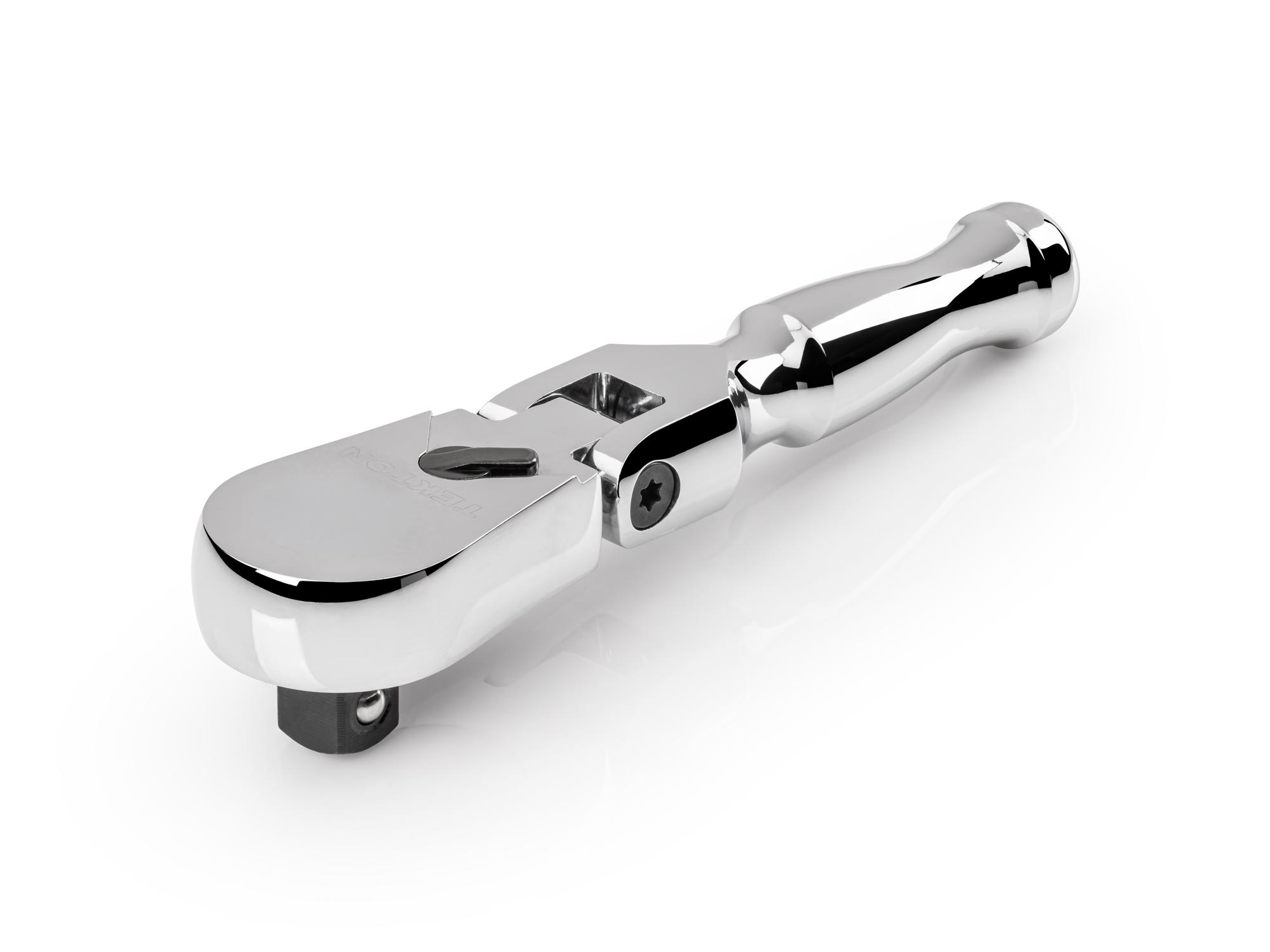

Front-right angle view of Tekton 4.5 inch ratchet. Item #SRH26104

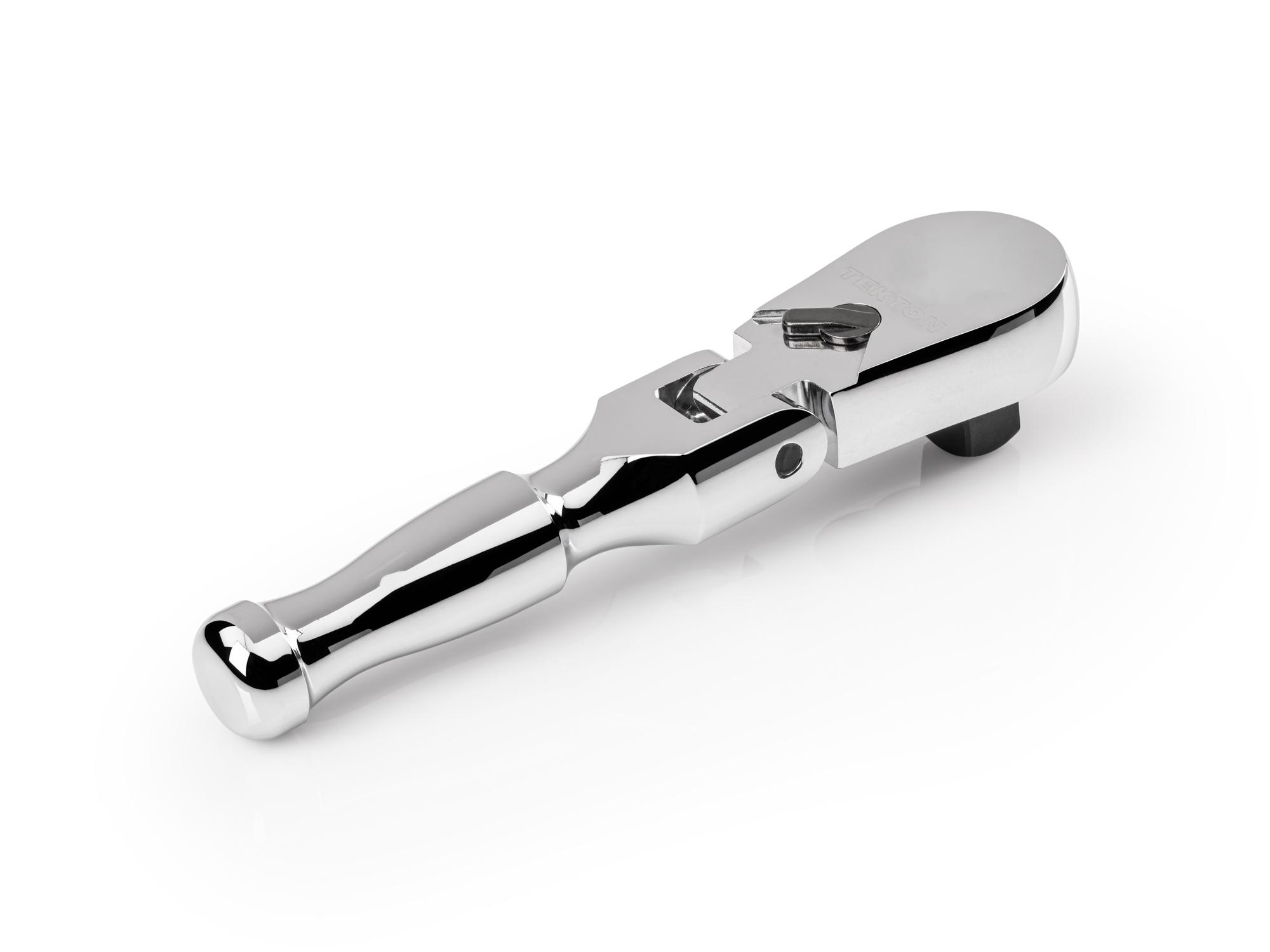

Back angle view of Tekton 4.5 inch ratchet. Item #SRH26104

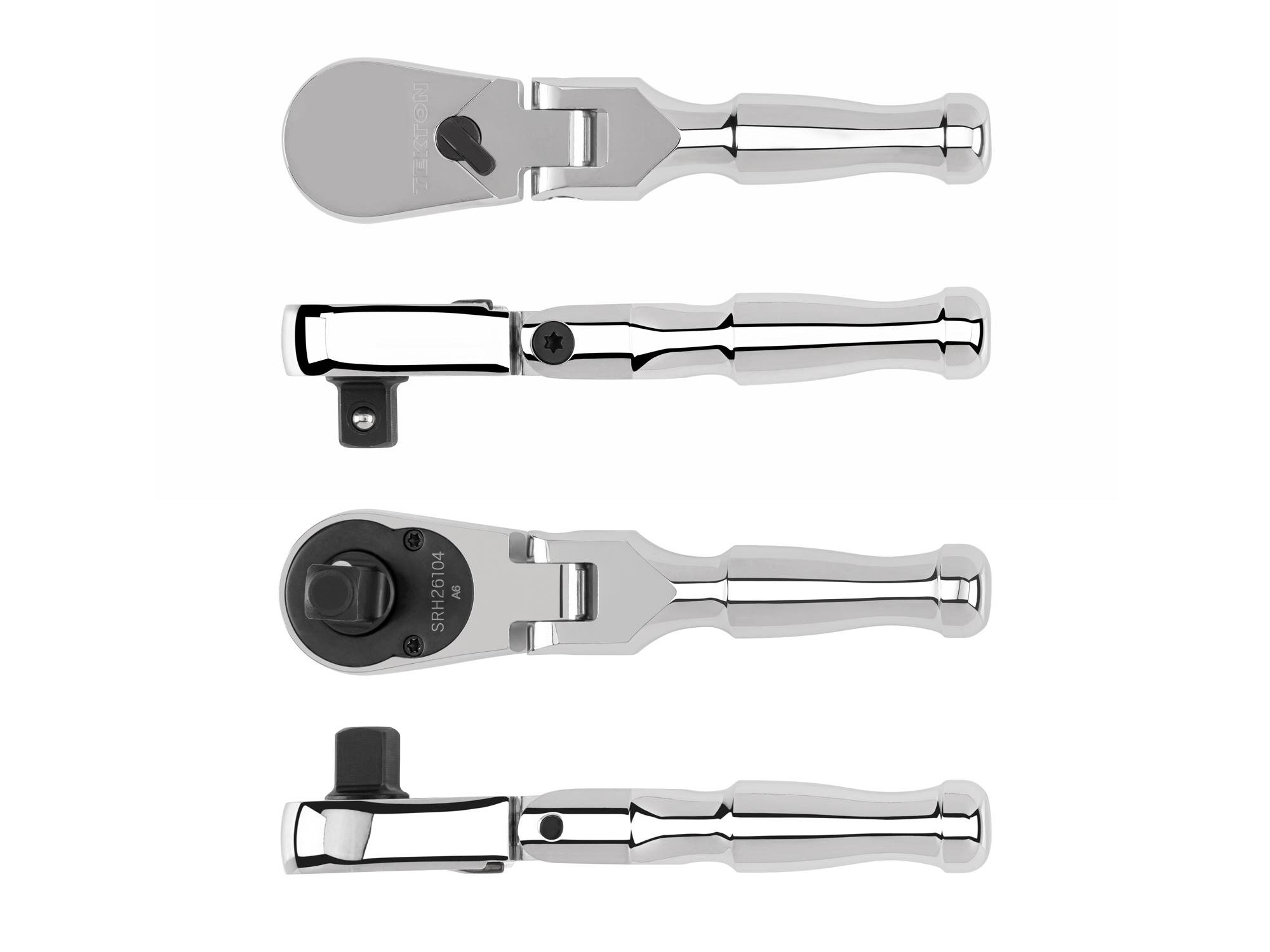

Side view of Tekton 4.5 inch ratchet. Item #SRH26104

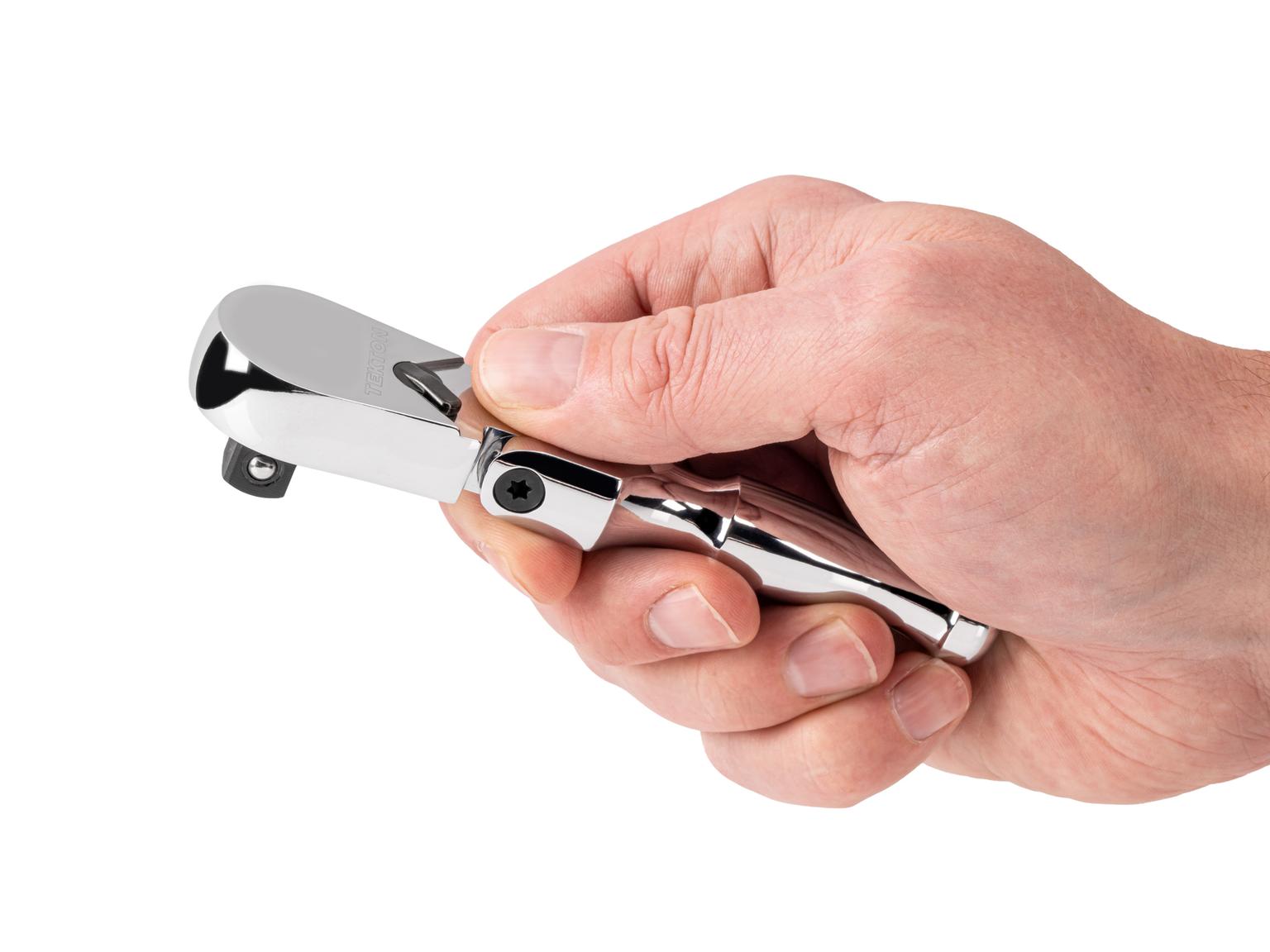

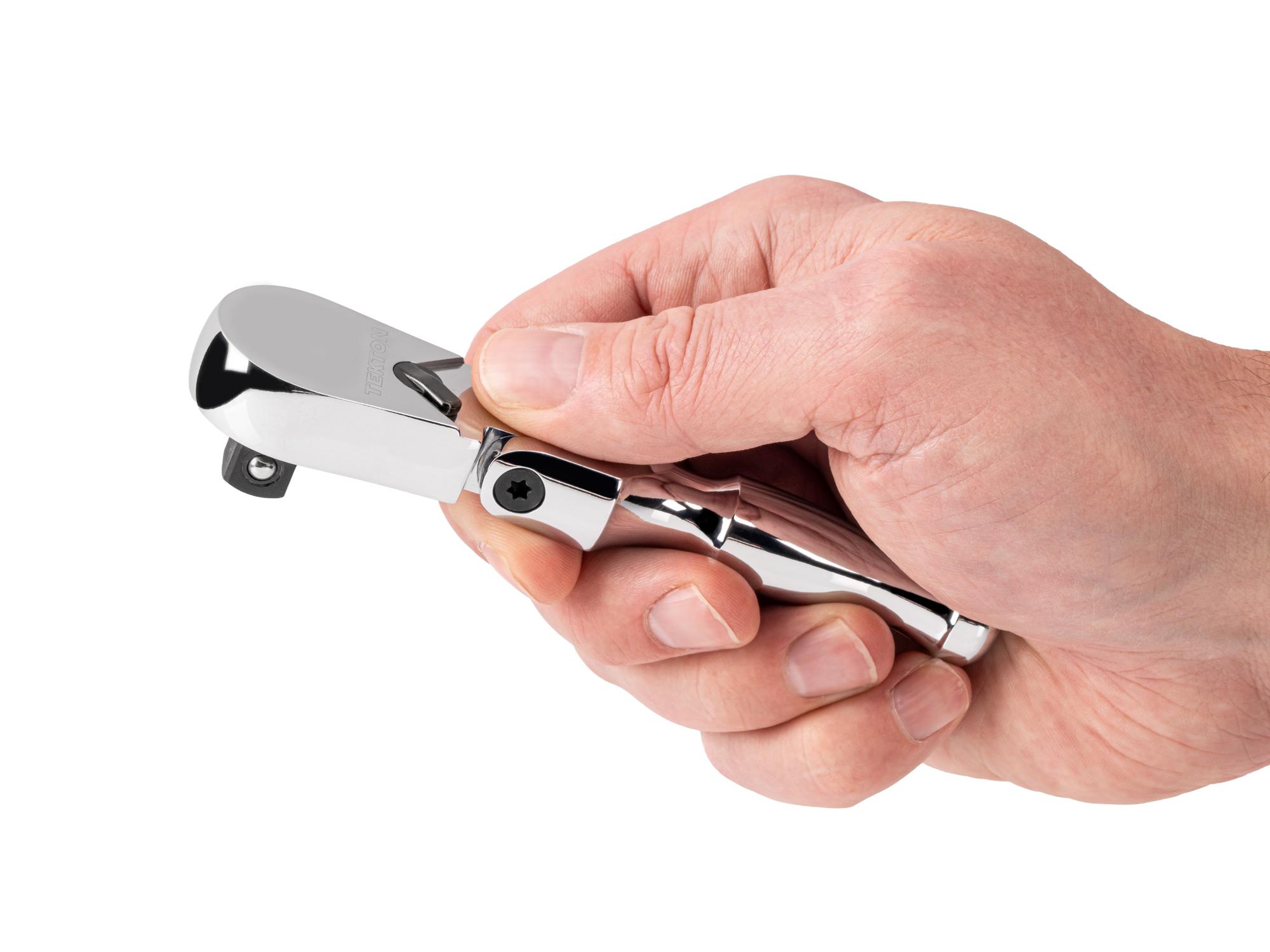

Person holding Tekton 4.5 inch ratchet. Item #SRH26104
Tap image to zoom in
Item #SRH26104

3/8 Inch Drive x 4-1/2 Inch Flex Head Non-Quick-Release Stubby Ratchet

•

Ratchet Release Type

Non-Quick-Release
$40
Quick-Release
$40
$40.00
Add to Cart
DetailsSpecifications

Details

Video Overview

This compact 3/8 inch drive ratchet fits where others can't. The slim head flexes a full 180 degrees with smooth tension that holds wherever you set it.
The ratchet head has 180-degree flex with no fixed positions

Controlled Tension Flex Joint

The non-locking joint gives the head a continuous 180-degree range of motion. It has just the right amount of tension to hold any position without flopping over.

90-Tooth Gear = 4º Swing Arc

The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.
Graphic showing the reduced dimensions of a Tekton ratchet head

Ultra-Compact Head


Unlike conventional "low profile" designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

Proof Torque

Our ratchets meet (and most far exceed) the industry standard for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 2 Handles, Ratchet, Reversible.” ASME B107.110-2019.

Working Handle Length

We name our ratchets and breaker bars according to their effective working length, which is measured from the center of the drive tang to the end of the handle.
A 3/8 inch drive stubby ratchet being held

Sleek, Stubby Handle

The handle is kept as short as possible while still providing meaningful leverage in tight spaces. A defined finger groove provides control, and the flared end helps keep your grip secure.
The internals of a non-quick-release ratchet with each part labeled.

Parts and Assembly


The ratchet head internals are serviceable.

Shop Service Kit


A. Screws

B. Cover Plate

C. Washer

D. Detent Ball

E. Gear/Tang

F. Head

G. Pawl

H. Switch Pin

I. Switch Pin Spring

J. Switch

K. Switch Ball

L. Switch Spring

M. Washer

N. Pivot Pin

O. Handle

Specifications

3/8 Inch Drive x 4-1/2 Inch Flex Head Non-Quick-Release Stubby Ratchet

Specs for 3/8 Inch Drive x 4-1/2 Inch Flex Head Non-Quick-Release Stubby Ratchet
Country of Origin
Taiwan
Item Weight
0.49 lb.
